Product Type	High Pressure Washer
Brand	Hamron
Model	220-119
Rated Voltage	220–240 VAC, 50 Hz
Power Output	1800 W
Safety Class	II (Double Insulated)
Protection Rating	IPX5
Rated Pressure	100 bar
Maximum Pressure	140 bar
Rated Flow	6.67 L/min
Maximum Flow	7.2 L/min
Maximum Inlet Pressure	7 bar
Maximum Inlet Water Temperature	60 °C
Operating Temperature Range	0–40 °C
Weight	12.5 kg
Sound Power Level (LWA)	90 dB(A) (guaranteed 92 dB(A))
Sound Pressure Level (LpA)	77 dB(A), K=3 dB
Vibration Level	≤ 2.5 m/s²
Hose Length (High Pressure)	Not specified (typically 8–10 m)
Power Cord Length	Not specified (typically 5 m)
Nozzle Type	Adjustable (High/Low Pressure)
Detergent System	Integrated container with injection hose
Safety Devices	Overpressure valve, trigger lock, motor overheating protection
Included Accessories	Spray gun, high-pressure hose, nozzle, cleaning tool, detergent container
Intended Use	Household cleaning of vehicles, machines, buildings

Frequently Asked Questions - 220-119 Hamron

What is the maximum pressure of the Hamron 220-119 pressure washer?

The maximum pressure is 140 bar (2000 psi).

Can I use hot water with this pressure washer?

Yes, but the inlet water temperature must not exceed 60 °C. Higher temperatures can damage the pump.

What is the power consumption of the Hamron 220-119?

The power consumption is 1800 W at 220–240 V, 50 Hz.

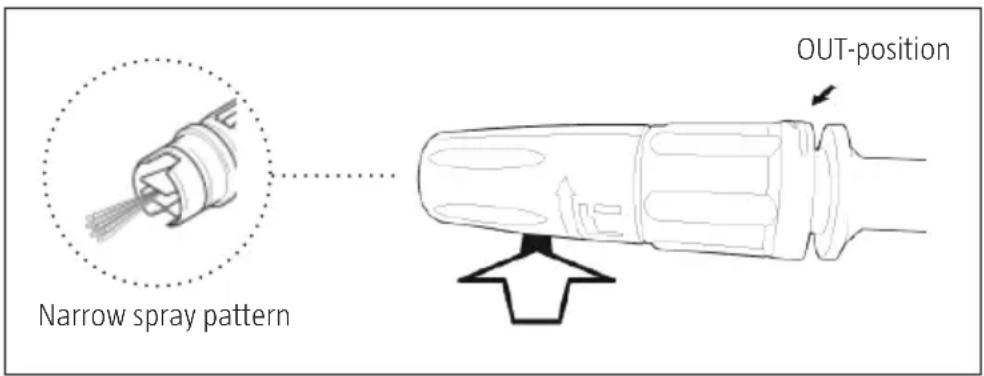

How do I use the low pressure mode for detergent?

Turn the nozzle anticlockwise to the OUT-position for low pressure. Use a narrow spray pattern to fully open the nozzle. Fill the detergent container with the correct mixture and apply to dry surfaces from bottom up, then rinse.

What should I do if the pressure washer starts and stops without pressing the trigger?

This indicates a leak in the pump or spray gun. Contact your authorized dealer for service.

Can I use an extension cord?

Yes, but it must be waterproof and have a sufficient cross-section: 1.0 mm² up to 12.5 m, 1.5 mm² up to 20 m, 2.5 mm² up to 30 m. Keep connections dry and off the ground.

How do I store the pressure washer in winter?

Switch off, disconnect water, drain by pressing trigger, lock trigger catch. Flush with non-corrosive antifreeze before storage. Before reuse, flush with clean water.

What safety devices does the Hamron 220-119 have?

It has an overpressure valve, a trigger lock on the spray gun, and motor overheating protection that resets after cooling.

What is the recommended maintenance interval?

Clean the suction and injection filter every 50 working hours. Also clean the nozzle with the supplied tool as needed.

Is this pressure washer suitable for drinking water supply?

No. Water passed through the check valve is not suitable for drinking. It must only be connected to municipal water if a suitable check valve is installed.

USER MANUAL 220-119 Hamron

Green and black power tool with attached cleaning board, no visible text or symbols

EN - Operating instructions in original © Jula AB

SVENSKA....6

SÄKERHETSANVISNINGAR....6

SYMBOLER 6

VIKTIGA SÄKERHETSANVISNINGAR 7

NÄTANSLUTNING....9

SÄKERHETSANORDNINGAR....9

TEKNISKA DATA 9

BESKRIVNING 10

ANVÄNDNINGSOMRÅDE....10

DELAR 10

MONTERING 11

HANDHAVANDE 12

ANVÄNDNING....13

SAFETY INSTRUCTIONS 45

SYMBOLS 45

IMPORTANT SAFETY INSTRUCTIONS....46

MAINS CONNECTION 48

SAFETY DEVICES 48

TECHNICAL DATA 48

DESCRIPTION 49

APPLICATIONS. 49

PARTS 49

ASSEMBLY 50

USE....51

USE 52

USING ACCESSORIES....53

High pressure mode....53

Low pressure mode 54

MAINTENANCE 55

TROUBLESHOOTING 56

TROUBLESHOOTING CHART 56

Two black-and-white illustrations of a person cleaning a cart using a power tool (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with an inset showing the same tool (no text or symbols present)

Line drawing of a handgun with a hand holding a wrench, no text or symbols present

Technical line drawing of a tractor's wheel assembly with no visible text or symbols

Technical line drawing of a mechanical component with a faucet and valve (no text or symbols)

Line drawing of a person standing near a curved structure with no visible text or symbols

Illustration of a syringe with a hand inserting a spring into the neck (no text or symbols)

Two black-and-white illustrations of a person using a manual pump gun, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component, with an inset showing the same tool (no text or symbols present)

Line drawing of a handgun with a hand holding a grip, no text or symbols present

Technical line drawing of a tractor with attached tool and wheel (no text or symbols)

Technical line drawing of a mechanical component with a faucet and valve (no text or symbols)

Line drawing of a person standing near a curved structure with windows and panels (no text or symbols)

Illustration of a syringe with a hand inserting a spring into the tube (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Verne om miljøet!

Two black-and-white illustrations of a person using a manual pump gun and a cart, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component, with an inset showing the same tool (no text or symbols present)

Line drawing of a handgun with a hand holding a wrench, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical component with a faucet and valve (no text or symbols)

Line drawing of a person standing near a curved structure with windows and panels (no text or symbols)

Illustration of a hand inserting a spring into a cylindrical device with arrows indicating force direction (no text or symbols)

Read the User Instructions carefully before use.

Save these instructions for future reference.

SYMBOLS

The following symbols are used in the manual and/or on the machine.

SYMBOL DESIGNATION	EXPLANATION
	Read the User Instructions	Read these instructions carefully before use, and save them for future reference.
	DANGER:	Indicates an immediately dangerous situation that could lead to fatal or serious personal injury if the instructions are not followed.
	WARNING:	Indicates a potentially dangerous situation that could lead to fatal or serious personal injury if the instructions are not followed.
	IMPORTANT:	Indicates a potentially dangerous situation that could lead to minor personal injury and/or material damage if the instructions are not followed.
(without symbol)	IMPORTANT:	(without symbol) Indicates a potentially dangerous situation that could lead to minor personal injury and/or material damage if the instructions are not followed.
	IMPORTANT:	Indicates a potentially dangerous situation that could lead to material damage if the instructions are not followed.
	NOTE:	Indicates tips and instructions that simplify the work and ensure safe use.
	Waste disposal	Recycle products that have reached the end of their useful life according to local regulations.
	Wear safety glasses Wear safety glasses.
	Equipment, class II Double insulation.
	Keep onlookers at a safe distance	Keep onlookers at least 15 metres from the work area.
	High-pressure jets can be dangerous if they are not used properly.	High-pressure jets can be dangerous if they are not used properly. Do not point the jet at persons or animals, at live electrical equipment, at the high-pressure washer unit, or towards yourself, e.g. to clean your clothes or shoes.
	Avoid the risk of electric shock	Unplug the power cord from the mains immediately if the cord gets damaged.
	Sound power level L_WA	Measured sound power level: 90 dB(A)
	Electrical safety Electrical safety
	The machine is not suitable for connection to the drinking water supply.	This high-pressure washer must only be connected to the municipal water conduit system if a suitable check valve is installed.
	Hot surface Hot surface. Do not touch!

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

• The machine is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the machine from someone who is responsible for their safety. Keep children under supervision to make sure they do not play with the machine.
• Check that none of the parts are damaged before use. Do not use the machine if it is damaged. Contact your dealer.

• Read these instructions carefully before use.

• Electrical connections must only be carried out by an authorised electrician. Electrical connections must comply with IEC60364-1.

• The machine must be connected to the mains supply with a residual current device with a maximum tripping current of 30mA .

• Only use chemicals recommended by the manufacturer. The use of other chemicals can put safety at risk.

• Do not use the machine near other persons who are not wearing safety clothing.

- High-pressure jets can be dangerous if they are not used properly. Do not point the jet at persons or animals, at live electrical equipment, or at the high-pressure washer unit.

- Do not point the jet at yourself or any other person, e.g. to clean clothes or shoes.

- Never spray flammable liquids – risk of explosion.

• Always unplug the power cord before maintenance and/or servicing.

- Never allow children, or anyone who is unfamiliar with the machine and these instructions, to use it.

- Only use spare parts and accessories recommended by the manufacturer.

• Water that has passed the check valve is not suitable for drinking water.

- Switch off the machine and unplug the power cord before cleaning and/or maintenance.

- High-pressure hoses, fittings and couplings are very important parts for the safe use of the machine. Only use hoses, fittings and couplings recommended by the manufacturer.

- Do not use the machine if the power cord or any other important parts, e.g. safety devices, high-pressure hoses and the trigger handle, are damaged.

- An extension cord must be waterproof.

- Unsuitable extension cords can cause a fire and/or electric shock.

- Do not use the machine at temperatures below 0^ C .

• Always pull out the complete extension cord.

- An extension cord must be waterproof.

- Unsuitable extension cords can cause a fire and/or electric shock.

- An extension cord must comply with the following requirements concerning its cross sectional area and length.

-1.0 mm ^2 max 12.5 m

-1.5 mm ^2 max 20 m

-2.5 mm ^4 max 30 m

- Keep power cord connections dry and above ground.

- A damaged power cord must be replaced by an authorised service centre, or qualified person, to ensure safe use.

- Place the machine on a level, stable surface when in use and during handling, transport and storage. If the machine tips over or drops it can cause personal injury.

- Switch off the machine immediately in the event of problems or malfunctioning. In the event of contact with chemicals, switch off the machine immediately and rinse with lots of water.

WARNING: ELECTRICAL SAFETY: An incorrectly connected earthed plug can result in electric shock. Consult an electrician or qualified technician if you have any questions about electrical connections or earthing. Never modify the plug in any way. If the plug does not fit the mains socket, contact an authorised electrician to install an earthed mains socket.

IMPORTANT:

• When starting the machine there may be a temporary voltage drop in the mains supply, which could affect other equipment. Such interference does not normally occur if the impedance in the mains supply Zmax is less than 0.335 ohm. You may need to contact your electricity supplier for more information.
• Check the power cord. A damaged power cord must be replaced by an authorised service centre, or qualified person, to ensure safe use.
• Do not use contaminated water. Fit an extra filter if there is a risk of getting sand in the incoming water (e.g. from your own well). Wear a suitable filter.

MAINS CONNECTION

- The following items should be taken into consideration during the electrical installation.

• Electrical installations must be carried out by an authorised electrician. Electrical installations must comply with IEC-364.
• The machine must be connected to the mains supply with a residual current device with a maximum tripping current of 30mA .

SAFETY DEVICES

• The machine is equipped with an overpressure valve. The spray gun has a trigger lock.
• The motor is equipped with overheating protection. The machine starts again after a few minutes, when it has cooled.

TECHNICAL DATA

Rated voltage: 220–240 VAC, 50 Hz

Output: 1800 W

Safety class: II

Protection rating: IPX5

Rated pressure: 100 bar

Max pressure: 140 bar

Rated flow: 6.67 l/min

Max flow: 7.2 l/min

Operating temperature: 0–40°C

Max inlet pressure: 7 bar

Weight: 12.5 kg

Sound pressure level, L_nA 77 dB(A), K=3 dB

Measured sound power level, L_wA 90 dB(A), K=3 dB

Guaranteed sound power level, L_WA 92 dB(A)

Vibration level: does not exceed 2.5 m/s ^4

Always wear ear protection.

DESCRIPTION

APPLICATIONS

The machine is intended to be used to clean vehicles, machines and buildings etc. The machine is only intended for household use.

PARTS

1. Wheel
2. Water inlet
3. Nozzle
4. High-pressure hose

5. Spray gun

6. Power switch

7. Injection switch
8. Power cord
9. Water outlet
10. Rating plate

1. Chemicals container
2. Warning label
3. Trigger
4. Trigger catch

ASSEMBLY

Two black-and-white illustrations showing a person cleaning a machine, with no text or symbols present.

Place the machine on a level, stable surface when in use as close to the water supply as possible.

Illustration of hands using a tool to adjust a mechanical component, with an inset showing the close-up of the component (no text or symbols present)

Fit the spray head in the spray gun and twist to lock in place.

Line drawing of a handgun with a hand adjusting its grip (no text or symbols)

Connect the spray gun to the high-pressure hose.

Technical line drawing of a tractor's front wheel assembly (no text or symbols)

Connect the high-pressure hose to the water outlet on the machine.

Technical line drawing of a mechanical component with a faucet and valve (no text or symbols)

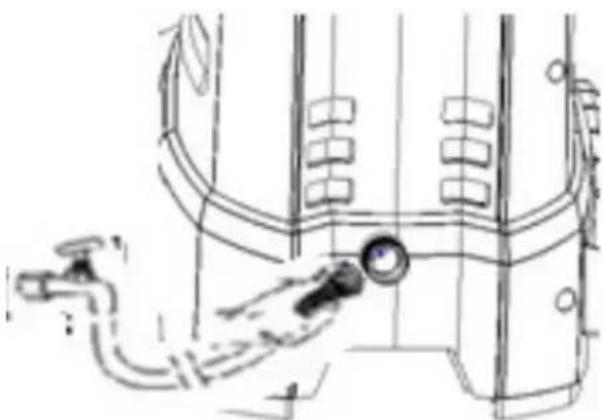

Connect the female coupling on the water hose to the water inlet on the machine.

• The length of the hose between the check valve and high-pressure washer should be at least 10 metres to dampen any pressure surges.
  • The minimum hose dimension is 1/2" (13 mm).
  • The hose must be reinforced.
• The incoming water flow must be at least the same as the maximum flow for the machine.
• This high-pressure washer must only be connected to the municipal water conduit system if a suitable check valve is installed.

WARNING: The temperature of the inlet water must not be more than 60^ C. The inlet pressure of the water must not exceed 7 bar.

IMPORTANT: Only use the machine with clean water. Unfiltered water, or water with corrosive chemicals, can damage the machine.

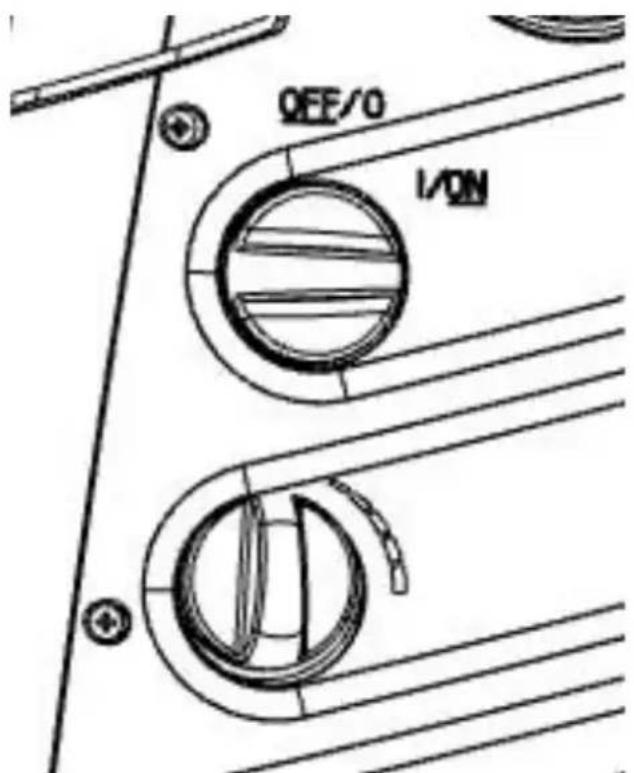

Set the power switch in the OFF position.

• Check that the mains voltage corresponds to the rated voltage on the type plate.
• Plug in the power cord.

USE

• Never use the machine in explosive environments, for example, in the vicinity of flammable liquids, gases or dust.

• Operating temperature: 0 to 40^ C .

• The motor and pump on the machine are installed in an impact resistant casing. The machine has an ergonomic spray gun and spray head, which comply with the requirements in the applicable regulations.

• Never modify the spray head or nozzles in any way, or cover them over.
• The machine is intended to be used with water at a maximum temperature of 60^ C. Higher temperatures can damage the machine.
• Only use water that is free from sand, chemicals and other impurities. Impurities can reduce functionality and shorten the useful life of the machine.

USE

- Open the water cock fully.

Release the safety catch for the trigger and press the trigger for a few seconds to vent and relieve the pressure in the hose.

Keep the trigger pressed and press the power switch to start the motor.

• Always keep the trigger pressed when starting the motor.
- Apply chemicals on dry surfaces with a broad spray pattern. Work from below and up on vertical surfaces. Allow it to act for a few minutes, but do not let it dry.
• Make sure that there is no water running on surfaces that should not be wet.

NOTE: The motor only works when the trigger is pressed.

USING ACCESSORIES

WARNING! Do not adjust the nozzle when the trigger is pressed.

NB

• The motor only works when the trigger is pressed.
  • Under no circumstances use the high-pressure washer in potentially explosive environments!
• The usage temperature must be between 0 and +40^ .
• The high-pressure washer consists of a unit with a pump which is enclosed in an impact-resistant casing. For optimum working position, the high-pressure washer is supplied with a water-jet pipe with a non-slip handle, the form and use of which complies with applicable rules.
• Do not cover over or modify the water-jet pipe or spray nozzle in any way.
• The high-pressure washer is designed for use with cold or warm water (max. 60°C); higher temperatures can damage the pump.
• Do not use water that is dirty or that contains sand or chemicals, as this can have a negative effect on usage and shorten the high-pressure washer's service life.
• The adjustable spray nozzle has two modes, high pressure and low pressure, which are adjusted on the nozzle.
• Low pressure should be used in conjunction with cleaning agent.

HIGH PRESSURE MODE

The nozzle must be set at IN-position for high-pressure jets.

1. Turn the nozzle clockwise as far as it will go until there is no distance between the nozzle and the base for high pressure mode/IN-position.
2. Turn the top of the nozzle clockwise or anticlockwise to obtain the required spray pattern.

LOW PRESSURE MODE

The nozzle must be set at OUT-position for low pressure jets. Low pressure mode must always be used in conjunction with cleaning agent.

1. Turn the nozzle anticlockwise as far as it will go so that the distance between the nozzle and the base is as large as possible.
2. In low pressure mode, turn the top of the nozzle clockwise to fully open the nozzle.

Low pressure mode with cleaning agent

NB The spray nozzle must be set at a narrow spray pattern, so that the metal blades at the very end of the nozzle are fully open and the jets are not restricted.

1. When used with cleaning agent, the container must be filled with the correct mixture of water and cleaning agent according to the instructions on the container (Figure 6). The container is supplied with a hose which is fitted on the screw cap (Figure 7).

- To remove the cleaning agent container, first take off the cap and then pull the container upward and outward with one finger.

1. Dissolve dirt by applying cleaning agent with the jet set at a wide spray pattern against the dry surface. Work from below and upward on vertical surfaces.
2. Allow the cleaning agent to act for 1 to 2 minutes, but do not let it dry.
3. Rinse off the cleaning agent from the surface from the bottom up

MAINTENANCE

IMPORTANT: Switch off the machine and unplug the power cord before cleaning and/or maintenance.

Line drawing of a person standing near a curved structure with windows and panels (no text or symbols)

Clean the suction and injection filter at intervals of 50 working hours.

Illustration of a syringe with a hand inserting a spring into the neck (no text or symbols)

Clean the nozzle with the supplied tool. Remove the head from the spray gun, clean the hole and rinse.

STORAGE

• Switch off the machine.
• Turn off the water cock.
  • Empty the chemicals container.
• Relieve the pressure in the machine by keeping the trigger pressed until no water comes out of the nozzle.
• Lock the trigger catch.
• Unplug the power cord.
• Treat the machine with non-corrosive, non-toxic antifreeze before putting into winter storage.

IMPORTANT: Flush the machine with clean water before using it again. Antifreeze can damage washed surfaces.

TROUBLESHOOTING

• Switch off the machine and unplug the power cord before maintenance and/or inspection.
• Check the following points before contacting your dealer for a service.

TROUBLESHOOTING CHART

PROBLEM POSSIBLE CAUSE ACTION

Machine will not start	The power cord is not plugged in.	⇒	Plug in the power cord.
	The mains outlet is not supplied with voltage.	⇒	Try another mains outlet.
	The fuse has tripped.	⇒	Switch off any other appliances connected to the same circuit, and replace the fuse.
	The extension cord is defective.	⇒	Try with another extension cord.
The pressure fluctuates	The pump sucks air.	⇒	Check that hoses and connections are airtight.
	The valves are clogged, worn or have stuck.	⇒	Clean and replace, or contact your dealer.
	The pump seals are worn.	⇒	Clean and replace, or contact your dealer.
The machine stops	The fuse has tripped.	⇒	Switch off any other appliances connected to the same circuit, and replace the fuse.
	Incorrect mains voltage.	⇒	Check that the mains voltage corresponds to the rated voltage on the type plate.
	The overheating protection has tripped.	⇒	Allow the machine to cool for 5 minutes.
	The nozzle is partially blocked.	⇒	Clean the nozzle.
The fuse trips Fuse is too weak.		⇒	Connect the machine to a mains outlet with a suitable fuse for the machine's power consumption. Try using the machine without an extension cord.
Pulsating flow	Air in the inlet hose.	⇒	Press the trigger and allow water to run out until the normal operating pressure is restored.
	The water supply is inadequate.	⇒	Check that the water's inlet pressure is adequate. NOTE: Do not use a hose smaller than 1/2".
	The nozzle is partially blocked.	⇒	Clean the nozzle.
	The water filter is blocked.	⇒	Clean the filter.
	The hose is bent or clenched.	⇒	Straighten out the hose.
The machine starts and stops without pressing the trigger	There is a leak in the pump/spray gun.	→	Contact your dealer.
The machine starts but no water comes out	The pump, hoses and/or accessories are frozen.	→	Allow the pump, hoses and/or accessories to thaw out.
	No water supply.	→	Connect the water supply.
	The water filter is blocked.	→	Clean the filter.
	The nozzle is blocked.	→	Clean the nozzle.

Contact your dealer if you experience a problem that is not included in this troubleshooting guide.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic

components that should be recycled.

Leave the product for recycling at the designated station e.g. the clocal authority's recycling station.

CE

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product

Machinery Directive 2006/42/EC,

EN 60335-1:2002+A1+A2+A11+A12+A13+A14+A15, EN 60335-2-79:2009, EN 62233:2008

Electromagnetic Compatibility 2004/108/EC,

EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2,

EN 61000-3-2:2006+A1+A2, EN 61000-3-3:2008

Noise Emission for Outdoor Equipment 2000/14/EC, amended by 2005/88/EC

RoHS Directive 2011/65/EU

This product was CE marked in year -14

Name and address of the person authorised to compile the technical file:

Viktoria Klaar

Box 363, SE-532 37 Skara, Sweden

Skara 2013-10-23

Tobias Hammer

PRODUCT MANAGER
