QFP60800X - Range hood Husqvarna-Electrolux - Free user manual and instructions

Product Type	Range hood
Brand	Husqvarna-Electrolux
Model	QFP60800X
Suction Speeds	4 (Levels 1, 2, 3, Intensive)
Control Type	Push buttons with LED indicators
Lighting	LED (energy-saving, up to 10x longer life than traditional lamps)
Grease Filter	Metal, washable (in dishwasher or by hand)
Charcoal Filter	Activated charcoal, replaceable every 4 months
Filter Saturation Indicator	Yes, for both grease and charcoal filters
Delayed Switch-off	Yes, programmable (20/15/10/5 minutes depending on speed)
Minimum Distance to Hob	50 cm (electric, gas, or mixed cookers)
Power Supply	220-240 V, 50 Hz
Installation Type	Ducted (external evacuation) or recirculating (with charcoal filter)
Material	Stainless steel
Maintenance	Clean hood and filters at least once a month; use neutral detergent
Safety Features	Auto shut-off when drawer closed (except lights); thermal protection
Spare Parts	Use original spare parts; contact service with model, PNC, serial number
Warranty	Refer to rating plate and local regulations
Energy Efficiency	LED lighting saves 90% energy compared to traditional lamps
Width	60 cm (model designation indicates 60 cm)

Frequently Asked Questions - QFP60800X Husqvarna-Electrolux

How often should I clean the grease filter?

The grease filter should be cleaned at least once a month. You can wash it by hand with a non-aggressive detergent or in a dishwasher on a low-temperature, short cycle.

How often do I need to replace the charcoal filter?

The activated charcoal filter must be replaced every four months. It cannot be washed or regenerated.

How do I reset the filter saturation indicator?

With the hood on (ON), press the button T2 for more than 2 seconds. All LEDs will light up briefly to confirm reset. Repeat if both indicators are active.

How do I activate the charcoal filter saturation warning?

With the hood off (OFF), simultaneously press buttons T3 and T5 for more than 3 seconds. LEDs L3 and L5 will start flashing, indicating activation. Repeat to disable.

What is the minimum distance between the hob and the hood?

The minimum distance is 50 cm for electric cookers and 50 cm for gas or mixed cookers. Always follow the hob manufacturer's instructions if they specify a greater distance.

Can I use the hood without the filters?

No, never use the hood without the filters properly installed. This could cause grease buildup and increase the risk of fire.

What should I do if the LED light stops working?

Do not attempt to replace the LED light yourself. Contact the technical service for replacement. Avoid looking directly into the LED light.

How do I operate the controls if the drawer is closed?

The controls are located on the upper side of the pull-out drawer. Open the drawer to access the buttons. When closed, only the light button (on the underside) works.

How does the delayed switch-off function work?

While the hood is running, press and hold the active speed button for more than 2 seconds. The hood will turn off after a set time: 20 minutes at speed 1, 15 minutes at speed 2, 10 minutes at speed 3, or 5 minutes at intensive speed.

Can I install the hood in recirculation mode?

Yes, the hood can be used in recirculation mode with an activated charcoal filter. The installation manual provides details for both ducted and recirculating versions.

USER MANUAL QFP60800X Husqvarna-Electrolux

Modern kitchen interior with stainless steel appliances and large windows (no visible text or symbols)

BÄSTA KUND FÖR PERFEKT RESULTAT

Line drawing of a hand holding a small object (no text or symbols)

4.2 Aktivt kolfilter

Three-panel illustration showing mechanical components with rotating parts and directional arrows, no text or symbols present.

5. KOMMANDON

Line drawing of a hand holding a small object (no text or symbols)

Illustration of three mechanical components with rotating parts and directional arrows, no text or symbols present

5. KONTROLLER

Line drawing of a hand holding a small object (no text or symbols)

Three-step diagram showing mechanical assembly with pulleys and a lock mechanism (no text or symbols)

5. OHJAIMET

Diagram of a mechanical device with two wheels and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with rotational arrows and a lock icon (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

5. BETJENING

Thank you for choosing this Husqvarna-Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.husqvarna-electrolux.se

Register your product for better service: www.husqvarna-electrolux.se

Buy Accessories, Consumables and Original spare parts for your appliance: www.husqvarna-electrolux.se/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol: Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of

electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

1! SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves during the maintenance, installation and lighting operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation of filtering with

internal recirculation

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

⚠ Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 50cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Line drawing of a hand holding a small object (no text or symbols)

4.2 Activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

Three-step diagram showing mechanical assembly with pulleys and lock mechanism (no text or symbols)

5. CONTROLS

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

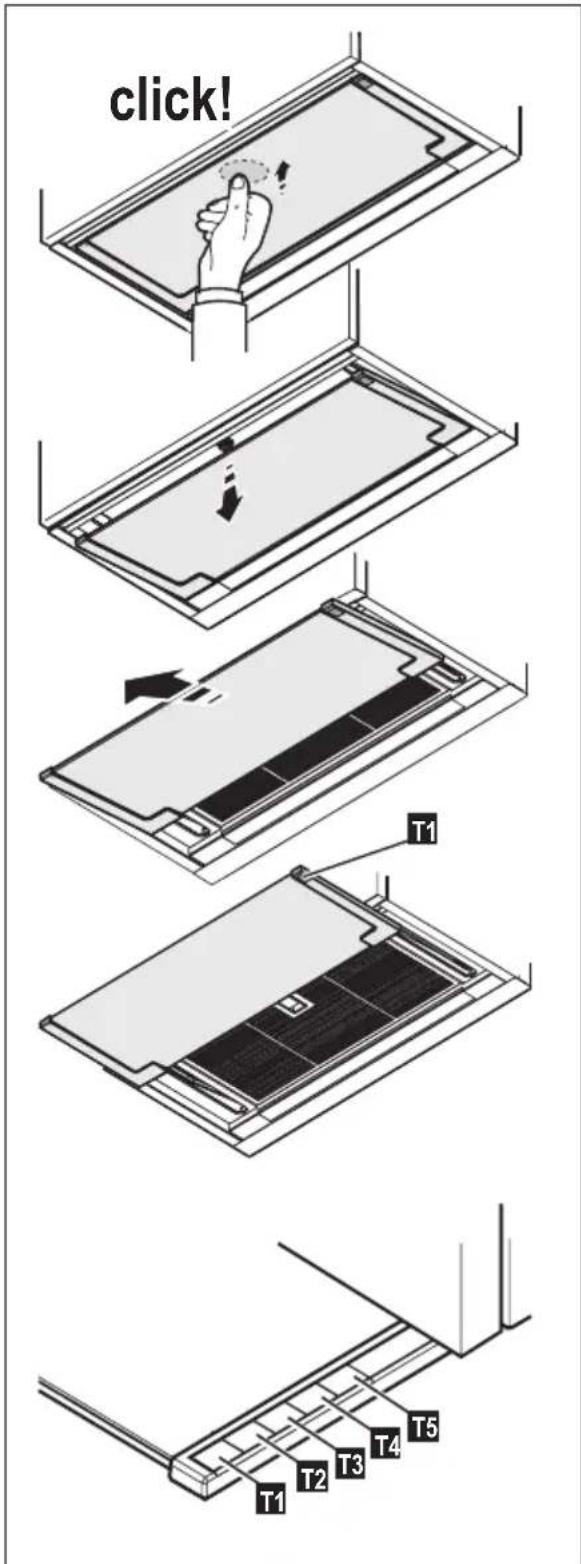

The controls are located on the upper side of the pull-out drawer of the hood.

Open the drawer to access the controls and put the hood on.

When the drawer closed, all hood functions are disabled except for the light, whose button is placed also on the underside of the drawer.

By reopening the drawer, the previous operation mode is restored and you can see the related indicator lights.

T1. Button ON/OFF lights (Led L1 lit)
T2. Button OFF – Selection button suction speed (power) 1 (Led L2 lit)
T3. Selection button suction speed (power) 2 (Led L2+L3 lit)
T4. Selection button suction speed (power) 3 (Led L2+L3+L4 liti)
T5. Selection button intensive suction speed (power) (Led L2+L3+L4 lit + Led L5 flashing) - duration 5 minutes – after which the hood automatically sets suction speed (power) 2.

Delayed switch-off of the hood (flashing LEDs):

It is possible to set the delayed hood switch-off by pressing again for more than 2 seconds the button of the suction speed (power) active at that time.

The available delayed switch-off options are:

Suction speed (power) 1: 20 minutes Suction speed (power) 2: 15 minutes Suction speed (power) 3: 10 minutes Intensive suction speed (power): 5 minutes

Filter saturation indicator

The hood is equipped with a function that warns the user, at regular time intervals, when the filters are saturated and it is necessary to perform their maintenance.

Grease filter saturation indicator: With the hood off (OFF) all suction speed (power) LEDs light up with steady light for 40 seconds.

Activated charcoal filter saturation indicator: With the hood off (OFF) all suction speed (power) LEDsflash for 40 seconds.

Activation of the active charcoal filter

saturation signal: normally, this function is disabled; to activate it, switch off the hood (OFF) and simultaneously press buttons T3 and T5 for more than 3 seconds. LEDs L3 and L5 will start flashing.

To disable repeat the operation: LEDs L3 and L5 light up with steady light.

Resetting the filters' saturation indicator:

With the hood on (ON) press button T2 for more than 2 seconds; all LEDs will light up briefly.

Note: if necessary, repeat the operation in case both indicators (grease filter and activated charcoal filter) are active.

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

For replacement, contact the technical service.

www.husqvarna-electrolux.se/shop

CE
