Product Type	Range Hood
Brand	Husqvarna-Electrolux
Model	QFC60200X
Color	Stainless Steel
Installation Type	Wall-Mounted
Width	60 cm
Number of Fan Speeds	3 (Minimum, Medium, Maximum)
Lighting	2 x E14 28W Halogen Candle Lamps
Grease Filter	Aluminum, Washable (Monthly)
Charcoal Filter	Non-Washable Activated Charcoal, Replace Every 4 Months
Minimum Height Above Electric Hob	50 cm
Minimum Height Above Gas Hob	65 cm
Control Type	Push Buttons
Power Supply	220-240 V ~ 50 Hz
Energy Class	Not Specified
Noise Level	Not Specified
Extraction Type	Ducted or Recirculating (with Charcoal Filter)
Warranty	Refer to Product Documentation

Frequently Asked Questions - QFC60200X Husqvarna-Electrolux

How often should I clean the grease filter?

The grease filter should be cleaned at least once a month. It can be washed by hand or in a dishwasher on a low temperature and short cycle. Discoloration may occur but does not affect filtering capacity.

How often should I replace the charcoal filter?

The non-washable activated charcoal filter should be replaced at least every four months, or more frequently depending on usage and cooking habits.

Can I wash the charcoal filter?

No, the charcoal filter is non-washable and cannot be regenerated. It must be replaced when saturated.

What type of light bulb does the hood use?

Use E14 28W halogen candle lamps with a diameter of 35 mm. Always ensure the bulbs are cooled down before touching.

How do I replace a light bulb?

First, disconnect the hood from the power supply. Ensure the bulbs are cool. Replace the damaged lamp with a new E14 28W halogen candle lamp. Reconnect power.

What is the minimum distance between the hood and the hob?

For electric cookers, the minimum distance is 50 cm; for gas or mixed cookers, it is 65 cm. If the gas hob instructions specify a greater distance, that must be adhered to.

Can I use the hood without the filters?

Never use the hood without the filters properly mounted. The filters protect the motor and reduce fire risk. Always use the grease filter and charcoal filter if in recirculation mode.

Why is my hood noisy?

Noise can be due to loose installation, clogged filters, or blocked ducting. Ensure the hood is securely mounted, filters are clean, and ductwork is unobstructed. If noise persists, contact service.

How do I clean the exterior of the hood?

Clean the exterior with a soft cloth dampened with neutral liquid detergent. Do not use abrasive products or alcohol. Regular cleaning (at least once a month) is recommended.

Where can I find spare parts for this hood?

Visit www.husqvarna-electrolux.se/shop to purchase accessories, consumables, and original spare parts. Use original spare parts for safety and performance.

USER MANUAL QFC60200X Husqvarna-Electrolux

Modern kitchen interior with stainless steel appliances and large windows (no visible text or symbols)

BÄSTA KUND FÖR PERFEKT RESULTAT

Illustration of a hand holding a metal tool with a clip, no text or symbols present

KONTROLLER

Diagram of a battery pack with internal components and labeled parts (no text or symbols present)

ARVOISA ASIAKKAAMME

TÄYDELLISTEN TULOSTEN SAAVUTTAMISEKSI

www.husqvarna-electrolux.se/shop

YMPÄRISTÖNSUOJELU

Hand holding a tool with a mechanical component, no visible text or symbols

OHJAIMET

Diagram of a device with two views: top shows internal components, bottom shows a blue cylindrical body with labeled points (no text or symbols present)

KÆRE KUNDE

FOR PERFEKTE RESULTATER

Hand holding a mechanical tool with a cutting tool, no text or symbols visible

Type 15 - Filter med aktivt kul der IKKE kan vaskes

BETJENING

Diagram of two cylindrical objects with internal components, one larger and one smaller, connected by a dotted line (no text or symbols)

DEAR CUSTOMER

Thank you for choosing this Husqvarna-Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.husqvarna-electrolux.se

Register your product for better service: www.husqvarna-electrolux.se

Buy Accessories, Consumables and Original spare parts for your appliance: www.husqvarna-electrolux.se/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol: Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of

electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

⚠ Warning / Caution-Safety information.
i General information and tips
Environmental information.

Subject to change without notice.

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking. The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation of filtering with

internal recirculation

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service. The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

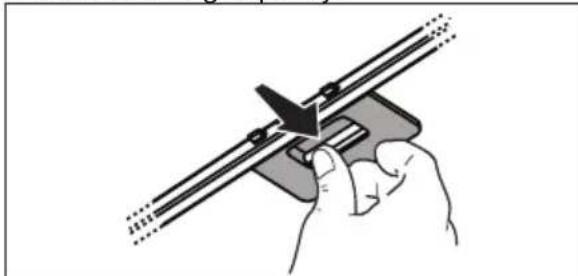

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Hand holding a mechanical tool with a triangular component inserted, no visible text or symbols

Type 15 - NON-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

CONTROLS

The hood is fitted with a control panel withaspiration speed selection control and alight switch to control cooking area lights.

1. ON/OFF lighting

2. OFF motors

3. • 1. • 1. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp.

Use ∅35mm E14 28W halogen candle lamps only.

Diagram of two cylindrical objects with internal components, one larger and one smaller, connected by a dotted line (no text or symbols)
