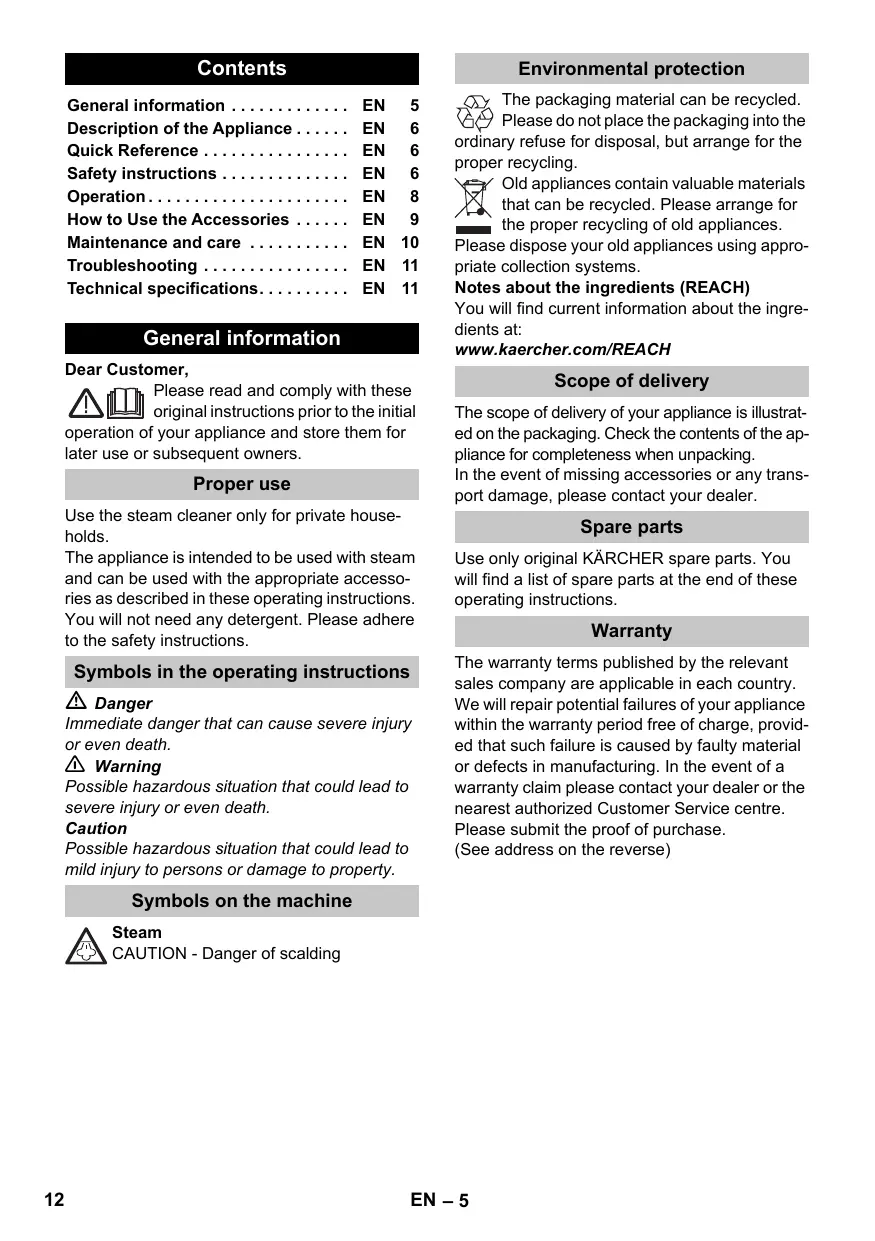

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial

operation of your appliance and store them for later use or subsequent owners.

Proper use

Use the steam cleaner only for private households.

The appliance is intended to be used with steam and can be used with the appropriate accessories as described in these operating instructions. You will not need any detergent. Please adhere to the safety instructions.

Symbols in the operating instructions

Danger

Immediate danger that can cause severe injury or even death.

Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

Steam

CAUTION - Danger of scalding

Environmental protection

The packaging material can be recycled.

Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances.

Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking. In the event of missing accessories or any transport damage, please contact your dealer.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. (See address on the reverse)

Description of the Appliance

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking. In the event of missing accessories or any transport damage, please contact your dealer.

Illustrations on fold-out page!

A1 Indicator lamp (green) - line voltage is on
A2 Indicator lamp - heater (ORANGE)
A3 Safety cap
A4 Holder for accessories
A5 Storage holder for floor nozzle
A6 Mains cable with mains plug
A7 Running wheels (2 ea.)
A8 Steering roller
B1 Steam gun
B2 Unlocking button
B3 Selector switch for the steam volume (with child protection)
B4 Steam lever
B5 Steam hose
C1 Detail nozzle
C2 Round brush
D1 Hand nozzle
D2 Terry cloth cover
E1 Extension tubes (two tubes)
E2 Unlocking button
F1 Floor nozzle
F2 Retaining clip
F3 Terry floor cloth

Quick Reference

Illustrations on Page 2

1 Unscrew the safety lock and fill the steam cleaner with a max. of 1 litre of water.
2 Screw in safety cap.
3 Plug in the main plug. The green and orange indicator lamps light up.
4 Wait until the orange indicator lamp goes out.
5 Connect the accessories to the steam gun. The steam cleaner is ready to use.

Safety instructions

Danger

The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
- Never use the appliance in pools containing water.
The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the safety lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
- Never touch the mains plug and the socket with wet hands.
- Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
- Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).

Warning

The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm^2 .
The connection between power cord and extension cable must not lie in water.

If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised, to ensure that they do not play with the device.
Never leave the appliance unattended when it is in operation.
■ Be very careful while cleaning tiled walls with sockets.

Caution

Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.
The appliance must provide of a stable ground.
Use and store the unit only in accordance with the specifications in the description and/or figure.
The steam switch must not be locked during the operation.
- Protect the appliance from rain. Do not store outside.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Safety thermostat

The safety thermostat turns off the appliance if the boiler thermostat and the pressure controller fails and the appliance overheats in case of a malfunction. Please contact your local KARCHER customer service to arrange for the reset of the safety thermostat.

Safety lock

The safety lock seals the boiler against the steam pressure that builds up in the boiler. If the pressure controller is defect and the steam pressure in the boiler rises, a pressure control valve in the safety lock opens, and steam is emitted through the lock to the outside.

Please contact your local KÄRCHER customer service before you put the appliance into operation again.

Operation

Attaching the Accessories

Illustration A

Insert steering roller and transport wheels and lock them.

Illustration B

Connect the required accessories (see Chapter "How to use the accessories") to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the unlocking button of the steam gun locks into place.

Illustration D

Use the extension tubes if necessary. To do so, connect one or both extension tubes to the steam gun. Insert the required accessories on the free end of the extension tube.

Removing the Accessories

Danger

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!

Move the selector switch for the steam volume back (steam lever locked).
Illustration

To detach the accessory parts, press the unlocking button and pull the items apart.

Fill up with water

Note: If you always use usual commercial distilled water it is not necessary to descale the boiler.

Caution

Do not use condensation water from the drier!

Do not fill in detergents or other additives!

Remove the safety cap from the device.
Completely empty the steam boiler to remove existing water (see fig. 1).
Fill the boiler with a maximum of 1 liters of fresh tap water.

Note: You can cut down the heating-up time by using warm water.

Screw the safety cap back onto the device.

Turning on the Appliance

Place the unit securely on a firm surface.

Caution

The appliance must not be carried during cleaning.
Insert the mains plug into a socket.

Both indicator lamps must illuminate.

Caution

Do not turn the appliance on without water in the boiler. Otherwise, the appliance may overheat (see Help with faults).

The orange indicator lamp goes out after approximately 8 minutes.

The steam cleaner is ready to use.

Adjusting the Steam Quantity

Use the selector switch for the steam volume to regulate the discharged steam. The selector switch has three positions:

Maximum steam volume

Reduced steam volume

No steam - child protection

Note: In this lever position, the steam lever cannot be used.

Set selector switch to the required steam volume.
While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.

Note: The heating of the steam cleaner is turned on in regular intervals during the operation of the appliance in order to maintain the pressure in the boiler at a constant level. When the heating is turned on, the orange indicator lamp (heater) lights up.

Refilling Water

Water needs to be filled into the boiler, if the steam volume decreases during work and no more steam is emitted in the end.

Note: The safety lock cannot be opened as long as slight pressure remains in the boiler.

Disconnect the mains plug from the socket.
Push the steam switch until steam discharge stops. Now, the boiler of the appliance is unpressurized.
Remove the safety cap from the device.

Danger

A residual amount of steam may be emitted when you open the safety lock. Be careful when opening the safety lock, there is a risk of scalding.

Fill the boiler with a maximum of 1 liters of fresh tap water.

Danger

If the boiler is hot, there is the risk of scalding as the water may splash back during the filling process! Do not fill any detergents or other additives into the boiler!

Screw the safety cap back onto the device.
Insert the mains plug into a socket.
The orange indicator lamp goes out after approximately 8 minutes.

The steam cleaner is ready to use.

Turning Off the Appliance

Disconnect the mains plug from the socket.

Storing the Appliance

Illustration F

Put the extension pipes into the large accessory compartments.
- Insert the manual nozzle and detail nozzle onto each extension pipe.
Put the round brush into the medium accessory compartments.
- Hook the floor nozzle into the parking position.
- Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.

How to Use the Accessories

Important application instructions

Cleaning floor surfaces

It is recommended to sweep or vacuum the floor prior to using the steam cleaner. This way, the floor is already cleared of dirt/loose particles prior to the wet cleaning.

Refreshing textiles

Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam at first, then let dry and then check for colour or shape changes.

Cleaning of Coated or Lacquered Surfaces

When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, parquet; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it.

Caution

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.

Cleaning of Glass

In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.

Then clean the window surface with the hand nozzle and attachment. Use a squeezegee to remove the water or wipe the surfaces dry.

Caution

Do not direct steam onto the sealed locations of the window frame to prevent damage.

Steam gun

You can use the steam gun without any additional accessories, e.g.:

to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20~cm
to remove dust from plants. Here, keep a distance of 20-40 cm.
for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

Detail nozzle

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy lime scale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.

Round brush

The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.

Caution

Not suited for the cleaning of sensitive surfaces.

Illustration C

Attach the round brush to the detail nozzle.

Hand nozzle

Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls and mirrors.

Floor nozzle

Suited for all washable walls and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.

Note: Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam cleaned. However, these will disappear with repeated cleaning procedures.

Illustration G

Attach the floor cloth to the floor nozzle.

1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

Parking the floor nozzle

Illustration H

During work breaks, hook the floor nozzle into the parking holder.

Maintenance and care

Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Rinsing the boiler

Rinse the steam cleaner boiler at the latest after 10 boiler fillings.

Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.
Empty water out.

Dscaling the boiler

Note: If you always use usual commercial distilled water it is not necessary to descale the boiler.

As limescale builds up on the boiler walls, we recommend to descale the boiler in the following intervals (RF=reservoir fillings):

Degree of hardness		° dH	mmol/l	RF
I	soft	0-7	0-1,3	55
II	medium	7-14	1,3-2,5	45
III	hard	14-21	2,5-3,8	35
IV	very hard	>21	>3,8	25

Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.

Disconnect the mains plug from the socket.
Allow device to cool down.
Remove the safety cap from the device.
Completely empty the steam boiler to remove existing water (see fig. 1).

Warning

Only use products approved by KÄRCHER to exclude any damages of the appliance.
User the KÄRCHER decalcifier sticks (order no. 6.295-206) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descending solution can have an aggressive effect on delicate surfaces.
Pour the descending solution into the boiler and allow it to react for approximately 8 hours.

Warning

Do not screw the safety lock on the appliance during the decalcifying.

Do not use the steam cleaner as long as there is decalcifying agent in the boiler.

Completely empty the descending solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
Completely empty the steam boiler to remove existing water (see fig. 1).

Care of the Accessories

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.
You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ . Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified

Descale the steam boiler.

No steam

No water in the steam boiler.

Turn off the appliance.
See „Refilling Water“ Page 9.

Steam lever cannot be pressed anymore

Steam switch is secured with the lock / childproof lock.
Move the selector switch for the steam volume to the front.

High water output

Steam chamber too full

Press the steam gun until less water is emitted.
Steam boiler is decalcified
Descale the steam boiler.

Technical specifications

Power connection

Voltage	220-240 V 1~50/60 Hz
Protective class	I
Protection class	IPX4
Performance data
Heating output	1500 W
Operating pressure max.	0,32 MPa
Heating time	8 Minutes
Steam volume
Continuous steaming	40 g/min
Steam push max.	100 g/min
Dimensions
Boiler capacity	1,0 I
Weight (without accessories)	3,1 kg
Width	254 mm
Length	380 mm
Height	260 mm

Subject to technical modifications!

Contenu

Consignes generales FR 5

Instructions relatives aux ingrênts (REACH)

www.kaercher.com/REACH

www.kaercher.com/REACH

Fornitura

www.kaercher.com/REACH

Leveringsomvang

Geen water in reservoir.

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Leveringsomfang

www.kaercher.com/REACH

Leveringsomfang

Leveringsomfang for apparatet er vist på embalasjen. Kontroller at innholdet i pakken er fullstendig, nár du pakker ut.

www.kaercher.com/REACH

www.kaercher.com/REACH

Toimitus

www.kaercher.com/REACH

Zuokuaoia

To TnapoTeo UAIKO ts OuaKEuHc AteIKovietai OTN OuaKEuaia. KaT a nTv aTOouaKeuaia EeYETe to TIEpiXóMevo tS wS pOc TnV nnPOTnTa.

Eav leitouv exaptnmu n éxouv Tpokkneiζnuec kata n tetaeapopa, Tapaakaloue evnuepwoTe Tov Tnpouneutn oac.

AvtaaakTik

XpnoiOIOIE TEATOKIAOTIKA VYHOA AVTALAKTIKA KARCHER. EITKOHTNOAN AVTALAKIKWv 0a BPeTe OTO TELOC Tuv TAPoVTW OOnyIW XeipioMu.

Eyyunon

www.kaercher.com/REACH

Teslimat kapsami

Buhar deposu kireclenmis

KpaTkoe pyKOBoDCTBO RU 6

Yka3aHnno To texHnke 6e3oNaChocTn....RU 6

3Kcnpnyataua. RU 8

IcnoIb3OBAHnne npHaIaNExKHOCTe..RU 9

Yxodntexhneckoe o6cnykBaHne. 10

TOMOuB BCnyae HenoJaok RU 11

Texnueckne daHHbIe RU 11

Obuye yka3aHna

Ybaxaemblnokynatelbl!

IpeedepbimnpimeHnemBaWero np60pa npouHTaTe 3Ty opunnaBHyU

HNCtpykuHIO NO 3KcNpyatauIN, NocIe 3Toro DeiCTBynte COOTBeTCTBENHO I COXpaHNTe ee IaIaNbHeIWeO IOJIb3OBAHNA INI IN DcNeDyUoJero Blaadenbua.

IcnoB3OBAHne no Ha3HaueHIO

IcnoJIb3ayIte npIbOp dIJI OYNCTKI napOM IckIIOUHTeJIb HO B DOMaUSHEM XO3JNCTBE.

Pnpbop npednhaaHEnI npoBeHEnI OOCTkn npom. OOncTk MOxHNO pnoBOODtB c pinnMeHHeM IOxOdaIIxNpINHaJIeXHOCTe, ONCaHHbIX B pyKOBOCTBe no 3KcPnYatauM. MoUzne cpeCTBa He Tpe6yOTc. CNeNyET coBnOdaTb INCTpyKuN no TeXnke 6e30nac HOCTN

CmBbI b pykoBOdCTBe nO 3Knpyataun

Onachocmb

IaHnocpecdmbeHNO apo3aue OAnachocmu, KOMop aar npueodum K mxeJbIM yeebyam UuK Cmepu.

PpeynpexdeHue

Дяоьможн omenцuaьho onachо cumyaцu, Ko-mopar moxem npueecmu K mxeblm yeebym unu K cmepmu.

BhumaHue!

IJIe 0e3MOxHou nomenuauNbHO onachO cumyaUuu, KO-mopaa MOXem npueecmu K neekum mpaMam UUNoNEy MamepuaHbHi yuepe6.

CmBONbl Ha annapaTe

Nap

BHIMAHNE - onachoctb oXkora

3aunTa OkpykaIoUeI cpebl

YnakoBouHbIe MaTePnAJIbI pInrOJHbI dIa BTOpHuOHo 6ObApBoTKn. IOnToMy He BbIbpaCbIaBHeYnakoBky BmEcTe C DOMaUHIMN OTxOdAmu, a CdaIte ee B OINH N3 NyHKTOB pInema BTOpUHOrO cbIpBa.

CtapbIe npnbopbl coepkataeHbIe nepepaabatbIaebmblMaTePnAbI,poJIeKaaIne nepedaueBnyHKtbIpIeMknBTOpnHOrOcIpbJ.103TOMy

yTINI3npyuTe CStapBle npi6Opby Chepe3 COOTBeTCTByIO- UIe CNCTeMbI pPiEeMKn OTXoOB.

www.kaercher.com/REACH

KOMnJIeKT NOCTaBKn

KOMPNEKTaTnI npBopa yka3ana Ha ynpakOBke. Ppi pa- nakOBKe npBopa npOBepntb KOMPNEKTaTnO.

PnOOBHApUxHENHeNOCTaOuXnPnHaNDJeXHoCTe HINIOBpeJDeHNI,POIyueHHbIX BO BpEmr TpaHCnOpTIpOBKn, CLeNyET YBeODMHTb TOPROByo OprAHN3aCmIo, PnpOabuYIO npi6Op.

3anaehbe yactn

IcnoIb3yTeToIbkoOpnHaHbIbe3aNaChbIe qactnФIpMbI KARCHER.ОncaHne 3aNaChbIX aChTeHaxoDITcB KOHcE DaHHO INCTpyKcIM NO 3KcPnIyatauIN.

Fapantna

B kaxdo CTpahe DeiCTbyOT COOTBeTCTBeHHO rapaHTnHbIe yCIOBnA, n3DaHbIe yN01HOMoUeHHo OprAHn3aunE c6bTa Haaew npOdyKuMn B daHHo CTpahe.

Bo3MOxHbIe HeIcnpaBHOCTn Pp60BaP B TeueHne rapaHTMnHO rpoKaMbI yCTpaHREM 6ecPiATHO, eCNI pInuHnA 3akJIOuaTcB DepeKtax MaTePnaIOB INI OOn6kax npIN3rOToBHeHm. B Cnyae Bo3NtKOBHeHn IpeTeH3N B TeueHne rapaHTmHorO cpoKa npoc6b6a obpaatbcra, IMer pNi Ce6e Yek O NOKyIke, B TropBOyIO opraHn3aUIO, IpOdaBMyo Bam pN6Op INI B 6nKaiSyuYy UnoJIHOMo-eyHHyO Cny6y CePBNCHO 6cbNyKBAHn.

(Adpec yka3aHa Ha o6oPoTe)

Oncsahanne npnbopa

KOMPNEKTaTnI npBopA yka3Ha Ha ynpakOBKe. Pn paNpAKOBKe npBopA npOBepTb KOMPNEKTaTnO.

PnOsbHApUKeHN HeoctaOuXn PnHaadJeKHOCTe INI IOBpeKDeHNI,IOyueHHbIX BO BpEmr TpaHCnOpTPOBKN, CNeEyET YBeOMNTb TOPROByO opraHn3aCIO, PnpDaBswy npi6op.

1306paXeHnCm.Ha pa3BOpTe!

A1 KOnTpOJbHaJaMaHa (3eJeHa) - HAnuHnHa npjKeHnB Cetn
A2 KoHTpOJIbHaIЯIaMna - "HarpeB" (OPAHKEBAJ)
A3 PpeoXpaHnTeIbHa npo6ka
A4 DepeKaTeB IaI npHaadNexHocTei
A5 PapkoBouHoe KpeIeHne HacadKn dIy nOla
A6 Cetebo Kaebb co wTeceBHO BmIKo
A7 Paoboune Koneca (2 wTuKn)
A8 HaprablaJIoIoi polnK
B1 Napoboi nuctoet
B2 KhoNka De6nKupOBKn
B3 PpeekuateIb KOJIueCTBa npa (c 3auHToT O TBKIOHHeNIA DeTbMn)
B4 Pbyar noaun npa
B5 ⅢnHr noaunapa
C1 FOpcsyKa ToeueHoi Ctpyn
C2 Kpynnay zeta
D1 Puyhna fopcyHka
D2 YexoI n3 MaxpOBoTkAnH
E1 YdnnHnteIbHbIe Tpy6kn (2 st.)
E2 KhoNka De6nKupOBKn
F1 OpocyHka dnyuCTkn noJa
F2 3aJIM
F3 TkaHbIgMbITbnoJa

KpaTKOE pyKOBOIDCTBO

→ N3o6paXeHnI npu60pa cM. Ha cTp. 2

1 BbIbepHyTb npedoxpAHnteHbHyu npo6ky n 3aOpnHnTb npi6op dIy npaOBOY uCTKn BOdO oBeMOM He 60lee 1 nItra.
2 3aBepHnTe npEdoxaHnTeIbHyI npO6Ky.
3 BCTaBbTe 7TEnCeIbHyIO BnIKy B 3JIeKtpoP03eTKy. 3eHeH a OpaHKeBa KHTpObnHbIe IaMnbl CBe- TATcra.
4 Пдождпе noka He noracheT opaHkeBaJ KOHTpoJIbHaJ lamMa.
5 PoiKJIHcHHeI npHaJdJIeXHocTei K napOBOMy nCToJeTy. PnBOp IaI YIcTKn napOM roTOB K paOBe.

Yka3aHnna no TexHnke 6e3oNaTachOCTn

Onachocmb

3KcIpyamaua npubopa 60 63pb8oonacbix 3ohax 3anpeaemc.
PpuucnoIb3oaeHn npubopa6 onaChbix 30hax cneedyem co6nodaombcoombeemcmyouue npau- na mexnku 6e3onachocmu.
3Kcnpnyamaua npubopa 6baccseHe, codepkaueM eoy, 3aPpeuHa.
Ipiubop HnB3a uCnoB3oAbmb dny qucmku 3neKmpueeckux ycmpoUcme, Hanpumep, dyxo8ok, bI-mxHbIX haeecoe, MUKPOBOHOBx neeu, meeneu3opo, naMn, fehoe, 3neKmpueeckux obopeeaemene u m.d.
Ipeo uonb3oaeuem npoeepbme ucpaaHocmb npubopa u npuaadneknoemc. Ecnu coemohue He yraemc6e3ynpuehM, ux uonb3oaeHue He pa3peuamc. Oocenho muaembo npoeepbme kabebc emeoo numaH, npedoxpumelnyo npobky u nana h noaqunapa.
IopoepkdeHbI Ka6eB cemeo0 numaHou don-KeH 6bImb He3ameDnumelbHo 3aMeHeuONHOMO ueHHou clyx6o cepueucHO o6cnykuBaHua/cneuaunucmO-3eKmpukom.
IoepexeHbI uHa nOdaHu npa noDleKum He3aemednumenbHOu 3aMeHe. Pa3pewaemc ucNoB3oBaHue monbKO uHaHo8 nOdaHu npa, peKOMeHDoBaHHbIX U3zOmoEumEnm (Homep dJa 3aka3a CM.6 CnUcke 3anaChbIX Yacmei).
He npukacambcK cemeo eunke u po3emke mokpbIMU pykAmu.
He yucmum napom npedMembl, codepzuaue ee uecmea, epehble dny 30opobby (hanpumep, ac-6ecm).
Hu e Koem cnyae He kacaimec bcmpyu napa pykoic 6bnuzko0 paccmnoHua He hanaepnmae ee Ha IIOdeu XJueomhblx (Onachocmb oxooe napom).

△PepdynpexdeHue

Pp6op MoJHo NODKIOUcMb moIbKO K 3neMeHmy 3eKmpoNodKIOUcHua, UcNOJIHeHOMy 3eKmpoMOnHepom E coOmeemCmBuu Co cMaHdApmOM MekdynapoHOu 3eKmpomExHuueckou KOMUccuu (M3K) IEC 60364.
Ppubop cneodyem eknouammb molko e cemb nepeMeHHo0 moka. HanpjaKeHue doJxHo coomeemcMeoeamb yka3aHuaM e 3aeodckou ma6nuke npubopa.
B cIbIbIX nomeueHuaX, Hapumep, e aenHbIX KOM-Hamax, bKnOuahme npubop monbko e pozemku c npedeknoueHHbIM npedoxpAHumehblbHbIM bIKnOa-menem muna Fl.
Henoxdoayue ydunumenu moaynpedcmae Ia m onachocmb. NcnoIb3yUme molko 6pbizao

3auiuHnbl yDnHumeIb cceHuem npoBoda He MeHee 3x1 MM2.

Coedunehue cemeo u buku ydunumen He dojxho nexambe oede.
Ipu 3amene coedunumelbHbIX 3neMeHmOHa Ka-6be nce meo20 numanu unu yDnunme ne doxna o6ecneueaibc6bp3e0aum u Mexauyeckar npouHocmb.
Ponb3oamenb doJnken ucnnoIb3oamnb npubop e coomeemcmu c naHaueHEm. OhdoJnken yummb MeCmHbe ocobehocmu o6paamb EHumane npu paBome c npubopom Ha dpyaux liu, Haxoduauxcnaobnucm.
3mo ycmpoucmeo he npedha3nueho dno ucnno b0eahnra IIObmu (6 mom ycne u demei) c oepaunu eHHbIMU fU3Ueckcmu, ceHCOPbIMU unu ymcmeHHbIMCnocobHcMmu UUNu luamcu om cymmeuem onbima u/Unu 3HaHui, 3a ucknouehu em clyaee, ecnu 3a obecneueHem be3onacHcmu ux paBomby Hablndaicom CneuaanbHO nodaomoe HHeIe luua unu OHn pOnyaiom om Hux yka3aHura, kacaouuec uonnbOaBHua Ycmpoucmea. Heo6xodum cneum 3a demmu, he pa3peawamb um aapmbcycnpoucmeom.
3anpeaemcra ocmabnmb paobmaouu npubop 6e3 npuscmompa.
Coblloamb ocmpoKHOcmb npu YcUmke KaepelhBix cmeH C 3IeKmpuueckumpuoemkamu.

BhumaHue!

Heobxodumcneub3a mem,ymobb cemeoohnpuy odunumenu He biny nopegxdehnymempeee3a che3 hux, cdaenueanu, pacmjehenu um. n. Cemebbie uhybpl cedeyem 3auuammbom 0e03eucmua japbl, macna, a macke om nopegxdehura ocmpbmu kpaamu.
Hu e koem cnyae he ucnolb3yume paameopumenu, kudkocmu, codepkauue paameopumenu unu hepazabaleHHble Kucnombi (Hap., MOUue cpecdm8a, beshun, pazabumenu kpacok u aemoh) u He 3aune me ux 6bak dner oobly, nockonby Ohu apeccuho 0o3eumyom Ha Mamepuanbl, uclonb3yembl e npubope.
Ipu6op Heo6xodmo pa3Meaamb Ha ycmouueom OchoeaHUU.
3Kcnnyamupoeambu xpaHmb npubop monbko e coomeemcmseuu c onucahu em u pucyhkaMu!
Bo epempaobmhe pazepwaemc6nokupoKa pyuaa nodauna.
3auiuime npubop om doxod. He xpaunme nod omkpblbIM He60m.

3aunthbte yctpoictBa

BhumaHue!

3aumhble ycmpoucmea cnykam dna 3aumtbnolb0eameneu. Budo3mehue 3aumhbix ycmpoucme unu nphe6pexehue um He donyckaemca.

Pernytopdablenia

PeyIaTOp DaBHeHn yDepKxBaet DaBHeHne B npoBOM KOTJIe BO BVPemraBoaToI NIO Bo3MOxHOCTn Ha nocToH-NOM yPOBHe. PInu DoCTNKeHH MaKcMmaJIbHorO paOboeRo DaBHeHn B npoBOM KOTJIe NODOrpeB OTKJIOUaeteCn CHOBA BKIOUaTeCn PnI NaDeHn DaBHeHn B KOTJIe B pe3yJIbTaTe yDaleHn npa.

AbarinHbI TepMoCTaT

B cnyae BixOa n3 cTPO peryIaTopa daBneHnI nepepeBa np6oba aBapnHbI TepMoCTaT bIKNoaet np6obp. DnA zameHbI abapuHoro TepMoCTaT cIeMyET o6paTtbcraB yOnlHOMoEHHyIO cLyKbCyepBcHOrO obCnykBaHnI qnpMbI "KARCHER".

PpeoXpaHnteIbHaI np6ka

IpeoxpaHntBnna np6ka 3akpbBaet KOten OT co3daKUoJeroCn daBnEHHa napa. B cnyae HeNCnpabHOCTn peTnyTopa DaBnEHHN I BO3NHKNHOBEHH N KOTJeN3bToCHoro DaBnEHH N ppeOxpaHntBnHOI np6KeOTKpbBaETcnapeOxpaHntBnHKnAnH, INapYepe3 np6Ky BblXODHTnApyKy.

Ipeed nobTOpHbIM BBODOM npiBOpa B 3KcNlpyatauio
ObaPntTeCb B yOnlHOMoHEnHyIO cLyXbOy cepBnCHOrO obCnykBaHnaФnpMbI "KARCHER.

3Kcnnyataza

UctaHOBka npHaNdEeXHoCTeI

PucyHOK A

BCTaBnTb 3aФнксрOBaTb HAnpBaNJIouIuIpoJIK n TpaHcNoPThbIe KOJecA.

PcCHyOK B

CoeINHtB Heo6xOIMbIe npHaJnEJXHOCTN (CM. pa3dJI "NcIOnJIb30BaHHe npHaJnAJIeXHOCTe") C npoBBIM NICTOJeTOM.ДЯ 3TORO OTKpbIbIy KpaI npHaJNJIeXHOCTN HaTeB Ha npaOBoi NICTOJeT HnABnHyTB Ha npaOBoi NICTOJeT HAcTOJIbKO, YTO6bl KhoNka pa36JIokpOBKn npaOBOro NICTOJeTa 3a-ФнКсИрВаIacb.

PcuyHOK D

→ Pπn Heo6xOuMocTn IcNoIb3ObaTb yDInHInTeB-HbIe Tpy6Kn.ДЯ 3TOrO CoeINHtB C napOBbIM NcToJET Ondy nI IN DBe yDInHInTeBbHbIX Tpy6Kn. HAdBHyTb Heo6xOuMble IpNHaJNeJXHOCTn HaCBO6OnbI KpaY DInHInTeBbHOr Tpy6Kn.

Chrtne npnaadnexknoTei

Onachocmb

Ipu cnmauu npuaadnexhocme u3 npubopa moxem bemykamb zoopraa oda! He chumaume hacaeku eo epernndaunapa - yepo3a oebapueanur!

PerekniOuateJIb KOJNUeCTBa npa ycTaHOBnTb B HIXHem nIoXeHn (PbUar noDaun npa 3a6Iokn-poBaH).
→PncyHOK E

ДяСНТЯ ПИнадпжноettingи Нхмпte на КнОПКу pa3блOKИРOBКИ NGDEЛNTe DeTANIpyr OTpyra.

3aJIbVBoDbI

Yka3aHue: Ipu nocmorHHom uCnoJIb3OeAHuU duCumunIupoeaHNo eOdbI, npednaaemou mopaOneu, ydaneHue HAKUNU u3 komna He mpe6yemc.

BhumaHue!

He uonb3yume cKoHDeHCupOeaHnyo 0ody u3 cyuunbHOu Maunh!

He doabaIme moouue cpecmea unu dpye duobae KU!

OTBnHTb npedoxpaHnteHyo np6ky ot annpaTa.
→ПОЛНOCьВ ВБЛМТь IMЕЮУСЯ BODYИЗ KOTДА (CM.PDCYHOKI).
→ 3aIHTb B KOTeH He 6oJee 1 IInTpca CBExeB BoDOnpO-BOdHO BObl.

Yka3aHue: IVcnoIb308aHue meNIOu eOdbI cokpa- uzaem epemaHaepea.

PnpdoxpanHTeBHyIO npo6ky ChOBa pIoTHO 3aBNHTb B npi6Op.

BkIIOueHnE npIbopa

YctaHOBITE npi6Op Ha TbepdyIO NOBepxHocTb.

BhumaHue!

Ipehenoc npubopa 8o 8pempa6om no ouucmke 3aane uen.

BCTaBbTe 1eTcCebHbHyu BnIky 3neKtpOnItaHnB 3neKtpop03etky.

UcnoJIb3OBAHne npHaIaNExKHOCTeI

Baxhble yka3aHn no nCnoJIb3OBAHnO

OuHCTb NOBepxHOCTb IOna

Ipeep npimEmenem yctpoiCTBa IyIyNCTKn napom peKOMeHnyTcra NIOMeCTn INI pONbJIeocOITb NOI. TaKIM oBpa3OM MOxHO OCBoOJNTb NOI OT rpa3N/paccbIpaHHoro Mycopa Ipeep npOBeDEHnEM BnaXHoYbOpkn.

Ocbexehne TeKCTnIbHbIX n3denn

Ipepe npoBeHemmOpa60tknCnmoUb np6bopa 1aJyNCTknnapomCneyetBcerda npoBep8tb yctOnuBocTB TeKCTINbHbIX n3dennK B03deJeCTBNIO npa.IpeXeBCero, CneyET o6pa60taB napOMn3dene, 3aTeM npocuyntb eO n, HakoHeC, npoBepuTb yctOnuBOcTB OkpacknHaJIuHne DeOpMaun.

UncTka NOBepXHocTe C NOKpbITnMm I NaKIpOBaHHbIX NOBepXHocTeI

Пи рчICTke NaKIpOBaHbIX NOBepxHOCTeи Ип NOBepxHOCTe C pOKpbTnem, HAnpImep, KxOHHo Me6eIи M6eIи Iя KBaPtIpy, Dbepei, NapKeTa, Boc, Me6eIb-Ha NOJITya, NCKyCCTBeHHOE NOKpbTne IIN KpaCa MOrTy PACTBOpRtcbS IIN Ha HIX MOrYT Bo3HNKHyTb PnTHaДлп повededнia ChcTkn CpeDyet CJeRka OTnapITb CaI-ФeTKy u 3aTeM IpotepeTb eI nepeuNcJIeHHbIe NOBepxHOCtN.

BhumaHue!

He npraeIme nap H npukneHHbe KpOMK, nockbky o6knadka moKem omKneumbc. He uonb3yme npubop dny uucmku depeeHHbix unu npkeMHbIX nonoe 63 nokpbimur.

UcTkaCTekna

ПиMuH3KmX BHeUHnX TempepaTpyax,прждБcero,ЗИМо,проргte OOKHNoC tKeKnIO.БlaRoIapЯ 3ToMy bblCMOKeTe NERKO O6pa6oTaTb napOM BCIO NOBepxHOCTbCTeKna.TakIM O6pa3OM UdaCTc Ia6EkaTb HapryKeHnIOBepxHOCTN,KOTOpOE MOKET npINBeCTN K BoIO CTeKNa.3aTeM NOBepxHOCTb OKHa Heo6XoDMo OuHCTnB C pInMeHenneM pyHOnФocCyHKn n CanPeTkn.DЯ yDaIeHnBObl CJIeDyET NcONb3OBAt hAcAkyДЯ MoIKNOKOH nIln HacYxo IpotepeTb NOBepxHOCTb.

BhumaHue!

Iap He Hanpaanlom Ha ynnmHenHbIe yacMcu eo3ne OkonHou pambI dny npedompauehenue ee noepkdeHua.

Iapoboi nictolet

Парови PMCTOJET MOXHO NcIPOJIb3OBaTb 6e3 npHa-Длжностe, HanpIMep, ДЯ:

yctpaHEnH3aIaxOB NCKlaDOK Ha BVCaIUX nped MeTAX OeJkbI pRn oBpa6oTke c paCCTOHN 10-20 CM.
ydaJIeHnIbIINcpaCTeHNI.CobIIOaItepacCToHne20-40cm.
yBnJaXHeHnI npOTnpOHyoT kAnH. BbICTpo o6pa0TaIe TkAHb napOM nPpOtpTe eIO Me6eJIb.

Fopcsyka Touechno Ctpyn

Yem 6nHexe 3aqr3HeHHe MeCTo, TEM BbIe YcNCTAIIIN 3ΦΦeKr pab0TbI, NocOKlbKy HAnBbICsaar Tempea Tpya n BbIXo npa oBeCneuBaIOcra Ha BbIXoNe iOpcyHK. Oc6eHNO IOXoDIT IOn yOncTKn TpyDHOOCtynhix MeCT, CTbIKOB, apMaTyPbI, CTOKOB, pAKOBIN, TyaneTOB, KaHONi INIpaDnATOpOB OTOnNEHn. CInbHbN 3NBeCTKobbl HANET nepeD YcNCTKO NapOM MoxHO c6pb3HyTB Yukccom INIINIMMOHHO KcNToT, 5MHyt DaTb NOeCTBOBaT, a 3aTEM POn3BcCTN YcNCTKY napOM.

Kpyrna 电

KpyTnyo ⅢeTKy MOxHO yCTaHOBnTB Ha φopcyHKy ToueHoh CTpyn B KaucTeB De DOnJIHeHn. BnaIOrApA oUcTKe ⅢeTKO NMeETCa BO3MOxHOCTb BoJee IerKoro yDAnEHn yCTOHNBBIX 3aRpa3HeHn.

BhumaHue!

He npedha3nayeha ooucmuu yecmumelbHbix no eepxHocmei.

→PmcyHOK C

3aФИКСИРОВАТ b KpyrIyU ΜeTky Ha Форсуне To-уeHNo CtrPyN.

Puchna fopcynka

HaTeB ha puIhyo fOpcyHky Uexon I3 MaxpoBoi TkaHn. OcObo xopoIo npIcIocO6JIeHa IJn IHe6OJIbIX MIOUxxCy IObePcxHOCTei, DJIeBbIX KaBInOH i 3epKaI.

ΦopcyHka dIa nIOOB

Pincnoocbeha DnBCEX MOUxxCs CTeHHbIX INIOBbIX NOKpblTNI, HApNIMep, KAMEHbIX NIOOB, PINTKIN INIOINHINIXOpnda Pa6oTaIe Ha cnIbHO 3aqr3HeHbIX NOBepxHOctr X MeDneHNO, YTObI nap DeJeCTBOBaJdONbWe.

Yka3aHue:Ocmamku Yucmuaeoo cpeodmea unu 3mylbcuu dnyxoda, Komopbie ocmaomcna Oouucaem ooeepxnocmu, Moaym npu yucmke napom oba0e bambn noocbl, Komopbye daanlomc npu MHOeokpamho oucmcke.

→PcCyHOKG

3aKpeNTb TkaHb DnMa MbTb Nola Ha HanoNbHOJ fOpcyHke.

1 CnoKntbTkahBdIyMbItbIPONa BDOJIbNIOMeCTHT Ha Hee opcyHKy dIpy IOna.
2 OTKpbItb 3aXMMbl.
3 IomeCTntb KOHcI bKaHN B OTBepCTnIa.
4 3aKpbItb 3aKIMbl.

BhumaHue!

Cneub, ymo6bI naIbUbI He nonanu Mekdy 3axumamu.

PapkoBanie fopcyHKn dny nola

→PcCyHOK H

BoBpemnepbOBBaobTe BcTabIaTbΦopcyH KyIpaN0aBnapkOBouHoeKpePHeHne.

YxOДи TeXHnueckoe o6cnyXuBaHne

Onachocmb

PpoeedeHue paob mo mexnueckomy ocbnykuaHIO pa3pewaemc moIbKO npu bHymoI cemeoB eunke U ocmbweem npubope dra yucmku napom.

Ppmbibka kOtna

Bcerda npombaiTe KOTeI npi6opa DnTn NAPOM He no3dnee kaxdo 10-ro HanoHHeHHaKOTna.

→ HanoHnHTe KOtEN BODO IN 3HEpruHNO BCTpRXHNTe. B pe3yIbTaTe 3TOrO OTDeJIaHOTc OTOJIOKeHnA HAKIN, OCEBWHe Ha DHe KOTna.
BbIeIte Bovy.

YdaneHne Haknnn n3 KOTna

Yka3aHue: Ipu nocmouHHOM uCnoJIb3OeAHuU ducmunIupoeaHNoEoBbl, npednaaemou mopaoaneu, ydaeneHue Hakuu u3 komna He mpe6yemcra.

Itockonbky hakinb ocaxdaetcna Hn CTehkax KOTna, Mbl pekomehnyem ydaanb hakinb co cneyuoumm INHTepBaapanm (HK=hanolneHnKOTla):

www.kaercher.com/REACH

Szallitasi tétel

www.kaercher.com/REACH

Obsah dodávky

www.kaercher.com/REACH

Dobavni obseg

Obseg dobave Vase naprave je prikazan na embaži. Pri jemanju stroja iz embalaze preverite popolnost vsebine.

Pri manjkajocem priboru ali transportnih skodah obvestite VaSega prodajalca.

Nadomestni deli

www.kaercher.com/REACH

Zakres dostawy

Mult stimate client,

www.kaercher.com/REACH

Articolele livrate

www.kaercher.com/REACH

Rozsaḥdodávky

www.kaercher.com/REACH

Opseg isporuke

Otklanjanesmetnji. SR 10

Tehnicki podaci. SR 11

Opste napomene

Pošovani kuple,

Pre prve upotrebe Vašeg ureža pročitajte ove originalno uputstvo za

www.kaercher.com/REACH

Obim isporuke

Sadržaj isporuke Vaseg ureda je prikazan na ambalazi. Pre vadenja ureda iz ambalaze proverite da li je sadržaj potpun.

Ako pribor nedostaje ili je došlo do ostećenja prilikom transporte, molimo da o tome obavestite svog prodavca.

Rezervni delovi

Upotreblavajte samo originalne rezervne delove firme KARCHER. Pregled rezervnih delova naci cete na kraju ovog uputstva za rad.

Garancija

U svakoj zemlji vaze garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na urežaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili njblžoj ovlasćenoj servisnoj sluzbi.

(Adresu cete naci na poledini)

Opis uredaja

Sadržaj isporuke Vašeg uredaja je prikazan na ambalaži. Pre vadenja uredaja iz ambalaže proverite da li je sadržaj potpun.

Ako pribor nedostaje ili je došlo do ostećenja prilikom transporte, molimo da o tome obavestite svog prodavca.

Slike pogledajte na preklopnoj stranicil!

A1 Indikator (zeleni) - napon strujne mreže postoji
A2 Narandžasti indicator grejáča
A3 Sigurnosni zatvarač
A4 Drzač cribora
A5 Drzač za odlaganje podnog nastavka
A6 Strujni priključni kabl sa utikačem
A7 Točkici (2 komada)
A8 Upravlaja točić
B1 Parni pistojl
B2 Tipka za deblokiranje
B3 Prekidač za izbor količine pare (sa zašitom za decu)
B4 Poluga za paru
B5 Parno crevo
C1 Uska mlaznica
C2 Okrugla cetka
D1 Ručna mlaznica
D2 Fortirska presvlaka
E1 Produzne cevi (2 komada)
E2 Tipka za deblokiranje
F1 Podna mlaznica
F2 Stezaljka
F3 Krpa za pranje poda

Kratko uputstvo

Slike pogledajte na stranici 2

1 Odvijte sigurnosni zatvarač i u parocistac ulijte maksimalno 1 litar vode.
2 Zavijte sigurnosni zatvarač.
3 Utaknite strujni utikač. Zeleni i narandúasti indicator svetle.
4 Sačekajte dok se ne ugasi narandžasta kontrolna lampica.
5 Pribor prikljucite na parni pistolj. Parocjectsac je spreman za upotrebu.

Sigurnosne napomene

Opasnost

Zabranjen je rad u područjima ugroženim eksplozijom.
Prilikom upotrebe ureda u opasnim područjima treba pošovati odgovarajuće sigurnosne propise.
Uredaj nemojte koristiti u bazenima u kojima ima vode.
Ure'daj se ne sme koristiti za ciscenje elektrichnih aparata i uredaja kao sto su npr. klasicne i mikrotalasne pecnice, aspiratori, televizori, lampe, fenovi za kosu, elektrichne grejalice i slicno.
Pre upotrebe proverite da li su uredaj i pribor u ispravnom stanju. Ako stanje nije besprekorno, ne sme se upotrebljavati. Posebno proverite priključni strujni kabl, sigurnosni zatvarač i parno crevo.
Ostecen strujni prikljuci kabl odmah dajte na zamenu ovlascenoj servisnoj sluzbi/ elektricaru.
Ostecenoparno crevo odmah zamenite. Sme se upotreblavati samo parno crevo kojeg je preporucio proizvodač (kataloski broj vidi u spisku rezervnih delova).
Mrežni utikač in uticnicu nikada ne dodirujte vlažnim rukama.
Parom ne Čistite predmete koji sadrze materije štěne po zdravljé (npr. azbest).
Mlaz pare na maloj udalenosti nikada ne dodirujte rukom niti usmeravajte prema ljudima iliŽivotinja (opasnost od opekotina).

Upozorenje

Urej sma de se prikljuce je sa na elektrcni prikljucekojeg je izveo elektroinstaler u skladu sa IEC 60364.
Ureaj prikljuucjte samo na izmenienu struju. Napon se mora podudarati sa tipskom plocicom ureja.
U vlažnim prostorijama, kao što je npr.
kupatilo, urečaj prikrjucije na utčnice
s predspojenom FI zašitnom sklokom.
Neodgovarajuci produkti kablovi mogu biti opasni. Upotreblavajte samo produkte kablove zašićene od prskanja vode sa prečnikom od najmanje 3x1 mm².
Spoj strujnog i produktu nag kabla ne sme ležati u vodi.
Kod zamene spojeva na strujnom priključnom ili produktorn kablu mora se obezbediti zašita od prskanja i mehanička Čvrstina.

Korisnik mora uredjatupotrebljavati u skladusa njegovom namenom. Mora voditi računa o lokalnim uslovima i kod rada sa uredjem paziti na lijude u okolini.
Ovaj uredjnije predviden da njime rukuju osobe (ukljucujuci i decu) sa smanjenim fizickim, senzornim ili mentalnim mogucnostima opazanja ili sograničenim iskustvom i znanjem, osim ukoliko ih lice koje je za njih odgovorno ne nadgleda ili upucjue u rad sa uredjem. Deca se moraju nadgledati kako bi se sprećilo da se igraju s uredjem.
Uredaj za vreme rada nikada ne ostavljaje bez nadzora.
Opreznost pri ciścenju poploćanih zidova sa uticnicama.

Oprez

Pazite da se mrežni ili produzni vod ne unisti ili osteti gaženjem, gnečenjem, vučenjem ili sličnim. Mrežni vod zašitite od vrucine, ulja i oštrih rubova.
U rezervoor za vodu nikada ne sipajterastvarače, tečnosti sa rastvaračima ilinerazredene kiseline (npr. sredstva začišcenje, benzin, razredivače i aceton), jer mogu nagristi materijale upotrebljene u uredaju.
Uredaj mora imati stabilnu podlogu.
Uredaj koristite i skladistite samu skladusao pisom odnosno slikom!
Tokom rada ne pritezite polugu za paru.
Uredaj zastitite od kiise. Nikada ga ne cuvajte na otvorenom.

Sigurnosni elementi

Oprez

Sigurnosni elementi sluze za zašitu konisnika i ne smeju se ni denenjati niti zaobilaziti.

Regulator pritiska

Regulator pritiska tokom rada održava što je moguce ujednaceniji pritisak u kotlu. Grejanje se iskjučuje kod postignutog maksimalnog radnog pritiska u kotlu i ponovo uključuje pri padu pritiska u kotlu usled trošenja pare.

Sigurnosni termostat

Ako dode do ispada regulatora pritiska i uredjai se pregreje, sigurnosni termostat ce iskligcitu uredjai. Za zamenu sigurnosnog termostata obratite se nadleznoj KARCHER-ovoj servisnoj sluzbi.

Sigurnosni zatvarač

Sigurnosni zatvarač zatvara kotao protiv prekomernog porasta pritiska. Ako je regulator pritiska neispravan i u kotlu nastane nadpritsak, onda se u sigurnosnom zatvaraču otvara ventil nadpritska i para kroz zatvarač izlazi napolje. Pre ponovnogPokretanja urežaja obratite se nadležnoj Karcherovoj servisnoj sluzbi.

Rad

Montaza cribora

Slika A

www.kaercher.com/REACH

OsemHaIOCTaBkata

ObembT ha doctabka ha ypea e n3o6pa3en Ha onakobkata. Ppi pa3oNAKOBAhe npOBepe daJIIN cbIbPxahnETo e PbIHO.

PnI JInCBAuN PnINHaJEnXHOCr NII INP TpaHCnopTNI UeTI MOJI yBeDoMeTe BAunr TBproBeu.

Pe3epBnH nactn

Изплбайтсамо оригиналниpeзевничанди на KARCHER.Списьн на рзевнite чади щаимерпгы Края на HabсторшOTOУпьтвах заразота.

Fapanz

BbB BcKa CtpaHa BaxaT rapaHnOHnTe ycNoBnA, nyBnkyBaHn OT otpn3npaHaTa OT hac DnCTpN6yTopckaФIpMa.EBeHTyaIHH NOBpeHn Ha Ba7nU yPeI ξe OTCTpaHm B paMKnTe Ha rapaHnOHH nCpok 6e3- nLaTHO, aKo CE Kacae 3a DeΦeKT B MaTePnaIIne IIN npi PpON3BOJCTBO. B rapaHnOHe nCpyaH ce oBpHe T KBm DnCTpN6ByTopaII Hau-NbI3KnO TOpN3Ipan cepBn3, kato pIepdCTaBnTE kacobata 6eJIeXka. (AApceNte Ⅲe HamePnte Ha 3aDnHaTc TpaHnCa)

Onncanhe na ypeda

ObeMT ha DocTaBkHa ypeDa e n3o6pa3eH ha onaKOBkata. Pn pa3oNaKOBaHe npOBepTe daNc bDpKaHmETo e PbHNo.

PnI JInCBAuN PnINaDJIeXHOCTH NIN PnI TpaHCnopTNI UETM MoJyVeDoMeTe Baunr TbproBeu.

BnxTe cxemnte ha pa3bHaTaTa cTpaHnca!

A1 KOnTpOHa NaMna (3eJIeHa) - IMa HAnpExeHNe OT MpeKaTa
A2 KoHTpOHa lamna-HarpaBaHe (OPAHKEBA)
A3 PpeDn3Ha 3anyuanska
A4Дрьжka 3a npинадлесности
A5 Hocay 3a napknpane 3a noobata dno3a
A6Mpexobz3axpaHbaaKabeJcIeNceI
A7 XoOobu KoJena (2 6poa)
A8 Bodea pojka
B1 NapoctpyuH nictolet
B2 ByToH 3aJe6nKpHaNe
B3 PpeKbCBAu 3a n36op Ha KOJIHueCTBOTo npa (cbc 3aunTa 3a Deua)
B4 Ioc3a npa
B5 NapoctpyuH mapky
C1 CtrpyHaIIO3a
C2 Kpbrrnaeetka
D1 PbUHa IIO3a
D2 XabIneNo nokpnbano
E1 YdIJIkaBauIu Tpb6n (26poJ)
E2 Byton 3a de6nokupahe
F1 IopObaI03a
F2 3aBbPkaa cko6a
F3 Iopoba Kbpna

Kpatko yntbaHe

Bnxn3o6paXeHnTaHa cTpaHnca 2

1 Pa3BnHTeTe npedna3HaTa 3aNyuaJka n HantbIHe Te npocctpyHnry ypeD c MaKcMym 1 JntbP B0da.
2 Da ce 3aBnHTn npedna3HaTa 3anywaIka.
3 BkIIOUeTe ⅢeCnEaB eIeKtpNueckaTa MpeXa. CeemBa 3eIeHama U opAnXeBama KOHmpOnHu lammu.
4 N3yakaJIte,doKaTo n3rache OpaHxEbaTa KOHTPOJHa JAMNa.
5 HakpaHnka da ce BkIIOuN KbM napoctpyHnna nCToJET. NapoctpyHnryt ypeed e roTOB 3a pa6Ota.

Yka3aHnra 3a 6e3oNaCHOCT

Onachocm

3a6paHena e pa6omama ebe 3pueoonacn noMeueHua.
Ipu pa6oma c ypeda e onacHu 30Hu da ce cna3-eam cbomeemhume MEPku 3a be3onacHocm.
Ypeda da He ce u3no13ea 8 baceuHu, Koumo cb- dbpxam oda.
YpeDa He mpr6ea da ce u3non3ea 3a noucmeaHe Ha enekmpooyedu, Hnnp. fpyhu, kyxhencku abcop6amopu, Mukpooblnohou neku, meeneu-3opu, lampu, cetoapu, enekmpueecku omonneHu u m.H.
Ipeu u3non3ahe ypeu u npunadnexHocmume da ce npoeeprma 3a cboomeemcmbauo Ha u3-uckeaHuraMbcmOHe. Ako ypeb m He e omluHcNbcmOHe, u3non3aHemO My e 3abpaHeno. MoJ npoeepeme cneuaanHO 3axpaneuaaKaben, npedna3Ha 3anywanaKa npacmpuyHua Mapky.
Ipoepedmpeo3axpnaeaKabemmp6ea He3a6aHo da ce 3ameHu om omopuzupan cepEu3/cneuauncm-eekpmoxnuk.
Ipoepednna napocmpyeh Mapkymp6ea da ce cmenu He3a6a8no. I0e0neho e cmo u3no3eaHemo Ha npenopbuaan om npou3eodumela npocmpyeh Mapky (eux Homepa 3a nopbyku e cnucbka ha pe3epenume yacmu).
Hukoa He dokoceaime KOhmacma u uencena c enaxHu pue.
Ja He ce obnueam c npa npedmemu, Koumo cb- dbpxam onachu 3a 3dpaeemo eueecmea (Hnp. a36ecm).
Paphama cmpy he mpr6ea da ce dokocea c pka om 6nuzko pa3cmohue uu da ce hacouea kvm xopa u jxubomHu (cbuecmeyea onachocm om u3aapane).

△IpeynpekdeHue

Ypeobm Moke da ce kknquea cmo KbEm eKeKmpueecku KOhmacm, u3nbHeH om eKeKpmoexnK cbanacho IEC 60364.
Cepb3eaime ypeda camo KbM npomEnIue mok. HanpexeHuemo mpr6ea da cbomeemcma Ha umupaHOM eBpxy ma6ekama Ha ypeDa HnpexHeue.
BbE enaJnHn PomeeHn, HnP. 6aHn, EknIOy-eAime ypea e KOhmaKmu c npdeapumelHo EknIOyeha npomueoElaOeBa 3auuma.
Henoxdoxoumyeobnxumenu Moaam da ca onacn.Ⅲnon3aume educmeeHO eodocmoue yobnxumelen Kaeb c haneHo ceheHue MUHMym 3x1 MM2.

Bp3kama Mekdy u yencena u ybIxumenHua Ka6eI He 6uBa da nonada ebe ooda.
Ipu noDMraHa Ha cBeuHEnHa MpeKoBu uUyobJxumEnHua KaBen mpeBa a ca zapAHmu pa 3aUma om eoHn npbcku u MexaHUna 3dpaBHa.
Pompe6umenmpra6ea da u3non3ea yepda cnoped npednucunma.ToMp6ea da ce cbobpa38a c daedeocmtme Ha McaMo u da EHMaa npu pa6oma c yepda danu haokono Hma xopa.
To3u ypeH He e npedHa3nauhen 3a ynompe6a om luca (eknquumelno deua) c oapauhenu ncuuxueku, cen3opnu uymcmeenu cnocobncmu unuC hedocmambuen onum u/UnC hedocmabHu no3na, oceeh ako He ce konmponupam om omoeoepno 3a mXhama cuayphocm luue unu ca nolyuun om Hezo unhcmpkyuu, ka da u3-nnon3b am ypeDa. Deuama bu mprbaLo da ce ha-bnodoaam, 3a da ce aapanmupa, ye He cu uaparm cypeda.
Ipo epeme Ha pa6oma ypebym da He ce ocmaea 6e3 Haid3op.
Bhumane npu noucmeahe ha cmeHu c nnoku c KOhmakmu.

BhumaHue

Bnmaeaume kaebm ha ypea unu yobnxmuenm da he ce noepdum uu ckbcam nopadu hacmbnahe, npebahe, onbahe unu dpyeo. Pasaeme kaeba om monnuha, macua ocmpu pb6oe.
Hukoa He Hanueaume 6be 0odnua pe3eepoap pa3meopumenu,cbbpkau pa3mboopumenu meHuocmu unu He pa3pehenu Kucenunu (Hanp. noucmbau npenapamu, beshun, pa3pedumenu 3a 6ou u auemoh), mbl kamo me ue pa3a-dam u3non3eaHume e yapeda mamepuanu.
Ypeobmmpa6ea da ce nocmae bpxcma6unHa ochoea.
Pabomeme unu cxbxpanaeaume ypeda camo e cbomeemcmeue c onucanemo pecn. u3obpa-xenuemo!
Ipu pa6oma He 3aknueaume Iocma 3a npa.
I Na3eme ypeda om dbkdo. He 20 cbxpanhaume Ha omkpumo.

PpeDn3H npncnoc6JeHna

BhumaHue

Ipepa3nme npucncocbneu cnykam 3a 3auuma ha nompe6umela u he mpr8ea da ce npomeh m unu 3ao6ukanm.

PerylaTop 3a HajraHeto

По Врeme Ha paobota perylaTOpbT 3a HaJIraHaeTo NOДьPka MaKcIMMaHIO NOCTOHHo HaJIraHaeTO B KOTeHa. Пи ДocTnRaHe Ha MaKcIMMaHTo paoBtHO HaJIraHe B KOTeHa HarpBaHeto Cnnpa, a пи NOHIXKaBaHe Ha HAIraHaeTo B KOTeHa BCJeCTBVe Ha OTDeJIraHTo Ha napTa OTHOBe BKNIOvBa.

Ппебаен Термocтат

Ako pernyatopbHa hailraheTo OTKaKe H ypeBnI pnerpee, toraba npedna3HnT TepMOCTaN 3KJIIOvBa ypeda.3a BpbIaHe B n3XoJHO nOIOxKeHne Ha npedna3HnT TepMOCTaT ce o6bPHeTe KbM OTOpn3npAHnI cepBn3 Ha KARCHER.

PpeDn3Ha 3anyaJka

IpeDn3HaTzanyuHaKtZaTBpA KOTeNa CpeUy noBnBaHae Ha napoBTo HaNrAHe. Ako perynatOpbT Ha HaNrAHeTo EdeFekTeH, IN B KOteNa Bb3HNKHe CBpxhAnrAHe, IpeDn3HaTzanyuHaKtO TBpaEiINBcHTnCBpxHAnrAHe N npapaN3n3aOT 3aNyuaKaTa HABbH.

Ipei Da npchTe OTHOBo ypeJa ce o6bprHe Te KbM OToPn3npaH cepBn3 Ha KARCHER.

Eckploatazaia

MOnTnpaHe Ha npHaJdxKHOCTnTe

Φnγρa A

IocTaBeTe BOeIa poJIka n TpaHcNOpTn KOJIe- na n rI nnKcnpaiTe.

Φnypa B

→ CbpxkTe Heo6xOdImnTe npHaadJnxHocTn (BnK rnaBa ,N3noI3BaHe Ha npHaadJnxHocTnTe") c napoctpyHnHnPiNCToT. 3a ceNTa OTbopeHnKpa HnPnHaadJnxHocTtA ce NocTaB Bpxy npoctpyHnHnPiNCToTet nE36yTBA,do KaTO Ce pHKcnpa De6JokpauuM8byTON Ha npoctpyHnHnPiNCToTet.

Φnγρa D

→Пи Heo6xOIMOCn 3nON3BaTe yIbJNKeTIHnI Te Tpb6n.3a ZeJIa CbByPjTe c napocTpynI NICToNET eHnata peCn.ДBete yIbJNKeTIHnITp6n.Heo6xOIMATA npHaADJeKHOCT da ce Noctabn Ha Cb6oDnHa Kpa Ha yIbJNKeTIHnAta Tpb6a.

DemOHtnipaHcHa npuHaIeXHoCTnTe

Onachocm

Ipu demohmupahe Ha npuaadnlexhocmume moke da u3meue oopea eoda! Hukoa he demohmuame npuaadnlexhocmume no epeme Ha u3niuzhae Ha napa -cbuacemyea onachocm om u3aapare!

IocTaBeTe npekcbvau 3a n36op Ha KOniue-CTBOTO Ha npata Ha3ad (IocTbT 3a npatae 6nokpah).
→ Φιγρα Ε

3a da demontipate npnHaIeXHocHTte, HATNCheTe De6bokupaia 8yToH nOTdeJeTe yactnte eHa ot dpyra.

HanbIbaHe Ha BOda

3a6eKka: Ppu noCmOHa yIompeBa Ha decmuIupaHa eOa omMbpe. MpeXa He e Heo6xodmoNoyucmeHa H KOMHeH KAMbK e Komena.

BhumaHue

He u3no13eaume KOHDeH3upaHa e0da om cyuunna! He hanaueaeme noucmeau npenapamu unu dpyaoudoabeku!

PpeDn3HaT a3nyuAnka da ce pa3Bne ot ypeDa.
N3npa3HeTe HAnmHnTa BOda HAnbIHO OT KOTe-1a (BnKΦnR.Ⅱ).
Haneite B KOTeMa MAcMmym 1IITbP npra Cha BOda OT BOOnpOBOda.

Yka3aHue: Tonlama eoda ckbcya spermemo 3a nodepaBaHe.

Ппебаэнта занушалka OTHOBо да ce 3abVEЗдраво на урEDA.

BknuBahe na ypeda

YpeBt Da ce nocTaN Bbpy Tbbpda OCHOBA.

Bhumaue

Ito epeme Ha nouchmebae ypeobm He 6uba da ce hocu.
BkIIOUeTe UeNcEJa B KOHTaKaTa.

HamaJIeHO KOJIuYeCTBO Ha napaTa

6e3 npapa - 3aunita 3a deca

Yka3aHue: B moBa nIoJoxHe uocMb m 3a napama He MoKe da 6bde 3adeucmean.

HactpoIte npekbcba7a n36op Ha Heo6xOIMOTO KONUeCTBO npap.
3aedeIcbTbAte JIOCTa 3a npaTa, pni TOBa IbpBO HacOyBaIe TepocSTpyHnIgNCTOJET KbM HraKaBA KbPNa, DOKaTO npaTa 3aONUHe Da N3JIIN3a paBHOmePHo.

Yka3aHue: HaapreaaHemo Ha napocmpyHnur yped nepuoduyHo ce ekIIOUe, 3a da nodbpxa nocmohno hanaeaHemo e komela. Ipu moea cseema opahxebama KOHmPoHa NaMa - 3aeprahe.

TbIHeC B0da

HeoOIOmo e OonbIbaNe Ha BOa B KOteIa, ako nOBpeHa pa6Ota KOINcEeTO Ha npaTa HamaJeu Hnakparr cnpa da n3JIn3a npa.

Yka3aHue: PpeOna3nHa 3anyuAnKa He MoKe da ce omeOpu, Dokamo E Komela UMa 6ce OSe MaNko HaJIrae.

→ ɪəbaɪdete ʌŋeɪceɪla OT Kɔŋtɑkɪtæ.
Да се натуся за пара, дokato спpeда иллиза пара. Котелън ha урEDA сera e 6e3 habraHE.
PpeNa3HaTata 3aynuAanka da ce pa3BVe ot ypeJa.

Onachocm

Ipu omeapane Ha npednazama 3anywana Moje da u3ne3 ocammbnuho konuuecmbo npa. Omeope me bHumamelno npedna3hama 3anywana, cb- ueecmeyea orachocm om u3aapane.

HaneiTe B KOTeMa MAcMmym 1IITbp npraCha BOda OTOBODPPOBOda.

Onachocm

Ipu aopeu komee cbuecmeyea onachocm om u3aaprhe, mbu kamo bodaama moke da npbcne obpamno npu bnHe! He nbHeme noucmbau npenapam unu dpya duobaeku!

Ппебаэнта занушалka OTHOBо да се 3ави Здраво на урEDA.
BkHouTe UeNCeNa B KOHTaTa.
→ N3yakaiTe,doKaTo 13rache opaHkeBaTa KOHTpOJIHa lamna - HarpaBaHe.

PapoctpyHnIyIypeIe e roToB 3a pa60ta.

IzhknloeTe ypeDa

→ ɪЗbaɪte ηцɪncëna OT KOHTaKaT.

CbxpaheneHa ypeda

→ Φιγρα

IocTaBeTe UdbJxHtEnHtE TpbBn B rOJeMTe Hocay 3a npHaDJIeKHOCTN.
IocTaBeTe pUHaTAtIO3a nCTpyHnataIO3aB no eHa ybJnxTeHa Tpb6a.
Ioctabete Kpbrgnata Yetka B cpeHnna Hocau 3a npHaadneKHOCTN.
3aKaUeTe IIO3aTa 3a nOД B Hocaua 3a napKupa He.
3aBnTe Mapkyua 3a npapa OKONo yIbJNKeTIHnTe Tp6n nIOCTaBeTe NcTOneta 3a npapa B IIO-3ata 3a NOd.

I3noJ3BaHne Ha npHaJnEJXHOCTNTe

Baxhnyka3aHn3a ynoTpe6a

NoCTBaHe Ha noOBoN IOBbpxHOCTn

IpenopbUba ce npde n3no13BaHe Ha na-poctpyHnry ype nOdbT da ce n3MeTe nnm3cmye. Taka oue npde BnaxHOTo noHCTBaHe nOdbT ce ocB60kDaBaOT MpbCtna/CBO6OHNuactnU.

OcbexabaHe Ha TeKCTnJ

Ipei TpTeTnpaHc c npocctpyHnHa ype MoJy BnHa nDa npOBepBaTe yTOHmBOCTTa Ha TEKCTINHHe TBKaHn Ha CkPnto MeTo: PbPo OBleJeTc napa, cneT TOBa OCTabe Da n3cbxHe n Hakpa npOBepe 3a N3MeHHeHn Ha CBeTa nΦopMaT.

NoCTBaHe Ha NOBbPxHOctn C NOKPITne HIn JaK
PiN NoCTBaHe Ha NaKpaHn INI NOKPITn C PnactMaca NoBbPxHOctn, KaTO HAnp. KxHEnCKn I CTaHnMeBeHN, BpATn, NapKeT, MORaT Da Ce OTdEJIr TO BOCbK, MeBeEN JApK, IN3KcYCTBeHn NOKPITn INI BoN I Da CE Obp3ayBat NetHa. PiN NoCTBaHeTo Ha Te3N NOBbPxHOctn HanoTe eJHa KbPna C npA n36bPwete NOBbPxHOctnTE C HeJ.

BhumaHue

He hacooyame napama kbm 3aIenenu p6oee,mbu kamo Ieunomo moke da ce omdeenu. He u3non3aui me ypea 3a noucmeae Ha He 3aneyamahu dbpeeu Hn nooe unnapkem.

NouchBaHe Ha CTbKIO

ПиMuNcKn BbHUnH TemnepaTpyr 3aToPnIeTe CtbKnA-Ta Ha npO3OpCnTE, PpeDn BCuYKO pEe3 3mMaTa, KaTO leko HApBckate C npa CyaNaTa CtbKLeHa NOBbPxHOCT. IToToH naHuH Ce n36yRbat HapEgeHn Ha nobBbPxHOCTTa, KOnTO Moar Da DOBeDat Do ChyINBaHe HA CTbKJOTO.

Hakpa nouchte Te nobbpxhocTHa npo3opeca c pchata IIO3a n NOKpnbanoTO. 3a n3ternhe Ha BO-data n3no3BaIte npctabka 3a npo3Opu nn n3-6bpwe Te nobbpxhocT Ta do cyxo.

BhumaHue

He hacoueaimapama KbM 3aneyamahume Meema ha pamkama Ha npo3opeua, 3a da He zu noepedume.

PapoctpyuH nctolet

Bne moKe Da n3nO3BaTe napocTyHnHnI pNCToJIe T 6e3 npHaNDexKHOCTn, HapPIMep:

3aOTCTpaHbBaHe Ha MmPn3Mn IYbHKN OT OKaYeHN dpexN, KaTo rH NaHpBcKATE C npa OT pa3ctOraHne TO 10-20 cm.
3a nouchteBaHn npax no zBET. PpT TOBa cna3-BaIe pa3ctOHHne ot 20-40 cm.
3a Bnaxho NoocTbaHe Ha npax, KaTo HanoNTe Kbpnta 3a KpaTko C npa n CneI TOBa N36bpuTe Me6eJInTe C He.

CTpyHa dlo3a

KoIkOTO no-6bn30 e Ta da 3ambpcHOTo MRCTO, TOLKOBA no-BnCOK e epeKTbT OT noNUCTBaHETO, Tb KaTOTemnepaIpyata n napata ca Hau-BnCOKn Ha n3XoHa nIO3ATA. OocBeno npakTNHO 3a noNUCTBaHe HaTPyDn DOCTbHN MeCTa, fyn, apMaTyPi, KAnHn, yMnBaHNIu, ToanETHn, UOpN INn padNaTopr. PpeDi noNUCTBaHc Cnpa CInHIne BapOBINKOBn OTnlaHn MoTat Da 6bDat HanpckAHc Ocet, OCTabTe daNoJeICTBa 5 MNHytN, CneD TOBa ObNeIte cnapa.

Kpbrrna Yetka

KpbIATA YeTka MoKe Da Ce MOHTnpa KaTo DoNbHHe Hne KbM ToCKoBAta CtpyHa NIO3a. Taka 6NaIarOapEn He NaeTKITE Moat JeCHO Da 6bDat OTCpaHene n yOpNTte 3AmpcBaHnA.

BhumaHue

He e noxdoxoara 3a noucmeane Ha yuecmumenu noebpxhocmu.

→ Φινγρα C

3aKpeneTe KpbIgnta Yetka KbM TOnKOBaTaCTpyHa Dn03a.

PbUHaIIO3a

Mojn noctabete Ha pUHaTaNIO3xAaBIneHTo nOKpmbalO.Oc6eNo NOxOJa 3a MaNKn Mneu Ce nobbpxHOCTn, DykaBHNn orJeana.

IpoDOba IIO3a

ПоIxOДЯша 3a МиЕши ce StEHNи ПОБОн POKPITЯ, Hapr. KaMeHHN ПОДОBE, ПLOЧКИ ПОДОBE OT PVC.CINHNo 3ambpcHnTe NOBbpxHOCTN Opba6OTBaIte 6abH0, 3a DA Bb3dEiCTBA napata no-ДыгВрeme.

Yka3aHue: OcmaMbuzme om npenapam 3a nouucmeane unu nodobpxkau emyncu, koumo oce hAmupam Ha noucmeahama no8bpxhocm, npu noucmeane ce npa mozam da doedam do hepaehomepu Meema, koumo u3e3am npu MHOaOKpamHo npunoXeHue.

→ Φινγρα G

3aKpeneTe nooBata KbPna Ha duO3aTa 3a noi.

1 HaBheTe noOobaTa KbPna no DblJxHa n NoCTaBete IIO3aTa 3a NOBbpy He.
2 OToBopeTe 3aIbPkaunTe cKobn.
3 NocTabeTe kpanaTaHa KbpnaTbOTbOpTe.
4 3aTbOpTe 3aIbPkaIuIte cKo6n.

BhumaHue

He cnaaume npbcmu c mexdy ckobume.

Tapknpahe Ha YetkaTa 3a noD

→ Φινγρα H

PnnpkekbcbaHe na pa6oTa 3aKaayTe YeTkata 3a noB B Hocaya 3a napKupaHe.

PnJnn noDpBjKka

Onachocm

OcbnykeaHemO da ce u3ebpuBa camo npu u3eaDeH uencen U oxnaed NapocmpyEn ypeD.

M3nJaKaBaHe Ha KOTena

I3nnakheTe KOteHa Na napoctpyHnHa ypei Ha-KbC-HO Cnei BcKO DeceTn HAnblaBe Ha KOteHa.

Kotela da ce HantbIHH C BODa I Da ce pa3TbpCnCINHO. IIO To3N HauHc Ce pa3Tbapr OCTaTbUTeOT BAPOBNK, OCTaHaII N IO NDo HA KOTela.
I3neIte BOdaTa.

Pomou npn HEn3npaBHOCTN

Mhoro YecTo npuHHnTe 3a nobpeJa ca enemHTapHn N C POMOHTa Ha CNeHNrte yka3aHnma MoKe camn Da nOTCTpaHnTe. AKe He CTe cnpyHn nn NobpeHnTe He ca ONCaHn Tyk, ObPHeTe ce KbM OTOpN3npaHnA cepBn3.

Onachocm

Ocbnykehemo da ce u3ebpuwa caMo npu u3eaedH uencen u oxnaede Napocmpyeh ypeD.

Pemohmhu me deuocmu no ype da ce u3bpuwam eduncmeho om omopuzupan cepu3.

YdJIkaBaHe Ha BpeMeTo 3a 3arpaBaHe

IapoctpyHnT KOTeJ CbDbpxa BapOBNK

www.kaercher.com/REACH

Tarnekomplekt

Lisavarustuse monteerimine

Joonis A

Aurupuhasti on tooks valmis.

Seadme valjalulitamine

Tömmake vörgupistik seinakontaktistwäla.

Seadme ladustamine

Joonis F

www.kaercher.com/REACH

Piegades komplekts

www.kaercher.com/REACH

Komplektacija

www.kaercher.com/REACH

KOMNJIeKT NOCTaHaHHa

KOMnneKtauia npntpo 3a3haeHa ynaKoBci.
Pnpo3nakyaBHHi npntpo nepeBipnTn
KOMnneKtauio.

Ypa3i Hectaui DoaTkoBOro OblaHaHHa6o yukOKeHb,OTpMaHnxPiC TpaHcnpTyBaHHcNl NobiOMTe npo ce B ToproBeIbHy opraHizauio, kpaDana anapat.

3anachi yactnH

BukopncTOByTe TBbKn OpurbHaIbHb3 3anaChi acTnHi fipm KARCHER. Onnc 3anachnx cactnH hapnikin daHOi INCTpykui 3 ekcnnyatauii.

Tapahtria

Y KOxH KpaIH DiIOb YMOB rapaHTI, HadaHOI BiINOBIDHOO fipMOHO-npoBaueM. HenonadKn B pOBoT npCtPOIO M yCyBaEMO 6e3PnAtoHO npOTaRm TepMHy dIraPantII, kUso BOHN BnKnKaHi bpaKom MATEpiaNy Nn NOMIKAMN BnTOBLeHHN. Y BnPaNDky UHHOCTI rapaHTI 3BepITbcra Do npOdaBcN uB HnBnKChy ABTOPn3OBaHn CepBicHn ceHTp 3 DOKyMeHTaJIbHm NIDTBepDjKeHHM NOKyKNi. (Adpecn nIB. Na 3Bopoti)

Onnc npvcTpoIO

KomnnekeTaia npncTroo 3aHaueHa ynaKOBci.
Pnpo3nakyBaHH npncTroo nepeBipntu
KOMnnekeTaio.

Ypasi HectaIdoaTkoBOrOoblaHaHnA 60
yUkOJKeHb,OTPImaHnxPiC TpaHCnOpTyBaHn,
CnID NOiIDOMTe PPO CE B ToproBbHy OpraH3aCiIO,
ka npoDana anapat.

→ 3o6paXeHnIaNb. Ha po3BOpOToI!

A1 KohtpOJIbHa IaMnIa (3eIeHa) - HЯВHICTb HApPyrIy mEpexi
A2 KoHTpoJIbHa JAmNa - "HarpiB" (IOMAPAHUEBA)
A3 3anobixhna npo6ka
A4 TpImaMdI npHaJIeKHOCTeI
A5 NapkybaJIbHe KpInneHHaHacAnI dIy nIiNOrn
A6 MepexeBn KaebIb 3i WTeNcIbHOBO BNKOIO
A7 Pobochi koneca (2 wTuKn)
A8 CnpraMoByBaIbHn BaIeIb
B1 Napobni nictolet
B2 KhoJa po36JIOkyBaHHa
B3 Перемпakч кількоcti napу (з зхистом вд BMKAння DiTbMn)
B4 BaxiNb npaui nap
B5 Napobni shaHr
C1 ConJIO TOUKOBOTOCTPymenH
C2 Kpyrna ujTka
D1 PuchecoII
D2 POKPITT3 eNoHky
E1 IoobKByBaIbHi Tpy6Kn (2 wTykn)
E2 KhoNka po36JIOkyBaHHa
F1 Conno nna nony
F2 3atncka
F3 RaHcyipKa dIy MmTTy niDnOri

Kopotka ichtpukia

→IMB.MaHONKa HcTOpIHci 2

1 BnBepHytn 3anobixHy np6kTu 3anOBHTn npnilad nIpy napOBOro YIuSeHHRA BoIOU B o5'EMi He 6IbIb I JITpa.
2 3akpytib 3anobixHy npo6ky.
3 BctabTe wTeNCbNy BnIky. 3aOparmc 3eHenmu ma KoMaopapu KoHmpoJIhHi iHoukamOpu.
4 3auekaite,doKn He 3raChe JcOBtorapya KOHTpoJIbHa JAMNa.
5 PnpEHaHte HacaKdy Do npaBOrO nicToJeta. Napobn cenapatop roTobn do p60tn.

Ppabuna 6e3neke

06epeKHO！
Poboma y bubxohnebe3neuHux ymoaX He do3e0nemcbc.
Ppu ukuopucmaHH npucmpo 8 He63neuHux 3ohax cnid dompumyeamuc8 iDnoeiHux npaeun mexhiku be3neku.
Eknnnyamaui npucmpo 6aceuhi, uO micmmb ody, 3aboponeha.
Ppucpiu He moKHa eukopucmoyeamu dny uueHnna enekmpuHu npucmpoia, HappuKnad, dyxo0k, eumxHux Habic, mikpoBulBoux neeu, meeEizopie, lamn, fenie, enekmpuHuX obiapieaiv moio.
Ipeod ukoopcmaHnnepeepme cnpaehicmb npucmpo ma npunahexKnocme. JaKuo obnaDhann 3haxodumbcy y Hebe3doaHnomy cmahi, o0o He moXHa ukoOpucmoeyamu. Oocblue pemelbno nepeepme kaebm MepexHo2o XueJenHn, 3anobixHy np6ky ma wanahe noadai napu.
UwKodKeHui KaBeIb MepekHo2o JxueHeHHnOBuHEn 6ymu HeaauHO 3amHeHuUYnoEHOaeJHoCnyXboO cpeBicHOoOcbcy2oeyeaHnr/qaXieum-eneKmpukom.
UkoJeuH uana noda npu niOjae Heauii 3amH. Oo3eOnembc8 eukOpucmaHH minbku uanaie iodau npu, peKomeHooBauHX eupobHKOM (Homep dna 3amoBHeHH due.y cnucky 3apanx yacmuH).
Hikonu He mopkaumecb mepexhoo umekepy ma po3emku oIonozmu pykamu.
He yucmum npao npemmu, 0o Micmmb peounu, ukiDnuei dny 3dopeo' (Hanpuknaed, a36ecm).
YxodHomy pa3i He mopkaumecc cmpymeh npu pyko 3 bni3bko i0dcmhi ma He npa8nme ii Ha IIOe ma meapun (He63neka onikie napo).
△ PonepeoKeHHa
Ppucmpiu moke bymu nid'edhanu nuue do eekmpuHoi Mepexi, zo noeunna bymu ecmaHOeHa eekmpomOHmepom 3iDho 3 IEC 60364.
Ppucmpiu cnid emukamu nuwe do 3minhooe cmpymy. Hanpyea noounha eiOnoeidamu Eka3aHUM Ha fipmoi mabluu npucmpo daHUM oodo hapyu.
Y cupux npumiuenceHHx, hnpuknaad, y eanhux Kimhamax, kIIOUaIme npucmpi miBku e po3emku i3 nepeDekuoyehum 3anobixhm Eumukayem muny FI.

HeeidnoiDi niodoexyeayi moymb 6ymu He6e3neHmu. Bukopucmoeyme minbku 6pu3ko3axuehen noo0exyeay i3 nepemohm npo8ody He mehu 3× 1 MM2.
3'edhaHnMa MepeXhoB uNku ma nodoexyBaHa He noBuHHe Jekamu y oooi.
Ipu 3amHc npolyhux enemehmie ha ka6eni MepeXHO2O XueHenHa a6o ndoeXyBaYi noBuHnHa 3a6e3neuyamucb 6pu3ko3axuueHHma MexaHiHa MiHicmb.
Kopucmyaay nouhen bukopucmoeyamu npucpiy eidnoeidnocmi do hcmpkyi. Bih nouhen epaxooyamu ymoeu Micueocmi ma 3eepmam yaay ha mpemix oic ndac po6omu 3 npucmpoeM.
Leu npucmpi He npuzhaeHO dny eukopucmaHHnIObMu (y momy uciu dime) 3 o6mexeHUMU f3uHUMU cencorpHUMU a6o po3ymoBum 3dAmHocmmu a6o ocobam 3 iocymHCIO doc8iy U/ab6 3naHB, 3a uHnarmKOM eunadki, kkuo 3a 3abe3neueHHM 6e3neku ixhbo'poBOMCnoempeiaaOMb CneuaJIbHo nio2o0meIHI oc6u ab6 eoHou oepjyom b iD Hux Eka3iEku, uO cmocyombc eukopucmaHH npucmpo. HeoXIOHO cmexkmu 3a dimbu, He o3eONmu im apamu i3 npucmpoem.
He moxha 3aIuamu npucmpi 6e3 haanrdo nioc po6omu.
ObepejxHicmb npu uuehenhi kaxenbHexcmH 3 enekmpuHUMpu03emkamu.

Yeaza!

Cnkikyume 3a mum, uo6 mepexhi Ka6eni a6o nodoexybai He moXHa 6byo nowkodumu Hacmynuewu Ha Hux, y pe3yIbmani nepeuaHnra, po3ipBaHHra a6o nodioho yukodxeHH. 3axuauime MepexHu Ka6eJI b iO jaku, macna ma oecmpux noeepxoHb.
Y kdoHomy pa3i He buKOpucmooyume po3uHHu, pidunu, 0o Micmmb po3uHHu Ka oHepo3eedehi Kusnomu (Hanp., MuHi 3acobu, 6eh3Un, po3pidjyeaifap6 ma auemoh) i He 3aIuaime ix y bak dner eodu, ockilbku eoHu aepcueho ennuaomb Ha Mamepianu, buKOpucmaH e npucmpoi.
Ppucmpiu Heo6xioHo po3miu amu Ha miuHou ochoi.
Ekcnnyamyama ma 36epiaamu npucmpiu 3eio do onucy ma manIOHkie!
Iid yac pobomu He do3e0nembcs 6nokybaHHaXeJI naOaI npu.
3axuzaume npucmpiu biD douy. He 36epiaeme nio eiokpumum He6om.

3axnchi npncptoi

yeaza!

3axuchni npucmpoi cnayyombd nra 3axucmy
kopucmyaeue. Budo3mHa 3axuchux npucmpoe yu
HexmyeHnHn Hmu He donyckaembcj.

Perynatop Tncky

PeryIaTOp TnCKy UTPMMyE MAKcIMMaJIbHO NoCTiHmN TnCK y pe3epByapi nID uac pOBoTI npuJaY. HarpIaHHaBMknaeTbCra pni DoocrHeHHi MaKcIMMaJIbHO 3NaChHHaPo6oHOro TnCKy U pe3epByapi, i pnip naIHHi TnCKy Bpe3epByapi BHaCIIIOK BiD6opny napn HarpIaHHa 3HOby BMkAeTbCra.

3axnchn Tepmoctat

Kkpo pernytrop BmwoB i3 nay i npctpi neperpibcra, To pncptri BBMnkaeTbc 3a DOnomoroh 3axchoro TepmoCTaty. 3bepHtcb Do BiDiny 3abe3neuHn 3axnCHMn TepMOCTaAMN B BiDnOBiHni Cnyk6i o6cnyroBaHHa KnieHTIB KOMnaH" "KARCHER".

3ano6ixha npo6ka

3anobixha npo6ka 3amknae pe3epbyap BID BHNKAOYOROTCKy napi. Y BNpaNky, kkuO pepyIaTOp TnCKy noSKODKeHn Ta Bpe3epByapi YTbOPINBCa NaIMNUKOBNI TnCK, y 3anobixhni npo6bi BIDKPINBaCTcBc 3axncn Klanah DnA BnBeDeHH npa H3OBHI.

3BepHbC8,6yNb NaCKa,do pemOHrO Bidiny B BiDIOBIDHI cIyX6i 0cIcyroByBaHHKJIeHTIB KOMnaiii KARCHER.

Ekcnnyataia

3MOHTyBaTn O6JIaHaHHa

MaJIHOHOK A

BctabITn i 3aΦikCyBatn HappMnpoNk Ta TpaHcnpTHi KOneca.

MaJIHOHOK

3'ειнги Heo6xidne npinapdЯ (INB. po3dIn "3actocybaHHn npinapdЯ") 3 napOBm nicToIeTom.Дяцboro NaJrHITb BiKpHTn Kpa npHaJIeXHOCTi Ha napOBn nicToIe Ta HacyhTe Ha napOBn nicToIe HactiNbKn,Io6 Khonka po36bOkyBaHHn NapOBoro nicToIeTa aafikcyBaIacra.

MaJIHOHOK D

→ Pπn Heo6xIDHOCTB WbKOpNCTOByTe noOBKyBaIbHi Tpy6Kn.ДЯцboro 3'eHaJIte 3 napOBIM niCToNem OndHy a6O dBi noOBKyBaIbHi Tpy6Kn. HacyhTe Heo6xIDhi npHAnExJXHOCTi Ha BiIbHi KpaI noOBKyBaIbHOI Tpy6Kn.

BID'EDHaHnHa HacaDOK

06epeKHO！

Ipu 3njammi npuhaeJeHcmei i npucmpo moKe eumikamu aapraa ooda! He 3nimaune hacaoku nid yac noaday napu -noepo3a obeapohbaanhna!

BicytHCTb nap - (3axnCT BiD BMNKaHHN dItbM)

Ipumimka:Bucmy noJoxeHHi baxeJI naDau npu He moxnuo 3adjmu.

BCTaHOBHTn nepemKau Ha Heo6xIDHy KJIbKicTb napy.
→ Hatachitb Ha Baxijnb noaqui napi, npu cboMy cnouatky Hanpabraoyn napobni nictolet Ha TkaHHy, nOKn npa He 6yde BxOdntPiBHomipHO.

Ipumimka:HaapieaHnnpucmpo dny
yuueHH npaoi nd acukopucmanna
nocmiuho eKJIucaembcrd ny iipmpkmu mucky
komni. Ipu yboMy ceimmbcJxOeMozaepya
KohmpoIbHa lamna "HaapieaHn"

OJINBaHHBODN

KoTeI cIId HANOBHNT BODIOB TOMy BUNaIky, JaIIO nID yac pObToN KJIbKICTb napu 3HnJxyeTbcra I HOBa npapa He BnPo6nAeTbcra.

Ipumimka: 3anobixha npo6ka He iDkpuaeambc, noku e komnla zanuaembce haMhenu u muck.

BntaHtB MepeKHN mTeKepe 3i uTencelbHOI po3eTK.
→ HaTnCKaIe Ha BaKInb noJaqi napi, nOKn He npINHmTBcBnXid napi. Tenep TnCK y KOTni npICTpOIO BIDcyTHni.
→ BiDVBHNTITn 3anobixHy npo6ky biD anapata.

06epeKHO!

Ipu eikpueaHhi 3anobixhoI np6ku moke eudinumcra 3anuukoea kibkicmb napu.

Biodkpueaume 3anobixnHy npo6ky obopexHo, ichye Hebe3neka o6bapuobAHna.

→ 3aHTN B KOTeJI He 6JIbIe HIX 1 NItp CbiKoi BOONPOBIDHOI BOI.

06epekeho！

Ipu Haapimomy Komn ichye Hebe3neka
obapoueHH, ockinbku eoda moke
po3npuckyamuc npu HanoenHHi! 3abopnoembcra
odoeamuy eody MuHi 3acobu a6o iHwi do6aBku!

3anobixny npo6ky 3HOBy uinbHo 3aropHITb y npncTpii.
BCTABTe MepeKHNI WTEKeP y WTeNCEbHy po3eTky npnnay.
→ Пиблзно Урета 8xbiHIN KOBTOrapra KaHTpoJIbHa IaMma "HarpiBaHHa"3rache. Napobn cenapaTOp roToBn Do pOboTn.

BumKHeHHn npuJaDy

BntTHiTb MepexHn I TeKepe 3i UTeNceIbHOI po3eTK.

36epiratnpictpi

→ MaJIIOHOK F

BCTaBHTI NOIDOBKByBaJIbHy Tpy6ky U TpIMaU dIy npHAnLeXHNoCTeI BeNIkoROrpo3Mipy.
IomictnIpyHnyΦopcyHkyTaΦopcyHky TOCKOBORO CTrpyMeHЯ NIOOBKyBaIbHy Tpy6Ky.
BctabuN kpyrny uItky y tprmaq dny npinahexknoctey cepedhboro p03mipy.
Bctabntn fopcyhky nna nndn B napkybaIbHe KpinnneHH.
- O6mOtatn ⅢaHr nOaHi napi HauKoNo nOobKyBaIbHnx Tpybok Ta nomictHTn napOBni nicToJET y fOpcyHKy dIra NiIOnr.

3aCTocyBaHn npJnaDn

BaxnBi Bka3iBkn 0do 3actocyBaHHa

PpmbpaTe noBepxHIO ndnorm

Ipepe 3actocybaHHm npictpoIO dnyuieHnnapoIO pekomehdyTcra NiMeCTn abo nponlloocOHTN niDNOry. TaKIM uHOM MOxHa 3BilbHNTn iDNOry BiD rpa3i/He3akpinJIeHNx cactOK nepeipnoBeHennM BOJloro pnp6bnapnHn.

OcbixeHHa TeKCTnJIbHnx Bnpo6iB

Ipeep npoBeeHnM obo6Kn 3 donomoro npncTPOO dny uuSeHn npao cni dabXdn nepeBiprATn CTiKicTB TeKCTnBnHX Bnpo6IB Do BVnNBy nap. Hacampeep, cniD obo6bTu npao Bupi6, notim npocuyntu noTo Ta, hapeSti, nepeBiprtu CTiKiCtB fapbyBaHHa Ta HaRBHcTb DeOpmaui.

OuHHeHHNoBepXoHb3NokpTTaJaKOBaHx NoBepXoHb

Ipiu NiuueHJI NaKOBaHINx NOBepXoHb a6o NOBepXoHb i3 NOKpTTaM, HApnPKnAa, KkyoHNHX Me6bl Ta Me6bl IaN KBaPTnP, DBepei, NapKeTy, Bick, Me6blBa NOnIItypa, StTyUHe NOKpTTa 6o foap6a MoKyTb POzHHNTnCt A6o Ha HNX MOKyTB BVHNKHUTn PIIaM. IpnPoBeHHe YNuEHHa CnI3nerKa BiDnapHTn XcTky i NotIM IpOteTpN Heo nepepaxoBahi NOBepXHi.

yeaza!

He napraeIyme npa Hy npukneHkpaKu, ockInbku obKnadka moke biokneimuc. He eukopucmoeyme npucmpi dny uueHH depee'aynx abo napkemhux niDno 6e3 nokpmmr.

OuHHeHHcKna

ПиMuH3bKINX 30BHiUHIX Tempepatypax, HacamnepeI, y3IMKy, nporpiIte BIKOHNe CKnIO. 3aBЯки cIbOMy Bn 3MOKeTe IeRKO O6bOHTN napoIO BCIO NOBepxHIO CKna. Y taKni cnocio Bdactbcra yHNKHyTN HanpyrN nobEpxHI, IO MOKe IprN3BeCTN Do pO3bMTTcckla. PToTm NOBEXHIO BkHa CnID OChNTn i3 3aTcOcyBaHHaM pyHoIo fOpCyHKn Ta cepBetkn.ДЯ BUnaJIeHHa BOi CnID BIKOPNCTOBYaTN HacaIky DnA MTTTa BIKOH a6o Docyxa npoTePTn NOBExHIO.

yeaza!

Iapy He Hnpaenlomb Ha yuinbnehi dianhku binn eikohnoi pamu dna 3anobiaaannn ii ywokodkenn.

Iapobn nictolet

IapOBn nictoTe MOKHa BnKOpNCTOByBaTn 6e3 npHnaleXHoCTe, HApNKlaJd, dJa:

• ycyhenHna3aIaxIB TaCKlaDOK Ha BVCyHx npedMeTAX OJary npi obpo6ci 3 BiDCTahi 10-20 CM.
  BVDaJIeHnI\PuIy3pocJIN.H.DOTpIMyITeCb BiDCTani 20-40 cm.
  ДЯЗВОЛоженяпOTиральНоIТКанИн.ШвдкообpoбiTытКанИну napoю ta npotpiTb HeO Me6nI.

Opcyhka ToukoBOrO CTpyMeHr

YIM6JIINKHe 3a6pyDHeMeIcE, TIM BInu efeKeT UINHnOckINbNnHaBnua TaemepaTpyTa BNXID npn 3a6e3neUyTObCa H BNxOoi 3 opcyHKn. OocNIbO NiXoDnTB DnA ONUeHH BAXKOIOCTUYHnX MlCUB, CTNKB, apMaTyp, CTOKIB, paKOBnH, TYaneTIB, JAKIIO3i abo padiaTopiB ONAeHHN. CmblhnnBaNNHn HAnIT nepeD uNtceHHM npoMoKJINBO 36pni3HyTN oUcTOM abo IIMMOHOHO abo IIMMOHOIO KNCOTOnO, 5 XBnIH nDatn NODjTn, a nicra LbOrO 60pbNTn npaoIO.

Kpyrna zitka

KpyrIy 1y KMyMOxNBO BCTaHOBHTn Ha cONPi
KpAikIOBO rO CTpyMeHb Y kOcTi DOnOBHeHH.3aBdAnu
YiUeHHIO 1yTkoO E MOxNBIcTB IerKOro BUnaJIeHHa
CTiIKNx 3a6pyDHeHb.

yeaa!

He npuzhaeHa dna ouuueHn yumnueux noepxohb.

→ MaJIIOHOK C

3aφikcyBatn kpyrIy ⅢIky Ha conIi kpankoBoro CTpymehra.

Pунда Форсунka

HaJrHnItb Ha puHy fOpcyHky yOxO1 3 maxpoBoi TkaHHN. Ocobmbo Do6pe npictocobaHa dny HeBeJIHKX IOBepxOHb, IIO MNIOTbc8, dyWOBHX KaIihok Ta d3epkAn.

Opcsyka nna niJIOIur

ПпстOCOBан Дя BCIX МИнХ CTIHINx TA NOIobINx nOKPITIB, HApnIKnAД, KAM'HNX NiIgOR, PIIITKN Ta nONiBInHJNOpNDy. Ha CmIbHO 3a6pydHeHX NOBepxHx npaIcHte NOBilbNO DЯ TOrO, Uo6 36IbIbHTu TpBaJIcTb II napn.

Ipumimka:3aunuku 3acoby dny uuueHH a6o emybcii dny doeJy, kci 3anuwaomcbna Ho ouuyeaHni noepxHi, moKymb npu uuueHHi npoU ymeopoeam cmyu, kci buaJnombc npu baaamopazOomy ouuueHHi.

MaJIIOHOK G

3aKpInNTuKaHHyDnI MHTTgPiNOrHa fOpcyHci DnI niNOrn.

1 Cknactn TkaHnHy dny MHTTЯNOrB 3dObK Ta nomicHTn Ha He fOpcyKny dny NiIOnn.
2 BiДкрптг 3aTиСКИ.
3 Iomictnti Kinht KaHINB OTBOPN.
4 3aKpntn 3aTnckn.

yeaza!

He 3acoeyeam nu naIbui mix 3amuckamu.

PapkyBaHH foPCsyKn dny niJIOrg

→MaJIIOHOK H

Hemac BODy npaOBomy KOTJI

Buknnoiht npncptpi.
→ДИВДОЛИВАнHЯВОДИ"

Baxinb noaapi np He moxha haTCHyTu

Baxilnoaipnap3aikcbAHn6IOyBaHnM/ 3axCTOM BID BKJIOUeHHN DIbM.

Iapobn pe3epbyap 1,0 n

Bara (6e3 oBnaHaHnHa) 3,1 Kr

UINPINA 254MM

Довхинан 380 MM

BUCOTA 260 MM

Lolai ailiao jlaill aLc

algb ojai jll wdo jlc laol

.

jLJIaIc aJrJg>

aLc no aJzll JwJll alljI p

J

A. 8 aJ 8

y y j/1j/ aJLac 1j/ j/ oJ/ oJ/ bJ/ J/ j/ j/ j/ pJ/ j/ pJ/ y J/ J/ oJ/ oJ/

8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

JlaJlJy JzJzJ

Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu JAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJAUUJUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu uu ku k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K

Jllacjxie xclwall

yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI

y/ a/ Jlac/ 1 y 1/ j/ jg> g

aJlJn no aJjJ JJJ JJ

a/ll/ j/ s/ a/la/ p/2w/ a/l> 4 a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2a/1/2

13
55 1,3-0 7-0 a
45 2,5-1,3 14-7 abwgo
35 3,8-2,5 21-14 oD
25 3,8< 21< oD
J

slo aoc a jcrn s oLlew/ dixy: slw/ 1 lalw//g olal// gro y r w/

Jgll s aKll l .
. j> jj
. j> j0
. g> gall oal y Jg j .
.(Iooal) la

J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J

1 1

awlu//2bw/1cbw/bw/oLio

Coo

2g aagaaaal all oawjll

J

山

g 9

bawwIg loaovwll.aygwl a@g

paoaowjnl jLgJwell alal all

.1JrJg

a. > y| a + b - c| > 0

aiojIg bilg aJl aiae gaaJ aawlia

Jalll Jw JwJwJal

a a a a a a a a a a a a

gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI

//Jg>J/ j>JjLj<//a>J J//s>Jd/Jb;0J/aj//j> //j>J/ a<//p>1y.5> /a//aJrJ//

j

aJ
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
C G
C G
C G
C G

oogagallgK>ylgolgo//jIyIgV

J

wla//b2z//lc b2>//j3/9

aJcIzj,ai//oi 0iOg.ay

.（a/11

clll Jo oIcI

a|la|c|la|cjooslo

jglgJosllcljgljll a

.

J5 laIb JIoY/ oJLoW c9 S ay y:laJ

A. x / 2 + 12 y = 0

Jgllssa aks

aLc cddi dic .loai jIg

.1234567890

jIJI JIOJLOI OJDSO

k_b = 2

aas// 2j jlo/01

y j 1/103/103/103/103/103/103

a loy/ jLj Jy yai j

.

a 2 aic jio ool a xil yolg

1

jbs

y/1b2 8g y a/10y/1b2

iic jj aoo 1c y jSca//

g/ a,bu 1go a/cla,aa YIcJa//

1

jgljlcnlaalldawgclgksy

.5>10,

a aaii

J

90s>ill aal jbbl

.

g jjll 1j>

.

jIJI JcJIOJIOJIOOJIOOJIOO

.5j

jglj

auiia jiejglgejgl y

.ubull aulac cui jge//Ja> jge y

a aalll

J

Jgssllbuaaegy jyjxixic

clo 29> g d> y| jge//jseuauy

jI//oJ/>aJgaoJoo9.aylo/

J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J.

J

aJxJgLg>JyJnJyJoo

aJ> 1

g>g 20.1a2al piaio jIac g>g

20 1

gol jiljll lai jll plao

Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx Jx

.02|JWJ

JgJI Jjoo oJcI J KaERCHER

J

Jalal

Aa>la|oo

Jalll 1jIbog aeggill lss

Lg

p/2x1w/ 2ic jka// j>la//jg2

sJUo jIg21/1iO pIuW/JeY 10gile (Jl6bY/1uS gLa) oL

g/aa>gl a>glc/a/20 1. lalgsa//g o

ailll j0 pglc 1y/ y/ a13/ lgl> 13/ y/9/ piooLw yiaall

aJus JwJzU//j0 00 Jlae JJJc Jg2//j0 pJzU/

p1c no 15ill Jlkb/la/0

jglj1,

!al/lll/1jg//jglz//cogla/

Jusill Jlil 2100y

1. j( a - b) = | a| - | b| .

gio/1sloy/ auiy jai

a 1/2022/1/20

11110g2g 110y/0sug

JUw alg JUduW/1cL g

a0x2gjUJc a/lu//

aio 105 /oaiaea/ cIae/

Jl/1p8b JIyWJg/1Lc

silll jlll pgbj 121/121w/ .dlll

//11/02 49,2al) giaal/4.2ai (la//g2aailj

1jmuai/1g muIa/lu JnuuylpaaY

c sgsj 19 / csw/ jw gia

(μguiuui jio) a2a/4 o2o 1go

1000000000000000000000000000000000000000000

J 100

a + b = 3

jgl//Jlaeiw/psxua//Jc

j 1g.022a/1c/ga/la9

a11 a11 1

oLw/aoLwJc

a0jyiaog F1

F2

aJyia F3

aai all Jdall

2 aaaa -a>liay

jg>Jolg JolJIOJIOJIOJIOJIOJIO

20 olal j aocj Jll

1

.100 100 100 100

.3

jssy1/ jgssy1>luo0

J/laJU

JgssJ12laa0:abaij>Jbui 4

J

wduo jL aJolJI J0g 5

J

j 1

.

aJz

#

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

laai

Jl Jll aai all gsw s w gwl lgsi
Ij Ij j Jll Jbcyl Jg Ws J
Jll p Jn Jy J
Jj G J
J> J
a a
c J
(aj)

aale

Jss

Jl Jll Jd Jc Jg Jy Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg J g J g J g

aalillll

f bafjll jg> pdsaww, p 1aJiaI aBil Jd 1n 1s gJbll jgJl Jos 1k sAwaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

Jg

http://www.kaercher.com/dealersearch
