L1CRDAB13E - Alarm clock radio Logik - Free user manual and instructions

Product Type	Alarm Clock Radio
Brand	Logik
Model	L1CRDAB13E
Radio Bands	DAB, FM
Preset Stations	10 (DAB) / 10 (FM)
Alarm Modes	Buzzer, Radio
Dual Alarm	Yes
Snooze Function	Yes (9 minutes)
Sleep Timer	Yes (15, 30, 45, 60, 90 min)
Display Type	LED with brightness levels
Dimensions (approx)	150 x 80 x 100 mm
Weight	0.5 kg
Power Supply	230V AC via mains adapter (included)
Backup Battery	2 x AAA (not included) for clock/alarm
Power Consumption	10 W (max)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids.
Safety Warnings	Keep away from water and heat sources
Spare Parts	Not available separately
Repairability	Not user-serviceable; contact support
Warranty	1 year

Frequently Asked Questions - L1CRDAB13E Logik

How do I set the alarm time?

Press and hold the ALARM 1 or ALARM 2 button until the hour digits flash. Use the TUNE +/- buttons to set the hour, then press SET. Repeat for minutes. Press ALARM to confirm.

How do I switch between DAB and FM radio?

Press the MODE button repeatedly to toggle between DAB and FM. The display will show the selected band.

How do I set the radio to wake me up?

Set the alarm as usual, but when choosing the alarm sound, select RADIO instead of BUZZER. The radio will play at the preset volume when the alarm activates.

How do I use the snooze function?

When the alarm sounds, press the SNOOZE button (or any top button). The alarm will silence and sound again after 9 minutes.

How do I set the sleep timer?

Press the SLEEP button repeatedly to select a time (15, 30, 45, 60, or 90 minutes). The radio will play and then automatically turn off.

How do I adjust the display brightness?

Press the DIMMER button to cycle through brightness levels: high, medium, low, and off (for night).

What happens if the power goes out?

If you have installed 2 AAA batteries in the backup compartment, the clock and alarm settings are retained. However, the radio will not function without mains power.

How do I clean the alarm clock?

Unplug the radio and wipe it with a soft, dry cloth. Do not use water or cleaning agents, as they may damage the device.

How do I reset the device?

If the unit is not functioning correctly, press the RESET button (located on the bottom or rear) using a paper clip. This clears all settings.

Can I connect headphones?

Yes, there is a 3.5mm headphone jack on the side of the unit. Inserting headphones will mute the speaker.

USER MANUAL L1CRDAB13E Logik

Black LOGIK digital alarm device with a digital display showing '321 M Finance 0' and 'LOGIK' branding (no additional text or symbols visible on device body)

Contents

GB

Safety Warnings....5

Unpacking....7

Product Overview 8

Top View 8

Rear View....8

Connections 9

Mains Power....9

Earphones....9

Basic Operation....10

Switching ON/OFF 10

Selecting Modes....10

Adjusting the Volume....10

Setting the Time and Date....10

Setting the Alarm and Wake-up Mode 11

Snooze Function 11

Sleep Function 11

Displaying Backlight 12

Factory Reset 12

Software Version 12

DAB Operation....13

DAB Auto Scan....13

Secondary Services 13

Presetting Stations 14

Recalling a Preset Station....14

Prune Invalid....14

DRC (Dynamic Range Compression)....14

DAB Display Modes....15

FM Operation 16

Selecting FM Mode 16

Auto Scan....16

Manual Scan 16

Presetting Stations....16

Recalling a Preset Station....16

FM Display Modes....17

Maintenance 18

Hints and Tips....18

Specifications....19

Innhold

NO

DRC (Dynamic Range Compression)....53

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.

• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
  • The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.

- Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

• Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.

• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
  • Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

Thank you for purchasing your new Logik DAB+ / FM Clock Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit Mains Adapter

Line drawing of a coiled cable with a plug and power outlet (no text or symbols)

Instruction Manual

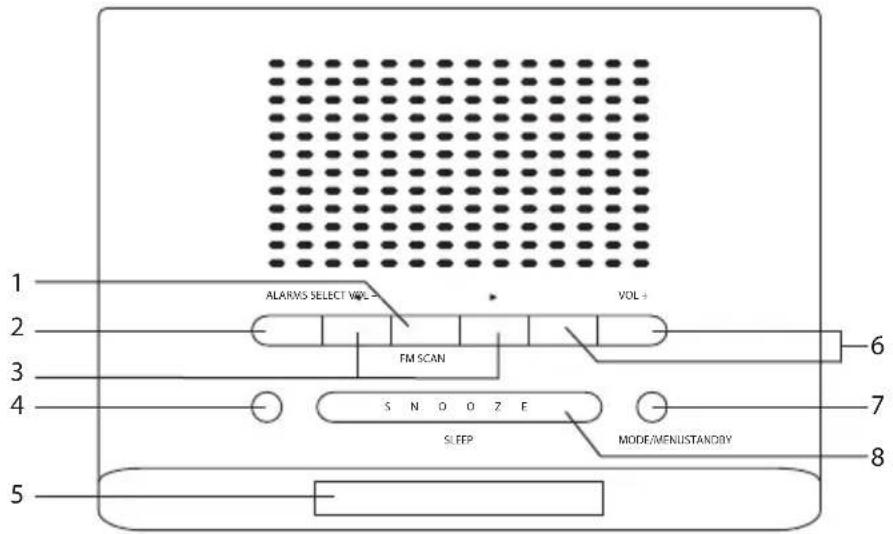

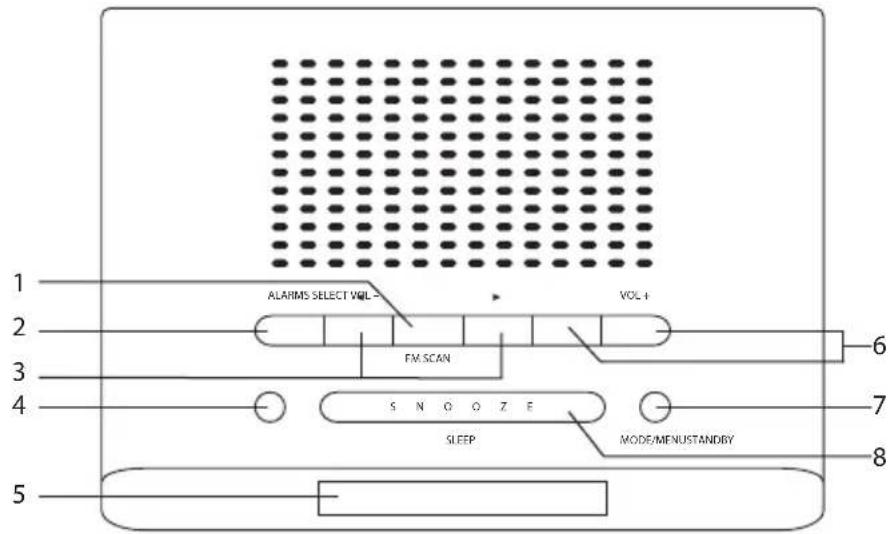

Top View

1. SELECT Button / FM SCAN Button

• Confirms the selection on a menu screen.
• Automatically scans FM stations.

1. ALARMS Button

2. Buttons

Selects an item on a menu screen.

1. STANDBY Button

Switches between STANDBY and ON modes.

1. LCD Display
2. VOL +/- Buttons

Adjusts the volume.

1. MODE/MENU Button

• Switches between DAB and FM modes.
• Displays menu screen.

1. SNOOZE Button / SLEEP Button

Rear View

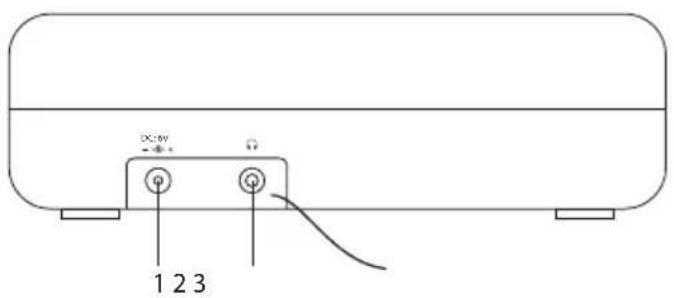

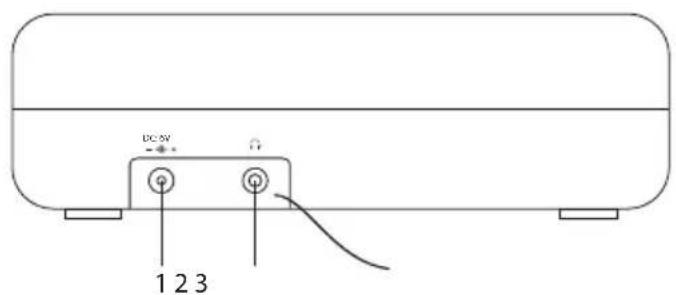

1. DC Socket

Connects the mains cable.

1. Earphones Socket
2. FM Aerial

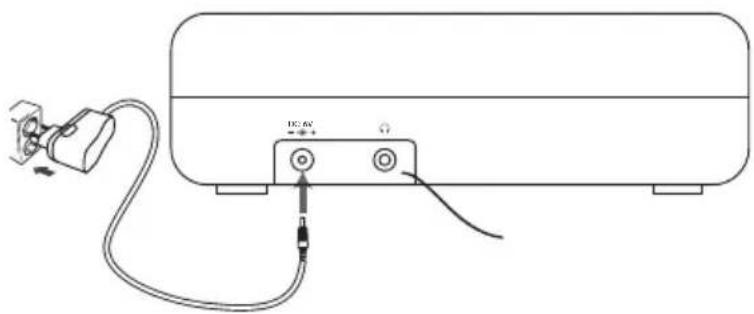

Mains Power

Connect the mains adapter (included) to the DC Socket at the back of the unit and then plug into the mains socket.

Line drawing of a mechanical or electrical component with a cable and two labeled ports (no text or symbols present)

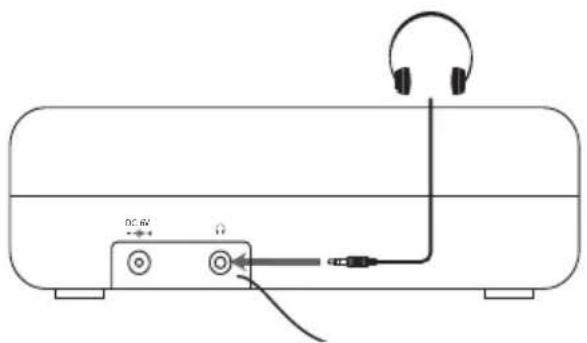

Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods of time.

Switching ON/OFF

When you first connect the unit to the mains socket, the unit will be in Standby mode.

• Press STANDBY to switch on the radio.
- Press STANDBY again to switch the radio off and the unit to Standby mode.
- Disconnect the mains adapter from the mains socket if you want to switch the unit off completely.

Selecting Modes

Switch on the radio, press MODE/MENU repeatedly to switch between DAB or FM mode.

Adjusting the Volume

Press VOL +/- to increase/decrease the volume.

Setting the Time and Date

1. Switch on the radio, press and hold MODE/MENU to display the menu.
2. Press ◀▶ to select , then press SELECT.
3. Press to select the option below:

Set Time/date	Press ◀▶ to adjust the time and date, then press SELECT to confirm.
Auto update	Press ◀▶ to select Update from DAB or No update, then press SELECT to confirm.
Set 12/24 hour format	Press ◀▶ to select 24 or 12 hour, then press SELECT to confirm.
Set date format	Press ◀▶ to select MM-DD-YYYY or DD-MM-YYYY, then press SELECT to confirm.

1. Press and hold MODE/MENU to exit the menu.

Setting the Alarm and Wake-up Mode

1. Press ALARMS repeatedly to toggle between and . ① and ② will flash on the display. Press SELECT to confirm.
2. Press ◀▶ to select alarm or , then press SELECT to confirm.
3. Press ◀▶ to adjust the alarm time, then press SELECT to confirm.
4. Press ◀▶ to select alarm duration (15/30/45/60/90 minutes), then press SELECT to confirm.
5. Press ◀▶ to select Buzzer, DAB or FM mode, then press SELECT to confirm.
6. Press to select alarm active day (Daily / Once / Weekends / Weekdays), then press SELECT to confirm.
7. Press ◀▶ to select alarm volume, then press SELECT to confirm.

Snooze Function

- When the alarm sounds, press SNOOZE to temporarily switch off the alarm. The alarm switch off time will vary according to the selected alarm duration. Press SNOOZE repeatedly to select the alarm switch off time.

Alarm Duration Alarm Switch Off Time
15 minutes 5 or 10 minutes
30 minutes 5, 10 or 15 minutes
45 / 60 /90 minutes 5, 10, 15 or 30 minutes

The LCD display will show "Snooze mm:ss" to indicate that snooze is on.

• Turn off the alarm by pressing STANDBY.

Sleep Function

This function allows you to programme the unit to switch off by itself after a set sleep time. Make sure the radio is switched on before setting the sleep time.

1. To activate the sleep function, press SLEEP repeatedly. The sleep time will toggle as the sequence below on every press:

1. Press SELECT to confirm. " " will show on the LCD display.
2. When the sleep timer reaches zero, the radio will turn off. To turn the sleep function off while the sleep timer is still counting down, press SLEEP` repeatedly to select "Sleep Off". "?" will disappear from the LCD display.

Displaying Backlight

1. Switch on the radio, press and hold MODE/MENU to display the menu.
2. Press ◀▶ to select , then press SELECT.
3. Press ◀▶ to select or mode, then press SELECT.
4. Press ◀▶ to select Backlight level (//), then press SELECT.

During standby mode, press any button (except ALARMS) to switch on the backlight for 10 seconds. You can also press SNOOZE to adjust the backlight level.

Factory Reset

When you move the unit to another part of the country, your pre-tuned and stored DAB stations may no longer be available and you might need to reset the unit back to its original factory settings. To perform a factory reset, please do the following:

1. Switch on the radio.
2. Press and hold MODE/MENU to display the menu.
3. Press ◀▶ to select , then press SELECT.
4. Press ◀▶ to select , then press SELECT.

After the factory reset, all the tuned stations, DAB & FM preset stations and alarm settings will be erased.

1. Press STANDBY to switch on the radio. It will automatically scan in DAB mode. When scanning is complete, the first alphanumerically found station will be broadcast.

Software Version

1. Switch on the radio, press and hold MODE/MENU to display the menu.
2. Press ◀▶ to select , then press SELECT.
3. The software version will show on the LCD display.
4. Press and hold MODE/MENU to exit.

If the unit is connected to the mains power and switched on from standby for the first time, the unit will automatically enter into DAB mode and perform the auto scan function. During the scan the LCD display will show "Scanning ..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far.

Once the scan has finished, the unit will broadcast the first alphanumerically found station. To explore the found stations, press ◀ When you find a station that you would like to listen to, press SELECT.

1200 DAB

Scanning...19

[Non-Text]

DAB Auto Scan

The auto scan will search for the entire DAB Band channels. After the scan has finished, the first alphanumerically found station will be automatically boardcast.

1. To activate auto scan, press and hold MODE/MENU to display the menu. Press ◀to select "Full scan", then press SELECT to confirm. The display will show "Scanning ..." and a slide bar that indicates the progress of the scan.

12:00 DAB

DAB

Full Scan< >

1. All the stations that have been found will be stored automatically. To explore the found stations, press ◀▶ Press SELECT to confirm.

Full auto scan will not replace the DAB stations in the memory. If you want to remove all the previously scanned stations, you will need to reset the system.

Secondary Services

You may see a “G” symbol after the name of the station during tuning, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station, e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, press ◀▶ until the desired secondary station is displayed, then press SELECT. When the secondary service ends, the unit will automatically switch back to the primary station.

Presetting Stations

You can store up to 10 of your favourite DAB stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold MODE/MENU, then press ◀▶ select followed by SELECT. "#: (Empty)" will show on the LCD display.

2. Press ◄to select your desired preset station number and then press SELECT to confirm. The station will be stored and the screen will then show "Preset # stored".

Recalling a Preset Station

1. Once you have saved a station, you can recall it. Press and hold MODE/MENU, then press ◀▶ to select followed by SELECT.

2. Press to select your desired preset station number followed by SELECT.

If you choose a preset station number that hasn't been allocated a station, "Preset empty" will be displayed.

Prune Invalid

You may remove all unavailable stations form the list.

1. During DAB mode, press and hold MODE/MENU, and then press ◀▶ to select . Press SELECT to confirm.

2. Press ◀▶ to select to confirm delete. Or select to cancel.

DRC (Dynamic Range Compression)

If you are listening to music with high dynamic range in a noisy environment, you may wish to compress the audio dynamic range.

1. During DAB mode, press and hold MODE/MENU, and then press ◀▶ to select . Press SELECT to confirm.

2. Press ◀▶ to select DRC high/low/off. Press SELECT to confirm the setting.

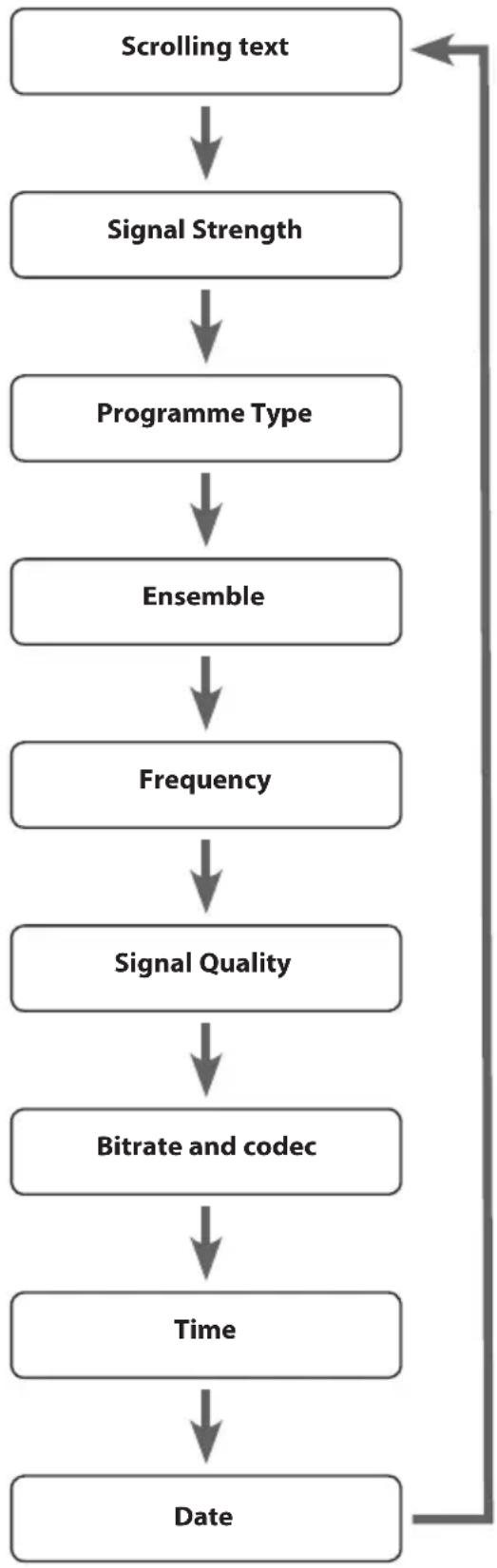

DAB Display Modes

Press and hold MODE/MENU, then press ◀▶ to select followed by SELECT. Press ◀▶ the LCD display will switch through the following display modes.

The information of each display mode is displayed on the lower segment of the LCD display.

Scrolling text

This is a scrolling message giving real-time information, e.g. song titles, news headlines, etc.

Signal Strength

This shows a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Programme Type

This describes the "style" or "genre" of the programme that is being broadcast.

Ensemble

This displays the name of the multiplex that contains the station you are listening to. A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

Frequency

This displays the frequency of the present station, such as "11C 220.352MHz".

Signal Quality

This displays a number showing the error rate. If the number is 0, it means the signal received is error free and the signal strength is strong. If the error rate is high, it is recommended to re-orient the FM aerial or re-position the unit.

Bitrate and codec

This shows the radio mode and the digital audio bit rate being received.

Time

This displays the current time provided automatically by the broadcaster.

Date

This displays the current date provided automatically by the broadcaster.

Selecting FM Mode

To switch the unit to FM mode, press MODE/MENU repeatedly.

Auto Scan

To search for an FM station automatically, press and hold ◀ to start the forward or reverse scanning. You can also press FM SCAN to scan automatically. The LCD display will show the frequency being searched. Once a station has been found, the scanning will stop automatically.

Manual Scan

To search for FM stations manually, press ◀ until your desired station is reached.

With FM radio, it may be necessary to fine tune each station by pressing repeatedly. Each press will adjust the frequency by 0.05MHz. If reception is still poor, adjust the position of the FM aerial or try moving the radio to another location.

Presetting Stations

You can store up to 10 of your favourite FM stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold MODE/MENU, then press ◀ to select followed by SELECT. "#: (Empty)" will show on the LCD display.

2. Press ☑ select your desired preset station number and then press SELECT to confirm. The station will be stored and the LCD display will show "Preset # stored".

Recalling a Preset Station

1. Once you have saved a station, you can recall it. Press and hold MODE/MENU, then press ◀▶ to select followed by SELECT.

2. Press ◆ select your desired preset station number followed by SELECT.

3. If you choose a preset station number that hasn't been allocated a station, "Preset empty" will be displayed.

12:00 FM Preset store 1: (Empty) < >

12:00 FM Preset store Preset 1 stored

12:00 FM Preset recall < 1: BBC >

FM Display Modes

Press and hold MODE/MENU, then press ◀▶ to select followed by SELECT. Press ◀▶ the LCD display will switch through the following display modes.

The information of each display mode is displayed on the lower segment of the LCD display.

Radio Text

This is a scrolling message displaying information about the current programme.

Programme Type

This describes the "style" or "genre" of the programme that is being broadcast.

PS

This displays the station name.

Audio info

This displays if the station being received is in mono or stereo.

Time

This displays the current time provided automatically by the broadcaster.

Date

This displays the current date provided automatically by the broadcaster.

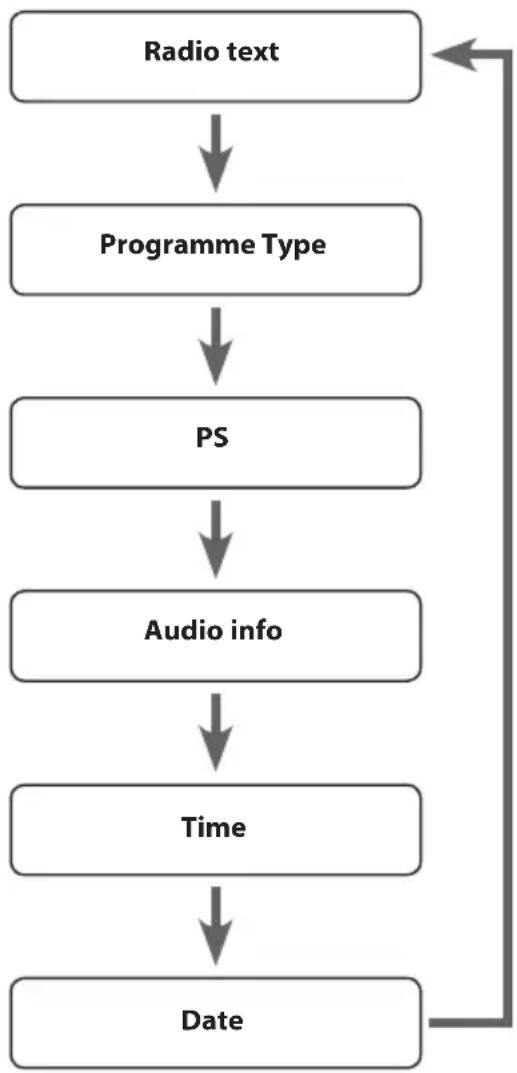


Maintenance

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem occurs, it may often be due to something very minor. The following table contains various tips.

Problem Cause / Solution
No Sound Adjust the volume.
Static Sound Signal reception is too low. Adjust the FM aerial or move the unit to a stronger signal location.
Sound is distorted Volume is too high. Adjust the volume.
Desired station not found Weak signal. Search manually.
The display shows “DAB” and “Manual Tune” after auto scanning	No DAB coverage in your area or poor reception. Adjust the position of the FM aerial.
	Poor reception. Adjust the position of the FM aerial.
The display is blank This may occur if the broadcaster changes the label of a service or removes a label while tuned. The unit will try to re-tune or perform a scan.

If the unit is not working properly, disconnect the power source and then reconnect it.

Model L1CRDAB13E
Mains Adapter Input AC 100-240V ~50/60 Hz 0.1AOutput DC 6V, 500mA
Power Consumption 3W (Max.)
Radio Frequency FM 87.5 – 108 MHzDAB Band III 174.928 – 239.200 MHz
Unit Dimension 172 (W) x 122 (D) x 54 (H) mm
Net Weight 355g

Features and specifications are subject to change without prior notice.

NO

Takk for at du kjøpte den nye Logik DAB+/FM-klokkeradioen.

Coiled cable and plug with a terminal connector (no text or symbols visible)

Bruksanvisning

Sett ovenfra

1. VELG-knapp / FM S∅K-knapp

• Bekrefter valg på en menyskjerm.
- Skanner automatisk FM-stasjoner.

1. ALARMER-knapp
2. • knapper

Velger et element på en menyskjerm.

1. VENTEMODUS -knapp

1. SLUMRE-knapp / SOVNE-knapp

Sett bakfra

1. DC-kontakt

Line drawing of a device with cable and connector, no text or symbols present

∅retelefoner

Autosøk i DAB

12:00 FM Preset store 1: (Empty) < >

12:00 FM Preset store Preset 1 stored

12:00 FM Preset recall < 1: BBC

NO

FM-visningsmoduser

Line drawing of a cable with a plug and terminal block, no text or symbols present

Instruktionsmanual

Vy ovanifrån

1. VÄLJ-knapp / FM SÖK-knapp

Line drawing of a mechanical or electrical component with a cable and two labeled ports (no text or symbols present)

Hörlurar

12:00 FM Preset store 1: (Empty) < >

12:00 FM Preset store Preset 1 stored

12:00 FM Preset recall < 1: BBC

FM visningslägen

Line drawing of a coiled cable with a plug and power outlet (no text or symbols)

Brugervejledning

Set oppefra

1. VÆLG knap / FM S∅G knap

1. DC-stik

Line drawing of a cylindrical device with connected cables and a labeled connector (no text or symbols)

Høretelefoner

DAB autom. søgning

DRC (Dynamic Range Compression)

12:00 FM Preset store 1: (Empty) < >

12:00 FM Preset store Preset 1 stored

12:00 FM Preset recall < 1: BBC

FM skærmtilstande

Symbol of a trash bin crossed out by two diagonal lines, no text or numbers present

GB

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
