Product Type	Alarm Clock Radio
Brand	Logik
Model	LCRIP12
Dimensions (W x H x D)	Approx. 18 x 10 x 9 cm
Weight	Approx. 0.4 kg
Power Supply	AC 230V ~ 50Hz or 2 x AAA batteries (backup)
Radio Bands	FM 87.5 – 108 MHz, AM 530 – 1710 kHz
Alarm Function	Dual alarm settings (wake to radio or buzzer)
Snooze	9-minute snooze function
Sleep Timer	Up to 120 minutes radio auto-off
Display	LED display with adjustable brightness
Clock	24-hour format with battery backup
Controls	Push buttons for radio, alarm, and settings
Antenna	Built-in ferrite for AM, telescopic for FM
Speaker	Built-in mono speaker
Headphone Jack	3.5 mm (mono)
Additional Features	Nap timer, dimmer, alarm indicator
Care & Cleaning	Wipe with a soft, dry cloth; avoid liquids
Safety Precautions	Use only supplied AC adapter; keep away from water
Spare Parts Availability	Check with Logik support for spare parts
Repairability	Not user-serviceable; contact qualified technician
Manual Language	English (PDF available online)
Certification	CE, RoHS

Frequently Asked Questions - LCRIP12 Logik

How do I set the alarm?

Press the Alarm button repeatedly to select alarm 1 or 2. Use the Hour and Minute buttons to adjust the time. Confirm with Set.

Can I wake up to radio instead of buzzer?

Yes. While setting the alarm, press the Source button to switch between Radio and Buzzer.

How do I set the clock?

Press and hold the Clock button until the hour flashes. Use Hour and Minute to adjust, then press Clock again to save.

Why is the display not showing the correct time?

If the unit was unplugged, the backup batteries may be dead. Replace the 2 AAA batteries. Otherwise, reset the clock as described.

How do I tune the radio?

Press the Radio button to turn on. Use the Tune Up/Down buttons to search for stations. For manual tuning, press and hold the buttons.

What does the snooze button do?

When the alarm sounds, press Snooze to silence it for 9 minutes. The alarm will sound again.

How do I set the sleep timer?

Press the Sleep button repeatedly to set a time (15, 30, 60, 90, or 120 minutes). The radio will turn off automatically.

Can I adjust the display brightness?

Press the Dimmer button to cycle through brightness levels (high, medium, low).

What should I do if the radio has no sound?

Check the volume setting by turning the volume knob. Ensure the antenna is extended for FM. For AM, rotate the unit for best reception.

How do I reset the alarm clock?

Use a pointed object (e.g., a paperclip) to press the Reset button on the bottom or back of the unit. This clears all settings.

USER MANUAL LCRIP12 Logik

Clock Radio with Dock

Instruction Manual

LCRIP12

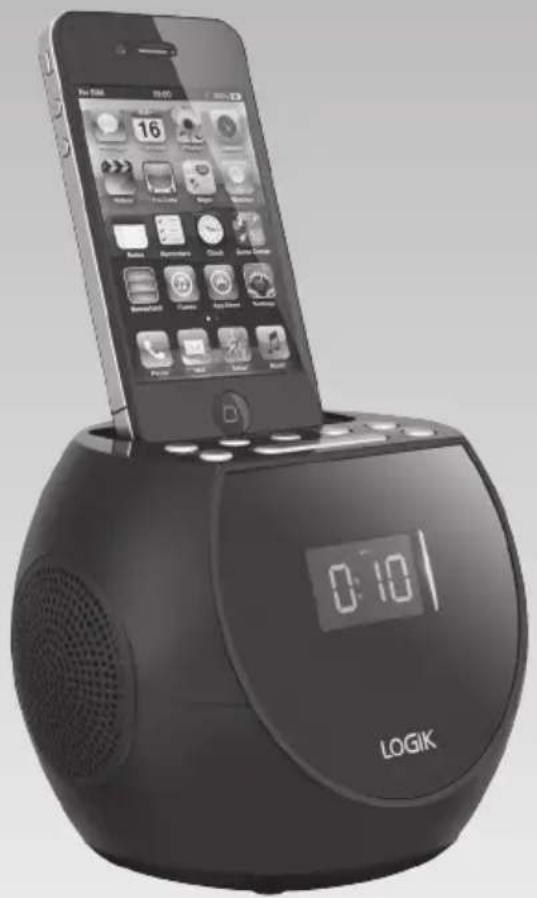

Black LOGIK digital alarm device with a smartphone displaying its home screen and sound waves (no readable text or symbols on the device body)

Gradient gray background with no text, symbols, or identifiable objects

Unpacking 4

Product Overview....5

Top View....5

Rear View .... 5

Bottom View 6

LCD Display Window....6

Power Source 7

Mains Power 7

Memory Backup....7

Handling the Battery 7

Basic Operation 8

Powering ON/OFF 8

Selecting Modes....8

Adjusting the Volume 8

Setting the Clock....8

Setting the Alarm....8

Cancelling the Alarm....9

Snooze Function 9

Sleep Timer Function....9

AUX Operation....10

iPod/iPhone Operation 10

Charging the iPod/iPhone....10

Radio Operation 11

Manual Tuning....11

Automatic Tuning....11

Programming Preset Stations....11

Selecting the Preset Stations....11

Maintenance 12

Specifications....12

Safety Warnings....13

Thank you for purchasing your new Logik Clock Radio with Dock.

We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

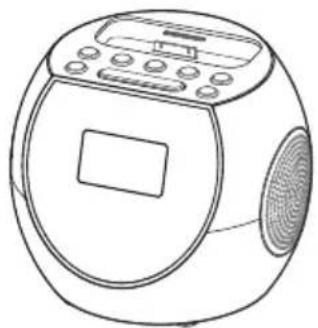

Line drawing of a round electronic device with front panel and speaker grille (no text or symbols)

The Main Unit

Coiled cable and plug with a small power outlet, no text or symbols visible

Mains Adapter (P.N.: AD120502000UK)

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

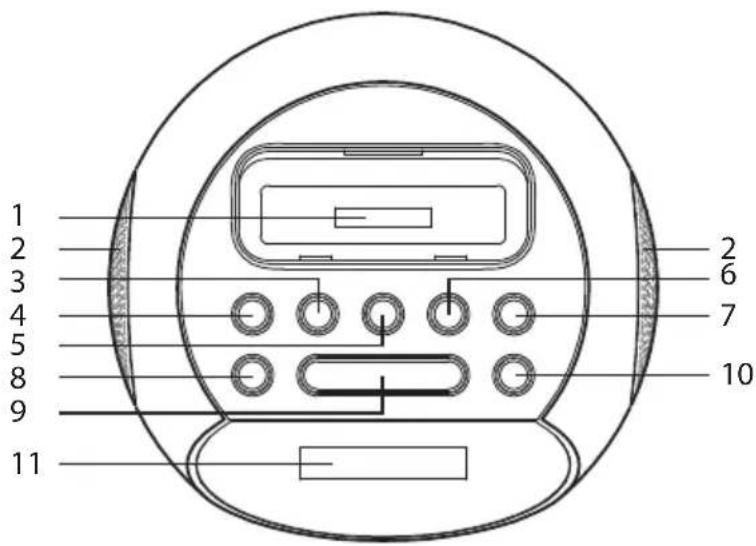

Top View

1. iPod Dock
2. Speakers
3. ▶II PLAY/PAUSE/TIME Button
4. ⏻ STANDBY Button
5. PRESETS P Button

6. PREV/TUNE- Button

7. ➤ NEXT/TUNE+ Button

8. VOLUME-/ALARM1 Button
9. SNOOZE/SLEEP Button
10. VOLUME+/ALARM2 Button
11. LCD Display

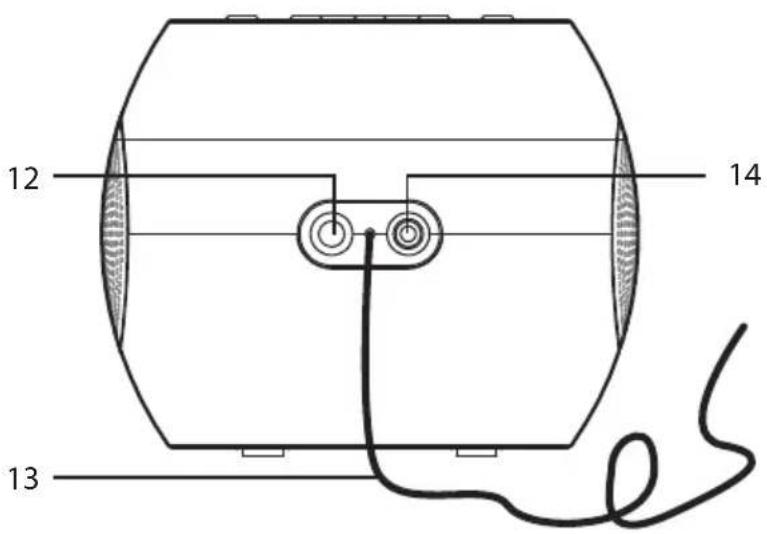

Rear View

1. DC 5V IN Power Connection

2. FM Aerial Wire

3. AUX IN Socket

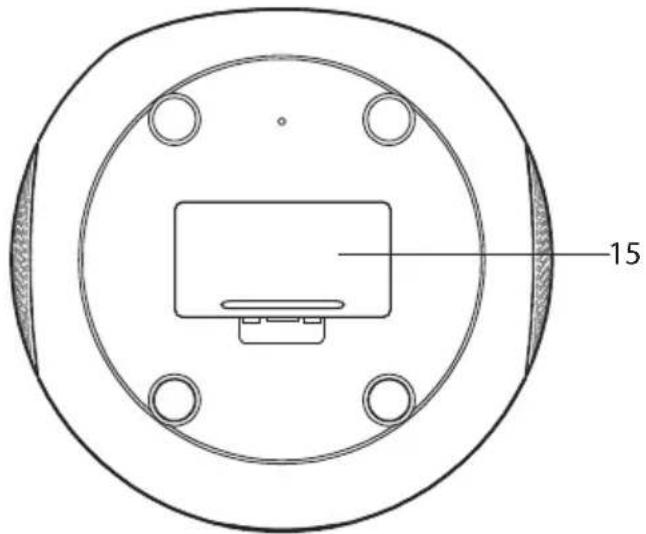

Bottom View

Technical diagram of a circular mechanical component with a central rectangular housing and four mounting holes (no text or symbols)

1. Battery Compartment

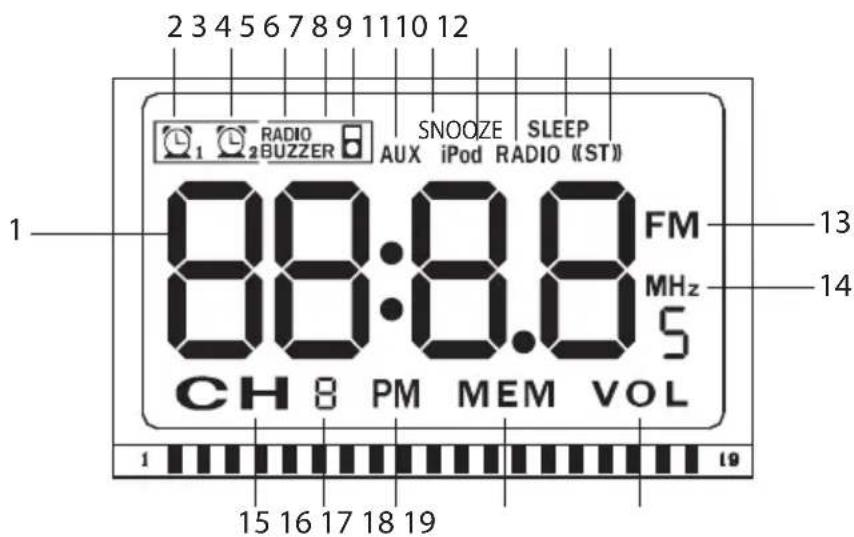

LCD Display Window

1. Time/FM Frequency Indicator
2. Alarm 1 Indicator
3. Alarm 2 Indicator
4. Wake to Radio
5. Wake to Buzzer
6. Wake to iPod
7. AUX Mode
8. Snooze Indicator
9. iPod Mode

10. Radio Mode

11. Sleep Indicator

12. Stereo Indicator
13. FM Indicator
14. MHz Indicator
15. Preset Channel Indicator
16. Preset Station Number
17. PM Indicator
18. Memory Indicator
19. Volume Indicator

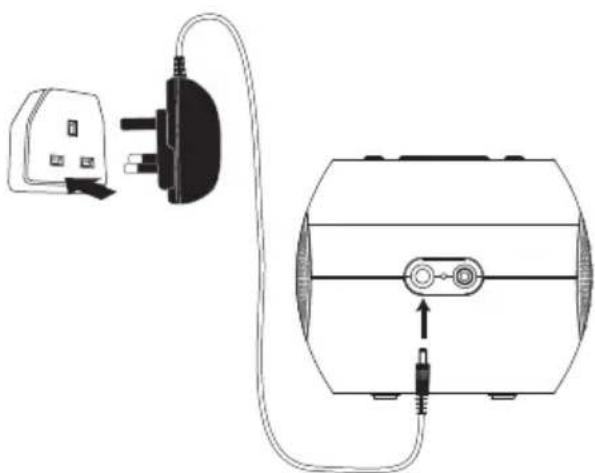

Mains Power

Before using, connect the power cable of the supplied mains adapter (included) to the DC 5V socket at the rear of the unit and to the mains socket.

Line drawing of a power plug connected to a cylindrical device with a cable, showing wiring and connection points (no text or symbols)

Memory Backup

This unit incorporates a battery back up circuit that will keep the clock running in the event of a temporary power interruption.

Insert 2 X AAA batteries (not included) into the battery compartment located at the bottom of the unit.

For best results, replace with fresh batteries every 9 to 12 months.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
  • Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.
  • Only use the battery type indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• If you are not going to use the unit for a long time, remove the batteries to avoid damage from battery leakage and corrosion.

Each enabled stage will be cleared in approximately 8 seconds if you do not press any button.

Powering ON/OFF

When you first connect the unit to the mains socket, the unit will be in standby mode.

• Press the ⏻ STANDBY button to switch the unit on.
• Press and hold the ⏻ STANDBY button to switch the unit back to standby mode.
• Disconnect the power cable of the mains adapter from the mains socket if you want to switch the unit off completely.

Selecting Modes

1. Press the STANDBY button to switch the unit on.
2. Press the ⏻ STANDBY button repeatedly to switch modes (AUX, iPod, or RADIO).

Adjusting the Volume

Press the VOLUME +/- button to increase/decrease the volume.

Setting the Clock

1. In AUX mode, press and hold the SNOOZE/SLEEP button, and then press the SNOOZE/SLEEP button to select the 12-hour or 24-hour time format in the display. Press and hold the SNOOZE/SLEEP button or wait for 5 seconds, the time format will default to your latest time format selection, and the time format will be confirmed.
2. In standby mode, press the TIME button, the hour digits will flash in the display.
3. Press the ◀◀◀buttons to adjust the hour digits and then press the TIME button to adjust the minute digits.
4. Press the ◀◀▶buttons to adjust the minute digits and then press the TIME button to confirm the clock setting.

Setting the Alarm

1. In standby mode, press and hold ALARM 1 or 2, the " E_1 " or " E_2 " indicators will show in the display and the hour digits will flash.
2. Press the ◀◀◀◀▶buttons to adjust the hour digits and then press ALARM 1 or 2 to adjust the minute digits.

3. Press the ◄◀◀▶I buttons to adjust the minute digits and then press ALARM 1 or 2, the alarm mode indicator (Buzzer, Radio, iPod or Off) will flash on the display.

4. Press the ◀◀▶▶ buttons to select your desired alarm mode. Press ALARM 1 or 2 to confirm.

5. After finishing setting the alarm, the unit will switch back to clock mode. The “ E_1 ” or “ E_2 ” indicators will light up in the display to indicate the alarm is set.

• If RADIO/iPOD is selected as the alarm mode, make sure the volume is set to a level that can wake you up.
• If iPOD is selected as the alarm mode but your iPod is not connected to the iPod clock radio, it will automatically switch to BUZZER for the alarm mode.
• While listening to the radio or playing a track from your iPod/iPhone, the alarm will switch to the BUZZER alarm mode if the current alarm mode is the same as the playback mode in use.

Cancelling the Alarm

1. To cancel the ALARM press ALARM 1 or 2, the " ☎1 " or " ☎2 " indicators will disappear in the display.
2. Press ALARM 1 or 2 again to reactivate the alarm using the previous setting.

Snooze Function

1. Press the SNOOZE/SLEEP button when the RADIO, iPod or Buzzer alarm sounds. The snooze indicator "SNOOZE/SLEEP" will show in the display. The alarm will go off and will then sound again in approximately 8 minutes.
2. To turn off the alarm, press and hold the ⏻ STANDBY button when the RADIO, iPod or Buzzer alarm sounds. The “ 1 ” or/and “ 2 ” indicators will still show in the display and the alarm function will still be active the next day.

Sleep Timer Function

This function automatically switches the unit to standby mode after the preset time has elapsed.

1. In standby mode, press the ⏻ STANDBY button to switch the unit on.
2. To activate the sleep timer function, press the SNOOZE/SLEEP button repeatedly to select the sleep time (in minutes). It will change in the following sequence with every press:

1. When the display shows your desired sleep time, release the button. The "SLEEP" indicator will show in the display to indicate that the sleep timer function is activated. The time begins to count down from the number of minutes selected.
2. To cancel the sleep timer function, press the SNOOZE/SLEEP button repeatedly until "OFF" shows in the display. The "SLEEP" indicator will turn off in the display.

AUX Operation

1. Before connecting to the mains socket, use the audio LINE IN cable to connect your audio device through this AUX socket at the rear of the unit.
2. Connect the power cable of the supplied mains adapter into the DC 5V socket at the rear of the unit and to the mains socket. The unit will be in standby mode.
3. Press the ⏻ STANDBY button to switch the unit on.
4. To select the AUX mode, press the ⏻ STANDBY button repeatedly to switch modes until the "AUX" shows in the display.
5. In AUX mode, you may operate your audio device directly for playback features.

iPod/iPhone Operation

1. In standby mode, carefully connect your iPod/iPhone to the iPod dock.
2. Press the ⏻ STANDBY button to switch the unit on.
3. To select iPod mode, press the ⏻ STANDBY button repeatedly to switch modes until "iPod" shows in the display.
4. In iPod mode, press the ▶ button to start music playback from your iPod.

5. While playing music, you can:

6. Press the button to pause playing. Press the button again to resume playing.

7. Press the◀ or ▶ button to skip to previous/next track.
8. Press and hold the◀ or ▶ button to search forwards/backwards through the current track.
9. Press the VOLUME+ or VOLUME− button to increase/decrease the volume.

You may still operate your iPod/iPhone directly with its iPod/iPhone menu to access other features.

Charging the iPod/iPhone

Your iPod/iPhone has a built-in rechargeable battery. The battery is charged automatically whenever the iPod/iPhone is connected to the iPod dock in standby, AUX, iPod or radio mode.

• If you charge the iPod while playing music, it may take longer than usual.
- It is not recommended to charge your iPod/iPhone in radio mode as it may interfere with the reception.
• 1st, 2nd & 3rd generation iPods cannot be charged.

1. In standby mode, press the STANDBY button to switch the unit on.
2. To select the radio mode, press the ⏻ STANDBY button repeatedly to switch modes until the "RADIO" shows in the display.
3. Make sure the FM aerial wire located at the rear of the unit is unwound and extended to its full length. You may need to adjust its position and direction until you reach a position that provides the best reception for your favourite FM stations.

Manual Tuning

1. In radio mode, press the TUNE+/- buttons until you reach the desired frequency or the reception is at its best.
2. The display will show the stereo icon “((ST.)” if a FM stereo station is received.

Automatic Tuning

1. In radio mode, press and hold the TUNE+/- buttons until the unit starts to search up or down the frequency band. The tuner will automatically search for the first station of sufficient signal strength.

2. Repeat the above step if you wish to select another station.

Programming Preset Stations

You can preset stations of your choice and store up to 10 FM stations to the memory.

1. After you have tuned to your desired station in radio mode, press and hold the PRESETS P button. The preset station indicator will flash and memory indicator will show in the display. Press the TUNE+/- buttons repeatedly to select the preset station number. The display will first show "0" and then flash.

2. When your desired preset station number appears, press the PRESETS P button to confirm your selection. The current station will then be stored in your preset number.

3. Repeat the above steps to programme more preset stations or to overwrite a stored preset station.

Selecting the Preset Stations

1. In radio mode, press the PRESETS P button once.
2. Press the TUNE+/- buttons repeatedly to select the preset station number shown on the display window.

Maintenance

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Specifications

model LCRIP12
power adapter 5V 2.0A
power consumption	Standby: 0.7WOperating: 4.5W
stereo output 2 x 1W speakers

Features and specifications are subject to change without prior notice.

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Unplug the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket before a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains adapter from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

replacement part part number

Mains Adapter AD120502000UK

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver them directly to your door

the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Made for

iPod iPhone

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

Gradient gray background with no text, symbols, or identifiable objects

Gradient gray background with no text, symbols, or identifiable objects
