USER MANUAL LCDCRDB10 Logik

CD Radio Clock with DAB

Instruction Manual LCDCRDB10

Unpacking....4

Product Overview....5

Front View ....5

Side View ....5

Top View ....6

Rear View....6

Remote Control....7

Battery Installation for the Remote Control....7

Remote Control Operation Range....8

Connections 9

Connecting to the Mains Socket 9

Using Earphones....9

Basic Operation ....10

Powering ON/OFF 10

Selecting Modes....10

Adjusting the Volume 10

Mute Function (Remote Control Only)....10

Setting the Time 10

Alarm Clock and the Wake-up Mode Settings....10

Activating the Alarm Function and Selecting the Wake-up Mode 11

Snooze Function....11

Sleep Function....12

System Reset 12

Display Backlight 12

DAB Operation....13

DAB Auto Scan 13

Secondary Services....14

Manual Tuning....14

Storing Stations....14

Recalling a Stored Station 14

DAB Display Modes 15

FM Operation....16

Switching from DAB to FM Mode....16

Auto Scan....16

Manual Scan....16

Audio Mode....16

Storing Stations....16

Recalling a Stored Station....17

Display Modes 17

Compatible Disc Types ....18

Playing a CD....18

Selecting a Different Track....18

Finding a Passage within a Track 18

Programming Track Numbers....19

Repeat Program Play....19

Erasing a Program....19

Reviewing the Program....19

Random Mode (Remote Control Only)....19

Repeat Mode....20

Maintenance 21

Hints and Tips ......22

Specifications....23

Safety Warnings....24

Congratulations on the purchase of your new Logik CD Radio Clock with DAB.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

The Main Unit

Remote Control
(P.N.: 070-3232DN-01B0)

Instruction Manual
(P.N.: 227-3251DN-023)

If items are missing or damaged, please contact Partmaster (UK only).

Tel: [phone] for assistance.

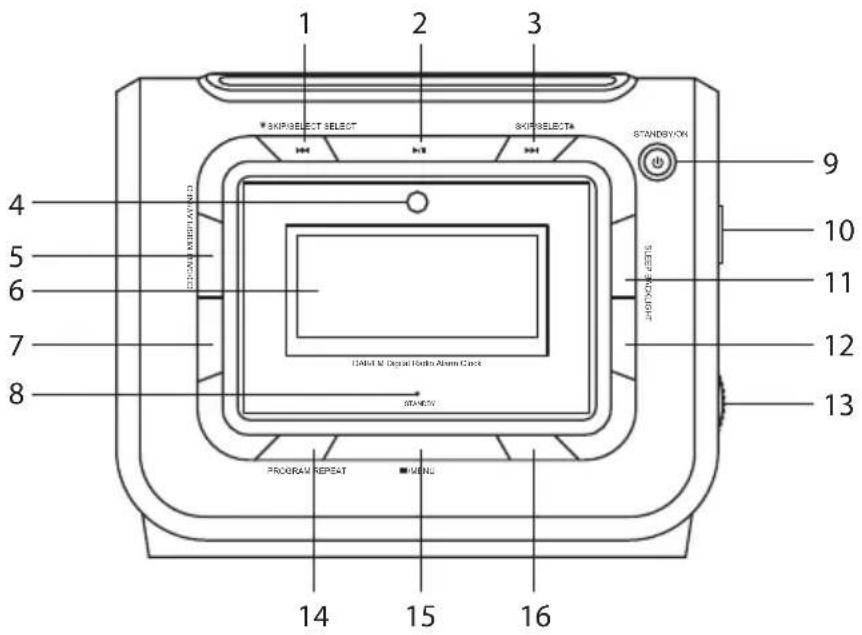

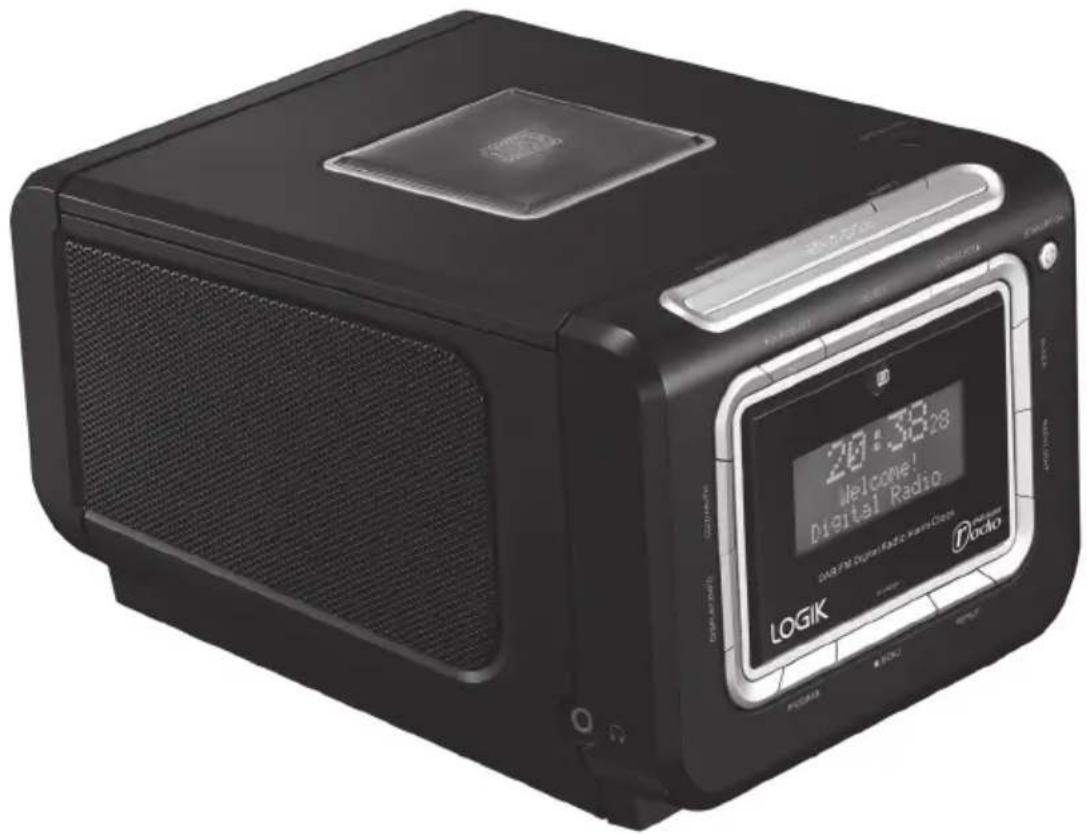

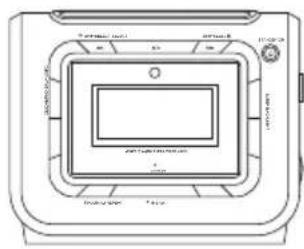

Front View

1. ▼ SKIP/SELECT Button
2. SELECT ▶/|| Button
3. ▲ SKIP/SELECT ▶ Button
4. IR Sensor
5. CD/DAB/FM Button
6. LCD Display Window
7. DISPLAY/INFO Button

8. STANDBY LED Indicator

9. STANDBY/ON ⏻ Button

10. JOG MODE Button
11. SLEEP Button
12. BACKLIGHT Button
13. ◀ VOL/SKIP/SELECT▶Control
14. PROGRAM Button
15. ■/MENU Button
16. REPEAT Button

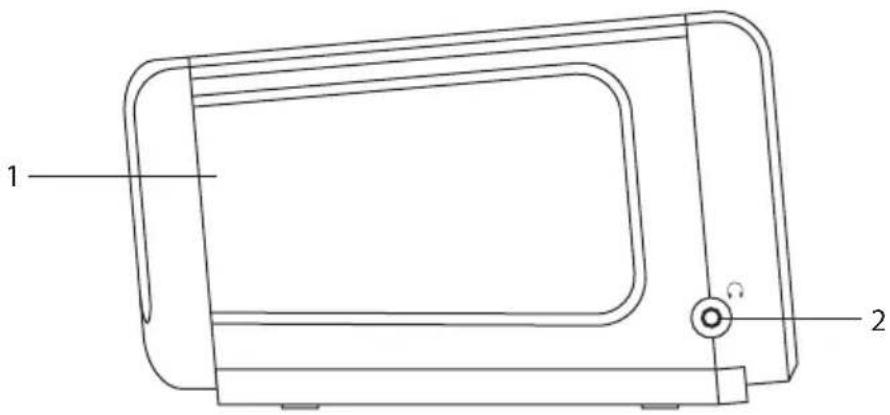

Side View

1. Speakers

2. Earphones Socket

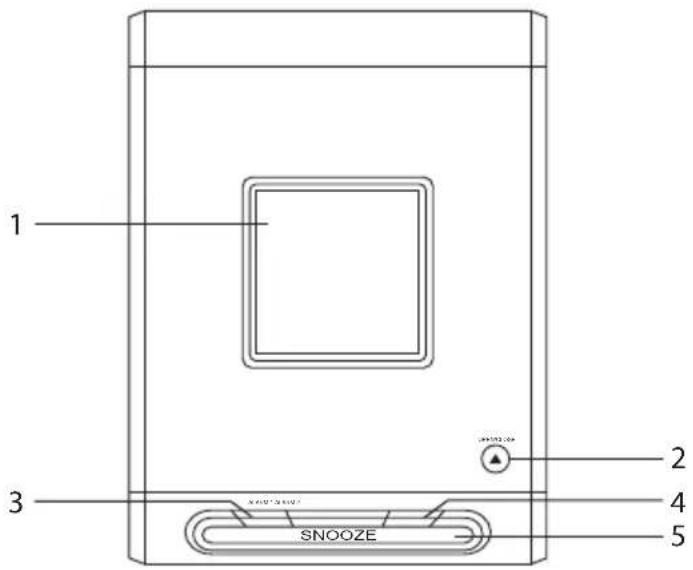

Top View

1. CD Door
2. OPEN/CLOSE

3. ALARM 1 Button

4. ALARM 2 Button

5. SNOOZE Button

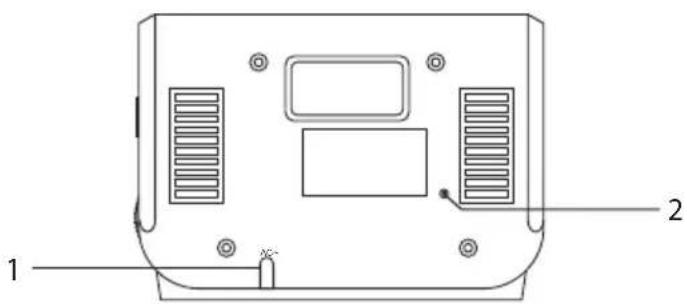

Rear View

1. Mains Cable

2. DAB/FM Aerial

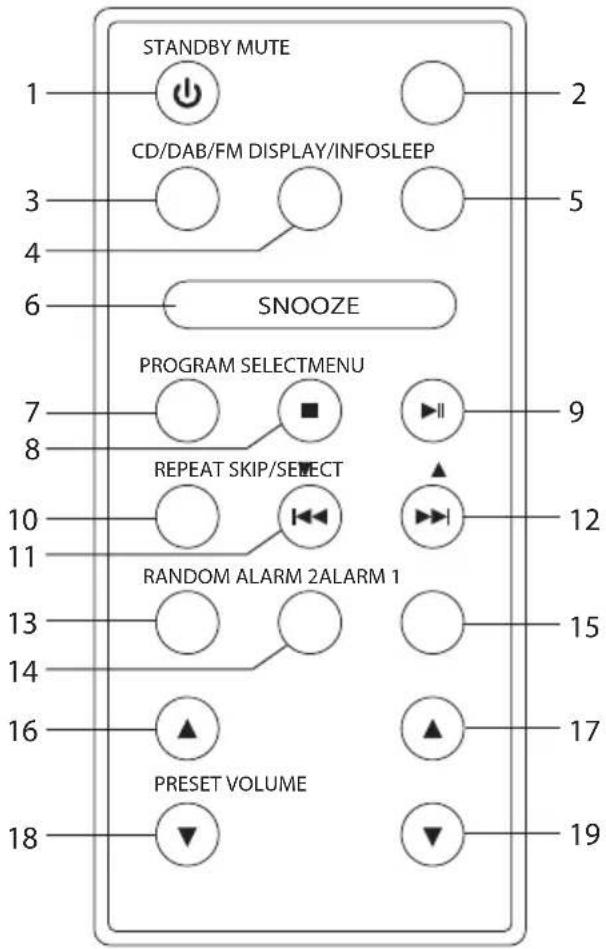

Remote Control

1. STANDBY/ON Button
2. MUTE Button
3. CD/DAB/FM Button
4. SLEEP Button
5. DISPLAY/INFO Button
6. SNOOZE Button
7. PROGRAM Button
8. MENU ■ Button
9. SELECT ▶Button
10. REPEAT Button
11. ▼ SKIP/SELECTI Button
12. ▲ SKIP/SELECT▶Button
13. RANDOM Button
14. ALARM 1 Button
15. ALARM 2 Button
16. PRESET ▲ Button
17. VOLUME ▲ Button
18. PRESET ▼ Button
19. VOLUME ▼ Button

Battery Installation for the Remote Control

1. Press down of the compartment cover, and slide the cover off open the compartment. Place the one accessory CR2032 battery in the remote control according to the polarity markings ("+" and "-") inside the compartment and on the battery.
2. Place the cover into the compartment, press down lightly, and push it inside until it snaps on.

Diagram of a device with a central button and directional arrows indicating movement or force (no text or symbols present)

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the battery is exhausted, the remote control will not function. Replace the battery at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the unit no more than 5 metres from the remote control sensor and within 60^ of the front of the unit. The operating distance may vary depending on the brightness of the room.

Connections

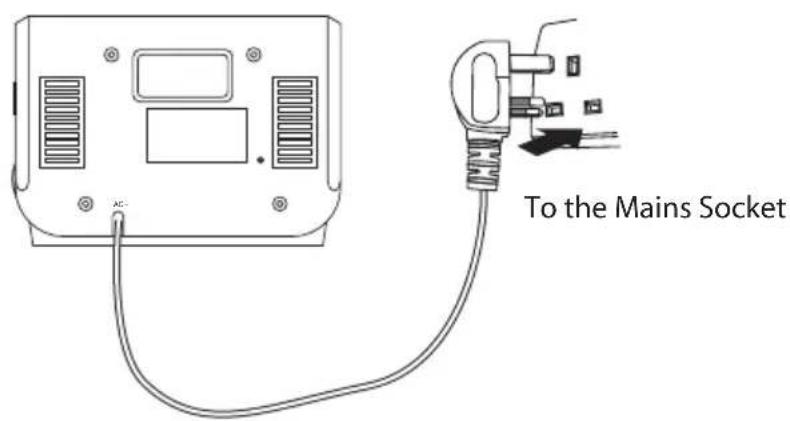

Connecting to the Mains Socket

Connect the mains cable at the rear of the main unit to the mains socket.

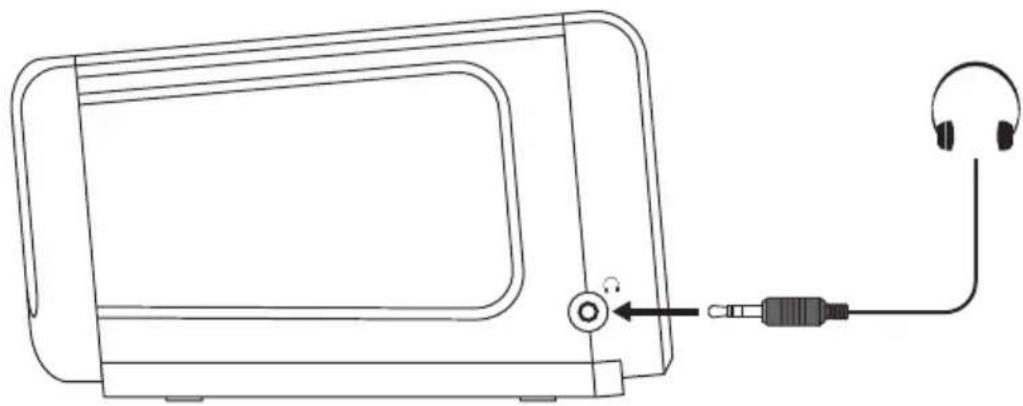

Using Earphones

Connect earphones (∅3.5mm stereo mini plug) to the earphone socket. Adjust the volume control to obtain the desired volume level.

When the earphones are connected, the speakers will automatically mute.

Line drawing of a device with an attached audio jack and earphone (no text or symbols)

When earphones are connected, the alarm will sound through the earphones instead of the speakers. Unplug the earphones when using the alarm function.

Basic Operation

Powering ON/OFF

When you first connect the unit to the mains socket. The unit will be in STANDBY mode.

• Press the STANDBY/ON button to switch the unit on.
• Press the STANDBY/ON button again to switch the unit off.
• Disconnect the mains cable from the mains socket if you want to switch the unit off completely.

Selecting Modes

Press the CD/DAB/FM button repeatedly to switch between modes (CD/DAB/FM).

Adjusting the Volume

Turn the ◀VOL/SKIP/SELECT▶ control on the unit or press the VOLUME ▼▲ buttons on the remote control to increase/decrease the volume.

Mute Function (Remote Control Only)

Press the MUTE button on the remote control to temporarily stop the speakers emitting sound. The display will show "MUTE" and flash. To cancel mute and restore the sound, press the MUTE button again or the VOLUME ▼▲ buttons, the "MUTE" will disappear from the display.

Setting the Time

When you first turn on your radio it will automatically set the time by searching out the DAB signal. It will continue to search for the clock whilst in DAB mode until it has managed to set the time. If after 10 minutes the clock has not automatically set itself try repositioning the radio to get a better reception.

If the radio cannot find a DAB frequency to set the clock, you can use the FM mode (some FM stations also transmit time and date information).

Alarm Clock and the Wake-up Mode Settings

This unit incorporates an identical Dual Alarm function. You can have two individual alarm wake-up time and wake-up mode settings to wake you with a buzzer tone, your favourite radio station or your favourite CD.

Setting the alarm clock in STANDBY mode or ON mode.

1. Press the ALARM 1 or ALARM 2 button and hold it for a few seconds. The display will shows "Alarm # Set Time" and the hour digits will flash.

2. Turn the VOL/SKIP/SELECT control on the unit or press the SKIP/SELECT buttons on the remote control to adjust the hour digits, and then press the SELECT button to confirm.

1. The minute digits will flash. Turn the VOL/SKIP/SELECT ▶ control on the unit or press the SKIP/SELECT ▼ buttons on the remote control to adjust the minute digits, and then press the SELECT ▶ button to confirm.
2. The wake-up mode settings will flash on the display. Adjust BEEP TONES / DAB & FM PRESET / Alarm wake-up Volume level by turning the ◀VOL/SKIP/SELECT ▶control on the unit or press the SKIP/SELECT ▼buttons on the remote control. Press the SELECT ▶button to confirm.

Activating the Alarm Function and Selecting the Wake-up Mode

1. To activate the alarm function, press the ALARM 1 or 2 button repeatedly to select the wake-up mode, the corresponding wake-up mode will change in sequence on every press as follows:

1. Stop pressing the button when the display shows your desired wake-up mode and the alarm is set. The associated alarm on icon will show in the display.
2. At the selected wake-up time, the desired wake-up mode will be turned on. It will continue for one hour and then shut down automatically. To stop the alarm sooner, press the ALARM 1 or 2 button once or press the STANDBY/ON ⏻ button to switch off the unit.

• If CD Wake-up is selected and no disc is inserted or recognized, the beep tone will sound instead.
  • If DAB Wake-up is selected and the signal is weak, no sound may be heard.

Snooze Function

When the alarm sounds, press the SNOOZE button to temporarily switch off the alarm for 5 minutes. The LCD display will show 42 to indicate that snooze is on. Snooze function will continue for 1 hour from the set alarm time. If alarm 2 is due to go off within 1 hour of alarm 1, it will not activate until alarm 1 has been switched off. If alarm 1 has been switched off then alarm 2 will be activated.

Sleep Function

This function allows you to program the unit to switch off by itself after a set period of time.

1. To activate the sleep function, press the SLEEP button repeatedly. The time will change in the below sequence on every press:

1. Stop pressing the button when the display shows your desired length of time. The sleep function will be activated in 2 seconds. "S" will show on the LCD display.
2. When the sleep time reaches zero, the unit will go off. To turn the sleep function off while the sleep timer is still counting down, press the SLEEP button until "Sleep Off" and "S" disappear from the LCD display.

System Reset

When you move the unit to another part of the country, your pre-tuned and stored DAB stations may no longer be available and you might need to reset the unit back to its original factory settings. To perform a factory reset, please do the following:

1. Switch on the unit and select DAB mode.
2. Press and hold the MENU ■ button until the display shows "Press SELECT to confirm reset".

3. Release the MENU ■ button and press the SELECT ▶ button once. The display will first show "Restarting ..." and then perform auto scan function.

4. When the scan has finished, the radio will select and display the first alphanumerically found station.

All of your stored DAB & FM presets will be lost once the reset has taken place.

Display Backlight

During ON mode, press the BACKLIGHT button on the unit to switch on the backlight, press the button again to switch it off. During STANDBY mode, press any buttons on the unit or the remote control to switch on the backlight for 5 seconds.

DAB Operation

If the unit is connected to the mains power and then switched on from standby for the first time, the unit will automatically enter into DAB mode and perform the auto scan function. During the scan the LCD display will show "Scanning ..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far.

Once the scan has finished, the unit will select the last alphanumerically found station. To explore the found stations, press the JOG MODE button and then turn the ◀VOL/SKIP/SELECT▶control on the unit. When you find a station that you would like to listen to, press the SELECT▶Button.

If no stations are found after auto scan, "NO station available" will show on the LCD display.

DAB Auto Scan

The auto scan will search for the entire DAB Band III channels. After the scan has finished, the last alphanumerically found station will be automatically selected.

Full auto scan will not replace the DAB stations in the memory. If you want to remove all the previously scanned stations, you will need to reset the system.

1. To activate auto scan, first press the MENU button to enter the Tune Select Menu. Press the SKIP/SELECT▼buttons on the remote control to select "Full scan", then press the SELECT ▶/|| button to confirm. The display will show "Scanning ..." and a slide bar that indicates the progress of the scan.

2. All the stations that have been found will be stored automatically, to explore the found stations, press the JOG MODE button and then turn the ◀VOL/SKIP/SELECT▶ control on the unit. Press the SELECT▶ button to confirm.

Secondary Services

You may see a “♣” symbol after the name of the station during tuning (press the JOG MODE button, then turning the ◀VOL/SKIP/SELECT▶ control on the unit), this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, turn the ◀VOL/SKIP/SELECT ▶control on the unit until the desired secondary station is displayed, then press the SELECT ▶button. When the secondary service ends, the unit will automatically switch back to the primary station.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press the MENU ■ button, then turn the ◀ VOL/SKIP/SELECT▶control on the unit to select Manual tune. Press the SELECT▶button. The LCD will now show Manual tune.
2. Press the SKIP/SELECT ▼▲buttons to cycle through the DAB channels, which are numbered from 5A to 13F.
3. When your desired channel number is selected, press the SELECT ▶/|| button to enter the current multiplex. The top line will now display the multiplex name and the second line will display the signal strength.
4. Press the SELECT ▶/|| button to confirm the selection, or press the SKIP/SELECT▼▲ buttons on the remote control to look for another station that you would like to listen to.

Storing Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the PROGRAM button, "# [Not set]" will show on the LCD display and the preset number will flash.
2. Press the SKIP/SELECT ▼▲buttons to select your desired preset station number and then press the PROGRAM button to confirm. The station will be stored and the screen will then show "Preset # stored".

Recalling a Stored Station

1. Once you have saved a station, you can recall it by pressing the PRESET Buttons.
2. Press the PRESET ▼▲ buttons to select your desired preset station number.
3. If you choose a preset that hasn't been allocated a station, the "Preset empty" will be displayed.

GB-14

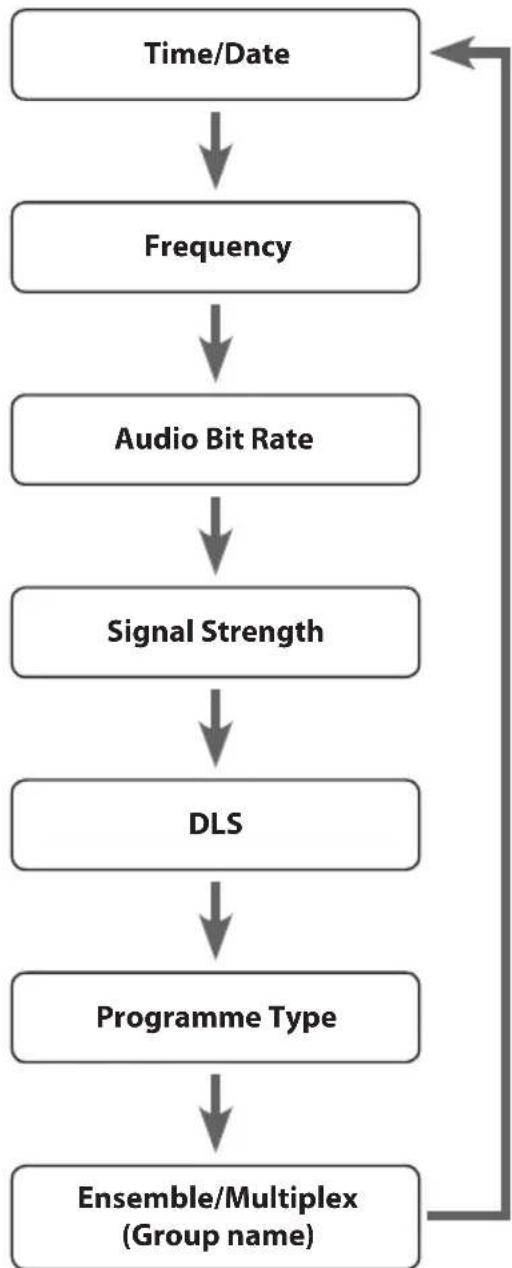

DAB Display Modes

Every time you press the DISPLAY/INFO button, the display will cycle through the following display modes: Time/Date, Frequency, Audio Bit Rate, Signal Strength, DLS, Programme Type, Ensemble/Multiplex (Group name).

The information is displayed on the lower segment of the LCD display.

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information.

Frequency

The frequency of the present station will be displayed.

Audio Bit Rate

The display will show the digital audio bit rate being received.

Signal Strength

The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

DLS (Dynamic Label Segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Programme Type

This describes the style of the programme that is being broadcast. If the information is not available, the display will show .

Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Switching from DAB to FM Mode

To switch the unit to FM mode, press the CD/DAB/FM button repeatedly to select FM. The LCD display will show "switch to FM", and show the frequency.

Auto Scan

To search for an FM station, press and hold the SKIP/SELECT▲button on the remote control to start the forward auto scanning. Press and hold the ▼ SKIP/SELECT button on the remote control to start the reverse scanning. The LCD display will show the frequency being searched. Once a station has been found, the scanning will stop automatically.

Manual Scan

To search for FM stations manually, press the JOG MODE button, then turn the

◀ VOL/SKIP/SELECT▶control on the unit to select your desired frequency. The LCD display will show .

Alternatively, press the SKIP/SELECT▼▲ buttons on the remote control until your desired frequency is reached.

Audio Mode

Press the SELECT button to toggle between the Auto or Mono selection.

The unit will automatically switch between stereo and mono mode when it is set to Auto, but you can override this and switch between them manually. This is helpful when receiving poor signal reception.

Storing Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the PROGRAM button, "# [Not set]" will show on the LCD display and the preset number will flash.

2. Press the SKIP/SELECT ▼▲buttons to select your desired preset station number and then press the PROGRAM button to confirm. The station will be stored and the screen will then show "Preset # stored".

Recalling a Stored Station

1. Once you have saved a station, you can recall it by pressing the PRESET Buttons.
2. Press the PRESET ▼▲ buttons to select your desired preset station number.
3. If you choose a preset that hasn't been allocated a station, the "Preset empty" will be displayed.

Display Modes

Every time you press the DISPLAY/INFO button, the display will cycle through the following display modes: Programme Type, Time/Date, Radio Text, Channel Frequency.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. In the unlikely event that the broadcaster does not transmit any clock information; the LCD display will show .

Radio Text

As with DAB, the broadcaster can include a scrolling text that displays information about the current program. If Radio text information is not available, then the LCD display will show .

Channel Frequency

This shows the frequency of the current station.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
CD-R (CD Recordable) AUDIO
CD-RW (CD-Rewritable)		AUDIO
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Some recorded files may not be able to be played due to the type and format of disc or condition of the recording.

Playing a CD

Press the CD/DAB/FM button repeatedly to select CD mode

1. Open the CD door, and insert a CD with the printed side facing up, then press the CD door gently to close. The total number of the tracks in the disc will display on the display window.
2. If there is no disc inside or the CD door is not closed, the display window will display "NO DISC".
3. Press the SELECT ▶/II button to start playback, the first track will be played. The display window will also display the number of the currently playing track.
4. To interrupt playback, press the SELECT ▶/□ button once again. The time elapsed indicator will flash. Press the SELECT ▶/□ button once more again to resume playback.
5. To stop CD playback, press the MENU ■ button.

Selecting a Different Track

- Press the SKIP/SELECT |◀◀▶▶▶ buttons once or repeatedly until the desired track number appears in the display.

Finding a Passage within a Track

1. During playback, press and hold the SKIP/SELECT I◀◀▶▶I buttons. The CD is played at high speed and with reduced volume.
2. When you recognise the passage you want, release the SKIP/SELECT ▶▶▶▶▶ buttons to resume normal playback.

Programming Track Numbers

You may store up to 20 tracks in the desired sequence. Be sure to press the STOP button before use to ensure no prior program has been set.

1. In stop mode, press the PROGRAM button to activate programming. "MEM" and "P-0#" indicator will flash on the display.

1. Press the SKIP/SELECT ▶▶▶buttons to select your desired track number.

2. Press the PROGRAM button to store the desired track number.

3. Repeat steps 2 and 3 to enter additional tracks into the program memory.

4. To play your program, press the SELECT ▶/II button. The "MEM" indicator will show on the LCD display.

Repeat Program Play

You may use the program play and the repeat play features together to continuously repeat a programmed playback. First program the desired playback sequence, then press the REPEAT button to select repeating the current track or the entire programmed sequence, the associated repeat icon will be displayed.

Erasing a Program

In stop mode, you can erase the contents of the memory by pressing the MENU button or by opening the CD door. The "MEM" indicator will disappear.

Reviewing the Program

In stop mode, press the PROGRAM button to display your stored tracks.

Random Mode (Remote Control Only)

Press the RANDOM button on the remote control to select RANDOM mode, the display will show "RANDOM" and the tracks will start playing randomly.

To cancel random play, press the RANDOM button again, The "RANDOM" indicator will disappear.

Repeat Mode

You can play the current track or the whole disc repeatedly with REPEAT mode.

• During playback, press the REPEAT button once to repeat a single track. The "REP 1" indicator will illuminate.
• Press the REPEAT button twice to repeat the whole disc. The "REP ALL" indicator will illuminate.
• To return to normal playback, press the REPEAT button repeatedly until all repeat indicators disappear.

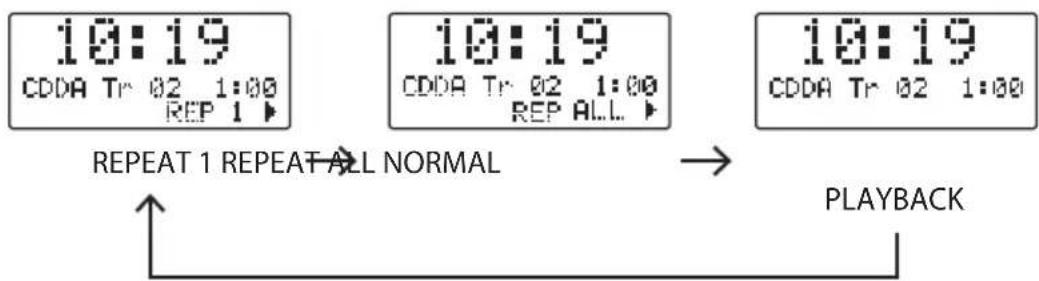

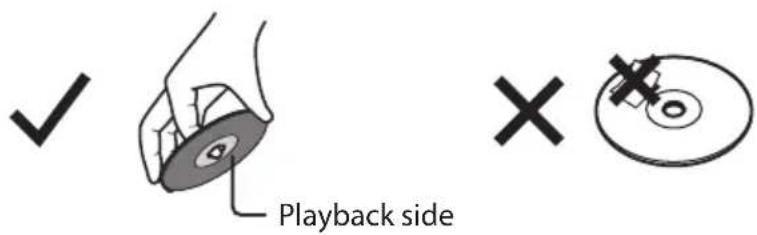

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Cause / Solution

CD

The unit does not power on• Make sure the mains plug is secure in the outlet, and the outlet has power.

Disc in place but the unit won’t play• Make sure the disc label is facing up.• Make sure the disc is clean.• PAUSE mode may be activated, deactivate it.• Disc may be damaged or dirty; check and clean the disc.

Disc skips• Make sure the unit is on a flat secure spot. Vibrations or jarring can cause the disc to skip.

RADIO

Poor FM reception• Make sure the FM aerial wire is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).

If the unit is not working properly, disconnect the power source and then reconnect it.

Specifications

Model LCDCRDB10
Power Supply 100V-240V ~60/50Hz
Output Power 1.2 Watts x 2
Unit Dimension 155 (W) x 202 (D) x 120 (H) mm
N.W.: 1.25 kg
Radio Section
Frequency Range	FM 87.5 – 108 MHzDAB 174 – 240 MHz
Compact Disc Section
Optical Pickup 3 - Beam Laser
Frequency Response 100Hz –	16kHz

Features and specifications are subject to change without notice.

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Standby

- The STANDBY/ON button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains adapter from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Class 1 Laser Product

• This unit utilises a laser. Use of controls, adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.
  • Always remove the disc when the unit is not in use.
• Failure to do so will risk severely damaging the disc and the unit.
• Do not stack devices, heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
- Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number

Remote Control 070-3232DN-01B0

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door

the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.
