Product Type	Alarm Clock Radio
Brand	Logik
Model	LCRA14
Dimensions (approx.)	150 x 80 x 80 mm (5.9 x 3.1 x 3.1 in)
Weight (approx.)	0.5 kg (1.1 lb)
Power Supply	AC 100-240V, 50/60 Hz (adapter included); Battery backup: 2 x AAA (not included)
Tuner Band	FM/AM
Alarm Mode	Radio or buzzer with snooze function
Display	LED digital clock with adjustable brightness
Additional Functions	Sleep timer, alarm set, radio preset memory
Controls	Buttons for power, mode, volume, tuning, alarm set, snooze
Speaker	Built-in mono speaker
Headphone Jack	3.5 mm for private listening
Care and Cleaning	Wipe with a soft, dry cloth. Do not use liquids or aerosols.
Safety Warnings	Do not expose to moisture. Use only supplied adapter. Keep away from heat sources.
Spare Parts and Repairability	Contact Logik service center. Do not attempt repairs yourself.
General Information	User manual available for download at notice-facile.com. For indoor use only.

Frequently Asked Questions - LCRA14 Logik

How do I set the time on my Logik LCRA14 alarm clock radio?

Press and hold the Time Set button until the hour flashes. Use the Tuning buttons to adjust hour and minute. Press Time Set again to confirm.

How do I set an alarm?

Press and hold the Alarm Set button. The alarm time will flash. Use the Tuning buttons to set the desired time. Press Alarm Set again to confirm. Ensure the alarm indicator is lit.

Why doesn't my radio work?

Check that the antenna is fully extended. Tune to a known strong station. If using FM, you may need to rotate the unit for better reception. Ensure volume is turned up.

How do I turn off the alarm?

Press the Snooze button to silence for 9 minutes. To turn off completely, press the Alarm On/Off switch or the Power button.

Can I use batteries for backup?

Yes, the LCRA14 has a battery compartment for two AAA batteries (not included). This maintains the time and alarm settings during a power outage but does not power the radio.

How do I preset radio stations?

Tune to the desired station. Press and hold one of the Preset buttons (1-5) until you hear a beep. To recall, press the preset button briefly.

Why is the display dim?

The display brightness can be adjusted. Press the Dim button (if available) to cycle through brightness levels. If the display is off, ensure the unit is plugged in and powered on.

What does the snooze button do?

The Snooze button temporarily silences the alarm for about 9 minutes. The alarm will sound again after that period. You can press it multiple times.

How do I clean my alarm clock radio?

Unplug the unit and wipe with a soft, dry cloth. Do not use water, cleaning solvents, or abrasive cleaners.

Where can I find the user manual?

The user manual is available for free download at notice-facile.com. Search for 'Logik LCRA14' or access directly from the product page.

USER MANUAL LCRA14 Logik

Safety Warnings....4

Unpacking......6

Product Overview....7

Top View....7

Rear View 7

LED Display 8

Power Source 8

Mains Power 8

Memory Backup....9

General Operation....10

Switching the Radio ON/OFF 10

Adjusting Volume 10

Setting the Clock ....10

Setting the Alarm (AL1)....10

Setting the Alarm (AL2) 11

Turning the Alarm ON/OFF 11

Switching the Alarm OFF Once it Sounds....11

Snooze Function 11

Changing the Brightness of the Display....11

Sleep Timer Setting....12

Listening to the Radio....12

Saving a Radio Station 12

Selecting a Stored Radio Station....12

Maintenance 13

Cleaning the Unit....13

Hints and Tips ....13

Specifications....13

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.
• The rating label is located at the bottom of the unit.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• The mains adapter should not be obstructed and should be able to be easily accessed during use.
• This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit or the mains adapter to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains adapter and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. while on holiday. Switch it off and disconnect the mains plug from the mains socket.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.

Thank you for purchasing your new Logik Clock Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit

Instruction Manual

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

Product Overview

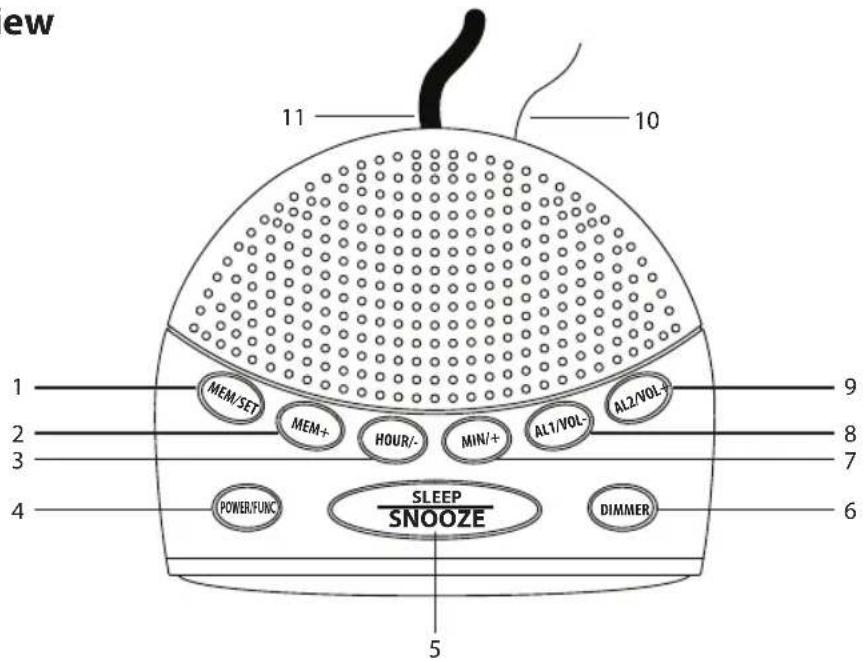

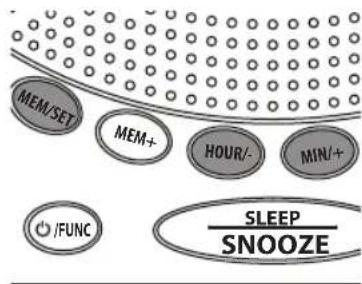

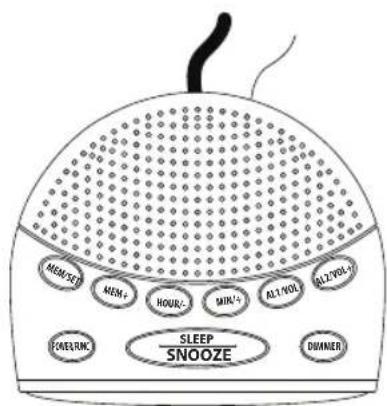

Top View

1. MEMORY/SET Button
2. MEMORY + Button
3. HOUR/- Button

4. POWER/FUNCTION Button

5. SLEEP/SNOOZE Button

6. DIMMER Button
7. MIN/+ Button

8. AL1/VOL- Button

9. AL2/VOL+ Button

10. Aerial Cable
11. Power Cable

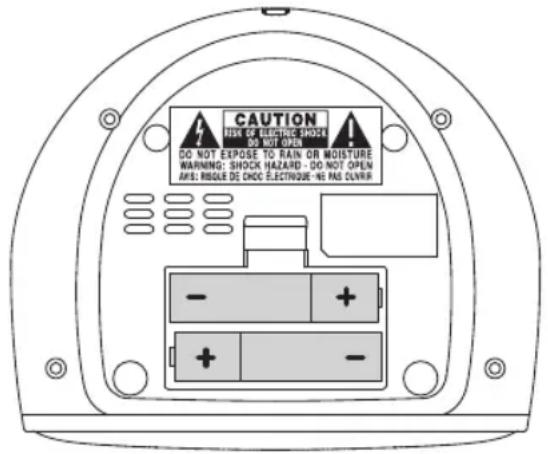

Rear View

1. Back-up Battery Compartment

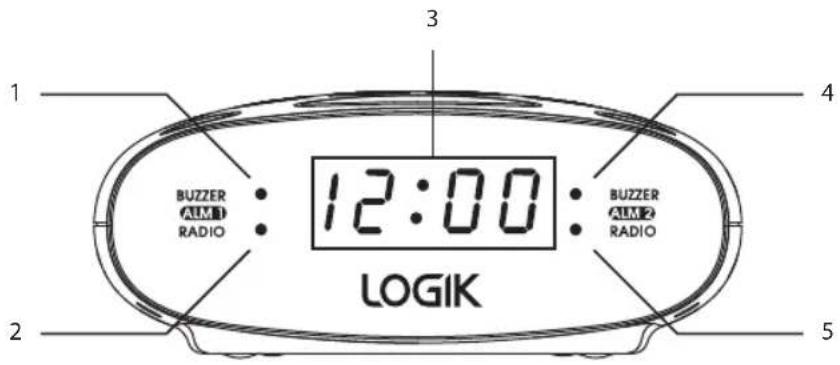

LED Display

1. Alarm 1 Buzzer Indicator

2. Alarm 2 Buzzer Indicator

3. Alarm 1 Radio Indicator

4. Alarm 2 Radio Indicator

5. 24 Hour Time Display

Power Source

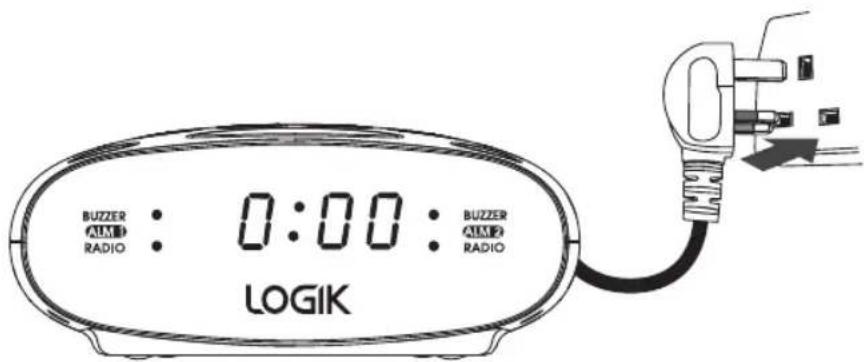

Mains Power

Check that the voltage marked on the rating label matches your mains voltage.

1. Connect the mains plug to the mains socket and switch on at the socket. The display will start to flash.

2. To switch the unit off completely, un-plug from the mains socket.

Install the unit near a mains socket where the mains adapter can be easily reached.

Memory Backup

This unit incorporates a battery back up circuit that will keep the clock running, alarms and radio stations that have been set in the memory in the event of a temporary power interruption.

1. Insert a 2 x AAA batteries (not included) into the battery compartment located at the bottom of the unit. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.

• You cannot listen to the radio with battery power.
  • The time will not be displayed when using the back up battery power.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.
• Use only the types of the batteries which are indicated in this manual.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• If you are not going to use the unit for a long time, remove the battery to avoid damage from battery leakage and corrosion.

General Operation

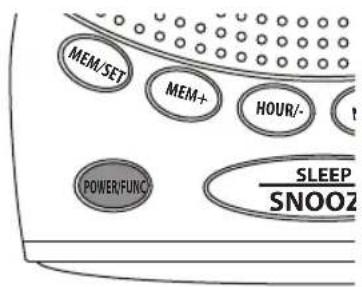

Switching the Radio ON/OFF

• Press the POWER/FUNC button to select FM radio, press again to select AM radio.
• Press and hold the POWER/FUNC to switch the radio off.
• Disconnect the mains adapter from the mains socket if you want to switch the unit off completely.

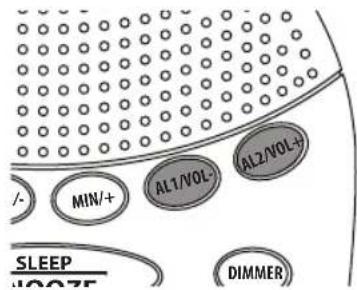

Adjusting Volume

Press the AL1/VOL- button to reduce the volume and the AL2/VOL + button to increase the volume.

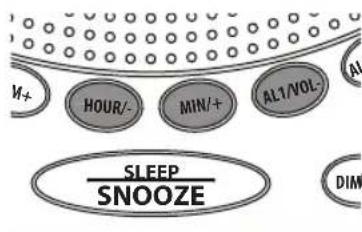

Setting the Clock

1. If you have just plugged the unit in the display will be flashing. If the display isn't flashing press and hold the MEM/SET button until the display flashes.
2. Press the HOUR/- button to set the hours, remember the clock is a 24 hour clock.
3. Press the MIN/+ button to set the minutes. Press and hold the button to quickly change the minutes.

Setting the Alarm (AL1)

1. Press and hold the AL1/VOL- button until the display starts to flash.
2. Press the HOUR/- and MIN/+ to set the time that you want the alarm to switch on.
3. After setting the alarm time you can select the alarm to switch on with a buzz or the radio. Contunually press the AL1/VOL- until the LED lights next to AL1 BUZZ or AL1 RADIO.

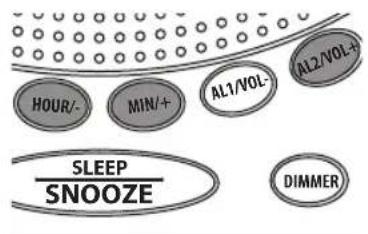

Setting the Alarm (AL2)

1. Press and hold the AL2/VOL+ button until the display starts to flash.
2. Press the HOUR/- and MIN/+ to set the time that you want the alarm to switch on.
3. After setting the alarm time you can select the alarm to switch on with a buzz or the radio. Contunually press the AL2/VOL+ until the LED lights next to AL2 BUZZ or AL1 RADIO.

After setting the alarm, you can press the AL1 or AL2 button to view the set alarm time.


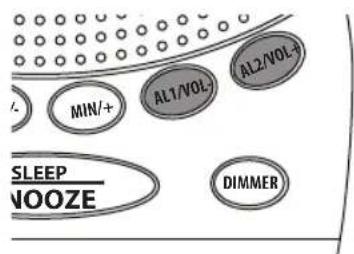

Turning the Alarm ON/OFF

1. Press the AL1/VOL- or AL2/VOL+ buttons. When the LED is lit the alarm is ON and when its not lit the alarm is OFF. Continually pressing the alarm buttons will scroll through the alarm setting. Alarm OFF (LED off) - Alarm on (Buzz LED on) - Alarm on (Radio LED on).

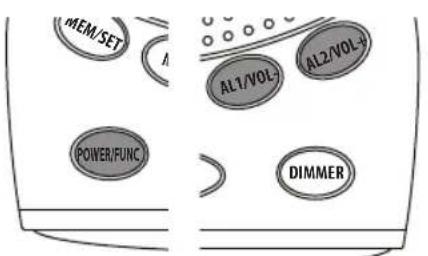

Switching the Alarm OFF Once it Sounds

The alarm will sound (either buzzer or radio) for 60 minutes then automatically switch off, if no buttons are pressed.

• To switch the alarm off when it sounds press the POWER/FUNC button or the corresponding alarm button (AL1 or AL2).

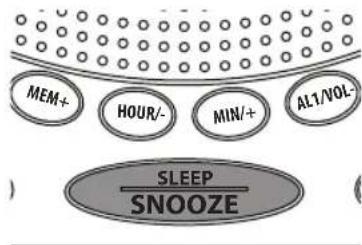

Snooze Function

Press the SLEEP/SNOOZE button when the RADIO or BUZZER sounds. The alarm will go off and will then sound again in approximately 9 minutes. You can keep snoozing the alarm until the alarm is switched off.

Changing the Brightness of the Display

Press the DIMMER button to adjust the brightness level of the display. It has two settings dim or bright.

Sleep Timer Setting

You can set your unit to switch off after a set time with the Sleep function. So if you are listening to the radio and fall asleep your radio will automatically switch into standby when the set time has elapsed.

- When listening to the radio press the SLEEP/SNOOZE button the number 90 will appear in the display. The radio will now count down and switch off after 90 minutes. If you want to see the remaining sleep time at any point, press the SLEEP/SNOOZE button and the time will be displayed.

- Continually press the SLEEP/SNOOZE button to decrease the sleep timer. 90 - 80 -70 - 60 - 50 - 40 - 30 - 20 - 10 - OFF

• To switch the sleep time off press the SLEEP/SNOOZE button until the word OFF is displayed.

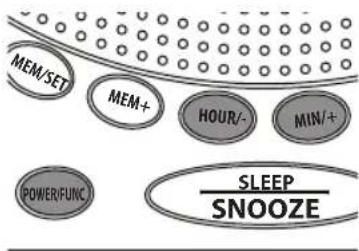

Listening to the Radio

Your clock radio has AM and FM radio. To receive the best reception fully extend the aerial cable.

1. Press the POWER/FUNC button to select either AM or FM radio.
2. To tune in a radio station press the HOUR/- or MIN/+ buttons. If you hold the buttons down for a second it will automatically find the next available radio station.


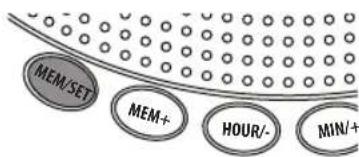

Saving a Radio Station

You can save 10 AM and 10 FM radio stations in your clock radios memory.

1. Tune to the radio station that you want to save.
2. Press the MEM/SET button the display will flash. While the display is flashing press the MEM/SET button again and the radio station will be stored. The radio stations are stored from position 01 - 10.

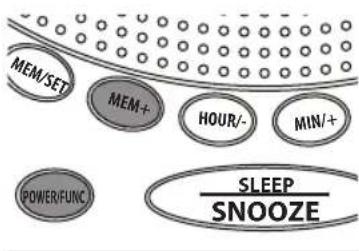

Selecting a Stored Radio Station

1. First select AM or FM radio by pressing the POWER/FUNC button.
2. Press the MEM+ button until the preset number is of your required station appears in the display.

Maintenance

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

Problem Solution
Poor FM reception • Make sure	the FM aerial wire is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Poor AM reception • Rotate the	unit horizontally until the orientation with best reception is found.
Clock does not show the correct time.	• There has been a power cut and you haven’t installed any batteries, or the batteries are flat.• Insert 2 x AAA batteries into the clock radio, this will keep the time in the event of a power cut.
Alarm does not come on at the preset time	• Check the current time set correctly, remember this is a 24 hour clock.• Is the alarm set to the correct time?

Specifications

Model LCRA14
Radio Frequency AM 522-1	620KHzFM 87.5-108MHz
Power output 0.3W RMS
Power source 230V-240V ~	50Hz 4.5WFor the power backup function: 2 x AAA batteries

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste. For more information, please contact the local authority or your retailer where you purchased the product.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

In the unlikely event of a problem developing, please contact the store where you purchased your equipment.

We continually strive to improve our products; specifications may change without prior notice. For advice on where to purchase accessories, please contact the store where you purchased your equipment.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

IB-LCRA14-140807V1
