Product Type	Alarm Clock Radio
Brand	Logik
Model	LCRDAB10
Radio Bands	DAB/DAB+ and FM with RDS
Alarm Settings	Dual alarms with choice of buzzer or radio
Snooze Function	Yes, adjustable snooze duration
Sleep Timer	Yes, programmable up to 90 minutes
Display	LED with dimmer control
Dimensions (Approx.)	180 x 80 x 120 mm (W x H x D)
Weight (Approx.)	0.5 kg
Power Supply	AC 230V ~ 50Hz; backup via 2 x AAA batteries (not included)
Power Consumption	5 W (max)
Audio Output	Built-in speaker (3W RMS)
Headphone Jack	3.5 mm stereo output
Additional Features	Station presets (20 DAB, 20 FM), auto-scan, clock auto-update via DAB
Maintenance	Clean with a dry, soft cloth; do not use abrasive cleaners
Safety Precautions	Keep away from moisture, heat sources, and direct sunlight; unplug during storms
Spare Parts & Repairability	Contact manufacturer for service; no user-serviceable parts inside

Frequently Asked Questions - LCRDAB10 Logik

How do I set the alarm?

Press and hold the Alarm button until the time flashes. Use the + and - buttons to set the hour, then press Alarm again to set minutes. Choose alarm mode (buzzer or radio) by pressing Alarm repeatedly.

Why is my DAB radio not receiving stations?

Ensure the antenna is fully extended. Perform a full scan: press Menu, select Scan. If reception is poor, move the radio closer to a window or away from electronic devices.

How do I set the sleep timer?

Press the Sleep button repeatedly to select the desired duration (15, 30, 45, 60, or 90 minutes). The radio will turn off automatically after the set time.

Can I use the radio with batteries?

Yes, the unit has a backup battery compartment for 2 x AAA batteries (not included). Batteries maintain clock and alarm settings during a power outage, but the radio will not play on battery power.

How do I reset the clock manually?

Press and hold the Clock button for 3 seconds. Use the + and - buttons to adjust hour and minute separately. The clock can also be updated automatically via DAB.

What does the dimmer button do?

The Dimmer button adjusts the brightness of the LED display. Press repeatedly to cycle through high, medium, and low brightness levels.

How do I set FM presets?

Tune to the desired station, then press and hold one of the Preset (1-5) buttons until you hear a beep. For more presets, use the Menu option 'Store Preset'.

Why is the alarm not sounding?

Check that the alarm is activated (a bell icon appears). Ensure the volume is not turned to minimum. If set to radio, confirm a station is tuned. Also check backup batteries are fresh if power was interrupted.

Can I connect headphones?

Yes, plug your headphones into the 3.5mm socket on the side. The built-in speaker will be muted when headphones are connected.

How do I clean the unit?

Disconnect from power. Use a soft, dry cloth to wipe the exterior. Do not use water, chemical cleaners, or abrasive materials. Avoid getting moisture into any openings.

USER MANUAL LCRDAB10 Logik

Adjusting the Volume 8

Setting the Time 9

Setting the Alarms 9

Checking the Alarm....10

Snooze Function....10

Setting the Sleep Time 10

System Reset....10

Using Earphones....11

DAB Operation....12

Auto Scan Modes 12

Manual Tuning....12

Secondary Services....13

Storing Stations....13

Recalling a Stored Station....13

DAB Display Modes ....14

FM Operation....15

Switching from DAB to FM Mode....15

Auto Scan....15

Manual Scan....15

Storing Stations....15

Recalling a Stored Station 16

FM Display Modes....17

Maintenance 18

Hints and Tips 18

Specification 19

Safety Warnings....20

Thank you for purchasing your new Logik DAB Clock Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a microwave oven with lid and vent (no text or symbols)

The Main Unit

Simple line drawing of a black electrical plug connected to a coiled cable (no text or symbols)

Mains Adapter
(P.N.: SDF0500100G1BC)

Instruction Manual
(P.N.: LCRDAB10-003)

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

Product Overview

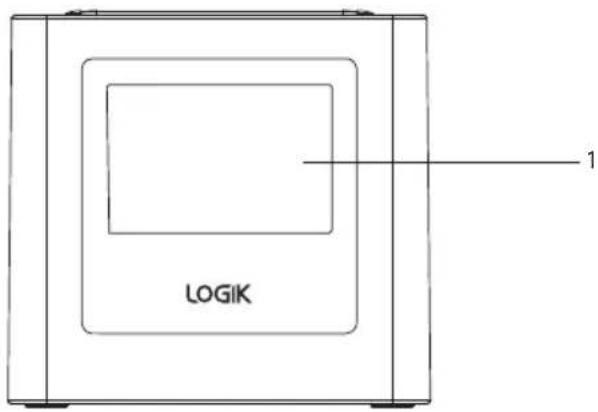

Front View

1. LCD Display

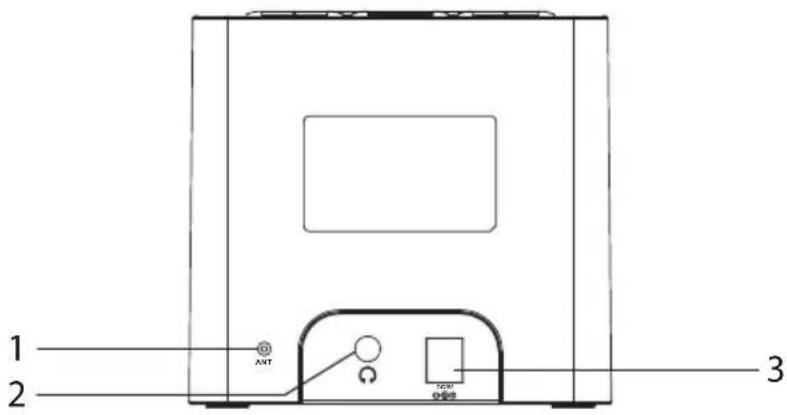

Rear View

1. Radio Aerial

2. DC 5V IN

3. Earphones Socket

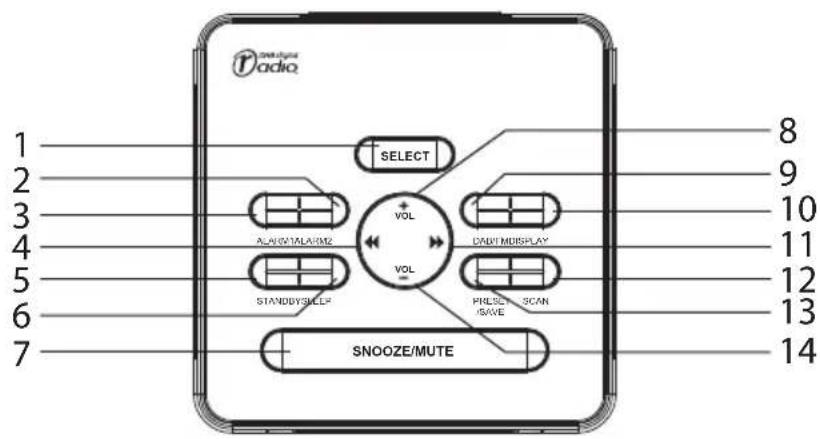

Top View

1. SELECT button
2. ALARM2 button
3. ALARM1 button
4. ◀ button
5. STANDBY button
6. SLEEP button

7. SNOOZE/MUTE button

8. VOL+ button

9. DAB/FM button

10. DISPLAY button

11. ▶ button

12. SCAN button

13. PRESET/SAVE button

14. VOL- button

Power Source

Mains Power

Before using, connect the supplied mains adapter to the DC 5V IN socket and then to the mains socket.

Diagram of a device with a cable and plug, showing no text or symbols

Basic Operation

Powering ON/OFF

When you first connect the mains adapter to the unit and the mains socket, the unit will enter Standby mode.

• Press the STANDBY button to switch the unit on.
• Your radio will start in DAB mode and will automatically tune into all the available DAB radio stations.
• Once complete the display will advise you of the number of DAB stations found. If there are no DAB stations available in your area the display will read "Service N/A". All available stations will be saved for future use.

Aerial positioning

• You may need to reposition the aerial for optimum reception. The best position is dependent on the station and the strength of the signal.

• There is a signal bar icon in the top right corner of the radio display. Use this as a reference to find the best signal.

• Press the STANDBY button to switch the unit back to Standby mode.

• Disconnect the mains adapter from the mains socket if you want to switch the unit off completely.

Selecting Modes

Press the DAB/FM button repeatedly to switch between modes (DAB, FM).

Memory

When you power up the unit again, the unit plays the same mode and station (DAB or FM) as the last operation.

Adjusting the Volume

Press the Vol+ or Vol- button to increase/decrease the volume.

Setting the Time

When you first turn on your radio it will automatically set the time by searching out the DAB signal. It will continue to search for the clock whilst in DAB mode until it has managed to set the time. If after 10 minutes the clock has not automatically set itself try repositioning the radio to get better reception. You cannot manually set the time on this unit.

If the radio cannot find a DAB frequency to set the clock. You can use the FM mode (some FM stations also transmit time and date information).

1. Switch to FM mode by pressing the DAB/FM button.
2. Search for a station using either the ◀◀ or ▶ button or the SCAN button.
3. Press the DISPLAY button repeatedly to scroll to the Time & Date display.
4. If the FM station is transmitting the time, the unit will set the time itself.
5. Please be aware that not all FM stations transmit the time. If the time does not set after 3 minutes, then press the SCAN button to find another station; repeat until the time is set.

Setting the Alarms

1. Press and hold the ALARM 1 button once to set alarm 1.
2. The alarm displays Alarm 1 Time Set.
3. The minute digits will flash. Press the ◀ or ▶ button to adjust the minute digits, then press the SELECT button to confirm.
4. The hour digits (in 24hr time) will then flash. Press the ◀◀ or ▶button to adjust the hour digits, then press the SELECT button to confirm.
5. Press the ◀ or ▶ button (0-20) to set the alarm volume, then press the SELECT button to confirm. Now press the ◀ or ▶ button to select either BEEP TONE 1 or BEEP TONE 2 for your alarm sound. Press the SELECT button to confirm.
6. Press the ◀ or ▶ button (0-10) to select the DAB preset station you want to set the clock to wake up to. Press the SELECT button to confirm.
7. If you want to set your alarm wake-up to your FM preset station you can select FM preset (01-10) by pressing the◀ or ▶ button, then press the SELECT button.
8. Press the Alarm 1 button to select from in the four options, Alarm Off, Alarm Beep, Alarm DAB, Alarm FM. The selection you make will be automatically confirmed after 3 seconds. You will see 🔒 on your display, confirming your alarm has been set.
9. You can set ALARM 2 in the same way.

Checking the Alarm

1. To view the alarm time set, press the DISPLAY button until ALARM 1 or ALARM 2 status is displayed.
2. You can see whether ALARM 1 or ALARM 2 is set as the 🔒 or 🔒 will illuminate on the top left corner of the display.

Snooze Function

When the alarm sounds, the snooze indicator "SNOOZE" will appear in the display. You can have two options.

1. Press the STANDBY button to turn off the alarm.
2. Press the SNOOZE/MUTE button when the alarm sounds. The snooze indicator "SNOOZE" will illuminate in the display. The alarm will go off and will then sound again in approximately 5 minutes.
3. Use the VOL+ and VOL- buttons to change the volume of the radio or buzzer.

Setting the Sleep Time

Press the SLEEP button to set the sleep time. You can select from 5 options, Sleep Off, Sleep 90 mins, Sleep 60 mins, Sleep 30 mins, Sleep 10 mins by pressing it repeatedly. The selection you make will be automatically confirmed after 3 seconds.

System Reset

There may be times when you need to reset your unit back to the factory settings. If you experience reception problems you may want to reset and try again. If you move the unit to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.

You can reset your radio by the following steps.

1. Press and hold down the DISPLAY button until the display changes.
2. Press the DISPLAY button again to scroll through the options until System Reset appears on the screen.
3. Press the SELECT button to confirm the system reset.

After the system reset, all the tuned stations, DAB & FM preset stations and alarm settings will be erased.

Using Earphones

You can listen to your radio using earphones with a 3.5mm plug. Plug the earphones into the socket on the side of your radio.

• You can select the desired volume using the VOL+ and VOL- buttons.
• You can press the MUTE button to turn off the sound and press it again to return to the previous volume level.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Diagram showing audio headset connected to a device with cable and indicator (no text or symbols)

DAB Operation

To listen to the tuned stations press the ◀ buttons. Each time you press the ▶ buttons, you will skip to the previous or next stored station. The unit will display the station name on the top line of the display. Press the SELECT button to confirm.

Auto Scan Modes

When you turn on your radio for the first time it should have tuned in all the available DAB stations. If you wish to retune a DAB station or search for new stations press the SCAN button once to start a quick scan, or press and hold the SCAN button to start a full scan.

1. Press the ◀ or ▶ button to see what stations are present in the found DAB station.
2. Press the SELECT button to listen to your chosen station.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press and hold the DISPLAY button, the display will now show Manual tune, then press the SELECT button.
2. Press the ◀ or ▶ button to cycle through the DAB channels, which are numbered from 5A to 13F.
3. After your desired channel number is selected, press the SELECT button to enter the current multiplex, the top line will now display the first station in the multiplex.
4. Press the ◀ or ▶ button to see what stations are present in the found multiplex.
5. Once you have reached the last station in the found multiplex, it will revert back to the first station again. If you wish to exit the Manual Tuning mode, just press the SELECT button.

Secondary Services

You may see a “▶” symbol after the name of the station. This indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, press the SELECT button when the "▶" appears in the display before the station name. When the secondary service ends, the radio will automatically switch back to the primary station.

Storing Stations

You can store your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. Press the PRESET/SAVE button. The word PRESET followed by a number from 1-10 and the word FREE will appear on the display, if this position is empty.
2. Press the ◀◀ or ▶button to select your desired preset station number. (Preset 1 to Preset 10)
3. Press and hold the PRESET/SAVE button, then the word PRESET and the flashing station number will appear. Press the SELECT button to confirm and save the station.
4. The station will be stored and the display will show "Preset # saved".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESET/SAVE button.
2. Press the ◀ or ▶ button to select your desired preset station number.
3. Press the SELECT button to confirm the selection.
4. If you choose a preset station that has not been allocated a station, the unit will be tuned to the previously playing station.

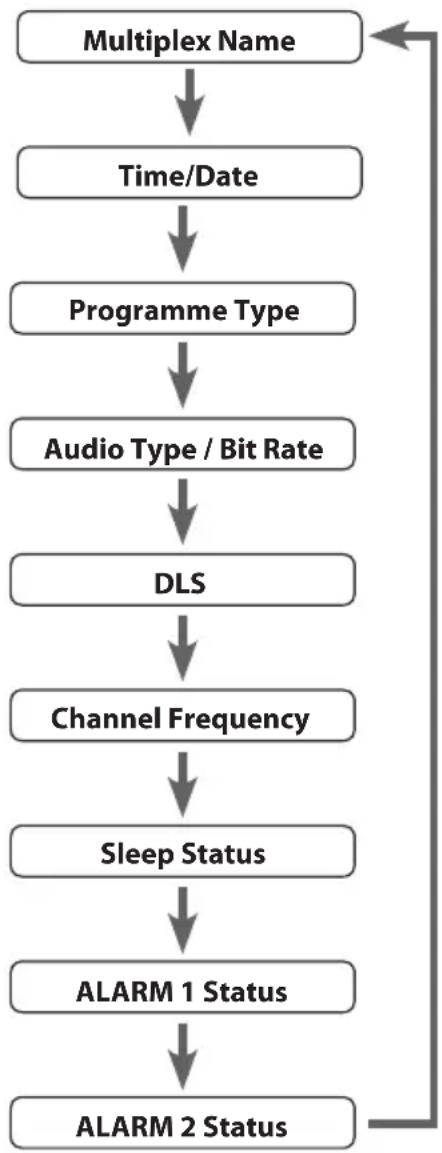

DAB Display Modes

Every time you press the DISPLAY button, the display will cycle through the following display modes: Multiplex Name, Time/Date, Programme Type, Audio Type / Bit Rate, DLS, Channel Frequency, Sleep Status, ALARM 1 Status, ALARM 2 Status.

The information is displayed on the lower segment of the display.

Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

Time/Date

The broadcaster (Radio station) provides clock and date information automatically you cannot manually set this information on this unit.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Audio Type / Bit Rate

The display will show the audio type and digital audio bit rate being received.

DLS (Dynamic Label Segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Channel Frequency

This shows the channel number and frequency of the current station e.g. 10A 209.936MHz.

FM Operation

Switching from DAB to FM Mode

In order to switch the radio from DAB to FM mode, press the DAB/FM button once. On the top line of the display is the current frequency. On the bottom of the display, RDS (radio data system) information will be displayed if it is available.

Auto Scan

To search for an FM station, you need to press and then release the SCAN button. The unit will start scanning up the frequency band. To scan down the frequency band, press and hold the SCAN button. Once a station has been found, the scanning will stop automatically.

If no station is found, then the tuning will stop once it has cycled through the entire FM band (87.5-108MHz).

Manual Scan

To search FM stations manually, simply press the button repeatedly or press and hold the button until your desired frequency is reached.

Storing Stations

You can store your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. Press the PRESET/SAVE button. The word PRESET followed by a number from 1-10 and the word FREE will appear on the display, if this position is empty.
2. Press the ◀ or ▶ button to select your desired preset station number. (Preset 1 to Preset 10)
3. Press and hold the PRESET/SAVE button, then press the SELECT button to save the station.
4. The station will be stored and the display will show "Preset # saved".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESET/SAVE button.
2. Press the ◀ or ▶ button to select your desired preset station number.
3. Press the SELECT button to confirm the selection.
4. If you choose a preset station that has not been allocated a station, the unit will be tuned to the previously playing station.

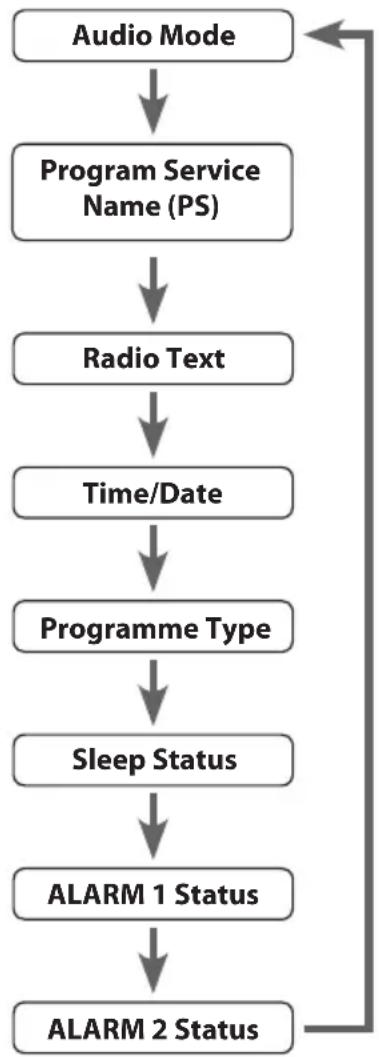

FM Display Modes

Every time you press the DISPLAY button, the display will cycle through the following display modes: Audio Mode, Frequency, Radio Text, Time/Date, Programme Type, Sleep Status, ALARM 1 Status, ALARM 2 Status.

Audio Mode

When in FM mode, the display will show if the station being received is in mono or stereo. The receiver will automatically switch between

Stereo and Mono mode. You can however override this function, so that you can manually switch between Stereo and Mono mode, which is helpful if you're listening to a poor FM signal.

To switch between mono and stereo, press the SELECT button once, you will see on the display "Mono" or "Auto". To toggle between each mode just press the SELECT button again.

Program Service Name(PS)

When a RDS station is received the name of that station (Program Service Name (PS)) will be displayed.

Radio Text

As with DAB, the broadcaster can include a scrolling text that displays information about the current program. If Radio text information is not available, then the display will show .

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. In the unlikely event that the broadcaster does not transmit any clock information, an incorrect time and date will be displayed.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Maintenance

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.

Hints and Tips

Problem Cause / Solution
No power Check that	the power is switched on at the wall socket.Check if the mains adapter is properly plugged into the unit and the mains socket.
No sound Check that	the volume control is NOT at minimum setting.Check that the unit is NOT set to mute.
Desired station not found	Adjust the aerial location and position to obtain a better signal reception.Tune to the correct radio channel frequency.
Radio channel reception is poor	Adjust the aerial location and position to obtain a better signal reception.
	Tune to the correct radio channel frequency.
Function disturbed If	none of the above solutions work, try switching off and unplugging your unit, leaving it for two minutes and then reconnect to the mains socket and switch it on again.

Specification

Adapter Input 100-240V ~ 50/60 Hz 0.18A MAX
Adapter Output 5V 1A
Frequency response FM87.5 – 108 MHzDAB Band III 174.928 – 239.200 MHz
Speaker Output 2.5W RMS
Speakers 3 inches full range speaker x 1 piece
LCD LCD display with blue back light
Earphones 3.5mm stereo earphone socket
Power Consumption 5 W
Power Consumption (Standby) 0.8W

Features and specifications are subject to change without prior notice.

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.

- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains adapter from the mains socket.

Mains Adapter Cable

- Make sure the unit is not resting on top of the mains adapter, as the weight of the unit may damage the mains adapter and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Mains Adapter SDF0500100G1BC

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to

your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead

Herts · HP2 7TG · England

(P.N.: LCRDAB10-003)
