Product Type	Alarm Clock Radio
Brand	Logik
Model	LCRB15
Dimensions (Approx.)	4.7 x 6.3 x 2.4 inches
Weight	0.5 lbs
Power Supply	AC adapter (included) or 2 x AAA batteries (backup)
Display Type	LED digital display
Alarm Modes	Radio or buzzer
Snooze Function	Yes (9-minute snooze)
Radio Band	FM only
Preset Stations	None (manual tuning)
Volume Control	Rotary dial
Sleep Timer	Yes (up to 90 minutes)
Backup Battery	Required for time/alarm retention during power outage
Maintenance	Clean with a soft, dry cloth; do not use liquids
Safety Precautions	Keep away from water and heat sources; do not block ventilation
Replacement Parts	AC adapter (model specific) and batteries
Repairability	No user-serviceable parts; contact support for issues
Manual	Free download in PDF format

Frequently Asked Questions - LCRB15 Logik

How do I set the alarm on my Logik LCRB15?

Press the ALARM button once to enter alarm setting mode. Use the HOUR and MIN buttons to adjust the time. Press ALARM again to confirm. Ensure the alarm indicator is lit.

How do I change the time?

Press and hold the CLOCK button for 2 seconds until the hours flash. Use HOUR and MIN to set, then press CLOCK to confirm.

How do I use the FM radio?

Press the RADIO button to turn on the radio. Rotate the TUNING dial to select a station. Adjust volume with the VOLUME dial. Extend the antenna for better reception.

Why does my alarm not go off?

Check that the alarm is activated (alarm indicator on). Ensure the volume is set loud enough or the buzzer is selected. Replace backup batteries if the display is dim or missing.

How do I snooze the alarm?

When the alarm sounds, press the SNOOZE button. The alarm will pause for 9 minutes and then sound again. Press ALARM OFF to cancel completely.

What batteries do I need for backup?

The Logik LCRB15 requires 2 x AAA batteries (not included) for backup to retain time and alarm settings during a power outage.

How do I set the sleep timer?

Press the SLEEP button repeatedly to choose a duration (15, 30, 45, 60, 90 minutes). The radio will play for that time and then turn off automatically.

Can I use the radio without an AC adapter?

No, the radio requires AC power for normal operation. The batteries only maintain the clock and alarm settings when unplugged.

How do I clean my alarm clock?

Unplug the unit before cleaning. Use a soft, dry cloth to wipe the surface. Do not use any liquids or aerosol cleaners, as they may damage the electronics.

What should I do if the display is dim?

First, increase the display brightness by pressing the DIMMER button (if available). If still dim, replace the backup batteries and ensure the AC adapter is securely connected.

USER MANUAL LCRB15 Logik

Safety Warnings....4

Unpacking....6

Product Overview....7

Top View....7

Rear View ....7

LED Display 8

Power Source 8

Mains Power 8

Memory Backup....9

Handling the Batteries....9

General Operation....10

Setting the Clock for the First Time....10

Changing the Time....10

Changing the Brightness of the Display....10

Setting the Alarm....11

Turning the Alarm On/Off....11

Switching the Alarm Off Once it Sounds....11

Snooze Function 11

Sleep Timer Setting....12

Listening to the Radio 12

Adjusting Volume 12

Saving a Radio Station 12

Selecting a Stored Radio Station....12

Using the AUX Function 13

Maintenance 14

Cleaning the Unit....14

Hints and Tips 14

Specifications....15

Safety Warnings

Read all the instructions carefully before using the unit and keep them for future reference.

• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.
• The rating label is located at the bottom of the unit.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• The mains adapter should not be obstructed and should be able to be easily accessed during use.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit or the mains adapter to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains adapter and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
• In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. while on holiday. Switch it off and disconnect the mains plug from the mains socket.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Thank you for purchasing your new Logik Clock Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

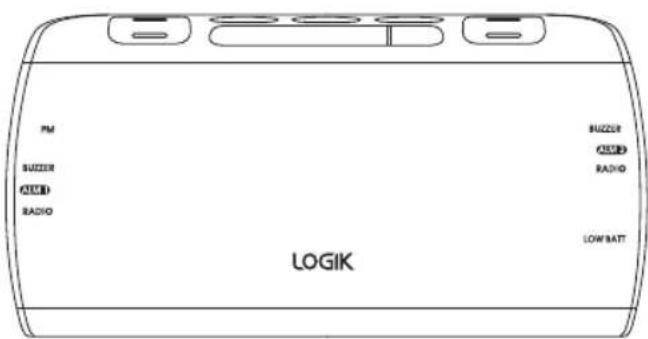

Main Unit

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Product Overview

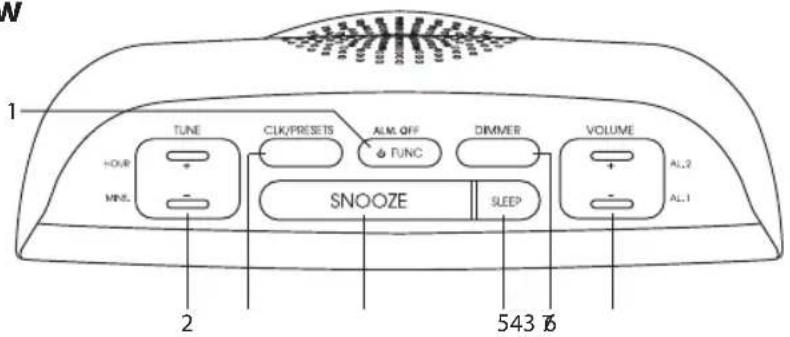

Top View

1. ALARM OFF/FUNCTION Button

• Switches off alarm.
- Toggles between AM radio, FM radio and auxiliary function.
- Press and hold to switch the Radio/Aux off.

2. TUNE +/- and HOUR/MINS Button

• Tunes to radio stations.
• Sets clock and alarm time.

3. CLOCK/PRESETS Button

• Sets clock time.
  • Selects preset radio stations.

4. SNOOZE Button

Activates snooze function.

5. SLEEP Button

Activates and adjusts sleep timer.

6. DIMMER Button

Adjusts screen brightness.

7. VOLUME +/- and AL1/AL2 Button

• Adjusts radio volume.
- Sets alarms.

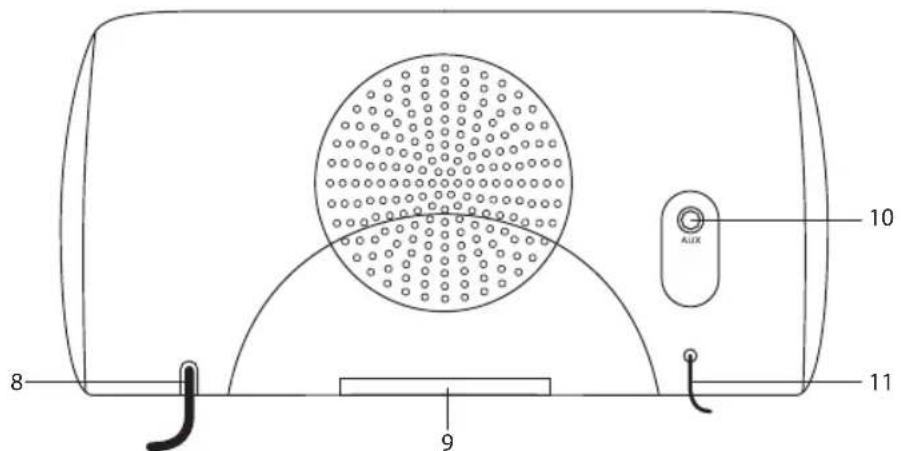

Rear View

8. Mains lead

9. Back-up Battery Compartment

10. AUX Connector

- Connects to auxiliary devices.

11. FM/AM Aerial

To receive the best radio reception fully extend the aerial cable.

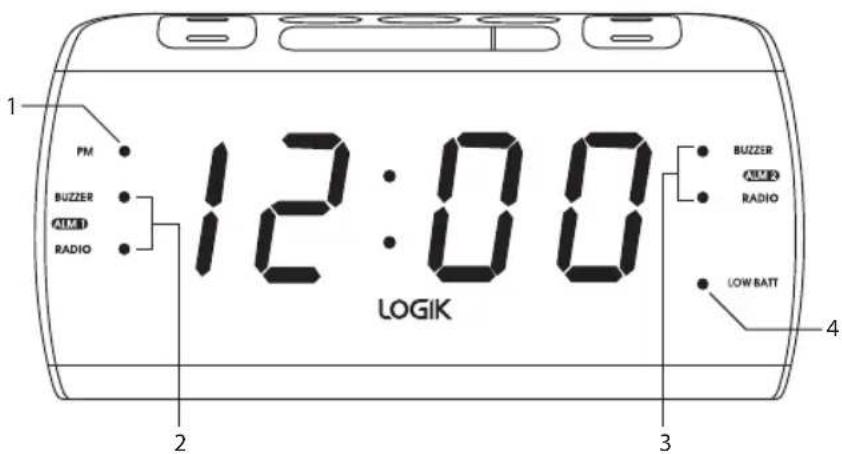

LED Display

1. PM Indicator

Functions only in 12-hour clock mode.

2. Alarm 1 Buzzer/Radio Indicator

Indicates if Alarm 1 is set to buzzer or Radio.

3. Alarm 2 Buzzer/Radio Indicator

Indicates if Alarm 2 is set to buzzer or Radio.

4. Low Battery Indicator

Shows when battery charge is low.

Power Source

Mains Power

Check that the voltage marked on the rating label matches your mains voltage.

1. Connect the mains plug to the mains socket and switch on at the socket. The display will start to flash.

1. To switch the unit off completely, un-plug from the mains socket.

Install the unit near a mains socket where the mains adapter can be easily reached.

Memory Backup

This unit incorporates a battery back up circuit that will keep the clock running, alarms set and radio stations that are stored in the memory in the event of a temporary power interruption.

Insert 2 x AAA batteries (not included) into the battery compartment located at the base of the unit. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.

You cannot listen to the radio with battery power. The time will not be displayed when using the back up battery power.

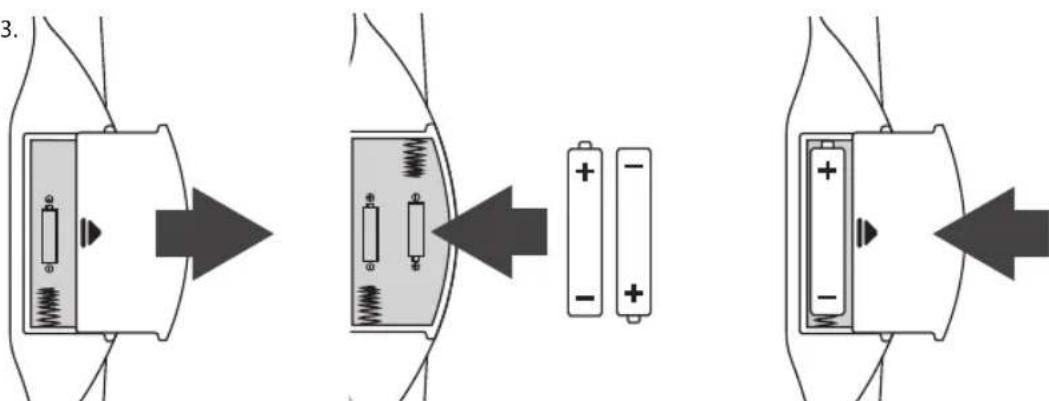

1.2.3.

Remove the cover Insert 2 x AAA batteries Replace the cover

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
  • Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.
  • Use only the types of the batteries which are indicated in this manual.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• If you are not going to use the unit for a long time, remove the battery to avoid damage from battery leakage and corrosion.

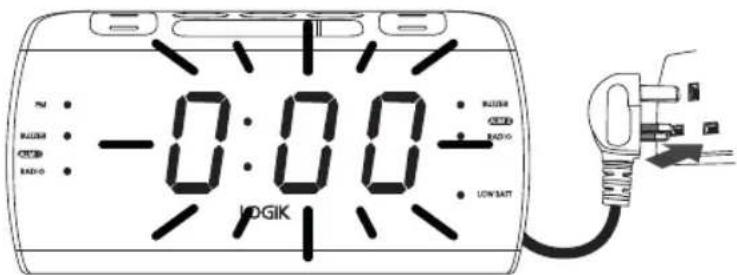

Setting the Clock for the First Time

When you first plug in the clock radio the display will be flashing. When setting the clock for the first time the clock will default to a 24 hour clock. Remember you can only change the time while the display is flashing, so you'll need to be quick.

1. Press the DIMMER button to brighten the display.
2. Press and hold the CLK/PRESETS button, 24H will flash in the display. Press TUNE +/- to select 24 hour or 12 hour clock display, then press CLK/PRESETS to confirm.
3. Press the HOUR button to set the hour. Press and hold the button to quickly change the hours.
4. Press the MINS button to set the minutes. Press and hold the button to quickly change the minutes.

If the display doesn't flash when the unit is switched on, press and hold the CLK/PRESETS button until the display flashes, then follow steps below (Changing the Time).

Changing the Time

If you need to change the time on your clock follow the steps below. Remember you can only change the time while the display is flashing, so you'll need to be quick.

1. Press and hold the CLK/PRESETS button until the display flashes.
2. Press the HOUR or MINS button to select if you want to display the time using a 12 hour or 24 hour clock.
3. Press the CLK/PRESETS button.
4. Press the HOUR button to set the hour. Press and hold the button to quickly change the hours.
5. Press the MINS button to set the minutes. Press and hold the button to quickly change the minutes.

Changing the Brightness of the Display

Press the DIMMER button to adjust the brightness level of the display. It has two settings dim or bright.

Setting the display brightness to the "Bright" level will result in a higher power consumption of the unit.

Setting the Alarm

There are two separate alarms you can set on this clock radio AL1 (Alarm 1) or AL2 (Alarm 2). Each alarm can be set to wake you up with a buzzer or the radio. The radio must be tuned to a radio station to work, otherwise it will default to the buzzer. The radio will switch on at the last volume setting you used.

1. Press and hold either the AL1 button to set Alarm 1 or AL2 to set Alarm 2 until the display starts to flash.
2. Press the HOUR or MINS button to set the time that you want the alarm to switch on. The alarm time is now set. Next you need to select how you want to be woken up, buzzer or radio.
3. Press either AL1 or AL2 depending on which alarm you are setting to toggle between BUZZER, RADIO and ALARM OFF. If you choose RADIO, ensure that the radio is tuned in.
4. An LED will light up on the display to show which alarm has been set and what type of alarm has been selected (AL1 or AL2).

Turning the Alarm On/Off

If the LED next to BUZZER or RADIO is lit the corresponding alarm has been set and when it's not lit the alarm is OFF. Press the AL2 or AL1 button to select the alarm, then keep pressing the button to scroll through the alarm settings:

Alarm OFF = LED off

Alarm ON = BUZZER LED or RADIO LED on.

Switching the Alarm Off Once it Sounds

The alarm will sound (either buzzer or radio) for 60 minutes then automatically switch off, if no buttons are pressed.

To switch the alarm off when it sounds press the ALM OFF/FUNC button.

Snooze Function

Press the SNOOZE button when the alarm sounds. The alarm will go off and will then sound again in approximately 9 minutes. You can keep snoozing the alarm until the alarm is switched off.

The LED next to the alarm setting will flash while in Snooze mode.

Sleep Timer Setting

You can set your clock radio to switch off after a set time with the Sleep function, so if you are listening to the radio and fall asleep your radio will automatically switch into standby when the set time has elapsed.

1. When listening to the radio press the SLEEP button, the number 90 will appear in the display. The radio will now count down and switch off after 90 minutes. If you want to see the remaining sleep time at any point, briefly press the SLEEP button and the time will be displayed.
2. Continually press the SLEEP button to decrease the sleep timer (90 - 80 -70 - 60 - 50 - 40 - 30 - 20 - 10 - OFF).
3. To switch the sleep time off, press the SLEEP button until the word OFF is displayed.

Listening to the Radio

Your clock radio has AM/FM radio. To receive the best reception fully extend the aerial cable.

1. Press the ALM OFF/FUNC button to select either AM or FM radio.
2. To tune in a radio station press the TUNE + or TUNE - button. If you hold the buttons down for a second it will automatically find the next available radio station.
3. To switch off the radio, press and hold down the ALM OFF/FUNC button until OFF appears on the display.

If you have problems receiving good FM radio reception, check that the aerial cable is fully extended and away from any electrical devices that could cause interference.

Adjusting Volume

Press the VOL - button to reduce the volume and the VOL + button to increase the radio volume.

Saving a Radio Station

You can save 10 AM and 10 FM radio stations in your clock radio's memory.

1. Tune to the radio station that you want to save.
2. Press and hold the CLK/PRESETS button, the display will flash. While the display is flashing press the TUNE +/- to select the preset number that you want to store the radio station in (1-10).
3. Press the CLK/PRESETS button again and the radio station will be stored.

Selecting a Stored Radio Station

1. First select AM or FM radio by pressing the ALM OFF/FUNC button.
2. Press the CLK/PRESETS button until the preset number is of your required station appears in the display.

Using the AUX Function

Using the AUX connection you can connect an external device (e.g. phone or MP3 player) and use the clock radio has a speaker.

1. Plug your device into the AUX socket.
2. Press the ALM OFF/FUNC button to select AUX.
3. Use either the VOL + or VOL - buttons on the clock radio or the volume controls on the connected device to increase or decrease the volume. You may need to adjust the volume on both devices.

Maintenance

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray aerosol at or near the unit.

Hints and Tips

Problem Solution
Poor FM reception • Make sure	the FM aerial wire is fully extended.Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Poor AM reception • Rotate the	unit horizontally until the orientation with best reception is found.
Clock does not show the correct time.	There has been a power cut and you haven’t installed any batteries, or the batteries are flat.Insert 2 x AAA batteries into the clock radio, this will keep the time in the event of a power cut.
Alarm does not come on at the preset time	Check the current time set correctly, remember this unit can be set as either a 12 hour or 24 hour clock.Is the alarm set to the correct time?

Specifications

Model LCRB15
Radio Frequency AM 522-1	620KHzFM 87.5-108MHz
Power Source 230V-240V ~	50HzFor the power backup function: 2 x AAA batteries
Dimension 210mm(W) x 10	0mm(H) x 55mm(D)

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 561 1234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment.

To preserve our environment, dispose of used batteries

according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

IB-LCRB15-150318V1
