First Kitchen 6681 - Food processor OBH NORDICA - Free user manual and instructions

Product Type	Stand Mixer / Food Processor
Brand	OBH Nordica
Model	First Kitchen 6681
Power Supply	240V AC, 700W
Bowl Capacity	1.5 kg (max dough)
Speed Settings	6 speeds with pulse
Included Accessories	Spatula, dough hook, whisk
Bowl Material	Stainless steel
Motor Type	AC motor with thermal overload protection
Dimensions (approx.)	30 x 20 x 35 cm
Weight (approx.)	5 kg
Head Type	Tilt-up with release handle
Safety Features	Overheat protection, auto shut-off
Dishwasher Safe Parts	Bowl, spatula, dough hook, whisk
Maintenance	Wipe motor base with damp cloth; do not immerse
Country of Origin	Denmark (designed), made in China
Warranty	Standard statutory warranty

Frequently Asked Questions - First Kitchen 6681 OBH NORDICA

What is the maximum capacity of the OBH Nordica First Kitchen 6681?

The maximum dough capacity is 1.5 kg. Do not exceed this to avoid overloading the motor.

Can I wash the bowl and accessories in the dishwasher?

Yes, the bowl, spatula, dough hook, and whisk are all dishwasher safe. The motor base must never be immersed in water.

What should I do if the machine stops working during use?

This may be due to thermal overload protection. Switch off, unplug, and let it cool for about 20 minutes before restarting.

How do I attach the bowl correctly?

Place the bowl in the bracket and turn it clockwise until it locks firmly. Ensure the mixer head is in the raised position when attaching.

Can I use the whisk for thick dough?

No, the whisk is only for whipping egg whites, cream, and light mixtures. Use the spatula or dough hook for thicker doughs.

What speed should I use for bread dough?

Use the dough hook at speed 3 for bread dough. Start at low speed and gradually increase.

Is it safe to leave the mixer unattended?

No, always supervise the appliance during use, especially when mixing heavy doughs.

How do I clean the motor base?

Unplug first. Wipe the motor base and mixer head with a damp cloth. Never immerse in water or use abrasive cleaners.

What is the recommended continuous operating time?

For heavy doughs, do not run the machine for more than 10 minutes continuously. Allow it to cool for 10 minutes between batches.

Where can I find spare parts or service?

Contact OBH Nordica customer service or visit their website. Spare parts like bowl, whisk, and dough hook are available.

USER MANUAL First Kitchen 6681 OBH NORDICA

First Kitchen Kitchen machine

Powerful with perfect results

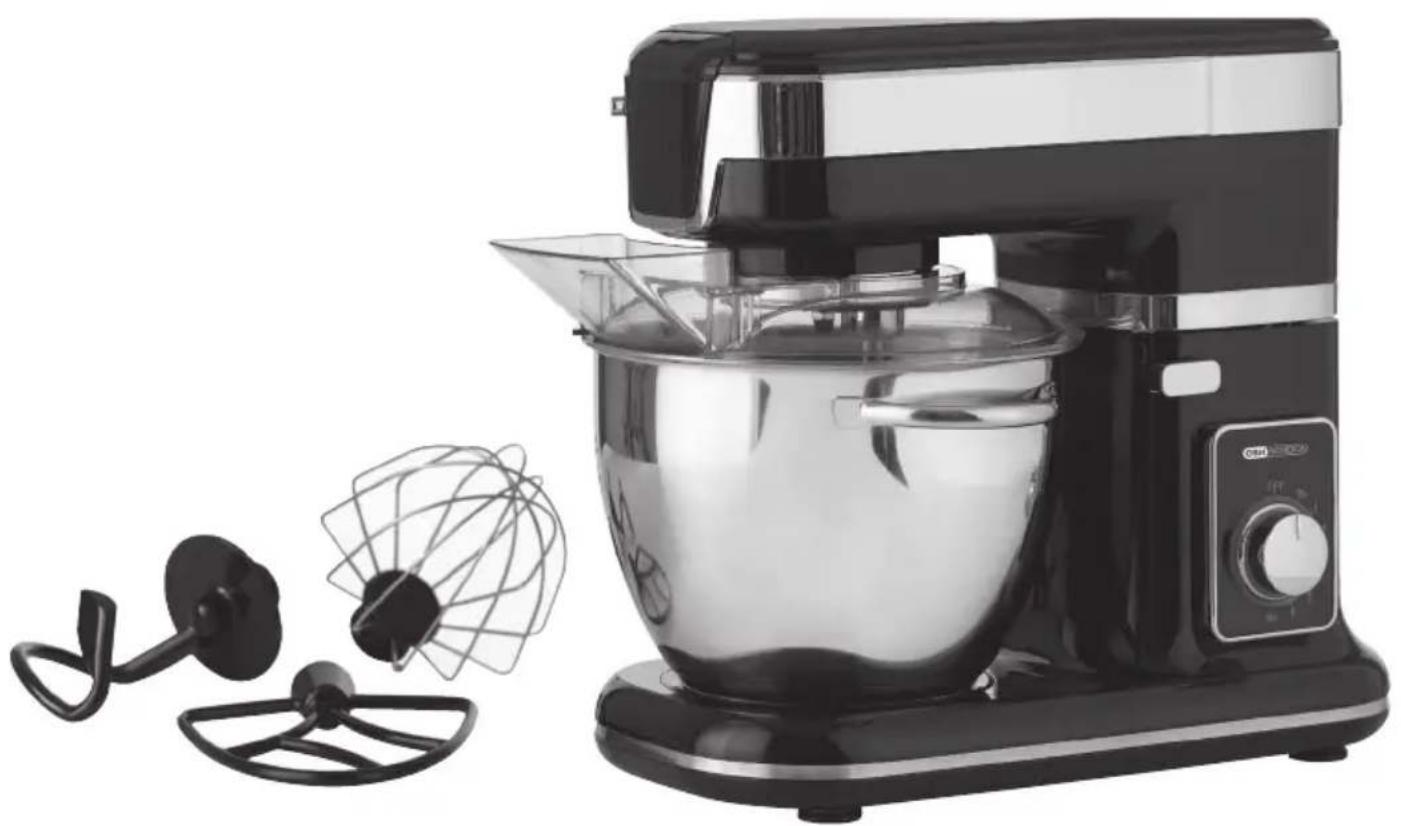

Modern kitchen stand mixer with whisk and mixing bowl (no visible text or symbols)

Diagram of a shield-shaped object with internal grid pattern and a labeled dimension (10), no readable text or symbols present.

Apparatens delar

Apparatets dele

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1 2630 Taastrup Tlf.: 43 350 350 www.obhnordica.dk

Tekniske data

OBH Nordica 6681, 6683, 6687 240 volt vekselstrøm 700 watt Tilbehør: Rørespade Dejkrog Piskeris

Apparatets deler

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6681, 6683, 6687

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The appliance must not be immersed into water or other liquids.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.'
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
12. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.

13. The appliance is for domestic use only.

14. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Before you use the kitchen machine for the first time, please read the instruction manual carefully and save it for future use.

Wash all removable parts in warm water with a washing-up liquid before use.

Parts of the appliance

1. Mixer head
2. Speed selector
3. Coupling for mounting of parts (not shown)
4. Release handle for release of mixer head
5. Removable cover for coupling
6. Release button for cover
7. Bowl
8. Lid
9. Bracket for bowl

10. The kitchen machine comprises the following accessories:

11. Spatula (for shortcrust pastry, cake pastry, mashed potatoes, cake stuffing, glazingetc.)

12. Whisk (for whipping e.g. egg, cream, pancake and layer cake pastry, soufflé)
13. Dough hook (for yeast dough)

How to use the kitchen machine

Clean bowl and accessories in hot water with added mild detergent before use. Rinse well and wipe thoroughly.

Put the kitchen machine on a plane and stable surface. Set the speed selector at OFF and make sure that the kitchen machine is not connected to a power socket, when mounting the bowl and accessories. Press the release handle and place the mixer head in vertical position. Position the bowl in the bowl bracket on the kitchen machine. Turn the bowl clockwise until it is firmly attached to the bowl bracket.

Next, mount the wanted accessory (spatula, dough hook or whisk) on the coupling for mounting of parts, press the part upwards and turn it counterclockwise to secure it on the coupling.

Add ingredients. Take care not to overfill the machine – Max quantity is 1,5 kg. Press the release handle to lower the mixer head – keep your hand on the mixer head when lowering it into the bowl and apply the plug to a socket. Mount the lid on the bowl. Switch on the machine by turning the speed selector to the wanted speed between 1 and 6. See instructions for selection of speed on the following page. Always be sure to have ingredients in the bowl before switching on the kitchen machine

Follow recipe instructions. When you are finished with the recipe, set the speed switch to OFF and disconnect the plug from the power socket. Remove the lid from the bowl. Press the release button and place the mixer head in a vertical position and remove the accessory. Remove the bowl from the bracket by turning the bowl counter-clockwise.

Note: When mixing heavy types of dough etc. the machine should only be used for 10 minutes at a time and then let it cool off for ten minutes.

Clean the parts as described in the section "Cleaning and maintenance".

Overheating

The kitchen machine comprises a thermostat to ensure a long life of the appliance and which will be activated if the motor gets overcharged. In case the thermostat is activated, switch off the appliance and disconnect the plug from the power socket and wait for about 20 minutes before switching on the appliance again.

Setting the speed

Apply the plug to a power socket and switch on. It is recommended that you always start at the lowest speed and then increase the speed a little at a time. Put the lid on the bowl in order to avoid splashes. See the table below as to recommended settings of speed.

Using the mixer accessories

The guide below offers suggestions for speed settings. Start at speed level 1 and then increase speed in accordance with the recipe.

Recipe	Accessory	Speed
Cakes (mixtures and homemade)	Spatula 3
Shortcrust pastry	Spatula 3
Mashed potatoes	Spatula 4
Glazing	Spatula	4
Egg whites (for meringues etc.)	Whisk 6
Whipped cream	Whisk 6
Blancmange powder	Whisk 1
Bread	Dough hook 3

Put all liquid ingredients in the bowl and then add the dry ingredients. Always stay near the kitchen machine during use. Always add ingredients as close to the sides of the bowl as possible and not directly into the rotating tool.

When preparing cake mixtures, use speed level 2 for low speed, speed level 4 for medium speed, and speed level 6 for high speed. To obtain the best results, mixtures should be processed for the amount of time stated on the package.

Mixtures containing large amounts of liquid must be processed at low speed to avoid splashing. Increase speed when the mixture has thickened.

For mixing thin types of dough choose the medium speed. Switch off the kitchen machine regularly to clean the sides by using a rubber spatula.

Shortcrust pastry is one of the thickest types of dough, but you can make the mixing easier by:

• Adding butter or margarine of room temperature
• Adding the ingredients one at a time and mixing the ingredients well before adding a new ingredient.
• Adding one cup of flour at a time.

If there are difficulties in mixing the dough, increase the speed.

If by mistake something gets stuck in the tool, or the motor stops, switch off the machine and remove the plug from the power socket. Solve the problem or reduce the amount in the bowl. Let the motor cool off for 5 minutes before the kitchen machine is switched on again.

Use the whisk for whipping egg whites, cream, and similar. The whisk is not suited for thick mixtures such as dough and mashed potatoes.

The kitchen machine can whip a minimum of 2 large egg whites / 1 cup of cream. Whipping is more efficient when the whisk is completely submerged in the liquid. A hand mixer is recommended for smaller amounts.

Egg whites

Put the egg whites into the completely clean bowl. Attach the bowl to the bowl bracket and whip the egg whites. Avoid splashing by gradually increasing the speed to the wanted speed level. See guide below.

Amount

Speed

2-4 egg whites 5 - 6

6 or more egg whites 4 - 5

Egg whites are whipped quickly. Keep an eye on the egg whites to avoid whipping them for too long.

Whipped cream

Pour cold cream into the cooled bowl. Put the bowl into the bowl bracket and whip. Avoid splashing by gradually increasing the speed to the wanted rate.

Amount

Speed

1 cup 5-6

12 litre 4-5

Cream is whipped fast, so keep an eye during whipping.

Cleaning and maintenance

Always unplug before cleaning.

The bowl and the accessories are dishwasher safe. The motor base must never be immersed into water or other liquids. Wipe the motor base and the mixer head with a damp cloth. Avoid using scouring powder or other abrasive cleaners which may scratch or dull the surface. Wipe all parts thoroughly dry before storing the kitchen machine.

IMPORTANT: THE MOTOR BASE MAY NEVER BE IMMERSED IN WATER OR ANY OTHER KIND OF LIQUID.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Claim according to valid law. Machine stamped receipt shall be enclosed if one wishes to make a complaint. The appliance shall be returned to the store where it was purchased.

OBH Nordica AB

Löfströms Allé 5

SE-172 55 Sundbyberg

Tel.: [phone]

www.obhnordica.se

Technical data

OBH Nordica 6681, 6683, 6687

240 volt AC

700 watt

Accessories:

Spatula

Dough hooks

Whisks

CE

These instructions are subject to alterations or improvements.

OBH NORDICA

First Kitchen Kitchen machine

Modern kitchen stand mixer with a mesh fan and control panel, no visible text or symbols
