USER MANUAL Svart Optimal WSO-1SG WILFA

Product photo of a kitchen blender with a 900W brush and side dish containing fresh lettuce (no text or symbols visible)

Wilfa Fredag

Stick mixer

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

SMFP-800B

Stavmikser

Viktige forholdsregler 3

Four-panel illustration showing a hand mixer, a cleaning bowl with chopsticks, and a final bowl with chopsticks (no text or symbols)

1 Hastighetskontroll 1–5
2 Bryter I
3 Bryter II
4 Motorenhet
5 Blandestav
6 Vispeholder
7 Visp
13 Beger
14 Lokk til beger
19 Matnedstapper
20 Lokk til food prosessor bolle

Sequence of black-and-white photos showing hands operating a vacuum cleaner in various stages (no text or symbols visible)

3D rendering of a mechanical lever system with pivot and fulcrum (no text or symbols visible)

Rengjøring

The image contains only background ruled lines. According to Rule 2, these lines must be ignored. There is no actual text content to extract.

Therefore, the corrected OCR output is:

[Empty String]

Norsk

Four-panel illustration showing a hand mixer, a bowl with liquid, and a bowl with chopsticks (no text or symbols)

Sequence of black-and-white photos showing hands operating a vacuum cleaner in various states (no text or symbols visible)

3D rendered mechanical component with lever and shaft assembly (no text or symbols)

Rengöring

Four-panel illustration showing a hand mixer, a cleaning bowl with chopsticks, and a final bowl with chopsticks (no text or symbols)

3D rendered mechanical component with lever and shaft assembly (no text or symbols)

Rengøring

Blank white image with no visible content, text, or symbols.

Dansk

Tekniske specifi kationer: 220-240V\~50/60Hz, 800W

Four-panel illustration showing a hand mixer, a water dispenser, and a bowl with chopsticks (no text or symbols)

3D rendering of a mechanical device with a lever and shaft, showing internal components and fluid flow (no text or symbols)

Puhdistaminen

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

Pure vertical line with a shaded rectangular bar, no text or symbols present

____ ____
____ ____
____ ____
____ ____
____ ____

Tekniset tiedot:

220-240V\~50/60Hz,800W

Important safeguards 3

How to use the hand blender 8

How to use the whisk 9

How to use the slicing/shredding disc 10

How to use the dicing device 11

How to use the S blade 12

Cleaning 13

Processing Guide 14

Important safeguards

When using electrical appliances especially when children are present, Basic safety precautions should always be followed, including the following:

• Read all instructions before using.
  ■ To protect against electrical shock, do not submerge the mixer or allow AC cord to come in contact with water or other liquids.
  ■ Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
  ■ Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any matter. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
  ■ Do not use outdoors.
  ■ Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
  ■ Always unplug the appliance before assembling, disassembling, cleaning.
  ■ Blades are sharp. Handle carefully.
  ■ Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.

- Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.

- Don't let the motor unit, cord, or plug get wet.

- Don't place the appliance in the hot ingredients.

■ The appliance is constructed to process normal household quantities.

■ Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds.

■ If you press switch, you can run the inching switch to meet your request.

■ Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

■ They shall state that care shall be take when handling the sharp cutting blades, emptying the bowl and during cleaning.

■ Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.

■ This appliance can be use by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Keep hands and utensils out of the container while blending/away from the cutting blade while chopping food to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Always disconnect the blend from the supply if it is left unattended and before assembling, disassembling or cleaning.

This stick mixer is a versatile appliance that can be used in various ways:

■ The stainless steel blending leg – for use as a stick mixer
■ The food processor bowl with S blade, reversible shredding/slicing disc, strip disc for use as a food processor.
■ The whisk attachment – for use as a hand whisk

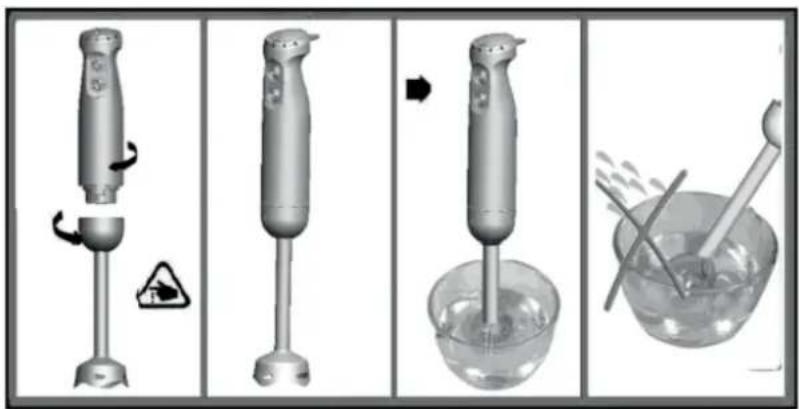

How to use the hand blender

Four-panel illustration showing a hand mixer, a water dispenser, and a bowl with chopsticks (no text or symbols)

The hand blender is suited for preparing dips, sauces, soups, mayonnaise and baby food, as well as for mixing and milkshakes.

1 Turn the blender leg on the motor unit until it locks.
2 Put the hand blender in the beaker and press the switch to operate it.
3 Do not use the hand blender for longer than 1 minute at a time.
4 Caution: the blade is very sharp!
5 Caution: Don't operate food without water!

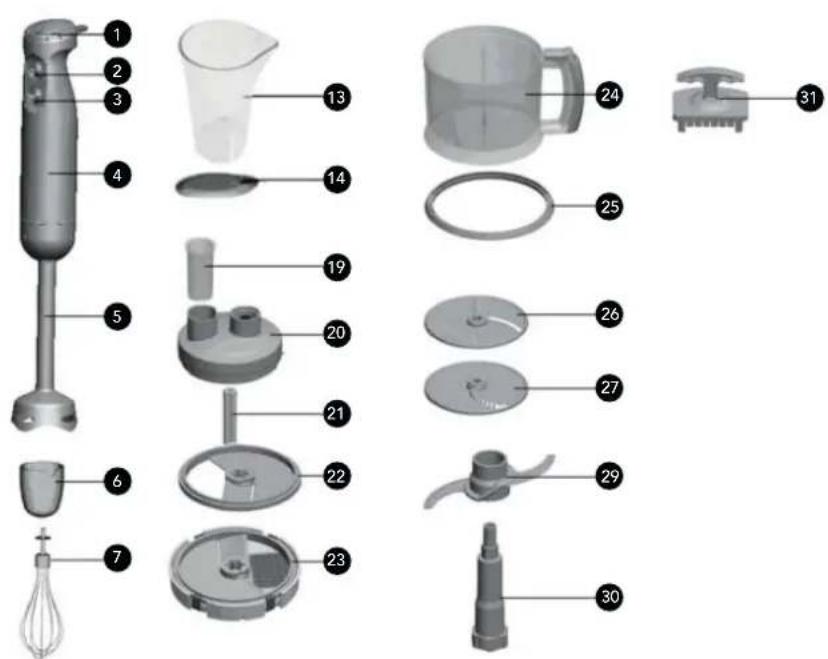

Description:

1 Speed control dial 1-5

2 Switch I

3 Switch II

4 Motor unit

5 Blending leg

6 Whisk holder

7 Whisk

13 Beaker

14 Cover for beaker

19 Pusher

20 Food Processor cover

21 Cutter cube shaft

22 Cutter blade assembly

23 Cube blade assembly

24 Food processor bowl

25 Skid proof washer

26 Reversible slicing shredding disc

27 Strip disc

29 Big "S" blade

30 Detachable drive shaft

31 Cleaning brush

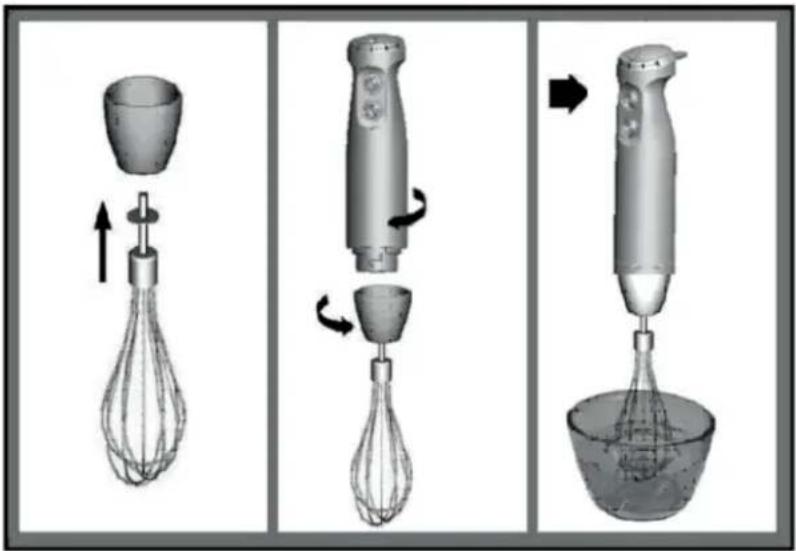

How to use the whisk

The whisk is suited for whipping cream, beating egg whites and mixing light cake batters and ready-mix desserts.

1 Insert the whisk into the whisk holder, and then turn the gear box on the blender motor body until it locks.
2 Place the whisk in a bowl and press the switch to operate it.
3 Use the whisk for no longer than 2 minutes at a time.
4 Turn the whisk gearbox off the blender motor body after use. Then detach the whisk from the whisk gearbox.

How to use the slicing/shredding disc

The slicing/shredding disc is reversible, with one side for shredding and another side for slicing. The reversible shredder/slicer disc is suited for shredding and slicing cheese, cucumber, carrots etc. The strip disk is suited for potatoes, cucumber, swede etc.

1 Place the detachable drive shaft into to the food processor bowl, push down gently to ensure the drive shaft is fully attached.
2 Place the slicing/shredding disc or strip disc, depending on your need. Use only one disc at a time.
3 Place the lid into position by turning it anticlockwise until it locks and then turn the motor unit on top of the processor bowl until it locks. Ensure that the lid is on correctly.
4 Put the food into the feeding chute with the pusher. Be sure the food is cut into small pieces and use fresh ingredients. Fill the food chute fairly full with ingredients. Never put your fingers in the feeding chute.
5 Press the switch to operate.

How to use the dicing device

Sequence of nine black-and-white photos showing hands operating a vacuum cleaner in various stages (no text or symbols visible)

Use the dicing device to dice carrots, cucumbers, potatoes, tomatoes etc.

1 Put the food processor bowl on a fl at sturdy surface, like a countertop.
2 Put the cube blade in the assembly and put the cutter blade into place.
3 Hold the cutter blade assembly at the center, place the knife lid onto the cube blade. Lock it by pushing the four metal parts inwards.
4 Put the cube blade assembly into the food processor bowl. This assembly will only fit if the square elevated part of the cube blade is placed in the slot at the front of the food processor bowl. Look for the sticker on the food processor bowl.
5 Put the cutter cube shaft into to the middle of the cutter blade (star shaped).
6 Put on the processor bowl cover, open the hatch, turn cover anticlockwise and close the hatch. The food processor bowl is now locked.
7 Insert the blender motor body onto the processor bowl cover.
8 Turn the blender motor body clockwise, you will hear and feel a slight click.
9 Push down gently to ensure that the blender motor body is securely locked.
10 Plug in the power cord into an electrical outlet.
11 Add ingredients to be processed in the feeding chute and press one of the switches on the blender motor body to operate.

Caution:

• Put the food into the feeding chute. Use the pusher in order to dice the food. Never put your fingers into the feeding chute.
  ■ Use fresh ingredients. Be sure the food is cut into small pieces. Fill the food chute fairly full with ingredients.
  ■ The cutting blade is very sharp, always handle with care.
  ■ When you are finished using the unit please use the cleaning brush to remove any leftover food. Never use your fingers as the cube blade is very sharp.

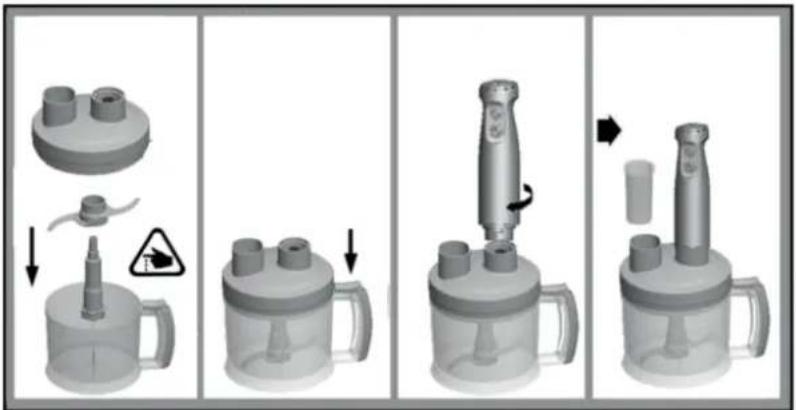

How to use the S blade

The S blade is for cutting salad, nuts, meats, onion and so on.

1 Put the "S" blade onto the detachable drive shaft, handle carefully, the blade is very sharp.
2 Place the processor bowl cover and turn anticlockwise until it locks
3 Fit the blender motor body onto the food processor bowl, push down gently to ensure the blender motor body is securely locked.
4 Plug in the power cord into an electrical outlet and start using your appliance

Caution:

■ Always attach the blender motor body and blade to the food processor bowl before adding ingredients.
- Cut food such as meat, bread, vegetables into cubes approximately 2 cm before processing.
■ The blade is very sharp. Always hold it by the detachable drive shaft. Never touch the blade itself.

3D rendered mechanical component with lever and shaft assembly (no visible text or symbols)

Cleaning

Clean the blender motor body and food processor bowl lid with a damp cloth only. Never immerse the blender motor body in water.

1 All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rinse the blades straight away.
2 Also, be careful not to use too much detergent or decalcifying agent in your dishwasher.
3 When processing food with color, the plastic parts of the appliance may become discolored, wipe these parts with vegetable oil before placing them in the dishwasher.
4 The blades are very sharp, please pay attention.
5 Unplug the appliance before cleaning.

Processing Guide

Food Maxi mum Operation times Preparation Speed
Processor bowl (for big "S" blade)
Meat 500g 20-30 sec 1~2cm II
Nuts, almonds 300g 10-15sec / II
Cheese 200g 10sec 1~2cm II
Bread 160g 10sec 1~2cm II
Onions	300g 10sec 1~2cm II
Dicing device
Carrots	500g 20sec			Fresh or Seventh of the cooked	I(1)
Cucumber	500g 20sec	Fresh		I(1)
Potato	500g 20sec			Fresh or Seventh of the cooked	I(1)
Slicing/Shredding discs
Shredding disc	Potatoes	500g	20sec	Fresh II
	Carrots	500g	20sec	Fresh	II
Shredding disc Shredding disc	Potatoes	500g	20sec	Fresh II
	Carrots	500g	20sec	Fresh	II
	Potatoes	500g	20sec	Fresh II
Strip disc	Peeled potatoes	500g	20sec	Fresh II

English

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

u6u6u3

一
一
一
一
一

Technical specifications:

220-240V\~50/60Hz,800W

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.

WILFA AS

Industriveien 25

1481 Hagan

wilfa.com
