Classic CCM-1500W - Coffee maker WILFA - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Wilfa
Model	Classic CCM-1500W
Color	White / Black (varies)
Power Consumption	1500 W
Voltage	220-240 V, 50-60 Hz
Capacity	1.5 L (approx. 12 cups)
Dimensions (W x D x H)	25 x 18 x 35 cm (approx.)
Weight	1.5 kg (approx.)
Water Tank	Removable, transparent with water level markings
Filter Type	Permanent reusable filter (included) or paper filters (#4 cone)
Carafe	Glass carafe with lid, 1.5 L capacity
Keep Warm Function	Automatic keep warm plate for up to 40 minutes
Pause & Serve	Allows pouring a cup before brewing cycle ends
Auto Shut-off	Yes, after 2 hours of inactivity
Anti-Drip Valve	Yes, prevents dripping when carafe is removed
Indicator Light	Power on indicator
Cleaning Indicator	Not available
Descaling	Recommended every 2-3 months with vinegar or descaling solution
Safety Features	Automatic shut-off, boil-dry protection
Spare Parts Available	Carafe, filter basket, water tank, lid
Repairability	Moderate, most parts replaceable
Certifications	CE, RoHS

Frequently Asked Questions - Classic CCM-1500W WILFA

How many cups does the Wilfa Classic CCM-1500W make?

The coffee maker has a capacity of 1.5 liters, which is approximately 12 cups (125 ml each).

Can I use paper filters with this machine?

Yes, it accepts standard #4 cone paper filters or you can use the included permanent reusable filter.

Does it have a pause and serve function?

Yes, the Pause & Serve feature allows you to pour a cup of coffee mid-brew without making a mess.

How do I clean and descale the coffee maker?

Regular cleaning: wash removable parts with mild soap. Descale every 2-3 months using a mixture of white vinegar and water (1:2 ratio) or a commercial descaler.

Does it automatically shut off?

Yes, the auto shut-off activates after 2 hours of inactivity for safety and energy savings.

What type of carafe is included?

It comes with a glass carafe with a clear lid and a handle, capacity of 1.5 L.

Is the water tank removable?

Yes, the water tank is removable for easy filling and cleaning.

Can I use the machine to make hot water for tea?

Yes, you can run a cycle without coffee grounds to get hot water for tea or other beverages.

What is the power consumption?

The machine operates at 1500 W, 220-240V, ensuring quick brewing.

Are spare parts available?

Yes, spare parts such as the carafe, filter basket, and water tank are available from Wilfa or authorized retailers.

USER MANUAL Classic CCM-1500W WILFA

Modern coffee maker with clear glass and black filter, no visible text or symbols

Modern coffee maker with clear glass and black filter, no visible text or symbols

Modern coffee maker with clear glass and black filter, no visible text or symbols

Wilfa Classic

Automatic Coffee Brewer

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

CCM-1500B

CCM-1500W

CCM-1500S

① Vandbeholder
② Glaskande
③ Filterholder m/manuell drypstop
④ Startknap
⑤ Strømledning
⑥ Måleske, 6 g

Tip

Congratulations on your new Wilfa Classic coffee brewer!

Wilfa Classic has been developed and designed to meet the highest standards and to give you the best possible quality and ease of use.

We hope that your Wilfa Classic will give you many excellent coffee experiences.

山

Approved by the

European Coffee

Brewing Centre

General safety instructions

- Read the instruction manual carefully before using the unit, and retain the instructions including the guarantee, receipt and if possible the box with internal packaging.

- The unit is only designed for private use, and for the intended purpose. It is not intended for commercial use.

- Keep the unit away from sources of heat, direct sunlight, moisture and sharp edges.

- The unit must not be operated with wet hands. Pull out the plug immediately if the unit is damp or wet.

- Must not be submerged in water.

- Must not be used outdoors.

- Do not allow the cable to hang over the edge of the table or work surface, or come into contact with hot surfaces such as stove tops, etc.

- When the unit is to be cleaned or put away, the power switch must be turned off and the plug must be pulled from the power socket (pull the plug, not the cord).

- Regularly check the unit and cord for damage. Do not use the unit if it is damaged.

- Do not try to repair the unit yourself. Always contact an authorised service facility.

- When the unit is cleaned after use, it must not be submerged in water or any other fluid.

- The heating element's surface may still be warm after use.

- Warning – injury may be caused by misuse of the unit.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Take particular note of the "Special safety instructions" below.

Special safety instructions for this unit

• The unit must only be filled with cold, clean water.
• Pull out the plug when the unit is not in use.
• Only use original spare parts.
• Never use the glass jug on hotplates or in a microwave oven.
  • Always remove the plug from the power socket prior to cleaning.

Electrical connection

Check that the voltage where you shall use the unit is the same as that specified on the unit. Details can be found on the label on the unit's base plate.

When using the unit for the first time

Read these instructions carefully and retain the instruction manual for future reference.

Please run cold water through the unit without using a coffee filter or coffee prior to using the unit for the first time.

Operation

Place the Wilfa Classic on a flat surface. Plug the power cord into the socket. Fill the water tank with cold water to the desired amount. Place a filter paper (1x4) in the filter holder. Place the recommended amount of coffee into the filter.

We recommend that you use filter ground coffee, 60-65 g per litre of water. Experiment with the quantities for the first few uses until you find out how much coffee you think is best. We also recommend that you use our WILFA GRAM STÅL scale with 1 g intervals for best results.

Place the filter holder in the bracket and twist to the left to lock into position.

Press the power switch. The start button will flash.

Press the start button, which will then light up, in order to start the percolation process.

When the percolation process is complete, the unit will switch over to the "keep hot" position for up to 40 minutes. The start button will remain lit during this time.

The coffee should be served fresh. Turn off the start button when you have finished using the coffee brewer.

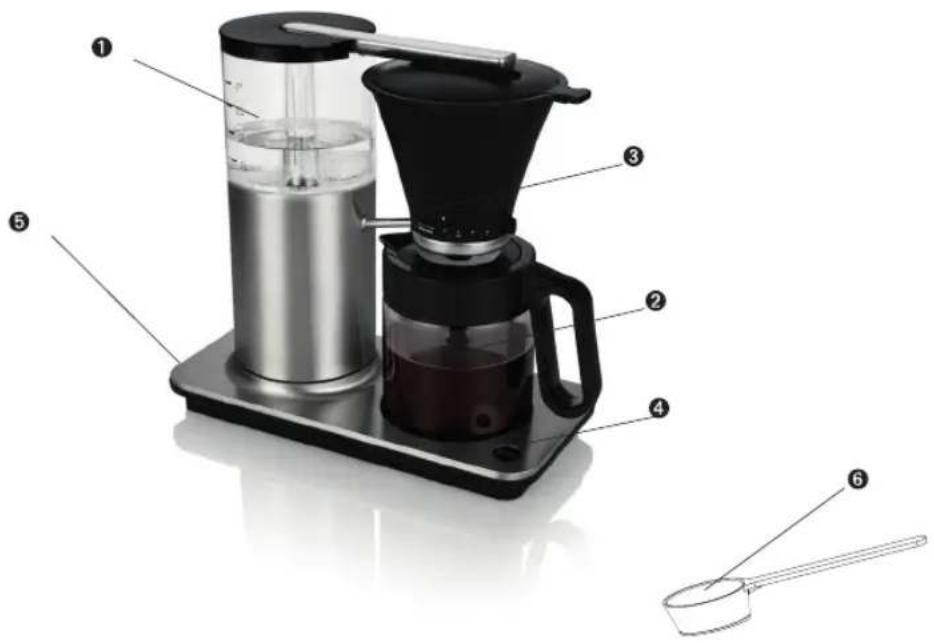

Design

① Water tank
② Glass jug
③ Filter holder with manual drip stop
④ Start button
⑤ Power cord
⑥ Measuring spoon, 6 g

Tips

• Dampen the coffee filter in order to remove any unwanted taste prior to percolating.
• Always use fresh coffee. You will obtain the best results if the coffee you use is freshly ground. Use our WILFA NYMALT coffee grinder to grind the coffee. Using different degrees of grinding will affect the coffee's extraction time.
• Use a separate jug to fill the water tank with water. Do not use the glass jug, since this may contain traces of coffee.
• The enclosed filter holder has an manual drip stop. Wilfa does not recommend serving coffee before the percolation process is completed, since this will diminish the final coffee result.
• If even hotter coffee is desired, the glass jug can be rinsed with hot water prior to percolation.
• If the coffee brewer has not been used for a while, cold water should be run through the unit prior to using.

Cleaning

• Use a cleaning agent intended for use in coffee brewers and run through the unit. Remember to run clean water through the unit after the cleaning process has been completed.
• If necessary, the unit can be cleaned externally using a clean, damp cloth.
• The filter holder, glass jug and lid can be washed in hot soapy water or washed in the top level of a dishwasher.
• Never wash other parts of the coffee brewer in a dishwasher.
• Never use strong detergents, scouring powder, steel wool or other abrasives on any part of the coffee brewer.
• Descaling should be performed as needed. Use a commercially available descaling agent.

Environmental instructions

• Product must not be disposed as household waste when it is not used anymore. It must be delivered to a collection point for recycling of electrical and electronic appliances. The symbols on the product, the user manual or on the packaging shows the appropriate disposal methods.
• The materials can be recycled, as indicated on the label. By recycling or otherwise reusing old appliances, you give an important contribution to environmental protection.
• Contact your local waste disposal service to learn more about how you can deliver your unit.

Technical info: 230V\~50/60Hz 1550W

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse. Instead, bring the product to your closest WEEE collection centre.

WILFA AS

Industriveien 25

1481 Hagan

Norway wilfa.com

WILFA AS

Industriveien 25

1481 Hagan,

Norway wilfa.com
