Brand	Wilfa
Model	Svart Manuell WSM-1R
Product Type	Manual pour-over coffee maker with variable temperature kettle
Power Supply	220-240 V ~ 50 Hz, 2000 W
Water Capacity	1.0 L (approximate, based on standard kettle size)
Temperature Settings	60 °C, 70 °C, 80 °C, 90 °C, 100 °C
Keep Warm Function	Maintains selected temperature for 15 minutes
Auto Shut-Off	Kettle turns off automatically when target temperature is reached; also shuts off when removed from base
Flow Control	Adjustable for regulating water flow; includes drip stop when turned fully right
Filter Holder	Removable, accommodates #4 filter (1x4 cone filter)
Water Jug (Carafe)	Included, for collecting brewed coffee
Lid	Push-button opening; must be closed for operation
Water Scale	Marked on side of kettle for water level indication
Base Plate	Flat, with cord storage; kettle must be placed on base to operate
Materials	Stainless steel kettle and filter holder; plastic base
Dishwasher Safe Parts	Filter holder, glass jar, and lid (top rack recommended)
Descaling	Use commercial descaling agent; do not use vinegar
Safety Features	Auto shut-off when removed from base; lid must be closed; do not overfill between MIN and MAX marks
Dimensions (approx.)	Height 25 cm, Width 20 cm, Depth 20 cm
Weight (approx.)	1.2 kg
Warranty	Refer to manufacturer; not specified in manual

Frequently Asked Questions - Svart Manuell WSM-1R WILFA

What is the recommended water temperature for brewing coffee with the Wilfa Svart Manuell?

Set the kettle to 100 °C, as the temperature drops to the ideal brewing range of 92-96 °C when pouring over the coffee grounds.

How much coffee should I use per liter of water?

Wilfa recommends about 60 g of ground coffee per liter of water. Adjust to taste after a few attempts.

Can I use the kettle for purposes other than coffee?

Yes, the Wilfa Svart Manuell can be used as a standard kettle. Select the desired temperature (60, 70, 80, 90, or 100 °C) using the 'Set' button.

How do I clean the coffee maker?

Unplug the appliance. Wipe the kettle and base with a damp cloth. The filter holder, glass jar, and lid can be washed in warm soapy water or placed on the top rack of the dishwasher. Never wash the kettle or base in the dishwasher.

How often should I descale the kettle?

Descaling frequency depends on water hardness and usage. If the kettle shuts off before water boils, it likely needs descaling. Use a commercial descaling agent; do not use vinegar.

What type of coffee filter should I use?

Use a #4 (1x4) cone filter. For best results, wet the filter with hot water before adding coffee to remove any paper taste.

How does the flow control and drip stop work?

The flow control is adjustable. Turn it to the middle position and adjust for shorter or longer contact time (recommended 4-6 minutes). Turning it fully to the right acts as a drip stop, preventing water from flowing into the carafe.

Is the kettle safe to use on induction cooktops?

No, the Wilfa Svart Manuell must only be used with its included base plate. It is not intended for stovetop use.

What should I do if the kettle does not turn on?

Ensure the kettle is properly seated on the base plate and the lid is closed. Check that the appliance is plugged into a working outlet and that the voltage matches the label (220-240 V). If it still does not work, contact an authorized technician.

Can I use the kettle while it is attached to the base?

Yes, the kettle must be on the base to heat. You can pour water directly from the kettle while it is on the base, but avoid touching hot surfaces and keep the lid closed while pouring.

USER MANUAL Svart Manuell WSM-1R WILFA

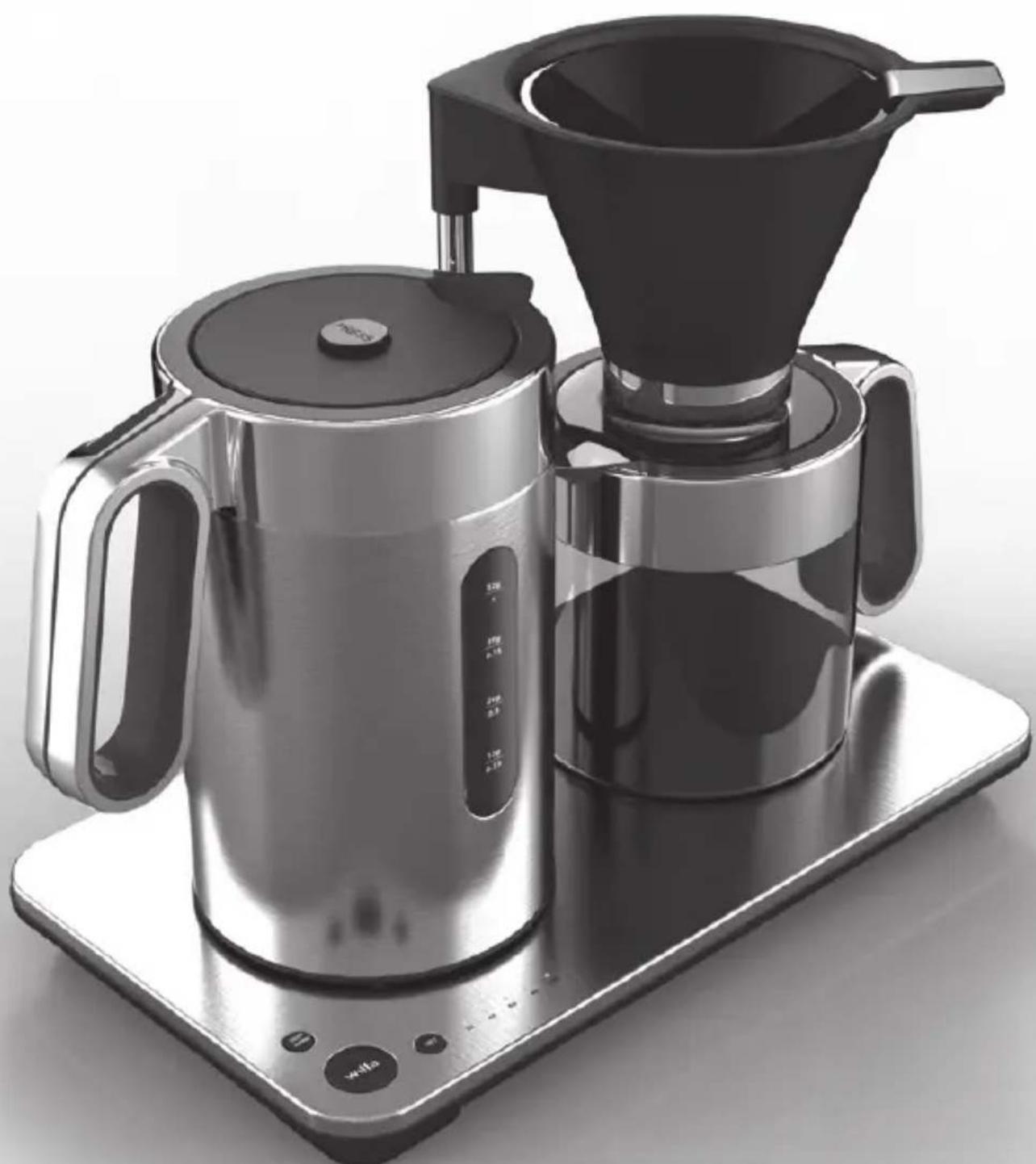

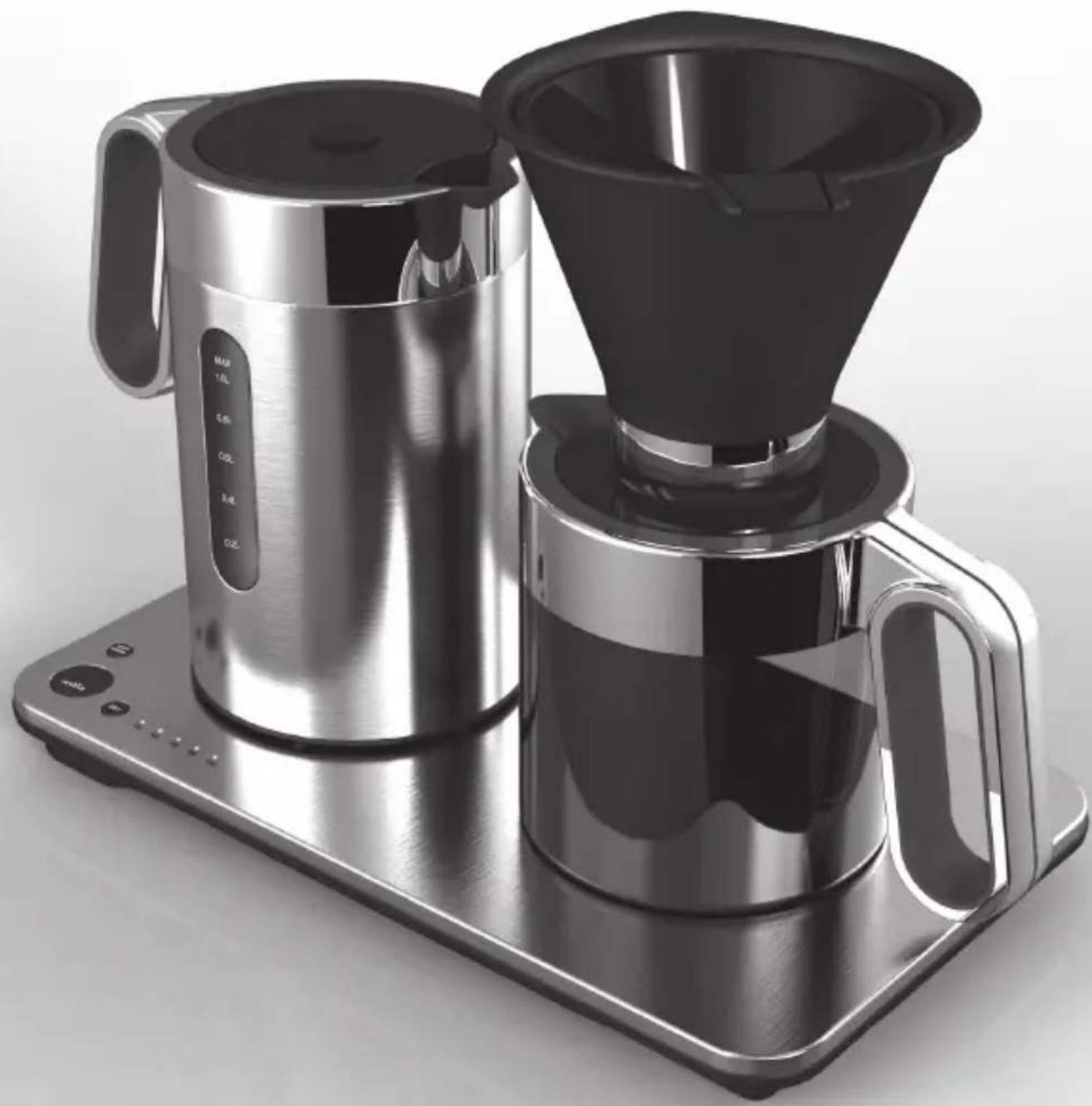

Two stainless steel coffee kettakers on a tray, one with a pour filter and the other with a black liquid (no visible text or symbols)

Wilfa Svart manuell

Coffee brewer

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

WSM-1R, WSM-1B

Design

Design

Design

Design

Congratulations on your new Wilfa SVART Manuell coffee maker. It will give you a mug of black, perfectly brewed filter coffee that hides many possibilities of detail, taste variations and nuances. Baristas and coffee enthusiasts have, over the last few years, developed a passion for brewing coffee manually. By pouring water over the coffee with the right temperature, you have complete control over the brewing process. With Wilfa SVART Manuell can anyone master the art of brewing delicious coffee.

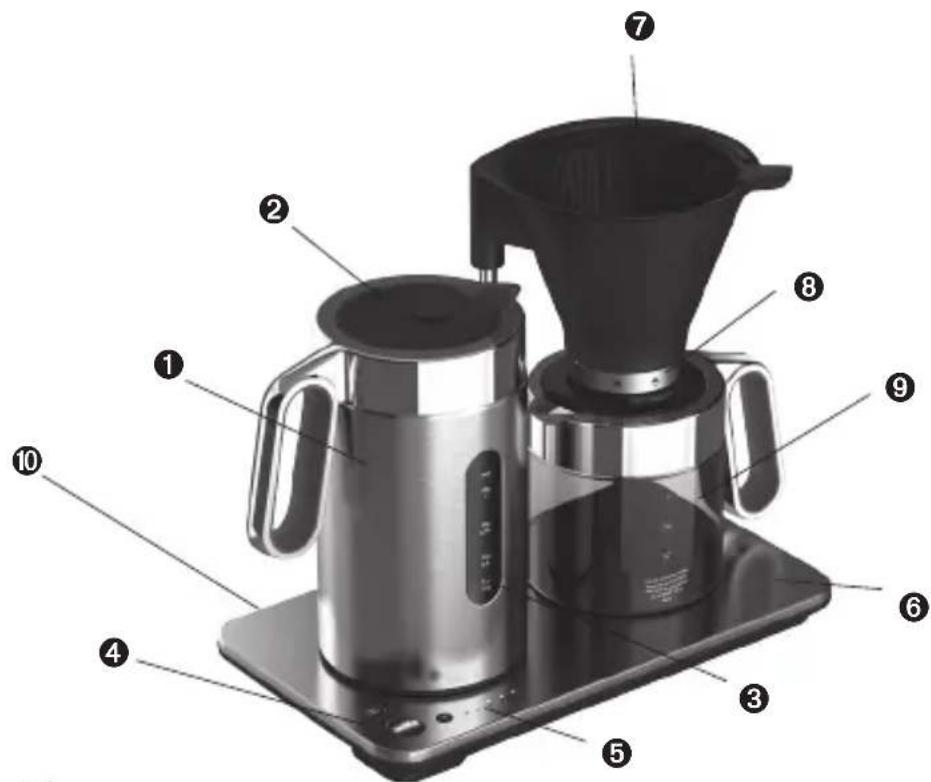

Design

① Kettle
② Lid
③ Water scale
④ On / off switch
⑤ Regulation of heat on the water 60^ C, 70^ C, 80^ C, 90^ C og 100^ C
⑥ Base plate
⑦ Filter Holder
⑧ Flow controll and drip stop
⑨ Water jug
⑩ Power cord with plug

First use of the machine

Please read these instructions carefully and keep them in a safe place. Boil fresh water in the kettle at least twice before it is used for the first time. Use only plain water with no additives or ingredients.

Use

Set Wilfa SVART Manuell on a flat surface.
Open the kettle by pressing the button on the lid, and pour fresh cold water. Water scale on the side of the kettle showing how much water it contains. Do not overfill the kettle.
★ Close the lid by pushing it into the closed position.
Put the kettle on the flat base plate.
Press "Wilfa" start / stop button to start warming. The kettle turns off automatically when selected temperature is reached.
If it is desirable to maintain the selected temperature, press the "Keep Warm" button. The temperature will be kept for 15 min.
- Avoid touching the sides of the kettle when it contains hot water. Avoid opening the lid when you pour out the water.
Place the coffee filter (1x4) in the filter holder. Use desired quantity of coffee in the filter. We recommend that you use ground coffee, about 60 g per liter of water. Try out the first times until you find out how much coffee you think is best.

We also recommend that you use our Wilfa GRAM stål scale that gives 1g intervals for best results.

Set the flow control in middle position and adjust after your own desired for shorter or longer coffee-to-water contact time. Recommended contact time between water and coffee are 4 to 6 minutes.
Pour the water from the kettle over coffee in a circular motion.
By turning flow control completely to the right, it will act as a drip stop.

Wilfa SVART Manuell can also be used as a kettle. You can choose the water temperature on the "Set" button, 60°C, 70°C, 80°C, 90°C and 100°C. We recommend 100oC when brewing coffee, because the temperature will soon be reduced to the proper brewing temperature when pouring the water. Proper brewing temperature should be somewhere between 92°C – 96°C.

TIPS

• Wet the coffee filter to remove unwanted taste before brewing.
• By changing the pouring method can affect the contact time and the taste of coffee. With less circulating motion the water will flow faster through and will give a less-extracted coffee.
• You can also use our Wilfa MALT coffee grinder to change the degree of grind of the coffee. This will also change extraction time.

• Always use fresh coffee. For best results, the coffee you use is freshly ground.

Cleaning

• Always unplug the appliance before cleaning.
- If necessary, the device may be cleaned with a damp cloth without any additives.
- Filter holder, glass jar and lid can be washed in hot soapy water or placed at the top in the dishwasher.
- Never wash other parts of the device in the dishwasher. Never use strong detergents, scouring powders, steel wool or other release agents on any part of the maker.

Descaling

• How often kettle needs descaling depends on how hard the water is and how often it is used.
• If the unit shuts off before the water boils, it is likely that it needs descaling.
• Do not use vinegar. Use a commercially available descalcifying.

Electrical connection

Check the voltage where you use the device is the same as specified on the appliance. For details on the label on the base plate.

General safety instructions

• Read the instructions carefully before using the appliance, and keep the instructions including the warranty, receipt, and if possible the box with inner packaging.
• This appliance is designed for private use, and for the intended application. It is not suitable for commercial use.
• Keep the appliance away from heat sources, direct sunlight, moisture and sharp edges.
• Do not use with wet hands. Unplug immediately if the unit is damp or wet. Do not immerse in water.
• Do not use outdoors.
• When the unit is cleaned or put away, it must be turned off and the plug must be pulled out of the socket (pull the plug, not the cable).
• Check device and cable regularly for damage. Do not use if it is damaged.
• Try not to repair the appliance yourself. Always contact an authorized technician.
  • Use only original spare parts.
• Be especially aware of "special security instructions" below.
• Vær spesielt oppmerksom på "Spesielle sikkerhetsinstrukser" nedenfor.

SpesielleSpecial safety instructions for this device

• The device must only be filled with cold water.
- Water level must be between the MAX and MIN marks. If the water level exceeds the maximum level, the boiling water and steam may be ejected, which might arise a hazard to the user.
- The device switches off automatically when removed from the base plate. Kettle must only be used with the included base plate.
• Always make sure that the lid is properly closed.
• Unplug when not in use.
- The device should not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they are supervised by a person who is responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Environmental Instructions

• Product must not be disposed as household waste when it is not used anymore. It must be delivered to a collection point for recycling of electrical and electronic appliances.
  The symbols on the product, the user manual or on the packaging shows the appropriate disposal methods.
• The materials can be recycled, as indicated on the label. By recycle or otherwise reuse old appliances, you give an important

contribution to environmental protection.

- Contact your local waste disposal service to learn more about how you can deliver your unit.

Technical info: 220-240V \~ 50Hz, 2000W

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse.

WILFA AS

Industriveien 25

Postboks146, Hagan

1481 Hagan, Norway

Tlf: 67 06 33 00

Fax: [phone]

[e-mail]

www.wilfa.com
