Brand	Emmaljunga
Model	Twin Nitro
Product Type	Twin stroller (double pram)
Suitable for	Two children, from 6 months to 3 years (max 15 kg each); from birth with Quadrolift/Duolift
Chassis Material	Aluminum (inferred)
Seat Unit	Reversible, with five-point harness
Backrest Adjustment	4 positions
Footrest Adjustment	2 positions, reversible cover
Handle Height Adjustment	Yes, with grey buttons
Front Wheels	360° swivel with lockable straight position
Parking Brake	Engages both rear wheels
Hood	Adjustable, with integrated mosquito net
Raincover	Included
Shopping Tray Capacity	Max 5 kg
Footrest Max Load	3 kg
Quadrolift Dimensions (LxW)	800 x 400 mm
Weight	Not specified in manual (approx. 15-20 kg)
Cleaning Instructions	Hand wash seat fabrics with mild soap, drip dry; wipe harness with damp cloth
Maintenance Intervals	Lubricate wheel axles every 3 months; professional service every 6-12 months
Safety Standards	Complies with EN 1888:2003+A1:2005+A2:2005+A3:2005, EN 1466:2008
Not Suitable For	Running, skating, or as a car seat

Frequently Asked Questions - Twin Nitro Emmaljunga

How do I fold the Emmaljunga Twin Nitro stroller?

First, ensure the brake is engaged. If the seat unit is reversed, recline the backrests and bring the hood forward. Then pull the two main locking devices upwards on each side, release the secondary locking device, and fold the handle forward. Always keep children clear of moving parts.

What is the maximum weight capacity for each seat?

Each seat can hold a child up to 15 kg. The stroller is suitable for two children from 6 months to 3 years.

Can I use the Twin Nitro from birth?

Yes, if you use the Quadrolift or Duolift accessory, the stroller can be used from birth. The seat unit alone is not suitable for children under 6 months.

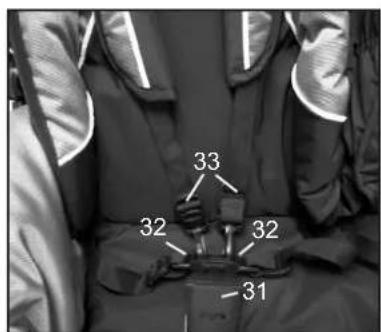

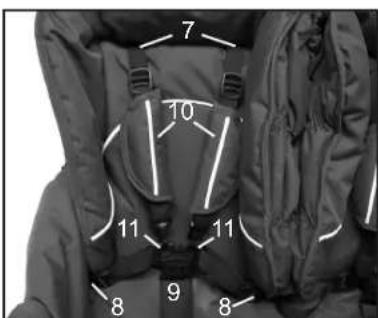

How do I adjust the harness?

Bring the crutch strap between the child's legs. Insert the waist straps into the buckle until they click. Adjust all straps using the sliders. To release, press the center button. Always ensure the harness is securely fastened.

How do I clean the seat fabrics?

Remove the seat fabric from the chassis. Hand wash in lukewarm water with mild liquid soap. Rinse thoroughly and drip dry. Do not machine wash. Wipe nylon straps and plastic parts with a damp cloth only.

Can I attach a car seat to this stroller?

Yes, using Emmaljunga's original car seat adaptors (sold separately). However, the seat unit or carrycot itself must not be used as a car seat.

How do I lock the front wheels?

Press the locking ring down when the wheels are straight forward to fix them. Pull the ring up to allow 360° swivel. Always lock front wheels when pulling the stroller behind you to avoid self-turning.

What should I do if the brake does not lock properly?

Check that the cog on the rear wheels is clean and that the brake pin engages fully. Lubricate the brake pedal, wheel axle, and brake pins monthly with silicon or oil-based lubricant. If issues persist, contact an authorized retailer.

Is the stroller suitable for jogging or skating?

No, the Twin Nitro is not suitable for running or skating. It is designed for walking only.

How often should I service the stroller?

Regular maintenance should be done by the user every 3 months (lubrication). Professional service is recommended at 6, 12, 24, and 36 months by an authorized Emmaljunga retailer.

USER MANUAL Twin Nitro Emmaljunga

IMPORTANT! KEEP FOR FUTURE REFERENCE. FOR THE PROPER USE OF THIS VEHICLE, BE SURE TO READ THIS

USER'S MANUAL CAREFULLY. This product complies with DIN EN 1888:2003 + A 1:2005 + A 2:2005 + A 3:2005, EN 1466:2008 This product is suitable for two (2) children from 6 months - 3 years with a maximum weight of 15 kg each.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided.

WARNING! The product is not suitable for running or skating. The outer length and width of the Quadrolift is 800 mm / 400 mm.

WARNING! The Quadrolift is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.

WARNING! Never use the carrycot/lift on a stand.

Please visit www.emmaljunga.co.uk for the latest information before using the product.

TÄRKEÄÄ TIETOA – SÄLYTÄ TULEVAA KÄYTTÖÄ VARTEN. LUE NÄMÄ KÄYTTÖOHJEET HUOLELLISESTI ENNEN KUIN

Top-down view of a vehicle chassis with two seats and a numbered component (no text or symbols visible)

5

WARNING

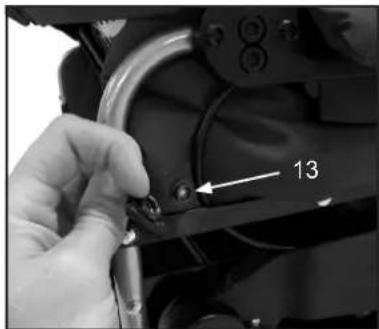

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to a small component (no visible text or symbols)

Close-up of a hand holding a mechanical component with a numbered arrow pointing to a small feature (no visible text or symbols)

Close-up of hands holding a mechanical component with a numbered label (18), no visible text or symbols beyond the number.

Montera suffletten

Close-up of a jacket showing internal bedding and part of the pocket, with no visible text or symbols

Montera fotsack (tillbehör)

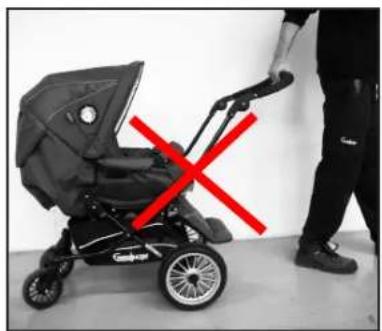

Black and white photo of a baby stroller with a red X symbol crossed, next to a person standing nearby (no text or symbols visible)

WARNING

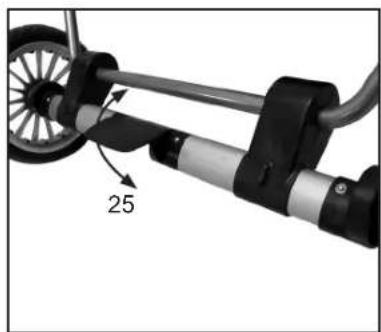

Mechanical bicycle with a wheel and attached lever, labeled with number 25 (no text or symbols on the diagram itself)

17

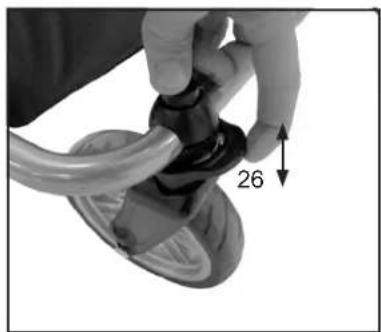

Close-up of a hand holding a black plastic object with a 26mm measurement arrow, no visible text or symbols

18

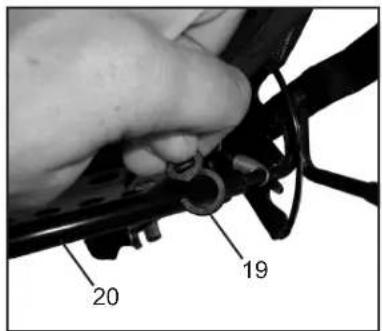

19

20

Manual Twin Nitro v. 1.4

Använda bromsen

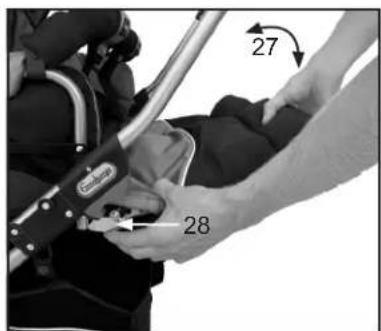

Close-up of a person seated in a chair with a curved arrow indicating rotation or movement (no text or symbols present)

Justera ryggstödet

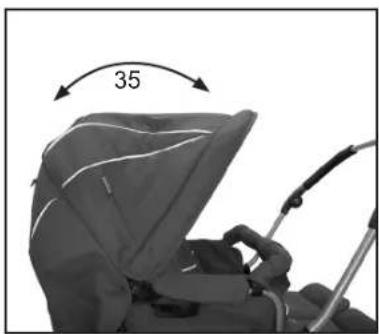

Close-up of a stroller with a curved arrow indicating a measurement of 35 units (no text or symbols on the device itself)

Justera suffletten

Stroller with two side views showing body contours and seat, no text or symbols visible

WARNING

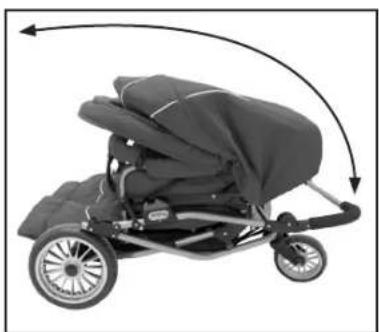

Illustration of a two-wheeled stroller with curved arrows indicating motion or rotation (no text or symbols)

Close-up of a robotic arm holding a small metallic container with a spool, against a plain white background (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Top-down view of a vehicle's seat frame with two covers and a numbered component (6), no visible text or symbols.

5

Close-up of a hand holding a small mechanical component with a numbered arrow pointing to a hole (no visible text or symbols)

Close-up of a hand holding a mechanical component with a numbered label (14), no visible text or symbols beyond the number.

Close-up of hands adjusting a mechanical component with a numbered label (18), no visible text or symbols beyond the number.

Close-up of a person's jacket showing pocket and shoulder details (no text or symbols visible)

Black and white photo of a baby stroller with a red X mark, standing beside a person (no text or symbols visible)

ADVARSEL

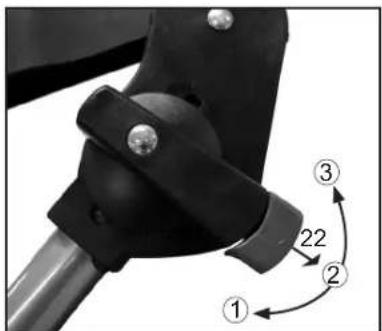

Close-up of a mechanical clamp or bracket with numbered callouts (1, 2, 3) indicating rotational direction (no text or symbols beyond labels)

ADVARSEL

Mechanical bicycle with labeled component '25' (no other text or symbols)

17

Close-up of a hand holding a black mechanical component with a 26mm measurement indicator (no text or symbols on the object itself)

18

19

20

Manual Twin Nitro v. 1.4

Anvend bremsen

Close-up of a person seated in a chair with a curved arrow indicating rotation or movement (no text or symbols present)

Close-up of a baby stroller with a curved arrow indicating 35 units (no text or symbols on the device itself)

Justering af kalechen

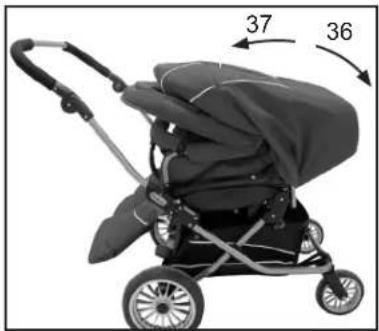

Illustration of a baby stroller with two labeled parts (37 and 36) indicating measurement directions, no text or symbols present.

ADVARSEL

Illustration of a two-wheeled stroller with curved arrows indicating motion or rotation (no text or symbols)

ADVARSEL

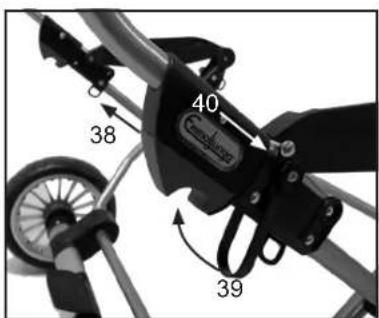

• Stellåsen (40) skal klikke i låst position.
• Kontroller altid, inden du anvender vognen, at stellåsen er i låst position eftersom vognen ellers kan være farlig at anvende.

Close-up of a robotic arm handling a metallic cylindrical container with a spool, against a plain white background (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Close-up of a bicycle lift with labeled components (no readable text or symbols)

2

3

Montering av vognen

4

Top-down view of a vehicle's seat frame with two covers and arrows indicating features (no text or symbols)

5

ADVARSEL

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to a bolt (no visible text or symbols)

Close-up of a hand holding a mechanical component with a numbered arrow pointing to a detail (no visible text or symbols)

Close-up of hands holding a mechanical component with a numbered label (18), no visible text or symbols beyond the number.

Close-up of a jacket pocket with visible internal compartments and a numbered label '21' (no text or symbols beyond the number)

Black and white photo of a stroller with a red X symbol crossed, being assisted by a person (no text or symbols visible)

ADVARSEL

ADVARSEL

Mechanical bicycle with labeled component '25' (no other text or symbols visible)

17

Close-up of a hand holding a black plastic object with a 26mm measurement arrow, no visible text or symbols

18

19

20

Manual Twin Nitro v. 1.4

Bruk av Bremsen

Close-up of a person seated in a chair with a curved arrow indicating rotation or movement (no text or symbols present)

Justering av ryggen

Close-up of a baby stroller with a curved arrow indicating 35 units (no text or symbols on the device itself)

Illustration of a baby stroller with two side views labeled 37 and 36 (no text or symbols on the device itself)

VIKTIG

Illustration of a two-wheeled stroller with curved arrows indicating motion or rotation (no text or symbols)

ADVARSEL

Close-up of a robotic arm handling a metallic cylindrical container with a spool, against a plain white background (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Close-up of a bicycle lift with labeled components (no readable text or symbols)

2

3

Top-down view of a vehicle's seat frame with two covers and arrows indicating features (no text or symbols)

5

WARNUNG

Close-up of a hand holding a small mechanical component with a numbered arrow pointing to a hole (no visible text or symbols)

Close-up of a hand holding a mechanical component with a numbered label (14), no visible text or symbols beyond the number.

Close-up of hands adjusting a mechanical component with a numbered label (18), no visible text or symbols beyond the number.

Close-up of a person's jacket showing pocket and shoulder details (no text or symbols visible)

Black and white photo of a baby stroller with a red X mark, standing beside a person (no text or symbols visible)

14

Close-up of a mechanical clamp or bracket with numbered callouts (1, 2, 3) indicating rotational direction (no text or symbols beyond labels)

15

50

WARNUNG

Mechanical device with a wheel and attached bracket, labeled with number 25 (no text or symbols beyond the label)

17

Close-up of a hand holding a black plastic object with a 26mm measurement arrow, no visible text or symbols

18

19

20

Manual Twin Nitro v. 1.4

Close-up of a person seated in a chair with a curved arrow indicating rotation or movement (no text or symbols present)

Close-up of a baby stroller with a curved arrow indicating 35 units (no text or symbols on the device itself)

Illustration of a baby stroller with two side views labeled 37 and 36 (no text or symbols on the device itself)

WARNUNG

Illustration of a two-wheeled stroller with curved arrows indicating motion or rotation (no text or symbols)

WARNUNG

Close-up of a robotic arm handling a metallic cylindrical container with a spool, against a plain white background (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Contents of the box 58

Emmaljunga's original accessories 58

Important safety information 59-61

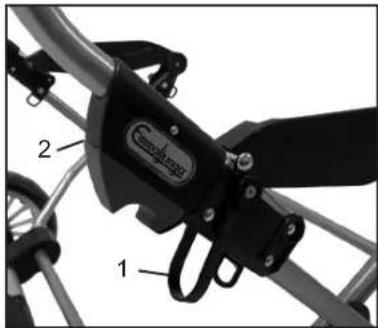

Assembly the pram 62-64

How to use the pram 64-66

Care and maintenance 67-68

Service Documentation 69

Delivery Check 70

Service Protocol 71

Contents of the box

1 pc folded chassis with tray
1 pc seat unit including five point safety harness
1 pc hood
1 pc seat fabrics
1 pc bumper bar cover
2 pcs footrest cover
2 sets of shoulder harness pads
4 pcs wheels
1 pc raincover
1 pc instruction manual

Emmaljunga's original accessories

Only use Emmaljunga's original accessories for maximum safety and comfort. Information about accessories that match your pram can be found in our brochure or at any of our authorised retailers.

Important safety information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

Warning sentences according to prEN1888:2010

WARNING It may be dangerous to leave your child unattended.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crotch strap in combinations with the waist belt.

Warning sentences according to EN1888:2003+A1:2005+A2:2005+A3:2005

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

WARNING Follow the manufacturer's instructions.

Important safety information

continued from previous page:

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

WARNING Not recommended for a child under 6 months old.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use this bassinet once the child can sit up unaided.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING Never pull a pram with swivel front wheels behind you, if the front wheels are not locked. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

- Your child's safety is your responsibility.

- The pram is intended for the transportation of two (2) children with a maximum weight of 15kg each. Only use the pram up to the number of children for which it has been made.

- If you use a lift accessory, it should always be attached at the D-rings of the harness. Ensure that the lift's carry straps are firmly attached.

Important safety information

• The pram is not suitable for children under 6 months. With the Quadrolift/Duolift it can be used from birth.
• The safeguards and instructions in this manual cannot cover all possible circumstances and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors which cannot be built into this product. These factors must be supplied by the person(s) caring for and operating the vehicle.
• It is IMPORTANT that these instructions are understood by everyone who will use the vehicle and its accessories. Always inform and instruct each person using the vehicle and accessories as to how this product should be used, even if the person will only use it for a short while.
• If any instructions are unclear and need further explanation or if you have any further questions, please contact an authorised Emmaljunga retailer who will be able to assist you.
• The chassis must only be used together with the Twin Nitro seat unit
• This vehicle is made for transportation only. Never use this vehicle as a bed for your child/children.
  • Always store the pram away from children and do not allow children to play with or in it.
• Never leave this vehicle without first engaging the parking device.
• The parking device should always be engaged while placing your child/children in the pram and removing them from it.
• Avoid parking on a hill.
  • Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the vehicle.
• Do not place any objects on top of the hood. Never use the stroller without correctly assembling the hood. Do not place any object that weighs more than 250g in the hood pocket.
• The shopping tray included with the chassis has a weight limit of 5kg. Always place heavy items in the centre of the basket. The vehicle may become unstable if the weight in the basket is unevenly distributed.
• Items in the shopping tray should not protrude over the sides as items could get caught in wheel spokes.
• It may be unsafe to use replacement parts other than those supplied or provided by Emmaljunga.
• Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.
• Never use the product if a part is faulty or damaged.
• Check that all zips and poppers are securely fastened before use.
  • Always remove the child before you fold the pram.
• The seat unit or carrycot must not be used as a car seat.
• Follow the care and maintenance instructions.
• The outer length and width of the Quadrolift is 800 mm / 400 mm.
• Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller, ToddlerSeat or car seat adaptor.

WARNING: A CHILD'S SAFETY IS YOUR RESPONSIBILITY.

Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the manufacturer's instructions.

Assembly the pram

1

Close-up of a bicycle lift with labeled components (no readable text or symbols)

2

3

Assembly of the seat unit

4

Top-down view of a vehicle's seat frame with two covers and arrows indicating features (no text or symbols)

5

WARNING

- Make sure that children are kept away from moving parts when assembling the pram, otherwise they might be at risk of injury. Unfolding the chassis (seat unit fabrics are not shown in order to make the instructions clearer) - Apply the brake on the pram. To unfold the chassis, pull the handle upwards whilst you are holding down the side of the chassis. The safety catch (1) is activated to prevent unintentional folding if the chassis lock (2) is not locked into position.

WARNING

- The chassis locks need to click into the locked position. - Always check before you use the pram that the chassis lock (2) is in the locked position otherwise the pram will be dangerous to use.

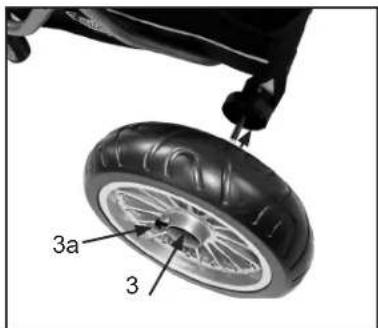

Attaching the rear wheels

- Remove the plastic protection from the axles. Save them for future use. - Release the brake by pushing the brake pedal upwards using minimum force with your foot. - Press in the hub cap's release button (3 or 3a), push the wheel onto the axle as far as it can go. Release the button and pull the wheel towards you until you hear a definite click. Repeat the same procedure for both rear wheels. Always check that the wheels are attached properly and cannot be pulled off the axle.

IMPORTANT

- The wheels are greased and can leave marks on textiles. Please use wheel protection indoors to protect your floors. - Risk of suffocation. Don't allow your child/children to play with or handle the plastic protectors.

Attaching the tray

- Attach the tray to the rings on the chassis (4) - Fasten the tray around the brake axle (5)

- Release the shoulder and waist straps from the harness lock before you assemble the seat unit. Place the seat unit fabric's back pocket (6) over the seat unit's backrest. - Make sure that the seat unit fabric's back pocket is pulled as far as it will go over the seat unit's backrest.

WARNING!

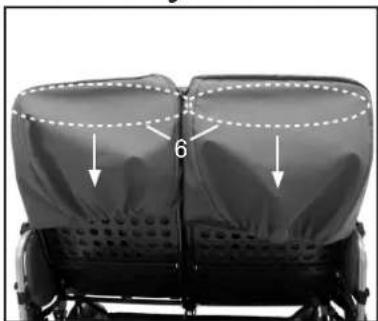

- It is important that the seat unit fabric's back pocket is pulled completely over the backrest as far as it will go. - Make sure that the backrest is locked into a safe position before it is used. This step is very IMPORTANT.

- Place the shoulder straps (7) through the holes in the back of the seat unit fabrics. - Place the waist straps (8) through the holes in the seat fabrics. - Place the crutch straps (9) through the holes in the base board and the seat unit. - Place the shoulder harness pads over the two shoulder straps (10). Attach the shoulder straps to the waist harness with the lock (11). - Attach both waist harnesses in the central lock.

Assembly of the pram

6

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to a small component (no visible text or symbols)

• Pull the attachment strap on the seat fabrics around the armrests frame below the bumper bar and attach it with the poppers (13).
• Repeat this on both sides of the seat unit (four poppers in total).

7

Close-up of a hand holding a mechanical component with a numbered arrow and number 14 (no visible text or symbols)

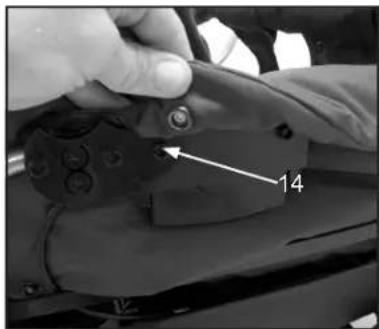

- Attach the poppers on both sides of the armrests (14) over each side of the seat frame. There are two poppers on each side.

8

• Place the footrest pocket over the footrest and attach the poppers through the holes of the bottom plate.

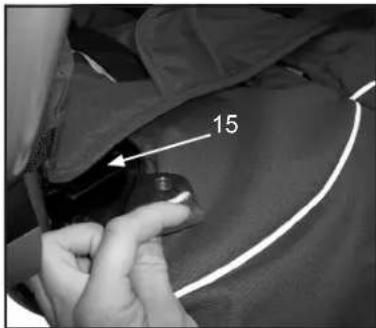

• IMPORTANT! Bring the crutch strap of the five point harness (15) through the little opening in the footrest cover and through the seat fabrics.
  • The footrest fabrics are reversible

WARNING

• Never let the child/children stand on the footrest.

9

Assembly of the bumper bar (only when using the lift accessory)

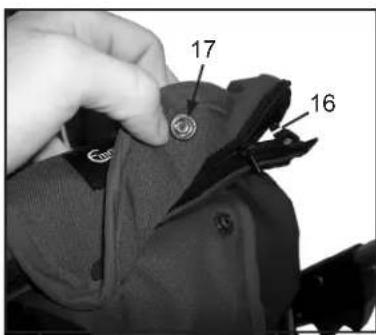

• Place the bumper bar cover (16) around the bumper bar and close the zipper.
• Attach the crutch strap (17) around the bumper bar. Assembly of the bumper bar (only when using the lift accessory)

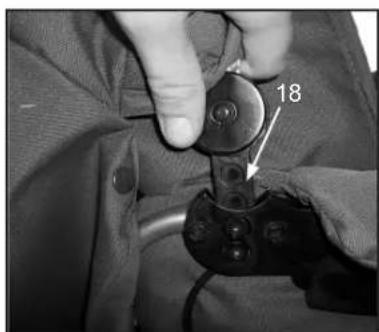

• Loosen the screws on both sides of the bumper bar with a screwdriver. Keep the clamps and screws in a safe place for future assembly.

10

Close-up of hands adjusting a mechanical component with a numbered label (18), no visible text or symbols beyond the number.

Assembly of the hood

• Attach the hood to the pram body by pushing the plastic leg of the hood into the plastic holders (18) on the pram body (one on each side). Make sure they are securely in place.
• Secure the poppers on each side of the hood.

WARNING

• Always use the pram with the hood assembled.

Assembly of the pram

11

Assembly of the hood

- Fasten the two plastic hooks (19) on the hood apron to the metal bar (20).

IMPORTANT

- The hood should always be assembled when the pram is used and the hooks should be attached.

12

Close-up of a jacket showing internal bedding and part of the pocket, with no visible text or symbols

Assembly of Apron (Accessory)

- Slip the apron over the footrest and pull it up toward the front of the hood. Secure the apron with the four poppers (two on each side of the hood).

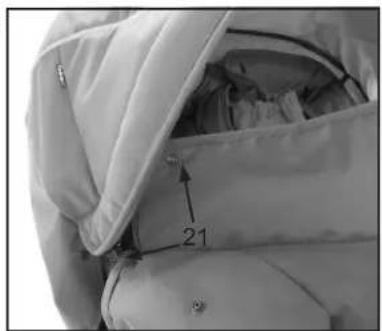

IMPORTANT

• The hood cannot be pushed back with the apron attached.

How to use the pram

13

Black and white photo of a stroller with a red X symbol crossed, next to a person standing nearby (no text or symbols visible)

WARNING

- Never pull a pram with swivel front wheels behind you, if the front wheels are not locked. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

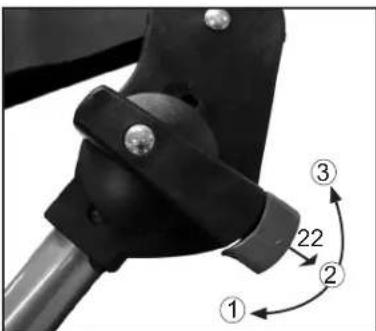

Adjusting the angle of the seat unit

• Adjust the angle by pulling the grey tab (22) outwards and twisting the knob until the grey button locks into the desired position (1, 2 or 3). Repeat this on the other side of the chassis. Make sure the knobs are in the same positions on both sides of the chassis.
• Remove your child from the pram before adjusting the angle.
• Adjust the angle when the chassis is folded to avoid unnecessary wearing of the mechanism.

14

WARNING

• The mechanism must be in the same position on both sides of the chassis to avoid uneven strain and possible damage to the chassis.
• Make sure the grey button has locked into position in order for the mechanism to function properly.

Use of the raincover (no picture)

• The raincover is attached by placing the raincover over the seat unit. Please note that there is an opening in the raincover near the hood opening.
  • Use the raincover that is supplied with the pram.
• Always use the raincover when it is raining or snowing. If the pram is damp before the raincover is about to be attached, wipe off the fabrics first if possible.
• Make sure the raincover is completely dry before it is placed back into its bag.
• Make sure the raincover is removed from the pram after use in order to avoid condensation forming between the raincover and the pram as this could cause mould to form.

How to adjust the height of the handle

- Adjust the height by pressing the grey buttons on the inside of the handle (23). Keep the buttons pressed in while you adjust the handle to the required position (24).

15

64

How to use the pram

16

Mechanical device with a wheel and attached bracket, labeled with number 25 (no text or symbols beyond the label)

17

Close-up of a hand holding a black plastic object with a 26mm measurement arrow, no visible text or symbols

18

19

20

Manual Twin Nitro v. 1.4

Engaging the parking device

• Engage the parking device by pushing the brake pedal down with your foot (25).
  • Disengage the parking device by pulling the pedal up.

WARNING

• Never leave the vehicle without first engaging the parking device.
• The brake should always be engaged when you lift your child in and out of the stroller/pram.
• Avoid uphill or downhill parking.
  • Make sure that the cogs are attached properly on both rear wheels.
• Make sure that the brake pin engages into the cogs when the vehicle is parked.

The front wheels can be fixed or swivel 360 degrees

• The front wheels can be fixed by pressing the locking ring (26) down when the wheels are positioned straight forward.
• The wheels can rotate freely 360 degrees by pulling the locking ring up.

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Adjusting the footrest

• The footrest can be adjusted into two positions (27). Adjust the footrest to the lower position by releasing the lock (28) on the side of the footrest and pulling the footrest first upwards and then guiding it downwards.
• The footrest can be adjusted by pulling the footrest upwards and then pushing it horizontally back towards the pram.
• Make sure that the footrest is locked into the desired position before usage.
  • The footrest pad is reversible.

WARNING

- Do not stand or climb on the footrest! The footrest can only be used as a support for one (1) child's legs or feet. All other usage can lead to serious injury. Maximum load 3 kg.

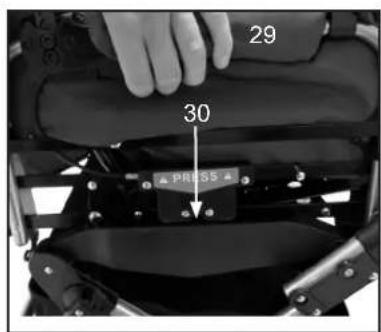

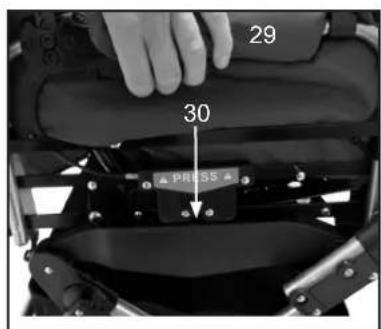

Attaching and detaching the seat unit

• To attach the seat unit first engage the parking device. Hold the seat unit at the armrests (29) and push the Easy Fix pieces into the receivers (30) on both sides of the chassis until it locks into position with an audible click.
• To release the seat unit first engage the parking device. Press the Easy Fix buttons (29) on both sides and lift the seat unit straight up.
  • The seat unit can be attached in both driving directions

WARNING

• Don't allow any child to be placed in the vehicle when it is being folded/unfolded.
• Hold the handles steadily until the seat unit is in place.
• Make sure that the seat unit is securely in place before you use the vehicle.
• Never lift the seat unit when it is assembled on the chassis

Adjusting the five point harness

• Bring the crutch strap (31) forward between the child's legs and up toward the front of the waist. Insert the waist straps (32) into the harness buckle until they click into place. Make sure that the waist straps are fastened.
• Adjust all straps using the sliders (33).
• To release the shoulder and waist straps, press the buttons in the centre of the harness buckle.
  Attachment points are provided at the end of each waist strap for a separate harness complying with BS 6684

WARNING

- Always use the harness when the child is placed in the vehicle. Make sure that all buckles are fitted into position and that the harness is attached to the vehicle.

How to use the pram

21

Close-up of a person seated in a chair with a curved arrow indicating rotation or movement (no text or symbols present)

Adjusting the backrest

Adjusting the backrest upwards: Push the backrest upwards into the desired position.

Adjusting the backrest downwards: Push up the backrest lever (34) and push the backrest back into desired position.

WARNING!

- Make sure that the backrest is locked in one of its four positions by pushing the backrest backwards until it locks into one of the positions.

22

Close-up of a baby stroller with a curved arrow indicating 35 units (no text or symbols on the device itself)

Adjusting the hood

- Adjust the hood by gently pulling the front backwards or forwards (35) until it reaches the desired position. - The pram is equipped with an integral mosquito net in the hood. The mosquito net can be pulled over the footrest and attached with the plastic hooks.

Important!

- Never lift the stroller by holding on to the hood - Never lift the seat unit when it is assembled on the chassis

23

Illustration of a baby stroller with two side views labeled 36 and 37 (no text or symbols on the device itself)

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

- First make sure that the brake is engaged. - If the seat unit is reversed and facing towards the handle, recline the two backrests backwards (36) and bring the hood forward toward the handle (37).

24

- Fold the chassis by pulling the two main locking devices (38) on each side, upwards. Please note! The seat unit is not shown in the picture in order to make the instructions clearer. - Release the secondary locking device (39) and fold the handle forward.

25

Illustration of a two-wheeled stroller with curved arrows indicating motion or rotation (no text or symbols)

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Unfolding the chassis

- Apply the brake and raise the handle, whilst holding the side of the chassis down, until the chassis locks click into the locked position on both sides of the pram. The safety catch is activated to prevent unintentional folding if the chassis locks are not locked into position.

WARNING!

- The chassis locks must be clicked into the locked position. - Always check before you use the pram that the chassis locks are locked into position since the pram might be dangerous to use if they are not.

Care and maintenance

IMPORTANT

If you follow these instructions you can contribute to maintaining your Emmaljunga in good condition.

General care advice

• Never expose your vehicle to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your vehicle in cold and/or damp places. In order to avoid mould it is important that you make sure that it is completely dried at room temperature after use.
• Rinse and dry off the pram if you have used it close to the sea or on salted roads or pavements.
  • Take care when transporting or storing the chassis. The chassis surface is delicate.

Routine Inspection

- Regularly clean the chassis and metal parts of the vehicle; dry off and lubricate all joints of the chassis. When the pram is used during the winter time, cleaning of the pram should be carried out at least once a week. Lack of maintenance could cause corrosion. Should corrosion on the surface occur, which is a possibility, you are required to remove this with a corrosion cleaning agent in order to avoid rust (never use a corrosion cleaning agent on the wheels).

- It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check regularly that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken or damaged.
• all plastic parts are not cracked or broken.
  • the wheel bearings are in good condition.
• all Velcro fasteners are securely fastened on the backrest pocket and seat board flap.
• all elastic straps are in good condition.
• the secondary locking mechanism is intact and can move freely.
• the brake works
• check the handle regularly and the bottom of the lift accessory for damage or wear and tear.

PLEASE OBSERVE

• When in need of servicing with original parts and other technical issues that require a professional decision, always contact the retailer where the Emmaljunga product was purchased.
• The product that you have chosen follows the guarantee regulations valid from the 1st of July 2002 (SFS 2002:587). You have a right to demand this information when you purchase your pram from your retailer.

WARNING

- Tyres can when in contact with PVC floor or other plastic materials, cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Care and maintenance

Washing instructions

- Hood:

Remove and extend the hood. Shower the hood from the inside (interior fabric) with lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the fully extended hood.

- Seat fabric and five point harness:

Remove the seat fabric from the chassis. Hand wash the seat fabrics in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. Only wipe the nylon straps and plastic parts clean with a damp cloth (do not hand wash). Make sure the harness is dry before reassembly.

- Bumper bar fabric:

Remove the bumper bar fabric from the bumper bar. Hand wash in lukewarm water. Use mild liquid soap as detergent on the exterior surface of the bumper bar fabric. Handle the non-woven interior material with care. Drip dry.

General Information

• Ironing: If any fabric part needs to be ironed, always use a 100% cotton cloth between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 % polyester) and the interior fabrics (65% cotton and 35% polyester) on gentle heat (110°C on the iron).
• Make sure that all parts are completely dry before reassembly. Check the trimmings and the seam on the seat fabric underneath the backrest pocket.
• You may apply a material protector (like Scotchgard™) on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place the child/children in the stroller for at least 24 hours after applying a material protector.

Reassembly after washing

WARNING

- Make sure all parts are assembled correctly according to the instructions in this manual.

Close-up of a robotic arm handling a metallic kettle and a small container (no text or symbols visible)

Two automotive wheel components: a black and silver tire and a metallic spray bottle (no text or symbols visible)

• The parking brake consists of moving parts and requires regular maintenance for correct function.
• To ensure effective functioning always make sure that the parking brake is well lubricated. Immediately remove sand, snow, ice and dirt from any moving part of the braking system.
• Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the parking brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.
• If you use your Emmaljunga pram/stroller on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements. In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

☐ 1 pc folded chassis with tray
☐ 1 pc seat unit including five point safety harness
□ 1 pc hood
□ 1 pc seat fabrics
□ 1 pc bumper bar cover
□ 2 pcs footrest cover
□ 2 sets of shoulder harness pads
□ 4 pcs wheels
□ 1 pc raincover
□ 1 pc instruction manual

2. Check the functions of the chassis.

Unfold the chassis.
□ Check that the chassis locks function on both sides. □ Check that the safety catch function correctly by folding the pram and checking that the safety catch are activated to prevent accidental folding.
□ Check that the seat unit clicks securely on to the chassis and that it locks on both sides.
□ Check the harness function on the seat unit by locking and unlocking the harness.
☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
□ Check the carrycot/seat unit's angle adjustment's 3 positions on both sides of the chassis.
☐ Check that the backrest can be adjusted and locks securely into each of its four positions.
☐ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
□ Check that the parking device locks both rear wheels when engaged.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible differences on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check the chassis locks function on both sides.

Check the safety catch function by folding the pram and checking that the safety catch are activated to prevent accidental folding.

Check that the seat unit clicks securely on to the chassis and that it locks on both sides.

Check the safety catch function by folding the pram and checking that the safety catch are activated to prevent accidental folding.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check the carrycot/seat unit's angle adjustment's 3 positions on both sides of the chassis.

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Check that the brakes lock both rear wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

Sisällysluettelo

Top-down view of a vehicle's seat frame with two covers and arrows indicating features (no text or symbols)

5

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to a small component (no visible text or symbols)

Close-up of a hand holding a mechanical component with a numbered label (14), no visible text or symbols beyond the number.

Close-up of hands holding a mechanical component with a numbered label (18), no readable text or symbols present.

Close-up of a jacket pocket with visible internal components and a numbered label '21' (no text or symbols beyond the number)

Black and white photo of a baby stroller with a red X symbol crossed, standing beside a person (no text or symbols visible)

Sadesuojan käyttö

Mechanical bicycle with labeled component '25' (no other text or symbols)

17

Close-up of a hand holding a black mechanical component with a 26mm measurement indicator (no text or symbols on the object itself)

18

19

20

Manual Twin Nitro v. 1.4

Jarrun käyttö

Close-up of a person seated in a chair with a curved arrow indicating rotation or movement (no text or symbols present)

Close-up of a baby stroller with a curved arrow indicating 35 units (no text or symbols on the device itself)

Kuomun säätäminen

Illustration of a baby stroller with labeled parts (37 and 36), no text or symbols present.

VAROITUS

Illustration of a two-wheeled stroller with curved arrows indicating motion or rotation (no text or symbols)

VAROITUS

Close-up of a robotic arm handling a metallic kettle and a small container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Instruction manual for Twin Nitro © 2011 Emmaljunga Barnvagnsfabrik AB All rights reserved
