Mondial - Stroller Emmaljunga - Free user manual and instructions

Product Type	Stroller / Pram (Duo Combi / 3-in-1)
Brand	Emmaljunga
Model	Mondial
Suitable for	One child from birth to 3 years (max 15 kg)
Carrycot use	0–6 months (child cannot sit unaided), max 9 kg
Seat unit use	From 6 months (child can sit unaided) to 3 years, max 15 kg
Carrycot outer dimensions (L x W)	860 mm x 450 mm
City Carrycot outer dimensions	795 mm x 430 mm
Maximum weight on footrest	3 kg
Shopping tray max load	5 kg (place heavier items in center)
Hood pocket max load	250 g
Recommended tire pressure	28 PSI (1.8 bar) or 35 PSI (2.5 bar) – see marking on tire
Chassis type	UniQ 310, adjustable handle height, suspension, parking brake
Attachment system	Easy Fix – click-in mechanism for carrycot and seat unit
Harness	5-point harness with shoulder pads, waist straps, crotch strap, and buckle
Compliance	DIN EN 1888:2003+A1:2005+A2:2005+A3:2005, EN 1466:2008
Included accessories	Carrycot, seat unit, hood, apron, raincover, mattress, Hi Pro head protection, removable inner fabric, footrest cover, seat-unit apron, front bar cover
Care instructions	Hand wash fabrics (hood, seat, inner lining); wipe harness with damp cloth; lubricate wheel axles and suspension every 3 months; clean brake system regularly
General warnings	Never leave child unattended; always use harness; engage brake when stationary; do not use for running or skating; do not add extra mattress thicker than 45 mm

Frequently Asked Questions - Mondial Emmaljunga

How do I attach the carrycot to the chassis?

Engage the parking brake. Push the carrycot down into the Easy Fix locking mechanism on both sides until you hear it click into place. Always check that it is secure before use.

What is the maximum weight for a child in the carrycot?

The carrycot is suitable for a child up to 9 kg, and only for a child who cannot sit up unaided, roll over, or push themselves up on hands and knees (typically 0–6 months).

Can I use the stroller for jogging or skating?

No, the product is not suitable for running or skating. It is designed for walking only.

How do I adjust the backrest of the seat unit?

To raise the backrest, push it forward until it locks into one of four positions. To lower, push the backrest adjustment lever and fold the backrest to the desired position. Always push on the backrest to ensure it is locked.

How do I clean the hood?

Remove the hood and extend it. Shower the inside with lukewarm water and mild liquid soap. Rinse thoroughly and drip dry the hood fully extended. Do not machine wash.

What is the recommended tire pressure?

Check the marking on your tires: typically 28 PSI (1.8 bar) or 35 PSI (2.5 bar). Maintain proper pressure for optimal performance.

How do I fold the chassis?

First remove the carrycot or seat unit. Lower the handle slightly, then press the release buttons on each side while pulling the two chassis locks upward. Fold the handle forward and collapse the chassis. To make it more compact, remove the wheels by pressing the wheel hub release buttons.

Is the seat unit reversible?

Yes, the seat unit can be attached in both forward-facing and rear-facing directions. Use the Easy Fix system to attach it in either orientation.

How often should I lubricate the wheel axles and suspension?

It is recommended to lubricate the wheel axles and suspension every three months. Clean the axles with a cloth before applying petroleum jelly or automobile oil.

What accessories are included with the Mondial stroller?

The box contains: 1 seat unit (with 5-point harness), 1 set of shoulder pads, 1 folded chassis with tray, 4 wheels, 1 instruction manual, 1 raincover, 1 mattress, 1 Hi Pro head protection, 1 carrycot, 1 seat fabric, 1 removable inner fabric, 1 hood, 1 footrest fabric, 1 seat-unit apron, 1 front bar cover, and 1 apron for carrycot.

USER MANUAL Mondial Emmaljunga

- Instruction manual

Duo Combi / 3-in-1 UniQ 310, Mondial & Edge

LÄG DESSA INSTRUKTIONER NOGGRANT FÖRE ANVÄNDNING OCH SPARA DE FÖR FRAMTIDA BRUK. DITT BARNS SÄKERHET KAN PÄVERKAS OM DU INTE FÖLJER DESSA INSTRUKTIONER.

Denna produkt motsvarar standard DIN EN 1888:2003 + A 1:2005 + A 2:2005 + A 3:2005. EN 1466:2008

READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

This product complies with DIN EN 1888:2003 + A 1:2005 + A 2:2005 + A 3:2005. EN 1466:2008

This product is suitable for one (1) child from 0 months - 3 years with a maximum weight of 15 kg.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided.

WARNING! The product is not suitable for running or skating.

WARNING! This carycot is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg. WARNING! Never use this carycot on a stand.

The outer length and width of the Carrycot is 860 mm/450 mm. The outer length and width of the City Carrycot is 795 mm/430 mm. The outer length and width of the Quadrolift is 800 mm / 400 mm. The outer length and width of the Babylift is 800 mm / 330 mm.

WARNING! Please visit www.emmaljunga.co.uk for the latest version of this manual before using the product.

LUE NÄMÄ KÄYTTÖOHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ, JA SÄILYTÄ OHJEET TULEVAA TARVETTA VARTEN. LAPSESI TURVALLISUUS VOI VAARANTUA MIKÄLI NÄITÄ OHJEITA EI NOUDATETA.

Diagram of a mechanical component with labeled parts, showing hands holding a curved panel and a rectangular base (no text or symbols)

Diagram of a boat hull with an arrow indicating direction and number 7, showing no text or symbols beyond the number.

Diagram showing a mechanical or fluidic component with an arrow indicating direction, no text or symbols present

Diagram of a folded garment with arrows indicating direction and point of interest (no text or symbols)

3

Technical diagram of a mechanical component with numbered parts (3 and 4), no visible text or symbols

4

Top-down technical drawing of a boat hull with visible dimensions and no text or symbols

5

Diagram of a baby seat with a numbered arrow indicating 6 (no text or symbols present)

Diagram of a baby crib with folded seats and a numbered arrow indicating size (no text or symbols)

Illustration of a baby car with a numbered label pointing to the lid (no text or symbols on the car itself)

Hand holding a small object with an arrow pointing to a vertical line (no text or symbols present)

2

Close-up of a car's wheel rim and suspension wheel, showing mechanical components (no text or symbols visible)

3

Close-up of a bicycle's foot and wheel assembly with a numbered arrow indicating motion (no text or symbols)

4

5

Montera hjulen

Close-up of a hand adjusting a bicycle seatbelt mechanism (no visible text or symbols)

2

Close-up of a motorcycle's wheel and side-mounted seat, showing a hand operating the wheel (no text or symbols visible)

3

4

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

5

Mechanical device with curved arrow indicating motion or force direction (no text or symbols)

Manual Duo Combi UniQ 310 v 1.6

Close-up of a bicycle wheel being adjusted for a cable, showing hand positioning and motion arrows (no text or symbols)

Close-up of a vintage twin-decker shuttle with a hand operating the wheel (no text or symbols visible)

Mechanical device with a circular fan and mechanical components (no visible text or symbols)

Hopfällt chassi med hjulen avmonterade.

VIKTIGT

Close-up of a car's seat cover and wheel rim, showing black fabric and a dark jacket (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

10

Illustration of hands holding a curved object, possibly a fabric or material, with no visible text or symbols.

11

12

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Montera suffletten

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

WARNING

Side view of a car seat with open lid and side-mounted seat, showing directional arrow (no text or symbols)

Justera suffletten

Illustration of a medical procedure with a hand holding a tool and a numbered label '8' (no text or symbols on the diagram itself)

Justera fotstödet

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Overdel

Diagram of a mechanical component with labeled parts, showing hands holding a curved bracket and a rectangular base (no text or symbols)

Diagram of a basketball court with an arrow indicating movement or force direction (no text or symbols present)

5

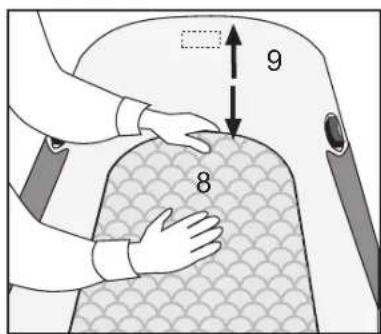

• Læg madrassen (8) i.

ADVARSEL

Diagram showing a mechanical or fluidic component with an arrow indicating direction, no text or symbols present

Diagram of a folded garment with arrows indicating direction (no text or symbols)

3

4

Top-down diagram of a small boat or container with visible internal compartments and numbered parts (no text or symbols)

5

Diagram of a baby seat with a curved arrow indicating 6 units of motion (no text or symbols present)

Diagram of a baby crib with folded seats and a numbered arrow indicating size (no text or symbols)

Illustration of a baby car with a numbered label pointing to the lid (no text or symbols on the car itself)

Anvende insektnettet (Findes kun på visse modeller)

Hand holding a small object with an arrow pointing to a component (no text or symbols visible)

Montere hjulene

Close-up of a car's wheel rim and suspension wheel, showing mechanical components (no text or symbols visible)

Close-up of a bicycle's wheel and foot, showing tread pattern and a numbered motion indicator (no text or symbols)

ADVARSEL

Close-up of a hand using a bicycle to adjust the wheel rim (no text or symbols visible)

2

Close-up of a motorcycle's wheel and seat assembly, showing tread pattern and handle mechanism (no text or symbols)

3

4

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

5

Mechanical device with curved arrow indicating motion or force direction (no text or symbols)

Manual Duo Combi UniQ 310 v 1.6

Close-up of a hand operating a bicycle tire with a curved arrow indicating rotational motion (no text or symbols visible)

Close-up of a vintage twin-busch car wheel with visible spokes and wheels (no text or symbols)

Mechanical device with a circular fan and mechanical components (no visible text or symbols)

Close-up of a car's seat cover and wheel rim, showing black fabric and a dark jacket (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a button (no text or symbols visible)

Illustration of a person performing a medical procedure on a patient's abdomen, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a curved object, possibly a fabric or material, with no visible text or symbols.

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

ADVARSEL

Side view of a car seat with open lid and side-mounted seat, showing motion arrows (no text or symbols)

Justering af kalechen

Illustration of a hand holding a tool interacting with a person's arm, labeled with the number 8 (no text or symbols on the diagram itself)

ADVARSEL

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a black wheel with metallic rim and a metallic cylinder with a piping bag (no text or symbols visible)

Grid of empty rectangular boxes arranged in 4 rows and 5 columns (no text or symbols)

Hjul og bremse

Six identical empty rectangular boxes arranged in two rows (no text or symbols)

Visuel gennemsyn

Grid of empty rectangular boxes arranged in 3x3 pattern (no text or symbols)

Smøring

NORSK

Diagram of a mechanical component with labeled parts, showing hands holding a curved panel and a rectangular base (no text or symbols)

Diagram of a boat hull with an arrow indicating direction and number 7, showing no text or symbols beyond the number.

Diagram showing a mechanical or fluidic component with an arrow indicating direction, no text or symbols present

Diagram of a folded garment with arrows indicating direction and point of interest (no text or symbols)

3

4

Top-down diagram of a small boat or container with internal compartments and marked parts, labeled with dimension '5' (no text or symbols on the diagram itself)

5

Diagram of a baby seat with a curved arrow indicating 6 units of motion (no text or symbols present)

Montering av bagen på understellet

• Sett på bremsen på vognen.
• Trykk ned bagen i Easy Fix festet (1) til det klikkes fast på begge sider.

ADVARSEL

Diagram of a baby crib with folded seats and a numbered arrow indicating size (no text or symbols)

Illustration of a baby car with a numbered label pointing to the lid (no text or symbols on the car itself)

Montere myggnett (finnes kun på enkelte modeller)

Hand holding a small object with an arrow pointing to a vertical line (no text or symbols present)

Close-up of a car's wheel rim and suspension, showing tire and wheel assembly (no text or symbols)

Close-up of a bicycle's wheel and foot, showing tread pattern and a numbered arrow (no text or symbols)

ADVARSEL

Close-up of a hand using a bicycle to adjust the wheel rim (no text or symbols visible)

2

Close-up of a motorcycle's wheel and side panel, showing tread pattern and seat (no text or symbols)

3

4

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

5

Mechanical device with curved arrow indicating motion or force direction (no text or symbols)

Manual Duo Combi UniQ 310 v 1.6

Close-up of a person adjusting a bicycle wheel with a curved cable, showing motion arrows (no text or symbols)

Close-up of a vintage twin-busch car wheel with visible spokes and wheels (no text or symbols)

Mechanical device with a circular fan and mechanical components (no visible text or symbols)

Close-up of a car's seat cover and wheel rim, showing black fabric and a dark jacket (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

- Trykk fast begge stoffarmlener over sportsvogndelens sider.

7

Illustration of a person performing a medical procedure on a patient's abdomen, with a hand and arrow indicating direction (no text or symbols present)

Illustration of a person using a tool to lift a car body (no text or symbols present)

Illustration of hands holding a curved object, possibly a fabric or material, with no visible text or symbols.

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

ADVARSEL

- Bruk alltid selen när barnet sitter i vognen. Sjekk at alle klips er i lås og at selen er festet i vognens D-ringer.

Justere ryggen

Side view of a car seat with open lid and side-mounted seat, showing directional arrow (no text or symbols)

Illustration of a medical procedure with a hand holding a tool and a numbered label '8' (no text or symbols on the diagram itself)

Close-up of a robotic arm spraying liquid onto a small cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a small gas cylinder beside it (no text or symbols visible)

- Avtakbart innerfor:

Diagram of a mechanical component with labeled parts, showing hands holding a curved panel and a rectangular base (no text or symbols)

3

4

Diagram of a boat hull with an arrow indicating direction and number 7, showing no text or symbols beyond the number.

5

82

Diagram showing a hand holding a curved object with a downward arrow, interacting with a small dark object (no text or symbols present)

Diagram of a folded garment with arrows indicating direction and point of interest (no text or symbols)

3

4

Top-down diagram of a small boat or container with visible internal compartments and numbered parts (no text or symbols)

5

Diagram of a baby seat with a curved arrow indicating 6 units of motion (no text or symbols present)

Diagram of a baby crib with folded seats and a numbered arrow indicating size (no text or symbols)

Illustration of a baby car with a numbered label pointing to the lid (no text or symbols on the car itself)

Hand holding a small object with an arrow pointing to a component (no text or symbols visible)

Montage der Räder

Close-up of a car wheel with a hand operating it, labeled with number 2 (no text or symbols on the wheel itself)

Close-up of a bicycle's wheel and foot, showing tread pattern and a numbered motion indicator (no text or symbols)

Close-up of a bicycle seatbelt mechanism with hand adjusting the wheel (no visible text or symbols)

2

Close-up of a motorcycle's wheel and saddle, showing a numbered component (no text or symbols visible)

3

4

Close-up of a hand using a tool to cut a mechanical component, showing a curved arrow indicating rotation (no text or symbols visible)

5

Mechanical device with curved arrow indicating motion or force direction (no text or symbols)

Manual Duo Combi UniQ 310 v 1.6

Close-up of a bicycle wheel being adjusted for a cable, showing hand positioning and motion arrows (no text or symbols)

Close-up of a vintage twin-busch car wheel with visible spokes and wheels (no text or symbols)

Mechanical device with a circular fan and mechanical components (no visible text or symbols)

Close-up of a car's seat cover and wheel rim, showing black fabric and a dark jacket (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a button (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a curved object, possibly a fabric or material (no text or symbols visible)

Illustration of a folding chair seat with a white arrow pointing to the seat (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

WARNUNG

Illustration of a car seat with open lid and side arm, showing motion arrows (no text or symbols)

WARNUNG

Illustration of a medical procedure with a hand holding a tool and a numbered label '8' (no text or symbols on the diagram itself)

WARNUNG

Close-up of a mechanical device with a metallic cylindrical component and a black tool, no visible text or symbols.

Product photo of a wheel rim and a small cylindrical tool (no text or symbols visible)

Pram and stroller parts 100-101

Important safety information 102-105

Assembly of pram body 106-107

How to use the Pram body (functions including) ..... 108-109

Assembly of the UniQ 310 chassis .... 110

How to use the UniQ 310 chassis .... 111-112

Assembly of seat unit 113-115

How to use the vehicle 116

Care and maintenance 117-118

Service Documentation 119

Delivery Check 120

Service Protocol 121

Please Note:

Throughout this manual the term "vehicle" will be used as a short form for "wheeled child conveyance".

Box contents

Duo Combi/3-in-1

Edge & Mondial

1 pc. seat unit (with 5-point harness attached)
1 set of shoulder pads for harness
1 pc. folded chassis with tray
4 pcs. wheels
1 pc. instruction manual
1 pc raincover
1 pc. mattress
1 pc. Hi Pro head protection
1 pc. carry-cot
1 pc. seat fabric
1 pc. removable inner fabric
1 pc. hood
1 pc. footrest fabric
1 pc. Seat-unit apron
1 pc. front bar cover
1 pc. apron for carry-cot

Original Emmaljunga accessories

Use Emmaljunga original accessories for maximum safety and comfort. Information on accessories that will fit your pram can be found in our catalogue or at our authorised retailers.

Pram and stroller parts

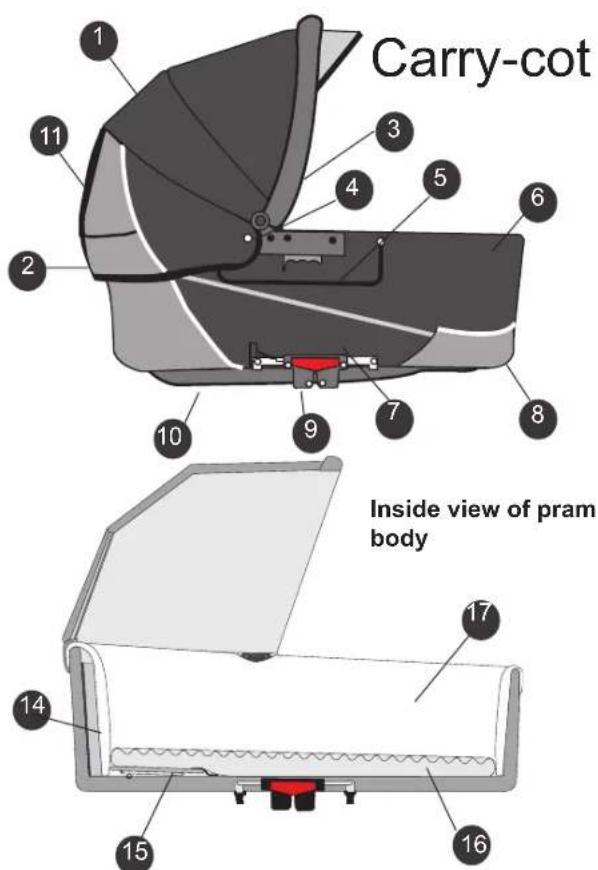

Carry-cot

1 hood
2 hood collar
3 press stud, apron
4 press stud, collar
5 carrying handle
6 apron
7 pocket
8 ventilation lever
9 Easy Fix fitting
10 cradle function
11 ventilation opening
12 hood attachment
13 hood attachment (tongue)
14 Hi Pro, Head Protection
15 backrest
16 mattress
17 inner fabric

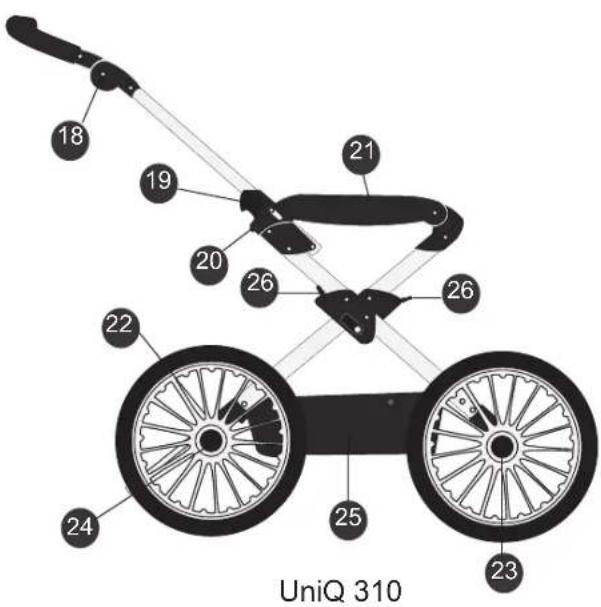

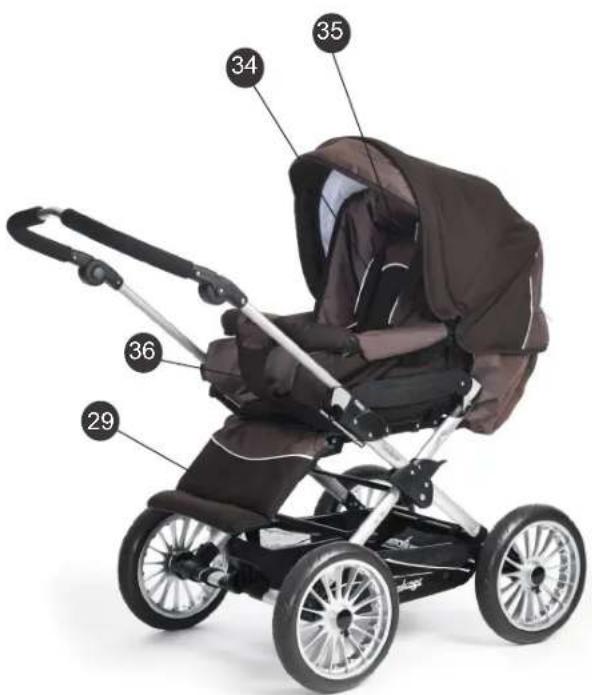

Chassis

18 adjustable handle
19 main locking device
20 Safety button
21 Easy Fix housing
22 parking brake
23 wheel hub release button
24 wheel hub
25 shopping tray
26. suspension

Pram and stroller parts

This section applies to following products: Duo Combi Mondial 3-in-1, Edge 3-in-1

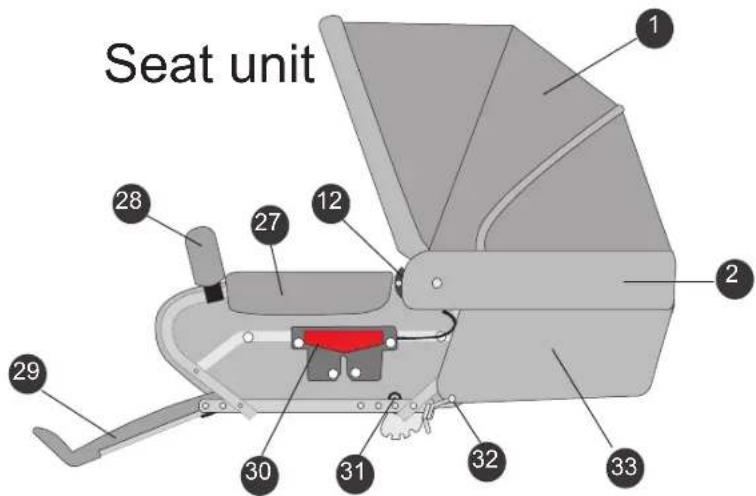

Seat unit

27 armrest
28 frontbar with cover
29 footrest
30 Easy Fix attachment
31 D-ring
32 backrest adjustment lever
33 seat-unit hood apron
34 5-point harness
35 seat unit backrest
36 crotch strap

Important safety information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

Warning sentences according to prEN1888:2010

WARNING It may be dangerous to leave your child unattended.

WARNING Do not add a mattress thicker than 45mm.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crutch strap in combination with the waist belt.

Warning sentences according to EN1888:2003+A1:2005+A2:2005+A3:2005

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

Important safety information

WARNING Follow the manufacturer's instructions.

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

WARNING Not recommended for a child under 6 months old.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use this bassinet once the child can sit up unaided.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING Do not let other children play unattended near the carrycot.

WARNING Do not use the carrycot if any part is broken, torn or missing.

WARNING Use only replacement parts supplied or approved by the manufacturer.

WARNING Bé aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carrycot.

Important safety information

continued from previous page:

WARNING The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.

WARNING Never use the carrycot on a stand. WARNING Do not leave your child unattended.

WARNING Only use the carrycot on a firm, horizontal level and dry surface.

Warning sentences according to EN 1466:2004+A1:2007

• Your child's safety is your responsibility.
• This product is intended for one (1) child from the age of 0 months up to a maximum weight of 15kg . Only use the pram for the number of children it is intended for.
• The seat unit/pushchair is intended for the transportation of one (1) child from six months up to a maximum weight of 15 kg.
• The carrycot can only be used for the transportation of one child from 0 to 6 months up to a maximum weight of 9kg . The product is not suitable for a child that can sit unaided, roll around or support themselves on hands and knees.
• With a lift (original accessory) the pram can be used from birth
• UniQ chassis should only be used together with an Edge/Mondial carrycot or a Type A seat unit.
• Follow the care and maintenance instructions.
• The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram.
• It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories how they should be used, even if the person(s) in question will only use them for a short time.
• The maximum weight for one child using the Toddler Roller accessory on the pram is 20 kg.
• Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller, Toddler Seat or car seat adaptor.
• Do not place objects on the hood. Never use the pram without the hood. The pocket in the hood is intended for the storage of light objects only and must not be loaded with a weight exceeding 250 g.
• If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.
• The pram is intended for transportation only. Never use the pram as a bed for your child.
• Never leave the pram with a child in it without engaging the brake.
• The brake should always be engaged when you lift your child in and out of the pram.
• Never park the pram on a hill or an uneven surface.

Important safety information

continued from previous page:

• Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3kg .
• Never use the product if a part is faulty or damaged.
• Check that all zips and poppers are securely fastened before use.
  • Always remove the child before you fold the pram.
• Do not place any additional mattresses in the carrycot and only use the mattress that is included with the pram or another mattress recommended by Emmaljunga.
  • Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the pram.
• When using a lift accessory, attach the product to the d-rings on the pram. Check that the carrycot's/lift's carrying straps are fastened securely. The Babylift's carrying straps should be placed inside the product's mini hood.
• Any load that is placed on the pram (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.
• The shopping tray has a maximum weight limit of 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is unevenly distributed.
• Only use original replacement parts supplied by Emmaljunga.
• Never use the carrycot on a stand.
• Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.
• The seat unit or carrycot must not be used as a car seat.
• Never leave the carrycot carrying straps loose on the outside of the carrycot sides when the pram is in use.
• Never leave the carrycot carrying straps loose on the outside of the carrycot sides when the pram is in use.
• The outer length and width of the Carrycot is 860 mm/450 mm.
• The outer length and width of the City Carrycot is 795 mm/430 mm.
• The outer length and width of the Quadrolift is 800 mm / 400 mm.
• The outer length and width of the Babylift is 800 mm / 330 mm.

Assembly of pram body

1

Assembly of pram body

- Remove plastic covers from mattress, apron, Hi Pro, interior lining and discard. Slide the two metal support brackets (1) onto the base (2) of the pram body. The base is made of plastic.

WARNING

- Choking Hazard. Keep plastic covers away from children. - Make sure the two metal support brackets are securely locked. The fit will be tight to ensure stability and safety.

2

Diagram of a mechanical component with labeled parts, showing hands holding a curved bracket and a rectangular base (no text or symbols)

- Place the Hi Pro (3) towards the side of the Pram body's head-end for added protection.

3

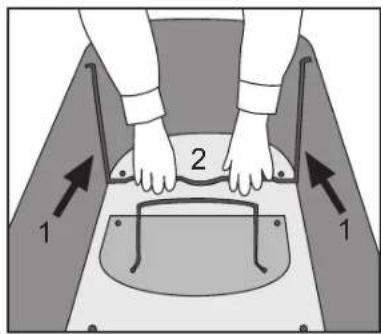

- Fold the interior lining around the rim of the pram body. Fasten the velcro (5) of the head-end of the pram body (4). Make sure the trimmed hole (6) on each side of the lining is threaded around the plastic holders (one on each side of the pram body).

4

Diagram of a basketball court with an arrow indicating movement or force direction (no text or symbols present)

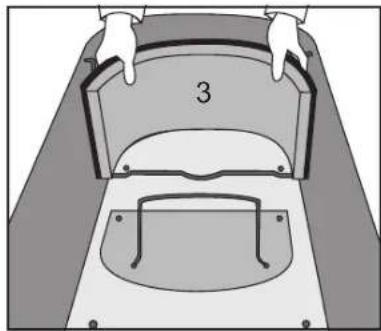

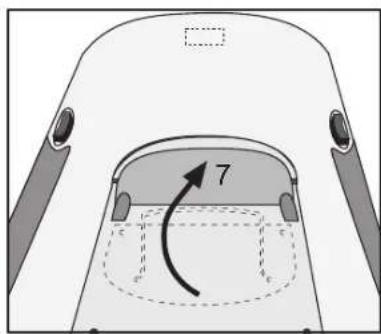

• Turn over the backrest (7) to its layback position.

5

- Insert the mattress (8).

WARNING

- The depth of the top of the mattress or other bed accessories, to the top of the side of the carrycot, should not be less than 150mm when the mattress is in position. Only use mattresses with a thickness of maximum 45mm - The exclusive mattress consists of a combination of fibre filling and polyeter filling. Make sure that you place the mattress with the firmer polyeter filling facing downwards in the carrycot.

Assembly of pram body

This section applies to following products: Duo Combi Mondial 3-in-1, Edge 3-in-1

6

Diagram showing a mechanical or fluidic component with an arrow indicating direction, no text or symbols present

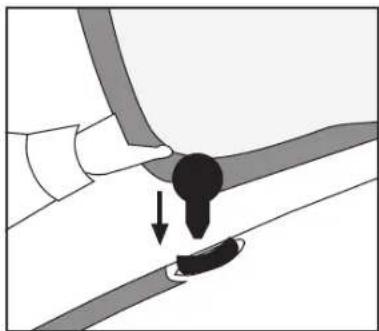

- Attach the hood to the pram body by pushing the plastic leg of the hood into the plastic holders on the pram body. Make sure they snap into place.

7

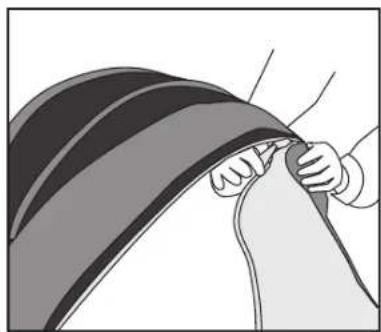

- Press the hood fabric onto the plastic holder (10), on each side. Press stud the collar (11) onto the pram body.

WARNING

The pram is delivered with a hood and it must always be assembled when the pram is in use.

8

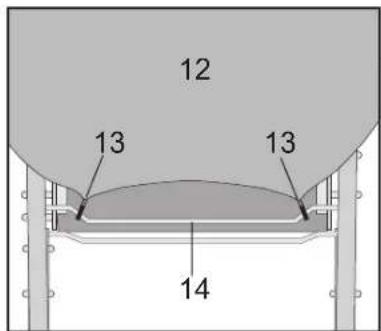

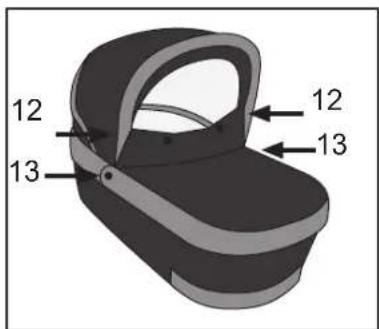

- Press the apron onto the hood (12) and onto the plastic holder (13) on each side.

IMPORTANT

- The hood cannot be folded down when the apron is snapped onto the hood without releasing the press studs (12)

How to use the pram body

1

2

Diagram of a folded garment with arrows indicating direction and point of interest (no text or symbols)

3

4

Top-down technical drawing of a boat hull with visible dimensions and structural details (no text or symbols)

5

Diagram of a baby car seat with a 6-inch weight measurement arrow (no text or symbols)

Fitting the pram body on the chassis

• The brake should be engaged

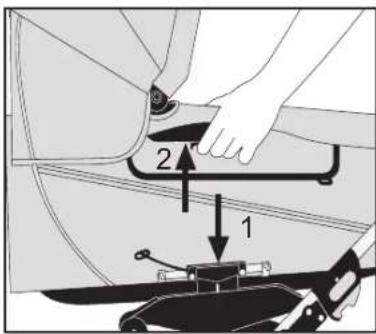

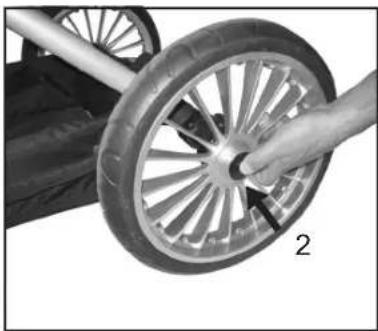

- Push the Easy Fix lock (1) until it "clicks into" place on both sides.

WARNING

- Check before use that the pram body is securely in place

Detaching the pram body from the chassis

• The vehicle brake should be engaged
- Push the Easy Fix grips (2) on both sides of the carrycot and release the carry-cot part straight up from the chassis.

IMPORTANT

- You must release the carrycot part before you fold the chassis

WARNING

- Never attach/detach pram body with a child inside.

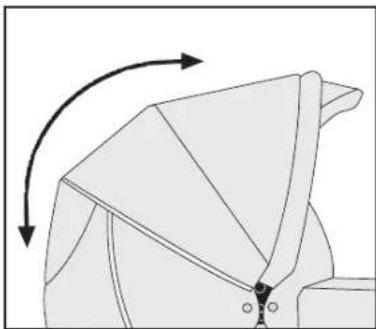

Adjusting the Hood

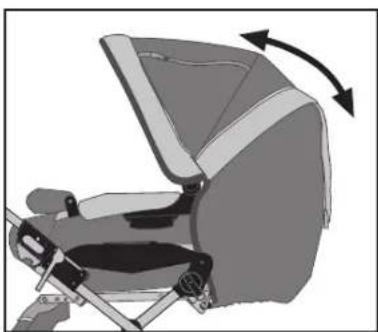

• Adjust the hood by gently pulling the front of the hood back and forth to the desired position.
  Do not adjust the hood with the apron attached

IMPORTANT

• Never carry the pram body by the hood
- Never carry the pram body when it is assembled onto the chassis

Adjusting the Backrest

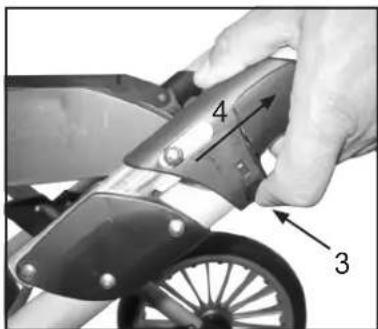

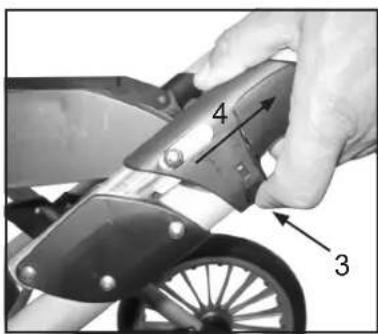

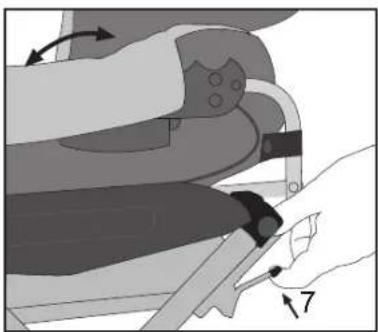

- Raise the backrest (3), push the steel frame (4) so that it rests against the metal support bars.

Adjusting the ventilation system

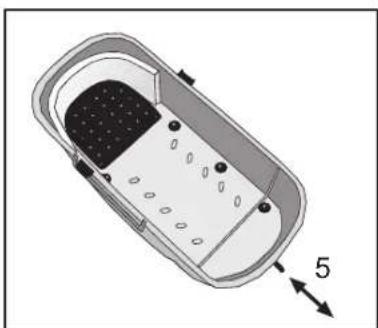

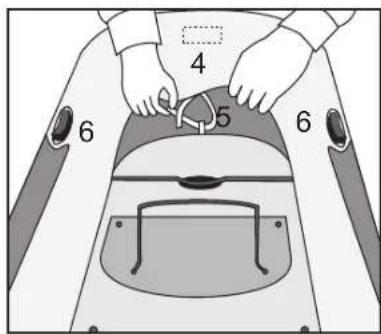

• Adjust the airflow to maximum by pulling the lever (5) outwards away from the pram body.
• Push the lever inwards to close the ventilation holes.

IMPORTANT

- On the bottom of the pram body there are fixing points for a separate harness that complies with BS 6684.

Cradle function

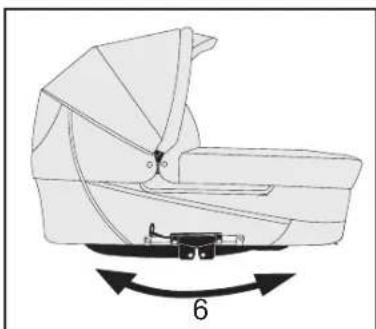

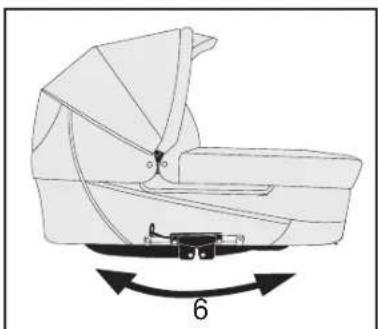

- The pram body can be used as a cradle (6) on indoor, horizontal and even surfaces.

WARNING

• Never place pram body near stairs, on top of tables or in other areas where it might fall down.
• Never use pram body as a cradle outdoors or on uneven surfaces.
• Never use the pram body as a permanent bed for your child.

How to use the pram body

6

Diagram of a baby crib with folded seats and a numbered arrow indicating size (no text or symbols)

Stopping the cradle function

- Pull out the metal bar (7) so that the pram body rests steadily on the surface.

7

Illustration of a baby car with a numbered label pointing to the lid (no text or symbols on the car itself)

Adjusting the mosquito net (available only on certain models)

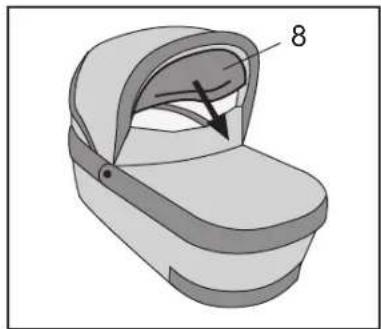

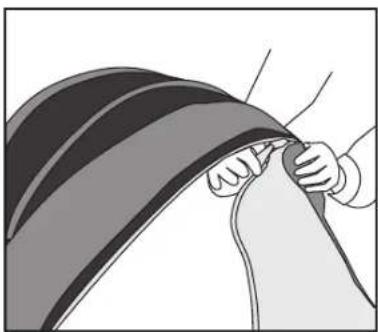

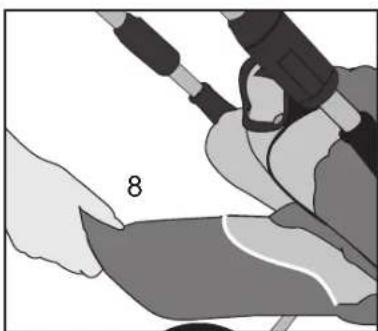

- Open the zipper on the inner part of the hood. Pull the net (8) carefully out of the pocket.

WARNING

- Always make sure the net is put back into its pocket when not in use. Models that do not have a mosquito net: Only use a mosquito net that is suitable for your vehicle and which sits securely on the pram body; to ensure it is kept out of reach of your child

8

- Pull the net down and around the front of the apron (9). Attach the mosquito net's plastic hooks in the hood's loops on both sides (10).

Use of the raincover

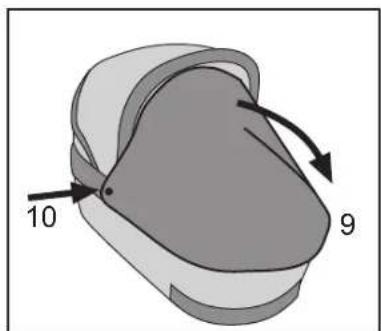

• The rain cover is fitted by pulling the rain cover over the hood and the pram body or the seat unit. Please note that the rain cover is open at the hood opening.
  • Use the rain cover that comes with this product.
• Always use the rain cover when raining or snowing. If the product is wet before the rain cover is put on, try, if possible to dry it off first.
• Let the rain cover dry before it is put back in its bag.

Assembly of the UniQ 310 chassis

1

Hand holding a small object with an arrow pointing to a vertical line (no text or symbols present)

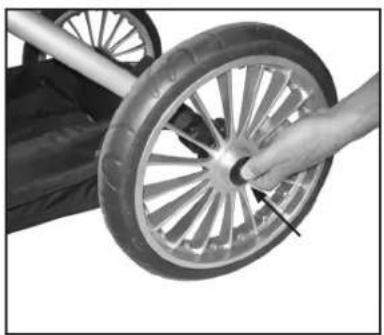

Assembly of the wheels

- Remove the plastic protectors (1) from the axles. Save for future use.

IMPORTANT

- Axles may be covered with axle grease which can leave stains on fabric.

WARNING

- Choking hazard - keep the plastic protectors away from children.

2

Close-up of a car's wheel rim and suspension, showing tire and wheel assembly (no text or symbols)

- Make sure that the parking device is not engaged. Press in the release button (2) on wheel hub (1) and slide the wheel all the way on to the axle. Release the button and pull the wheel toward you until you hear an audible click.

WARNING

- Pull the wheel towards you to ensure that the wheel is securely attached to the axle.

Repeat the same procedure on each of the four wheels.

3

Close-up of a bicycle's wheel and foot, showing tread pattern and a numbered arrow (no text or symbols)

WARNING

- Make sure that children are kept away from moving parts when assembling the pram, otherwise they might be at risk of injury.

Assembly of the chassis

- Engage the parking device by pressing the parking brake pedal down with your foot (3).

4

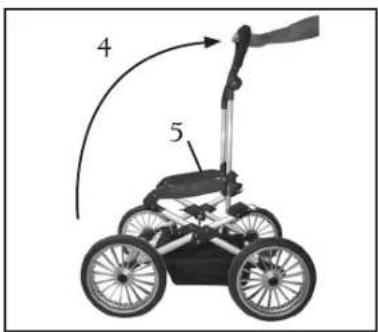

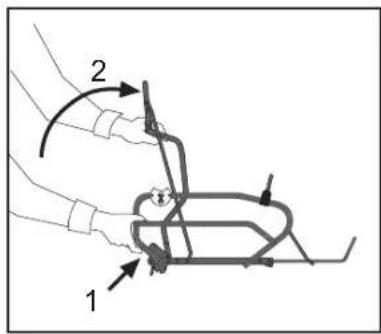

- Unfold the chassis by raising the handlebar (4) whilst holding down the chassis side bar (5).

5

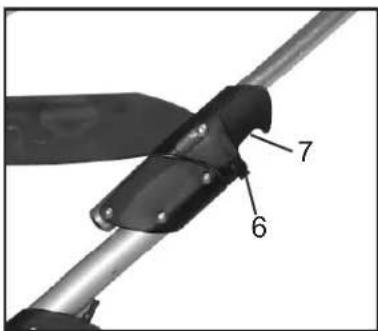

- The safety button (6) will engage automatically to prevent accidental folding.

WARNING

- The chassis locks (7) must click into the locked position. - Always check that the main locking devices (7) are engaged correctly before using your pram. It is dangerous to use your pram when the locks are not in their correct position.

How to use the UniQ 310 chassis

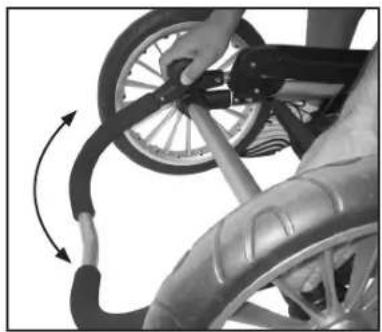

1

Close-up of a bicycle seatbelt mechanism with hand adjusting the wheel (no text or symbols visible)

2

Close-up of a motorcycle's wheel and side-mounted tire, showing tread pattern and motion direction indicator (no text or symbols)

3

4

Close-up of a hand using a tool to cut a metal clip, showing motion direction (no text or symbols visible)

5

Mechanical device with curved arrow indicating motion or force direction (no text or symbols)

Manual Duo Combi UniQ 310 v 1.6

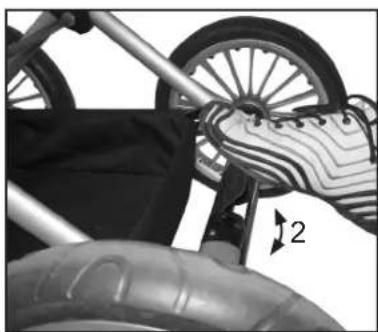

How to adjust the suspension.

When the pram has been used for a while you will be able to adjust the firmness of the suspension.

• Remove your child from the pram before adjusting the suspension.

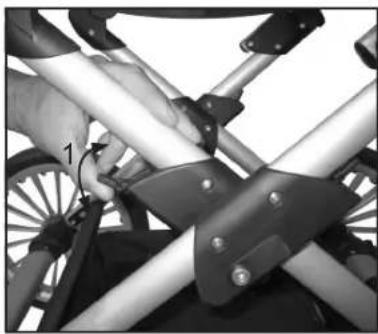

• Adjust the suspension by pushing the button (1) up or down. There is a button on each side of the chassis. If the button is pushed upwards the suspension is tightened and if it is pushed down the action is reversed. To do this, adjust the springs on each side of the pram. One side adjusts the suspension on the front wheels and the other adjusts the suspension on the rear wheels.
• Repeat on both sides of the chassis and check that the button is in the same, locked position on both sides.

WARNING

- The suspension adjusters must be in the same position on both sides of the chassis to avoid uneven strain and possible damage to the chassis.

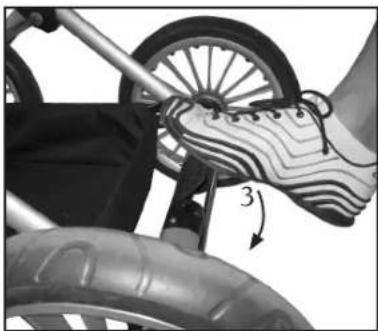

Engaging the parking brake

• The parking brake (2) is for use when you are near the pram and/or when the child is not in the pram.
• Engage the parking device by pushing down the brake pedal with your foot.
• Disengage the parking brake by pulling up the brake pedal with your foot.

WARNING

- Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

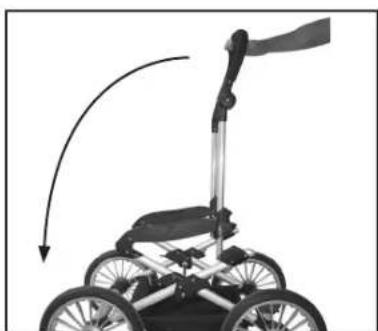

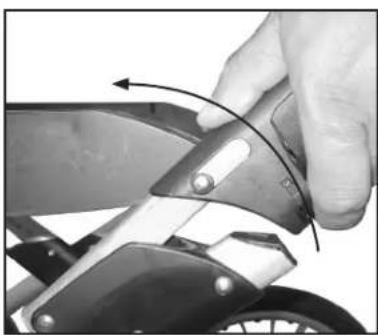

Folding of the pram

• Remove the carrycot or seat unit part of the chassis.
• Fold the chassis by first adjusting the handle height into a slightly downwards position. Press in the release buttons (3) on each side, whilst at the same time pulling the two chassis locks (4, one on each side) upwards.

WARNING

To avoid injuries make sure that children are kept away when folding and unfolding the chassis.

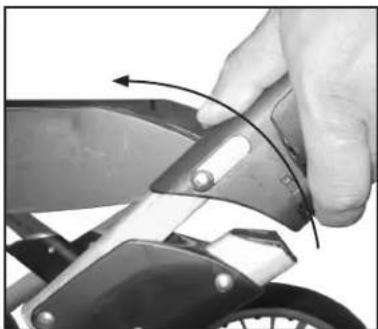

- Whilst holding the chassis locks up fold the handle forward.

- Fold the handle forward.

How to use the UniQ 310 chassis

6

Close-up of a bicycle wheel being adjusted for a cable, showing hand positioning and motion arrows (no text or symbols)

- The chassis can now be folded down completely. You can operate the height adjustable handle to minimize the folded dimensions of the chassis.

7

Close-up of a vintage twin-busch car wheel with visible spokes and wheels (no text or symbols)

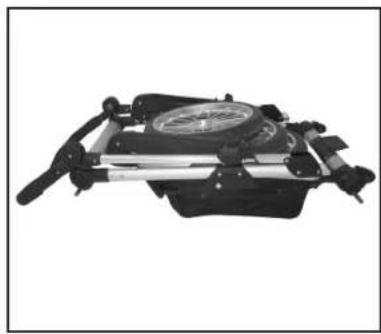

- To make the folded chassis even more compact, remove the wheels by pressing the wheel hub release buttons and removing the wheels from the axles.

IMPORTANT

- Remove any dirt from the axle stubs before reattaching the wheels.

8

Mechanical device with a circular component mounted on a base, no visible text or symbols

Folded chassis with the wheels removed.

IMPORTANT

- Clean the axle stubs before reattaching the wheels.

9

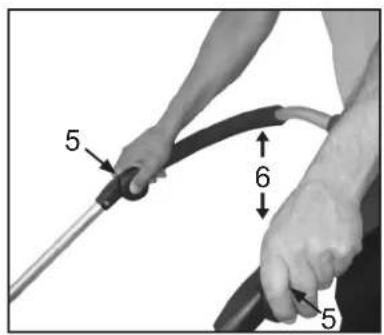

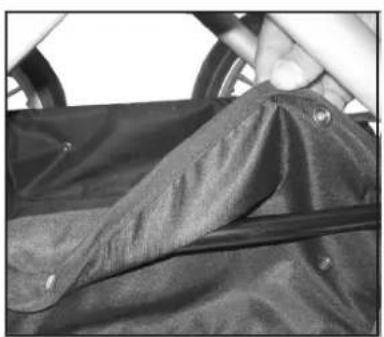

How to adjust the height of the handle

• Adjust the height of the handle by pressing in both of the grey buttons simultaneously which are located on the outside of the handle (5). Whilst keeping the buttons depressed, adjust the handle upwards or downwards to the desired position (6).
• To achieve the most comfortable pushing position, the handle height should be adjusted so that your hands rest on the handle and you do not push the handle down when you are walking.

10

Close-up of a car's seat cover and wheel rim, showing black fabric and a dark jacket (no text or symbols visible)

Assembly of the tray

• The tray is already assembled on the chassis but can be removed for washing. See washing instructions under the Care and Maintenance section.
• The tray can be removed by undoing the poppers.

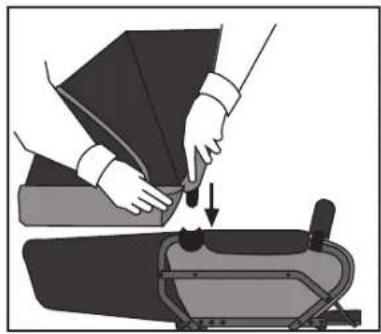

Assembly of seat unit

1

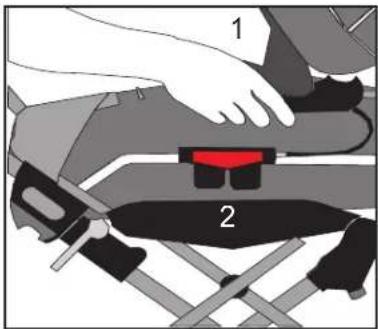

Assembly of Seat unit and 5-point Harness

- Lift the seat adjustment lever (1). Push the backrest into its upright position (2).

2

- Before assembly, release shoulder straps and waist straps from harness buckle. Slide back pocket of seat fabric (3) over seat frame backrest.

3

- Place the shoulder straps (4) through the holes in the backrest. - Place the waist straps (5) through the holes in the seat. - Place the crutch strap (6) through the hole in the base and seat.

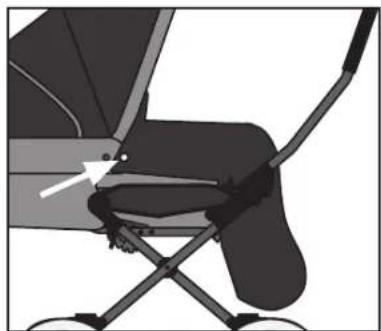

4

- Place the shoulder pads over the two shoulder straps (7). Attach the waist harness with the lock (8).

- Make sure that the waist harness straps are securely attached to the two D rings, one on each side.

Assembly of seat unit

5

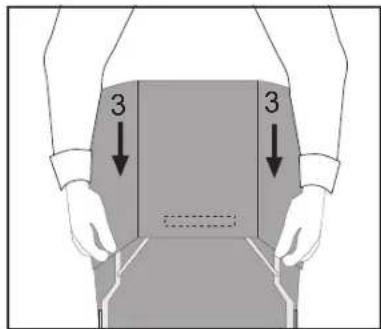

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

• Make sure that the seat fabric backrest is pulled down as far as it will go over the backrest frame.

WARNING

- Always check that the seat fabric is securely fastened in position before use. This step is very IMPORTANT.

6

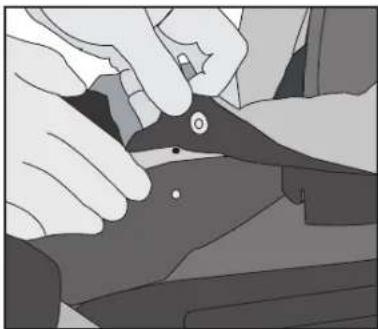

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

- Secure the fabric over the armrest on both sides of seat frame.

7

Illustration of a person performing a medical procedure on a patient's abdomen, with a hand and arrow indicating direction (no text or symbols present)

- Slide the footrest cover (9) over the footrest and fasten the poppers through the holes of the seat base. - The footrest cover is reversible

WARNING

• Never let your child/children stand on the footrest

8

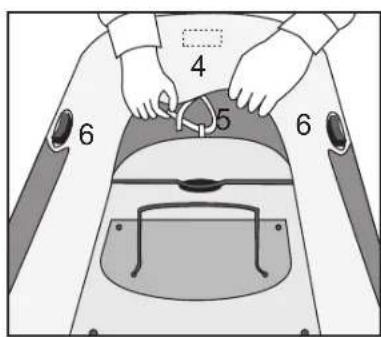

Assembly of Frontbar

- Place frontbar cover (10) around metal frontbar and zip. - Fasten the crutch strap (11) around the frontbar of the stroller with the popper.

Assembly of seat unit

9

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

10

Illustration of hands holding a curved object, possibly a fabric or material, with no visible text or symbols.

11

12

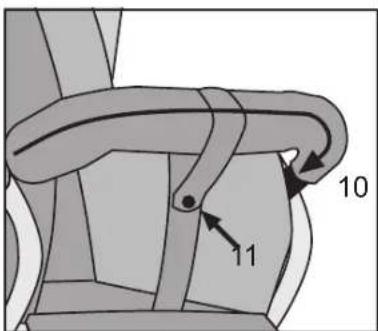

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Assembly of Hood

• Press the two plastic legs, one on each side of the hood, into the two plastic receivers on the seat frame, one on each side. Make sure they click securely into place.
• Attach the hood to the seat unit by fastening the poppers on both sides.

- Open the zipper on the hood collar and pull out the hood apron.

- Fasten the two plastic hooks (13) on the hood skirt (12), to the metal bar (14) of the seat recline mechanism. - Models with poppers on the hood skirt: Use the two poppers on the bottom edge of the hood to secure the hood to the rear of the backrest.

IMPORTANT

- The hood should always be fitted when the vehicle is in use and the poppers/hooks should always be secured.

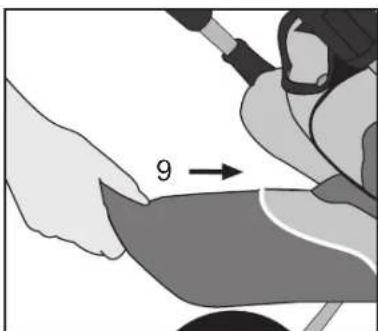

Assembly of Apron

- Slip the apron over the footrest and bring it toward the front of the hood. Attach the apron with the four poppers, two on each side of the hood.

IMPORTANT

• The hood cannot be pushed back with the apron attached.

Use of the raincover

• The raincover is attached by placing the raincover over the carry-cot and seat-unit. Please note there is an opening in the raincover near the hood opening. Use the raincover that is supplied with the pram.
• Always use the raincover when it's raining or snowing. If the pram is damp before the raincover is attached, wipe off the fabrics first if possible.
• Make sure the raincover is completely dry before it is placed back into it's bag.

Stroller usage

This section applies to following products:

Duo Combi Mondial 3-in-1, Edge 3-in-1, Smart 3-in-1 and sport stroller

1

2

3

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Side view of a car seat with open lid and side-mounted seat, showing motion arrows (no text or symbols)

5

Illustration of a person using a handheld device to interact with another person (no text or symbols visible)

Assembling and releasing the seat unit

• Assembling: Engage the parking device. Hold onto both of the handles (1) and press them down into the Easy Fix locking mechanism on both sides (2) until you hear that it clicks into place.
• Releasing: Engage the parking device. Push the Easy Fix grips under the armrest on each side of the seat unit and release the seat unit straight up from the chassis.
• The seat unit is reversible; it can be attached in both driving directions.

WARNING

• Don't let any child be placed in the vehicle when it's being folded/unfolded
• Hold the handles steadily until the seat-unit is in place

IMPORTANT

• Check before use that the seat unit is securely in place.
  • Make sure that the seat-unit is in place before you start to use the vehicle.
• Never lift the top part when it is assembled onto the chassis.

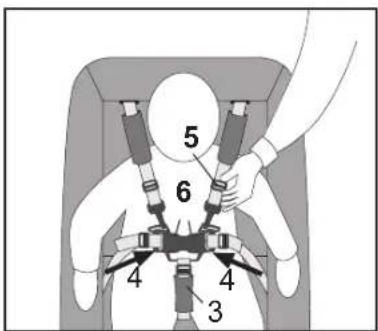

Adjusting the 5-point Harness

• Bring crotch strap (3) forward between child's legs and up toward front of waist. Insert the waist straps (4) into the harness buckle until they "click" in place. Make sure waist straps are fastened.
• Adjust all straps, using the sliders (5), to fit your child properly.
• To release shoulder and waist straps, press the buttons (6) in the centre of the harness buckle. Attachment points are provided at the ends of each waist strap for a separate harness complying with BS 6684.

WARNING

• Always use the harness when the child is placed in the vehicle. Make sure that all the buckles are fitted into position and that the harness is attached to the vehicle.

Adjusting the Backrest

• Raising the backrest: Raise the backrest into desired position by pushing it forward.
• Lower the backrest: Push the backrest lever (7) and fold the backrest into desired position.

WARNING

- Once desired position is set, push on backrest to ensure that it is locked into one of it's 4 positions.

Adjusting the Hood

• Adjust hood by gently pulling the front of the hood back or forth to desired position.
• Certain models have an integrated mosquito net in the hood. It can be pulled over the footrest and attached with plastic hooks.

IMPORTANT

• Never carry the seat unit by the hood.
- Never lift the carry-cot/seat-unit when it is assembled onto the chassis.

WARNING

- Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Adjusting the Footrest

• The footrest can be adjusted to two positions. Adjust the footrest to the down position by releasing the lock on the side of the footrest and pulling the footrest horizontally and downwards.
• The footrest is adjusted into its horizontal position by pulling the footrest and pushing it horizontally towards the pram.
  • Make sure that the footrest is locked into desired position before usage.
  • The footrest cover is reversible.

WARNING

- Never let your child/children stand on the footrest.

Care and maintenance

General care and maintenance instructions

• Never expose your vehicle to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your vehicle in cold and/or damp places.
• Should the chassis become wet, dry it off promptly. Make sure vehicle is completely dry before storing.
• If the vehicle is used near the ocean or salted roads, spray the chassis with a hose, and dry.
• Be careful during transportation and storage as the surface of the chassis is fragile. Scratches that arise after the sale are not a justifiable complaint.

Routine Inspection

- Regularly clean the chassis and metal parts of the vehicle, dry off and lubricate all joints of the chassis. Spokes, and rims on all wheels, should frequently be wiped off with a dry cloth. When the pram is used during the winter time, cleaning of the pram should be done at least once a week. Lack of maintenance could cause corrosion on the spokes and rims. Should corrosion on the surface occur, which is a possibility, you are required to remove this with a corrosion cleaning agent.

Important! Powder coated chassis and powder coated rims shall never be treated with a corrosion cleaning agent as the colour will change.

- It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken.
• all plastic parts are not cracked or broken.
  • the wheel bushings are in a good condition.
• all velcros are securely fastened on backrest pocket and seat board flap.
• the press-stud is securely fastened on the footrest flap.
• all elastic straps are in a good condition.
• the secondary locking mechanism is intact and can move freely.
• the parking brake works and the brake rubber is intact.
  • the tyre air pressure is correct (see marking on tyre: 28 P.S.I. = 1,8 bar; 35 PSI = 2,5 bar)
• The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.

PLEASE OBSERVE

• When in need of servicing with original parts and other technical issues that require a professional decision, always get in touch with your retailer where your Emmaljunga product was purchased. All Emmaljunga products come with a 6-month manufacturing guarantee. This guarantee does not apply when issues arise through normal wear and tear.
  • This information is relevant for Great Britain only.

WARNING

- Tyres can when in contact with PVC-flooring or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

• The parking brake consists of moving parts and requires regular maintenance for correct function.
• To ensure effective functioning always make sure that the parking brake is well lubricated. Immediately remove sand, snow, ice and dirt from any moving part of the braking system.
• Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the parking brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.
• If you use your Emmaljunga pram/stroller on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

Care and maintenance

Washing instructions

- Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with luke warm water. Use mild liquid soap as detergent. Cleanse it thoroughly. Drip dry the hood fully extended.

- Seat fabric and 5-point harness:

Remove the seat fabric from the chassis. Handwash seat fabric in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. When the seat fabric is removed the 5-point harness is accessible. Only wipe the nylon straps and plastic parts clean with a damp cloth. Do not hand wash. Make sure the harness is dry before reassembly.

- Front bar cover:

Remove the front bar cover. Hand wash in luke warm water. Use mild liquid soap as detergent on the surface of the exterior fabric. Handle non-woven interior material with care. Drip-dry.

- Removable inner fabric:

We recommend hand wash. Handle the non-woven material with care. Drip-dry.

- Mattress:

The exclusive mattress consists of a combination of fibre filling and polyeter filling.

We recommend that you hand wash this product. The mattress can be machine washed at 40 degrees, but the fibre filling must be flattened back into shape after washing. Please note that the polyeter mattress does not contain bleach and will therefore naturally become yellow.

• Hi Pro, Head protection:

Wipe the surface clean with a damp cloth. Dry both sides off with a dry cloth.

General Information

• Ironing: If any fabric part needs to be ironed, always use a 100 % cotton cloth in-between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 % polyester) and the interior fabrics (65 % cotton/35 % polyester) on gentle heat (110°C on the iron).
• Make sure all parts are completely dry before reassembly. Check the trimmings and the seam on the seat-fabric underneath the backrest-pocket.
• You may apply a material protector (like Scotchgard™) on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place child/children in stroller for at least 24 hours after applying a material protector.

Reassembly

WARNING

- Make sure all parts are assembled correctly according to the instructions in this manual.

IMPORTANT

Cleaning instructions for Leatherette fabrics:

Leatherette Fabrics must not be cleaned according to the above instructions. Leatherette fabrics should only be cleaned with a drop of mild washing up liquid and then wiped off with a damp cloth.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements. In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

UK

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

☐ 1 pc. seat unit (with 5-point harness attached)
□ 1 set of shoulder pads for harness
□ 1 pc. folded chassis with tray
□ 4 pcs. wheels
□ 1 pc. instruction manual
□ 1 pc raincover
□ 1 pc. mattress
□ 1 pc. Hi Pro head protection
□ 1 pc. carry-cot
□ 1 pc. seat fabric
□ 1 pc. removable inner fabric
□ 1 pc. hood
□ 1 pc. footrest fabric
□ 1 pc. Seat-unit apron
□ 1 pc. front bar cover
□ 1 pc. apron for carry-cot

2. Check the functions of the chassis.

Unfold the chassis.

□ Check that the chassis locks function on both sides.
☐ Check that the safety buttons function correctly by folding the pram and checking that the safety buttons are activated to prevent accidental folding.
☐ Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.
☐ Check the harness function on the seat unit by locking and unlocking the harness.
☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
☐ Check that the backrest can be adjusted and locks securely into each of its four positions.
☐ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
☐ Check that the parking device locks both rear wheels when engaged.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible deviations on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check the chassis locks function on both sides.

Check the safety buttons function by folding the pram and checking that the safety buttons are activated to prevent accidental folding.

Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.

Check the safety catch/safety buttons function by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Check that the brakes lock both rear wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

Sisällysluettelo

Diagram of a mechanical component with labeled parts, showing hands holding a curved panel and a rectangular base (no text or symbols)

Diagram of a boat hull with an arrow indicating direction and number 7, showing no text or symbols beyond the number.

Diagram showing a hand holding a curved object with an arrow pointing to a small dark object, no text or symbols present.

Diagram of a folded garment with arrows indicating direction and point of interest (no text or symbols)

3

4

Top-down diagram of a small boat or container with internal compartments and marked parts, labeled with dimension '5' (no text or symbols on the diagram itself)

5

Diagram of a baby seat with a curved arrow indicating 6 units of motion (no text or symbols present)

Diagram of a baby crib with folded seats and a numbered arrow indicating size (no text or symbols)

Illustration of a baby car with a numbered label pointing to the lid (no text or symbols on the car itself)

Hand holding a small object with an arrow pointing to a component (no text or symbols visible)

2

Close-up of a car wheel with a hand operating it, labeled with number 2 (no text or symbols on the wheel itself)

3

Close-up of a bicycle's wheel and foot, showing tread pattern and a numbered motion indicator (no text or symbols)

4

5

Renkaiden asennus

Close-up of a bicycle seatbelt mechanism with hand adjusting the wheel (no visible text or symbols)

2

Close-up of a motorcycle's wheel and saddle, showing a numbered component (no text or symbols visible)

3

4

Close-up of a hand using a tool to cut a metal clip (no text or symbols visible)

5

Mechanical device with curved arrow indicating motion or force direction (no text or symbols)

Manual Duo Combi UniQ 310 v 1.6

Engaging the parking brake

• The parking brake (2) is for use when you are near the pram and/or when the child is not in the pram.
• Engage the parking device by pushing down the brake pedal with your foot.
• Disengage the parking brake by pulling up the brake pedal with your foot.

VAROITUS

Close-up of a bicycle wheel being adjusted for a cable, showing hand positioning and motion arrows (no text or symbols)

Close-up of a vintage twin-busch car wheel with visible spokes and wheels (no text or symbols)

Mechanical device with a circular fan and mechanical components (no visible text or symbols)

Close-up of a car's seat cover with visible tire and metal bands (no text or symbols)

Tavarakorin irrotus

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a button (no text or symbols visible)

Illustration of a person performing a medical procedure on a patient's abdomen, with no visible text or symbols.

Illustration of a person using a tool to lift a car body (no text or symbols present)

10

Illustration of hands holding a curved object, possibly a fabric or material, with no visible text or symbols.

11

12

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Kuomun asentaminen

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Side view of a car seat with open lid and side-mounted seat, showing motion arrows (no text or symbols)

5

Illustration of a hand holding a tool interacting with a person's arm, labeled with the number 8 (no text or symbols on the diagram itself)

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Manual Duo Combi UniQ 310 v 1.6

Empty white rectangle with black border (no text or symbols)

Emmaljunga®

Instruktionsmanual för Duo Combi / 3-in-1 UniQ 310

© 2011 Emmaljunga Barnvagnsfabrik AB

Instruction manual for Duo Combi / 3-in-1 UniQ 310

© 2011 Emmaljunga Barnvagnsfabrik AB

All rights reserved

Emmaljunga Barnvagnsfabrik AB
