Product Type	Car Stereo with CD/MP3/WMA Player, FM/AM Radio, Bluetooth
Model	Denver CAD-474BT
Power Supply	12V DC (10.8-15.6V)
Speaker Impedance	4 or 8 Ohms
Maximum Output Power	4 x 40W
Fuse Rating	10A
Dimensions (W x H)	182mm x 53mm (standard DIN size)
Display	LCD Display with Radio Data System (RDS)
Radio Bands	FM: 87.5-108 MHz (50 kHz step), RDS, AF, TA, PTY
CD Playback	CD/CDR/CDRW, MP3/WMA
Media Inputs	USB, SD/MMC Card Slot, Front AUX-In
Bluetooth	Hands-free calling and A2DP audio streaming
Audio Controls	Bass, Treble, Balance, Fader, Equalizer (Classic/Rock/POP/Flat), Loudness
Front Panel	Flip-down and detachable anti-theft design
Preset Stations	18 FM presets (6 per band)
Line Out (RCA)	2V max, 10k Ohm impedance
Line In Sensitivity	775 mV, 20k Ohm impedance
Signal-to-Noise Ratio (CD)	>60 dB
Channel Separation (CD)	>50 dB @ 1kHz
Frequency Response	20 Hz - 20 kHz
Included Accessories	Mounting hardware, release key, front panel case, external microphone
Maintenance	Replace fuse with 10A; clean panel connectors with contact cleaner
Safety	Use specified fuse; do not install where it obstructs driving; keep panel dry

Frequently Asked Questions - CAD-474BT DENVER

How do I pair my phone with the Denver CAD-474BT via Bluetooth?

Ensure the unit's Bluetooth is active (always on). On your phone, search for available devices and select CarBT. Enter the PIN 1234. Once paired, connect to the head unit if not automatic. Then you can make calls and stream music via A2DP.

Why won't my USB device or SD card play music?

The unit supports MP3 and WMA files on USB and SD/MMC cards. Ensure the media is formatted in FAT32 and contains compatible files. Note that USB hard drives are not supported. If playback fails, try a different device or reformat.

How do I detach the front panel for theft prevention?

First press the POWER button to turn off the unit. Then press the OPEN button (17) to flip down the panel until horizontal. Gently pull the panel towards you to detach. Store it in the provided case. To reattach, press it lightly onto the unit until it clicks.

What is the RDS function and how do I use AF/TA/PTY?

RDS (Radio Data System) provides digital information on FM. Use AF to automatically switch to the strongest alternative frequency for the same station. TA prioritizes traffic announcements; when active, unit switches to radio during traffic info. PTY lets you search by program type (e.g., News, Rock). Press the respective buttons to enable.

How do I set the clock on the CAD-474BT?

Press and hold the VOL knob (SEL) until IN VOL appears, then press repeatedly until ADJ shows. Turn the knob clockwise to set hours, counterclockwise for minutes. The adjustment is saved after a few seconds.

Can I play music from my phone wirelessly?

Yes, if your phone supports A2DP Bluetooth. Pair and connect as described, then press MD/LD to select A2DP mode. Play music on your phone; the audio will stream through the car speakers. Use the head unit's SKIP buttons to change tracks.

What should I do if the unit has no power or the display is blank?

Check the car's ignition key is turned to ACC or ON position. Verify the fuse (10A) is not blown. If the fuse is blown, replace with same rating. Also ensure the constant 12V memory wire (yellow) and ignition wire (red) are connected correctly.

How do I adjust the sound equalizer?

Press the DSP button repeatedly to cycle through equalizer presets: Classic, Rock, POP, Flat. For manual adjustment, press SEL (VOL knob) until BAS (bass), TRE (treble), BAL (balance), or FAD (fader) appears, then turn the knob to set.

Can I connect an external amplifier or subwoofer?

Yes, the unit has RCA Line Out outputs (red/right, white/left) with a maximum output of 2V. You can connect these to an external amplifier. Ensure the amplifier's input impedance is compatible (10k Ohm or higher).

How do I reset the unit if buttons are unresponsive?

Locate the RESET button on the housing (item 29). Use a pointed object (e.g., a ballpoint pen) to press it. This restores factory settings. Perform a reset after installation or if the display shows error symbols.

USER MANUAL CAD-474BT DENVER

TILSLUTNING AF LEDNINGER

RCA Line Out:

4. FASTE STATIONER (1,2,3,4,5,6)

KABELVERBINDUNGEN

RCA Ausgangsbuchse:

7. PTY (PROGRAMMTYP)

INSTRUCTION MANUAL

Car Stereo CD/CDR/CDRW/MP3/WMA Player with PLL FM Stereo Radio

RDS

USB / MMC / SD Card Input

Bluetooth Function in Mobile Phone

Flip Down and Detachable Front Panel System

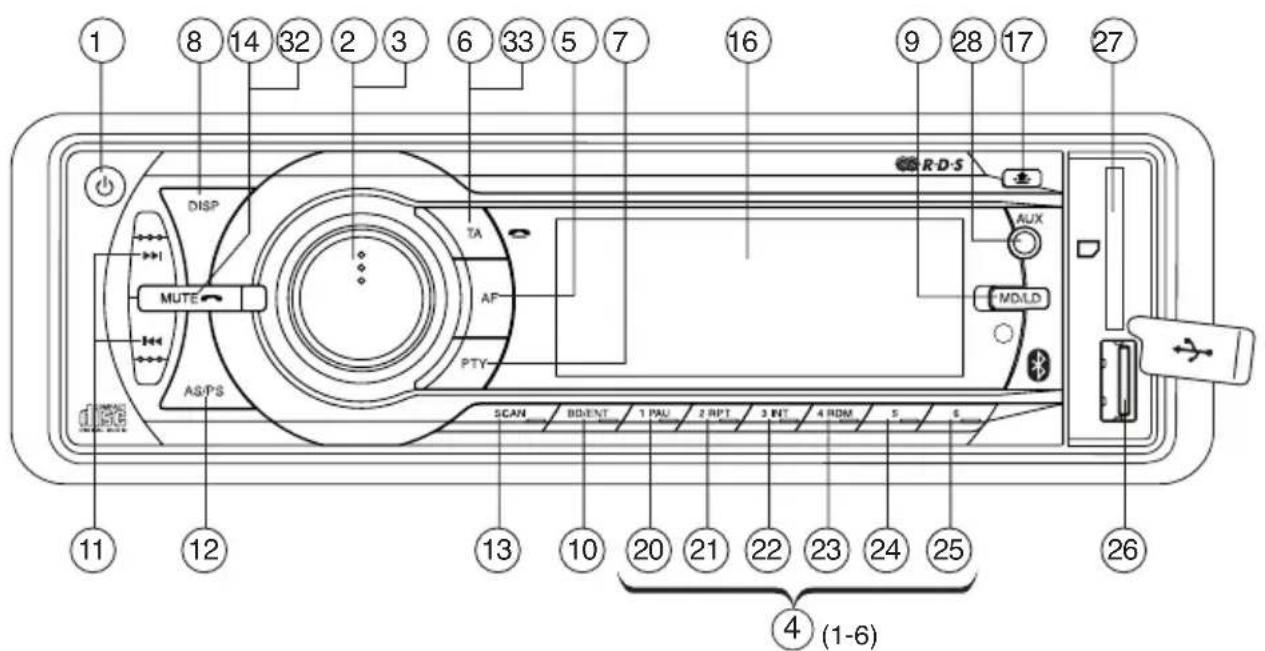

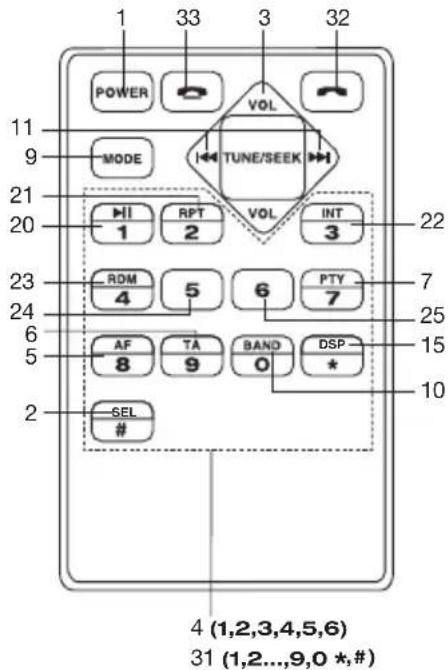

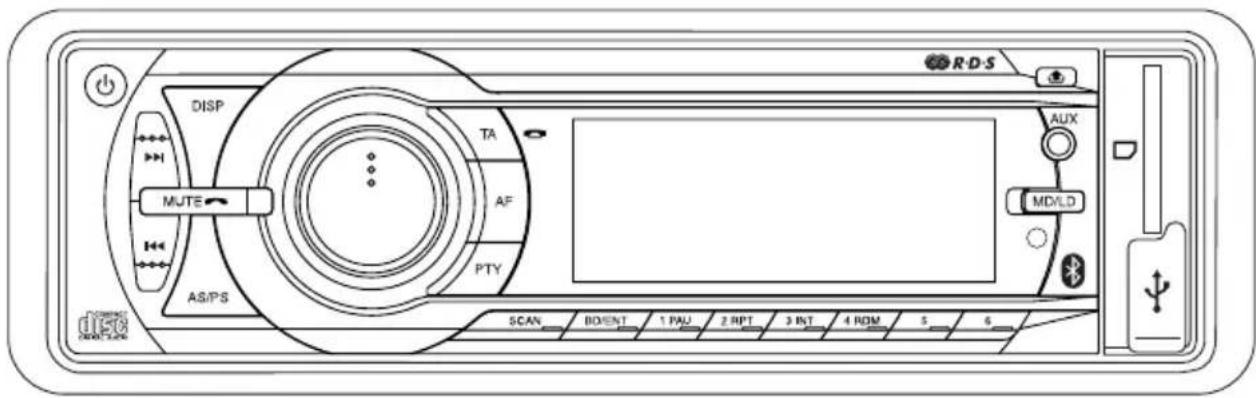

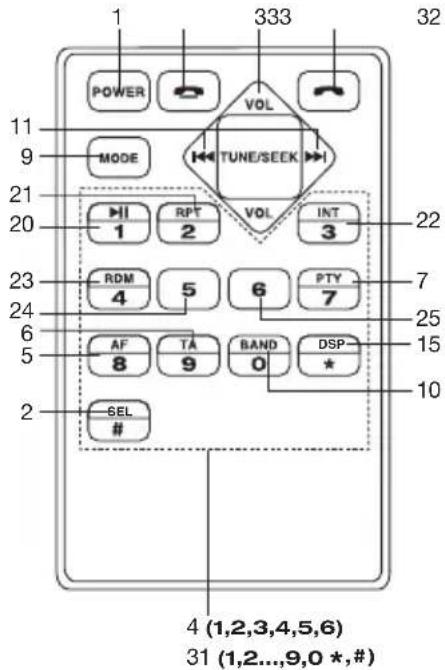

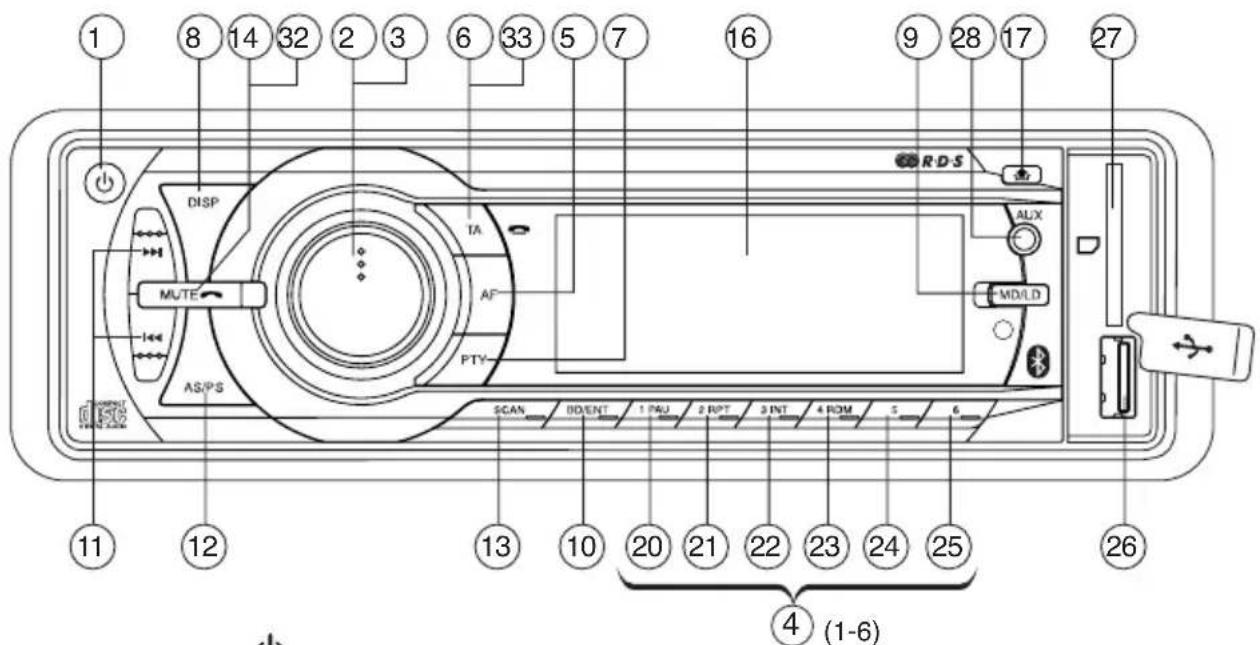

LOCATION OF PARTS AND CONTROLS

1. POWER ON/OFF ()
2. FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / ADJ / TA VOL / EON / DSP / TA SEEK / PI SOUND / RETUNE / MASK DPI
3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / ADJ / TA VOL / EON / DSP / TA SEEK / PI SOUND / RETUNE / MASK DPI
4. PRESET STATIONS (1,2,3,4,5,6)
5. 'AF' function (ALTERNATIVE FREQUENCIES)
6. 'TA' function (TRAFFIC ANNOUNCEMENT)
7. 'PTY' function (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE/LOUDNESS BUTTON (MD/LD)
10. BAND/ENTER BUTTON (BD/ENT)
11. AUTOMATIC OR MANUAL TUNING
    (FREQ UP OR FREQ DOWN)
    CD TRACK/SEARCH BUTTON
12. AUTO SEEK SEARCH TUNING (AS/PS)
13. 'SCAN' AUTOMATIC TUNING CONTROL (SCAN)
14. MUTE BUTTON (MUTE)
15. EQUALIZER (DSP)
16. LCD DISPLAY
17. OPEN PANEL BUTTON ( )
18. CD SLOT
19. CD EJECT BUTTON ()
20. PAUSE BUTTON
21. REPEAT BUTTON
22. INTRO BUTTON (Preview all Tracks)
23. RANDOM BUTTON
    24, 25. FOLDER DOWN/UP (MP3/WMA Files only)
24. USB PORT
25. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
26. FRONT AUX IN
27. RESET BUTTON
28. POWER INDICATOR LED
29. PHONE NUMBER
30. ANSWER A CALL ( )
31. END A CALL ( )

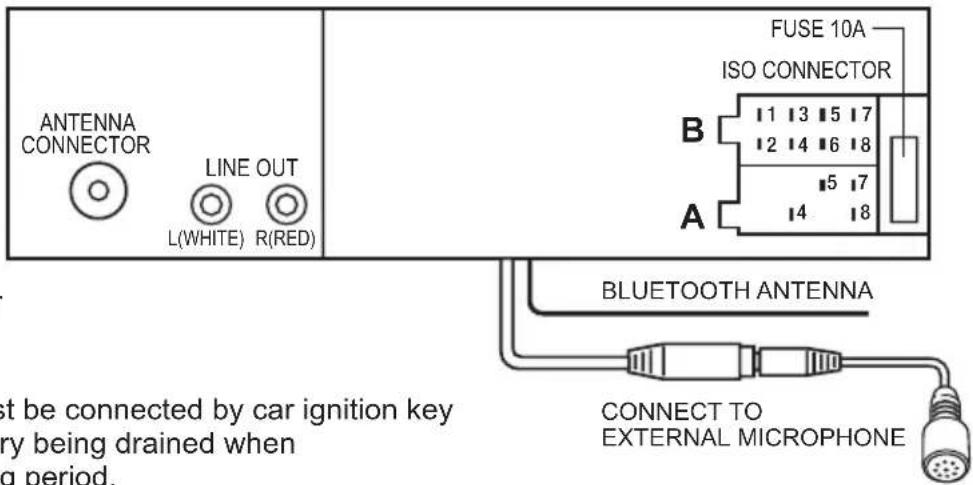

WIRE CONNECTION

RCA Line Out: Red (right) White (left)

CONNECTOR A

1. MEMORY +12V
2. AUTO ANTENNA OUTPUT
3. +12V (TO IGNITION KEY)
4. GROUND

Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery being drained when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repair center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

INSTALLATION

PRECAUTIONS

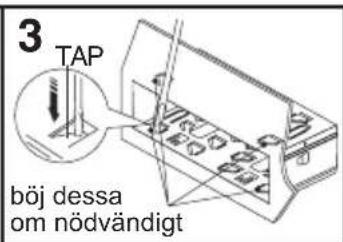

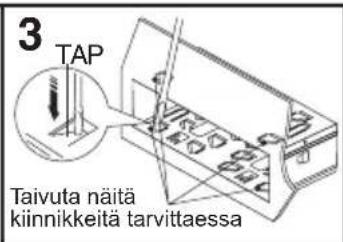

• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
  • Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.

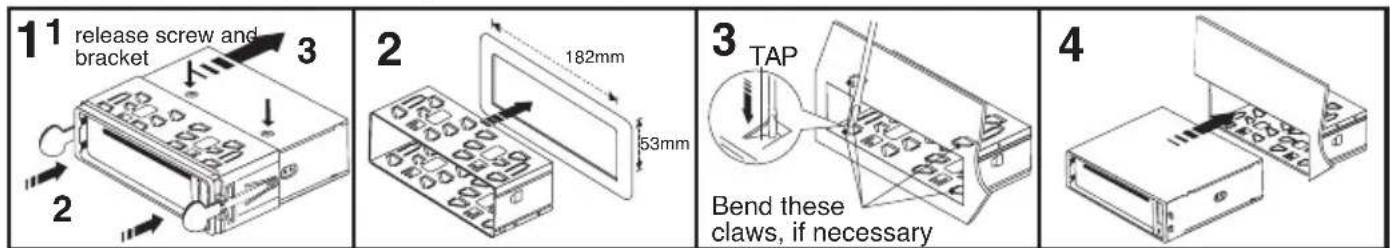

NOTE: Inclination angle for car radio installation must not exceed 30^ otherwise the front panel will not open.

Note: Keep the release key in a safe place as you may need it in the future to remove the unit from the car.

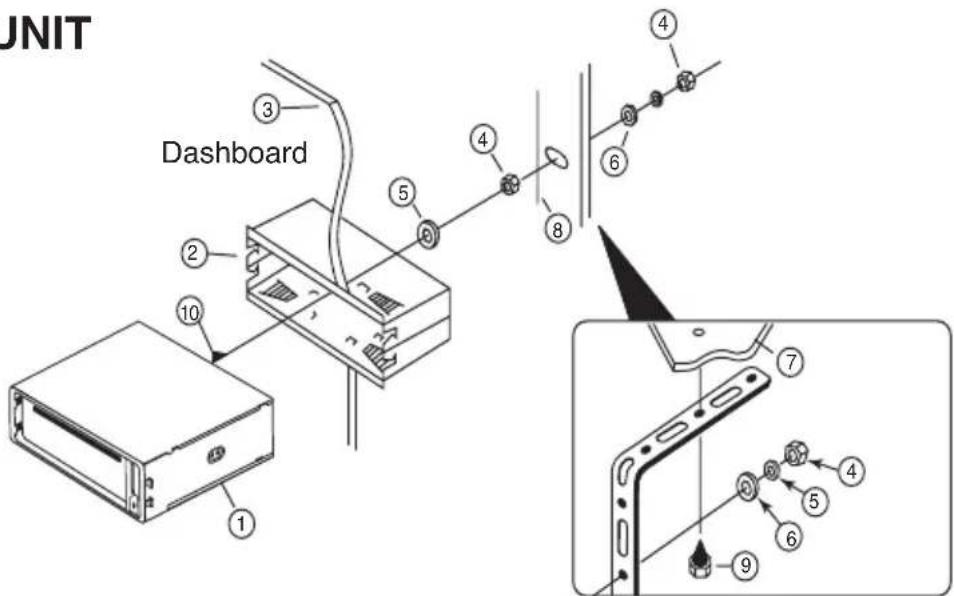

TO SUPPORT THE UNIT

1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the button (1) OFF first.

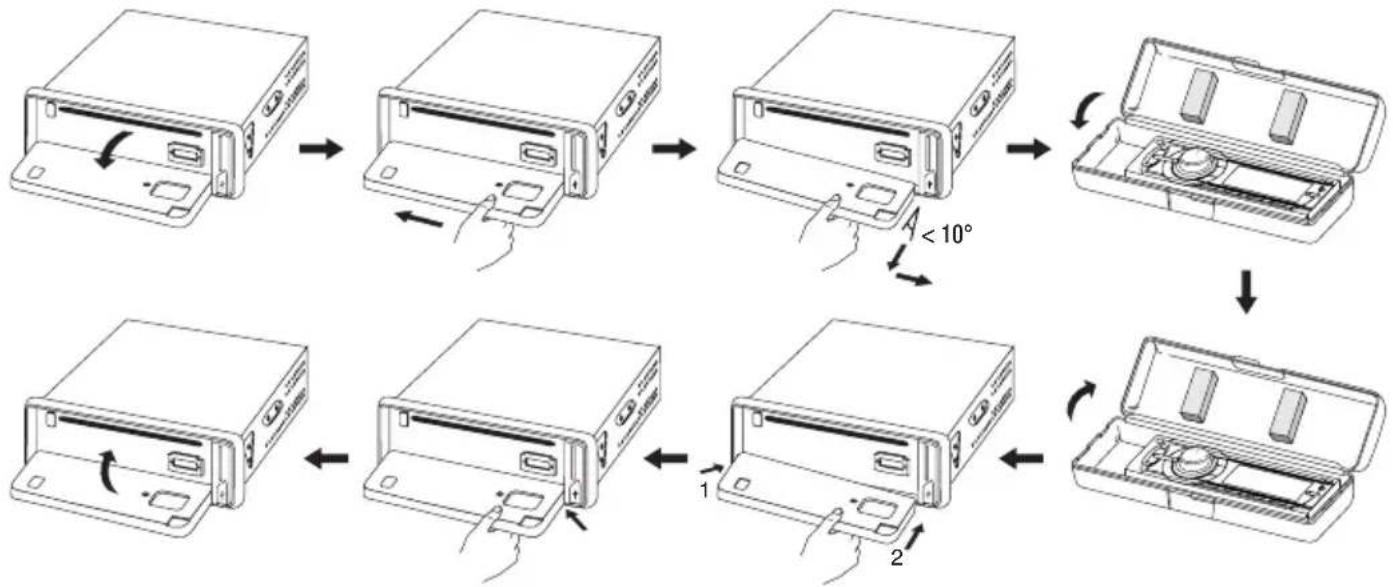

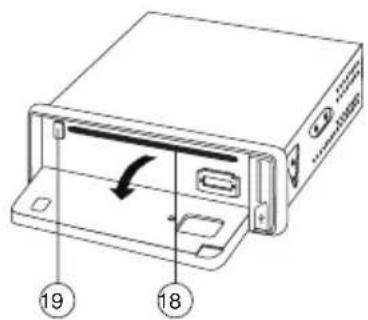

Then press the button (17), let the Front Panel arrive in horizontal position and detach the panel by pulling it towards you as illustrated.

Notes:

• Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

CLEANING THE CONNECTOR

The unit may not function properly if the connectors between the unit and the front panel are contaminated with dirt. In order to prevent this from happening, detach the front panel by pressing the button and clean the connector from time to time.

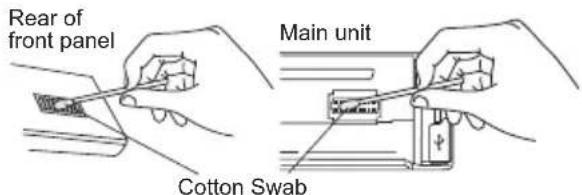

Clean the connector with a cotton swab together with contact cleaner as illustrated. Be sure to clean them carefully pin by pin and make sure not to damage the connecting points.

OPERATION

1. POWER ON/OFF ( )

By pressing this key, the unit is turned on or off. This unit is turned on by pressing any key.

2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER /

INITIAL VOLUME / ADJ / TA VOL / EON / DSP / TA SEEK / PI SOUND / RETUNE / MASK DPI

3. VOLUME UP/DOWN

Turning VOL knob (right/left) to adjust VOL/BAS/TRE/BAL/FAD. To select other functions, press the VOL knob shortly until the desired functions are shown on the display. Figure 1 shows how to control functions that are selected using the VOL knob.

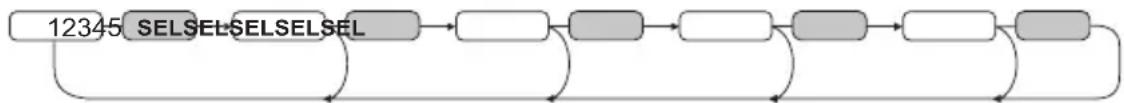

Fig. 1 Selection of sound control functions

1. VOL

2. BASS

3. TRE

4. BAL

5. FAD

Increase or decrease the volume by turning VOL knob (right/left). These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.

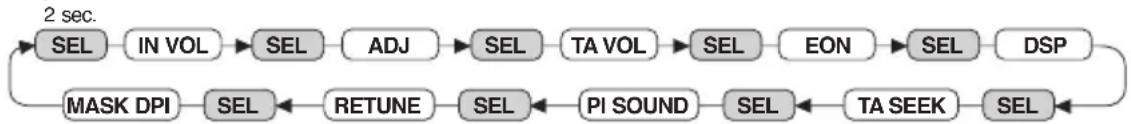


Press and hold VOL knob to adjust INIT VOL /ADJ/TA VOL/EON ON//DSP/TA SEEK/PI SOUND/RETUNE/MASK DPI

IN VOL:

Can adjust Initial Volume level using this mode.

ADJ:

Can adjust clock time. Turn VOL knob clockwise to set hours and counter clockwise to set minutes.

TA VOL:

Can adjust TA Volume (The volume level when Traffic announcement is transmitted).

EON:

Can selected EON condition, ON or OFF.

DSP:

Can select DSP mode (Classic, POP, Rock, Flat)

TA SEEK/ALARM

TA SEEK mode: When newly turned station does not receive TP information for 5 sec., the radio retunes to next station which has not the same station (PI) as the last station, but has the TP information.

In TA seek mode, the current station can be changed to the completely different station because the unit searches TP station when the field strength of the current station is very weak, or the current station has no TP signal.

TA ALARM mode: Any automatic retune mode is not activated, just can hear Beep sound.

PI SOUND

Action when 2 stations with different programme identification (PI) codes are on the same frequency:

SOUND: The radio switches to the new channel for a few seconds and then switches back again MUTE: The radio is muted

RETUNE L/S

RETUNE L: Select 90 seconds as the initial time of automatic TA search.

RETUNE S: Select 30 seconds as initial time.

MASK DPI/ALL

MASK DPI: masked only the AF which has different PI.

MASK ALL: masked the AF which has different PI and NO RDS signal with field strength.

4. PRESET STATIONS (1,2,3,4,5,6)

When pressed momentarily, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank.

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos.

In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. Test transmissions are being conducted in many other European countries. It is expected that RDS will be available in most western European countries in the near future.

5. 'AF/REG' function (ALTERNATIVE FREQUENCIES)

When pressed momentarily, AF/REG switching mode is selected.

When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When pressed long, it is activated as regional mode ON/OFF.

- Regional mode ON:

AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on in LCD display.

- Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.

6. 'TA' function (TRAFFIC ANNOUNCEMENT)

When pressed momentarily, it is activated as TA mode on or off

When TA mode is on and traffic announcement is transmitted

- When the unit is in CD/MP3 mode, it will switch to radio mode temporarily.

- If the volume level was under the threshold point, it will be raised to the threshold point.

- When TP station is received, TP segment is turned on in LCD display.

7. 'PTY' function (PROGRAM TYPE)

While selecting PTY type, its selection is implemented by preset buttons as described in preset key. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

PTY music group ---- PTY speech group ---- OFF

MUSIC

SPEECH

1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO
2. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA
3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED
4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN
5. NATION M, OLDIES 5. SOCIAL, RELIGION, PHONE IN
6. FOLK M 6. TRAVEL, LEISURE, DOCUMENT

8. DISPLAY (DISP)

Press DISP button to switch between display informations such as radio frequencies, clock, track and other informations depending on the playing MODE.

9. MODE/LOUDNESS BUTTON (MD/LD)

By pressing this key, user can select. AUX/TUNER/CD-MP3/USB/SD/MMC/AD2P mode. LOUDNESS: By pressing this key longer than 2 sec., you can select LOUDNESS mode.

10. BAND BUTTON (BD)

Each band is toggled cyclically by pressing this key FM1---FM2---FM3.

11. AUTOMATIC OR MANUAL TUNING (FREQ UP ON FREQ DOWN)

(A) RADIO MODE

When pressed momentarily, these keys are operated as SEEK tuning mode.

When pressed longer than 1 sec., they are operated as MANUAL tuning mode.

When pressed momentarily, they are operated as TRACK UP or TRACK DOWN mode.

When pressed longer than 1 sec., they are operated as CUE or REVIEW mode.

12. AUTO SEEK SEARCH TUNING (AS/PS)

By pressing shortly, the radio searches for each preset station.

When field strength level is bigger than the threshold level of stop level, the radio is holding at that preset number for 5 sec. with releasing mute, and then searches again.

By pressing longer than 1 sec, and then 6 strongest stations are preset to the corresponding preset number. When AS operation is finished, the radio executes the preset scan.

13. 'SCAN' AUTOMATIC TUNING CONTROL (SCAN)

This key is operated as RADIO SCAN. The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode.

14. MUTE BUTTON (MUTE)

Press and hold this button to mute the sound at once. Press again to return to previous volume level.

15. EQUALIZER (DSP)

Press DSP to select between (Classic, Rock, POP, Flat) equalizer modes.

16. LCD DISPLAY

The Liquid Crystal Display will display the current state of the unit.

17. OPEN THE FRONT PANEL

Press ↑ button and the front panel will open.

CD/MP3/WMA CONTROL LOCATION OF PARTS

18. CD SLOT

Carefully insert the CD into the disc slot with the label side uppermost. The CD starts automatically play.

19. CD EJECT BUTTON

Press the button to remove the CD.

20. PAUSE BUTTON

During "PLAY", press PAU button to "PAUSE". Press it again to resume play.

TRACK/SEARCH BUTTON (11)

FORWARD AND REVERSE TRACK SEARCH (or changing songs)

Press the SKIP button ( d) during play to go to the desired track(song).

▲ ....REVERSE ▶FORWARD

Press and hold the SKIP button ( ◀◀ or ▶◀ ) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume.

21. REPEAT BUTTON

When this button is pressed, “RPT” indication is displayed and play of the selected track will be continually repeated until the Track repeat mode is cancelled by pressing ‘RPT’ button again.

22. INTRO BUTTON (Preview all Tracks)

When this button is pressed, "INT" indication is displayed and the first several seconds of each track of the disc is played. Press again to stop intro and listen to track.

23. RANDOM BUTTON

When this button is pressed, "RDM" indication is displayed and each track of the disc is played in random instead of normal progression. To cancel RANDOM mode, press 'RDM' button again.

24, 25. FOLDER DOWN/UP (In case of MP3/WMA files)

M5: Folder down / M6: Folder up

HOW TO SELECT MP3/WMA FILES

Searching by Track:

• Press "AS/PS", then search track is activated.
• Turn "VOL" knob to left or right, select first digit desired.
• Press "VOL" knob, then the first digit is fixed and second digit will flash.
• Turn "VOL" knob to left or right, select 2'nd 3'rd respectively.
• Press "BD/ENT", the song selected will start.

Searching by Character:

• Press "AS/PS" twice, then character search mode is activated.
• Turn "VOL" knob to left or right, you can select the desired letter.
• Press "VOL" knob, repeat steps above for 2'nd 3'rd character.
• The songs with the same character that you selected is displayed.
• Turn "VOL" knob to left or right, you can select the desired song.
• Press "BD/ENT", then the song selected will start.

Searching by File Name:

• Press "AS/PS" 3 times, then folder search is activated.
• Turn "VOL" knob to left or right, you can select the desired folder.
• Press "BD/ENT", then the folder is fixed and the first file will be played.

26.27. USB/ SD/MMC MEMORY CARD

The device is equipped with a USB interface and a memory card reader for SD/MMC cards. MP3 or WMA files stored on these media can be played.

1. Plug your USB storage medium into the USB port.
2. If you use a memory card, insert it into the memory card reader.
3. The player automatically switches to the input used and starts playback.
4. See the section on operations common for audio files on how to control USB or memory card playback.
5. Due to the great variety of devices with USB and SD/MMC card interfaces that sometimes have manufacturer-specific functions, we cannot guarantee that all media will be recognized and that all operational functions will be available with this device.
   • You cannot operate USB hard drives on the device.

Note:

28. FRONT AUX IN

An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket to be played back by the vehicle loudspeakers. Press the MODE button to select the AUX IN mode.

- Connect the AUX IN socket with the audio output of the external device.

29. RESET

Reset button is placed on the housing.

The reset button is to be activated for the following reason:

• Initial installation of the unit when all wiring is completed.
• All the function button do not operate.
• Error symbol on the display.

30. POWER INDICATOR LED

Flash LED when ignition is switched on.

HOW TO USE BLUETOOTH IN YOUR CAR AUDIO

How to Perform Pairing

Before you can dial out from the car stereo, you must first perform PAIRING. Pairing is a procedure used to connect 2 Bluetooth devices together.

1. This unit's Bluetooth function is always on, perform the pairing starting from your cellular phone. Refer to your cellular manual on proper pairing.
2. Perform the search for available Bluetooth devices, "CarBT" will show. Enter '1234' when asking for code.
3. After successful pairing, connect to the head unit if it is not automatically connected.

How to call / receive calls using wireless remote controller

• To make calls, press “button on the remote controller followed by pressing TEL NO using number keys.
  • After entering TEL NO, press “ 🚫” again to dial out.
• During conversation, press “ ” button to end call.
• When there is incoming call, press " 🔵 button to receive call.
• Press "button to reject incoming calls.

How to make / receive calls using front panel

- Redial calls

1. Press and hold " " to redial last call.

2. Press " ” to dial out.

3. During conversation, press "button to end call.

4. When there is incoming call, press " 🔵 button to receive call.
5. Press "button to reject incoming call.

Audio Streaming

1. If your phone is "A2DP" format is compatible, you can play music in your mobile and the music will be transferred to car audio unit.
2. Make sure your mobile and the car radio unit is paired and connected.
3. Play the music in your mobile according to your mobile operating method.
4. Press MD/LD button to change A2DP mode.
5. You can press or on head unit for previous or next tracks.

Memory Backup

This unit is equipped with built-in memory I.C. (Integrated Circuits) to save user settings such as tuner preset stations and audio control settings. Whenever power is unplug, these settings will not be lost.

TECHNICAL SPECIFICATIONS

CD/MP3/WMA PLAYER SECTION

Signal to Noise Ratio > 60 dB

Channel Separation > 50 dB (1kHz)

Frequency Response 20Hz - 20 kHz

TUNER (FM)

Frequency range 87.5-108 MHz

Sensitivity 2.8 μV

Stereo separation 30 dB

Signal to noise ratio 50 dB

Channel step 50 kHz

LINE-OUT

Output 2V (max.)

Impedance 10k Ohm

LINE-IN

Frequency Response 20 Hz - 20 kHz

Sensitivity 775 mV

Impedance 20k Ohm

GENERAL

Power Supply 12V DC (10.8-15.6V) allowable)

Speaker impedance 4 or 8 Ohm

Output power 40W x 4CH

Fuse 10A

Note: Specification and the design are subject to possible modification without notice due to improvements.

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S

Imported by:

Inter Sales A/S

Stavneagervej 22

8250 Egaa

Denmark

10R-030489

www.denver-electronics.com

DENVER®

CAD-474BT

BRUKSANVISNING

BILRADIO- CD/CDR/CDRW/MP3/WMA SPELARE MED

PLL FM STEREO, RDS

USB/SD/MMC KORT INGÅNG

MOBILTELEFONENS BLUETOOTH-FUNKTION

NEDFÄLLBAR/ AVTAGBAR FRONT PANEL

1. STRÖM PÅ/AV ( )
2. KNAPP FÖR FUNKTIONSVAL: KONTROLLER FÖR BAS/DISKANT/BALANS/FADER / STARTVOLYM / ADJ / TA VOL / EON / DSP / TA SEEK / PI SOUND / RETUNE / MASK DPI

3. VOL UPP-/VOL NED-KNAPP: KONTROLLER FÖR BAS/DISKANT/ BALANS/FADER / STARTVOLYM / ADJ / TA VOL / EON / DSP / TA SEEK / PI SOUND / RETUNE / MASK DPI

4. FÖRINSTÄLLDA STATIONER (1, 2, 3, 4, 5, 6)

5. 'AF'-funktion (ALTERNATIVA FREKVENSER)

6. 'TA'-funktion (TRAFIKMEDDELANDEN)

7. 'PTY'-funktion (PROGRAMTYP)

8. DISPLAYKNAPP (DISP)

9. LÄGES-/LOUDNESS-KNAPP (MD/LD)

10. BAND/ENTER-KNAPP (BD/ENT)

11. AUTOMATISK ELLER MANUELL TUNING (FREK. UPP ELLER FREK. NED) CD-SPÄR / SÖKKNAPP

12. AUTOSÖKNING (AS/PS)

13. 'SCAN' AUTOMATISK TUNER / INSPELNING (SCAN)

14. MUTE-KNAPP (MUTE)

15. EQUALIZER

16. LCD-DISPLAY

17. KNAPP FÖR ATT ÖPPNA PANELEN ( )

18. CD-LUCKA

19. EJECT-KNAPP FÖR CD ( )

20. PAUSKNAPP

21. REPEATKNAPP

22. INTRO-KNAPP (för förhandsgranskning av alla spår)

23. RANDOM-KNAPP (för slumpmässig uppspelning)

24, 25. MAPP NED/UPP (endast MP3-/WMA-filer)

1. USB-PORT

2. KORTPLATS FÖR MULTIMEDIAKORT (MMC) / SD-KORT

3. FRÄMRE AUX-INGÅNG

4. ÅTERSTÄLLNINGSKNAPP

5. LEDINDIKATOR FÖR STRÖM

6. TELEFONNUMMER

7. SVARA PÅ ETT SAMTAL ( )

8. AVSLUTA ETT SAMTAL ( )

KABELANSLUTNING

RCA LINE OUT:

RÖD (HÖGER)

VIT (VÄNSTER)

ANSLUTARE A

1. MINNE + 12V
2. AUTO ANTENN
3. +12V (TILL TÄNDNING)
4. JORD

Diagram of a device with an open box and internal components, no visible text or symbols

Action when 2 stations with different programme identification (PI) codes are on the same frequency:

26,27. USB/ SD/MMC MINNESKORT

JOHDOTUKSET

Diagram of a device with an open box and internal components, no visible text or symbols

4. TALLENNETUT ASEMAT (1,2,3,4,5,6)

INSTRUKCJA OBSŁUGI

4. STACJE WSTĘPNIE USTAWIANE (1, 2, 3, 4, 5, 6)
