CAD-495 - Car radio DENVER - Free user manual and instructions

Product Type	Car Stereo
Brand	Denver
Model	CAD-495
Dimensions	1-DIN (approx. 180 x 50 x 160 mm)
Weight	Approx. 0.5 kg
Power Supply	12V DC (negative ground)
Max Power Output	4 x 50W (peak)
Radio Bands	FM (87.5-108 MHz), AM (530-1710 kHz)
Playback Media	CD, CD-R/RW, MP3 via USB
Audio Inputs	AUX 3.5mm, USB front
Audio Outputs	4-channel speaker outputs, RCA pre-outs (2 pairs)
Bluetooth	Not available
Display	LCD, monochrome, with backlight
Remote Control	Included (wired IR remote)
Maintenance	Clean with dry cloth; avoid liquids; keep vents clear
Safety	Use only 12V negative ground; consult professional for installation
Spare Parts / Repairability	Replaceable fuse (type ATO 10A); contact Denver for service
General Information	ISO connector; detachable face (optional); user manual available in PDF

Frequently Asked Questions - CAD-495 DENVER

What power supply does the Denver CAD-495 require?

The Denver CAD-495 requires a 12V DC power supply with negative ground. Incorrect voltage may damage the unit.

Does the CAD-495 have Bluetooth?

No, the Denver CAD-495 does not have Bluetooth. It supports radio, CD, USB, and AUX input.

What file formats are supported via USB?

The USB port supports MP3 files. Make sure your USB drive is formatted in FAT32.

Can I play CDs burned from my computer?

Yes, the unit plays CD-R and CD-RW discs. Use high-quality discs and burn at slow speed for best compatibility.

How do I install the Denver CAD-495?

Installation requires standard 1-DIN slot. Connect wiring harness according to the manual: constant power, ignition, ground, speakers. Use ISO connectors if available.

What is the maximum power output?

The maximum peak power output is 4 x 50W. RMS power is typically lower, around 4 x 15W.

Does the radio have a detachable face?

The Denver CAD-495 has a detachable front panel (optional) for theft prevention. Remove by pressing the release button.

What type of fuse does the unit use?

It uses a standard ATO 10A blade fuse. Replace only with same rating.

Can I connect an amplifier or subwoofer?

Yes, it has 2 pairs of RCA pre-outs (front and rear) for connecting external amplifiers.

How do I clean the device?

Use a soft, dry cloth to clean the surface. Avoid liquids or abrasive cleaners. Keep ventilation slots unobstructed.

USER MANUAL CAD-495 DENVER

WITH PLL FM STEREO RADIO

RDS

USB / SD / MMC CARD INPUT

DETACHABLE FRONT PANEL

LOCATION OF PARTS AND CONTROLS

1. POWER ON/OFF ()
2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/CD MULTI/BEEP/SEEK/STEREO/LOCAL
3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/CD MULTI/BEEP/SEEK/STEREO/LOCAL
4. PRESET STATIONS (1,2,3,4,5,6)
5. 'AF' function (ALTERNATIVE FREQUENCIES)
6. 'TA' function (TRAFFIC ANNOUNCEMENT)
7. 'PTY' function (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE BUTTON (MD)
10. BAND BUTTON (BAND)
11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR NREQ DOWN) / CD TRACK/SEARCH BUTTON
12. AUTO SEEK SEARCH TUNING (A/PS)
13. 'SCAN' AUTOMATIC TUNING CONTROL (SCN)
14. LCD DISPLAY
15. PANEL RELEASE BUTTON ( )
16. CD SLOT
17. CD EJECT BUTTON ( )
18. PAUSE BUTTON
19. INTRO BUTTON (Preview all Tracks)
20. REPEAT BUTTON
21. RANDOM BUTTON
    22, 23. + 10 TRACK SEARCH DOWN/UP
22. USB PORT
23. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
24. RESET BUTTON

ISO CONNECTOR

RCA Line Out: Red (right) White (left)

Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

INSTALLATION

PRECAUTIONS

- Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

- Use only the supplied mounting hardware for a safe and secure installation.

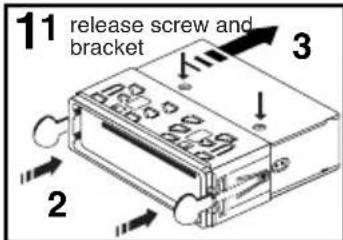

- Be sure to remove the front panel before installing the unit.

NOTE : Inclination angle for car radio installation must not exceed 30° otherwise the front panel will not open.

Diagram of two electronic devices with a cable being inserted into one (no text or symbols visible)

Note: Keep the release key in a safe place as you may need it in future to remove the unit from the car.

TO SUPPORT THE UNIT

1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

DETACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the OFF button first. Then press the button (15) and detach the panel by pulling it towards you as illustrated.

Note:

Be sure not to drop the panel when detaching it from the unit.

Notes:

• Make sure that the front panel is the right way up when attaching it to the unit as it cannot be attached upside down.
• Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

OPERATION

1. POWER ON/OFF () ⏻

By pressing this key, the unit is on or off. This unit is turned on by pressing any key

2,3. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/CD MULTI/BEEP/SEEK/STEREO/LOCAL (SEL)

Turning the VOL knob Right or Left (3), you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions, press the VOL (3) knob shortly until the desired functions is shown on the display. Figure 1 shows how control functions are selected using the VOL knob.

Fig. 1 Selection of sound control functions

1. VOL

2. SEL

3. BAS

4. TRE

5. BAL

6. FAD

Turning the VOL knob Right or Left. Increase or decrease the volume by turning to adjust the BASS, TREBLE, BALANCE and FADER.

or VOL. These buttons can be used

TA SEEK/TA ALARM (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

TA SEEK Mode or TA ALARM mode is selected by

- TA SEEK mode:

When newly turned station does not receive TP information for 5 sec., the radio retunes to next station which has not the same station (PI) as the last station, but has the TP information.

In TA seek mode, the current station can be changed to the completely different station because the unit searches TP station when the field strength of the current station is very weak, or the current station has no TP signal.

- TA ALARM mode:

Any automatic retune mode is not activated, just can hear Beep sound.

MASK DPI (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

MASK DPI: masked only the AF which has different PI.

MASK ALL: masked the AF which has different PI and NO RDS signal with field strength.

RETUNE L / S CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting Retune mode.

RETUNE L: Select 90 seconds as the initial time of automatic TA search.

RETUNE S: Select 30 seconds as initial time.

AUDIO DSP CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

LOUDNESS CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

LOUD ON/OFF mode is selected by or VOL. The bass and treble response will be boosted.

MULTI CD SECTION MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

CD MULTI ON/OFF mode is selected by section only. or VOL. CD MULTI ON: Read multi section CD. CD MULTI OFF: Read first

BEEP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

BEEP ON: BEEP sound can be heard from speaker when the buttons are pressed.

SEEK MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button.

SEEK 2: Auto SEEK SCAN is not stopped even station is detected if user push SEEK button. When release this SEEK button, then stop when station is detected.

STEREO/MONO (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

When FM stations are weak and are disturbed, listening can be improved by selecting MONO.

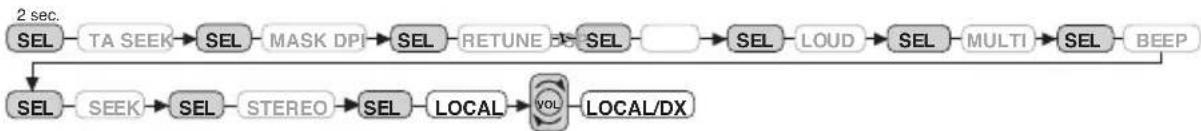

LOCAL/DX (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

"Local" position in areas with strong signals to let radio stop at only strong stations during manual tuning (LOC appears). Select Distant position in areas with weak signals to listen to all stations.

4. PRESET STATIONS (1,2,3,4,5,6)

(A) RADIO MODE:

When pressed shortly, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows:

PTY music group ---- PTY speech group ---- OFF

MUSIC SPEECH

1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO
2. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA
3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED
4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN
5. NATION M, OLDIES 5. SOCIAL, RELIGION, PHONE IN
6. FOLK M 6. TRAVEL, LEISURE, DOCUMENT

(B) CD/MP3/WMA PLAYER MODE:

1. PAUSE 2. INT 3. RPT 4. RDM

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos.

In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. Test transmissions are being conducted in many other European countries. It is expected that RDS will be available in most Western European countries in the near future.

5. 'AF/REG' function (ALTERNATIVE FREQUENCIES)

When pressed shortly, AF/REG switching mode is selected.

When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When pressed long, it is activated as regional mode ON/OFF.

- Regional mode ON:

AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on, in LCD display.

- Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.

6. 'TA' function (TRAFFIC ANNOUNCEMENT)

When pressed shortly, it is activated as TA mode on or off

When TA mode is on and traffic announcement is transmitted

• When the unit is in CD/MP3 mode, it will switch to radio mode temporarily.
• If the volume level was under the threshold point, it will be raised to the threshold point.
• When TP station is received, TP segment is turned on in LCD display.

7. 'PTY' function (PROGRAM TYPE)

While selecting PTY type, its selection is implemented by preset buttons as described in preset key. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

8. DISPLAY (DISP)

Press DISP button to switch between display informations such as radio frequencies, clock, track and other informations depending on the playing MODE.

9. MODE BUTTON (MD)

By pressing this key, user can select. AUX/TUNER/CD-MP3/USB or MMC/SD mode.

10. BAND BUTTON (BAND)

Each band is toggled cyclically by pressing this key FM1---FM2---FM3.

11. AUTOMATIC OR MANUAL TUNING (FREQ UP ▶▶▶ OR FREQ DOWN ◀◀)

(A) RADIO MODE

When pressed shortly, these keys are operated as MANUAL tuning mode.

When pressed longer than 1 sec., they are operated as SEEK tuning mode.

When pressed shortly, they are operated as TRACK UP or TRACK DOWN mode.

When pressed longer than 1 sec., they are operated as CUE or REVIEW mode.

12. AUTO SEEK SEARCH TUNING (A/PS)

By pressing shortly, the radio searches for each preset station.

When field strength level is bigger than the threshold level of stop level, the radio is holding at that preset number for 5 sec. with releasing mute, and then searches again.

By pressing longer than 1 sec, and then 6 strongest stations are preset to the corresponding preset number. When AS operation is finished, the radio executes the preset scan.

13. 'SCAN' AUTOMATIC TUNING CONTROL (SCN)

This key is operated as RADIO SCAN. The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode.

14. LCD DISPLAY

The Liquid Crystal Display will display the current state of the unit.

15. PANEL RELEASE BUTTON

Press button and the right-hand part of the panel will be released.

CD/MP3/WMA CONTROL LOCATION OF PARTS

TRACK/SEARCH BUTTON (11)

FORWARD AND REVERSE TRACK SEARCH (or changing songs)

Press the SKIP button (or) during play to go to the desired track(song).

....REVERSE ....FORWARD

Press and hold the SKIP button (or) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume.

16. CD SLOT

17. CD EJECT BUTTON

Press the button to remove the CD.

18. PAUSE BUTTON

During "PLAY", press (18) 'PAU' button to "PAUSE". Press it again to resume play.

19. INTRO BUTTON (Preview all Tracks)

When this button is pressed, 'INT ON' indication is displayed and the first several seconds of each track of the disc are played. Press again to stop intro and listen to track.

20. REPEAT BUTTON

When this button is pressed, 'RPT ON' indication is displayed and play of the selected track will be continually repeated until the Track repeat mode is cancelled by pressing 'RPT' button again.

21. RANDOM BUTTON

When this button is pressed, 'RDM ON' indication is displayed and each track of the disc are played in random instead of normal progression. To cancel RANDOM mode, press 'RDM' button (21) again.

22, 23. 10 TRACK DOWN/UP SELECT: (In case of MP3/WMA files)

M5: 10 Track down / M6: 10 Track up

HOW TO SELECT MP3/WMA FILES

1. Searching Track:

• Press "A/PS", then searching track is activated.
• Press "VOL", then the first digit is blinking.
• With "VOL / VOL " knob, select first digit you want.
• Press "VOL", then the first digit is fixed and second digit is blinking.
• With "VOL / VOL " knob, select 2'nd 3'rd respectively.
• Then automatically the song you selected will start.

2. Searching File Name:

• Press "A/PS" twice, then file search is activated.
• Press "VOL", then the first directory is displayed.
• With "VOL / VOL " knob, you can select the directory you want.
• Press "VOL" again, then the directory is fixed and the first file name is displayed.
• With "VOL / VOL " knob, you can select the file you want.
• Press "VOL", then the song you selected will start.

3. Searching Character:

• Press "A/PS" 3 times, then character search mode is activated.
• Press "VOL" button, then "A" character is displayed.
• With "VOL / VOL " knob, you can select the letter you want.
• Press "VOL" key longer than 2 sec.
• The song which has same character you selected is displayed.
• With "VOL / VOL " knob, you can select the song you want.
• Press "VOL" key, then the song you selected will start.

Connecting it to Portable MP3 Player

24. USB Port

Using USB cable to connect Your Portable MP3 Player.

25. MULTI-MEDIA CARD (MMC) / SD CARD SLOT

Support MP3/WMA ID3 format music only.

\* IMPORTANT INFORMATION:

BECAUSE OF THE GREAT VARIETY OF PRODUCTS WITH USB, SD AND MMC CARD PORTS AND THEIR SOMETIMES QUITE MANUFACTURER-SPECIFIC FUNCTIONS WE CAN NEITHER GUARANTEE THAT ALL DEVICES WILL BE RECOGNIZED NOR THAT ALL OPERATING OPTIONS THAT ARE POSSIBLE IN THEORY WILL ACTUALLY WORK

26. RESET

Reset button is placed on the housing.

The reset button is to be activated for the following reason:

• Initial installation of the unit when all wiring is completed.
• All the function button do not operate.
• Error symbol on the display.

TECHNICAL SPECIFICATIONS

CD/MP3/WMA PLAYER SECTION

Signal to Noise Ratio > 60 dB

Channel Separation > 50 dB (1kHz)

Frequency Response 20Hz - 20 kHz

TUNER (FM)

Frequency range 87.5-108 MHz

Intermediate frequency 10.7 MHz

Sensitivity 2.8 μV

Stereo separation 30 dB

Signal to noise ratio 50 dB

Channel step 50 kHz

LINE-OUT

Output 1.5 V (max.)

Impedance 10k Ohm

LINE-IN

Frequency Response 20 Hz - 20 kHz

Sensitivity 775 mV

Impedance 20k Ohm

GENERAL

Power Supply 12V DC (10.8-15.6V allowable)

Speaker impedance 4 or 8 ohm

Output power 40W x 4CH

Fuse 10A

Note: Specification and the design are subject to possible modification without notice due to improvements.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.

The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

ALL RIGHTS RESERVED

COPY RIGHT DENVER ELECTRONICS A/S

www.denver-electronics.com
