Product Type	Exercise Bike (Indoor Cycling)
Brand	HMS Premium
Model	HP6513
Dimensions (L x W x H)	Approx. 100 x 50 x 130 cm
Weight	Approx. 30 kg
Power Supply	2x AA batteries (for console)
Resistance System	Magnetic, manually adjustable
Display Functions	Time, speed, distance, calories, pulse
Adjustable Seat	Yes, vertical and horizontal
Adjustable Handlebars	Yes, vertical
User Weight Capacity	120 kg
Pedals	With toe cages
Transport Wheels	Yes
Heart Rate Monitor	Hand grip sensors
Maintenance	Clean with damp cloth; periodically tighten bolts and lubricate chain
Safety	Do not exceed 120 kg; ensure stable surface; keep children away during use
Spare Parts Availability	Through HMS Premium or authorized retailers
Warranty	Standard 2 years (verify at purchase)

Frequently Asked Questions - HP6513 HMS Premium

How do I assemble the HP6513 exercise bike?

Refer to the included manual. Typically, you attach the stabilizers, seat post, handlebars, pedals, and console. Use the provided tools and tighten all bolts securely.

What is the maximum user weight?

The maximum user weight is 120 kg. Do not exceed this limit for safety.

How can I adjust the resistance?

Turn the resistance knob located on the main frame near the handlebars. Rotate clockwise to increase resistance and counterclockwise to decrease.

Why is my bike making noise?

Check that all bolts are tight. Lubricate the chain and moving parts with a silicone spray. Ensure the bike is on a level surface.

How do I replace the batteries in the console?

Locate the battery compartment on the back of the console. Remove the cover, replace the two AA batteries, and reattach the cover.

What do the display readings mean?

The console shows time, speed, distance, calories burned, and heart rate (if using hand grips). These readings are estimates.

Is the seat adjustable?

Yes, the seat can be adjusted vertically and horizontally. Loosen the knobs, slide the seat to the desired position, and tighten securely.

How do I clean and maintain the bike?

Wipe the frame and console with a damp cloth. Do not use harsh chemicals. Periodically check and tighten bolts, and lubricate the chain.

Can I use the bike if I have a pacemaker?

Consult your doctor first. The hand grip pulse monitors are generally safe but may interfere with some medical devices.

Where can I buy spare parts like pedals or a seat?

Contact HMS Premium customer support or visit their website. Spare parts are available through authorized retailers.

USER MANUAL HP6513 HMS Premium

Line drawing of an exercise bike with rotating wheel and side-mounted sensors (no text or symbols)

HP6513

www.hms-fitness.pl

Simple L-shaped metal angle bracket diagram (no text or symbols)

Klucz Imbusowy S8

Klucz S13-S17-S19

Narzędzia:

Simple line drawing of a hammer or stylus with no text or symbols

ROZCIĄGANIE MIĘŚNI ŁYDEK/ŚCIEGIEN ACHILLESA

Read all precautions and instructions in this manual before using this equipment.

BEFORE YOU BEGIN

Thank you for selecting brand HMS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

IMPORTANT SAFETY NOTICE

This product is intended only for home use and has been designed to ensure optimal safety. The following rules shall be obeyed:

1. Before starting your workout, consult your physician to check if there are any reasons preventing the use of this fitness equipment. The doctor's decision is required if you take medicines that affect your heart work, blood pressure and levels of cholesterol. It is also necessary in the case of persons aged over 35 and people with health problems.
2. Always do your warm-up before training.
3. During exercise and after its completion the training equipment should be protected from children and animals.
4. The equipment shall be placed on dry, stable and properly levelled surface. All sharp objects shall be removed from its direct

vicinity. The equipment should be protected from humidity. Possible surface irregularities should be levelled. It is recommended to use

special anti-slip base to prevent the equipment workout.

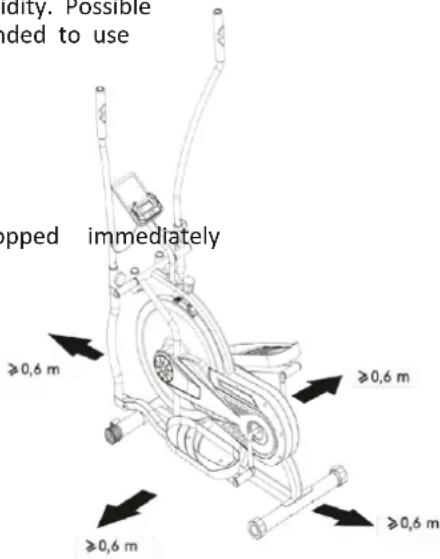

1. Free space should not be smaller than 0.6 m and greater. worrying signals. Incorrect or excessive exercising means headache or dizziness, chest pain, irregular heart rhythm symptoms appear during training, the workout shall be stopped and a doctor shall be consulted. Incorrect or overlead to traumas.
2. than the training space available in directions of the accessibility. Free space must also include space for different pieces of equipment are located side by side, can be divided.
3. Before the first use, and later at regular intervals, bolts and other joints shall be checked.
4. Before starting your exercise, check fixing of parts and Workout can be started only if the equipment is fully
5. The equipment shall be regularly checked for wearing-out and damages. Only then will it fulfil safety requirements. Special attention shall be paid to foam grips, caps on legs and upholstery, which are all fast wearing parts. Damaged parts shall be immediately repaired or replaced. Until then, the training equipment cannot be used.
6. Do not put any elements into openings.
7. Pay attention to protruding adjustment devices and other structural elements that might hinder exercise.
8. The equipment can only be used according to its intended purpose. If any parts wears out or is damaged, or if you hear worrying sounds when using the equipment, you should immediately stop exercising. Do not use the equipment again until the problem is removed.
9. Wear comfortable clothes and sport shoes for training. Avoid loose clothes that might catch protruding parts of the equipment or limit your mobility.
10. The equipment falls into class H according to standard EN ISO 20957-1 and is intended for home use only. It cannot serve therapeutic, rehab or commercial purposes.
11. When lifting or moving the equipment, maintain correct posture to avoid spine injuries.
12. The product is intended for adults only. Keep children without supervision away from the equipment.
13. During installation, follow closely the attached manual instruction and use only such parts that have been included in the package. Before installation, check if all parts from the list are included in the package.
    Pay attention to health hazard. If or other worrying
    intensive training can
    equipment emergency quitting. If the size of free space
    tightness of all screws,
    joints between them. operational.

Technical data:

displacement during

Max user weight: 110 kg

Net weight: 30 kg; Gross weight: 32 kg Dimensions – 923*613*1326 mm

WARNING: READ THE INSTRUCTION BEFORE USING THE EQUIPMENT.

WE ARE NOT RESPONSIBLE FOR INJURIES OR DAMAGES TO OBJECTS CAUSED BY INCORRECT USE OF THE PRODUCT

MAINTENANCE: No aggressive cleaning agents shall be used to clean the equipment. Use a soft, wet cloth to remove dirt and dust. The equipment shall be kept in dry places and protected from humidity and corrosion.

No.	Description	Qty
01	Main Frame	1
02	Computer Post	1
03	Left Handrail Arm	1
04	Right Handrail Arm	1
05	Left Handrail	1
06	Right Handrail	1
07	Left Foot Bar	1
08	Right Foot Bar	1
09	Front Stabilizer ∅50	1
10	Rear Stabilizer ∅50	1
11	Left Foot Pedal	1
12	Right Foot Pedal	1
13	Left Cover	1
14	Right Cover	1
15	Hexagon Nut M10	2
16	Plug 30*30	2
17	Flat Washer ∅8×∅16×1.5	2
18	Nylon Nut M8	4
19	Computer	1
20	Extension Sensor Wire L=450mm	3
21	Wire Plug ∅ 12	5
22	Cross Pan Head Screw M5×10	2
23	Hexagon Bolt M8×30	2
24	Handrail Arm End Cap ∅25	6
25	Handrail Arm Foam Grip ∅ 24×∅ 35×280	2
26	Plastic Bushing ∅ 32×1.5	2
27	Hexagon Bolt M10×20	2
28	Spring Washer ∅ 19.5×∅11.5×2.5	2
29	Washer ∅ 28×∅ 16×δ5	2
30	Bushing ∅ 28×∅ 16×16	10
31	Wave Washer ∅ 26×∅ 16×δ0.3	2
32	Handrail Arm Adjustable Knob M8	2
33	Hexagon Bolt M10×50	2
34	Plug ∅ 32	2
35	Spacer Bushing ∅ 18×∅ 14×∅ 10×10	4
36	Flange Nut M10×P1.0	4
37	Eyebolt M6×36	4
38	U-shape Bracket	4
39	Spring Washer ∅ 6	8
40	Nut M6	4
41	Cross Pan Head Screw M6×10	5
42	Left Cover for Flywheel ∅ 490	1
43	Hexagon Nut M10×P1×5	4
44	Circlip Φ10	4
45	Bearing 6000Z	4
46	Flywheel ∅ 415×55	1
47	Axle Sleeve	1
48	Right Cover for Flywheel ∅ 490	1
49	Hexagon Bolt M6×15	4
50	Belt Pulley with crank ∅ 170	1
51	Gear	1
52	Axle Φ10×140	1
53	Belt PJ390/J5	1

No.		Description	Qty
54		Chain	1
55		Hexagon Flat Nut 7/8"	1
56		Washer ∅ 35×2	1
57		Puller Bushing 15/16"	1
58		Bearing Φ44.5	2
59		Bearing Bush ∅ 55.6×16	2
60		Puller Bushing 7/8"	1
61		Flat Washer ∅ 40×2.8	1
62		Chain Pulley with Crank ∅ 165	1
63	Left Pedal Hinge Bolt		1
64		Right Pedal Hinge Bolt	1
65		End Cap for Main Frame	2
66		End Cap for Front Stabilizer ∅ 50	2
67		Hexagonal Bolt M6×45	2
68		Movable Wheel∅ 22×∅ 6.5×30.5	2
69		Bolt M10×56	4
70		Curve Washer ∅ 10×∅ 20×2.0	4
71		Cap Nut M10	4
72		End Cap for Rear Stabilizer ∅ 50	2
73		Sensor L=350mm	1
74		Cross Pan Head Self-tapping Screw ST2.9×9.5	2
75		Sensor Wire L=500mm	1
76		Hexagon Bolt M8*50	4
77		Spring Washer 1/2"	2
78		Crank Cover ∅ 60	2
79		Cross Pan Head Tapping Screw ST4.2×20	6
80		Cross Countersunk Head Tapping Screw ST4.2×20	2
81		Rotation Rod	1
82		Left Nylon Nut	1
83		Right Nylon Nut	1
84		Cross Pan Head ScrewM5×10	5
85		Nylon Nut M5	5
86		Nylon Nut M6	6
87		Cross Countersunk Head Self-drilling Tapping Screw ST4.2×20	2
88		Flat Washer ∅ 5×∅9×0.8	2
89		Handpulse Sensor with Wire L=1100mm	2
90		Curve Washer ∅ 22×∅ 17×0.3	2
91		Flat Washer ∅ 10×∅ 25×2.0	2
92		Induced Magnet ∅18	1

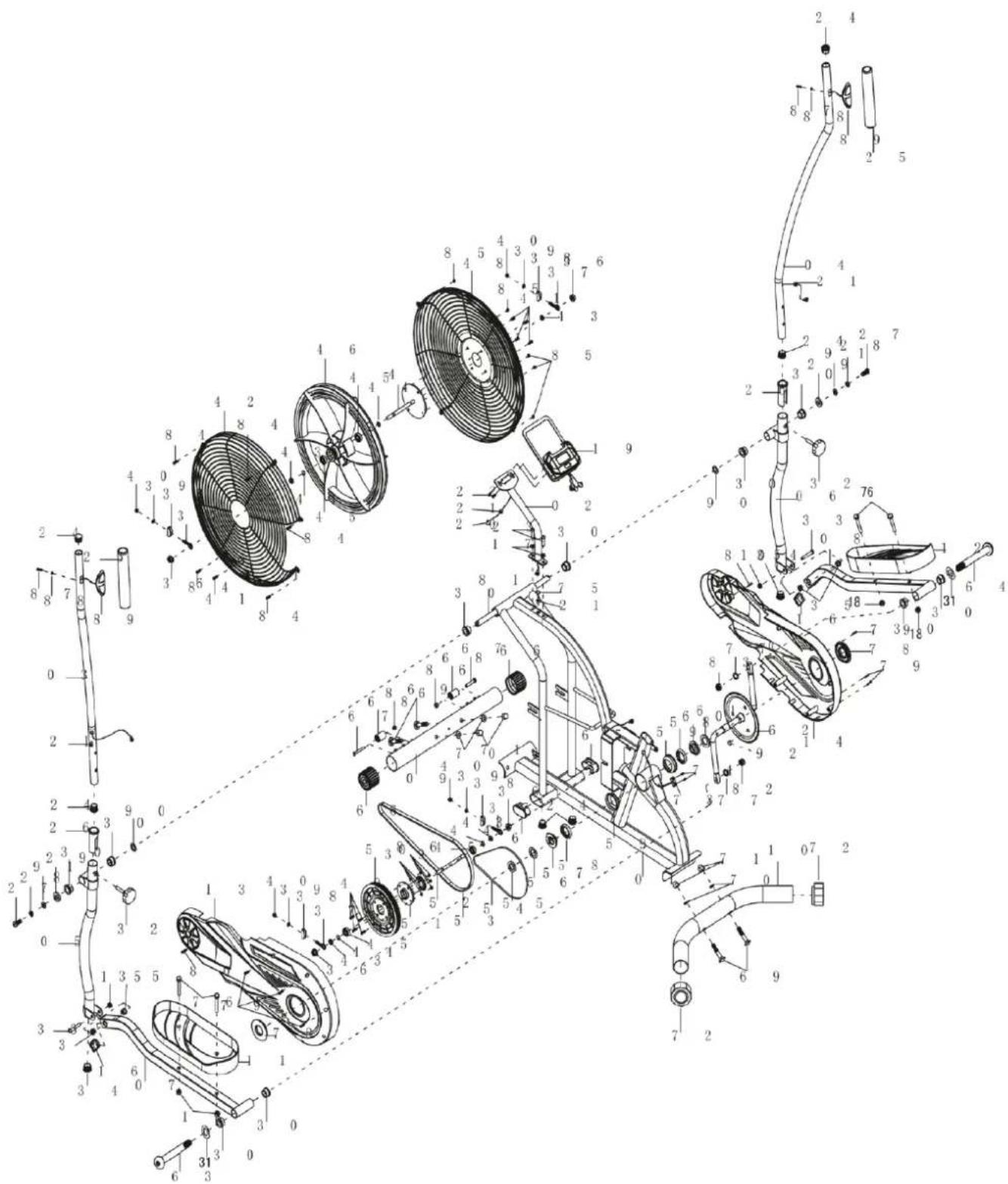

EXPLODED DRAWING

Tool:

Spanner S13-S17-S19

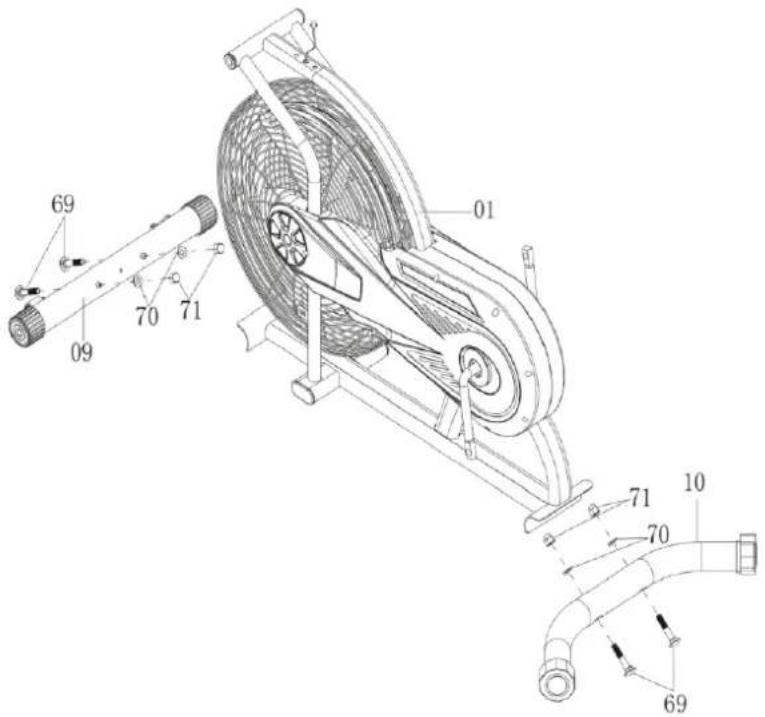

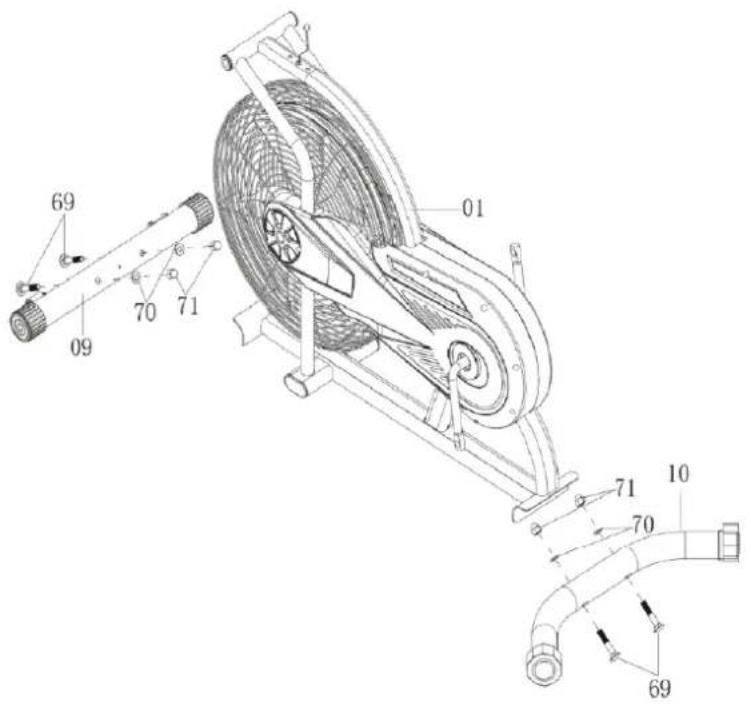

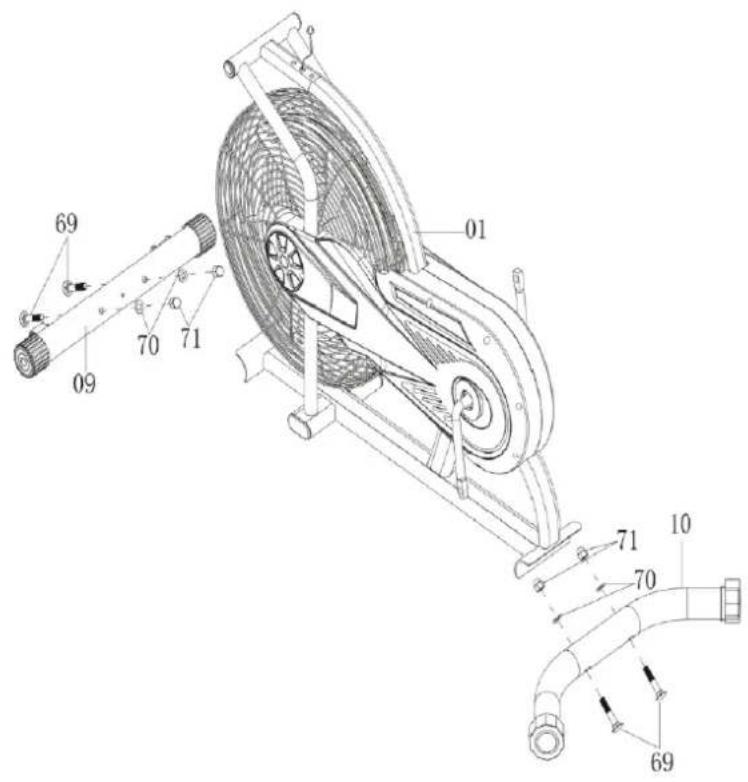

1. Front and Rear Stabilizers Installation

Attach the Rear Stabilizer (10) onto the Main Frame (1) with two M10 Cap Nuts (71), two ∅ 10× ∅ 20×2.0 Curve Washers (70) and two M10×56 Bolts (69). Tighten with the Spanner provided. Attach the Front Stabilizer (9) onto the Main Frame (1) using two M10 Cap Nuts (71), two ∅ 10× ∅ 20×2.0 Curve Washers (70) and two M10×56 Bolts (69). Tighten with the Spanner provided.

Tool:

Allen Wrench S6 2PCS

Spanner S13-S17-S19

Allen Wrench S8

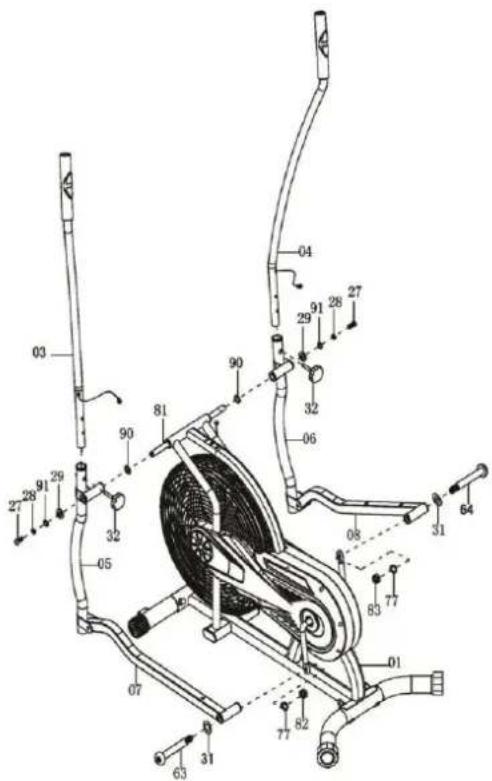

2: Left and Right Foot Pedals, Left and Right Foot Bar, Left and Right Handrail Arm Installation

Remove two M10×20 Hexagon Bolts (27), two ∅ 19.5×∅11.5×2.5 Spring Washers (28), two ∅

25×∅20×2.0 Flat Washer (91 (, two ∅28×∅ 16×δ5 Washers (29), and two ∅ 22×∅ 17×δ0.3 Wave Washers (90) from the Rotation Rod (No. 81).

Insert the Rotation Rod (81) into the hole of the Main Frame (1). Attach two ∅ 22×∅ 17×δ0.3

Wave Washers (90) onto the Rotation Rod (81), then attach L & R Handrails (5)(6) onto the Rotation Rod (81) using two M10×20 Hexagon Bolts (27), two ∅ 19.5×∅11.5×2.5 Spring

Washers (28) (two 25× 20×2.0 Flat Washer (91) (and Two 28× 16× 5 Washers (29).

Tighten with Allen Wrench provided.

Attach the Left Foot Bar (07) onto the Main Frame (01) using one Curve Washer (31), one Spring Washer (77) and Left Nylon Nut (82).

Attach the Right Foot Bar (08) onto the Main Frame (01) using one Curve Washer (31), one Spring Washer (77) and Right Nylon Nut (83).

Tool:

3. Pedal Installation

Attach the Lefte Pedal (11) to Left Foot Bar (07) using two Hexagon Bolt (76) and two Hexagon Nut (18). Repeat the same procedure to assemble the Right Pedal.

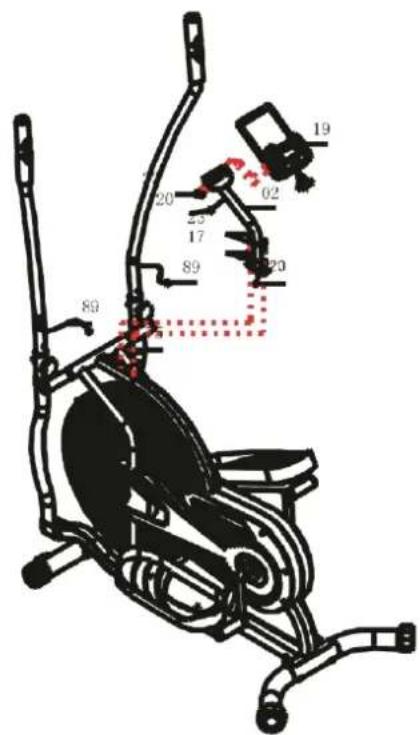

1. Computer Post And Computer Installation Connect the Wire (75) with Extension Sensor Wire (20).

Remove two 8×16×1.5 Flat Washers (17) and two M8×30 Hexagon Bolts (23) from the Computer Post (2). Attach the Computer Post (2) onto the Main Frame (1) with two 8×16×1.5 Flat Washers (17) and two M8×30 Hexagon Bolts (23). Tighten with the S6 Allen Wrench provided.

Connect the Extension Sensor Wire (20) with the wire of the Computer (19).

Remove two M5×10 Cross Pan Head Screws (22) from the Computer (19).

Then attach the Computer (19) onto the top end of Computer Post (2) use two M5×10 Cross Pan Head Screws (22). Tighten with the Spanner with Phillips Screwdriver provided.

Connect the Handpulse Sensor with Wire(89) with the computer(19).

Sensor

Functiona buttons:

MODE – Push down for selecting functions. If the long down MODE button down for resetting time, calories.

Functions and operations:

1. SCAN – press MODE buton until SCAN appears, rotate through al. 6 funtions: time, speed, distance, pulse. Each display will be hold 5 seconds.
2. TIME – count the total time from the beginning of its end.
3. SPEED – display current speed.
4. DIST – count the distance from the beginning of the end.
5. CALORIES – count the total calories from the beginning of the workout to its end.
6. ODO - count the total distance of all workouts.
7. PULSE – put your hands od the pusle sensors, press the MODE buton. After about 6-7 seconds, the current heart rate will be displayed on the monitor.

Tool:

Allen Wrench S6

Spanner with Phillips Screwdriver S13-S14-S15
time holds distance and
monitor will ODO, calories,
the workout to
workout to its

During the process of pulse measurement, because of the contact jamming, the measurement value may be higher than the virtual pulse rate during the first 2\~3 seconds, then will return to normal level. The measurement value can not be regarded as the basis of medical treatment.

SPECIFICATION:

FUNCTION	AUTO SCAN	Every 5 seconds
	TIME	00:00'~99:59'
	CURRENT SPEED	The maximum signal can be pickup is 999.9(ML)KM/H
	TRIP DISTANCE	0.0~9999 km
	CALORIES	0.0~9999 kCal
	ODO	0.0~9999 km
	PULSE RATE	40~240 BPM
BATTERY TYPE		2 pcs of AAA lub UM -4

NOTE:

1. If the display is faint of show no figures, please replace the batteries.
2. The display will automatically turn off after 4 minutes of inactivity.

3. The monitor automatically starts as soon as you start training.

4. The computer automatically starts counting all values at the beginning of the exercise. After 4 seconds, the calculation will be discontinued.

PROBLEM	SOLUTION
There is no display on the computer	1. Remove the computer console and verify the wire that comes from the computer console is properly connected to the wire that comes from the handlebar post.2. Check if the batteries are correctly positioned and battery springs are in proper contact with batteries.3. The batteries in the computer consol
The bike wobbles when in use	Przekręć zaślepkę tylnego stabilizatora na tylnym stabilizatorze odpowiednio do poziomu rowerka.
The bike makes squeaking noise when in use.	Być może obluzowały się śruby. Sprawdź wszystkie śruby i dokręć obluzowane.

The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.

COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired muscles. The purpose of cooling down is to return the body to its resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart.

HEAD ROLLS

Rotate your head to the right for one count, you should feel a stretching sensation up the left side of your neck. Then rotate your head back for one count, stretching your chin to the ceiling and letting your mouth open. Rotate your head to the left for one count, then drop your head to your chest for one count.

SHOULDER LIFTS

your right shoulder.

Lift your right shoulder toward your ear for one count. Then lift your left shoulder up for one count as you lower

SIDE STRETCHES

Open your arms to the side and lift them until they are over your head. Reach your right arm as far toward the ceiling as you can for one count. Repeat this action with your left arm.

QUADRICEPS STRETCH

With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot.

INNER THIGH STRETCH

TOE TOUCHES

Sit with the soles of your feet together and your knees pointing outward. Pull your feet as close to your groin as possible. Gently push your knees toward the floor. Hold for 15 counts.

HAMSTRING STRETCHES

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach as far as you can and hold for 15 counts.

CALF/ACHILLES STRETCH

Extend your right leg. Rest the sole of your left foot against your right inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax and then repeat with left leg.

Lean against a wall with your left leg in front of the right and your arms forward. Keep your right leg straight and the left foot on the floor; then bend the left leg and lean forward by moving your hips toward the wall. Hold, then repeat on the other side for 15 counts.

Simple line drawing of a trash bin with two crossed lines indicating prohibition (no text or symbols)

1. The Seller provides guarantee on behalf of the Guarantor within the territory of the Republic of Poland for the period of 24 months from the date of sale.
2. The Guarantee will be recognised by the shop or service centre after the client provides:

- clearly and correctly filled-in guarantee card with the sale stamp and the seller's

signature - valid purchase confirmation for the equipment including the date of sale / bill /

- complained product.

1. Possible defects and damages revealed during the guarantee period shall be remedied free of charge within not more than 21 days from the delivery of the product to the shop or service.
2. Should it be necessary to import some components, the guarantee term can be extended by the period required to import such part, however such period shall not be longer than 40 days.

3. The guarantee does not cover:

4. mechanical damages and subsequent defects,

5. damages and defects resulting from incorrect storage and usage of the equipment against its purpose, - incorrect assembly and maintenance,

6. damages and consumption of such elements as: cables, straps, rubber parts, pedals, sponge grips, wheels, bearings, etc.

7. The guarantee expires in the event of:

8. expiry of the validity term,

9. self-repairs,

10. failure to follow the rules of correct operation.

11. No duplicates of the guarantee cards shall be issued.

12. The product handed over for repair should be complete and clean. If some parts are missing, the service is entitled to refuse to accept the product for repair. The service may refuse to accept a dirty product or clean in on the client's expense after the client's written permit.
13. The guarantee does not cover activities related to assembly, maintenance, which, according to the instruction, the user is obliged to perform themselves.
14. The Guarantor also informs that they offer post-guarantee service.
15. The product should be provided in its original packaging and should be secured for shipment.

The guarantee for sold goods is not exclusive, does not limit or suspend entitlements of the buyer resulting from the non-compliance of the product with the agreement.

THE EQUIPMENT IS NOT INTENDED FOR REHABILITATION AND THERAPY

NOTES ON THE COURSE OF REPAIRS

Item	Date of notificacion	Date of provision	Course of repairs	Signature of the recipient (shop, owner)

Even though we do our best to ensure the highest quality of our products, single defects or omissions might occur. If you note a defect or missing part, we invite you to contact us.

Labelling the product with a symbol of a crossed waste container informs us that the worn-out electrical and electronic equipment cannot be put into the same container as other waste. According to the WEEE Directive on the management of electrical and electronic waste, separate recycling methods shall be used for this type of equipment.

A user who wants to dispose of such product is obliged to transfer it to the collection centre for worn-out electrical and electronic equipment, thanks to which they support its re-usage, recycling or recovery and thusly protect natural environment. For this purpose, one should contact the equipment seller or representatives of local authorities. Hazardous components contained in electronic equipment may have long-lasting harmful impact on natural environment as well as adverse effect on human health.

Název produktu:

EAN kód:

Datum prodeje:

ZÁRUČNÍ PODMÍNKY

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)
