Product Type	Stick Vacuum Cleaner 2 in 1 (Handheld or Stick)
Brand	Gallet
Model	ASP 612
Dust Container Capacity	0.8 L
Power Input	600 W
Power Cord Length	7 m
Noise Level	76 dB(A)
Filtration System	HEPA filter
Accessories Included	Crevice nozzle, brush
Floor Nozzle	Suitable for carpets (low pile) and hard floors; brush retractable
Swivel Connector	Yes
Vertical Resting Position	Yes
Cord Retainer	Yes
Filter Maintenance	Clean micro-filter regularly; replace HEPA filter annually or when damaged
Power Consumption in Off Mode	0.00 W
Intended Use	Household use only
Warranty	Manufacturer warranty; improper use or non-original filters void warranty
Reparability	Contact authorized service; no user-serviceable parts inside

Frequently Asked Questions - ASP 612 Gallet

How do I assemble the vacuum cleaner for stick mode?

Insert the vacuum cleaner body into the floor nozzle until it clicks. Then attach the handle and tighten the screw. For handheld mode, simply detach the body and use directly.

How do I empty the dust container?

Press the dust bin arrest button (A2) and pull the container off. Hold it over a trash bin and empty contents. For hygiene, empty outdoors. Clean the container and filters every 5 empties.

Can I wash the HEPA filter?

The HEPA filter (A7) and filter protector can be cleaned in lukewarm water with a soft cloth or brush. Let them dry completely before reinserting. Do not use hot water or aggressive cleaners. Replace the filter annually.

What should I do if suction power drops?

First check if the dust container is full. Then inspect the filter and filter protector for clogs. Also ensure the accessories (nozzle, tube) are not blocked. Empty or clean as needed.

Can I vacuum liquids with this vacuum?

No. Do not vacuum wet or moist surfaces. Moisture can damage the motor and void the warranty. This vacuum is for dry use only.

How do I store the vacuum cleaner?

Store in a dry, dust-free place away from heat sources and out of reach of children. Wind the cord around the hooks on the bottom. Retract the brush on the floor nozzle to prevent bristle bending.

Is the vacuum suitable for pet hair?

The manual advises not to use the brush for pet hair treatment. However, you can vacuum pet hair from floors using the floor nozzle. Avoid using the brush accessory on pets.

What safety precautions should I follow?

Unplug before cleaning or maintenance. Do not use near water, with wet hands, or outdoors. Keep children under 8 away. Do not vacuum sharp objects, hot ashes, or flammable materials. Replace damaged cord immediately.

Can I use extension cords?

If necessary, use an undamaged extension cord that complies with valid standards. Ensure the total load does not exceed the extension cord's rating.

Where can I find spare parts?

Only use original spare parts and accessories approved by the manufacturer. Contact an authorized service center for replacements, especially for filters.

USER MANUAL ASP 612 Gallet

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

ASP 612 Evreux

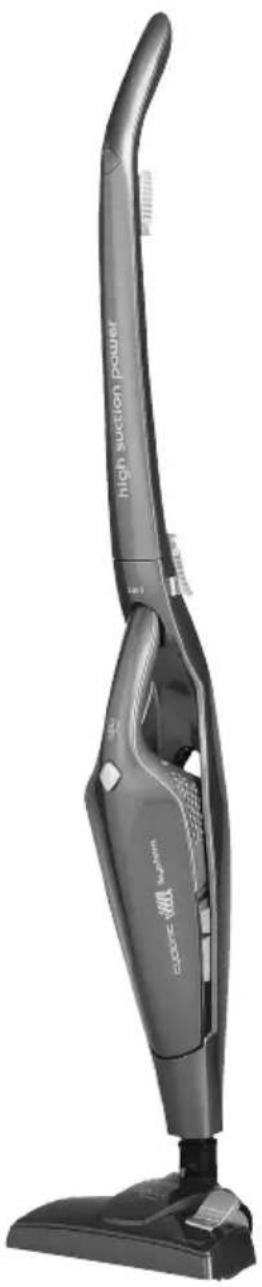

Black high suction power vacuum cleaner with extended arm and base (no visible text or symbols)

1

Illustration of a hand holding a car seat with arrows indicating motion (no text or symbols)

Line drawing of a hand holding a mechanical device with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

NÁVOD K OBSLUZE

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNINGS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your electric power socket.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its adaptor.

- Never use the appliance if the power cord is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

-Do not put the suction hole of the vacuum cleaner or the accessories close to your eyes and ears and do not insert them into any body orifices!

- Never use the vacuum cleaner with wet hands or feet!

- Vacuum cleaning of some carpet types may result in generating static electricity. No static electricity discharge is dangerous to health.

- Never leave the product unattended when in operation!

- Never immerse the motor part of the vacuum cleaner into water (even partially) and protect them against humidity!

- Never vacuum without a properly inserted filtration system and filters.

- Do not vacuum wet or moist floor coverings, do not use the vacuum cleaner for outdoor areas! When moisture gets into the aggregate, there is a risk of its damage and disabling it. This defect is not covered by the warranty.

- Do not use the brush for treatment and cleaning animal hairs!

- It is not allowed to modify the surface of the appliance in any way (e.g. using a selfadhesive wallpaper, foils, etc.)!

- The vacuum cleaner is not suitable for vacuuming substances that can harm human health.

- When handling, do not applying excessive force and avoid rough handling of the vacuum cleaner!

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents). Vacuuming these objects may lead to damage of the dust filters or the vacuum cleaner.

- Before you start using the vacuum cleaner, please check that all the locking mechanisms are in the right position.

- Do not put fingers or other things to input and output vents of the appliance. If the vents/elements for air flow are blocked (e.g. nozzle), turn the appliance off and remove the cause of blocking completely.

- Make sure that the power cord does not hang freely over an edge of a working table where children could reach it.

- Pores of the micro filters may be clogged when vacuuming very fine dust. Thus, air permeability will be reduced and the suction performance will drop. In this case, micro-filters have to be cleaned before the container is full. Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc. If this dirt / loose construction materials / loose construction materials into the aggregate, it poses a danger of damage. The warranty repair does not cover this.

- Always switch off the vacuum cleaner first and disconnect the power cord from power supply and only then empty the dust container, clean/replace micro-filters, clean the vacuum cleaner or its accessories.

- Never leave the vacuum cleaner exposed to weather conditions (e.g. rain, frost, direct sun radiation, etc.).

- When taking the plug from the electric socket, never pull the power cord.

- Do not run over the power supply cord when using the vacuum cleaner and do not unplug it from the socket by pulling the power cord.

- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories that are approved by the manufacturer.

- Never use the appliance for any other purpose than for the intended one described in these instructions for use!

- WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with. Failure to replace or maintain all filters regularly according to the instructions in Chapter IV., V. and also using non-original filters, the properties of which resulted in failure or damage of the vacuum cleaner, is also understood to be improper use of the appliance.

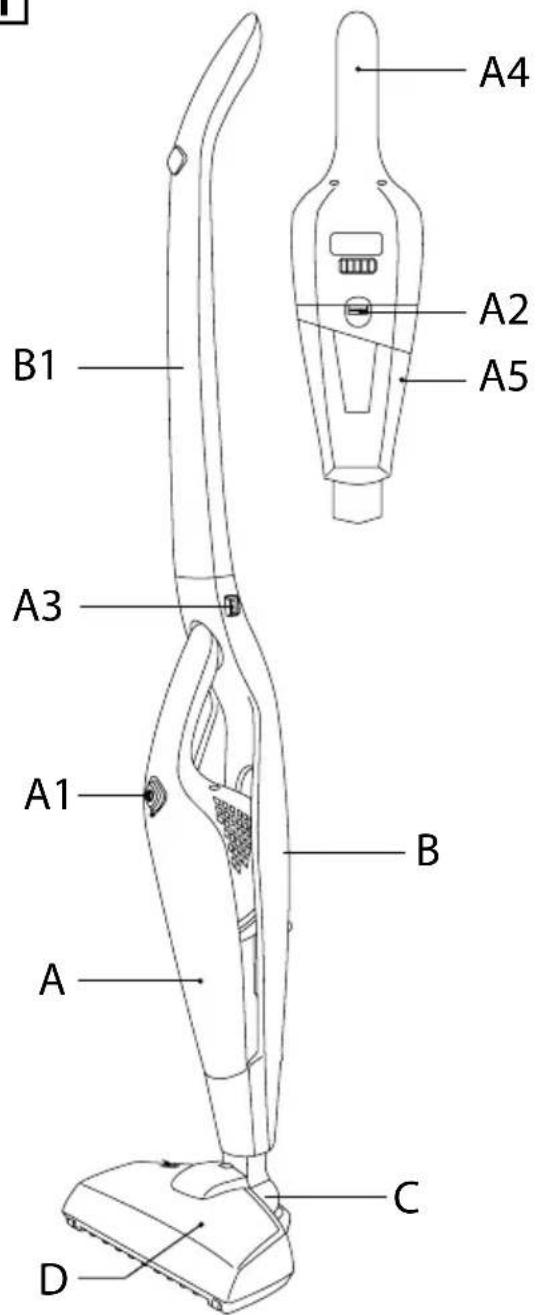

II. EQUIPMENT AND ACCESSORIES (Fig. 1)

A - vacuum cleaner

A1 – ON/OFF switch A5 – dust bin

A2 – dust bin arrest A6 – filter protector

A3 – hand cleaner arrest button A7 – HEPA filter

A4 – handle

B – rod vacuum cleaner body

B1 – handle

C - swivel connector

D - floor nozzle

E - accessory

E1 – short slit nozzle E2 – brush

III. VACUUM CLEANER PREPARATION

Remove all packing material, take out the vacuum cleaner and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance.

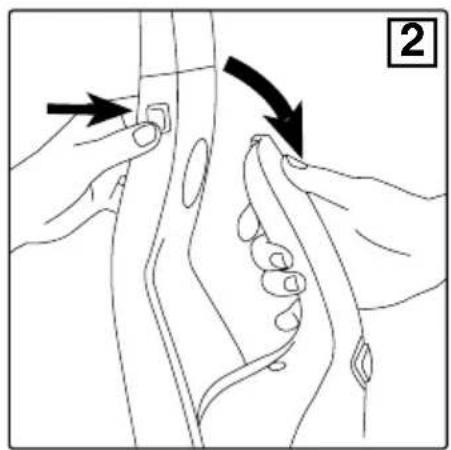

Fixing vacuum cleaner into adapter

Put vacuum cleaner A to cleaner body B with the suction vent and then tilt the vacuum cleaner to the aperture to the maximum position (you will hear a snapping sound). After taking the vacuum cleaner from the body you have to push lock button A3 and then to pull the vacuum cleaner out (Fig. 2).

Floor nozzle

Slide the nozzle D into the vacuum cleaner body B all the way (you'll hear an audible clack).

Assembling handle

Connect the handle into the cleaner body, insert and tighten the screw.

Slit nozzles, brush

Slide the selected accessory E all the way into the opening in the dust bin A5. Take the attachment off reversely. The accessory can be used only with this vacuum cleaner.

IV. USE OF VACUUM CLEANER

According to the selected cleaning activity, use either the vacuum cleaner alone and select accessory E or assemble the vacuum cleaner with an extension adapter and select accessory D. The floor nozzle D is intended for vacuuming carpets with low pile or smooth flooring. If the floor nozzle is fitted with a brush, pull it out by switching over a flap when vacuuming hard floorings. You can use crevice nozzle E1, for vacuuming places that are hard to access. In case of using the cleaner A without the body of the rod cleaner B, turn it on/off by switching the switch A1.

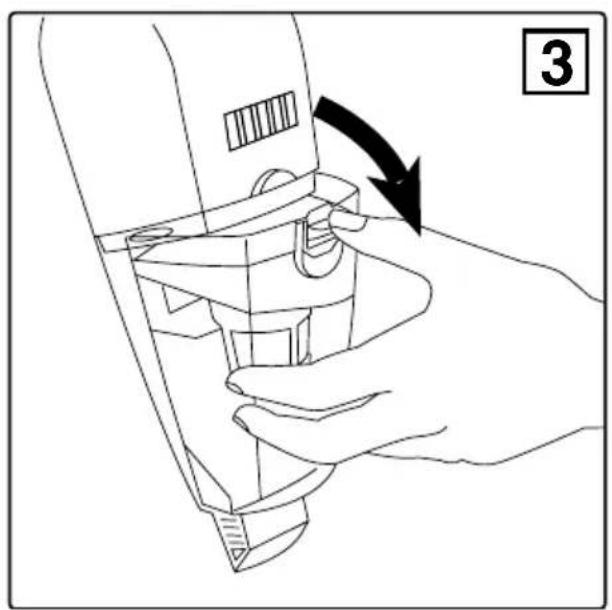

Emptying dust container

If you find out that the suction performance of the vacuum cleaner is reduced, make sure that the dust container is not full and if necessary, empty it. After pressing the dust bin arrest button A2, remove the container from the cleaner by pulling slightly (pic. 3). Pull out micro-filter E4 and filter protector E5 from the container, then place the container over a dustbin and empty it into common municipal waste. For sanitary reasons we recommend emptying the container outside residential premises.

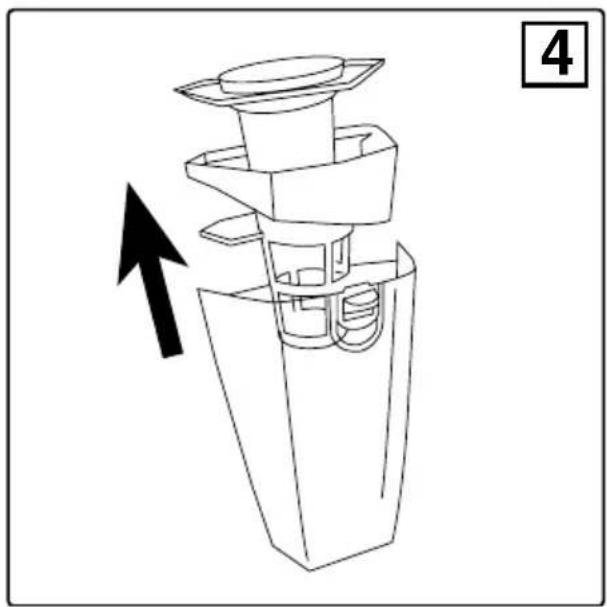

Cleaning dust container and cleaning filter

After the container has been emptied about 5 times, we recommend complete cleaning of the suction system from the settled dust. All parts (e.g. container, filter, filter protector) can be cleaned in running lukewarm water (e.g. using a cloth or a soft brush) and let to dry thoroughly. Re-assemble individual parts in the opposite direction after it is completely dry.

CAUTION

- Do not switch the vacuum cleaner on and off by unplugging the power cord from a socket. If the switch is in "ON" and the vacuum cleaner is leaning (e.g. against furniture, wall), the vacuum cleaner can fall and it can be damaged due to the aggregate (motor) moment.

- Never vacuum impurities without protective filters on.

- The maximum suction effect will be reached with a clean filter and an empty container.

- Do not use any aggressive washing or cleaning agents or hot water to clean the filter.

- The dust container is not resistant to cleaning in a dishwasher!

- Neglecting the micro-filter cleaning may lead to breakdown of the vacuum cleaner!

- Make sure that the contact surfaces and the sealing elements are functional.

- We recommend replacing the filter once a year or when it cannot be cleaned properly or if it is damaged.

- The nozzle in this model is not suitable for use on carpets.***

V. MAINTENANCE

Unplug the battery charger from the power supply before any maintenance. Store the vacuum cleaner at a dry place, far enough from heat sources (e.g. fireplace, stove, heating element) and protect it against weather conditions (e.g. rain, sunshine). Treat the surface of the vacuum cleaner (only when disconnected from the electric socket) with a soft and wet cloth, do not use abrasive and aggressive cleaning agents! Never dry plastic moldings over a heat source (e.g. heater, electric/gas stove). If the power cord becomes dirty, wipe it with a damp cloth. Wind the power cord to the hooks on the bottom part of the vacuum cleaner. When storing, always set the floor nozzle with the brush retracted, thus you will prevent bending of the bristles.

Floor nozzle, brush

After any vacuuming it is recommended to check visually the brushes or collectors for possible impurities. If there are some impurities, remove them.

Storage

Store the appliance thoroughly clean on a dry, dustless place out of reach of children and persons sui juris. Do not put the assembled rod vacuum cleaner on an uneven surface! The cleaner must be placed on a flat surface where there is no danger of knocking over.

VI. TROUBLESHOOTING

Problem Cause Solution
The container cannot be fixed to the vacuum cleaner	The parts of the filtration system not inserted properly in the container	Check/correct insertion of the protector and the micro-filter in the container
Suction output is not sufficient	Dust container fullClogged filter protectorClogged filterThe accessories are clogged	Empty the containerClean the protectorClean or replace the filterRemove blocking objects

VII. ENVIRONMENTAL PROTECTION

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED

AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which

might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!

VIII. TECHNICAL DATA

• Stick vacuum cleaner 2 in 1 combination
• Usage as hand vacuum cleaner or stick vacuum cleaner - electric sweeper

• Dust container volume 0.8 l
- Capable of cleaning all types of floor
- Swivel connector allows movement to the sides
- Simple and quick assembly
• Quality HEPA filter
• Vertical resting position
• Vacuum cleaner cord retainer
• Power cord length 7 m
• Acoustic noise level of 76 db (A) re 1pW
- Input 600 W
• Accessories: Crevice nozzle, brush
- Input in off mode is 0.00 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

The pictures are only illustrative, the supplied accessory and cleaner may differ.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

KEZELÉSI ÚTMUTATÓ

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

* Indicative annual energy consumption (kWh per year) assuming that the vacuum cleaner is used 50 times in a year. Actual annual energy consumption will depend on how the appliance is used.

Note:

- Designations of classes are as follows: A, B, C, D, E, F and G. Class A means the highest class (most efficient), class G is the lowest class (least efficient). - The parameters were determined on the basis of laboratory tests and calculations performed in accordance with Commission Delegated Regulation (EU) No 665/2013 supplementing Directive of the European Parliament and of the Council No 2010/30/EU.
