BOU742W - Kettle Gallet - Free user manual and instructions

Product Type	Electric glass water kettle
Brand	Gallet
Model	BOU742W
Capacity	1.7 L
Power Consumption	2200 W
Power Supply	230 V ~ 50 Hz
Dimensions (W x D x H)	21 x 24.5 x 16 cm
Weight	1.2 kg
Material	Glass body, stainless steel bottom (hidden heating element)
Cordless	Yes, removable from base
Cord Storage	Cable reel in base
Lid Type	Hinged lid with push-button on handle
Filter	Removable sieve
Indicator Light	ON/OFF indicator
Automatic Shut-off	Yes, after boiling and boil-dry protection
Safety Features	Steam sensor, heat safety lock, boil-dry cut-out
Interior Light	Yes
Water Level Scale	MIN and MAX marks
Base Type	Multi-directional base
Cleaning	Wipe exterior with damp cloth; decalcify with vinegar
Usage	For boiling water only
Standby Power	< 1.00 W
Warranty	Covered by manufacturer, subject to safety compliance

Frequently Asked Questions - BOU742W Gallet

What is the maximum capacity of the Gallet BOU742W kettle?

The maximum capacity is 1.7 liters. Do not exceed the MAX mark on the water level scale to avoid splashing.

How do I descale the kettle?

Half-fill the kettle with tap water, add 30 ml of white vinegar, boil the mixture, let it stand for 30 seconds, then empty and rinse. Repeat 2-3 times if needed.

What should I do if the kettle does not turn on?

Check that the power cord is firmly plugged in, the kettle is properly seated on the base, and the switch is in the 'ON' position. If it still doesn't work, allow it to cool down after a boil-dry cut-out.

Can I boil other liquids besides water?

No, the kettle is designed only for boiling water. Do not insert tea bags, leaves, or any other ingredients directly into the kettle.

How does the automatic shut-off work?

The kettle switches off automatically when the water boils, thanks to a steam sensor. It also has a boil-dry protection that cuts power if there is insufficient water.

Is the kettle cordless?

Yes, the kettle is cordless and can be lifted off the base for pouring. The base has a cable reel for cord storage.

How should I clean the exterior?

Unplug and let it cool. Wipe the exterior with a slightly damp, non-abrasive, lint-free cloth. Never immerse the kettle or base in water.

What is the power consumption and voltage?

The kettle operates at 2200 W with a power supply of 230 V ~ 50 Hz.

Why is there an interior light in the kettle?

The interior water kettle light illuminates the water level during operation for easy visibility.

Can children use this kettle?

Children aged 8 years and older can use it under supervision. Younger children must be kept away from the appliance and its cord.

USER MANUAL BOU742W Gallet

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

BOU 742 BOU 742W Montargis

Glass glass coffee maker with black handle and label 'Gallet Humming' on base, no visible text or symbols on the device itself.

Gallet

Skleněná rychlovarná konvice Sklenená rýchlovarná kanvica Szklany elektryczny czajnik Electric glass water kettle Elektromos üveg vízforraló Bouilloire électrique

Symbol of a trash bin with no text or numbers present

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

SAFETY INSTRUCTIONS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers.

- Children must not play with the appliance.

- Use the electric kettle with the stand designed for this type only.

- Never immerse the electric kettle and the stand in water and other liquids (even partially)!

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- The electric kettle is intended for heating the maximum of 1.7 l of water. If the water level exceeds the maximum recommended amount, hot water may be splashing out.

- WARNING: Do not open the lid if the water is boiling or if it is hot.

- The kettle may not be used without the filter sieve.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!

- This appliance is not intended for outdoor use.

- The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Never leave the appliance unsupervised and check it during the whole time of water heating!

- Use the electric kettle with the stand designed for this type only and only for its intended purpose.

- Do not place any objects on the appliance.

• The electric kettle cannot be used for heating other liquids than water! Never insert into the kettle tea bags, tea leaves or any other ingredients for the beverage!
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
• Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• There must be water in the electric kettle before putting into operation. Do not fill the electric kettle with water if it is on the stand.
• Do not touch outer surfaces during operation of the kettle, they are hot and there is a risk of getting burned. Do not touch the lid during and after cooking!
• It is not permissible to adjust the surface of the extra attachment (e.g. self-adhesive paper, foils, etc.)!
• According to the type of your kettle, the surface is ceramic or glass. These materials are very fragile, pay special attention when handling, operation, maintenance and storage to avoid injury. Never use the kettle if it is broken, cracked or shows signs of any damage or fissure.
• Make sure the sieve is fit on thoroughly in the upper part of the kettle in order that it does not fall to the bottom!
  – Before switching on the kettle ensure that the water level is between MIN and MAX marks
  – Prevent injuries when handling (e.g. by hot water, steam).
• If you are not going to use the electric kettle for longer time, we recommend unplugging the stand from power supply by taking the fork of the power cord out of the socket.
• The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails, if water boils away or if an empty kettle is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the kettle with cold water in order to cool it down quickly. It could reduce life of the heating element.
  – Check the condition of the power cord of the appliance regularly.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

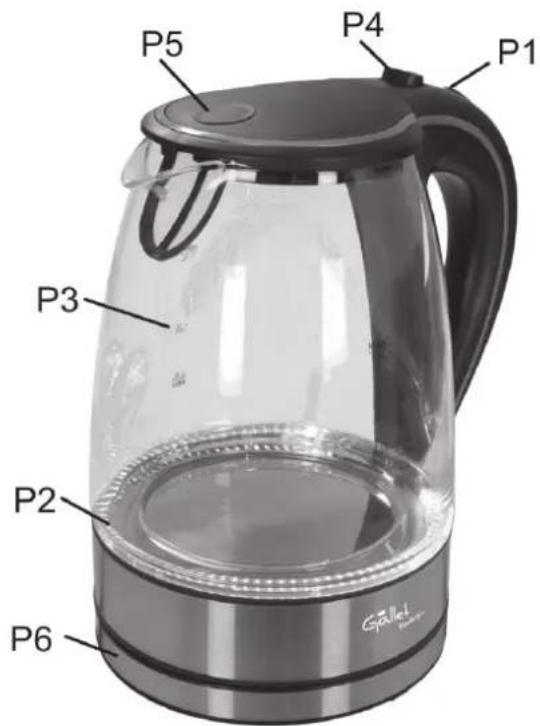

DESCRIPTION OF THE CONTROLS

P1 ON/Off switch
P2. ON/OFF indicator light
P3. Water level scale
P4. Button for open hinged lid
P5. Hinged lid
P6. Multi-directional base

INSTRUCTIONS FOR USE

Before you start using your new kettle:

Before you use your new kettle for the first time, please, boil water and pour it away. f the result of boiling process is still negative, please, contact the service point.

1) Unwind sufficient cord from the storage area to reach the power outlet. Then place the power base on a dry, flat surface.

2) Open the lid and fill the kettle with cold water.

3) Make sure that the water level is between the minimum and maximum marks on the water level scale. Do not switch on the kettle when empty.

4) Check and correct the filter's position before boiling the water. The automatic shutt off switch may not work properly without the filter.

5) Close the lid and place the kettle back on the base.

6) Plug to AC outlet with the voltage corresponded to the information on the product label.

7) Switch the kettle on by the main switch. The indicator light will go on showing that the water is being boiled.

8) When the water has boiled, the kettle will switch off automatically.

9) Do not remove the kettle from the power base without first switching off.

10) Remember if you wish to re-boil, put the main switch of the kettle to the "ON" position.

11) The kettle may be switch off at any time by either pushing the main switch of the kettle to the "OFF" position.

12) When water boils, the steam passes through the steam channel and then switches off the kettle. To pour water, lift the kettle from the power base and pour.

13) When pouring out the water incline the kettle slightly and gradually. Do not forget that hot water is inside.

14) An automatic safety boil-dry cut-out has been fitted for protection against overheating: It will also operate if the kettle is switched on when containing insufficient water. Always ensure the water inside the kettle covers the minimum mark on the water level indicator gauge. If the cut-out has operated, switch the kettle off, disconnect from the power outlet and allow the kettle to cool down for 5 to 10 minutes. Then refill with enough water and switch on; the kettle will then boil and cut off as in normal operation.

CLEANING AND MAINTENANCE

1) Unplug the kettle and wait until it cools down completely before cleaning or storing.
2) To avoid the risk of electric shock, do not clean the exterior of the unit, its base or its power cord with water, and do not immerse it in water. The exterior of the kettle may be cleaned with a slightly damp non-abrasive lint-free cloth without additives.
3) Wash the outside of the filter in the water flow.
4) Refit all parts when they are completely dry.
5) In the hard water area, it is important to do the decalcification regularly to keep the kettle in good working condition, because too much scale inside may cause the kettle fail to work. For the best performance of your kettle, decalcify the unit from time to time. The frequency depends on the hardness of your tap water and how many times you have used the kettle. Decalcification will clean the interior of the unit.

This may be done in the following manner:

• Half fill the kettle with ordinary tap water.
• Add 30 ml of white vinegar to the water in the kettle.
• Boil the mixture and allow it to stand for 30 seconds.

- Repeat this process two or three. Empty, rise well and use the kettle in the normal way.

Troubleshooting

The device is not working

• Check that the mains connection cable is firmly plugged in.
• Check the right positions of the kettle on the base.
• Check the positions of the switches.

TECHNICAL SPECIFICATIONS

• Electric glass water kettle
• Max. capacity 1.7 liters
• Interior water kettle light
- Hidden heating element under stainless steel bottom
• Automatic switch off
- Safety fuse against overheating and idling
- Cordless – removable from the stand
- Cable reel in the base
• Hinged lid operated by the button on the handle
• Power consumption 2200 W
• Power supply 230 V \~ 50 Hz
• Size 21 x 24,5 x 16 cm
- Weight 1,2 kg

Input in standby mode is < 1,00 W.

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision.

There aren't any parts in this appliance which are reparable by consumer. Always

appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin with no text or numbers present

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur

as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

NOTICE
