Product Type	Countertop Microwave Oven
Brand	Gallet
Model	FMOM420W
Color	White
Capacity	20 liters
Power Output	800 W
Power Levels	5 levels (Low, Medium, Medium-High, High, Defrost)
Control Type	Mechanical timer and function dial
Door Type	Drop-down with double-layer glass
Dimensions (H x W x D)	26.0 x 45.0 x 35.0 cm
Internal Dimensions (H x W x D)	20.0 x 30.0 x 28.0 cm
Net Weight	10.5 kg
Voltage / Frequency	230 V ~ 50 Hz
Power Consumed	1200 W (approx.)
Cord Length	1.2 m
Turntable Diameter	24.5 cm
Timer Range	Up to 30 minutes
Interior Light	Yes
Child Lock	Yes (press and hold Stop for 3 seconds)
Functions	Microwave cooking, defrost, timer, turntable
Safety Features	Automatic shut-off when door is opened, overheat protection
Cleaning Instructions	Wipe interior and exterior with damp cloth and mild detergent. Do not use abrasive cleaners.
Spare Parts Availability	Contact Gallet service center or authorized dealers for replacement parts such as turntable, fuse, door seal.
Certifications	CE, EMC, RoHS

Frequently Asked Questions - FMOM420W Gallet

How do I set the cooking time on the Gallet FMOM420W?

Turn the timer dial clockwise to the desired cooking time (up to 30 minutes). The microwave will start automatically. For defrosting, select the defrost function first using the function dial, then set the time.

Can I use metal containers in this microwave?

No, metal containers should not be used in microwave ovens as they can cause arcing and damage. Use only microwave-safe glass, ceramic, or plastic containers.

What is the power output of the FMOM420W?

The microwave delivers 800 W of cooking power and consumes approximately 1200 W from the mains.

How do I clean the interior of the microwave?

Wipe the interior with a damp cloth and a mild detergent. For stubborn stains, place a bowl of water with lemon juice inside and run for a few minutes. Do not use abrasive cleaners or scouring pads.

What are the dimensions of the Gallet FMOM420W?

External dimensions: 26.0 x 45.0 x 35.0 cm (H x W x D). Internal dimensions: 20.0 x 30.0 x 28.0 cm. Allow at least 10 cm clearance around the unit for ventilation.

Does the FMOM420W have a child lock feature?

Yes, the child lock is activated by pressing and holding the Stop button for about 3 seconds. A beep confirms activation. Repeat to deactivate.

How do I defrost food using this microwave?

Turn the function dial to the defrost position, set the time based on food weight (refer to manual table), and press start. The microwave will operate at low power for even defrosting.

What should I do if the microwave stops working?

Check that the power cord is plugged in securely and the outlet is functional. Ensure the door is fully closed. If the issue persists, contact Gallet customer service for troubleshooting.

Can I place the microwave in a built-in cabinet?

This model is designed for countertop use only. For built-in installation, maintain specified clearance and ensure proper ventilation. Do not cover or block the vents.

What is the warranty period for the Gallet FMOM420W?

The warranty period is typically 2 years from the date of purchase for manufacturing defects. Keep your receipt as proof of purchase.

USER MANUAL FMOM420W Gallet

Black-and-white photo of a person lying on a bed in a circular frame, viewed through a mesh screen (no text or symbols visible)

Gallet

Gallet

Mikrovlnná trouba

Mikrovlnná rúra

Mikrofalówka

Microwave oven

Mikrohullámú sütő

CE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

- Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

• Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- Min. height of space needed above the top surface of the oven is 300 mm.

- Use only kitchenware, which is suitable for use in microwave ovens.

- The microwave oven is intended for heating up food and beverages. Drying of food or clothes and warming of heating blankets, house shoes, sponges, damp textile and similar objects may lead to danger of injury, combustion or fire.

- When food is heated in kitchenware of plastics or paper, check the oven from time to time to prevent combustion.

- If there is smoke, turn off the appliance or pull out the fork from the socket and leave the door open to prevent the spreading of potential fire.

- Microwave heating of beverages may cause delayed boil, which needs to be kept in mind when holding the cup.

- The content of baby bottles and baby food must be stirred or shaken and the temperature must be checked before consumption to prevent burning.

- Eggs in shells and whole hard-boiled eggs must not be heated in microwave ovens, because they can explode even after the microwave heating is finished.

- The oven should be cleaned thoroughly and potential remains of food removed.

- Not keeping the oven clean might lead to damaging its surface, which could negatively impact the lifetime of the appliance and result in a dangerous situation.

- Liquids and other foods may not be heated in closed containers – they are apt to explode.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Do not leave the appliance in operation unattended!

- There is a microwave emitter (magnetron) and a source of high voltage under the cover of the MW. There are no user-adjustable parts in the appliance. It is strictly forbidden to remove the outer covers of the MW oven!

- Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

- Do not attempt to put the appliance in operation when the door is opened.

- Do not put the turning plate in water right after cooking. It could break or become damaged as a result of a sudden cool-down.

- WARNING: It is very important that the door closes properly and is not damaged (bent). Further, hinges and locks (broken or loose), sealing and sealing areas of the door must not be damaged. In case of damage, these parts must be repaired by a qualified service technician.

- WARNING: Do not attempt to adjust, set or repair the door, control panel, safety locks or other parts of the MW oven. Repairs must be carried out by a qualified service technician only.

- WARNING: Do not put any objects between the front surface and door, prevent setting of dirt or residues of cleaning agents on the sealing areas.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

• Install and locate this oven only in accordance with the installation instructions provided.

- The microwave oven is intended as a stand-alone appliance, it must not be placed in a cupboard.

- If the appliance was stored at lower temperatures, acclimatize it first, by which you remove stiffness and mechanical resistance of the plastic parts will be kept.

• It is not intended for outdoors use.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Do not place the MW oven in proximity of TV's, radios and antennas because of a potential bad effect of the electromagnetic field of the MW oven on the operation of this appliance. Do not use this MW outside, out of your household!

- Use the MW oven only in its working position in places where there is no danger of it toppling and in sufficient distance from flammable objects (e.g. curtains, drapes, wood etc.), heat sources (e.g. fireplace, stove, el./gas cooker, radiators etc.) and wet surfaces (e.g. sinks, basins etc.). Increased temperature and moisture could damage the components of the MW oven.

- Do not turn the MW on if it is empty (without any food inside). If you are not using the MW oven, we recommend putting a glass with water inside. If the oven should be turned on by accident, the water will safely absorb the microwave energy.

- Do not place any objects on the appliance.

• Never cover the appliance; thus you will prevent the risk of interior fire.
• Do not use newspaper instead of paper towels when cooking, these paper towels must be recommended for the given meal in the cookbook.
• Do not use wooden dishes for long heating. They could heat up and carbonize.
• Do not use metal or non-metal dishes with golden or silver decorations. Always remove metal wire clips. Metal objects in MW may cause occurrence of electric arc which will damage the MW.
• Do not use products from recycled paper, because they may run colours and may contain impurities which may cause sparkles or fire during cooking.
• Remove all plastic packaging before cooking and defrosting. Beware, however, that in some cases the meal should remain covered with plastic foil – see information on bought foods (e.g. food with lower thickness or liquid or pulpy foods.
• Do not heat drinks with high contents of alcohol or big amounts of oil (both could catch on fire)!
• If you are heating liquid in the MW, it could heat over the boiling point without any visible signs of bubbles. After removing the dish a heat shock may cause sudden overflow and burst of boiling liquid. You can prevent this by putting a spoon made of special plastic for use in high temperatures or a glass stick in the dish with liquid before putting into the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
• Small quantities of food requires shorter time for cooking or heating. When using regular times they may overheat or burn.
• Do not use the MW for frying or preserving.
• If you need to move the oven, let it cool down! The bottom cover heats up during operation.
• Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!
• Check the condition of the power cord of the appliance regularly.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• The manufacturer is not liable for any damage cause by incorrect use of the device (e.g. devaluation of food, burns, scalding, irradiation by microwaves, fire) and is not liable for the warranties in case of breaching the precautions mentioned above.

Safety precautions to Reduce the Risk of people's Injury GROUNDING INSTALLATION

Danger of an electric shock

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Two-round-pin plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of an electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

,Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if any doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use the 3-wire extension cord only. It is necessary to connect the appliance to an outlet with a Two-round-pin plug.

1) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in a longer cord or tripping over it.
2) If a long cord set or an extension cord is used :
1) The marked electrical rating of the cord set or the extension cord should be at least the same as the electrical rating of the appliance.
2) The extension cord must be a groundingtype 3-wire cord.
3) The long cord should be arranged so that it will not hang over the counter or the table edge where it can be pulled by children or tripped over unintentionally by yourself.

Caution

Risk of Personal Injury

It is hazardous for anybody else than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Kitchen utensils

Follow the instructions concerning „Materials you can use in microwave oven or materials to be avoided in microwave oven.“ There may be certain non-metallic utensils that are not safe to use for heating by microwaves. You can test the utensils coming into question by the procedure situated below In case of any doubt.

Utensil Test:

1) Fill a microwave-safe container with 1 cup of cold water (250 ml) and put it into the oven together with the utensils coming into question.
2) Switch the oven on maximum power for 1 minute.
3) Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4) Do not exceed the cooking time of 1 minute.
5) Take the utensils out of the microwave oven.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils Remarks
Aluminum foil	Use for shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if the foil is too close to the oven walls.The foil should be kept at least 1 inch (2.5 cm) away from the oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5 mm)above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	The dishes must be microwave-safe only. Follow manufacturer's instructions carefully.Do not use cracked or chipped dishes.
Glassjar	Always remove the lid. Use it only to heat food until it gets just warm.Most glass jars are not heat resistant and may break.
Glassware	Therefore use heat-resistant oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close the bags with a metal tie.Make slits to let steam escape.
Paper plates and cups	Use for short-term cooking/warming only.Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with pervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.The dishes must be microwave-safe only. Follow the manufacturer's instructions.
Plastic	It should be labeled „Microwave Safe“. Some plastic containers soften, as the food inside gets hot. „Boiling bags“ and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	They must be microwave-safe only. Use to cover food during cooking to retain moisture inside the food. Do not let plastic wrap touch the food.
Thermometers This must be microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture inside the food.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed untensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

DESCRIPTION OF THE CONTROLS

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly ..... 1

Instruction Manual 1

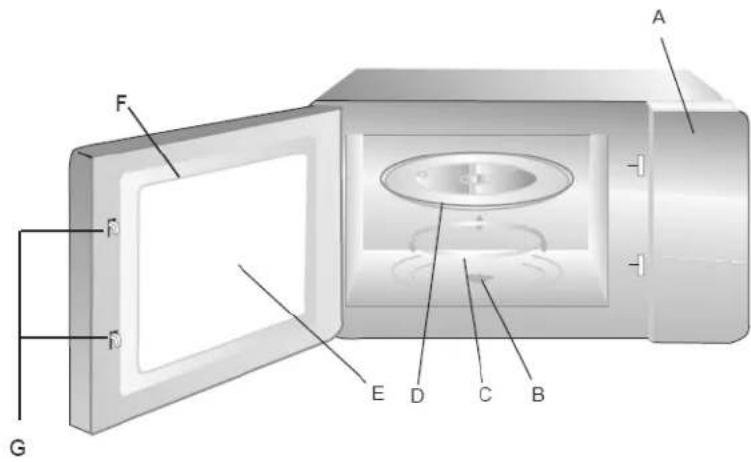

a) Control panel
b) Turntable shaft
c) Turntable ring assembly
d) Glass tray
e) Observation window
f) Door assembly
g) Safety interlock system
Cuts oven power off if the door is opened during operation.

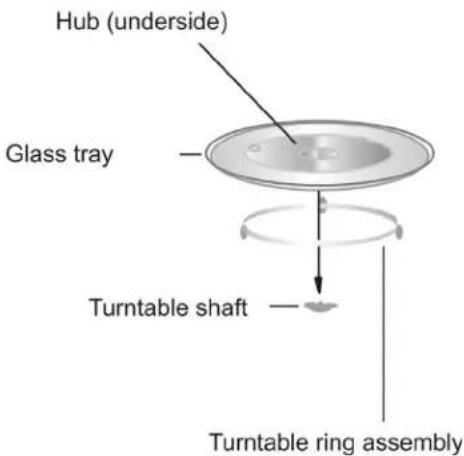

TURNTABLE INSTALLATION

a) Open the oven door and insert the turnable ring. Put the glass tray on the top of the turntable ring, so that the central point of the glass tray sits on the turntable shaft at the bottom of the oven.
b) Never place the glass tray upside down. The glass tray should not be restricted in its movement.
c) Both glass tray and turntable ring assembly must always be used during cooking,
d) Both the food and containers filled with food must always be placed on the glass tray during cooking.
e) If glass tray or turntable ring assembly cracks or breaks, contact nearest autorized service center.

INSTRUCTIONS FOR USE

Installation

Take the microwave oven out of the box. Remove all the packing material and accessories. Empty the inside of the oven. Examine the oven for any damage such as dents or broken door. Do not install the oven if it is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown cover that is attached to the oven cavity to protect the magnetron.

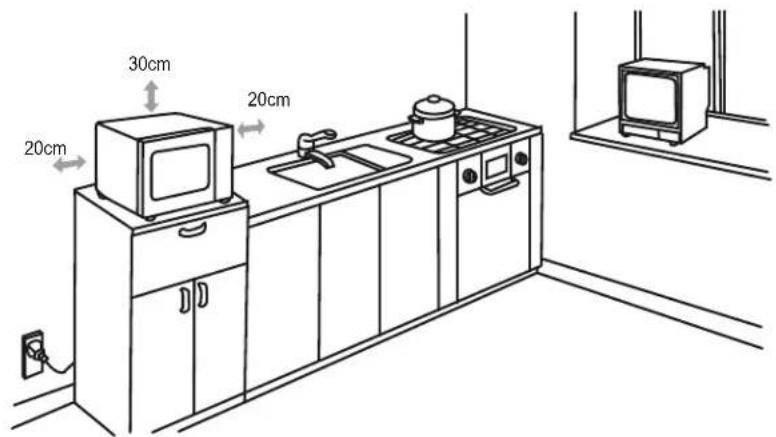

6) Select a flat surface that provides enough free space for the intake and outlet vents.
7) Minimum distance of 20 cm is required between the oven and any adjacent walls.

8) - Leave a minimum distance of 12 inches (30cm) above the oven.

• Do not remove the legs from the bottom of the oven.
• Blocking the intake and outlet openings can damage the oven.
• Place the oven as far away from radio and TV sets as possible.

Operation of the microwave oven may cause interference to your radio or TV reception.

9) Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install the oven over a range hob or other heat-producing appliance. If the oven installed near or over any source of heat, it could be damaged and the warranty would be void.

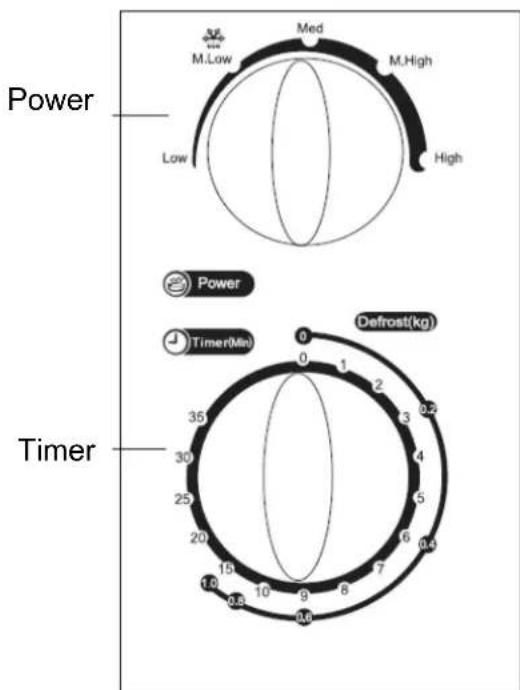

CONTROL PANEL AND FEATURES

Operation instructions

1) To set cooking power turn the power knob to the desired level.
2) To set the time of cooking turn
3) the timer knob to the desired time period according to Your cookbook.

The microwave oven will start cooking automatically after the power level and time period have been set.

4) After the cooking time has been finished, the unit stops, followed by a specific sound signal.
5) If the unit is not in use, always set the time knop to „0“.

Function/Power Output Application
Low 17% micro. Soften ice cream
M. Low (Defrost) 33% micro. Soup stew, soften butter or defrost
Med. 55% micro. Stew, fish
M. High 77% micro. Rice, fish, chicken, ground meat
High 100% micro.		Reheat, milk, boil water, vegetables, beverage

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). If you do not do so and continue operating the empty microwave oven, this can result in overheating and damage to the magnetron.

Cleaning

Be sure to disconnect the oven from the power supply.

6) Clean the inside of the oven after using with a slightly damp cloth.
7) Clean the accessories in the usual way in soapy water.
8) The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

TROUBLE SHOOTING

Normal
Microwave oven interferes TV reception.	Radio and TV reception may be interfered when microwave oven is in operation. It is similar to the interference of small electrical appliances, like mixer, vaccum cleaner and electric fan. It is normal.
Dim oven light.	In low power microwave cooking, oven light may become dim. It is normal.
Steam is accumulating on the door, hot air is coming out of vents.	During cooking, steam may come out of food. The most of it will get out from vents. But some may accumulate on cool places like oven door. It is normal.
Oven switched on accidentally with no food inside.	It does not cause any damage to oven if it operates empty for quite a short time. But it should be avoided.

Trouble Possible cause Remedy
Oven cannot get started.	(1) Power cord is not plugged in tightly.	Unplug it immediately. Then plug the appliance again after
	(2) Fuse blowing or circuit breaker works.	Replace fuse or other electrical appliances.
	(3) Trouble with the outlet occurred.	Test the outlet with other electrical appliances.
Oven does not heat. (4) The door is not closed Close the door properly.
The glass turntable makes noise when the microwave oven works.	(5) The roller rest and oven bottom are dirty.	Refer to „Cleaning“ to clean dirty parts.

TECHNICAL SPECIFICATIONS

-Capacity: 17 l

-Microwave output: 700 W

-Manual controls

-5 power levels

-Defrost function

-35 min. timer

-Turntable 255 mm

-Power drain: 1050 W; power supply: 230 V \~ 50 Hz

-Noise level: < 60 dB(A) re 1pW

-Size (w x h x l): 44 x 26 x 33 cm; weight (NETTO): 10.2 kg

-Input in off mode is < 0.50 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous attention.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.

The accessible surface may be hot during operation.

Don't touch on!

1 db Üveg tányér

1 db Forgógyűrű

Sketch-style illustration of the Eiffel Tower, Colosseum, and Windmill against a soft bokeh background (no text or symbols)
