Type	Stick vacuum cleaner 2-in-1 (handheld and stick)
Brand	Gallet
Model	ASP 912 GALASP912
Battery type	12 V NiMH rechargeable battery
Charging time	Approximately 12 hours (first charge 14 hours)
Runtime	Up to 20 minutes
Dust container capacity	0.8 L
Filtration	Washable microfilter and filter protector
Accessories included	Floor nozzle with rotating brush, crevice nozzle, brush, charging stand
Noise level	77 dB (A)
Power consumption off mode	< 0.50 W standby
Protection class	III (appliance), II (power adapter)
Certification	CE
Floor types	Low-pile carpets, smooth flooring, and hard-to-reach areas
Weight	Approximately 2.5 kg (estimation)
Dimensions	Not specified; compact design for handheld and stick use
Charging indicator	Red light when charging, continuous red when fully charged
Maintenance	Washable dust container and filter; replace microfilter yearly
Safety features	Overheat protection, battery short-circuit protection, automatic shut-off when blocked
Color	White with black handle

Frequently Asked Questions - ASP 912 GALASP912 Gallet

How long does it take to charge the Gallet ASP 912?

The first charge takes about 14 hours. Subsequent charges take approximately 12 hours. The red indicator light stays on when fully charged.

What is the runtime of the vacuum cleaner?

The battery provides up to 20 minutes of operation, depending on the cleaning mode and floor type.

Can I use it without the stick as a handheld vacuum?

Yes, the ASP 912 is a 2-in-1 design. You can detach the handheld unit from the stick by pressing the release button (A3).

How do I empty the dust container?

Press the dust bin arrest button (A2), pull out the container, remove the microfilter and filter protector, then empty the contents into a trash bin. For hygiene, empty it outdoors.

How often should I clean or replace the filter?

Clean the microfilter under lukewarm water every 5 container empties or when suction drops. Replace it once a year if it cannot be cleaned properly.

What should I do if the rotating brush stops working?

Turn off the vacuum cleaner, check for blockages (e.g., hair, threads, carpet fibers). Remove any obstructions manually or by dismantling the floor nozzle (unscrew the bolt, clean the brush, and reassemble).

Can I vacuum wet surfaces or liquids?

No, the Gallet ASP 912 is not designed for wet or moist surfaces. Vacuuming liquids can damage the appliance and void the warranty.

What is the noise level of this vacuum?

The acoustic noise level is 77 dB (A), which is typical for a stick vacuum.

How do I charge the vacuum?

Place the vacuum on the charging stand (C) with the floor nozzle attached. Connect the power adapter to the charger and plug into a wall outlet. Ensure both switches (A1 and B1) are off. The red indicator light on the nozzle will illuminate.

Is the vacuum safe for allergy sufferers?

Yes, the vacuum has a washable microfilter that traps fine dust. Regular cleaning of the filter helps maintain air quality. However, it is not a HEPA filter.

USER MANUAL ASP 912 GALASP912 Gallet

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

ASP 912 Evreux

White handheld vacuum cleaner with black handle and white body, no visible text or symbols on the device itself.

Gallet

Diagram showing a mechanical component with an arrow pointing to a housing, labeled with number 2 (no text or symbols on the diagram itself)

Line drawing showing two hands adjusting a car seatbelt, with arrows indicating movement (no text or symbols)

Line drawing of a hand holding a mechanical device with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Line drawing showing a hand using a tool to adjust or install a mechanical component, with arrows indicating the process (no text or symbols present)

Line drawing of a hand holding a tool interacting with a device (no text or symbols)

Line drawing of hands operating a mechanical device with visible gears and components (no text or symbols)

NÁVOD K OBSLUZE

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNINGS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your electric power socket.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its adaptor.

- If a vacuum cleaner can be equipped with a hand-held accessory with rotating parts a warning has to be given concerning entrapment.

- Never use the appliance if its adaptor or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.

- If the adaptor of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Do not put the suction hole of the vacuum cleaner or the accessories close to your eyes and ears and do not insert them into any body orifices!

- Never use the vacuum cleaner nor touch the adaptor with wet hands or feet!

- Vacuum cleaning of some carpet types may result in generating static electricity. No static electricity discharge is dangerous to health.

- Never leave the product unattended when in operation!

- Never immerse the charger, the battery and the motor part of the vacuum cleaner into water (even partially) and protect them against humidity!

- Never vacuum without a properly inserted filtration system and micro-filters.

- Before you start using the vacuum cleaner, please check that all the locking mechanisms are in the right position.

- Do not leave the floor nozzle with the rotation brush on in one place for too long! It could cause damage to the surface vacuumed!

- The vacuum cleaner is not suitable for vacuuming substances that can harm human health.

- Avoid contact with the rotating brush when handling the vacuum cleaner (e.g. with loose clothes, hair, fingers, jewellery, bracelets etc.).

- Do not vacuum wet or moist floor coverings, do not use the vacuum cleaner for outdoor areas! When moisture gets into the aggregate, there is a risk of its damage and disabling it. This defect is not covered by the warranty.

- Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents). Vacuuming these objects may lead to damage of the dust filters or the vacuum cleaner.

- Do not put fingers or other things to input and output vents of the appliance. If the vents/elements for air flow are blocked (e.g. nozzle), turn the appliance off and remove the cause of blocking completely.

- Make sure that the power cord of the charger does not hang freely over an edge of a working table where children could reach it.

- Plug the battery charger to a socket with alternate current only.

- For charging the battery of the vacuum cleaner, use only the specific charger.

– Use the charger in a room only.

- Before cleaning the charger, unplug it from the electric socket.

- Always switch off the vacuum cleaner when charging the battery and after the vacuum cleaner was used.

- It is not permissible to adjust the surface of the extra attachment (e.g. self-adhesive paper, foils, etc.)!

- When the battery is charged, the charger is hot which is a normal condition.

- Charge the battery at standard room temperature.

- Leaking of electrolyte from the battery is caused by overloading the vacuum cleaner or by using the vacuum cleaner at extremely hot temperature. If you are splashed with electrolyte, wash the affected place with water and soap and rinse it with lemon juice with vinegar. In eye contamination, rinse the affected eye for a couple of minutes with clean water and seek medical advice immediately.

- Do not through the battery into fire. There is a risk of explosion!

- Do not charge the battery if electrolyte is leaking from it. Do not expose the battery to temperatures exceeding 50 °C. This will prevent damage of the battery.

- During normal operation, the accumulator batteries are not taken out. Take out the batteries only if the appliance is to be disposed (see par. VII. ENVIRONMENTAL PROTECTION).

- The appliance must be disconnected from the power adapter when removing the battery.

- Do not connect the contacts of the battery or the charger! If you do not use a battery, keep it away from metal objects, such as paperclips, coins, keys, nails, screws or other small metal objects that can cause short circuit of the battery connectors. Short circuit of the battery connectors can cause burn or fire.

- Pores of the micro filters may be clogged when vacuuming very fine dust. Thus, air permeability will be reduced and the suction performance will drop. In this case, micro-filters have to be cleaned before the container is full. Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc. If this dirt / loose construction materials / loose construction materials into the aggregate, it poses a danger of damage. The warranty repair does not cover this.

- Always switch off the vacuum cleaner first and disconnect the adaptor from power supply and only then empty the dust container, clean/replace micro-filters, clean the vacuum cleaner or its accessories.

- Never leave the vacuum cleaner exposed to weather conditions (e.g. rain, frost, direct sun radiation, etc.).

- Never use (switch on) the vacuum cleaner if it is placed in the holder and it is being charged!

- When taking the adaptor from the electric socket, never pull the power cord.

- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories that are approved by the manufacturer.

- Never use the appliance for any other purpose than for the intended one described in these instructions for use!

- WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with. Failure to replace or maintain all filters regularly according to the instructions in Chapter IV., V. and also using non-original filters, the properties of which resulted in failure or damage of the vacuum cleaner, is also understood to be improper use of the appliance.

II. EQUIPMENT AND ACCESSORIES (Fig. 1)

A - vacuum cleaner

A1 - ON/OFF switch A5 - dust bin

A2 – dust bin arrest A6 – filter protector

A3 - hand cleaner arrest button A7 - microfilter

A4 - handle A8 - charging indicator

B – rod vacuum cleaner body

B1-ON/OFF switch B3-vacuum cleaner cover

B2 - handle. B4 - floor nozzle arrest button

C - charging stand

C1 - accessory storage space C3 - cleaner charging contacts

C2-adaptor connector

D - floor nozzle with a rotation brush

D1 – indicator light D2 – rotation brush

E - accessory

F1 - short slit nozzle F2 - brush

F - power adaptor

III. VACUUM CLEANER PREPARATION

Remove all packing material, take out the vacuum cleaner and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance.

Assembling the charging stand:

Assemble the charging support piece to the charging support base. (Fig. 2). The charging base could be fixed to the wall using two screws.

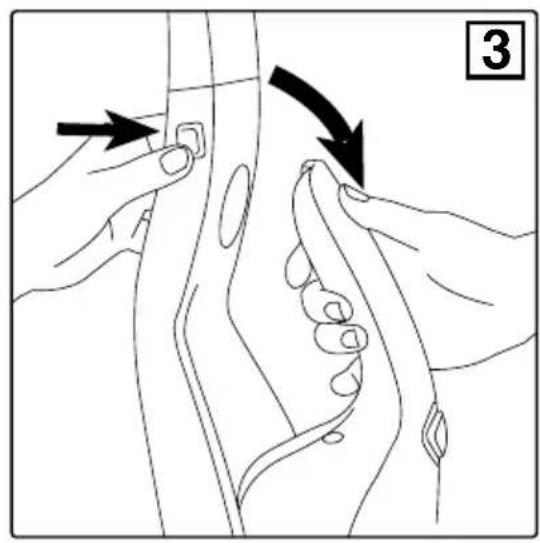

Fixing vacuum cleaner into adapter

Put vacuum cleaner A to cleaner body B with the suction vent and then tilt the vacuum cleaner to the aperture to the maximum position (you will hear a snapping sound).

After taking the vacuum cleaner from the body you have to push lock button A3 and then to pull the vacuum cleaner out (Fig. 3).

Floor nozzle with rotation brush

Slide the nozzle D into the vacuum cleaner body B all the way (you'll hear an audible clack). Make sure that both the switches A1 and B1 are off before any manipulation with the rotation brush.

Assembling handle

Connect the handle into the cleaner body, insert and tighten the screw.

Slit nozzles, brush

Slide the selected accessory E all the way into the opening in the dust bin A5. Take the attachment off reversely. The accessory can be used only with this vacuum cleaner.

Battery charging

Before the first use, the battery has to be charged for at least 14 hours. Plug battery charger F to the electric socket. Push the adapter connector into the slot C2 in the charging stand. The operation of charging of the accumulator is indicated by the "red" indicator D1. The indicator light red continuously when the battery is fully charged. After about 10 to 12 hours, the battery is usually fully charged and it enables operation for about 20 minutes (depends on method of vacuuming).

CAUTION

• If you charge the battery for the first time or after long storage, about 60% of its total capacity is charged. After repeated discharge and repeated recharge the battery is fully charged.
• After completing hard work or in hot environment, the battery may be too hot for charging. Let the battery cool down before charging.
• Do not use the vacuum cleaner during charging.
• For ensuring longer life of the battery we recommend full discharge and then full recharge of the battery four times a year.
• Turn both the switches A1 and B1 to OFF!
• The vacuum cleaner can be charged only in one piece with the floor nozzle D placed in the stand.

IV. USE OF VACUUM CLEANER

According to the selected cleaning activity, use either the vacuum cleaner alone and select accessory E or assemble the vacuum cleaner with an extension adapter and select accessory D. The floor nozzle with a rotation brush D is intended for vacuuming carpets with low pile or smooth flooring. You can use crevice nozzle E1, for vacuuming places that are hard to access. In case of using the cleaner A without the body of the rod cleaner B, turn it on/off by switching the switch A1.

If you will be using the cleaner assembled, you can turn it on/off with the switch B1. When control light D1 is on, it signals operation of the rotation brush. Let the vacuum cleaner recharge as soon as its suction performance gets weaker. In the case of everyday use, do not disconnect the battery charger from the electric socket. In this way the appliance will always be fully loaded. Battery overcharging is not possible. If you are not present for longer time (more than one day), remove the charger from the electric socket to save energy.

CAUTION

- The floor nozzle with the rotation brush is not intended for vacuuming impurities from carpets with high pile.

- If the rotation brush is blocked during operation (e.g. due to sucking in large foreign objects, due to winding carpet piles, threads or hair on them etc.) turn off the vacuum cleaner by switch A1 or B1. Then remove the cause of blocking or clean the rotation brush if necessary (see par. V. MAINTENANCE).

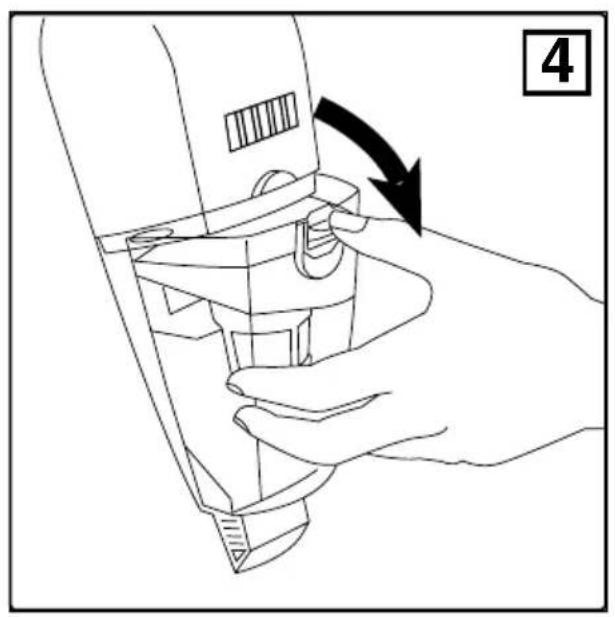

Emptying dust container

If you find out that the suction performance of the vacuum cleaner is reduced, make sure that the dust container is not full and if necessary, empty it. After pressing the dust bin arrest button A2, remove the container from the cleaner by pulling slightly (pic. 4). Pull out micro-filter E4 and filter protector E5 from the container, then place the container over a dustbin and empty it into common municipal waste (Fig. 5). For sanitary reasons we recommend emptying the container outside residential premises.

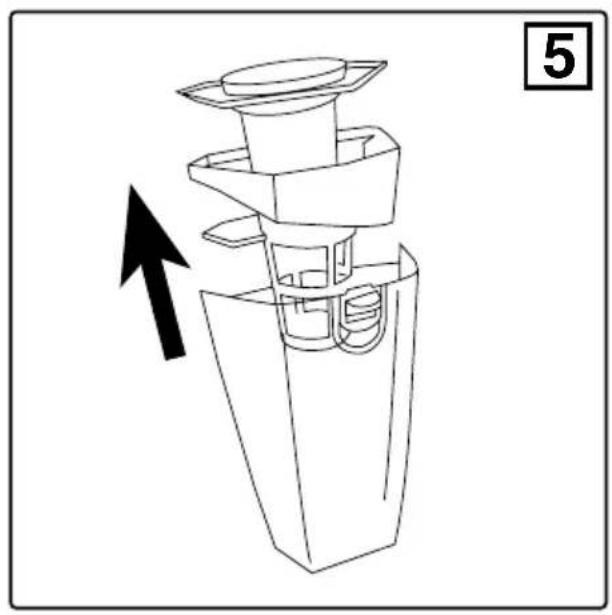

Cleaning dust container and cleaning filter

After the container has been emptied about 5 times, we recommend complete cleaning of the suction system from the settled dust. All parts (e.g. container, micro-filter, filter protector) can be cleaned in running lukewarm water (e.g. using a cloth or a soft brush) and let to dry thoroughly. Re-assemble individual parts in the opposite direction after it is completely dry.

CAUTION

• Never vacuum impurities without protective filters on.
• The maximum suction effect will be reached with a clean micro-filter and an empty container.
• Do not use any aggressive washing or cleaning agents or hot water to clean the micro-filter.
• The micro-filter is not intended for washing in a dishwasher!
• The dust container is not resistant to cleaning in a dishwasher!
• Cleaning the micro-filter will not restore its original colour, but it will restore its filtration properties.
• Neglecting the micro-filter cleaning may lead to breakdown of the vacuum cleaner!
• Make sure that the contact surfaces and the sealing elements are functional.
• We recommend replacing the micro-filter once a year or when it cannot be cleaned properly or if it is damaged.

V. MAINTENANCE

Unplug the battery charger from the appliance before any maintenance. Store the vacuum cleaner at a dry place, far enough from heat sources (e.g. fireplace, stove, heating element) and protect it against weather conditions (e.g. rain, sunshine). Treat the surface of the vacuum cleaner and the battery charger (only when disconnected from the electric socket) with a soft and wet cloth, do not use abrasive and aggressive cleaning agents! Never dry plastic moldings over a heat source (e.g. heater, electric/gas stove).

Floor nozzle with rotation brush

After any vacuuming it is recommended to check visually the brushes or collectors for possible impurities. If you find some impurities, remove them in the way specified below.

Cut threads and hair with scissors and remove them. If hair or threads are twisted around the mounting of the drive shaft and if they cannot be removed in the way described above, the impurities have to be removed by dismantling the nozzles. Unscrew the bolt in the lower part and remove the cover. Now you can remove the brush from its position and clean it. Insert the brush to the nozzle in the opposite direction (you will hear a snapping sound) and secure it properly with a lid.

Storage

Store the appliance thoroughly clean on a dry, dustless place out of reach of children and persons sui juris. The accessories may be stored in the back of the charging stand C or in the storage space C1 (Fig. 6). Do not put the assembled rod vacuum cleaner on an uneven surface! The cleaner must be placed on a flat surface where there is no danger of knocking over.

VI. TROUBLESHOOTING

Problem Cause Solution
Motor won't start The battery	battery is dischargedA1 / B1 button is not switched on	Recharge the batteryPush A1 / B1 button
The container cannot be fixed to the vacuum cleaner	The parts of the filtration system not inserted properly in the container	Check/correct insertion of the protector and the micro-filter in the container
Suction output is not sufficient	Dust container fullClogged filter protectorClogged micro-filterThe accessories are cloggedThe battery is discharged	Empty the containerClean the protectorClean or replace the micro-filterRemove blocking objectsRecharge the battery
Nozzle with rotation brush does not work	Rotation brush is blocked	Remove blocking objects

VII. ENVIRONMENTAL PROTECTION

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION.

THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED

SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

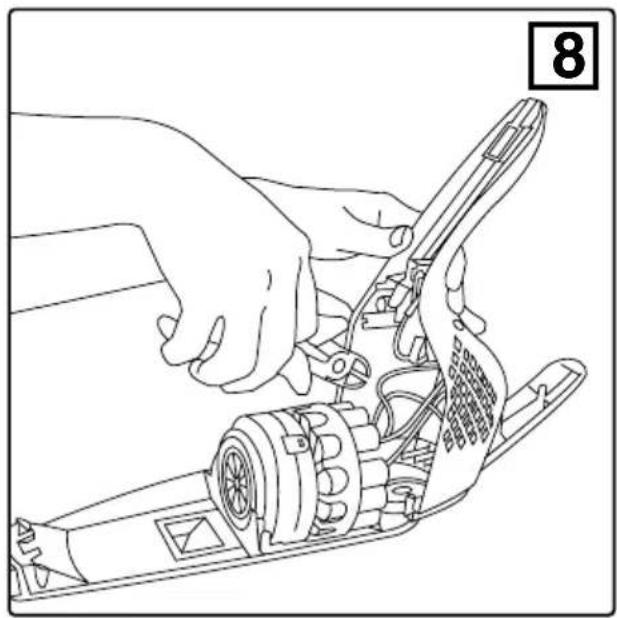

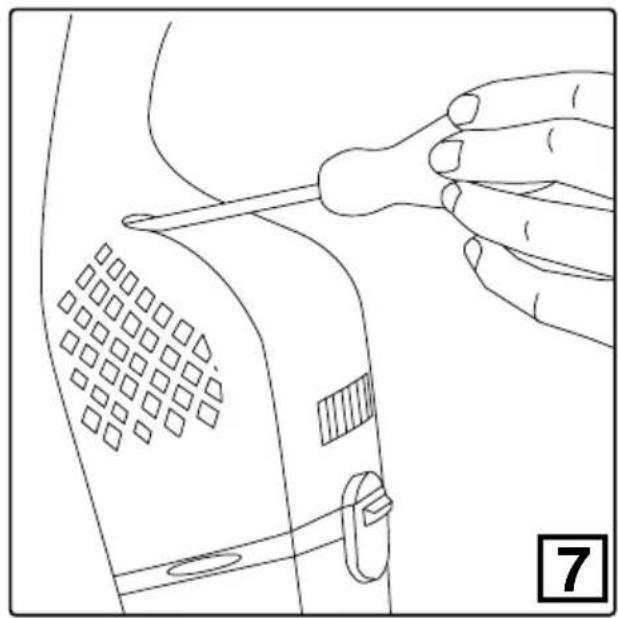

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well.

By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!

VIII. TECHNICAL DATA

• Stick vacuum cleaner 2 in 1 combination
  • 12 V NiMH batteries
• Battery life up to 20 minutes
• Dust container volume 0.8 l
• Capable of cleaning all types of floor
• Swivel connector allows movement to the sides
• Simple and quick assembly
• Charging by adapter
• Charging time 12 hours
  • Light charging signalization
• Textile washable filter
  • Acoustic noise level of 77 db (A) re 1pW
• Input in standby mode is < 0,50 ~W .

- Usage as hand vacuum cleaner or stick vacuum cleaner - electric sweeper

- Protection class of the appliance III. and protection class of the power adaptor II. Certification CE

- Accessories: rotary parquet nozzle, crevice nozzle, brush, stand for convenient storage

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

The pictures are only illustrative, the supplied accessory and cleaner may differ.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

KEZELÉSI ÚTMUTATÓ

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Sketch-style illustration of the Eiffel Tower, Colosseum, and windmill (no text or symbols)
