Product Type	Automatic Domestic Water System
Brand	Einhell
Model	GC-AW 6033
Mains Connection	230 V ~ 50 Hz
Power Consumption	600 W
Max. Pumping Rate	3300 l/h
Max. Delivery Head	36 m
Max. Delivery Pressure	0.36 MPa (3.6 bar)
Max. Suction Height	8 m
Pressure Connection	approx. 33.3 mm (R1 female thread)
Suction Connection	approx. 42 mm (R1¼ male thread)
Max. Water Temperature	35 °C
Sound Pressure Level (L_pA)	78.5 dB(A)
Uncertainty (K_pA)	2.48 dB(A)
Protection Type	IPX4
Operating Mode Indicators	Yellow Power ON, Green Pump ON, Red Failure
Dry Run Protection	Yes, automatic shut-off after approx. 30 seconds
Coarse Filter	Yes, removable and cleanable
Non-return Valve	Included in coarse filter assembly
Intended Use	Irrigation, watering, lawn sprinklers, drawing water from ponds/rainwater butts
Not for Drinking Water	Yes, not designed for conveying drinking water
Items Supplied	Automatic Domestic Water System, wrench for coarse filter screw, operating instructions, safety instructions

Frequently Asked Questions - GC-AW 6033 EINHELL

How do I prime the pump?

Unscrew the water filler screw (2) and remove the coarse filter (8) along with the non-return valve (9). Fill the pump housing with water, then reassemble in reverse order. Ensure all shut-off devices in the pressure line are fully open during priming. Priming may take between 30 seconds and 5 minutes depending on suction conditions.

What should I do if the motor does not start?

Check the mains voltage. If the rotor is blocked, dismantle and clean the pump. The thermostat may have switched off due to overheating; allow it to cool and restart. Ensure the power cable is properly connected.

How do I clean the coarse filter?

Disconnect the pump from the power supply. Remove the coarse filter screw and withdraw the coarse filter together with the non-return valve. Clean the filter by tapping it on a flat surface or using soapy water for stubborn dirt. Rinse with clear water, air-dry, and reassemble.

Can I pump hot water?

No, the maximum water temperature is 35°C. Do not pump fluids above this temperature or any inflammable, gassing, explosive, aggressive, or abrasive liquids.

What does the LED indicator mean?

Yellow Power ON: power connected. Yellow + Green Pump ON: pump running, medium being drawn. Yellow + Green + Red Failure: pump running dry (tries to restore flow for ~30s). Yellow + Red Failure: dry run protection triggered; motor off. Yellow blinking: pump building pressure and will auto-off (e.g., tap closed).

How do I store the pump for winter?

Rinse the pump with water, empty it completely, and allow it to dry. Store in a dark, dry place above freezing (ideal 5-30°C). Ensure the pump is fully drained to prevent frost damage. For long stoppages, briefly switch on/off to check rotor movement.

What is the warranty period?

The guarantee is valid for 2 years from the purchase date. Claims must be submitted before the end of the guarantee period and within two weeks of noticing the defect. Register defective equipment at www.Einhell-Service.com with proof of purchase.

Why is the pump not drawing water?

Possible causes: intake valve not submerged, pump chamber lacks water, air in intake line, leaking intake valve, blocked strainer, or exceeded max suction height (8 m). Check and rectify each: immerse valve, fill water, ensure airtight connections, clean strainer, lower intake depth.

Can I use this pump for drinking water?

No, the Einhell GC-AW 6033 is not designed for conveying drinking water. It is intended for irrigation, lawn sprinklers, and drawing clear water from ponds, streams, or rainwater butts.

What should I do if the pump becomes clogged?

Disconnect the power. Connect the discharge line to the water line and disconnect the suction hose. Open the water line. Switch on the equipment several times for about two seconds. This should clear most clogs. If not, clean the coarse filter and check for blockages.

USER MANUAL GC-AW 6033 EINHELL

Close-up of a mechanical component with a circular arrow indicating rotation or motion (no text or symbols visible)

-2-

Simple line drawing of an open book with no text or symbols on the pages

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 5)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

2. Layout and items supplied

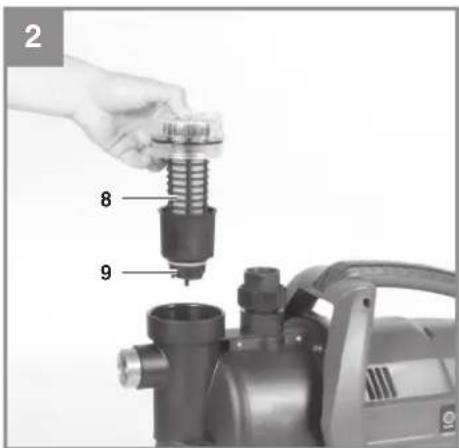

2.1 Layout (Fig. 1-2)

1. Suctionconnection
2. Water filler screw
3. Pressure connection
4. Carry-handle
5. ON button
6. Water drain screw
7. Wrench for coarse filter screw
8. Coarse filter
9. Non-return valve

2.2 Items supplied Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• AutomaticDomesticWaterSystem
• Wrench for coarse filter screw
• Original operating instructions
- Safetyinstructions

3. Proper use

Applications

• Irrigation and watering of green areas, vegetable beds and gardens.
  • Operation of lawn sprinklers.
• For drawing water from ponds, streams, rainwater butts, rainwater cisterns and springs
  • For supplying service water

Transport media:

• For the pumping of clear water (fresh water), rainwater or light suds/service water.
• The maximum temperature of the fluid must not exceed +35°C if the equipment is operated permanently.
• Do not use the equipment to pump inflammable, gassing or explosive fluids.
• The pumping of aggressive liquids (acids, alkalis, silo seepage etc.) as well as liquids with abrasive substances (sand) must likewise be avoided.

GB

- This equipment is not designed to convey drinking water.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains connection: 230 V \~ 50 Hz

Power consumption: 600 W

Pumping rate max. 3300 l/h

Delivery head max. 36 m

Delivery pressure max. .....0.36 MPa (3.6 bar)

Suction height max. 8 m

Pressure connection: ...... ....approx. 33.3 mm (R1 female thread)

Suction connection: ..... ....approx. 42 mm (R1¼ male thread)

Water temperature max. 35°C

Sound pressure level L_bA : 78,5 dB(A)

Uncertainty K_nA : 2,48 dB(A)

Protection type: IPX4

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

As a basic principle, we recommend the use of a preliminary filter and a suction set with suction hose, intake cage and non-return valve, in order to prevent long priming periods and unnecessary damage to the pump as a result of stones and solid foreign bodies.

5.1 Connecting the intake line

- Fasten the suction hose (at least approx. 19 mm (3/4") plastic hose with spiral reinforcement) to the suction connection (1) approx. 42 mm (R1¼ male thread) of the equipment either directly or via a threaded nipple.

• The suction hose used should be equipped

with an intake valve. If the intake valve cannot be used, a non-return valve should be installed in the intake line.

• Position the intake line so that it rises from the water withdrawal point to the equipment. Avoid positioning the intake line higher than the pump, as this would delay the escape of air bubbles from the intake line and impede the priming process.
  • Install the intake and discharge lines in such a way that they do not exert any mechanical pressure on the equipment.
• The intake valve should be low enough in the water to ensure that if the water level falls, the unit will not run dry.
• A leaking intake line will draw in air and therefore not draw in any water.
• Prevent the intake of foreign bodies (sand, etc.). If necessary, install a coarse filter for this purpose.

5.2 Connecting the discharge line

• The discharge line (min. 19 mm ( ^3/4 ")) must be connected to the 33.3 mm (R11G) female thread discharge line connector of the equipment (3) either directly or with the aid of a threaded nipple.
• With the right couplings it is also possible, of course, to use a 13 mm ( 12 ) delivery hose. The smaller delivery hose results in a lower delivery rate.
• During the priming operation, fully open any shut-off mechanisms (spray nozzles, valves, etc.) in the pressure line so that the air can escape without obstruction.

5.3 Electrical connections

• Connect the appliance to a 230 V \~ 50 Hz socket-outlet with earthing contact. Minimum fuse 10 ampere.
• A built-in thermostat protects the motor from overloading and blocking. The pump is switched off automatically by the thermostat if overheating occurs and is switched on again automatically after cooling.

GB

6. Operation

• Set up the pump on flat and firm ground.
• Attach the intake line ready for use.
• Unscrew the water filler screw (2) and remove the coarse filter (8) together with the non-return valve (9) as shown in Figure 2. Now you can fill the pump housing with water. Filling the intake line accelerates the priming process.
  • Assemble in reverse order.
• Plug into the mains.
  • Press the ON switch (5)
• All shut-off devices in the pressure line (spray nozzles, valves etc.) must be fully opened when priming so that any air in the intake line can escape.
• Depending on the suction height and the amount of air in the intake line, priming can take anywhere between 30 seconds and 5 minutes. If it takes longer than this, the pump should be refilled with water.
• If the pump is removed again after use, it must always be refilled with water whenever it is connected up and used again.

Operating the flow switch:

The operating mode is indicated by the LEDs.

Yellow Power ON is lit:

The power cable is connected.

Yellow Power ON and Green Pump ON are lit: The pump is in operation and starts up immediately; a consumer for drawing off medium is open.

Yellow Power ON, Green Pump ON and Red Failure are lit:

The pump is running dry without any medium. For approx. 30 seconds the pump will try to restore the flow.

Yellow Power ON and Red Failure are lit:

After approx. seconds without any flow the motor will switch off.

The dry running guard has tripped; it is no longer possible to draw in the medium. Use the pump's operating manual to fi nd the cause of the fault (e.g. a leaking intake line) and rectify it. Then re-start the pump by pressing the ON button (5) on the fl ow switch.

Yellow Power ON is blinking:

The pump is building up pressure (e.g. a water tap is closed) and then switches off automatically.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

The equipment is almost completely maintenance free. In order to ensure a long service life, however, we recommend that you regularly check and care for the product.

Danger!

The equipment must be disconnected from the power supply (pull the power plug) prior to performing any maintenance.

8.1 Servicing

• If the equipment becomes clogged, connect the discharge line to the water line and disconnect the suction hose. Open the water line. Switch on the equipment several times for approx. two seconds. This should resolve the majority of clog-related problems.
• There are no parts inside the equipment which require additional maintenance.

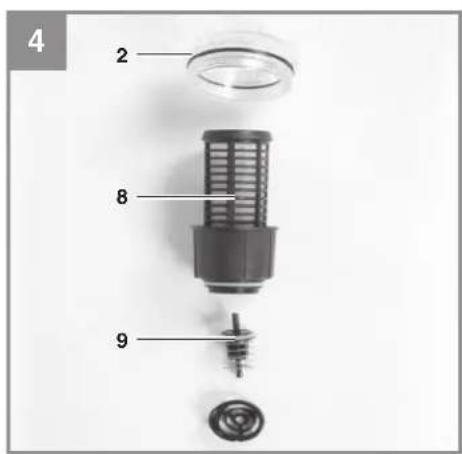

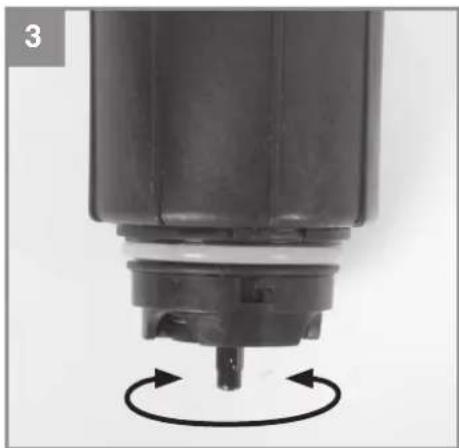

8.2 Cleaning the coarse fi Iter insert (Fig. 3-4)

• Clean the coarse filter insert at regular intervals, and replace it if necessary.
• Remove the coarse filter screw and coarse filter together with the non-return valve.
• Do not use abrasive cleaning agents or petrol to clean the coarse filter and the non-return valve.
• Clean the coarse filter and the non-return valve by tapping them on a flat surface. In cases of stubborn dirt, first clean with soapy water, then rinse with clear water and air-dry.
  • Assemble in reverse order.

GB

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

• Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
• If the pump is not going to be used for a long time or has to be removed for the winter months, rinse it out with water, empty it completely and allow it to dry.
• The equipment must be completely drained before it is subjected to frost.
• After long stoppages, make sure the rotor turns correctly by briefly switching the pump on and off.

11. Troubleshooting guide

Faults Cause	Remedy
Motor fails to start up	-Nomainsvoltage- Pump rotor blocked -thermostat switched off	-Checkvoltage- Dismantle and clean pump
No intake - Intake	valve not in water- Pump chamber without water connection- Air in intake line air-tight- Intake valve leaks- Strainer (intake valve) blocked- Max. suction height exceeded	- Immerse intake valve in water- Fill water into intake- Make sure intake line is close- Clean intake valve- Clean strainer- Check suction height
Inadequatedelivery rate	- Suction height too high- Strainer dirty- Water level falling rapidly- Pump performance diminished by contaminants part	-Checksumsuctionheight- Clean strainer- Place the suction hose at a deeper level- Clean pump and replace wearing
Thermostatswitches pump off	- Motor overloaded - friction caused by foreign substances too high	- Dismantle and clean pump. Prevent intake of foreign substances (fi Iter)

GB

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*	Coarse filter, filter cartridge
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this product in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not affected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectification of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name "Professional" has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

4. Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environmental conditions; damage resulting from poor care and maintenance.

5. Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ....) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

6. Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design-related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

7. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fitted. This also applies if on-site service is used.

8. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and returned to you or we will send you a new replacement.

9. If you have taken the equipment with you to a different EU country than where you bought it, we will arrange for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply.

Of course, we are also happy to offer a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumables and missing parts as presented in the service information included in this operating manual.

Warrantor/ Service:

Einhell UK Ltd, Unit 10, 1st Floor, Champion's Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0AB

Pericolo!

X 2000/14/EC_2005/88/EC

X Annex V

Annex VI

Noise: measured L_w0 = 78.5 dB (A); guaranteed L_f0 = 81 dB (A)

P = kW; L/∅ = cm

Notified Body:

2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 60335-1; EN IEC 60335-2-41; EN 62233; EN IEC 55014-1; EN IEC 55014-2; EN IEC 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR030133

Documents registrar: Fischer Thomas

Wiesenweg 22, D-94405 Landau/Isar

* SG Automatic domestic water system P Systems automatic de a un emplo domestic P Centralna dirica automatica - DKN Vantouvatal. S Pumpulomat. CZ Automaticnada motori vodoma - SK Domat votom automale NL Automatice watervoczerningsinstallatie - E Sistema automatice de brome de agua. FM Koliatusvesusautomali - SLO Automala za hini vodovol - N Hizi vizumi automale - FO Hidrof automale. GFI Automati ookcson verpo eekoon spiron. P Bomba de rega automatica. NHBIP Automala za kuchi vodovol - FIS Automala za kuchi vodovol - PL Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodovol - MUN Automati nozakun vodow

EH 04/2024 (01)
