TWICE PG20N - Cooker Eldom - Free user manual and instructions

Product Type	Electric cooker with two heating plates
Brand	Eldom
Model	TWICE PG20N
Dimensions (approx)	400 x 360 x 90 mm
Weight (approx)	3.5 kg
Power Consumption	2250 W
Supply Voltage	230 V ~ 50 Hz
Number of Heating Plates	2
Thermostat Control	Smooth adjustment from MIN to MAX
Indicator Lights	Power/heat operation indicator
Safety Features	Grounded plug; minimum 5 cm clearance from walls; use on heat-resistant surface; do not move when hot; do not immerse in water
Cleaning and Maintenance	Wipe with soft damp cloth and mild detergent; do not use abrasive agents; do not immerse or wash in dishwasher
Spare Parts	Available through authorized service center
Repairability	Repairs only by authorized service point; use only original spare parts
Intended Use	Indoor household use only; not for commercial purposes
Warranty	Valid for household use; void if used inappropriately
Operation	Suitable for cooking and heating meals; use flat-bottomed dishes of proper diameter

Frequently Asked Questions - TWICE PG20N Eldom

How do I clean the cooker?

Unplug the appliance and let it cool completely. Wipe all surfaces with a soft, damp cloth and mild cleaning agents. Do not use abrasive agents, and never immerse the appliance in water or wash it in a dishwasher.

What type of cookware can I use?

Use only metal and ovenproof dishes with flat and stable bottoms. The dish should be of a proper diameter to ensure stability and good contact with the heating plate.

How much power does the cooker consume?

The cooker has a power consumption of 2250 W and operates at a supply voltage of 230 V ~ 50 Hz.

How do I adjust the temperature?

Use the thermostat knob. Settings 1-3 correspond to lower temperatures for heating meals, while settings 4 to MAX are for higher temperatures intended for cooking. The control light indicates operation.

Can I use the cooker outdoors?

The cooker is intended for indoor use only. It can be used under a roof protected from rain and wind, but not in open air.

Is it safe to use around children?

The appliance can be used by children aged 8 and older under supervision. Children should not play with the appliance, and cleaning or maintenance should not be carried out by children without adult supervision.

What should I do if the power cable is damaged?

If the power cable is damaged, it must be replaced by the Manufacturer’s Service to avoid hazard. Do not attempt to repair it yourself.

Why does the cooker smell when first used?

During the first activation, a specific smell may be emitted from the heating elements and insulation. This is a normal occurrence and will disappear after a short time.

How should I store the cooker when not in use?

After use, set the thermostat to the MIN position, unplug the appliance, and wait until it cools down completely. Store it in a dry, stable place away from children.

What does the warranty cover?

The warranty is valid for household use only. It does not cover commercial use or damages resulting from improper handling, unauthorized repairs, or use of non-original spare parts.

USER MANUAL TWICE PG20N Eldom

Black electrical stove burner with two circular heat sinks and four wheels (no text or symbols visible)

WSKAZÓWKI BEZPIECZEŃSTWA

Please acquaint precisely with whole of this instruction before the blender for the first time,

1. Before operating the appliance, read the user manual thoroughly.
2. Plug in the connecting cable to a grounded electrical outlet.
3. Ensure that a limited number of receivers are connected to one current circuit.
4. If an extension cord is used, it should be grounded and placed in a safe manner.
5. The appliance is intended for household use only.
6. Use only in rooms with good ventilation.
7. Keep an eye on the operating appliance, especially when there are children nearby. Before leaving - the room with the appliance, switch it off.
8. If the appliance is not working, unplug it.
9. Before unplugging, set the thermostat (1) in the position “„MIN”.
10. Do not use in open air. The cooker can be used under the roof where it is protected against rain and wind.
11. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
12. Make sure that children do not play with the equipment.
13. Never place products directly on the heating plate (2). It poses the risk of serious burning and damage of the appliance.
14. Do not use the appliance near curtains, blinds or other inflammable material.

15. Do not place the appliance in a corner of a room or directly next to the wall. The space of at least 5 cm from the sides of the appliance should be provided.

16. To ensure free and safe access to the appliance, place it at a proper height.

17. The cooker can be only positioned on a level, stable and high-temperature resistant surface. No items of inflammable material can be placed above the appliance.
18. do not touch the housing and the heating plate of the operating appliance (risk of serious burning), and when the appliance is no longer used, wait until it cools down completely.
19. do not move the appliance during its operation, do not place the power supply cable over the cooker, do not use for heating rooms, do not use the cooker without dishes with products.
20. place dishes with products on the heating plate in acentral position.
21. use only metal and ovenproof dishes with flat and stable bottoms.
22. if the power cable is damaged, it must be replaced in the Manufacturer's Service in order to avoid hazard.
23. repairs of the equipment can only be performed by an authorized servicing point. Any modernizations or the use of non-original spare parts or elements of the appliance is prohibited and may cause a serious hazard to the user.
24. The company Eldom Sp. z o. o. shall bear no responsibility for .any possible damages resulting from the improper usage of the appliance.

ENVIRONMENT PROTECTION

- the device is made of materials that can be reused or recycled

- it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

WARRANTY

• only intended for household use,

- it cannot be used for commercial purposes

- the warranty loses validity in case of inappropriate use

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely.

• Do not immerse the appliance in water or wash it in a dish-washer machine
• All surfaces can be cleaned only by wiping them with a soft, damp cloth with the addition of gentle cleaning agents
• Do not use abrasive agents

This symbol warns against the high temperature of the surface of the appliance.

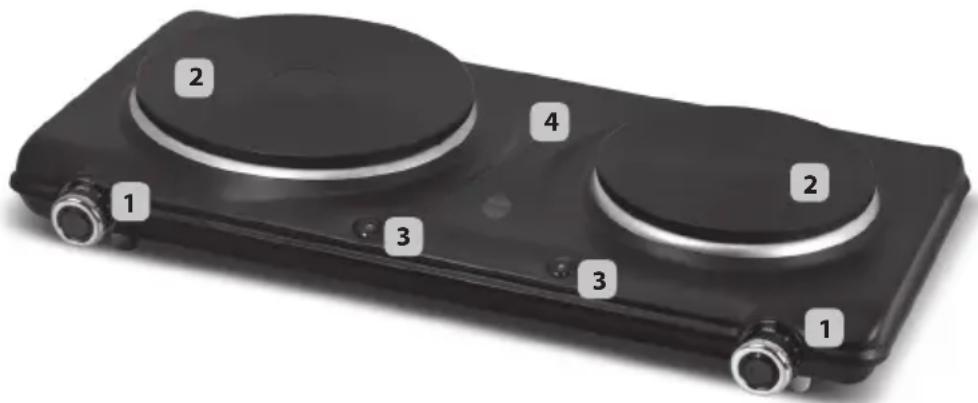

GENERAL DESCRIPTION

1. Thermostats
2. Heating plates
3. Control lights
4. Housing

TECHNICAL DATA

• power: 2250W
• supply voltage: 230V \~ 50Hz

USING THE APPLIANCE

Before operating and plugging in the appliance, set the thermostat (1) in the position "MIN" (the appliance switched off).

Position the appliance on a level, dry, stable and high-temperature resistant surface. The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm from the sides of the device should be provided.

To ensure free and safe access to the appliance, place it at a proper height.

• plug in the appliance
• place a dish with products on the heating plate (2)
• switch on the appliance selecting the working temperature of the thermostat (1) Thermostat enables smooth adjustment of the temperature

Settings 1-3 correspond to the lower temperature proper for heating meals.

Settings 4 - MAX - high temperature intended for cooking. Operation of the appliance is signalled by the control light (3).

When the appliance is no longer used, set the thermostat (1) in the position "MIN" and unplug the appliance.

During the first activation of the appliance, a specific smell can be emitted from the heating elements and the insulation. It is a normal occurrence.

In order to ensure safety and high efficiency of the operation, use only dishes with flat bottoms and of a proper diameter which guarantee stability and good contact of the dish with the heating plate
