XIMI R103 - Food processor Eldom - Free user manual and instructions

Product Type	Hand Mixer (Food Processor)
Brand	Eldom
Model	XIMI R103
Power	300 W
Supply Voltage	230 V ~ 50 Hz
Maximum Continuous Operation Time	5 minutes (with whipping and mixing accessories)
Minimum Interval Between Cycles	10 minutes
Speed Settings	5 speeds + TURBO (max speed)
Attachments Included	2 beaters, 2 dough hooks
Release Button	Yes (for ejecting attachments)
Maximum Liquid Temperature	50 °C
Housing Material	Plastic (assumed)
Attachments Material	Metal (stainless steel assumed)
Dishwasher Safe Attachments	No (hand wash recommended)
Motor Housing Cleaning	Wipe with damp cloth only
Safety Features	Auto shut-off when unattended, unplug before cleaning/assembly
Intended Use	Household only, not for professional use
Warranty	Valid only for personal household use; misuse voids warranty
Repairs	Only by authorized service points
Spare Parts	Original parts only

Frequently Asked Questions - XIMI R103 Eldom

What is the maximum continuous operation time for the Eldom XIMI R103?

The maximum continuous operation time is 5 minutes when using whipping or mixing accessories. After that, allow a 10-minute break before using again.

Can I wash the mixer body in the dishwasher?

No, do not immerse the mixer body (4) in water or wash it in a dishwasher. Clean it only with a damp cloth. The beaters and dough hooks can be washed in warm water with dish soap.

How do I attach the beaters or dough hooks?

Ensure the mixer is unplugged and the switch is at 0. Insert the attachments into the corresponding sockets at the bottom of the mixer (photo 2). Always use them in pairs: two beaters or two dough hooks. Make sure they are properly assembled before operation.

What does the TURBO button do?

The TURBO button instantly provides the maximum speed, equivalent to speed setting 5 on the switch. It is useful for quick mixing or whipping tasks.

Can I use the mixer for hot ingredients?

No, the temperature of liquids should not exceed 50°C. Using hotter ingredients may damage the appliance.

What should I do if the mixer slows down during use?

If the mixer slows down, stop operation and let it rest. Also, try to liquefy the ingredients if possible to reduce load. Extended operation without breaks can damage the motor.

Is the Eldom XIMI R103 suitable for professional use?

No, this appliance is intended for household use only. Using it professionally will void the warranty.

How do I remove the attachments after use?

First, set the switch to 0 and unplug the mixer. Then press the release button (1) to eject the attachments. Wait until they stop moving before touching.

What spare parts are available for this model?

Only original accessories supplied by Eldom should be used. Non-original parts may cause hazards. Contact an authorized service point for replacements.

Can children use this mixer?

Children aged 8 and older can use the mixer under supervision, provided they have been instructed on safe use. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision.

USER MANUAL XIMI R103 Eldom

White hand mixer with a metal stand, no visible text or symbols

Illustration of a hand mixer with labeled parts (4, 5, 6) and a separate image of two coiled-coil kitchen utensils (no text or symbols on the main objects)

OPIS OGÓLNY

Close-up of medical or laboratory equipment with two labeled parts and hand arrows pointing to features (no readable text or symbols)

Please read all these instructions carefully before using this appliance.

1. Before the first use, read this entire user manual.
2. Plug in the connecting cable to an outlet with parameters specified in the manual.
3. Do not immerse the cable or the appliance in water.
4. Do not use in open air.
5. Do not place the appliance near heat sources.
6. Do not leave unattended children near the appliance.
7. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
8. Before turning the appliance on, make sure that all its components are properly mounted.
9. Do not grab the appliance with wet hands.
10. Always unplug the appliance if it is unattended, before the assembly or disassembly of attachments and before cleaning,
11. Do not touch the dough hooks or beaters when the appliance is in operation, and after turning it off they can be touched only when they have stopped.
12. Do not use liquids of temperature higher than 50oC.

13. Do not exceed the maximum time of continuous operation.

14. Do not use when the power cable is damaged, when the appliance was dropped or damaged in a different manner. Repairs of the equipment can only be performed by an authorized servicing point; a list of servicing points is in the appendix and on the website www.eldom.eu.

15. Use the appliance only with original accessories supplied with it.

16. Any modernizations or the use of non-original spare parts or components of the appliance are prohibited and may cause a serious hazard to the user.

17. The company Eldom sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance.Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.

Illustration of a hand mixer and two coiled-coil kitchen utensils (no text or symbols)

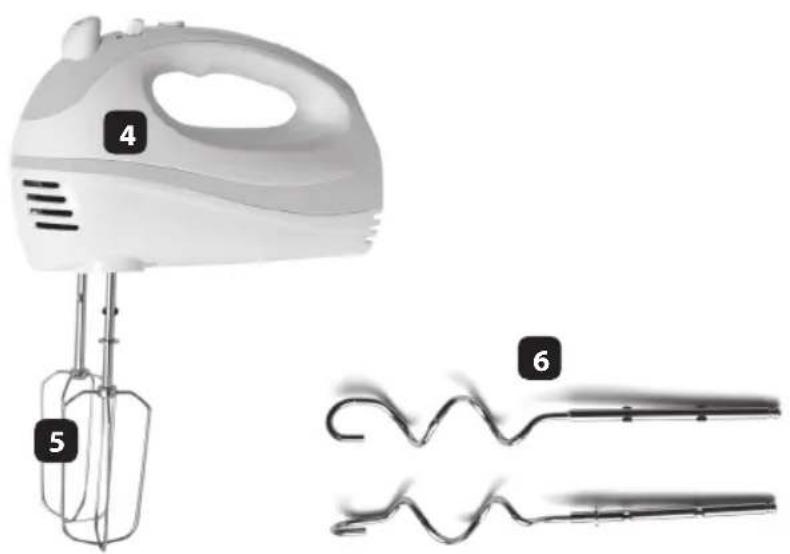

GENERAL DESCRIPTION

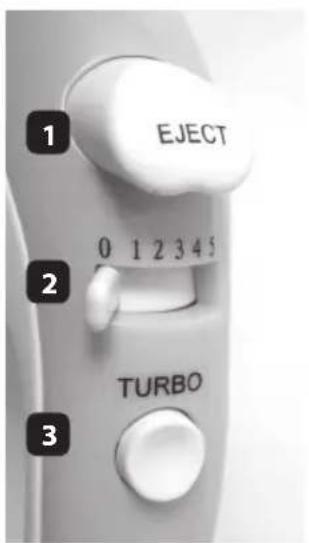

1. Dough hooks and beaters release button
2. Switch and speed control
3. TURBO button high speed
4. Body of the mixer
5. Beaters
6. Dough hooks

TECHNICAL DATA

• power: 300W
• supply voltage: 230V \~ 50Hz
• Maximum continuous operation with whipping and mixing accessories: 5 minutes
• Interval before another cycle of operation: 10 minutes

Before the first use wash the dough hooks (6), beaters (5).(see chapter: CLEANING AND MAINTENANCE).

ASSEMBLY

• Make sure the appliance is unplugged, and the switch (2) is set in the position "0".

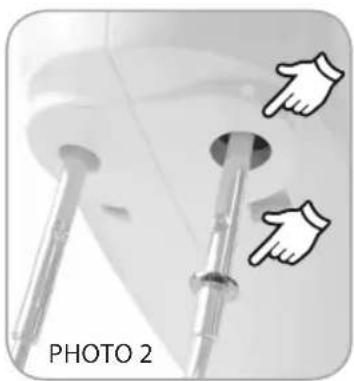

• Place the dough hooks (6) or beaters (5) in proper sockets on the bottom part of the mixer (4), photo 2. Attachments need to be assembled in pairs two dough hooks (6) or two beaters (5). Assemble the attachments in the order shown in the photo 2.

- Before the operation make sure that all the components

Close-up of two metallic cylindrical objects with a central hole and two pointing fingers, labeled 'PHOTO 2' (no other text or symbols)

were assembled properly.

• Plug in the appliance.
• The mixer starts its operation after a proper speed is selected with the switch (2).
• By changing its position 5 different speeds can be obtained.
• TURBO button is used to achieve immediately the maximum speed corresponding to the position "5" of the switch (2).
• When whisking or mixing is finished, one should:
• Slide the switch (2) to "0" position and unplug the mixer.
• Pull the attachments from the sockets by pressing the button (1).

CAUTION

Watch the continuous operation time of the appliance. The extended operation time and the lack of breaks may lead to the irreversible damage to the engine and loss of warranty. In the case of stopping the appliance while operation, before cleaning, unplug it and wait till the attachments stop to whirl.

If the appliance slows down while operation it needs a break and, if possible, liquefying ingredients.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance.

Do not wash the appliance in a dish-washer machine.

Do not immerse the body (4) in water.

Clean with a damp cloth or towel.

Other components of the appliance can be washed in warm water with a dishwashing liquid.

Do not clean the appliance with sharp, abrasive cloths or sponges as it may destroy the appliance.

PROTECTION

• The appliance is made of materials which can be recovered or recycled.
• The appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• The appliance is intended for personal use at a household.
• It is not intended for professional purposes.
• In case of misuse, the warranty is rendered null and void.

BEZPEČNOSTNÍ DOPORUČENÍ

Illustration of a hand mixer and two coiled-coil kitchen utensils (no text or symbols)

POPIS

Close-up of two metallic mechanical components with a pointing hand gesture (no text or symbols on the components)

Illustration of a hand mixer with labeled parts (4, 5, 6) and two separate kitchen utensils (no text or symbols on the main objects)

Close-up of two metallic mechanical components with a circular opening, marked by hand gestures (no text or symbols)

Illustration of a hand mixer with labeled parts (4, 5, 6) and a separate image of a coiled-coil tool (no text or symbols on the main objects)

VŠEOBECNÝ OPIS

Close-up of medical or laboratory equipment with two metallic rods and a central circular component, no visible text or symbols.

Illustration of a hand mixer with labeled parts (4, 5, 6) and a separate view of the coiled-coil kitchen tool (no text or symbols on main objects)

ÁLTALÁNOS LEÍRÁS

Illustration of a hand mixer and two coiled-coil kitchen utensils (no text or symbols)

DESCRIPCIÓN GENERAL

Close-up of two medical or surgical instruments with arrows pointing to a central component (no text or symbols visible)

dos batidoras (5).
