Robby BL105 - Shredder Eldom - Free user manual and instructions

Type of Product	Electric Blender/Shredder
Model	Robby BL105
Brand	Eldom
Rated Power	250 W
Mains Supply	230 V ~ 50 Hz
Continuous Operation Time	30 seconds
Required Break Before Restart	5 minutes
Main Functions	Grinding, mixing, beating
Included Accessories	Grinder attachment (4), foam tip (5), mixing container with knife (6), container with scale (7)
Blade Material	Stainless steel (sharp)
Housing Material	Plastic
Dimensions (approx.)	20 x 15 x 25 cm
Weight (approx.)	1.2 kg
Safety Features	Overload protection, automatic shutoff, child safety warnings
Cleaning Method	Wipe body with damp cloth; wash detachable parts with dishwashing liquid
Dishwasher Safe	No (containers not suitable)
Repairability	Authorized service centers; non-original parts forbidden
Warranty	Standard (blades not covered as consumables)
Environmental Compliance	Recyclable materials; dispose at WEEE collection points

Frequently Asked Questions - Robby BL105 Eldom

What is the continuous operation time for the Eldom Robby BL105?

The device can operate continuously for a maximum of 30 seconds. After that, a break of at least 5 minutes is required before restarting.

Can I blend hot liquids with this appliance?

No, do not blend hot products. The accessories and containers are not designed for hot dishes and may be damaged.

How should I clean the grinder and foam tip?

Detach them from the motor unit. Wash with water and dishwashing liquid, but do not fully immerse them in water. Only the ends with the knife or whisk can be immersed if detached.

Are the containers dishwasher safe?

No, the containers (6 and 7) are not suitable for dishwashers. They should be washed by hand with mild detergent.

What should I do if the appliance jams?

Unplug the appliance immediately before cleaning. The blades are very sharp; handle with care and only when the knives have stopped.

Can I crush ice or grind coffee beans with this device?

No, the appliance is not intended for crushing ice, bones, hard products, or grinding nuts, coffee, and dried leguminous plants. This may damage the blades.

Is the foam tip suitable for anything other than beating eggs?

No, the foam tip is designed only for beating eggs. Using it for other products will damage the appliance.

How do I maintain the appliance?

Always disconnect from power before cleaning. Wipe the motor unit with a damp cloth. Do not use coarse cloths or sponges. Use a small brush to clean the knife area, never bare hands.

What is covered under warranty?

The blades (grinder knife and mixing knife) are consumable parts and not covered by warranty. The rest of the appliance is covered under standard warranty terms.

Where can I get the appliance repaired?

Repairs should be performed only by an authorized service facility. The list of service centers is available on the Eldom website (www.eldom.eu) and in the product packaging.

USER MANUAL Robby BL105 Eldom

Product photo of a Eldom electric shaver with a beaker, whisk, and measuring cup (no visible text or symbols)

Product photo of a kitchen appliance including a blender, whisker, and measuring cup (no visible text or symbols)

SKŁADANIE URZĄDZENIA

Diagram of a cleaning or cleaning process using a tool, showing a funnel, lid, and bucket with a rotating arrow (no text or symbols)

CZYSZCZENIE I KONSERWACJA

1. Read thoroughly this entire manual before the first use of the unit.
2. Connect the power supply cord to the socket with the parameters stated in the manual.
3. Do not immerse the cord or the appliance in water.
4. Do not use in open air.
5. Do not put the appliance close to sources of heat.
6. Do not leave children unattended near the appliance.
7. This appliance may be used by children of at least 8 years old and by persons with reduced physical and mental capacity and persons with no experience and knowledge of the equipment if the supervision or instruction is provided for use of the equipment in a safe way, so that the related hazards are understandable. Children should not play with the appliance. Children without supervision should not clean and maintain the appliance.
8. Before switching on the appliance, make sure that all its elements are properly installed.
9. Do not grasp the appliance with wet hands.
10. NOTE. Improper use of the appliance may result in injury. Be careful when manipulating the blades and during cleaning.
11. Always disconnect the appliance from power supply if it is left unattended and before its assembly, dismantling or cleaning.
12. Do not use the appliance for breaking ice, bones and other hard products or to crush nuts, coffee and dried leguminous plants.
13. Do not blend hot products.

14. The appliance may be used only with the original attachment (4),

15. The knife of the attachment (4) is not covered on the bottom: be careful.

16. Do not touch the knife of the attachment (4) with the appliance operated; it may be touched only after disconnecting it from the power supply and stopping.
17. The appliance may not be used with a damaged knife.
18. Do not use the appliance longer than allowed for continuous operation.
19. Never use the appliance when the power cord is damaged, when the appliance was dropped or damaged in any way. Repair of the appliance shall be entrusted with an authorised service facility; the list of service facilities is enclosed and is published in www.eldom.eu.
20. Any modernisations or using non-original spare parts or elements of the appliance is forbidden and threatens safety of its use.
21. Eldom Sp. z o.o. shall not be responsible for any damages resulting from improper use of the appliance.

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycle
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

The blades is a consumable parts and as such is not covered by the warranty.

EN

• Rated power: 250W
• Mains supply: 230V \~ 50 Hz
• Brief operation without interruption - 30 seconds
• Time of the interruption before switching on again: 5 minutes

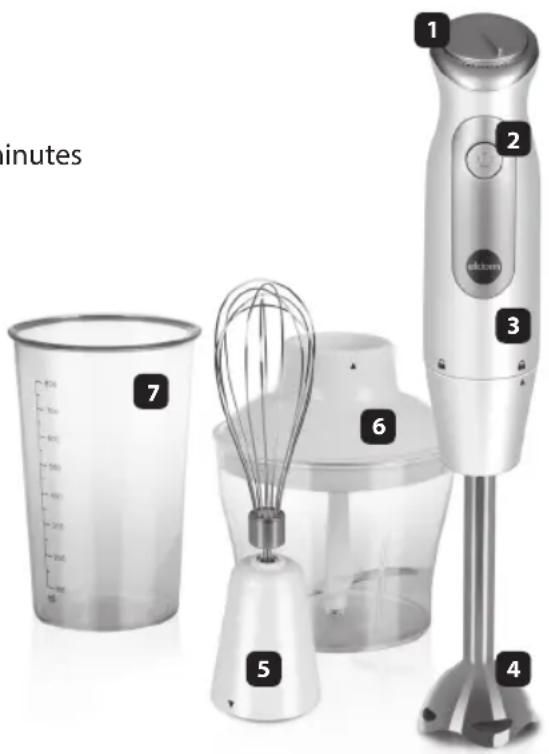

GENERAL DESCRIPTION

1. Speed switch
2. Switch
3. Motor unit
4. Drive shaft
5. Foam tip
6. Mixing container with knife
7. Container with scale

OPERATION OVERVIEW

Before using the appliance for the first time, wash and dry all elements carefully, except for the body (see: CLEANING AND MAINTENANCE).

The big container (7) is only an auxiliary vessel whose shape prevents splashing, e.g. when beating eggs.

The foam tip (5) is designed only for beating eggs. Using the whisk for other products will cause damage to the appliance.

Do not use the appliance for crushing ice, bones and other hard products, or for grinding nuts, coffee and dried leguminous plants.

If the appliance jams, unplug it before cleaning. The grinder knife (4) and the knife (6) are very sharp. They can be touched only when the appliance is unplugged and when the knives have stopped revolving. The knives are wear parts, subject to normal wear and tear, and they are not covered by the guarantee.

The time of continuous operation of the appliance must be observed. Exceeding the operation time and lack of sufficient breaks in the operation of the appliance may lead to irreversible damage to the engine and to forfeiture of guarantee.

The accessories and containers may not be used for preparing hot dishes.

If the appliance slows down during mixing or beating, switch it off and, if possible, dilute the mixed or beaten product.

ASSEMBLY OF THE APPLIANCE

Fig. 1 – assembly of the grinder
Fig. 2 – assembly of the foam tip
Fig. 3 – assembly of the body with mixing container

CLEANING AND MAINTENANCE

Before cleaning remove the power cord from the socket. The appliance may not be immersed in water. The body (3) can be wiped with a moist cloth.

Detach the grinder (4) and foam tip (5) from the mixer (3).

They can be washed with water with dishwashing liquid. The grinder and the foam tip may not be completely immersed in water. The ends with grinder knife and the whisk can be immersed only if detached from the mixer (3).

The containers (6, 7) are not suitable for a dishwasher and for storing products in the fridge. Complete immersion of the grinder (4) or the whisk (5) in water may lead to seizure of the ends and forfeiture of guarantee.

Do not clean the knife with bare hands. When cleaning, use a small brush.

Do not clean the appliance with coarse cloths or sponges as it may lead to damaging the appliance.

BEZPEČNOSTNÍ PODMÍNKY

Product photo of a kitchen appliance including a blender, whisker, and measuring cup (no visible text or symbols)

ČIŠTĚNÍ A úDRŽBA

Product photo of a kitchen appliance including a blender, whisker, and measuring cup (no visible text or symbols)

GERÄTEGEBRAUCH

Line drawing of a cleaning tool with a handle, base, and base bowl (no text or symbols)

Product photo of a kitchen appliance including a blender, whisker, and measuring cup (no visible text or symbols)

Diagram of a cleaning or packaging device with a handle, spool, and base (no text or symbols)

ОЧИСТКА И УХОД

Product photo of a kitchen appliance with labeled parts including a blender, whisk, and measuring cup (no visible text or symbols)

POUŽÍVANIE ZARIADENIA

Diagram of a cleaning or cleaning process showing a tool pressing down, then adding a brush to a container (no text or symbols present)

ČISTENIE A úDRŽBA

Product photo of a kitchen appliance including a blender, whisker, and measuring cup (no visible text or symbols)

HASZNáLAT

LIMPIEZA Y MANTENIMIENTO
