Copp BL77N - Shredder Eldom - Free user manual and instructions

Product Type	Hand Blender
Brand	Eldom
Model	BL77N
Rated Power	280 W
Supply Voltage	220-240 V ~ 50 Hz
Continuous Operation Time	30 seconds
Rest Time Between Uses	5 minutes
Speed Settings	2 (first and second speed switch)
Motor Unit Material	Plastic
Drive Shaft	Removable with stainless steel blade
Blade Material	Stainless steel
Cable Length	Approx. 1 m
Weight	Approx. 0.5 kg
Dimensions (approx.)	20 x 6 x 6 cm
Safety Features	Switch must be held to operate; do not immerse; use only with original parts
Cleaning Method	Motor unit: wipe with damp cloth; drive shaft: wash by hand with dish soap
Dishwasher Safe	No
Intended Use	Household only
Commercial Use	Not allowed
Warranty	As per attachment; void if misused

Frequently Asked Questions - Copp BL77N Eldom

How do I assemble the hand blender?

Attach the drive shaft to the motor unit by aligning and pushing until it clicks. Refer to photo 2 in the manual.

What is the maximum continuous operation time?

The blender can operate for 30 seconds continuously. After that, allow a 5-minute break before using again.

Can I use the blender to crush ice or hard foods?

No, the blender is not designed for crushing ice, bones, nuts, coffee, or dried legumes. Only blend soft foods.

How should I clean the blender?

Unplug first. Wipe the motor unit with a slightly damp cloth. Remove the drive shaft and wash it by hand with dishwashing liquid. Do not immerse the motor unit or the entire blender in water.

Is the blender dishwasher safe?

No, the blender (motor unit and drive shaft) is not dishwasher safe. Clean only by hand.

What should I do if the blender blade gets blocked?

Unplug the device immediately before attempting to clear the blockage. Do not touch the blade while it is moving.

Can children use this hand blender?

Children aged 8 and older can use it under adult supervision. Children under 8 should not operate the appliance.

What is the warranty coverage?

The warranty applies for household use only. It becomes void if the device is used commercially or misused. Refer to the warranty attachment for full conditions.

How do I switch between speeds?

Press and hold the first speed switch for normal speed, or the second speed switch for higher speed. The blender stops when you release the button.

Can I extend the operation time beyond 30 seconds?

No, extending the operation time can cause irreversible damage to the motor. Always follow the recommended cycle.

USER MANUAL Copp BL77N Eldom

Close-up of a white electric shaver with decorative swirl pattern and orange arrows indicating direction (no text or symbols)

fot. 2

UŻYTKOWANIE URZĄDZENIA

• please acquaint precisely with whole of this instruction before using the blender for the first time,
• the power cable must be plugged in the socket with parameters the same as those given in that instruction manual
• do not immerse the power cable or the device in water
• do not use outdoors
• do not allow children close to the device without supervision
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• do not touch the blender with wet hands
• always pull the plug of the socket before cleaning
• do not use blender for crumbling ice, bones or other hard products or for grinding nuts, coffee and dried legumes
• do not crumble hot products
• the blade is uncovered from below – please handle it with utmost care
• do not touch the blade when the device is on, after switching it of only after it stops,
• do not extend the recommended operation time of the blender,
• do not use the device in case of the damage of the power cable, when it dropped or was damaged in other way. Only allow authorised service to repair the device. The list of the service centres can be found in attachment or on the website www.eldom.eu,
• the device can work only with originally attached drive shaft
• all repairs can be made by authorised service centre All modernizations or using spare parts or elements other than original is forbidden and dangerous for the users safety.

Cleaning and maintenance

Before cleaning pull the plug of the socket. The device cannot be immersed in water or washed in a dishwasher. Motor unit should be cleaned dry with a slightly moist cloth. The drive shaft can be disassembled from the motor unit and cleaned in water with dishwashing liquid. It can never be immersed entirely in water. Only the blades can be immersed.

Never clean the blades with fingers use brush instead.

Do not use sharp or abrasive clothes or sponges for cleaning as they can scratch or damage the blender.

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycle
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

WARRANTY

• the blender is only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use,

For warranty conditions see attachment.

Instruction manual

Hand blender BL77N

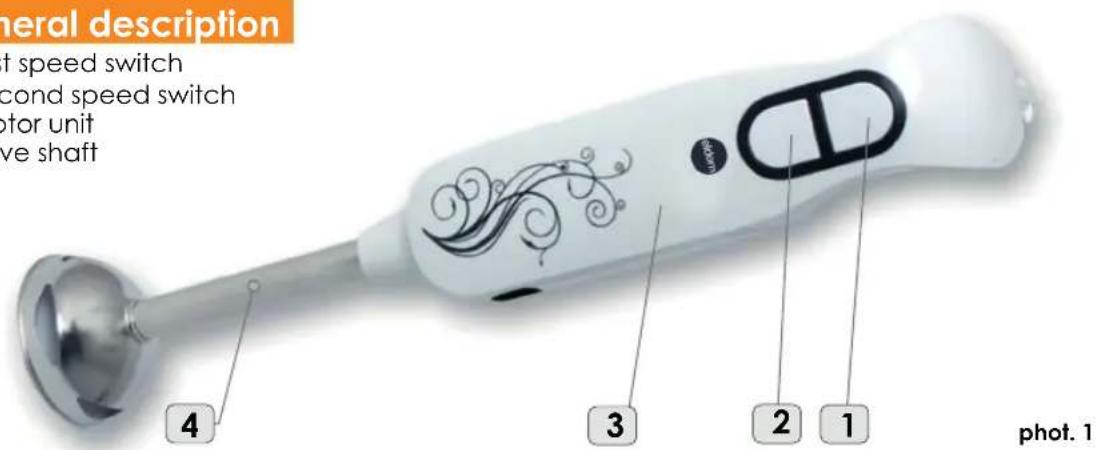

General description

1. First speed switch
2. Second speed switch
3. Motor unit
4. Drive shaft

phot. 1

Technical details

• Rated power: 280W
• Mains supply: 220-240V \~ 50Hz
• Brief operation without interruption - 30 seconds
• Time of the interruption before switching on again - 5 minutes

Operation overview

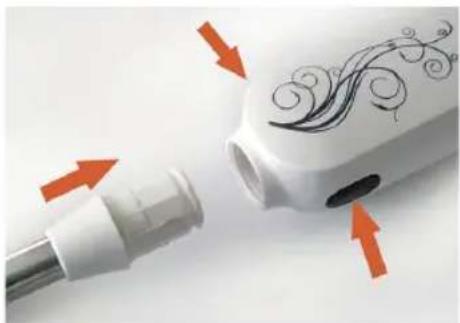

Before using the blender for the first time please disassemble the drive shaft (4), wash it carefully and dry. It should be washed by hand with regular dishwashing liquid. Never immerse the whole blender in water. The only washable part is the drive shaft with metal blade. The mode of assembling the device has been illustrated on the photography 2. To begin the work press and hold the first (1) or second (2) speed switch. The blender is working as long as one of the switches is pressed. Bypassingsecondswitch (2) the greaterworking speed of the blade is achieve.

Close-up of a white electric shaver with decorative swirl pattern and orange arrows indicating motion (no text or symbols)

phot. 2

It is recommended to read carefully the safety instructions specified below.

Do not extend the recommended operation time of the blender. Such extensions and lack of interruptions can cause serious and irreversible damage of the motor unit.

In case of blocking pull the plug of the socket before cleaning.

BEZPEČNOSTNÍ DOPORUČENÍ

Close-up of a white hairbrush with black floral swirl design being pointed at, with orange arrows indicating direction (no text or symbols)

foto 2

Close-up of a white hairbrush with black floral swirl design and orange arrows pointing to its tip (no text or symbols visible)

Bild 2

Close-up of a white electric shaver with decorative swirl pattern and orange arrows indicating ports (no text or symbols)

фот.2

Close-up of a white electric shaver with decorative swirl pattern and orange arrows indicating motion (no text or symbols)

fot. 2

POUŽIVANIE SPOTREBIČA

Close-up of a white hairbrush with decorative swirl pattern being inserted, showing orange arrows indicating direction (no text or symbols)

fot. 2

A KÉSZÜLÉK HASZNÁLATA

Close-up of a white electric shaver with decorative swirl pattern and orange arrows indicating motion (no text or symbols)

fot. 2

USO DEL APARATO
