Product Type	Hand Blender
Brand	Eldom
Model	Swirl BL75N
Rated Power	200 W
Power Supply	230 V ~ 50 Hz
Maximum Continuous Operation	30 seconds
Required Break Time	5 minutes
Speed Settings	2 speeds
Blade Material	Stainless steel
Housing Material	Plastic
Removable Drive Shaft	Yes
Cleaning Method - Motor Unit	Wipe with damp cloth only
Cleaning Method - Drive Shaft	Hand wash with dishwashing liquid
Dishwasher Safe	No
Safety Features	Do not immerse; use only with original parts; keep away from children under 8
Intended Use	Household only
Warranty	Standard warranty per attachment (see manual)

Frequently Asked Questions - Swirl BL75N Eldom

Can I use the Eldom Swirl BL75N blender to crush ice?

No, the blender is not intended for crushing ice, bones, or other hard products. Using it for such tasks may damage the blades and motor.

How long can I continuously operate the blender?

The maximum continuous operation time is 30 seconds. After that, you must let the device rest for at least 5 minutes to avoid motor damage.

Can I blend hot liquids with this blender?

No, do not blend hot products. The blender is designed for cold or room-temperature ingredients only.

Is the blender dishwasher safe?

No, neither the motor unit nor the drive shaft can be washed in a dishwasher. Only the drive shaft with blades can be washed by hand with dishwashing liquid. The motor unit should be wiped with a slightly damp cloth.

Can children use this blender?

Children aged 8 years and older may use the blender only under supervision and if instructed on safe use. Children must not play with the appliance, and cleaning must not be done by children without supervision.

What should I do if the blender stops working while in use?

First, unplug the device. Check if the blade is blocked by food. If blocked, carefully remove the obstruction with a brush, not fingers. Then allow the motor to cool for at least 5 minutes before attempting to use it again.

How do I assemble the blender?

Refer to the manual for assembly. Generally, attach the drive shaft to the motor unit by aligning and twisting until locked. The blender operates by pressing and holding one of the two speed switches.

What is the warranty period?

The warranty is valid for household use only. Specific conditions are provided in the warranty attachment included with the product. The warranty becomes void if the device is used improperly.

Can I use the blender for grinding nuts or coffee beans?

No, the blender is not suitable for grinding nuts, coffee, dried legumes, or similar hard ingredients. Doing so may damage the blades.

Where can I find spare parts or get my blender repaired?

Only authorized service centers are allowed to repair the device. Use only original spare parts. A list of service centers is provided with the product or on the official website www.eldom.eu.

USER MANUAL Swirl BL75N Eldom

Black hairdryer with a white head and black body, no visible text or symbols on the device itself.

WSKAZÓWKI BEZPIECZEŃSTWA

Close-up of a black hairdryer tip with orange arrows indicating motion, no text or symbols present

- please acquaint precisely with whole of this instruction before using the blender

for the first time,

- the power cable must be plugged in the socket with parameters the same

as those given in that instruction manual

- do not immerse the power cable or the device in water

- do not use outdoors

- do not allow children close to the device without supervision

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

- do not touch the blender with wet hands

- always pull the plug of the socket , before cleaning

- do not use blender for crumbling ice, bones or other hard products or for grinding nuts,

coffee and dried legumes

- do not crumble hot products

- the blade is uncovered from below – please handle it with utmost care

- do not touch the blade when the device is on, after switching it of only after it stops,

- do not extend the recommended operation time of the blender,

- do not use the device in case of the damage of the power cable, when it dropped or

was damaged in other way. Only allow authorised service to repair the device. The list of

the service centres can be found in attachment or on the website www.eldom.eu,

- the device can work only with originally attached drive shaft

- all repairs can be made by authorised service centre All modernizations or using spare parts or elements other than original is forbidden

and dangerous for the users safety.

Cleaning and maintenance

Before cleaning pull the plug of the socket. The device cannot be immersed in water or washed in a dishwasher. Motor unit should be cleaned dry with a slightly moist cloth. The drive shaft can be disassembled from the motor unit and cleaned in water with dishwashing liquid. It can never be immersed entirely in water. Only the blades can be immersed.

Never clean the blades with fingers use brush instead.

Do not use sharp or abrasive clothes or sponges for cleaning as they can scratch or damage the blender.

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycle
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

WARRANTY

• the blender is only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use,

For warranty conditions see attachment.

Instruction manual

Hand blender BL75N

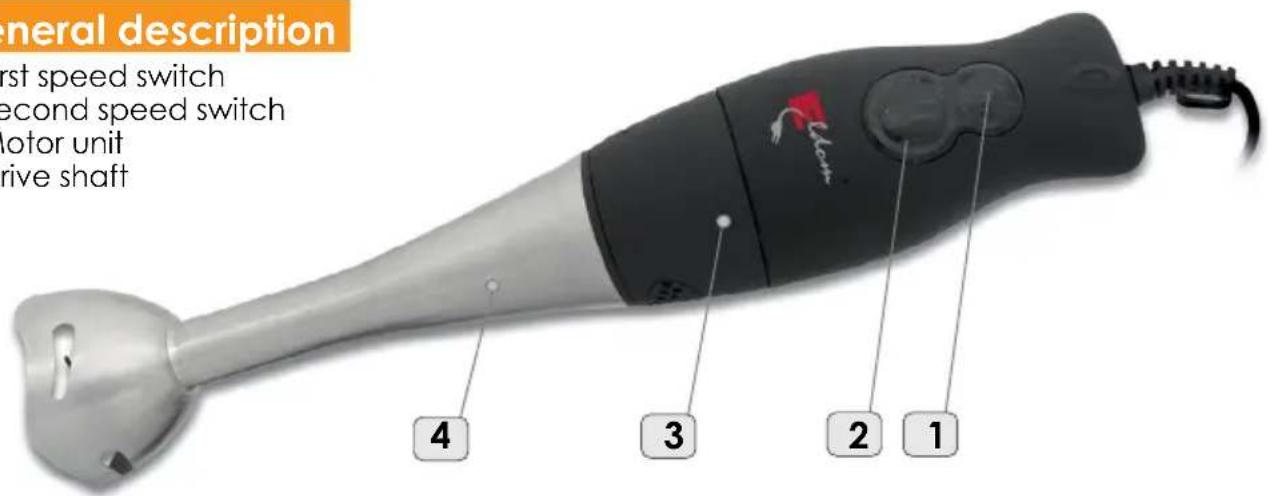

General description

1. First speed switch
2. Second speed switch
3. Motor unit
4. Drive shaft

Technical details

• Rated power: 200W
• Mains supply: 230 V \~ 50 Hz
• Brief operation without interruption - 30 seconds
• Time of the interruption before switching on again - 5 minutes

Operation overview

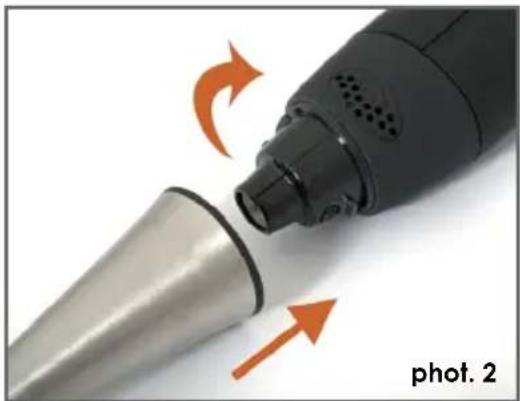

Before using the blender for the first time please disassemble the drive shaft (4), wash it carefully and dry. It should be washed by hand with regular dish washing liquid. Never immerse the whole blender in water. The only washable part is the drive shaft with metal blade. The mode of assembling the device has been illustrated on the photography 2. To begin the work press and hold the first (1) or second (2) speed switch. The blender is working as long as one of the switches is pressed. By pressing second switch (2) the greater working speed of the blade is achieve.

Close-up of a black handheld device with orange arrows indicating rotation or motion, next to a metallic cylindrical component (no text or symbols visible)

It is recommended to read carefully the safety instructions specified below.

Do not extend the recommended operation time of the blender. Such extensions and lack of interruptions can cause serious and irreversible damage of the motor unit.

In case of blocking pull the plug of the socket before cleaning.

BEZPEČNOSTNÍ DOPORUČENÍ

Close-up of a black handheld device emitting orange arrows from a metallic tip, no text or symbols visible

Close-up of a hairdryer tool with orange arrows indicating motion, no text or symbols present

Close-up of a black handheld device emitting orange arrows from a metallic tip, no visible text or symbols

Close-up of a black handheld device with orange arrows indicating rotation or movement, next to a metallic tip (no text or symbols visible)
