Product Type	Immersion Blender (Hand Blender)
Model	Robo BL55
Brand	Eldom
Rated Power	250 W
Mains Supply	230 V ~ 50 Hz
Continuous Operation Time	30 seconds
Rest Time Before Next Use	5 minutes
Speed Settings	2 speeds (low/high)
Controls	Speed switch and activation switch
Blade Material	Metal (stainless steel likely)
Drive Shaft	Removable for cleaning
Motor Unit	Non-immersible, clean with damp cloth
Dishwasher Safe	No (hand wash only for removable parts)
Safety Features	Automatic stop if overloaded (not specified), must use original attachment
Prohibited Uses	Ice, bones, nuts, coffee, dried legumes, hot liquids
Minimum Age for Users	8 years with supervision
Warranty	Blade not covered (consumable part)
Accessories Included	Motor unit, drive shaft with blade (attachment 4)
Dimensions (approx.)	Height: 35 cm, Width: 8 cm (based on typical immersion blender)
Weight (approx.)	0.6 kg

Frequently Asked Questions - Robo BL55 Eldom

How do I assemble the immersion blender?

Align the drive shaft with the motor unit and push until it clicks into place. Refer to the manual's fot. 2 for visual guidance.

Can I blend hot liquids?

No, do not blend hot products. Allow liquids to cool to room temperature before blending to avoid injury or damage.

How long can I use the blender continuously?

Maximum continuous operation is 30 seconds. After that, let it rest for at least 5 minutes before using again.

Can I wash the blender in the dishwasher?

No. Only the drive shaft and metal blade can be washed by hand with dishwashing liquid. The motor unit must be wiped with a slightly damp cloth.

What should I do if the blender stops working?

First, unplug the appliance. Check if the blade is blocked. Clear any obstruction. If the motor still doesn't run, contact an authorized service center.

Can I crush ice or nuts with this blender?

No. The blender is not intended for crushing ice, bones, nuts, coffee, or dried legumes. It is designed for soft foods and liquids only.

Is the blender safe for children to use?

Children aged 8 and above may use it under supervision. Children should not play with the appliance. Cleaning and maintenance should be done by adults.

How do I clean the blade safely?

Never touch the blade with bare hands when cleaning. Use a brush to remove food residues. The blade is very sharp.

What does the warranty cover?

The warranty covers manufacturing defects, but the blade is a consumable part and is not covered. Use only original spare parts.

Can I use an extension cord?

It is not recommended. If necessary, use an extension cord with the same specifications (230V, 50Hz) and adequate rating. Ensure it does not cause a tripping hazard.

USER MANUAL Robo BL55 Eldom

Silver electric shaver with 'eldom' button and antenna (no visible text or symbols beyond branding)

ROZDRABNIACZ

HAND BLENDER

PONORNÝ MIXÉR

STABMIXER

ИЗМЕЛЬЧИТЕЛЬ

RUCNÝ MIXÉR

BOTMIXER

BATIDORA

WSKAZÓWKI BEZPIECZEŃSTWA

1. Read thoroughly this entire manual before the first use of the unit.
2. Connect the power supply cord to the socket with the parameters stated in the manual.
3. Do not immerse the cord or the appliance in water.
4. Do not use in open air.
5. Do not put the appliance close to sources of heat.
6. Do not leave children unattended near the appliance.
7. This appliance may be used by children of at least 8 years old and by persons with reduced physical and mental capacity and persons with no experience and knowledge of the equipment if the supervision or instruction is provided for use of the equipment in a safe way, so that the related hazards are understandable. Children should not play with the appliance. Children without supervision should not clean and maintain the appliance.
8. Before switching on the appliance, make sure that all its elements are properly installed.
9. Do not grasp the appliance with wet hands.
10. NOTE. Improper use of the appliance may result in injury. Be careful when manipulating the blades and during cleaning.
11. Always disconnect the appliance from power supply if it is left unattended and before its assembly, dismantling or cleaning.
12. Do not use the appliance for breaking ice, bones and other hard products or to crush nuts, coffee and dried leguminous plants.
13. Do not blend hot products.
14. The appliance may be used only with the original attachment (4),

15. The knife of the attachment (4) is not covered on the bottom: be careful.

16. Do not touch the knife of the attachment (4) with the appliance operated; it may be touched only after disconnecting it from the power supply and stopping.

17. The appliance may not be used with a damaged knife.
18. Do not use the appliance longer than allowed for continuous operation.
19. Never use the appliance when the power cord is damaged, when the appliance was dropped or damaged in any way. Repair of the appliance shall be entrusted with an authorised service facility; the list of service facilities is enclosed and is published in www.eldom.eu.
20. Any modernisations or using non-original spare parts or elements of the appliance is forbidden and threatens safety of its use.
21. Eldom Sp. z o.o. shall not be responsible for any damages resulting from improper use of the appliance.

CLEANING AND MAINTENANCE

Before cleaning pull the plug of the socket. The device cannot be immersed in water or washed in a dishwasher. Motor unit should be cleaned dry with a slightly moist cloth. The drive shaft can be disassembled from the motor unit and cleaned in water with dishwashing liquid. It can never be immersed entirely in water. Only the blades can be immersed.

Never clean the blades with fingers use brush instead.

Do not use sharp or abrasive clothes or sponges for cleaning as they can scratch or damage the blender.

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycle
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

The blade is a consumable part and as such is not covered by the warranty.

GENERAL DESCRIPTION

1. Speed switch
2. Switch
3. Motor unit
4. Drive shaft

TECHNICAL DETAILS

• Rated power: 250W
• Mains supply: 230V \~ 50 Hz
• Brief operation without interruption - 30 seconds
• Time of the interruption before switching on again: 5 minutes

OPERATION OVERVIEW

Before using the blender for the first time please disassemble the drive shaft (4), wash it carefully and dry. It should be washed by hand with regular dishwashing liquid. Never immerse the whole blender in water. The only washable part is the drive shaft with metal blade.

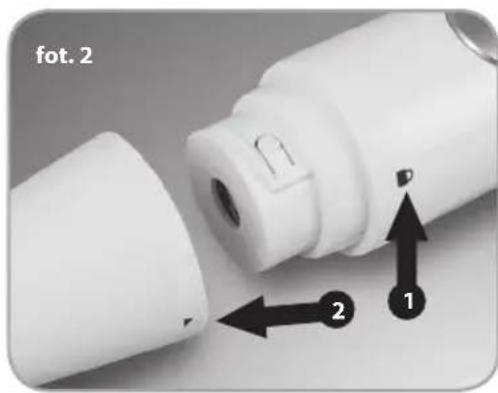

The mode of assembling the device has been illustrated on the fot 2.

To begin the work press and hold the switch (2). The blender is working as long as one of the switches is pressed.

Depending on the products processed, select with a switch (1) low or high speed. It is recommended to read carefully the safety instructions specified below.

Do not extend the recommended operation time of the blender. Such extensions and lack of interruptions can cause serious and irreversible damage of the motor unit.

In case of blocking pull the plug of the socket before cleaning.
