Type	Centrifugal Juicer
Brand	Eldom
Model	BIGGY PJ475
Power Consumption	400 W
Voltage	230 V ~ 50 Hz
Maximum Continuous Operation	10 minutes
Required Break Before Reuse	1 minute
Main Body Material	Plastic
Filter Material	Stainless steel
Filter Types Included	2 (A – small mesh for watery juice, B – large mesh for dense juice)
Safety Features	Microswitch (only operates when properly assembled), overload reverse function (R)
Control Knob Positions	On, Off, Reverse (R)
Feeding Tube Design	Large opening with built-in blade for whole soft fruits
Pulp Spout	Yes
Juice Spout	Yes, with closure
Included Containers	Juice jug (1 L approx) and pulp container
Detachable Parts Cleaning	Dishwasher safe (top rack), avoid abrasive cleaners
Motor Unit Cleaning	Wipe with damp cloth, never immerse in water
Intended Use	Household only

Frequently Asked Questions - BIGGY PJ475 Eldom

How do I assemble the juicer?

Place the juice collector into the main body and turn right. Insert the filter base, filter, and extracting bolt into the collector. Position the pulp container and juice jug under the respective spouts. Place the lid on the collector according to indicators and turn right. Finally, slide the pusher into the feeding tube.

What is the maximum operating time?

The maximum continuous operation time is 10 minutes. After that, you must allow a 1 minute break before using again to prevent engine damage.

Can I juice frozen fruits?

Frozen fruits can only be processed with filter no. 3 mounted. Regular filters are not suitable for frozen ingredients. Also, do not process ice cubes.

How do I clean the juicer?

Unplug the appliance. Disassemble all detachable parts (pusher, lid, filter, etc.) and clean them with a brush in warm soapy water or on the top rack of the dishwasher. Wipe the motor unit with a damp cloth. Never immerse the motor unit in water.

What should I do if the extracting bolt gets blocked?

Set the control knob to 'R' (Reverse) for 3-5 seconds. Repeat 2-3 times. If still blocked, turn off, unplug, disassemble, and remove the blocking element manually.

Does the juicer work with hard fruits like sugar cane?

No, the juicer is not suitable for very hard or starchy fruits/vegetables such as sugar cane. It is designed for soft to medium fruits and vegetables.

Can I put whole fruits into the feeding tube?

Only soft fruits like apples or oranges can be inserted whole. Hard fruits/vegetables (e.g., beetroot) must be cut into pieces. The lid has a blade that cuts inserted products, but forcing whole hard items may damage the blade or gears.

What are the two filter types for?

Filter A (small mesh) produces watery juice, while filter B (large mesh) produces denser juice. Choose based on your preference or the produce being juiced.

Is the appliance safe for children to use?

Children aged 8 years and older can use the appliance under supervision and if instructed on safe use. Children should not play with the appliance or perform cleaning without supervision. Keep the cord and appliance away from children under 8.

How do I prevent apple juice from turning brown?

Add a few drops of lemon juice to the apple juice. This slows down oxidation and keeps the juice looking fresh longer.

USER MANUAL BIGGY PJ475 Eldom

Modern kitchen brush rester with clear glass and orange slice, no visible text or symbols

WSKAZÓWKI BEZPIECZEŃSTWA

Stacked cylindrical container with black and gray bands, labeled 'A' in top-left corner (no other text or symbols)

Stacked black plastic filter or sensor component with mesh pattern (no visible text or symbols)

WSKAZÓWKI

Please acquaint precisely with whole of this instruction before using the blender for the first time.

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
2. Do not immerse the cable or the appliance in water.
3. Only intended for household use.
4. Do not use the appliance outdoors.
5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
6. Do not leave your device without supervision.
7. Always unplug the appliance after operation.
8. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
9. Do not touch the appliance with wet hands.
10. Always pull the plug of the socket before cleaning.
11. Do not use the juicer when the filter is damaged.
12. Do not exceed the maximum time of continuous operation of the appliance.
13. Do not move during use.

14. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.

15. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

16. The appliance can be used only with the originally included accessories.
17. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.
18. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

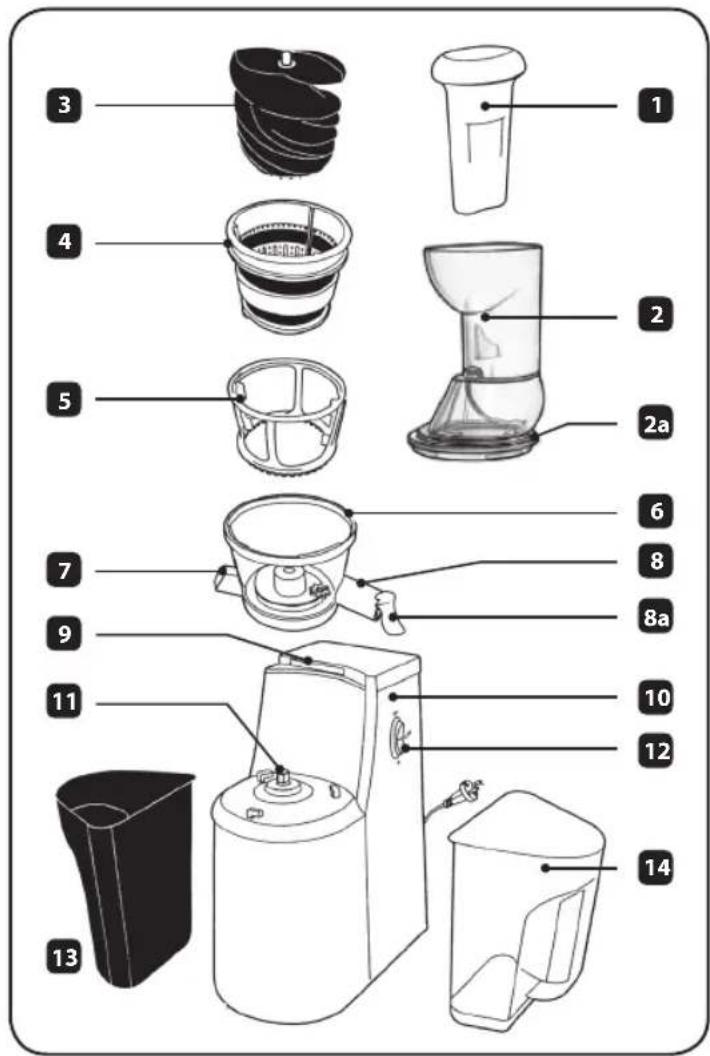

GENERAL DESCRIPTION

1. Pusher
2. Lid
   2a. Plastic tab
3. Extracting bolt
4. Filter
5. Filter base
6. Juicer collector
7. Pulp spout
8. Juice spout
   8a. Juice spout closure
9. Microswitch
10. Main body
11. Spindle drive
12. Control knob (On, Off, R)
13. Pulp container
14. Juice jug

TECHNICAL DATA

• power: 400W
• mains voltage: 230V \~ 50Hz
• maximum time of continuous operation: 10 minutes
• break before continuation of operation: 1 minute

PERFECT JUICER is designed for processing most of fruits and vegetables in a more efficient way than traditional juicer. A large dispensing opening for easy juice squeezing from soft fruit, e.g. apples.

Before using the appliance

• Read these instructions for use carefully before using the appliance
• make sure that none of elements are demaged
• wash all detachable parts
• assemble the appliance

MONTAGE

• Place the juice collector (6) into main body (10) and turn right (pic. 1)
• In juicer collector (6) set: filter base (5), filter (4) (pic. 4) and extracting bolt (3) (pic. 3)
• set the containers (13,14) under the spouts (7,8) (pic. 4)
• on the juicer collector (6) put the lid (2) according with the indicators. (pic. 5) and turn it right
• Slide the pusher into the feeding tube in the lid (2)

USING THE APPLIANCE

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked.

• always operate the product on a flat, stable surface
• put the plug in the wall socket
• slice products into pieces which fit into the feeding tube that is in the lid (2)
  Do not cut products into too small pieces.

- make sure the juice jug (14) has been placed under the juice spout (8)

- make sure that pulp container (13) has been placed under the pulp spout (7)

- switch the appliance on by turning the control knob (12) to the position „ON“

- put prepared fruits/vegetables in the feeding tube and gently press them down towards the rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could affect the quality of the end result or even blocked the appliance

Never insert your fingers or an object into the feeding tube. Only soft fruit, e.g. apples or oranges can be inserted as a whole. The tunnel in the lid is equipped with a special blade that cuts the inserted products, which should be lightly pressed. Inserting hard fruit/vegetables, e.g. beetroot as a whole can damage the blade and the gears. This damage is not covered by the warranty.

- The juice will flow directly in the juice jug (14), and the pulp will be collected in the pulp container (13).

- If the Extracting bolt is locked, you need to set the switch (12) to "R" for 3 to 5 seconds. Repeat the process two to three times, then turn off, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blcking element.

- After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating

- Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

TIPS

• Clean fruits and vegetables, before juicing
• Use fresh fruit and vegetables, as they contain more juice
• Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed
• products should be sliced into pieces which fit into the feeding tube that is in the lid (2). Do not cut the food into too small pieces.

- do not process the ice or frozen fruits

- If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients

- Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice

- frozen fruit may be processed only with filter no 3 mounted on

- fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches only, about 0.5 kg. Before putting the next batch, turn the device off and remove the components for cleaning (see CLEANING)

- The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane

- When juicing fruit and vegetables of different consistency it may help to juice first soft products, and than hard

A filter with small meshes, watery juice
B filter with big meshes, dense juice

Two black plastic coffee bean sprayers labeled A and B, shown from different angles (no text or symbols on the sprayers themselves)

CLEANING

When device is not used or before cleaning, disconnect it from the network.

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.

Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Switch the appliance off, remove the plug from the wall socket. Next dissassemble the appliance in the following order:

• Remove the pushe (1)
• unlock (turn to the left) and remove the lid (2)
• unlock (turn to the left) and remove the juice collector (6) together with the base filter (5), filter (4) and extracting bolt (3) and disassemble the appliance
• Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap
• Clean the motor unit with a damp cloth

Never immerse the motor unit in water nor rinse it under the tap.

WARRANTY

• only intended for household use
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,
