Product Type	Beverage Cooler / Refrigerator
Brand	Guzzanti
Model	GZ-338DD
Climate Class	CC1 (25°C max ambient, 60% max humidity)
Refrigerant	R600a (Isobutane, flammable)
Temperature Control	Thermostat with settings 1 (warmest) to 7 (coldest); middle position 4 recommended
Temperature Ranges	Settings 1-3: 6-10°C; Settings 4-5: 2-6°C; Settings 6-7: 0-2°C
Defrosting	Manual defrost when frost ~2 mm thick
Lighting	LED (non-replaceable by user)
Ventilation	Minimum clearance 150 mm from rear wall; do not obstruct grilles
Power Supply	220-240 V ~ 50 Hz, single phase
Installation Type	Freestanding (not built-in)
Door Lock	Yes (lock included)
Shelves	Adjustable shelves
Wheels	Yes, for easy movement
Energy Efficiency	Follow EPREL database for details
Warranty	1 year for functional parts
Noise Level	Normal operation may produce faint water flow sound; compressor and condenser get hot

Frequently Asked Questions - GZ-338DD Guzzanti

What should I do if the refrigerator is not cooling?

Check the power supply and ensure the plug is properly connected. Verify that the thermostat is not set to '0'. If voltage is too low, use a voltage stabilizer. Also, make sure the appliance is not in direct sunlight or near a heat source.

How do I set the temperature correctly?

The thermostat has settings from 1 (warmest) to 7 (coldest). For normal use, set it to '4'. The temperature ranges are: 1-3: 6-10°C, 4-5: 2-6°C, 6-7: 0-2°C. Adjust gradually and allow several hours for stabilization.

How often should I defrost the refrigerator?

Defrost manually when frost reaches about 2 mm thickness. Turn the thermostat to '0', unplug the appliance, remove contents, and leave the door open until ice melts. Do not use sharp tools or heaters to speed up defrosting.

Why is the refrigerator making unusual noise?

Ensure the appliance is level and not touching walls. Loose parts may cause noise; tighten them. A faint water flow sound is normal. If noise persists, contact service.

How do I clean the refrigerator?

Unplug the appliance. Clean inside with a weak bicarbonate of soda solution, rinse with warm water, and dry. Wash shelves and baskets with warm soapy water. For exterior, use a mild detergent. Never use abrasive cleaners or solvents.

What should I do after moving the refrigerator?

After moving, wait at least 4 hours before plugging it in to allow the refrigerant to settle. If the appliance is turned off, wait 30 minutes before restarting.

Can I use an extension cord?

No, do not use extension cords, adapters, or multiple sockets. The power cord must not be lengthened. Plug directly into a dedicated wall outlet.

The LED light is not working. Can I replace it?

The LED light is not user-replaceable. If it fails, contact the after-sales service for assistance.

Why are drinks freezing in the refrigerator?

The thermostat may be set too high (too cold). Adjust it to a lower setting (e.g., from 7 to 4 or 3) to prevent freezing.

What is the refrigerant used and is it dangerous?

The refrigerant is R600a (isobutane), which is flammable. Do not damage the refrigerant circuit. If a leak occurs, avoid open flames and ventilate the room. Dispose of the appliance at an authorized center.

USER MANUAL GZ-338DD Guzzanti

Line drawing of a multi-tiered refrigerator with ventilation grilles and doorways (no text or symbols)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

Vážený zákazníku,

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

R600a

ROZWIĄZANIE MOŻLIWYCH PROBLEMÓW

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

R600a

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

R600a

Varnostni napotki

1. Termostat
2. Zaklepanje
3. Police
4. Steklena vrata
5. Prezračevalna mreža
6. Kolesa

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Abtauen

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Before placing your new showcase into operation, please read these operating instructions carefully. They contain important information for safe use, for installation and for maintenance of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Notes: which are important for your safety or for the proper functioning of the appliance, are stressed with a warning triangle and or with signal words (Warning! Caution! Important!). Please observe the following carefully.

GENERAL SAFETY INSTRUCTIONS

For your own safety and for the proper utilization of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time.

In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

• This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging out of the reach of children, as there is a risk of suffocation.
• If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing with it, with the resulting risk of electric shock or being trapped inside.
• If an appliance with a magnetic door seal is being replaced by another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.
• Keep the appliance and its power cable out of reach of children less than 8 years old.

General safety

WARNING - Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING - Do not damage the refrigerant circuit.

WARNING - Do not use electrical appliances inside the beverages storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING - The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: Fire risk

If the refrigerating circuit is damaged:

• Avoid open flames or any source of combustion.
• Ensure that the room in which the appliance is installed is well ventilated.

It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

• We cannot be held responsible for any incident caused by improper electrical installation.
- The power cord must not be extended. Do not use an extension cord, adapter or multiple sockets.
- Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the main plug of the appliance.
• The power cord must not be lengthened.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- Never remove the ground connection.
- Do not pull the main cable.

• Make sure that you can access the main plug of the appliance.
• The fridge is only applied with power supply of single-phase alternating current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety's sake, be sure to apply A.C.
• If the power cable is damaged, do not replace it but contact your after-sales service.
• The power outlet must be easily accessible but out of the reach of children. If in doubt, contact your installer.
• When installing, be careful not to pinch or damage the cord.

Daily utilization

• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket do not pull on the cable.
• Do not expose the device to direct sunlight.
• Do not place hot items near the plastic components of this appliance.
• The appliances manufacture storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• Do not place the appliance in direct sunlight.
• Keep burning candles jumps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping beverages in normal household as explained in this instruction booklet.
• The appliance is heavy. Care should be taken when moving it.
• Never use the base, drawers, doors etc. to stand on or as supports.

Caution! Cleaning and servicing

• Before carrying out servicing, switch off the power supply and disconnect the appliance.
• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents, or abrasive substances.
• Do not use sharp or pointed objects to remove ice. Use a plastic scraper.

Important information concerning installation!

• For electrical connection, carefully, follow the instructions given in this manual.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.

• It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation. Make sure that there is a clearance of 150 mm (15 cm) between the wall and the rear side of your cooler when you are bringing the product close to the wall.
• The appliance must not be locating close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

POWER SAVING

• The cooler should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.
• Let hot beverages cool to room temperature before placing in the cooler.
  Overloading the cooler forces the compressor to run longer.
• Organize and label beverages to reduce door openings and extended searches.
  Remove as many items as needed at one time, and close the door as soon as possible.
• Cooler storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the cooler less efficient.

Recommendation combination

The following combination of drawers, baskets, and shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

The manufacturer's warranty is 1 year for functional parts.

R600a

Safety instructions

	Caution: Do not obstruct the ventilation grills on the appliance.
	Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in
	Caution: Do not damage the refrigerating circuit in the appliance.
	Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification
	Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

These products are in compliance with European standard and directive and possible

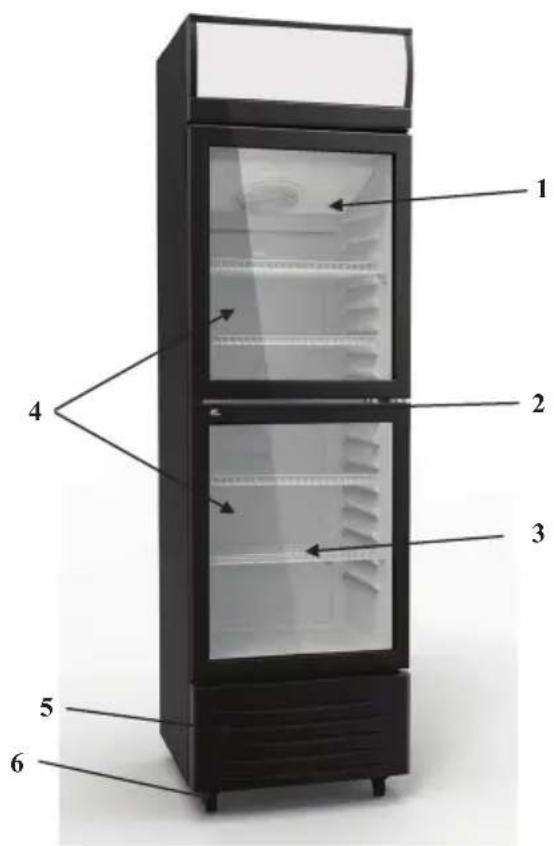

1. Thermostat
2. Lock
3. Shelf
4. Glass door
5. Ventilation grid
6. Wheels

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European

Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance.

You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

INSTALLATION INSTRUCTIONS

Location

When selecting a position for your refrigerated showcase you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your refrigerated showcase near a heat source, eg, cooker, boiler or radiator. Also, avoid direct sunlight in out-buildings or sun lounges. If you are placing your refrigerated showcase in an out-building such as a garage or annex ensure that the Refrigerated showcase is placed above the damp course, otherwise condensation will occur on the cabinet. Never place the refrigerated showcase in a wall recessed or into fitted cabinets or furniture when your refrigerated showcase is working, the grille at the back may become hot and the sides warm.

It must therefore be installed so that the back and the sides of the appliance has enough space for ventilation around the appliance. This refrigerating appliance is not intended to be used as a built in appliance.

Location conditions:

An average ambient temperature must be observed. This temperature is specific according to the climatic class of the device:

Climatic class	Maximum ambient temperature	Maximum ambient humidity
CC1 25°C 60%
CC2 32°C 65%
CC3 40°C 75%

Your appliance is of climate class CC1 (maximum temperature and humidity are equal to +25°C and 60% ambient humidity). This climatic class is indicated on the rating label located inside your showcase.

Cleaning before use

Wipe the inside of the refrigerated showcase with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the refrigerated showcase.

Before plugging in

Check that you have a socket which is compatible with the plug supplied with the refrigerated showcase.

DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE REFRIGERATED SHOWCASE.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

Before filling your refrigerated showcase

Before storing beverages in your refrigerated showcase, turn the refrigerated showcase on and wait for 4 hours, to make sure it is working properly and to allow the refrigerated showcase to fail to the correct temperature.

OPERATING YOUR APPLIANCE

Your appliance has one control for regulating the temperature. The temperature control is located at the top inside the appliance.

The first time you put your appliance into operation, set the thermostat to the middle position "4" and let it run empty for 4 hours before storing beverages for it to cool sufficiently.

The range of the temperature control is from "1" position the hottest position to "7" position the coldest temperature. Adjust the temperature control to the setting that best suits your needs. The middle position "4" should be appropriate for home or office refrigerator use.

Setting 1 to 3: the temperature range of the interior of the showcase is 6 - 10 °C, Setting 4 to 5: the temperature range of the interior of the showcase is 2 - 6 °C, Setting 6 to 7: the temperature range of the interior of the showcase is 0 - 2 °C.

Temperature too high or too low will affect the taste and the conservation of the beverage.

Note:

• Turn to "0" position stops the cooling cycle but does not shut off the power to the refrigerator.
• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
• If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.
• Do not leave the door open for too long so that the indoor temperature does not rise too much.

Storage of beverages

We remind you that the storage of foodstuffs must comply with regulatory storage temperatures established by the National Agency for Food, Environmental and Occupational Health and Safety (ANSES). Failure to respect these storage temperatures involves risks of poisoning and food waste.

Change the lamp

This appliance consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and despite all the care taken during the manufacture of your appliance, the LEDs were defective, please contact your after-sales service for any intervention.

CARE AND MAINTENANCE

Defrost

The defrost of your appliance is manual.

Defrost when frost is accumulated on the evaporator is about 2mm:

• Set the thermostat to "0" for defrosting.
• Switch off the appliance and disconnect the mains plug from the mains socket.
• Remove all contents.
• Leave the showcase door open to allow melting of the ice.
• Remove large pieces of ice if necessary, with dishcloth or something that will not damage the walls.
• Do not use hot water or other electric heaters to melt the accumulated ice.
  • After defrosting, remove the accumulated ice / water and dry with a soft cloth.
• Restart the unit according to the start instructions. Never use a knife or other sharp instrument to scrape ice inside.

Cleaning inside the appliance

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. After defrosting you should clean the refrigerated showcase internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the refrigerated showcase. Condensation will form on the back wall of the Refrigerated showcase; however, it will normally run down the back wall and into the drain hole.

Cleaning outside the appliance

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Use standard non-abrasive detergent diluted in warm water to clean the refrigerated showcase exterior.

The grille of the condenser at the back of the refrigerated showcase and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the refrigerated showcase.

Moving the unit

1. Transportation

Do not transport the device at an angle of less than 45^ with the ground. When loading, never stand on any of the external parts, such as the door.

When the beverage cooler is installed or used, the desired packaging (including cardboard and plastic foam) should be removed.

Do not hold the handle when installing and moving the beverage cooler.

Keep the showcase steady to avoid vibration and noise.

The showcase should be installed in a well-ventilated area. A space of at least 10 cm must be maintained between the surrounding wall and the wall of the cabinet and the top panel for air circulation. Do not place any object on the top panel.

It should be placed away from heating resources and not under direct sunshine to maintain refrigeration efficiency.

Install the beverage cooler in a dry place to avoid rust on the unit, which may affect the electrical insulation.

2. Location

Do not place your refrigerator near a heat source, for example. Stove, boiler or radiator. Also, avoid direct sunlight.

3. Do not turn on the refrigerator for 4 hours

After any movement, it must not be connected for 4 hours. This delay allows the coolant to be adjusted.

4. Installation

Let your device breathe. Heat is released from the walls so it is important to leave a circulation of air around your device.

Recommendation combination

The following combination of drawers, baskets, and shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit

TROUBLESHOOTING GUIDE

Sometimes you may come cross minor problems that is most cases do not require a service call and can be easily eliminated. The problem may have resulted from improper handling and/or installation of the appliance. Please refer to the below trouble-shooting guide to assist you in identifying the problem still persist after completing these checkpoints, contact the closest authorize service agent in your area for assistance.

Problem Possible cause Suggested solution
Not cold	1. Is something wrong with the power?	Check the power socket.
	2. Is voltage too low ? Apply an AC manostat
	3. Is the power cord plugged well? Plug the power cord well.
	4. Is the thermostat adjusted to 0? Adjust the thermostat.
Not cooling well	1. Is there too much products? Take excrescent products out
	2. Is the thermostat adjusted to low?	Adjust thermostat to higher scale.
	3. Is the showcase under direct sunshine or near heat source?	Keep showcase away from heat source and sunshine.
	4. Is the door opened too often? Reduce door open frequency
Drinks get frosted	Is thermostat adjusted to too high scale?	Adjust thermostat to lower scale.
Too noisy	1. Is showcase places levelly ? Put showcase level.
	2. Does showcase touch the wall? Keep away from the wall.
	3. Some parts are loose or broken off? Fix the parts
If problems still cannot be solved, please ask help from service center or dealer.

Note: the following phenomena are normal:

• There is a faint sound of water flow in the refrigerated cabinet
• The body is warm
  • The compressor and condenser are very hot.

ENVIRONMENT

This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed-Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
