Product Type	Refrigerator
Brand	Guzzanti
Model	GZ-340A
Overall Dimensions (H x W x D)	1700 x 600 x 600 mm
Total Volume	331 L
Energy Efficiency Class	E
Annual Energy Consumption	114 kWh/a
Climate Class	Subtropical / Tropical
Airborne Acoustical Noise Emission	40 dB(A)
Noise Emission Class	C
Power Supply	220-240 V~ 50 Hz / 230 V~ 60 Hz
Defrosting Type	Manual
Door Hinge	Reversible (Right to Left)
Temperature Control	Thermostat knob
Shelves	Adjustable glass shelves, bottle rack, crisper drawer
Cooling System	Static (fan-free)
Installation Clearance	Back: 100 mm, Sides: 100 mm, Top: 200 mm
Safety Features	Grounded plug required, voltage regulator recommended
Maintenance	Clean monthly with neutral detergent and water
Spare Parts & Repair	Authorized service centers only

Frequently Asked Questions - GZ-340A Guzzanti

How do I adjust the temperature inside the refrigerator?

Turn the thermostat knob located inside. Higher numbers indicate lower temperatures. Adjust according to your needs.

How do I defrost the refrigerator?

When frost on the evaporator reaches 4 mm, turn off the power supply and let the frost melt. Defrost water flows into the collection pan and evaporates.

Can I change the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove hinges, transfer legs and hinge components, and reassemble on the opposite side.

Why is there water leaking inside or on the floor?

Check if the drain pipe and drain hose are clogged, ensure the drain pan is properly housed, and that frost thickness was not above 4 mm before defrosting.

Why is frost building up?

Frost builds up due to humid air entering when doors are opened. Defrost manually when frost reaches 4 mm thickness.

What should I do if the refrigerator is not cooling sufficiently?

Ensure food is not packed too tightly blocking air flow, check door seals, allow clearance around the unit, and verify the thermostat setting.

How do I clean the refrigerator?

Disconnect power first. Wipe interior and exterior with a wet cloth and neutral detergent. Avoid hot water, solvents, or abrasive cleaners. Dry thoroughly.

What to do after a power outage?

Wait for 5 minutes before restarting the unit to allow pressure to stabilize.

Why is the side panel hot?

The side panel heats up during normal operation due to heat dissipation from the cooling system. This is not a malfunction, especially in frequent door openings or high ambient temperatures.

What if the light bulb fails?

Disconnect the refrigerator from the power supply before replacing the bulb. Use a bulb of the same type and rating as specified by the manufacturer.

USER MANUAL GZ-340A Guzzanti

Empty rectangular container with a top lid and side supports at the bottom (no text or symbols)

CZ SK PL H SI DE EN

Návod k obsluze

Návod na obsluhu

Instrukcja obsługi

Használati útmutató

Navodila za uporabo

Gebrauchsanleitung

Instruction manual

1. Popis spotřebiče

Části a funkce

Cartoon illustration of a smiling rectangular character waving (no text or symbols)

Napájení

Cartoon illustration of a book character with arms and legs, accompanied by a compass showing electric field lines (no text or symbols)

Cartoon illustration of a document character with arms and legs, holding a tray and splashing water (no text or symbols)

Ochrana před teplem

Cartoon illustration of a smiling pot with steam rising from its head (no text or symbols)

Vyvážení

Cartoon illustration of a smiling computer monitor character with arms and legs (no text or symbols)

Zabraňte nebezpečí

Cartoon illustration of a smiling document character with arms outstretched and holding a small container (no text or symbols)

Přemíst'ování

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Cartoon illustration of a smiling rectangular character waving (no text or symbols)

Napájanie

Ochrana proti vlhkosti

Cartoon illustration of a document character with arms and legs, holding a tray (no text or symbols)

Ochrana pred teplom

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Cartoon illustration of a computer monitor character with arms and legs, no text or symbols present

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small container (no text or symbols)

3. Upozornenie

Symbol of a trash bin crossed with no text or labels

Cartoon illustration of a smiling rectangular character waving (no text or symbols)

Zasilanie

Cartoon illustration of a battery character with a magnifying glass showing a coil and a north arrow (no text or symbols)

Cartoon illustration of a document character with arms and legs, holding a tray (no text or symbols)

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Cartoon illustration of a computer monitor character with arms and legs, no text or symbols present

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small container (no text or symbols)

Przemieszczanie

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Cartoon illustration of a smiling rectangular character with arms and legs, waving (no text or symbols)

Tápegység

Cartoon illustration of a document character with arms and legs, holding a tray (no text or symbols)

Védelem hőség ellen

Cartoon illustration of a smiling pot with steam rising from its head (no text or symbols)

Stabil hely

Cartoon illustration of a smiling computer monitor character with arms and legs (no text or symbols)

Vigyázat

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small container (no text or symbols)

Áthelyezés

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

① Police hladilnika
② Steklena polica
③ Posoda za sveža živila
④ Nastavljive noge
⑤ Nosilec steklenic
⑥ Ročaj
⑦ Stikalo osvetlitve
⑧ Gumb termostata

Cartoon illustration of a smiling rectangular character waving (no text or symbols)

Cartoon illustration of a document character with arms and legs, holding a tray (no text or symbols)

Toplotna zaščita

Aparat je treba postaviti stran od virov toplote in neposredne sončne svetlobe.

Cartoon illustration of a smiling pot with steam rising from its head (no text or symbols)

Uravnoteženje

Cartoon illustration of a smiling computer monitor character with arms and legs (no text or symbols)

Izogibajte se nevarnosti

Ne postavljajte aparata v bližini vnetljivih materialov, kot so plin, bencin, alkohol, lak, amilacetat itd.

Teh snovi ne dajajte v aparat.

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small container (no text or symbols)

Premeščanje

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Cartoon illustration of a smiling rectangular character with arms and legs, waving (no text or symbols)

Spannung

Cartoon illustration of a book character with arms and legs, accompanied by a simple electrical circuit diagram showing a battery and coil (no text or symbols)

Feuchteschutz

Cartoon illustration of a sad document character with arms and legs, holding a leaf (no text or symbols)

Wärmeschutz

Cartoon illustration of a smiling pot with steam rising from its head (no text or symbols)

Ausbalancierung

Cartoon illustration of a smiling computer monitor character with arms and legs (no text or symbols)

Sicherheit

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small container (no text or symbols)

Transport

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or anti-smoking (no text present)

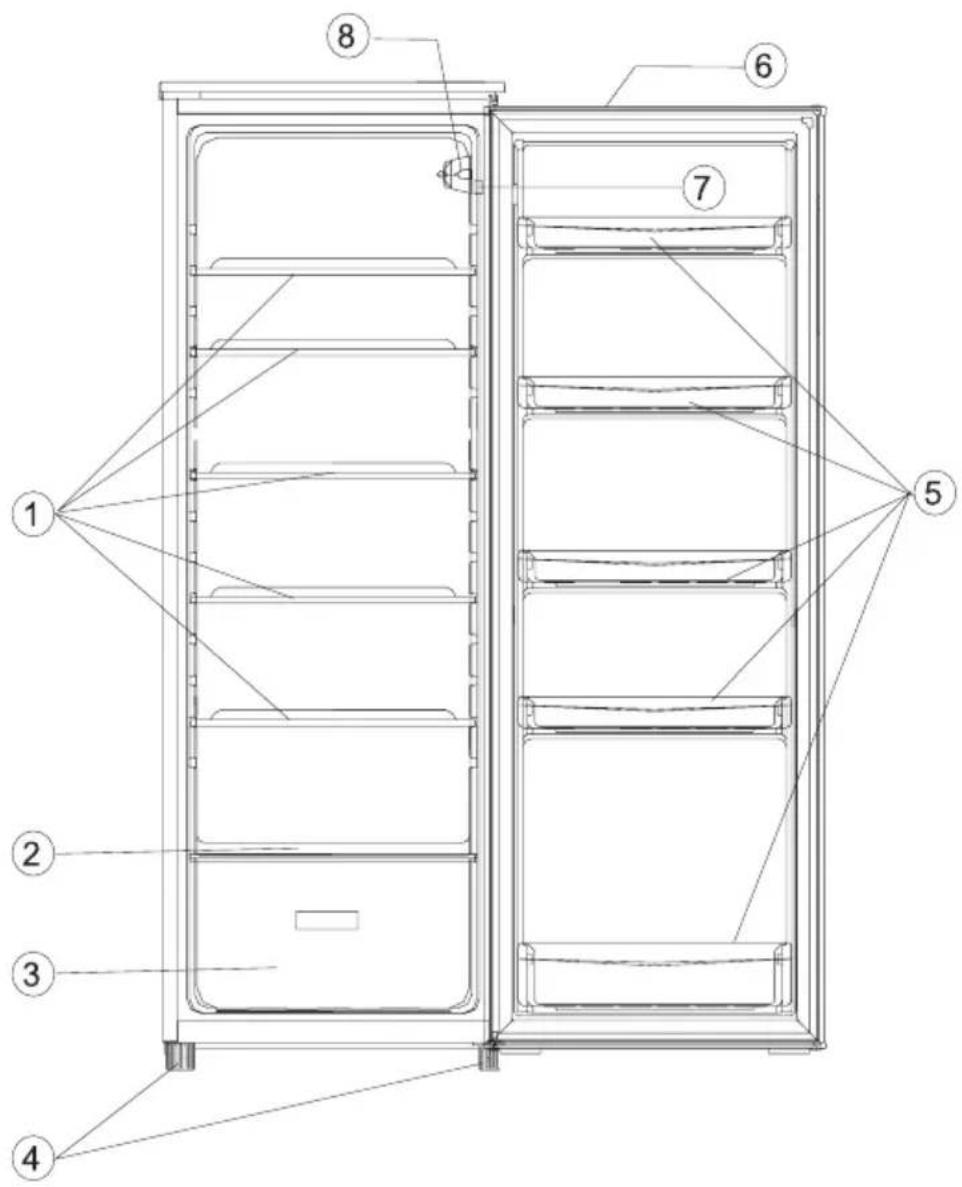

① Shelves of refrigerator chamber
② Glass cover
③ Crisper box
④ Leveling Legs
⑤ Bottle Racks
⑥ Recessed Handle
⑦ Door Switch
⑧ Temperature Control Knob

Please read this instruction manual carefully before use and retain for future reference.

2. Correctly positioning

Well Ventilating

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100 mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160°.

Cartoon illustration of a smiling rectangular character waving, with arms and legs (no text or symbols)

Power Supply

The refrigerator is only applied with power supply of single phase alternating current of (220-240)V\~/50Hz;230V\~/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Cartoon illustration of a document character with arms and legs, holding a magnifying glass (no text or symbols)

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. The refrigerator should not be placed near anything which may echo.

Cartoon illustration of a computer monitor character with arms and legs, no text or symbols present

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

Cartoon illustration of a smiling document character holding a glass with a beaker (no text or symbols)

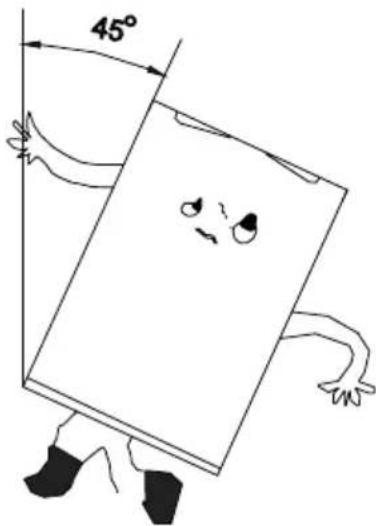

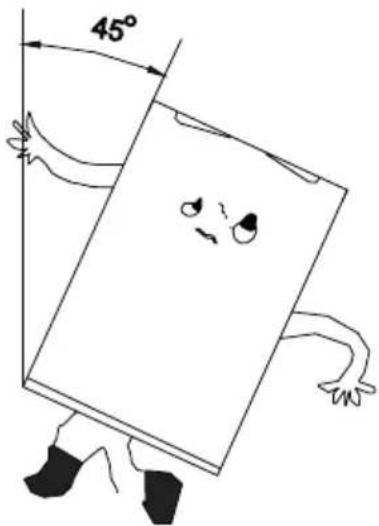

Moving

When fixed or moved, the refrigerator can not be set horizontally or declined to more than 45* or upside-down.

3. Cautions

★ It must be checked that the voltage used should be the same as the rated voltage before the refrigerator is used.
Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator when the frost is thick, Defrosting on evaporator is operated manually. When the biggest thickness of the frost layer on the evaporator increase to 4mm, it must be turn off the power supply to defrost. The defrost water flow into the water collection pan through the drain port and evaporate by the heat of compressor.
★ Alf the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.
★ It is dangerous to alter the specifications or attempt to modify this products in anyway.
When you change the light bulb or when the refrigerator is not in use for long periods, disconnect it from the electricity supply.
★ Wait for 5 minutes before restart the unit after the power supply blackout.

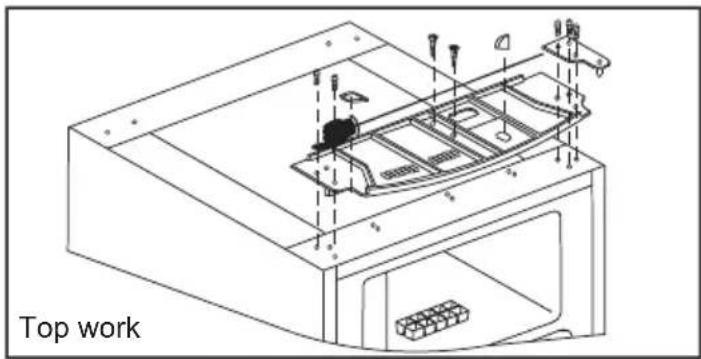

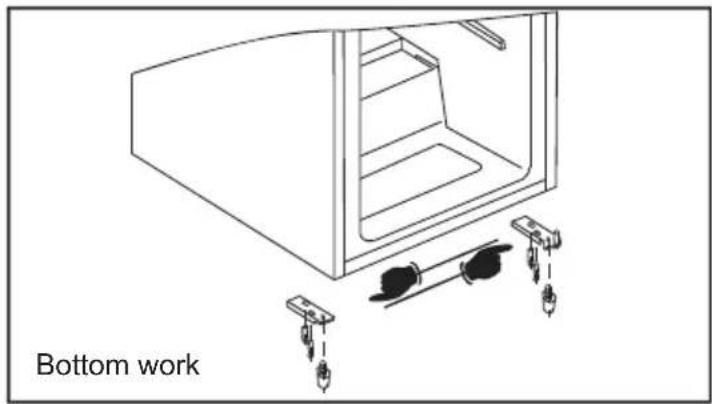

4. Changing the reversible door

This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1. Remove the upper hinge cover(6) first
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws(8) that hold the lower hinge(2) and Make sure to Remove the lower hinge(2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate(7) to the right side.
7. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).
8. Insert the bolt-pin(9) to the lower hinge (2).
9. Set the door to its place making sure the door seat at the lower hinge(2)
10. While holding the door in the closed position secure the upper hinge (5) in the top frame of left side with two screws (1). Please remember that do not tighten the two screws(1) until the top of the door is levelled with the counter top.
11. Install the upper hinge cover(6) on the upper hinge.

Reversing the door

The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires.

Warning! When changing the side at which the door opens, the appliance must not be connected to the mains. Remove plug from the mains beforehand.

Tilt the appliance slightly towards the rear and prop it securely.

Unscrew the door hinge screws and remove the hinge pin bracket.

Open the door a little way and take it out downwards.

Unscrew the upper pin and screw it into place on the opposite side.

Fit the door into the upper pin and close it. Screw the hinge pin bracket securely into place on the opposite side using the screws.

5. Maintenance

★ The refrigerator should be cleaned and maintained once a month.
When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet.
Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantify of glass wax is recommended to polish the refrigerator surface with a flannelette.
For cleaning, don't use hot water, diluent, petrol, alcohol, kerosene, washing powder, cleanser, aikailinous detergent, acid, Chemical cloth, etc. So as not to damage the lacquer coat and plastics. It is forbidden than the refrigerator is directly sprayed with water. Otherwise, it would cause rusty or weaken the insulation.
★ Be careful to upkeep the sealing rubber bars of the doors. They should always be cleaned.
If the plastic parts in refrigerator remain contaminated for a long time by oil (animal or vegetable), they will be easy aged and possibly cracked. The drain pan gets dirty very easily if it is not cleaned regularly, bad odours will be produced, get into the habit of cleaning this pan regularly.

6. Troubleshooting

1. When the refrigerator does not work

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

1. When the refrigerator is cooling excessively

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily. This does not indicate a malfunction.

1. When the refrigerator is not cooling sufficiently

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces

Immediately both sides and above.

The temperature control dial may not be set properly.

1. When the defrosting water overflows inside the refrigerator and onto the floor.

Check that the drain pipe and the drain hose are not clogged.

Check that the drain pan is housed properly.

Whether the thickness of the frost layer was thicker than 4mm when you make the refrigerator defrost.

1. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

1. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not Indicate a malfunction.

1. When the cabinet's side panel heats up

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

7. Technical specifications

* For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator.

* Specifications are subject to change without prior notice.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: Guzzanti
Supplier's address: Na Zlatnici 301/2, 14700 Praha 4, CZ
Model identifier: GZ-340A
Type of refrigerating appliance:
Low-noise appliance: No Design type:
Wine storage appliance: No Other refr		gerating appliance:	Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1700		Total volume (dm3 or l)		331
	Width 600
	Depth 600
EEI 124 Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a) 1		14 Climate class:			subtropical, tropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	No	-	-	-	-
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - - -
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: -
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -
