SDA 512 - TV Antenna SENCOR - Free user manual and instructions

Type	TV Antenna
Brand	Sencor
Model	SDA 512
Product Category	Indoor TV Antenna
Dimensions (approx.)	20 x 10 x 2 cm
Weight (approx.)	150 g
Power Supply	Passive (no external power needed)
Frequency Range	VHF (174-230 MHz) & UHF (470-862 MHz)
Impedance	75 ohms
Cable Length	1.5 m coaxial cable with F-type connector
Reception Range	Up to 50 km depending on terrain and obstacles
Mounting	Tabletop stand included
Features	Compact design, easy installation, no additional power adapter required
Cleaning	Wipe with a dry, soft cloth; do not use liquids or solvents
Safety	Keep away from moisture and heat sources
Spare Parts / Repairability	No user-serviceable parts; refer to authorized service center

Frequently Asked Questions - SDA 512 SENCOR

How do I set up my Sencor SDA 512 antenna?

Connect the antenna's coaxial cable to the TV's antenna input. Place the antenna near a window or on a high shelf for best reception. Then run a channel scan on your TV.

Does the SDA 512 require a power supply?

No, it is a passive antenna and does not need any external power. Simply plug it into your TV.

What channels can I receive with this antenna?

It receives VHF (channels 7-13) and UHF (channels 14-51) digital TV signals. Availability depends on your location and broadcast towers.

Why am I getting poor reception?

Try repositioning the antenna near a window or higher up. Avoid metal obstructions and electronic interference. A channel rescan may help.

Can I use this antenna outdoors?

The SDA 512 is designed for indoor use. Using it outdoors may damage it due to weather exposure.

What type of connector does it use?

It has a standard F-type coaxial connector that fits most TVs and set-top boxes.

Is the antenna amplified?

No, the SDA 512 is a passive (non-amplified) antenna. For weak signal areas, an amplifier may be needed.

How do I clean the antenna?

Unplug the antenna and wipe it with a dry, soft cloth. Do not use water or cleaning chemicals.

What is the warranty period for this product?

Warranty details are provided in the manual. Typically, Sencor offers 24 months from the date of purchase.

Can I connect this antenna to multiple TVs?

You can use a signal splitter, but this may reduce signal strength. It is best used with a single TV.

USER MANUAL SDA 512 SENCOR

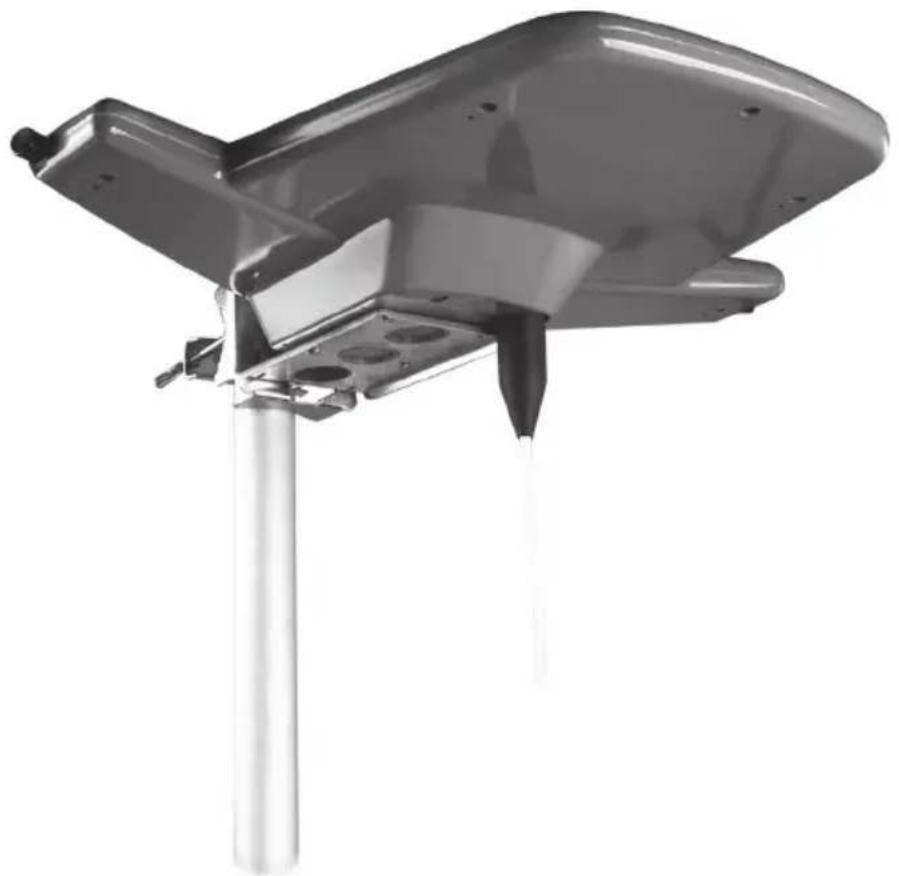

Digital TV outdoor antenna

User's manual

Z

Metallic mechanical component with a cylindrical shaft and water droplet, no visible text or symbols

SENCOR®

SDA 512

IMPORTANT SAFETY INSTRUCTIONS

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE UNIT'S CABINET THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE MANUAL ACCOMPANYING THE UNIT.

THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED THE APPARATUS.

THE APLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, THE DISCONNECT DEVICE SHALL REMAIN READILY OPERABLE.

ALWAYS REMEMBER TO REMOVE THE PLUG FROM THE MAINS SOCKET BEFORE DISCONNECTING THE POWER LEAD FROM THE BACK OF THE UNIT.

DO NOT PLACE NAKED FLAME SOURCES, SUCH AS CANDLES, ON THE TOP.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. NEVER ATTEMPT TO OPEN THE CABINET. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

Suitable for outdoor use. Super quality reception for digital terrestrial signals (DVB-T) and radio programs (DAB radio programs) as well as FM radio signals.

Built in low noise and high gain circuit.

Gain control

Dual output

Easy to install and operate

Input voltage (AC110 - 120V or AC220 - 240V)

Working voltage (DC 5.0V / 0.55A / 2.75W)

Integrated 5G (LTE) Filter

Reception frequency: VHF: 47 - 230MHz, UHF: 470 - 694 MHz

Gain: VHF: 12 dB / UHF: 12 dB

Note:

• Do not use while thunderstorm and turn off the power.
• If you do not use the device or you are not using it for a long time, turn off the device and unplug from power outlet.
• If reception is not sufficient enough using this device, relocate the antenna to suitable place.

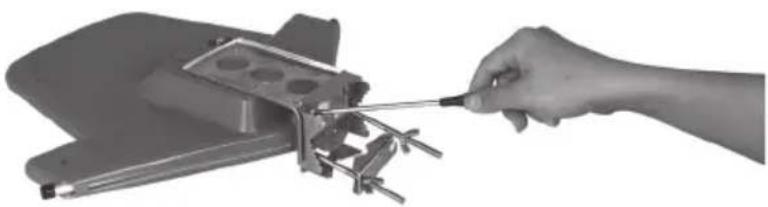

1. Mounting bracket installation

Attach mounting bracket to the antenna (see Fig. 1) using the two screws and tighten firmly.

Fig. 1

Hand using a tool to adjust or install electronic components on a device (no visible text or symbols)

Digital TV outdoor antenna

SDA 512

Z

2. Antenna installation

Loose the wing nuts, put the mast between mounting bracket, then tighten the wing nuts. Fig. 2

Hand holding a metal clamp or lever against a vertical pole (no text or symbols visible)

3. F-Connector installation

(1) Thread the coaxial cable through waterproof cap
(2) Snip off 10mm from the cover of coaxial cable
(3) Fold back the braid and snip off 8mm foaming core of coaxial cable.
(4) Thread the coaxial cable through F-type male plug.
(5) Now finish installation

1. Connect the F-type male plug to F-type female plug of antenna and then cover waterproof cap.

Fig. 3 Fig. 4

Hand inserting a cable into a device (no text or symbols visible)

Mechanical device with attached housing and cable, no visible text or symbols

Connection and Usage

Connect the signal cable from the antenna to the signal input jack of the power supply, connect the power supply output jack to the digital receiver, plug the power adaptor with the power supply and connect to power socket, and finally join the TV and the digital receiver.

Illustration of a TV setup with a monitor and cable, no text or symbols present

Connect the signal cable from the antenna to the signal input jack of the power supply, connect the power supply output jack to the TV, plug the power adaptor with the power supply and connect to power socket.

Connect the signal cable from the antenna to the signal input jack of the power supply, connect the power supply output jack to the TV, plug the power adaptor with the power supply and connect to power socket.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

Hereby, FAST CR, a.s. declares that the radio equipment type SDA 512 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.sencor.eu

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.
