Product Type	TV Antenna
Brand	Sencor
Model	SDA 312
Indoor/Outdoor	Indoor
Frequency Range	VHF (174-230 MHz) & UHF (470-862 MHz)
Impedance	75 Ohm
Gain	15-25 dB (typical)
Polarization	Linear (Horizontal/Vertical)
Cable Length	1.5 m
Connector Type	F-type (coaxial)
Power Supply	Passive (no external power needed)
Dimensions (LxWxH)	200 x 150 x 50 mm
Weight	0.2 kg
Mounting Type	Tabletop or wall mount (bracket included)
Compatibility	DVB-T/T2, analog TV
Operating Temperature	-10°C to 40°C
Storage Temperature	-20°C to 60°C
Color	Black
Package Includes	Antenna, coaxial cable, mounting bracket, screws, user manual

Frequently Asked Questions - SDA 312 SENCOR

How do I install the Sencor SDA 312 antenna?

Connect the coaxial cable to the antenna and your TV. Place the antenna near a window or high up for best reception. If needed, use the included wall mount brackets.

Does this antenna support both VHF and UHF frequencies?

Yes, the SDA 312 is designed to receive both VHF (174-230 MHz) and UHF (470-862 MHz) signals.

Do I need a power source for the Sencor SDA 312?

No, this is a passive antenna and does not require any external power supply.

What should I do if I get poor reception?

Try repositioning the antenna near a window or higher up. Avoid obstructions like thick walls. Also check that all connections are tight and the cable is not damaged.

Can I use this antenna for digital TV?

Yes, the Sencor SDA 312 is compatible with DVB-T/T2 digital terrestrial television as well as analog TV.

What is the maximum range of this antenna?

Typical range is up to 30-50 km from the broadcast tower, depending on terrain and obstacles.

Is the antenna suitable for outdoor use?

No, the SDA 312 is designed for indoor use only. For outdoor installation, consider a weatherproof antenna.

How long is the included coaxial cable?

The antenna comes with a 1.5 meter coaxial cable pre-attached.

Can I extend the cable?

Yes, you can use a coaxial extension cable with F-type connectors. Ensure the total cable length does not exceed 10 meters to avoid signal loss.

How do I clean the antenna?

Wipe the antenna with a dry or slightly damp cloth. Do not use abrasive cleaners or immerse in water. Ensure it is unplugged before cleaning.

USER MANUAL SDA 312 SENCOR

Digital TV Indoor Antenna

User's manual

Z

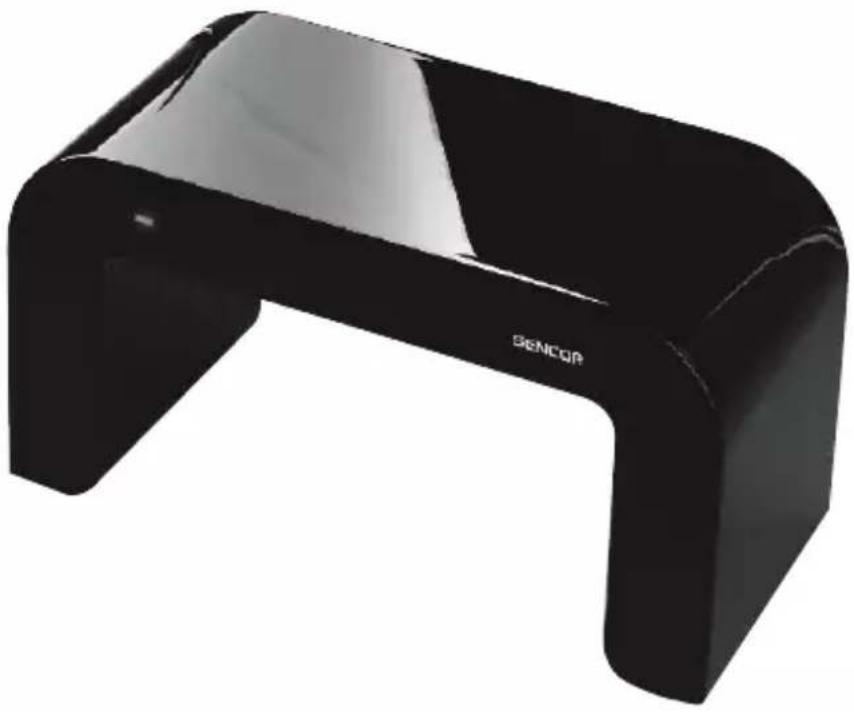

Black and white photo of a black U-shaped electronic device labeled 'SENCOR' (no additional text or symbols visible)

SENCOR®

SDA 312

EN-1

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. NEVER ATTEMPT TO OPEN THE CABINET. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

1. Read and Follow Instructions

All the safety and operating instructions should be read and followed before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth from cleaning.

5. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

6. Water and Moisture

Do not use this product near water for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement or near a swimming pool and alike.

7. Accessories

Do not place this product on an unstable stand, tripod, bracket or table. The product may fall, causing injury to a child or adult, and serious damage to the product. Use only with a stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

8. Ventilation

This product should not be placed in a closed built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. Do not cover the ventilation slots and opening by any objects, such as newspapers, tablecloths, curtains, etc.

9. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

10. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

11. Outdoor Antenna Grounding

Outdoor antenna should be installed by certified company which should arrange grounding of antenna and protection against lighting and built-up static charges.

12. Lightning

EN-2

Digital TV Indoor Antenna

SDA 312

Z

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning or power lines surges.

13. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

14. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind to the product.

15. Servicing

Do not attempt to service this product yourself, refer all servicing to qualified service personnel.

16. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A) When the power-supply cord or plug is damaged.
B) If liquid has been spilled, or objects have fallen into the product.
C) If the product has been exposed to rain or water.
D) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment or other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
E) If the product has been dropped or damaged in any way.
F) When the product exhibits a distinct change in performance this indicates a need for service.

17. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

FEATURES AND INSTALLATION MANUAL

Features

• Excellent reception for digital terrestrial signals: TV (DVB-T2 and DVB-T)
• Built-in amplifier for best UHF signals reception.
• SMD Circuit technology design
• Stylish and Compact size design

Performance

Reception frequency:

UHF: 470-790 MHz

Gain: Max 20dB

Build-in 4G LTE Filter

Impedance: 75 Ω

Channels: 21 - 60

Input Voltage: DC 5 V

EN-3

Working Voltage: DC 5.0 V/0,55 A, 2,75 W

Connector: IEC

CONNECTION AND USAGE

This Antenna can be powered via Antenna cable (IEC connector) or via AC/DC Adapter (included in package), both run on DC 5V / 0,55 A ; 2,75 W


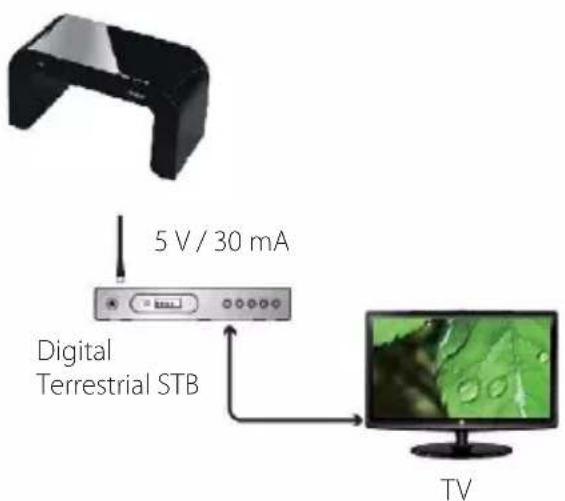

Installation A: Powered by Set-top box via antenna cable

Please be noticed, in this installation you need to make sure that your Set-top box can support coaxial cable 5V DC powering via the IEC connector to antenna.

• Connect the coaxial cable from the antenna with Set-top box (make sure that coaxial cable powering function on your Set-top box is ON.)
• Connect Set-top box to your TV

- Turn on the Power on/off switch (gain adjustment) on antenna and check if the LED on the antenna is ON. If the light is not on, double check if your set-top box is set.

- Adjust the antenna (turn around the body in different direction) in the best position that can receive the digital TV signal. It is recommended to place antenna near the window for receiving the best signal)

- Adjust the gain, on the side of antenna for best signal (note: adjusting biggest gain – does not mean best signal)

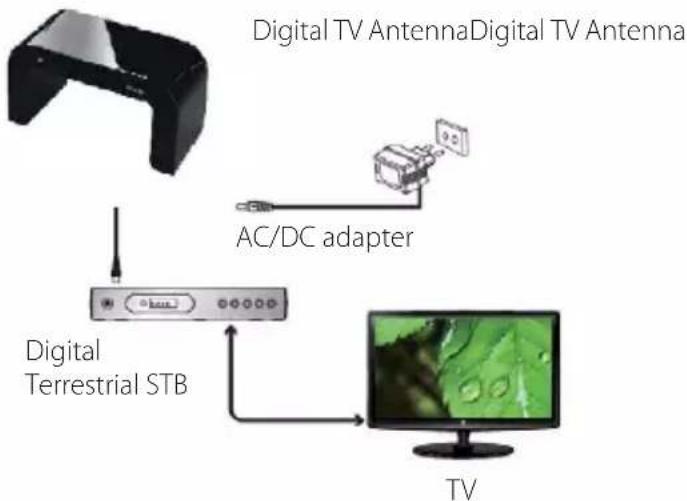

Installation B: Powered by Adaptor

• Connect the coaxial cable with Set-top box or TV
• Plug in AC/DC Adapter (use only original given by manufacturer) in the electricity and connect to the antenna
• Turn on the Power on/off switch (gain adjustment) on antenna and check if the LED on the antenna is ON. If the light is not on, double check if your cable is connected properly (TV should be ON).
• Adjust the antenna (turn around the body in different direction) in the best position that can receive the digital TV signal. It is recommended to place antenna near the window for receiving the best signal)
• Adjust the gain, on the side of antenna for best signal (note: adjusting biggest gain – does not mean best signal)

EN-4

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product.

The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

Hereby, FAST ČR a.s. declares that the radio equipment type SDA 302 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.sencor.eu

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

EN-5

SENCOR®

EN Warranty conditions

Warranty card is not a part of the device packaging.

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.

This warranty is void especially if apply as follows:

• Defects which were put on sale.
- Wear-out or damage caused by common use.
- The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for.
- The product was damaged by uncared-for or insufficient maintenance.
• The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
• Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
• The product was mechanically damaged (e.g. broken button, fall).
- Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes).
• Repair, modification or other failure action to the product by unauthorized person.
• End-user did not prove enough his right to claim (time and place of purchase).
• Data on presented documents differs from data on products.
- Cases when the claiming product cannot be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

Authorized service centers

Visit www.sencor.eu for detailed information about authorized service centers.

EN-6

Black and white photo of a black U-shaped electronic device labeled 'SENCOR' (no additional text or symbols visible)

SENCOR®

SDA 312

CZ-7

DŮLEŽITÉ BEZPEČNOSTNÍ INSTRUKCE

VAROVÁNÍ:

CHRAŇTE PŘÍSTROJ PŘED DEŠTĚM A VLHKOSTÍ, ABYSTE PŘEDEŠLI POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM. NIKDY SE NEPOKOUŠEJTE OTEVÍRAT KRYT PŘÍSTROJE. SERVISNÍ ZÁSAHY SVĚŘTE KVALIFIKOVANÝM SERVISNÍM PRACOVNÍKŮM.

Black and white photo of a black and white electronic device with a curved handle (no text or symbols visible)

SENCOR®

SDA 312

SK-14

Black and white photo of a black U-shaped electronic device labeled 'GENCOP' (no additional text or symbols visible)

SENCOR®

SDA 312

HU-22

Black and white photo of a black U-shaped electronic device labeled 'SENCOR' (no additional text or symbols visible)

SENCOR®

SDA 312

PL-31

WAŻNE INSTRUKCJE DOT. BEZPIECZEŃSTWA

OSTRZEŻENIE:

CHROŃ URZĄDZENIE PRZED DESZCZEM I WILGOCIĄ, ABY UNIKNAĆ POŻARU LUB PORAŻENIA PRADEM ELEKTRYCZNYM. NIE WOLNO OTWIERAĆ POKRYWY URZĄDZENIA. INTERWENCJE SERWISOWE NALEŻY POWIERZYĆ WYKWALIFIKOWANEMU PERSONELOWI SERWISU.

Black and white photo of a black U-shaped electronic device labeled 'SENCOR' (no additional text or symbols visible)

SENCOR®

SDA 312

SR-39

VAŽNA SIGURNOSNA UPUTSTVA

OPREZ:

DA BISTE SPREČILI POŽAR ILI UDAR ELEKTRIČNOM STRUJOM, UREĐAJ ZAŠTITITE OD KIŠE ILI VLAGE. NIKADA NE POKUŠAVAJTE OTVORITI POKLOPAC UREĐAJA. SERVISIRANJE PREPUSTITE KVALIFIKOVANIM RADNICIMA SERVISA.

Ova oznaka znači da ovaj uređaj sadrži dvostruku izolaciju između delova koji su pod opasnim naponom i delova dostupnih korisniku. Pri servisiranju upotrebljavajte isključivo identične rezervne delove.

1. Pročitajte i sledite uputstva

Pre upotrebe proizvoda pročitajte sva sigurnosna uputstva i uputstva za upotrebu.

Integrisani 4G LTE filter

Impedanca: 75 Ω

Kanali: 21–60

Ulazni napon: DC 5 V

Radni napon: DC 5,0 V / 0,55 A , 2,75 W

SR-41

SR

Sobna antena za prijem digitalnog TV signala

SDA 312

Konektor: IEC

PRIKLJUČIVANJE I UPOTREBA

Black and white photo of a black U-shaped electronic device labeled 'SENCOR' (no additional text or symbols visible)

SENCOR®

SDA 312

HR-45

VAŽNE SIGURNOSNE UPUTE

POZOR:

DA BISTE SPRIJEČILI POŽAR ILI UDAR ELEKTRIČNOM STRUJOM, UREĐAJ ZAŠTITITE OD KIŠE ILI VLAGE. NIKADA NE POKUŠAVAJTE OTVORITI POKLOPAC UREĐAJA. SERVISIRANJE PREPUSTITE KVALIFICIRANIM RADNICIMA SERVISA.

Ova oznaka znači da ovaj uređaj sadrži dvostruku izolaciju između dijelova koji su pod opasnim naponom i dijelova dostupnih korisniku. Pri servisiranju upotrebljavajte isključivo identične rezervne dijelove.

1. Pročitajte i slijedite upute

Prije uporabe proizvoda pročitajte sve sigurnosne upute i upute za uporabu.

2. Sačuvajte ove upute

Sigurnosne upute i upute za uporabu trebaju se zadržati za buduću upotrebu.

3. Obratite pažnju na sva upozorenja

Obavezno je pridržavati se svih upozorenja na proizvodu i uputama za uporabu.

4. Čišćenje

Prije čišćenja izvucite priključni kabel iz zidne utičnice. Ne koristite sredstva za čišćenje u tekućem ili u obliku aerosola. Za čišćenje upotrebljavajte isključivo navlaženu krpu.

5. Dodatci

Ne upotrebljavajte druge dodatke osim onih koje je preporučio proizvođač. To može oštetiti proizvod.

6. Voda i vlaga

Black and white photo of a U-shaped electronic device labeled 'SENCOR' (no additional text or symbols visible)

SENCOR®

SDA 312

EL-51

Illustration of a monitor with green leaf water and an arrow pointing to it (no text or symbols)

ΤηλεόρασηΤηλεόραση
