Product Type	Portable Bluetooth Speaker
Brand	GoGen
Model	BPS 738
Dimensions (approx.)	170 x 60 x 60 mm
Weight	350 g
Power Output	5 W
Battery Type	Lithium-ion, 1800 mAh
Battery Life	Up to 8 hours
Charging Time	3 hours
Connectivity	Bluetooth 5.0, AUX input
Controls	Power, Volume +/-, Play/Pause, Call handling
Microphone	Built-in for hands-free calls
Water Resistance	IPX5 (splash proof)
Frequency Response	80 Hz - 18 kHz
Driver Size	52 mm
Charging Port	Micro USB
Included Accessories	Micro USB cable, AUX cable, User manual
Compatible Devices	Smartphones, tablets, laptops
Cleaning	Wipe with soft dry cloth
Safety	Do not expose to extreme heat or water
Repairability	Spare parts available on request

Frequently Asked Questions - BPS 738 GoGen

How do I pair the GoGen BPS 738 with my phone via Bluetooth?

Turn on the speaker by pressing and holding the power button until the LED flashes. On your phone, enable Bluetooth and search for available devices. Select 'GoGen BPS 738' from the list. Once connected, the LED will become steady. You can now play audio wirelessly.

How do I charge the BPS 738 speaker?

Connect the included Micro USB cable to the charging port on the back of the speaker. Plug the other end into a USB power adapter (5V/1A recommended). The LED will turn red during charging and green when fully charged. Charging typically takes about 3 hours.

What is the battery life of this speaker?

The built-in lithium-ion battery provides up to 8 hours of playback at moderate volume. Actual battery life may vary depending on volume level and audio content.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to a power source. However, it is recommended to fully charge the battery before first use for optimal performance.

How do I connect the speaker using an AUX cable?

Plug one end of the included AUX cable into the AUX input on the speaker and the other end into the headphone jack of your device. The speaker will automatically switch to AUX mode. Use the controls on your device to manage playback.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids, solvents, or abrasive cleaners as they may damage the finish or the electronics. Ensure the speaker is turned off and disconnected from power before cleaning.

Is the speaker waterproof?

The GoGen BPS 738 has an IPX5 rating, meaning it is protected against water splashes from any direction. It can handle rain or splashes, but should not be submerged in water.

How do I reset the speaker?

If the speaker is not responding, try resetting it by turning it off and then on again. If the issue persists, press and hold the power button for 10 seconds until the LED flashes rapidly. This will restore factory settings.

Can I connect two BPS 738 speakers for stereo sound?

The BPS 738 does not support TWS (True Wireless Stereo) pairing. Each speaker operates independently. For stereo sound, you can connect one speaker via Bluetooth and another via AUX cable to your device.

What do the LED indicator colors mean?

Flashing blue: Pairing mode. Steady blue: Connected via Bluetooth. Red: Charging. Green: Fully charged. Flashing red: Low battery.

USER MANUAL BPS 738 GoGen

Abstract logo design with white stylized 'S' inside a circle on black background (no text or symbols)

BPS 738

GoGEN

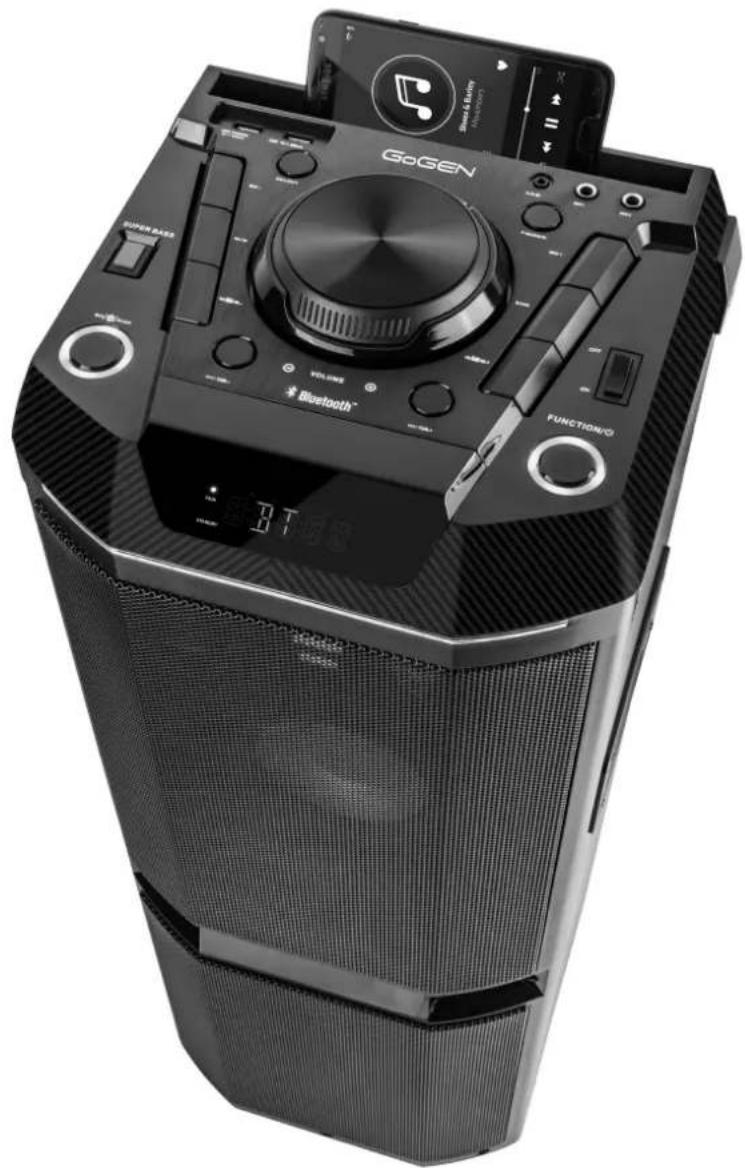

Black GoGen portable electronic device with speaker, control knobs, and digital display (no readable text or symbols)

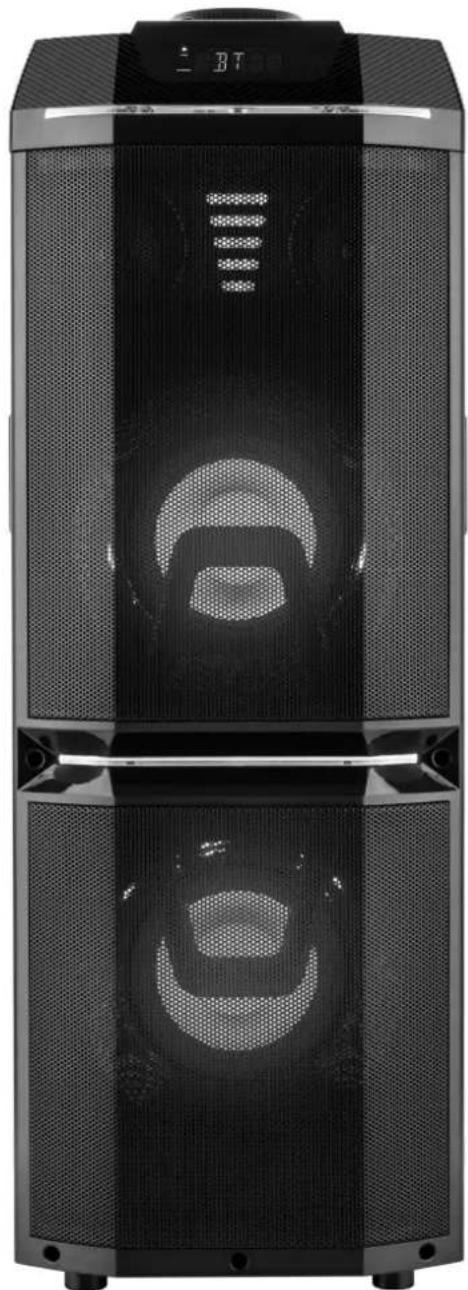

Exterior view of a modern multi-tiered electronic device with mesh back panels and ventilation grilles (no visible text or symbols)

PÁRTY REPRODUKTOR S BLUETOOTH PÁRTY REPRODUKTOR S BLUETOOTH IMPREZOWY GŁOŚNIK BLUETOOTH BLUETOOTH PARTY SPEAKER BLUETOOTH PARTY HANGSZÓRÓ

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI USER MANUAL HASZNÁLATI UTASÍTÁS

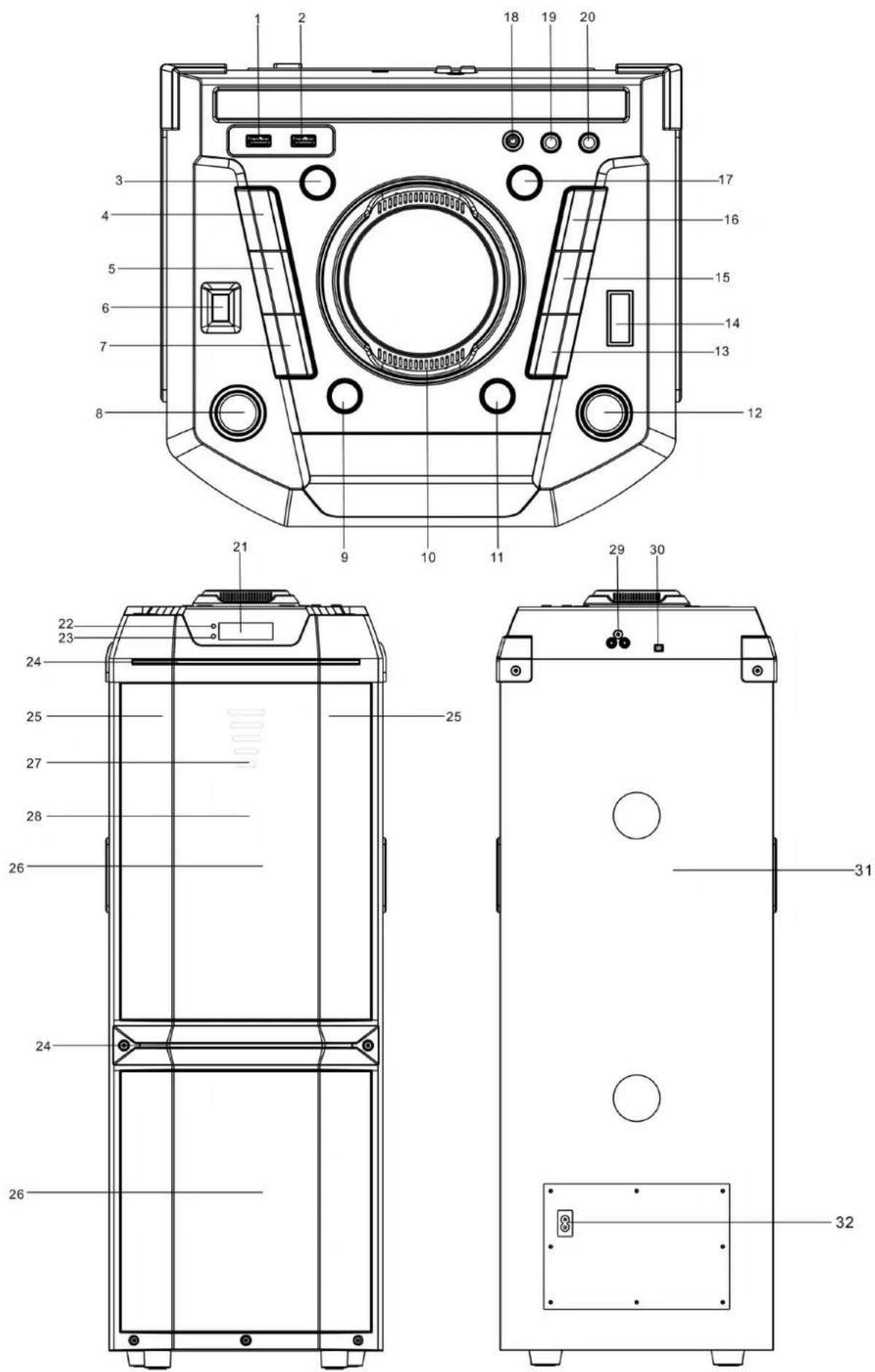

NÁKRES ZAŘÍZENÍ / NÁKRES ZARIADENIA / WYGLĄD URZĄDZENIA GUIDE TO THE APPLIANCE / KÉSZÜLÉK LEÍRÁSA

ÚVOD

Thank you for buying our product.Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

SAFETY INFORMATION AND WARNINGS

SYMBOL DEFINITIONS

DANGER - Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. This symbol appears only in the most extreme situations.

WARNING - Indicates a potentially hazardous situation which could result in death or serious injury.

CAUTION - Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury or product/property/damage. It also warns against unsafe practices

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

READ ALL INSTRUCTIONS BEFORE USE

Always follow basic safety precautions when using this Bluetooth speaker system with Microphone, especially when children are present.

SAFETY INSTRUCTIONS

1. Read this Instruction Manual before you attempt to connect or operate the appliance.
2. Keep these instructions in good condition. Heed all warnings. Follow all instructions.
3. Save this Instruction Manual for future reference.
4. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only.
5. No naked flame source, such as candles, should be placed on the product.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Ventilation should not be impeded by covering the ventilation openings.
8. Ensure that the unit is plugged into an AC 220-240 V 50 Hz power outlet. Using higher voltage may cause the unit to malfunction or even fire catching. Turn off the unit before unplugging it from power source to completely switch it off.
9. Do not plug/ unplug the power plug into/from an electrical outlet with wet hands.
10. If the power plug does not fit into your outlet, do not force the plug into an electrical socket if it does not fit.
11. Use replacement parts, which are specified by the manufacturer.
12. Install the unit in accordance with the manufacturer's instructions.

13. Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 40 °C . Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.

14. Press the buttons of the unit gently. Pressing them too hard can damage the unit.

15. Dispose of used batteries in an environmental-responsible manner.
16. Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only.
17. Unplug the product during lightning, storms or when it will not be used for long periods of time.
18. This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
19. NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
20. Don't mount this product on a wall or ceiling.
21. Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields.
22. Do not leave the unit unattended when it is in use.

NOTE: To disconnect the system completely if it not to be used for a long time, remove the AC power plug from the wall outlet.

BUTTON FUNCTIONS

This unit is AC operation.

After connecting the power, press the power ON/OFF button to switch the unit on/off.

NOTE: In USB/Bluetooth/AUX/LINE IN mode, when the unit is not providing the main function for around 15 minutes, the unit will automatically switch into standby mode.

Press the FUNCTION/O button to turn on the unit again.

Please note that low volume setting in the audio source may be recognized as “no audio signal”, this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player in order to resume playback.

Electrostatic Discharge hints – The unit may reset or may not reset to normal operation mode due to electrostatic discharge, just switch it off and reconnect again.

SETTING THE FUNCTION MODE

To change the function modes, press the FUNCTION/ button repeatedly to choose RADIO/USB//BLUETOOTH/AUX/LINE IN function.

ADJUSTING THE VOLUME

1. Rotate the VOLUME knob on the unit to increase or decrease the music volume.
2. Press the MIC VOL. button on the unit to increase or decrease the microphone volume.

BASS ADJUSTMENT

Press the EX BASS button on unit to increase the bass effect.

This unit has a built-in equalizer system, Press the EQ/LIGHT button on unit to select a setting that best matches the music style: FLAT, CLASSIC, ROCK, POP and JAZZ.

USB CHARGING

This unit provides a 5V/1A USB charging port for charging your smart phone. Connect the USB cable of your smart phone to the USB CHARGE port for charging.

MICROPHONE ECHO ADJUSTMENT

Press the ECHO button on unit turn on or off the microphone echo effect.

FLASHING LIGHT

There are 5 modes for the DISCO LED lighting. Press and hold the EQ/LIGHT button to choose the light modes.

Mode 1- Blue light stays on
Mode 2- Red light stays on
Mode 3- Green light stays on
Mode 4-7 color light flashing follow the music
Mode 5-7 color light flashing smoothly

There are two light bars around the speaker, the blue light on in all light modes, press and hold the EQ/LIGHT button to turn it off, press and hold EQ/LIGHT button again to turn on.

RADIO OPERATION

Listen to FM radio broadcasts. Press the FUNCTION/ button on the unit, the display reads FM and the radio frequency.

Note: The wired antenna is packed with the user manual as a separated accessory, insert the wired antenna into the FM socket on the rear cabinet when listening to the radio, and extend the wired antenna to its full length in order to get the best reception.

TUNING TO A RADIO STATION

If you know the station frequency that you want to tune to directly:

- Tune to a station by press the ▶/TUN+ or ◀/TUN- button repeatedly.

The station frequency is shown on the display..

To tune to a preset station:

• To tune to the next preset station, press the 10/FOLD./MEM.+ button.
• To tune to the previous preset, press the 10/FOLD./MEM.- button.

AUTO PRESET MEMORY / SCAN

To scan for stations within reception range and save them to preset memory automatically, press and hold the PLAY/PAUSE/PAIR/SCAN button. After the unit is finished scanning, the unit will automatically tune to preset number 1 (P01).

Choose which stations to save in preset memory instead of scanning automatically.

1. Use the ▶/TUN.+ or ◀/TUN.- button to tune to the station that you want to save as a preset (e.g., 93.1).
2. Press the P-MODE/M. button. "P01" will flash on the display to indicate that you are saving the station as Preset Memory 01. (To change the preset memory number, press the 10/FOLD./MEM.+ or 10/FOLD./MEM.-buttons.)
3. Press the P-MODE/M. button to finish saving the station (e.g., P01 is now set to 93.1).
4. To save another station, repeat steps 1 to 3. You may save up to 30 FM stations.

USB OPERATION

This unit provides one USB port for music playback.

1. Press the FUNCTION/ button on unit to select USB mode.
2. Plug the USB memory stick to the USB port on top of the unit. Playback will start automatically from Track 1.
3. To pause playback, press the PLAY/PAUSE/PAIR/SCAN button on unit. The playing time will flash on the display.
4. To resume playback, press the PLAY/PAUSE/PAIR/SCAN button again.
5. To select a desired track, press the ▶/TUN+ or ◀/TUN- button respectively during playing until the desired track appears on the display. The unit will start play automatically.
6. To search for a particular passage during playback, press and hold the ▶/TUN+ or ◀/TUN-button to scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode.
7. To select a song which track number exceeds 10, press the 10/FOLD./MEM.+ or 10/FOLD./MEM.- button each time to skip forward/backward 10 tracks, then press the ▶/TUN+ or ◀/ TUN- button to select desired track.
8. To select a desired folder (if the USB contains more than one folder), press and hold the 10/FOLD./MEM.+ or 10/FOLD./MEM.- button each time to skip forward/backward a folder, then press the ▶/TUN+ or ◀/TUN- button to select desired track.

Important: The USB port is intended for data transfer only, other devices cannot be used with this USB connection. The use of USB extension cords is not recommended. Don't unplug the USB from the unit when playing or reading the USB device.

REPEAT PLAY

You can play one track or all tracks on the USB repeatedly.

To Repeat a Single Track

1. Press P-MODE/M. button on unit during play, the display will show "ONE" and the current track will be played over an over again.
2. To cancel repeat play, press P-MODE/M. button on unit until "ONE" disappears from the display.

To repeat all the Tracks

1. Press P-MODE/M. button on unit until the "ALL" shows steadily on the display, all tracks on the USB will be played over and over again.
2. To cancel repeat play, press the P-MODE/M. button on unit until "ALL" disappears from the display.

To repeat the folder (only for USB which contains more than one folder)

1. Press the P-MODE/M. button on unit until "FOLDER" shows steadily on the display, the current folder will be repeated over and over again.
2. To cancel repeat play, press the P-MODE/M. button on unit until "FOLDER" disappears from the display.

RANDOM PLAY

Press the P-MODE/M. button on unit in play mode till the "RAND" shows steadily on the display, the random play will start from next track automatically. Press the P-MODE/M. button on unit again until the "RAND" disappears from the display to cancel.

BLUETOOTH OPERATION

1. Press the FUNCTION/ button on unit to switch to BLUETOOTH function, the LCD will display "BT" and the pair indicator will flash at high speed.
2. Turn on the Bluetooth function on the device, scan the unit "GOGEN BPS738" and connect, then input the password 0000 if required, the pair indicator keep light up to indicate connection done, and the display will show "BT". Press Play to start playback.
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Press and hold the PLAY/PAUSE/PAIR/SCAN button to disconnect Bluetooth.

Note: The Bluetooth works best within 10 meters in open air.

AUX-IN OPERATION

1. Press the FUNCTION/ button on unit to select the "AUX" mode.
2. Connect your audio device to the AUX IN jack on the top panel of the unit with an AUX IN cable.(audio cable is not included)
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.

LINE-IN OPERATION

1. Press the FUNCTION/ button on unit to select the "LINE" mode.
2. Connect your audio device to the RCA jack L/R on the back panel of the unit with RCA cable (cable is not included).
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.

TECHNICAL SPECIFICATIONS

GENERAL

Power Requirements AC100-240 V\~60/50 Hz Power consumption 160 W Power output 2 x 80 W FM frequency FM 87.5-108 MHz AUX in jack 3,5 mm Microphone jack 6,3 mm Work temperature 5 °C - +35°C

BLUETOOTH

Communication system Bluetooth Standard version 2.1+EDR Reception Range 10 meter (line-of-sight distance) Compatible Bluetooth profiles Advanced Audio Distribution Profile (A2DP) Wireless Working Frequency 2,402 – 2,480 GHz E.i.r.p. - 6,02 dBm

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A

QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will

help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type BPS738 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity
