BOB MIKROFON - Loudspeaker GoGen - Free user manual and instructions

Product Type	Handheld Karaoke Microphone Speaker
Brand	GoGen
Model	BOB MIKROFON
Dimensions (W x D x H)	80 x 80 x 272 mm
Weight	370 g
Battery Type	Li-ion 3.7 V / 1200 mAh
Charging Time	Approx. 3 hours
Playback Time	Up to 15 hours (at 50% volume)
Charging Port	USB-C (5 V / 1 A charger recommended)
Bluetooth Version	5.0
Bluetooth Range	Up to 10 m
Supported Media	Micro SD card (up to 128 GB, FAT32/exFAT) and USB drive (up to 128 GB, FAT32/exFAT)
Audio Format	MP3
Power Output	5 W
Microphone Frequency	2402 - 2480 MHz
Special Features	Magic voice effects (4 modes), karaoke, vocal cancellation, LED light
Controls	Power/Mode, Play/Pause, Volume +/-, Track Skip, Mic Volume +/-, Echo +/-
Headphone Output	3.5 mm jack (speakers mute when headphones connected)
Safety Precautions	Keep away from heat, liquids, and children; do not disassemble or use while charging; use soft cloth for cleaning
Warranty Note	Battery capacity decreases over time; normal wear and tear

Frequently Asked Questions - BOB MIKROFON GoGen

How do I turn on the microphone?

Press and hold the //M button (button 1) to turn on/off the microphone. The LED indicator will flash blue in pairing mode.

How do I pair the microphone with my phone via Bluetooth?

Turn on the microphone. Activate Bluetooth on your phone and search for 'BOB MIKROFON'. Select it to connect. If asked for a passcode, enter 0000. The LED indicator will become solid when paired.

How long does the battery last and how do I charge it?

Playback time is up to 15 hours at 50% volume. Charging takes about 3 hours via USB-C (5V/1A charger not included). The LED indicator glows red during charging and turns off when fully charged.

Can I use a micro SD card or USB drive?

Yes, insert a micro SD card or USB drive (up to 128 GB, FAT32/exFAT) into the corresponding slots. The microphone will automatically play MP3 files from the inserted media.

How do I use the magic voice effects?

After turning on the microphone, press and hold the play/pause button (button 3) to enter Magic voice effect mode. Press the same button to cycle through four effects. Press and hold again to exit the mode.

How do I adjust microphone volume and echo?

Use the MIC VOL+ (button 6) and MIC VOL- (button 7) to adjust microphone volume. Use ECHO+ (button 8) and ECHO- (button 9) to adjust echo level.

Why is there no sound from the speaker?

Check that the microphone is charged and turned on. Ensure the correct audio source is selected (Bluetooth/SD/USB). Adjust the music and microphone volume. If using headphones, the speaker is muted. Verify the Bluetooth device is paired and within range.

How do I enable or disable vocal cancellation?

During music playback in karaoke mode, press the play/pause button (button 3) twice quickly to toggle vocal cancellation (reduces vocals in the music).

Can I use the microphone while it is charging?

No, the manual advises not to use the microphone while charging. It is recommended to fully charge the battery every three months to maintain battery life.

How do I clean the microphone?

Use a soft cloth to clean the surface. Do not use harsh abrasives or chemicals, as they may damage the finish. Keep the device away from liquids.

USER MANUAL BOB MIKROFON GoGen

VYOBRAZENÍ VÝROBKU A OVLÁDACÍ TLAČÍTKA / VYOBRAZENIE VÝROBKU A OVLÁDACIE TLAČIDLÁ WYGLĄD URZĄDZENIA I PRZYCISKI KONTROLNE / KÉSZÜLÉK LEÍRÁSA ÉS VEZÉRLÓ GOMBOK PRODUCT OVERVIEW AND CONTROL BUTTONS / PRODUKTABBILDUNG UND STEUERTASTEN

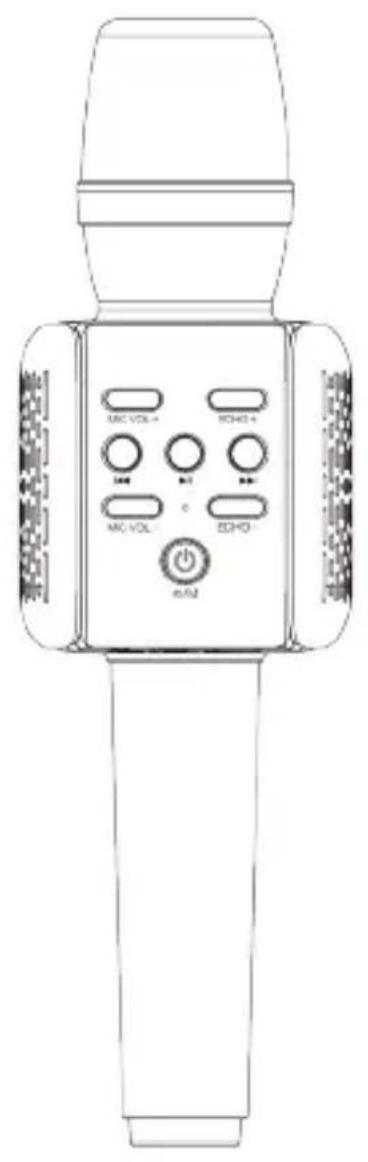

Line drawing of a handheld microphone with control buttons and indicator lights (no text or symbols)

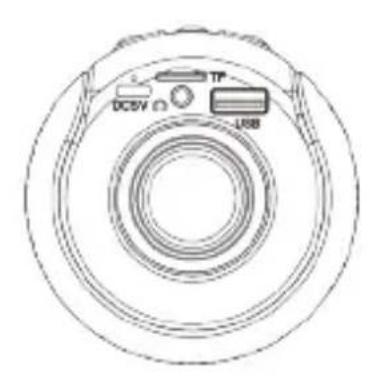

Top-down schematic of a circular device with labeled components (DC5V, USB, TP) and no readable text or symbols beyond labels.

ÚVOD

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

11. USB-C charging port

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

Important Safety Precautions

When using your Microphone, basic safety precautions should always be followed, including the following:

✗ Children should be supervised to ensure that they do not play with the device.
✗ Keep this microphone and its accessories away from excessive heat.
✗ No sharp object should be subjected to the speaker/speaker-drivers as it may damage the speakers.
✗ Only use a soft cloth, no harsh abrasives or chemicals to clean, as it may damage the surface finishing.
✗ Keep away from dripping or splashed fluids.
✗ This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
✗ NEVER operate this microphone with a damaged cable or after it has malfunctioned or has been damaged in any manner.
✗ NEVER leave the microphone unattended while charging. If the microphone becomes hot, smokes, or gives off an odor during charging, terminate charging immediately.

To avoid danger of suffocation, keep the plastic bag away from babies and children. Do not use this bag in cribs, beds, carriages or playpens. This bag is not a toy.

Headphone Volume Warning

Connect headphones with volume set low and increase it if required. Prolonged listening through some headphones at high volume settings can result in hearing damage. To prevent possible hearing damage, do not listen at high volume levels for long periods.

Package contents

Microphone, USB Charging cable, User manual

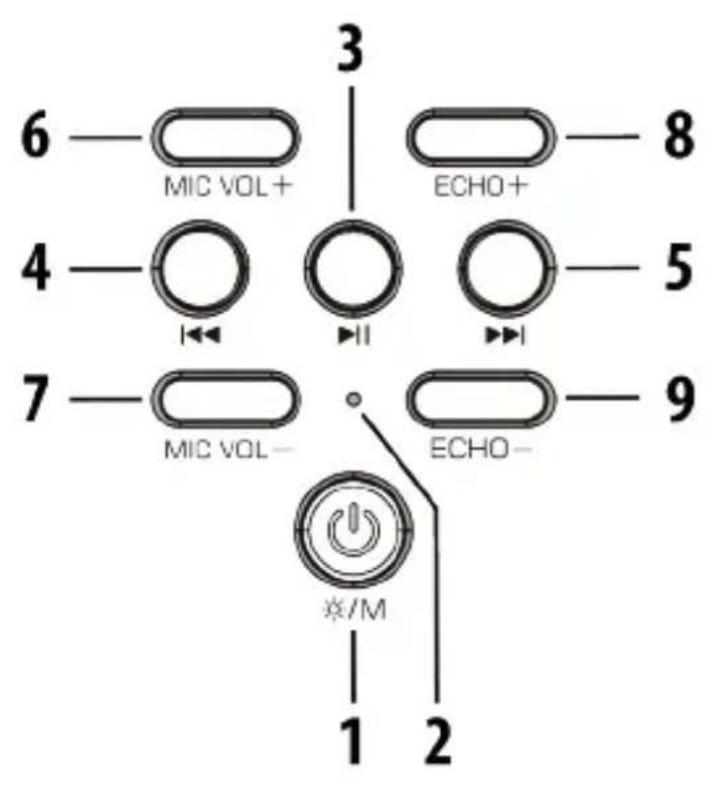

CONTROL BUTTONS and Inputs

1. //M button

Press and hold to turn on/off the microphone.

Press twice to turn on/off LED light.

Press to change mode (Bluetooth / SD card / USB).

2. LED indicator

3. button

Press to start/pause playback.

Press and hold to launch the Magic voice effect mode.

4. button

Press to decrease the volume.

Press and hold to skip to the previous track.

5. button

Press to increase the volume.

Press and hold to skip to the next track.

6. MIC VOL+ button

Press to increase the microphone volume.

7. MIC VOL-button

Press to decrease the microphone volume.

8. ECHO+ button

Press to increase the echo effect.

9. ECHO- button

Press to decrease the echo effect.

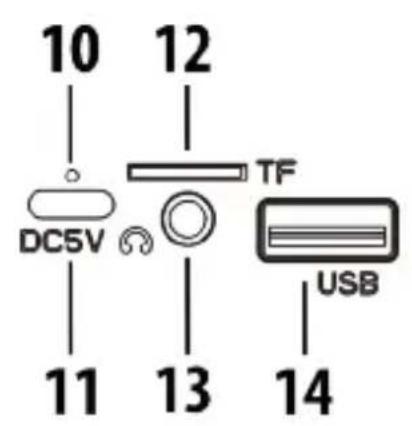

10. Charging LED indicator

11. USB-C charging port

Use the USB charging cable (included) for charging.

12. Micro SD card slot

13. Headphone output

14. USB input

Charging your microphone

The charger is not included in the package, please charge the microphone via a standard

5 V / 1 A charger or via a PC. The LED indicator will glow red during charging. The LED indicator turns off when the microphone is fully charged.

IMPORTANT: Please do not use the microphone during charging. Please make a complete charge every three months to avoid shortening the battery lifespan.

Magic voice effect

✗ Press and hold the 1 button to turn on the microphone.
✗ Press and hold the 3 button to launch the Magic voice effect mode.
✗ There are four different effects, press the 3 button to switch to another effect.
✗ Press and hold the 3 button to turn off this mode.

karaoke

✗ Press and hold the 1 button to turn on the microphone.
✗ Start playing music from Bluetooth / SD card / USB.
✗ Press the 6 and 7 buttons to adjust the microphone volume.
✗ Press the 8 and 9 buttons to adjust the echo level.

Note: Press twice 3 button to turn on/off the Vocal (singing) cancellation feature in the music you are playing.

BLUETOOTH MODE

✗ Press and hold the 1 button to turn on the microphone.

✗ The microphone is ready to pair if the LED indicator flashes blue.

× Activate Bluetooth of mobile phone and search for device name "BOB MIKROFON" then connect it. If the pairing is successful, the LED indicator will be solid.

Note: For more information, see your mobile phone's user manual. If you are asked to enter a passcode, enter 0000. After you've paired a mobile phone, the microphone remembers it for the next time. The microphone will auto power off after 5 minutes if there is no operate.

SD CARD / USB MODE

Insert USB drive / Micro SD card into the microphone. The microphone will play the stored music automatically.

USING HEADPHONES

Plug in the 3,5 mm headphones to the Headphone output. Turn the listening volume to the lowest setting before adjusting the volume up to your chosen level.

Note: The speakers will not operate when headphones are fitted.

Troubleshooting

× There is no power

Make sure your microphone is charged.

Ensure the microphone is switched on correctly.

× There is no backing sound output

Adjust the Music volume.

Make sure the Bluetooth device is playing and adjust the volume.

Make sure that your Bluetooth device is in effective range.

Ensure that the Bluetooth device is paired.

Make sure you have selected the correct audio source.

The track format may be incompatible, ensure the file format is MP3.

× There is no voice output

Adjust the Microphone volume.

× There is a ringing/squealing noise

Reduce the echo effect.

Reduce the Music and Microphone volume.

Specification

Bluetooth version: 5.0

Built-in battery: Li-ion 3,7 V / 1200 mAh

Battery Charging Time: approx. 3 hours

Battery Playback Time: 15 hours (50 % Volume)

Bluetooth Frequency: 2402 - 2480 MHz, EIRP 3,51 dBm

Bluetooth connecting range: 10 m

Supported Micro SD card / USB drive: FAT32 / exFAT, 128GB (max)

Supported audio formats: MP3

Power output: 5 W

Product size: 80 x 80 x 272 mm / Weight: 370 g

We reserve the right to change technical specifications.

Warranty

The capacity of the product battery decreases over time. Decreasing of battery capacity occurs during normal use of the appliance and is considered usual wear and tear of the appliance.

Decreasing battery capacity is not a defect of the appliance.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type BOBMIKROFONP is in compliance with

Directive 2014/53/EU. The full text of the EU declaration of conformity is

available at the following internet address: http://www.gogen.cz/declaration_of_conformity
