PSU103 - Loudspeaker GoGen - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	GoGen
Model	PSU103
Color	Black
Connectivity	Bluetooth 5.0, AUX 3.5mm, USB Flash Drive, Micro SD Card
Power Source	Built-in rechargeable lithium battery (2000 mAh), 5V DC via Micro USB
Dimensions	18.0 x 6.0 x 6.0 cm (7.1 x 2.4 x 2.4 in)
Weight	400 g (14.1 oz)
Output Power	5W (RMS)
Frequency Response	80 Hz - 18 kHz
Impedance	4 Ohms
Driver Size	52 mm (2 in)
Charging Time	Approx. 3 hours
Playback Time	Up to 6 hours at 50% volume
Standby Time	Up to 80 hours
Operating Range	Up to 10 meters
What's in the Box	Speaker, Micro USB charging cable, AUX cable, User Manual
Battery Type	Lithium-ion (18650)

Frequently Asked Questions - PSU103 GoGen

How do I turn the GoGen PSU103 speaker on/off?

Press and hold the Power button for 2-3 seconds until you hear a power-on tone. To turn off, press and hold again.

How do I pair the speaker with my phone via Bluetooth?

Turn on the speaker, it will enter pairing mode automatically. Enable Bluetooth on your phone, select GoGen PSU103 from the list, and confirm pairing if prompted.

How do I charge the speaker?

Connect the included Micro USB cable to the speaker's charging port and plug into a 5V USB charger. The LED indicator will light red during charging and turn off when fully charged.

What is the battery life of the PSU103?

The built-in 2000 mAh battery provides up to 6 hours of playback at moderate volume. Actual battery life may vary depending on volume level and music source.

Can I use the speaker while charging?

Yes, the speaker can be used while charging. However, it is recommended to let the battery charge fully for optimal performance.

How do I play music from a Micro SD card or USB drive?

Insert a formatted Micro SD card or USB drive (FAT32) into the respective slot. The speaker will automatically detect and start playing audio files (MP3,WAV).

Why is there no sound coming from the speaker?

Check if the speaker is powered on and the volume is turned up. Ensure the audio source is playing and properly connected via Bluetooth or AUX. Try reconnecting or restarting the speaker.

How do I reset the speaker to factory settings?

Turn off the speaker, then press and hold the Power and Volume + buttons simultaneously for 5 seconds until you hear a reset tone. Pairing history will be cleared.

Can I use the speaker for hands-free calling?

Yes, the speaker has a built-in microphone. When paired with a phone, you can answer calls by pressing the Play/Pause button. The speaker will serve as a speakerphone.

Is the PSU103 waterproof?

No, the GoGen PSU103 is not waterproof. Avoid exposure to water or extreme humidity to prevent damage.

USER MANUAL PSU103 GoGen

Abstract logo design with a stylized white 'S' inside a circle on black background (no text or symbols)

GoGEN

Black geometric object with textured surface, resembling a stylized lamp or device (no text or symbols visible)

Black and white photo of a modern audio speaker with a circular button and textured grille (no visible text or symbols)

Line drawing of two mechanical components with directional arrows indicating movement or force (no text or symbols)

BEZPEČNOSTNÍ POKYNY

Citlivost: 700 Mv ± 50 Mv

SNR: ≥ 45 dB

BT verze: V 5.0

BT frekvence: 2402 MHz – 2480 MHz

EiRP: -3,46 dBm

Vstup: 3,5 mm Audio Jack

Prohibition sign with a person silhouette and crossed-out hand (no text or symbols)

Prohibition sign with a crossed-out arrow symbol (no text or numbers present)

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJ- TE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBÓ DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

Line drawing of two mechanical components with directional arrows indicating movement or force (no text or symbols)

BEZPEČNOSTNÉ POKYNY

Prohibition sign with a circular border and a central figure silhouette (no text or symbols)

Prohibition sign with a crossed-out dog silhouette inside a circle (no text or symbols)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

INSTRUKCJE BEZPIECZEŃSTWA

Prohibition sign with a person wearing a mask and crossed-out hand (no text or symbols)

Prohibition sign with a crossed-out figure and diagonal line (no text or symbols)

NIE NALEŻY UŻYWAĆ W KOŁY-

SKACH, ŁÓŻECZKACH, WÓZKACH

LUB KOJCACH DZIECIECYCH.

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Speakers, instruction manual

INSTRUCTIONS FOR USE

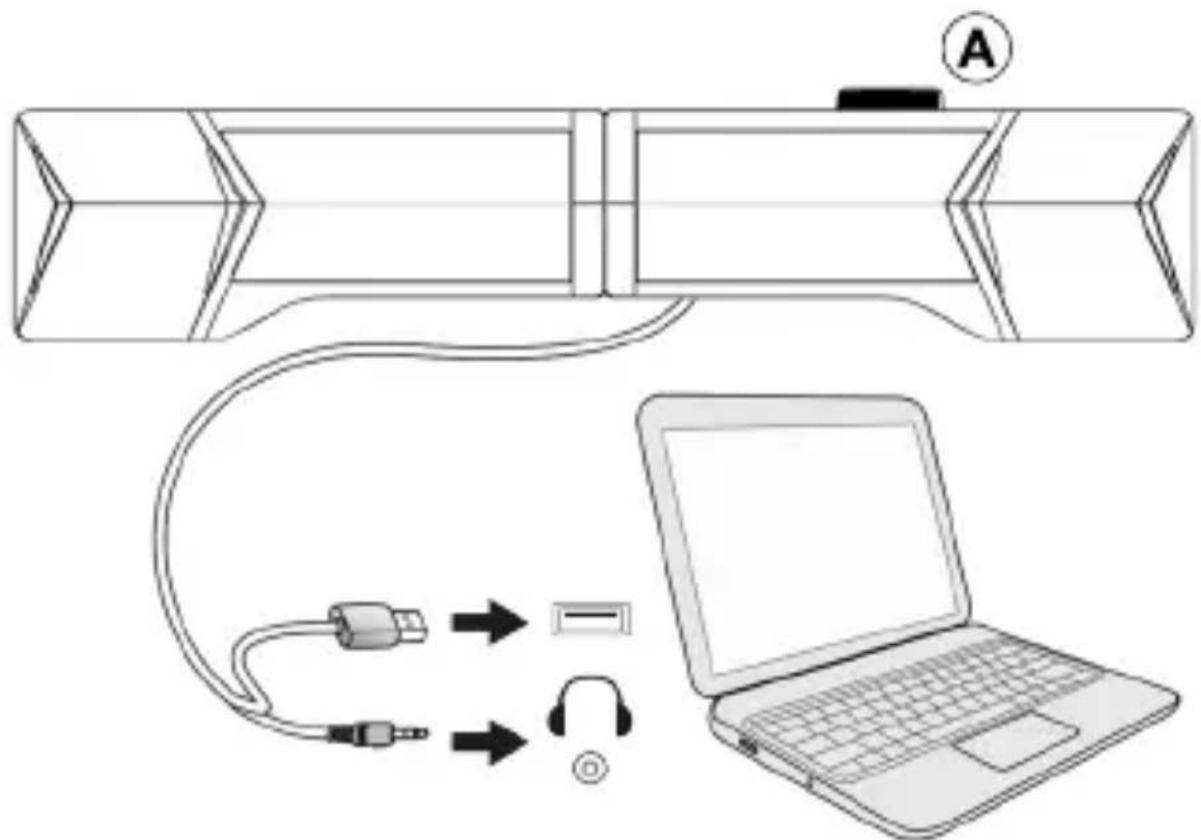

1. Plug the USB connector into a USB port on your computer or other devices to get the power.
2. Plug the 3,5 mm audio jack into a jack port on your computer or other devices to get the audio resource.
3. Rotate the volume knob (A) to the left for setting the volume down; rotate the knob to right for the volume up. At maximum volume product will beep.

Long press the knob (A) to turn on/off the lighting

Bluetooth mode

Press the volume knob (A) to change the mode (Bluetooth / AUX). Use your mobile device to search the Bluetooth signal of the

speaker, select GOGPSU103 on your list. Input the password 0000 if need the password prompt, the speaker will synchronize to play songs on your mobile device. Disconnected the Bluetooth on the smart phone to switched off the bluetooth connection.

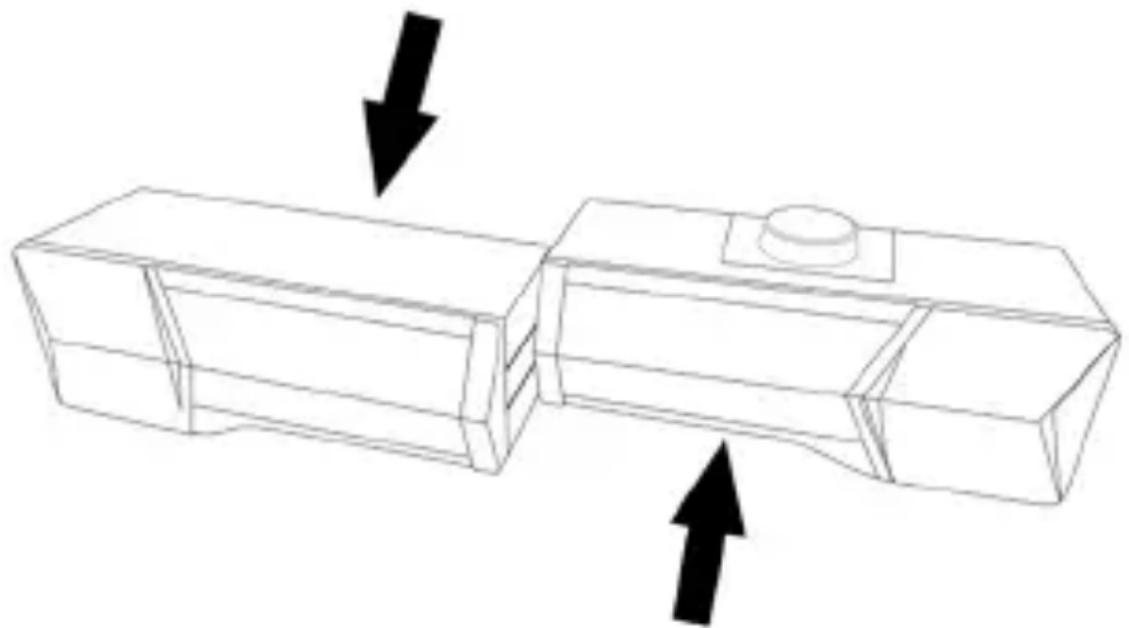

You can change the 2.0 speaker to the soundbar. See the picture below:

Technical line drawing of a mechanical component with two arrows indicating force or movement (no text or symbols)

SAFETY INSTRUCTIONS

• Keep the unit away from heat sources, direct sunlight, humidity, water, and any other liquids.
• Do not operate the unit if it has been exposed to water, moisture, or any other liquids to prevent electric shock, explosion, and/or injury to yourself and damage to the unit.
• Turn off the device each time, when it is not planned to use it for an extended time.
• Keep away from vibrations and mechanical stresses, which can cause mechanical damage to the product.
• In case of mechanical damage, no warranties are provided.
• Do not disassemble. This product does not contain parts that are entitled to a self-sufficient repair.
• Do not use the unit if it has been dropped or damaged in any way.
• Keep the unit out of reach of children. This product is not a toy.
• Do not use the unit at excessive volume levels, as damage to the hearing may occur.

TECHNICAL SPECIFICATIONS

Output Power(R.M.S): 3 W * 2

Frequency Response: 150 Hz - 20 KHz

Sensitivity: 700 Mv ± 50 Mv

SNR: ≥ 45 dB

BT version: V 5.0

BT frequency: 2402 MHz – 2480 MHz

EiRP: -3,46 dBm

Input Interface: 3,5 mm Audio Jack

Supply Voltage: USB 5 V / 1 A

Unit Size: 380 x 70 x 70 mm (2 in SET)

Weight: 700 g

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition sign with a circular border and a stylized face inside (no text or symbols)

Prohibition sign with a diagonal line crossing through it, no text or symbols present.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office,

your household waste disposal service or the shop where you purchased the product. Hereby, ETA a.s. declares that the radio equipment type PSU103 s in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

Technical line drawing of a mechanical component with two arrows indicating force or movement (no text or symbols)

BIZTONSÁGI UTASÍTÁSOK

Prohibition sign with a person wearing a mask and crossed out by a diagonal line (no text or symbols)

Prohibition sign with a diagonal line crossing through it, no text or symbols present.

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSŐKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)
