Product Type	Two-way radio (PMR446)
Brand	GoGen
Model	DECKO VYSILACKY
Frequency Range	446.0 MHz
Number of Channels	8
Power Source	3x AAA batteries (alkaline recommended)
Battery Meter	Yes, low battery indicator on LCD
Power Saver Mode	Auto after 4 seconds of inactivity
Volume Levels	8
Roger Beep	Yes, automatic tone on transmission end
Call Tone	Yes, 2-second page tone via Call button
Channel Scan	Yes, scans all 8 channels
Monitor Function	Yes, to check for weak signals
Key Lock	Yes, locks buttons except PTT and Call
Belt Clip	Removable clip included
Display	LCD showing channel, volume, battery, TX/RX status
Transmit Power	ERP < 26.99 dBm
Safety Note	Keep plastic bag away from children; suffocation hazard
Disposal	Do not dispose as household waste; recycle at collection point
Compliance	Directive 2014/53/EU

Frequently Asked Questions - DECKO VYSILACKY GoGen

How do I pair two GoGen DECKO VYSILACKY radios?

Ensure both units are on the same channel. Press the Menu button until the channel number blinks, then use the Up or Down buttons to select a channel (1-8). Press Menu again to confirm. Both radios must have the same channel number to communicate.

What is the maximum range of this walkie-talkie?

The maximum range is typically up to 10 km in open areas with clear line-of-sight. Actual range depends on terrain, obstacles, and battery conditions.

How do I change the volume?

Press the Up button to increase volume and the Down button to decrease. There are 8 volume levels shown as bars on the LCD.

How do I use the channel scan feature?

Simultaneously press and hold the Menu and Up buttons. The radio will scan all 8 channels. When it detects a signal, it pauses for 3 seconds. Press PTT to talk on that channel or press Menu to stop scanning.

How long do the batteries last?

Battery life depends on usage. The radio has a built-in power saver that activates after 4 seconds of inactivity. Continuous transmission drains batteries faster. For maximum life, turn off the unit when not in use and remove batteries if storing for long periods.

How do I lock the buttons to prevent accidental changes?

Press and hold the Menu button until the key lock icon appears on the LCD. In lock mode, you can still transmit (PTT) and call, but cannot change volume or settings. To unlock, press and hold Menu again until the icon disappears.

What does the 'Roger Beep' do?

The Roger Beep is a short tone automatically transmitted when you release the PTT button. It signals to the other party that you have finished speaking and are now listening.

Can I use rechargeable batteries?

Yes, you can use rechargeable AAA batteries. However, note that the battery meter may not be accurate for rechargeables. Always use batteries of the same type and make.

How do I clean and maintain the radio?

To clean, wipe the exterior with a soft, dry cloth. Do not use water or harsh chemicals. Remove batteries if storing for extended periods. Keep away from extreme temperatures and moisture.

What should I do if the radio stops working?

First, check the batteries and replace if low. Ensure the unit is turned on (hold power button). If still not working, try resetting by removing batteries for a minute. If problems persist, refer to the user manual or contact customer support.

USER MANUAL DECKO VYSILACKY GoGen

Colorful rainbow cloud icon with no text or symbols

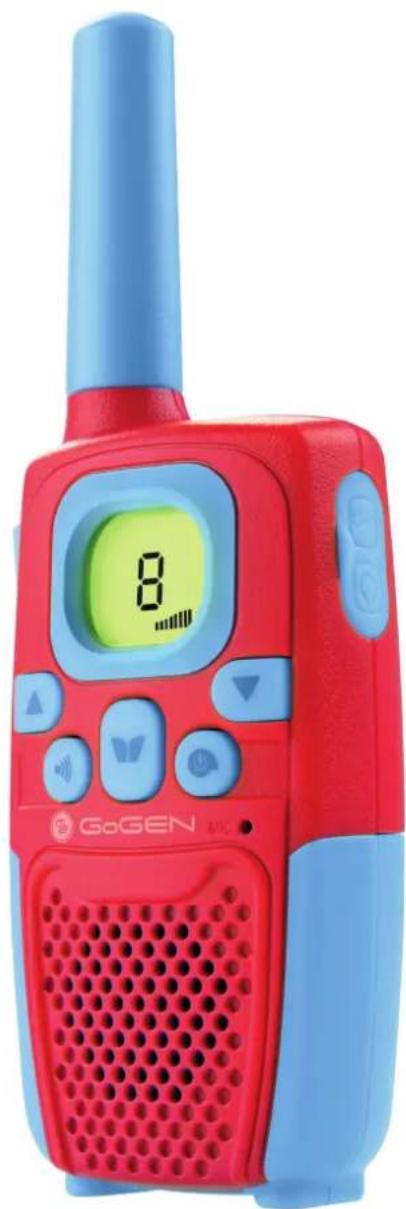

Red and blue GoGEN walkie-talkie device with a digital display showing 8 seconds (no visible text or symbols on the device body)

Blue and red children's walkie-talkie device with a colorful cartoon character on its side (no text or symbols visible)

Colorful cartoon bee illustration with rainbow stripes and antennae (no text or symbols)

Colorful cartoon character wearing a sailor hat and holding a mug, standing on a stand (no text or symbols)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / HASZNÁLATI UTASÍTÁS INSTALLATION MANUAL / BEDIENUNGSANLEITUNG

ZOBRAZENÍ VÝROBKU / ZOBRAZENIE VÝROBKU / WYGLĄD URZĄDZENIA PRODUCT OVERVIEW / KÉSZÜLÉK LEÍRÁSA / PRODUKTABBILDUNG

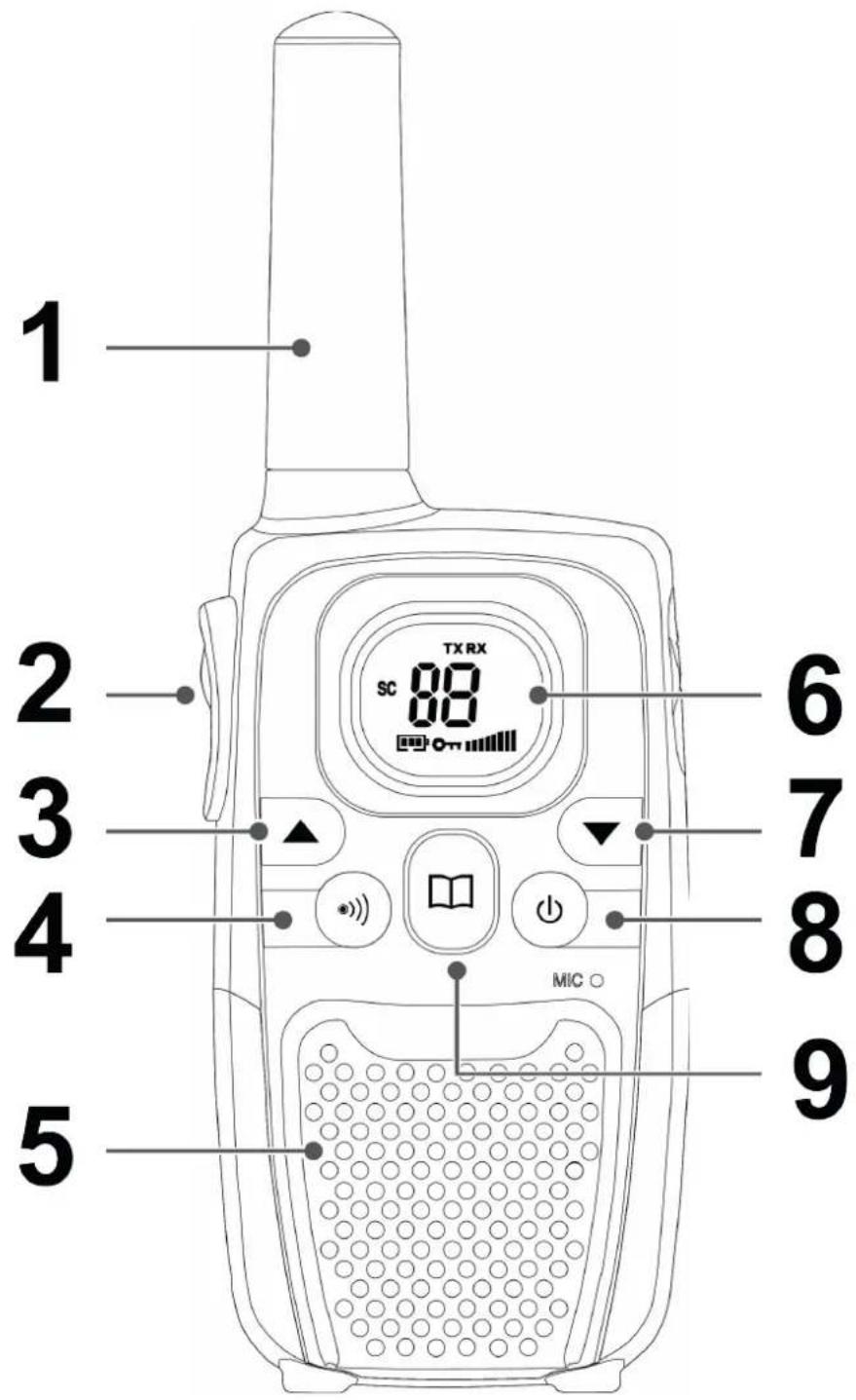

VYOBRAZENÍ VÝROBKU A OVLÁDACÍ TLAČÍTKA

1. Anténa

Diagram of a mobile phone casing with an internal oval chamber and an upward arrow indicator (no text or symbols)

2. Komunikačné tlačidlo PTT (Push To Talk)

Diagram of a vehicle's rearview and side profile showing the top view with an arrow indicating upward motion (no text or symbols present)

Merač kapacity batérií

2. Przycisk PTT (Push To Talk)

Diagram of a mobile phone rear panel with an arrow indicating upward motion (no text or symbols present)

2. PTT (Push To Talk) gomb

Diagram of a mobile phone rear panel with battery pack and four batteries arranged in rows (no text or symbols)

Diagram of a mobile phone casing with an internal oval chamber and an upward arrow indicator (no text or symbols)

Elemek

2. PTT (Push To Talk) button

Press and hold to transmit.

3. Up button

Press to change channels, volume, and to select settings during programming.

4. Call button

Press to send a ringing tone to other PMR units.

5. Speaker

6. LCD screen

Displays the current Channel selection and other radio symbols.

7. Down button

Press to change channels, volume, and to select settings during programming.

8. Power button

Press and hold to turn the PMR unit ON or OFF.

9. Menu button

Press to program the PMR settings.

LCD SCREEN

Channel Number. Changes from 1 to 8 as selected by the user.

Displays when battery level goes low.

Displays when Scan function is activated.

Displayed when Key Lock function is activated.

Displayed when transmitting a signal..

Displayed when receiving a signal.

Displayed the full volume level.

INSTALLATION

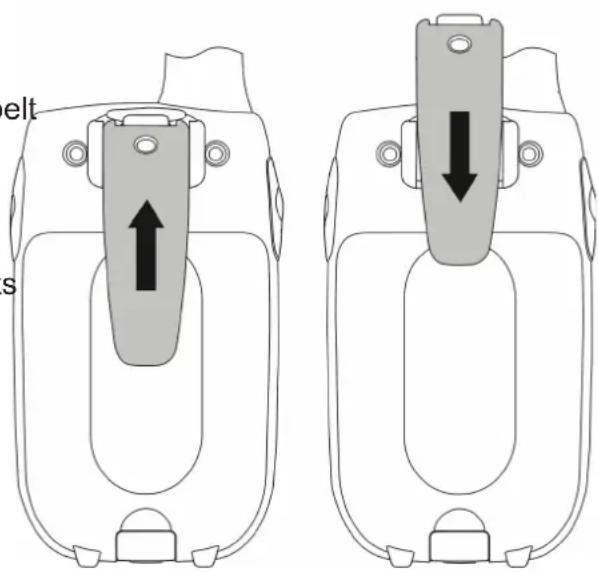

Removing the Belt clip

✗ Pull the belt clip latch away from the PMR.
✗ While pulling the belt clip latch, push up the belt clip.

Installing the Belt clip

✗ Slide the belt clip into the slot.
✗ A "click" indicates the belt clip is locked into its position.

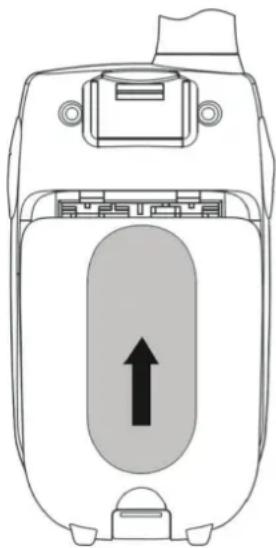

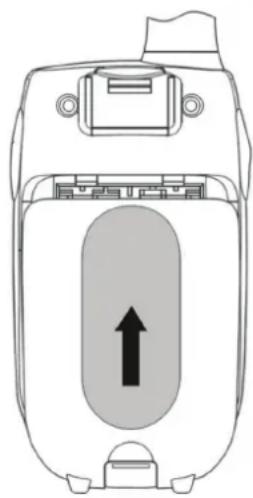

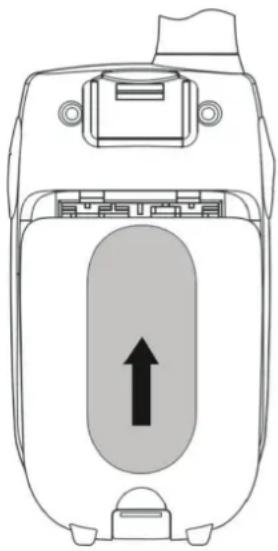

✗ Slide down the battery compartment cover.

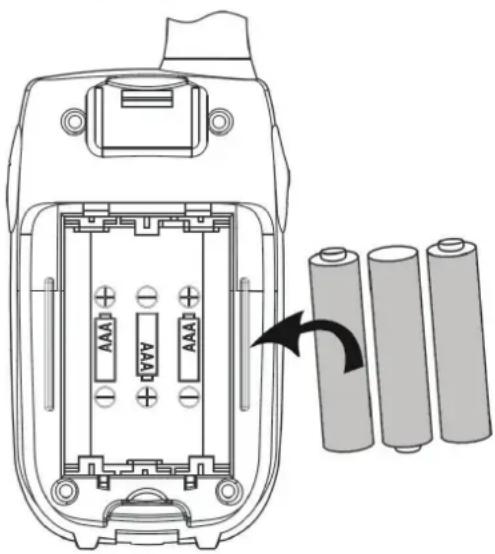

✗ Insert the 3xAAA batteries. Position the batteries according to the polarity marking on the battery compartment.
✗ Replace the battery cover.

Notes: Use only same type and make of batteries on the PMR units. The PMR units have a built-in Power Saver (PS) for maximum battery life, but when not in use, turn the units OFF to save battery power. Remove the batteries if the units will not be used for a long period of time.

Diagram of a mobile phone casing with battery pack and four batteries arranged in rows (no text or symbols)

Diagram of a device casing with an arrow indicating upward motion, no text or symbols present

Battery meter

The battery icon is located in the left corner of the LCD panel. This battery icon will displayed when low battery status. These indicate that the battery level reaches its minimum level, at this stage the handset will emit two beep tones and then it will automatically turn Off the power.

Battery life

The PMR has a built in power saver feature to make the batteries last longer. But when you are not using the handset, it's better to switch off to save the battery power.

OPERATION

Turning the Unit ON/OFF

✗ To Turn ON: Press and hold the 8 (Power) button. A special “beep” sound will be heard. The LCD screen will display the current channel.
✗ To switch OFF: Press and hold the 8 (Power) button. A special “beep” sound will be heard and the LCD screen will turn blank.

Adjusting the speaker volume

There are 8 volume levels, the current speaker volume level is displayed on the LCD screen. To adjust the speaker volume level, press the3 (Up) button to in-crease, or press 7 (Down) button to decrease. The LCD screen will display the speaker volume icon bars ascending, or descending respectively.

Receiving a Call

The unit is continuously in receive mode when the unit is turned ON and not transmitting. When a signal is received on the current channel, the receive signal icon "RX" will be displayed on the LCD screen.

Transmitting (sending)

✗ Press and hold the 2 (PTT) button to transmit your voice. The transmit signal icon "TX" will display on the LCD screen.
× Hold the unit in a vertical position with the Mic (Microphone) 5 cm away from the mouth. While holding the 2 (PTT) button, speak into the microphone in a normal tone of voice.
✗ Release the 2 (PTT) button when you have finished transmitting

Important: In order for other people to receive your transmission, they must also be on the same channel that you are currently using. Refer to the „Changing Channel“ section for more information. When the 2 (PTT) and/or 4 (Call) buttons are continuously pressed, your PMR cannot receive any transmissions.

Roger Beep

The Roger Beep is a tone which is automatically transmitted whenever the 2 (PTT) button is released. This alerts the receiving party that you have ended the transmission, and you are now in receive mode.

Changing Channels

The PMR has 8 available channels. To change channels, in normal mode:

× Press the 9 (Menu) button, the channel icon „1“ on the LCD screen will start blinking.
× While the Channel icon is blinking, press the 3 (Up) or 7 (Down) button to select the desired × channel. The channel changes from 1 to 8, or vice versa.
✗ Press the 9 (Menu) button to confirm your setting and return to the standby mode.

Calling (Paging) Tone

You can use the 4 (Call) button to send a tone to other users on the same channel. To activate this feature: With the PMR in normal mode, press and release the 4 (Call). The unit will transmit a 2-second page tone to the other unit/s set with the same channel within transmitting range.

Channel Scan

Your radio can scan the 8 channels to any activity. This allows to find other radios without having to change the channel. To activate this feature:

✗ Press and hold the 9 (Menu) and 3 (Up) button at the same time and channel scanning will start immediately, with SC displayed on the screen and the channel number cycling through the channels. When a signal is detected, the unit will pause on that channel, while receiving the signal and for a further 3 seconds.
✗ Press the 2 (PTT) button to stop scanning and talk on that channel, or press the 3 (Up) or 7 (Down) button to manually start the scanning.
✗ To stop scanning, press the 9 (Menu) button and return to standby mode.

Monitor Feature

You can use the Monitor feature to check for weaker signals in the current channel. To activate this feature:

✗ Press and hold the 9 (Menu) and 7 (Down) button at the same time. The receiving icons "RX" appears on the display. Your handset will pick up any signals on the current channel.
✗ Press the 9 (Menu) button to stop the monitoring.

To lock button

With the buttons lock you can still transmit (TX), or call the current channel, but you can not change the volume. To activate this feature: In the standby mode, press and hold the 9 (Menu) until the icon appears on the LCD screen.

To unlock the buttons

Press and hold again the 9 (Menu) button until the icon disappears on the LCD screen.

Power Saving

Your PMR unit has special circuitry designed to extend the life of your battery. When the unit is not used for 4 seconds, it will automatically switch into a low power mode. The Power Saving feature does not affect the PMR ability to receive transmissions. When a signal is detected, it automatically returns to full power mode.

Low Battery Meter Indicator

The PMR can detect the low battery level when battery voltage goes low. The battery icon will display the low battery status as follows. When battery voltage at low battery level. The empty battery symbol will appear at this stage and continue to blink. The battery icon will continue to blink until it totally drain the battery voltage.

Note: To have good communication, once the battery reach in low battery level, replace the batteries into new ones.

SPECIFICATIONS

Transmitting frequency 446,0 MHz / ERP < 26,99 dBm

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type DECKOVYSILACKY is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity
