Product Type	Air Fryer
Brand	Philco
Model	PHAF 2000
Power Supply	220-240V ~ 50-60Hz
Temperature Range	40°C - 200°C (adjustable in 5°C increments)
Cooking Timer	1 - 60 minutes (adjustable in 1 minute increments)
Preset Programs	8 (Manual, Shrimp, Steak, Fries, Wings, Fish, Chicken, Defrost)
Max Fill Level	4/5 of the frying pot, with 30 mm clearance from top edge
Safety Features	Built-in safety switch (pot must be inserted), auto shut-off, cool-down fan (1 minute after cooking)
Control Panel	Intelligent touch panel with digital display
Included Accessories	Frying pot, frying rack, anti-slip mat
Cleaning Method	Wipe exterior with soft damp cloth; wash pot and rack with hot water and non-abrasive sponge
Material	Plastic body, non-stick coated frying pot (assumed)
Certifications	CE marked, complies with EU regulations
Disposal	WEEE directive compliant; do not dispose with household waste
Special Functions	Pause function: pull out pot to pause, reinsert to resume
Error Codes	E01 (NTC open circuit), E02 (NTC short circuit), E03 (high furnace temperature)

Frequently Asked Questions - PHAF 2000 Philco

Can I preheat the air fryer?

The manual does not specify a preheat function, but for optimal results with French fries, it suggests preheating the pot before frying. You can run the air fryer empty at a desired temperature for a few minutes.

What does error code E01 mean?

Error E01 indicates an open circuit in the NTC (temperature sensor). This may be due to a loose or disconnected connection. Please contact professional after-sales service for repair.

Can I use oil in the air fryer?

Yes, you can use a small amount of oil. However, cooking greasy foods may produce white smoke, which is normal. The manual recommends using minimal oil for best results.

How do I clean the air fryer?

Unplug the appliance and let it cool for at least 10 minutes. Clean the frying pot and rack with hot water, dishwashing liquid, and a non-abrasive sponge. Wipe the exterior with a soft damp cloth. Do not immerse the body or power cord in water.

Why are my French fries not crispy?

Ensure the fries are dry before cooking and not cut too thick. You can also preheat the pot before frying. Adjust the cooking time and temperature as needed according to the manual's menu recommendations.

Why is white smoke coming out of the air fryer?

White smoke is normal when cooking greasy foods as oil oozes out and reaches high temperature. It can also occur if residual oil is left from previous use. Ensure the pot is cleaned before and after each use.

How do I manually set the temperature and time?

After selecting a menu function, press the "%" button. Then press the "3/6" button to adjust temperature (flickering °C icon) using "-" and "+" buttons. To adjust time, press the "/" button (flickering MIN icon) and adjust with "-" and "+". Temperature changes by 5°C per press, time by 1 minute.

What is the pause function?

During cooking, you can pull out the frying pot to pause the operation. The appliance enters pause state, and only the power button remains operable. When you reinsert the pot, cooking resumes automatically. If no operation for over 10 minutes, it returns to power-up state.

Can I cook different foods together?

You can cook different foods together, but ensure they do not exceed the maximum fill level (4/5 of the pot) and allow space for air circulation. Some foods may require different cooking times, so it's best to add items at appropriate intervals.

How do I defrost food in the air fryer?

Select the DEFROST preset menu. The default temperature is 80°C and time is 10 minutes. You can adjust temperature between 70-90°C and time from 1-60 minutes as needed. Ensure the food is placed on the rack and the pot is properly inserted.

USER MANUAL PHAF 2000 Philco

Famous for Quality the World Over

Black PHILCO air fryer device with glass interior and side door (no visible text or symbols on device body)

PHAF 2000

User's Manual

Návod k obsluze

Návod na obsluhu

Instrukcja obsługi

Használati útmutató

Naudotojo vadovas

Famous for Quality the World Over

AIR FRYER

PHAF 2000

User's Manual

Dear customer,

thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

1. IMPORTANT SAFEGUARDS TIPS....3
2. PRODUCT STRUCTURE DIAGRAM 8
   Product Components 8
   Intelligent control panel 8
3. PRODUCT INSTRUCTIONS....9
4. BEFORE FIRST USE....10
5. PRODUCT OPERATING INSTRUCTIONS....10
6. MENU FUNCTION SELECTION....11
7. SETTING OF COOKING TIME AND TEMPERATURE....11
8. PAUSE FUNCTION ...... 12
9. FINISH COOKING 12
10. CLEANING AND MAINTENANCE 13
    11.STORAGE....13
11. ERROR & TROUBLE SHOOTING....14
12. APPENDIX....15

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

1. IMPORTANT SAFEGUARDS TIPS

Danger

• Do not immerse the power cord, plug or housing into water or under the tap during cleaning, to avoid any damage or danger.
• Avoid any liquid enter into the appliance to prevent from electric shock or short-circuit.
• Do not cover the air inlets and air outlets when the appliance is working.
• Some parts of the appliance have high temperature during operation, Please do not use hand touching directly.

Warnings

• Make sure that your output voltage corresponds to the voltage stated on the rating label of the appliance.

• Before using, please check the power cord of appliance and the accessories, do not use with any damage.

• Do not let cord hang over the sharp edge of counter.

• Do not plug in the appliance or operate the control panel with wet hands.
• Do not place or use the appliance on or near combustible materials, such as tablecloth, curtain or wallpaper, in order to avoid something burning.
• External power cord connection is not allowed.
• High temperature in the appliance's inner chamber during operation, please do not put plastic dishes, bowls or protection film into it.
• The appliance should be placed on a horizontal and stable surface when using. Do not place on plastics, board or any other hot-short, easy-wear surface.
• Do not place the appliance against wall or other appliances, please remain 10cm of space for all around.
• Do not place anything on the top of appliance.

• Do not use the appliance beyond the specification of this manual.

• Do not use this product in the unattended.

• During the appliance frying, hot steam will exhaust through the hind side air outlet. Keep your hands and face at a safe distance from the steam and the air outlet openings. Also be careful of hot steam and air when you remove the frying pot from the appliance.
• Once finish cooking and taking out the frying pot, it is with very high temperature. Do not touch it.
• If the pre-set time is too long, the food will be burnt and smokes will release from air outlet. Plug off immediately and clean the food and oil of the frying pot, frying rack.
• After using the appliance, please press the power button, then pull the plug from the socket, avoid direct strong pulling power cord.
• Keep the appliance and its cords out of children.

Cautions

• Unplug the appliance from outlet when it is not in use or before cleaning. Allow it to cool down first. And then clean it.
• Do not use any accessories provided by non-native.
• This appliance is intended to be used in household. Do not use outdoors.
• Clean and wipe dry the frying pot, frying rack before putting the food inside.
• The appliance is with built-in safety switch. Only when the frying pot put in the correct place, the appliance can be switched to standby mode.
  • Always unplug the appliance while it is not used.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Appliances are not intended to be operated by means of an external timer or separate remote-control system.
• The frying pot or the outer surface may get hot when the appliance is operating.

2. PRODUCT STRUCTURE DIAGRAM

PRODUCT COMPONENTS

1 Control panel 6 Back handle of frying pot

2 Body 7 Frying pot

3 Power cord 8 Front handle of frying pot

4 Base 9 Anti-slip mat

5 Frying rack

INTELLIGENT CONTROL PANEL

3. PRODUCT INSTRUCTIONS

1. Place the appliance on a horizontal surface. keep at least 10cm empty space from the back and sides, and pay attention to keep machine away from curtains /wall covering and other combustible materials.

Line drawing of a modern portable coffee maker with a flat top and side panel, shown in 3D perspective (no text or symbols)

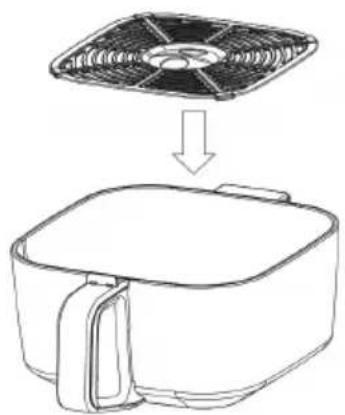

1. After pulling out the frying pot, put the frying rack inside and it should be placed in the pot flat.

Diagram showing a square fan above a rectangular oven with a handle, illustrating the process of cooling or drying (no text or symbols present)

Line drawing of a square air fryer with internal fan structure (no text or symbols)

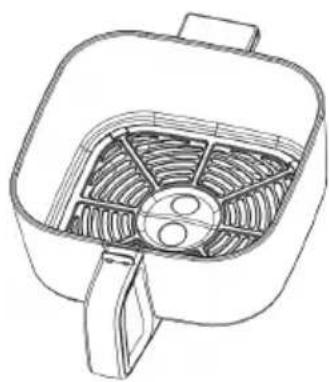

1. Put the food on the frying rack, and then push the frying pot into the machine.

NOTES:

• Different cooking options, different accessories.
• After cooking, remove the frying rack from the pot with gloves or other anti scald tools.
- Do not fill the pot with food fully, keep a minimum of 30 mm distance from the top edge of the pot. It is necessary to keep the internal air flowing smoothly, and the food may become bigger after heating, depending on the actual situation.

- Only when the frying pot put in the correct machine can work properly, otherwise the display will show "OPEN".

• There is a safety switch shows in Pic.

As shown in the picture on the right side.

- Only when the pot is put into the appliance, the appliance can work. When the pot is not put into the machine in the shutdown mode, the digital screen will display "---".

4. BEFORE FIRST USE

1. Remove all packaging materials, stickers and labels.
2. Clean the frying pot and all other accessories with hot water, dishwashing liquid, and a non-abrasive sponge.
3. Wipe the inside and outside of the appliance with a cloth.
4. When you use it for the first time, you may smell a slight smell and smoke. Don't be nervous, it is normal and will disappear slowly after use.

5. PRODUCT OPERATING INSTRUCTIONS

1. When the power is turned on, the buzzer rings, the digital screen and all indicator lights flicker and then turn off, only "◀" button indicator light lights up.
2. Press " ⏻" key, all indicator lights and digital screen light up, enter into standby state.
3. In standby state, “,”—, “+” keys are locked, other keys can be operated.
4. If no any operation within 60s in the standby state, the machine will shut down automatically.
5. In standby state, select the function, then press "⏻" key to begin working.
6. During the working process or function selection, if you want to adjust the time and temperature, press “/” button, the icon correspondings to the digital screen will flicker, when it is flickering, press “—”, “+” button to adjust the temperature and time.
7. During the working process, press "⏻" button, the appliance will stop working, but the fan will continue to rotate for 1min, play the role of heat dissipation.

6. MENU FUNCTION SELECTION

1. We provide a combination of cooking time and cooking temperature to meet your different cooking needs.
2. Here are our menu combinations. You can also change the cooking time and temperature according to actual needs.

Menu Default temperature	Default time Temperature selection	Time Selection
MANUAL 120 °C 20 mins 40-200 °C	1-60 mins
SHRIMP 160 °C 10 mins 150-170 °C	1-60 mins
STEAK 180 °C 12 mins 170-190 °C	1-60 mins
FRIES	185 °C 25 mins 170-200 °C 1-60 mins
WINGS	180 °C 15 mins 170-190 °C 1-60 mins
FISH	160 °C 20 mins 150-170 °C 1-60 mins
CHICKEN 180 °C 35 mins 170-190 °C	1-60 mins
DEFROST 80 °C 10 mins	70-90 °C	1-60 mins

NOTE:

- The larger the serving of roasted chicken or food, the more time and temperature it takes, according to the actual situation.

7. SETTING OF COOKING TIME AND TEMPERATURE

1. After selecting the function, if you need to reset the cooking temperature and time, press "%" button.
2. When adjust the cooking temperature, press "3/6" button, "°C" icon on the digital screen will flicker, press "-" + " button to adjust the cooking temperature. Each press changes 5 °C, the adjustable range of temperature is 40 °C - 200 °C.
3. Adjust the cooking time, press ""/" button,"MIN" icon on the digital screen will flicker, press "−","+" button to adjust the cooking time. Each press changes 1 min, the adjustable range of time is 1 min-60 mins.

8. PAUSE FUNCTION

1. During working, pull out the frying pot directly, it will enter into the pause state. In this case, only "☐" can be operated, the other keys will be locked. Put the frying pot into the appliance, the appliance will continue the previous cooking work.

NOTES:

• If do not operate for more than 10 minutes in the pause state, the appliance will return to the power-up state automatically.
• During cooking or finish cooking, the frying pot, appliance, accessories and food are too hot. Don't touch with hand directly.

TIP:

• During cooking, turn the food regularly or irregularly to help cook more evenly and cook better.

9. FINISH COOKING

1. When the appliance is done, a "beep" "beep" "beep" sounds and the appliance stops working, but its fan continues to operate for 1 minute until the internal center temperature drops.
2. Pull out the frying pot and put it on a stable horizontal surface. The frying pot is very hot, put the pad under the frying pot.
3. Pour food on a plate or tableware.
4. After cooking, press the power button to turn off the power supply and pull the power cord off the wall.

NOTES:

• When taking out the frying pot or accessories, don't touch them to avoid scalding.
  • It is better to take out the frying pot after cooling completely, which is also good for the appliance.
• Don't turn the frying pot upside down, as there will be extra grease dripping out.

10. CLEANING AND MAINTENANCE

Clean the appliance and accessories after every use, keep the appliance clean.

NOTES:

• Unplug from the outlet and let the appliance cool down for at least 10mins before cleaning.
• Wipe the appliance surface with soft moist cloth.
- Don't immerse the power cord, plug and the appliance's body into water or other liquid, it may cause damage of appliance, fire, electric shock or injury to persons.

11. STORAGE

Please pay attention to the following.

• Unplug the appliance and allow it to cool down completely before storing.
• Make sure all parts are clean and dry, assemble all parts and then place it in a dry, clean, no corrosive environment.

1. ERROR & TROUBLE SHOOTING

Problem Possible cause Solution
Appliance does not work.	The appliance is not plugged in.	Make sure plug into the socket.
	The pot is out of its place.	Please put the pot into the housing closely.
Food is not completely cooked.	The food are too large/thick.	Place smaller and thin batches of food into the pot.
	The cooking time is too short. Adjust the cooking time.
	The cooking temperature is too low.	Adjust the cooking temperature.
	Too much food in the pot.	The food cannot be more than 4/5 of the pot, and do not put overstuffed, should leave a gap between the ingredients.
	The food is not defrosted completely.	Defrost the food completely.
Food is cooked unevenly.	Some food need to be turn over constantly during cooking.	During cooking, pulling out the pot and turning over the food for every 5-8mins.
White smoke is coming out of the pot.	Cooking greasy food.	Cooking greasy foods will cause a lot of oil oozing. This oil will produce white smoke with high temperature.It's normal.
	Residual oil in the pot from last time.	Make sure the pot is cleaned before and after each use.
French fries are not cooked crispy.	It depends on the water and oil content of ingredients.	Make sure the chips are dry before frying and don't cut the chips too thick. You can preheat the pot before frying.
Display shows Error Code "E01"	There is an open circuit in NTC sensor.	It may be loose or disconnected, please contact professional after-sales service.
Display shows Error Code "E02"	There is an short circuit in NTC sensor.	Maybe the NTC sensor is damaged, please contact professional after-sales service.
Display shows Error Code "E03"	Furnace temperature is too high.	Disconnect the power, pull out the pot and wait for it to cool down and turn it on again.

13. Appendix

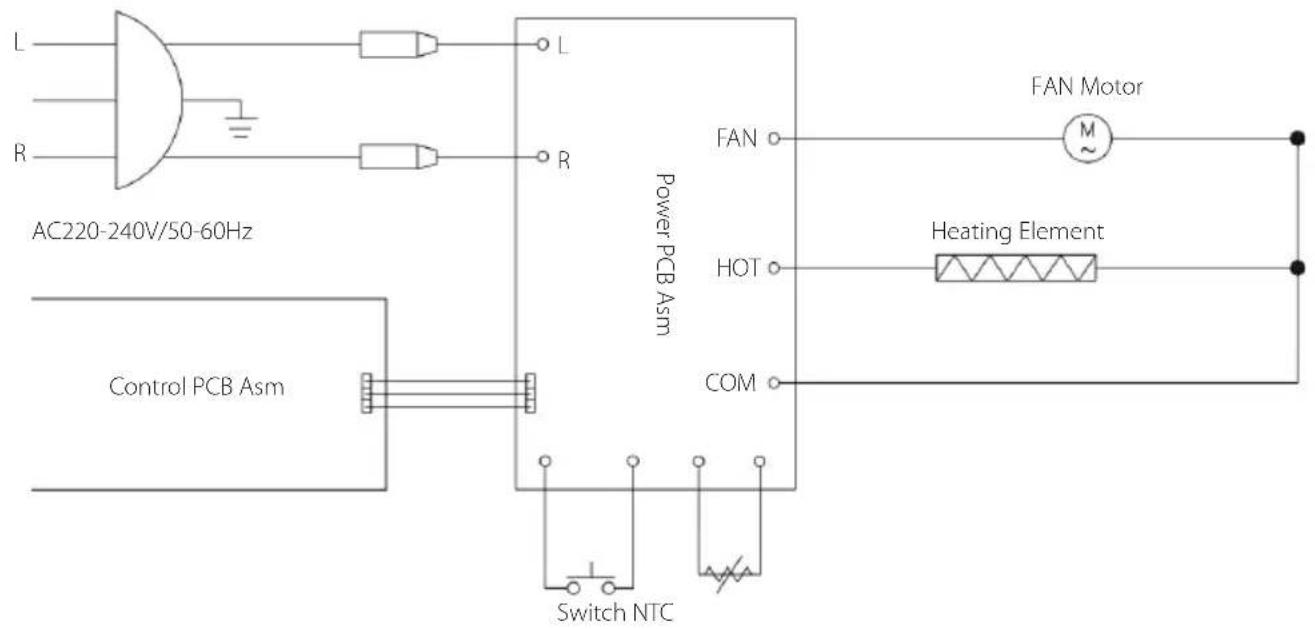

Circuit principle diagram

This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and health way.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product.

The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

PHILCO®

Famous for Quality the World Over

HORKOVZDUŠNÁ FRITÉZA

PHAF 2000

Návod k obsluze

Vážený zákazníku,

Line drawing of a modern portable coffee maker with a flat top and side panel, shown in 3D perspective (no text or symbols)

Diagram showing a square fan above a rectangular oven with a handle, illustrating the process of cooling or drying (no text or symbols present)

Line drawing of a square air fryer with internal fan structure (no text or symbols)

7. NASTAVENÍ ČASU A TEPLOTY TEPELNÉ PŘÍPRAVY

Famous for Quality the World Over

TEPLOVZDUŠNÁ FRITÉZA

PHAF 2000

Návod na obsluhu

Vážený zákazník,

Line drawing of a modern portable coffee maker with a flat top and side panel, shown in 3D perspective (no text or symbols)

Diagram showing a square fan above a rectangular oven with a handle, illustrating the process of cooling or drying (no text or symbols present)

Line drawing of a square air fryer with internal fan structure (no text or symbols)

1. Položte pokrm na rošt a potom zatlačte nádobu na fritovanie do spotrebiča.

POZNÁMKY:

Famous for Quality the World Over

FRYTOWNICA NA GORĄCE POWIETRZE

PHAF 2000

Instrukcja obsługi

Szanowny Kliencie,

Line drawing of a portable coffee maker with a mesh top and side arm, shown in 3D perspective (no text or symbols)

Diagram showing a square fan above a rectangular oven with a handle, illustrating the process of cooling or drying (no text or symbols present)

Line drawing of a square air fryer with internal fan structure (no text or symbols)

Line drawing of a smart food oven with a mesh lid and internal grating (no text or symbols)

4. PRZED PIERWSZYM UŻYCIEM

Famous for Quality the World Over

MELEGLEVEGŐS FRITŐZ

PHAF 2000

Használati útmutató

Tisztelt vásárlónk,

Line drawing of a modern portable coffee maker with a flat top and side panel, shown in 3D perspective (no text or symbols)

Diagram showing a square fan above a rectangular oven with a handle, illustrating the process of cooling or drying (no text or symbols present)

Line drawing of a square air fryer with internal fan structure (no text or symbols)

Famous for Quality the World Over

KARŠTO ORO GRUZDINTUVĖ

PHAF 2000

Naudotojo vadovas

Gerb. kliente,

Line drawing of a modern portable coffee maker with a flat top and side panel, shown in 3D perspective (no text or symbols)

Diagram showing a square fan above a rectangular oven with a handle, illustrating the process of cooling or drying (no text or symbols present)

Line drawing of a square air fryer with internal fan structure (no text or symbols)

Famous for Quality the World Over

Line drawing of a modern portable coffee maker with a flat top and side panel, shown in 3D perspective (no text or symbols)

Line drawing of a square fan with a down arrow indicating process (no text or symbols)

Line drawing of a square air fryer with internal fan blades (no text or symbols)

is pending or registered trademark of Electrolux Home Products, Inc. and used under a license from Electrolux Home Products, Inc
