Product Type	Air quality sensor (PM2.5 monitor)
Brand	IKEA
Model	VINDRIKTNING (E2014)
Power Input	5.0V DC, 2.0A, USB-C
Power Consumption	0.5 W
Particle Detection Range	0–1000 µg/m³ (PM2.5)
Max USB Cable Length	3.0 m (9'8")
Operating Temperature	0°C to 40°C
Operating Humidity	0 to 95% RH (recommended 40–60% RH)
LED Indicator Colors	Green (0-35), Amber (36-85), Red (86+)
Start-up Sequence	Pulsing LEDs for about 10 seconds
Indoor Use Only	Yes
Care Instructions	Wipe with soft cloth moistened with mild detergent; dry with soft cloth. Do not use abrasive cleaners.
Safety Warnings	Do not block air intakes; avoid direct sunlight and heat sources; unplug before cleaning; keep away from water and dust.
Repairability	Do not attempt to repair; no user-serviceable parts.
Manufacturer	IKEA of Sweden AB, Box 702, SE-343 81 Älmhult, SWEDEN

Frequently Asked Questions - VINDRIKTNING 805.159.10 IKEA

How do I connect the VINDRIKTNING air quality sensor?

Connect a USB-C power adapter (5V, 2A, not included) to the USB-C port on the device. The sensor will start a start-up sequence with pulsing LEDs for about 10 seconds. Once the LEDs stop pulsing, the device is ready to measure air quality.

What do the LED colors mean?

The LED indicates PM2.5 levels: Green (0–35 µg/m³, Good), Amber (36–85 µg/m³, OK), and Red (86+ µg/m³, Not good). During start-up, the LED pulses.

Is VINDRIKTNING an air purifier?

No, it is an air quality sensor that measures PM2.5 particulate matter. It does not filter or purify the air; it monitors pollution levels.

Can I use any USB charger?

Yes, any USB-C charger that delivers 5V DC, 2.0A (or higher, but the device draws only 0.5W) should work. Ensure the charger is certified and safe.

How do I clean the VINDRIKTNING?

Unplug the device first. Wipe the exterior with a soft cloth slightly moistened with mild detergent, then dry with a clean soft cloth. Never use abrasive cleaners or chemical solvents.

Where should I place the sensor?

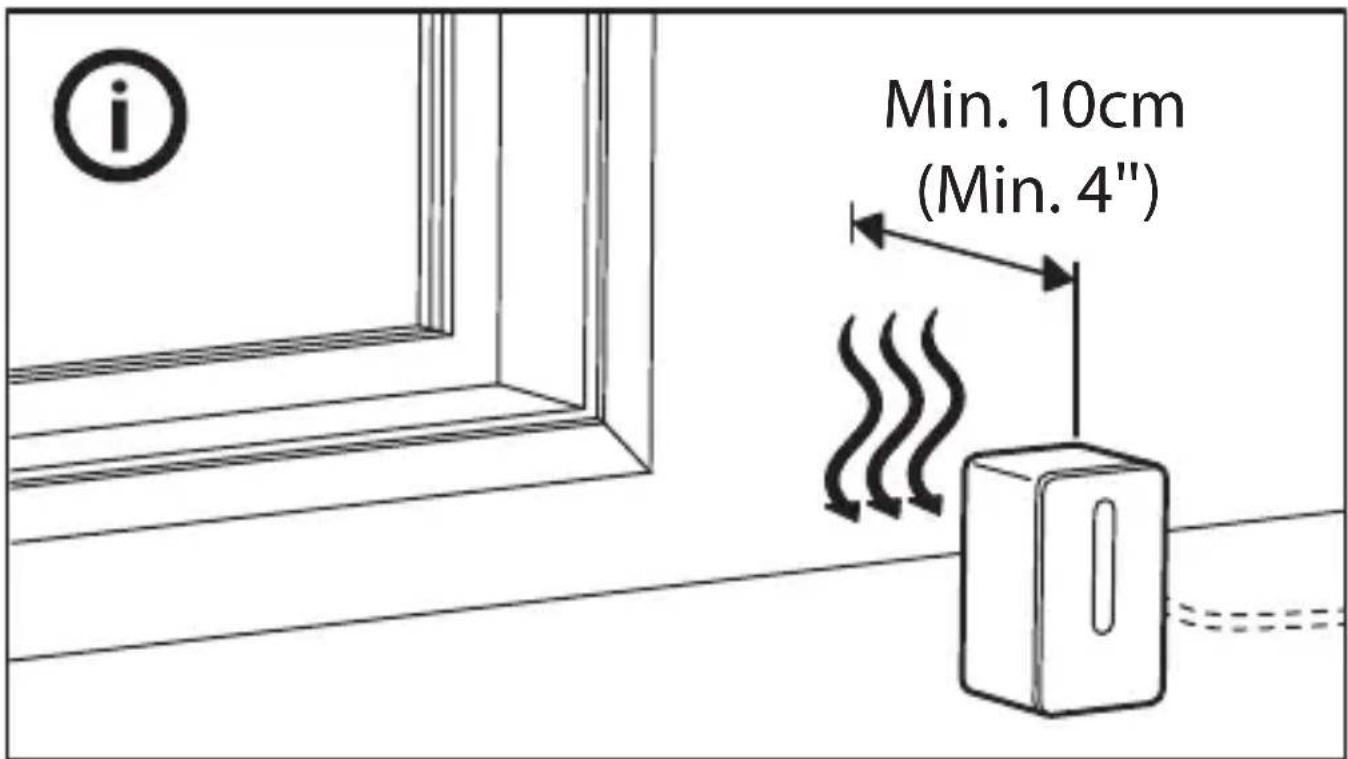

Place it indoors on a stable surface. Keep at least 10 cm (4 inches) away from walls or obstructions. Avoid direct sunlight, heat sources, and areas with high humidity or dust.

What is the operating temperature and humidity range?

The device works in 0°C to 40°C and 0–95% RH. For best accuracy, maintain 40–60% RH.

Why is the LED pulsing after startup?

If the LED pulses continuously after the initial 10-second sequence, it may indicate a start-up error or sensor issue. Try unplugging and reconnecting. If persistent, contact IKEA support.

Can I repair the device myself?

No, the sensor has no user-serviceable parts. Opening or removing covers may expose you to dangerous voltages. Contact IKEA customer service for assistance.

How to dispose of the VINDRIKTNING?

Follow local regulations for electronic waste. The crossed-out wheeled bin symbol means it should be recycled separately from household waste. Return it to an IKEA store or a designated recycling center.

USER MANUAL VINDRIKTNING 805.159.10 IKEA

Line drawing of a 3D rectangular box with a vertical oval cutout on the front face (no text or symbols)

Design and Quality IKEA of Sweden

1

English 6 Slovensky 33

Air quality sensor features

• USB-C power adapter (5.0V, 2.0A) not included.
  • Measure PM 2.5 particles
• LED status indicator

Instructions for use

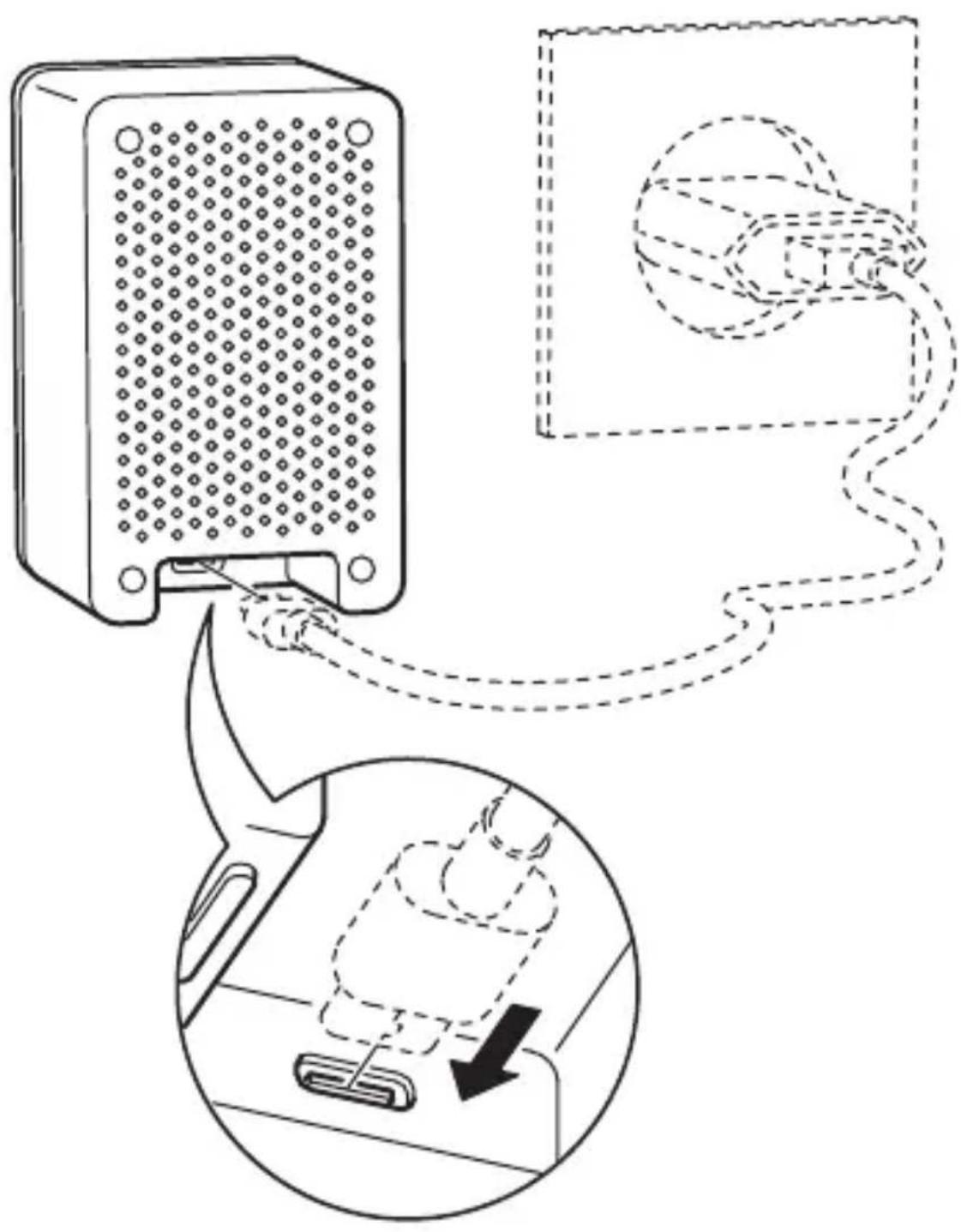

• Connect the power adaptor to the USB-C port.
• The Air quality sensor initiate a start-up sequence for about 10 seconds.
• When the LEDs stop pulsing, the device is ready.

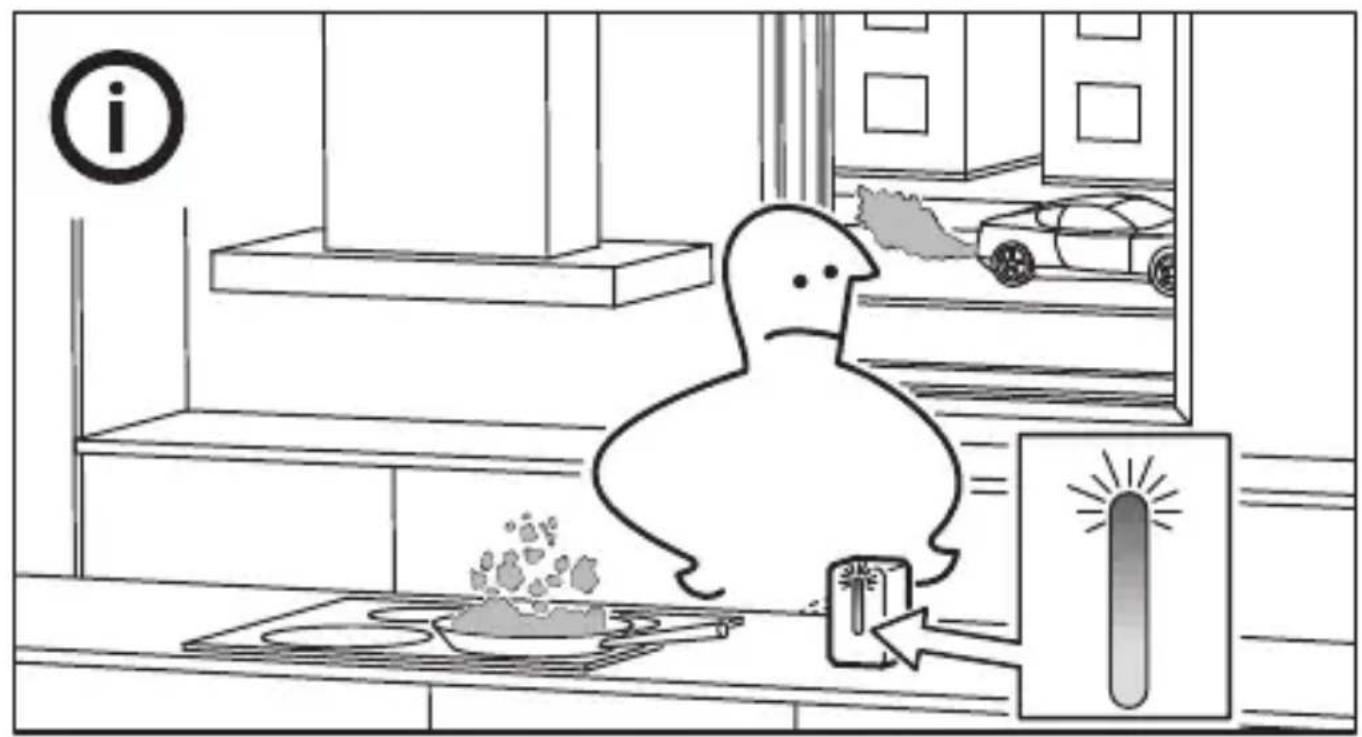

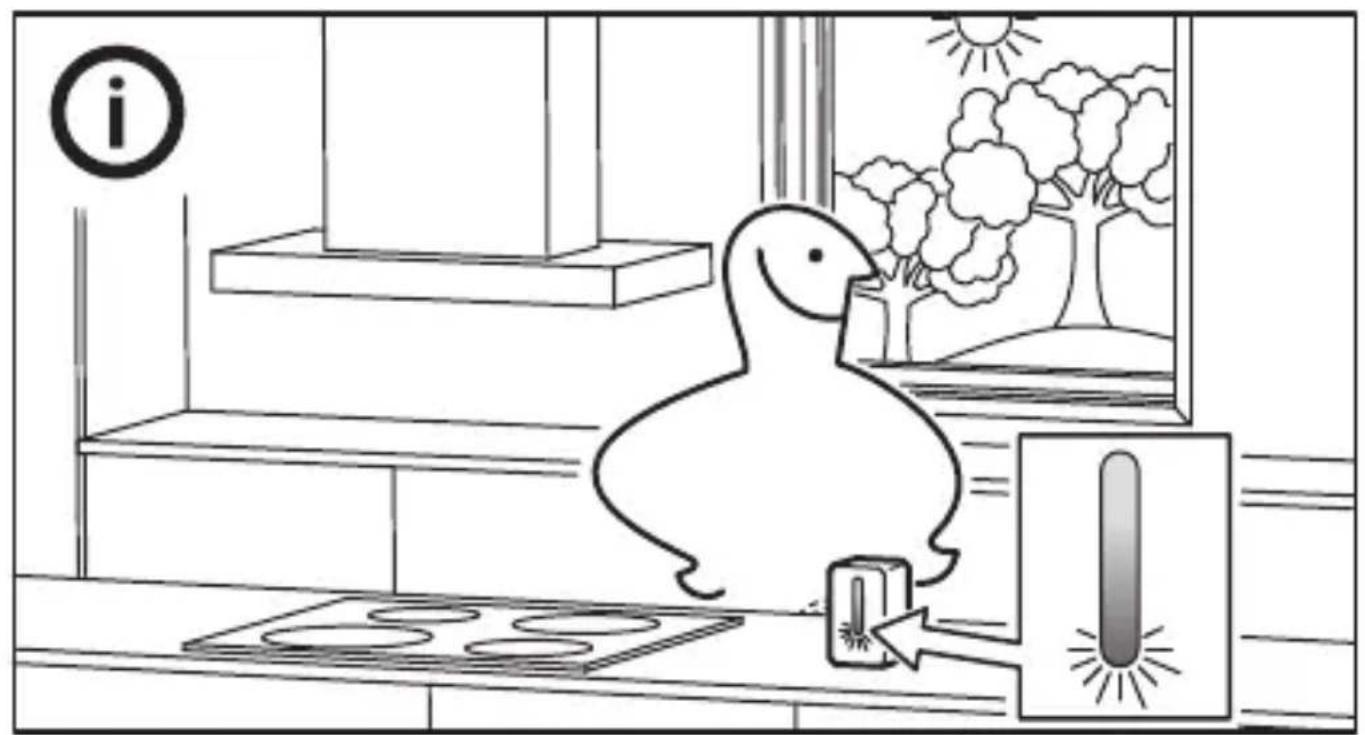

LED indicators for air quality (PM 2.5):

Green: 0-35 /Good + Low

Amber: 36-85/OK + Medium

Red: 86-/Not good + High

Pulsing: Start-up mode

Good to know

• Operation temperature: 0°C to 40°C.
- Operating humidity: 0 to 95% RH (Recommended working humidity: 40 - 60% RH)
- Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

Important!

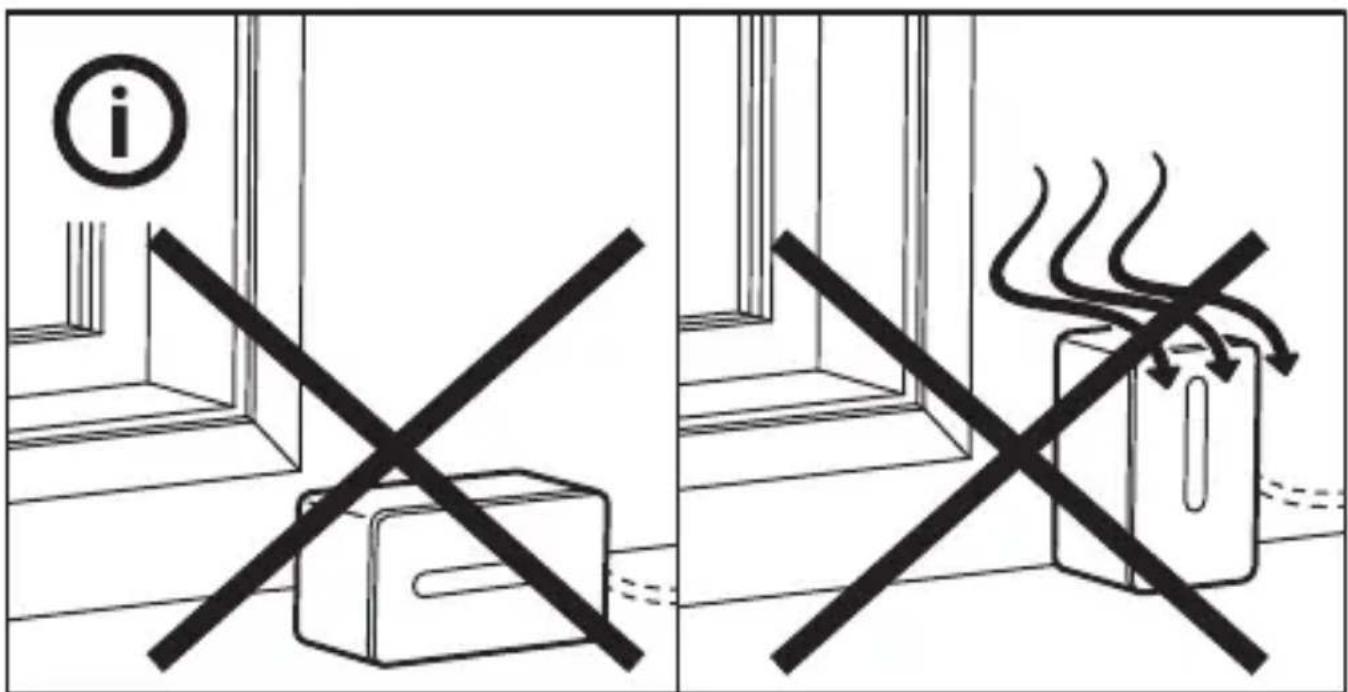

• Do not block the air intakes.
• Do not leave the device in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the unit to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• Be sure to not exceed the maximum USB cable length recommended for the device.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent. Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2014 VINDRIKTNING

Input: 5.0V DC, 2.0A, 0.5 W, USB-C

Particle detection range: 0\~1000 g/m ^3

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Producent: IKEA of Sweden AB

Tootja: IKEA of Sweden AB

Aadress: Box 702, SE-343 81 Älmhult, ROOTSI
