VINDRIKTNING 405.745.72 - Air purifier IKEA - Free user manual and instructions

Product type	Air quality sensor (PM2.5)
Power supply	5.0 V DC, 2.0 A, 0.5 W via USB-C (adapter not included)
Detection range	0 to 1000 µg/m³
LED indicators	Green (0-35, good), Orange (36-85, moderate), Red (86+, poor)
Operating temperature	0°C to 40°C
Operating humidity	0% to 95% RH (recommended 40-60%)
Max USB cable length	3.0 m
Use	Indoor only
Maintenance	Wipe with a soft cloth dampened with mild detergent, then dry
Safety	Do not open, do not expose to direct heat, do not block air vents
Compliance	FCC Part 15, ISED RSS

Frequently Asked Questions - VINDRIKTNING 405.745.72 IKEA

How to start the VINDRIKTNING sensor?

Connect the USB-C adapter (5V, 2A, not included) to the USB-C port. The startup sequence takes about 10 seconds. When the LEDs stop blinking, the device is ready.

What do the LED colors mean?

Green: good air quality (PM2.5 0-35). Orange: moderate quality (36-85). Red: poor quality (86+). Pulses indicate startup mode.

What power supply should be used?

The device requires a USB-C power supply of 5.0 V, 2.0 A, 0.5 W. The adapter is not included. Use an adapter that meets safety standards.

How to clean the sensor?

Unplug the device. Wipe it with a soft cloth dampened with a little mild detergent, then dry it with a dry cloth. Never use abrasive products or chemical solvents.

Where to place the VINDRIKTNING sensor?

Place it indoors, away from direct sunlight, heat sources, and humid or very dirty environments. Do not block the air vents.

What is the operating temperature and humidity?

Temperature: 0°C to 40°C. Humidity: 0% to 95% RH (recommended: 40% to 60% RH).

Can the sensor be repaired by yourself?

No, do not attempt to repair this product yourself. Opening or removing covers may expose you to dangerous voltages. Contact IKEA after-sales service.

Does the sensor consume a lot of power?

No, the consumption is very low: 0.5 W during operation.

What USB cable length is recommended?

The maximum recommended length is 3.0 m (9'8"). Do not exceed this length to avoid performance loss.

How to dispose of the sensor at the end of its life?

Do not dispose of the device with household waste. Recycle it according to local regulations. The crossed-out wheelie bin symbol indicates that it must be sorted.

USER MANUAL VINDRIKTNING 405.745.72 IKEA

Line drawing of a 3D rectangular box with a vertical oval cutout on the front face (no text or symbols)

Design and Quality IKEA of Sweden

1

English 6

Français 13

Español 21

Air quality sensor features

• USB-C power adapter (5.0V, 2.0A) not included.
  • Measure PM 2.5 particles
  • LED status indicator

Instructions for use

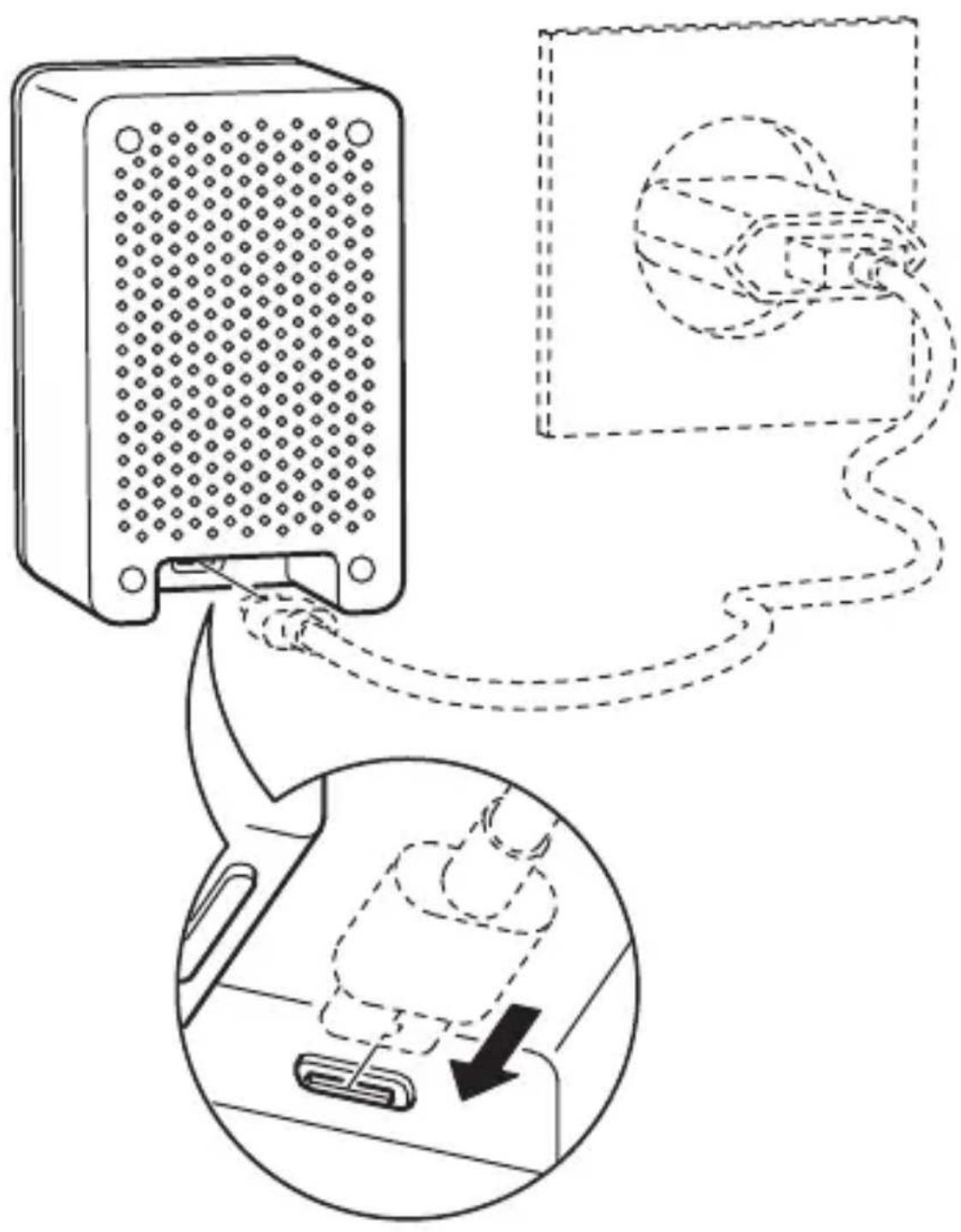

• Connect the power adaptor to the USB-C port.
• The Air quality sensor initiate a start-up sequence for about 10 seconds.
• When the LEDs stop pulsing, the device is ready.

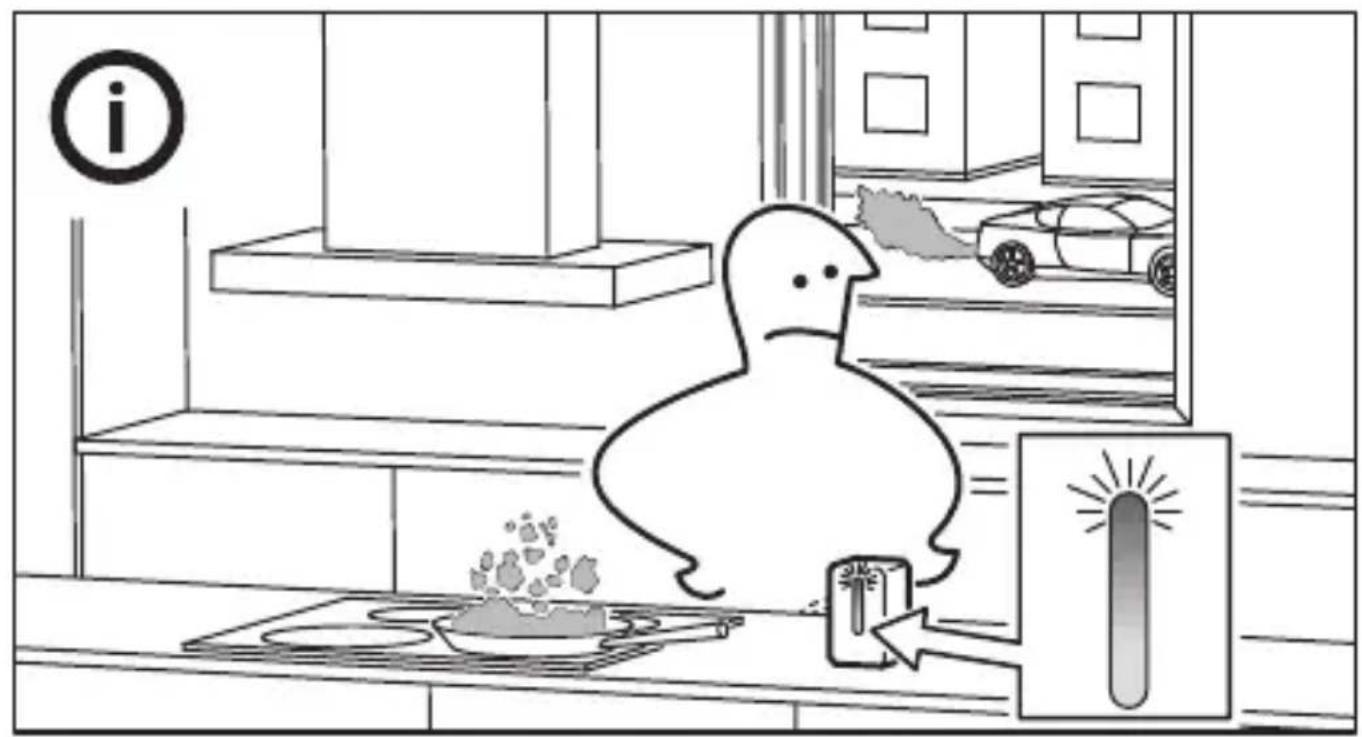

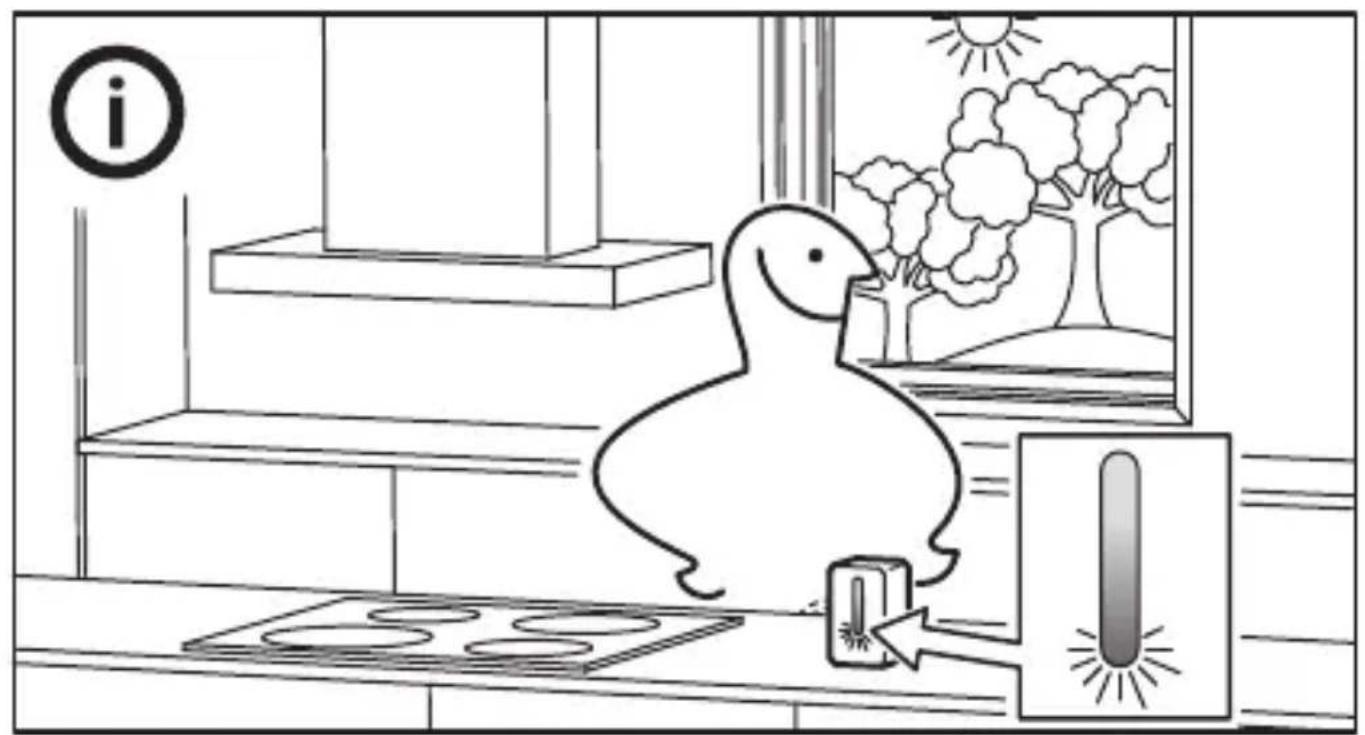

LED indicators for air quality (PM 2.5):

Green: 0-35 /Good + Low

Amber: 36-85/OK + Medium

Red: 86- /Not good + High

Pulsing: Start-up mode

Good to know

• Operation temperature: 0^ C to 40^ C ( 32^ F to 104^ F).

• Operating humidity: 0 to 95 % RH (Recommended working humidity: 40 - 60 % RH)
• Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

IMPORTANT!

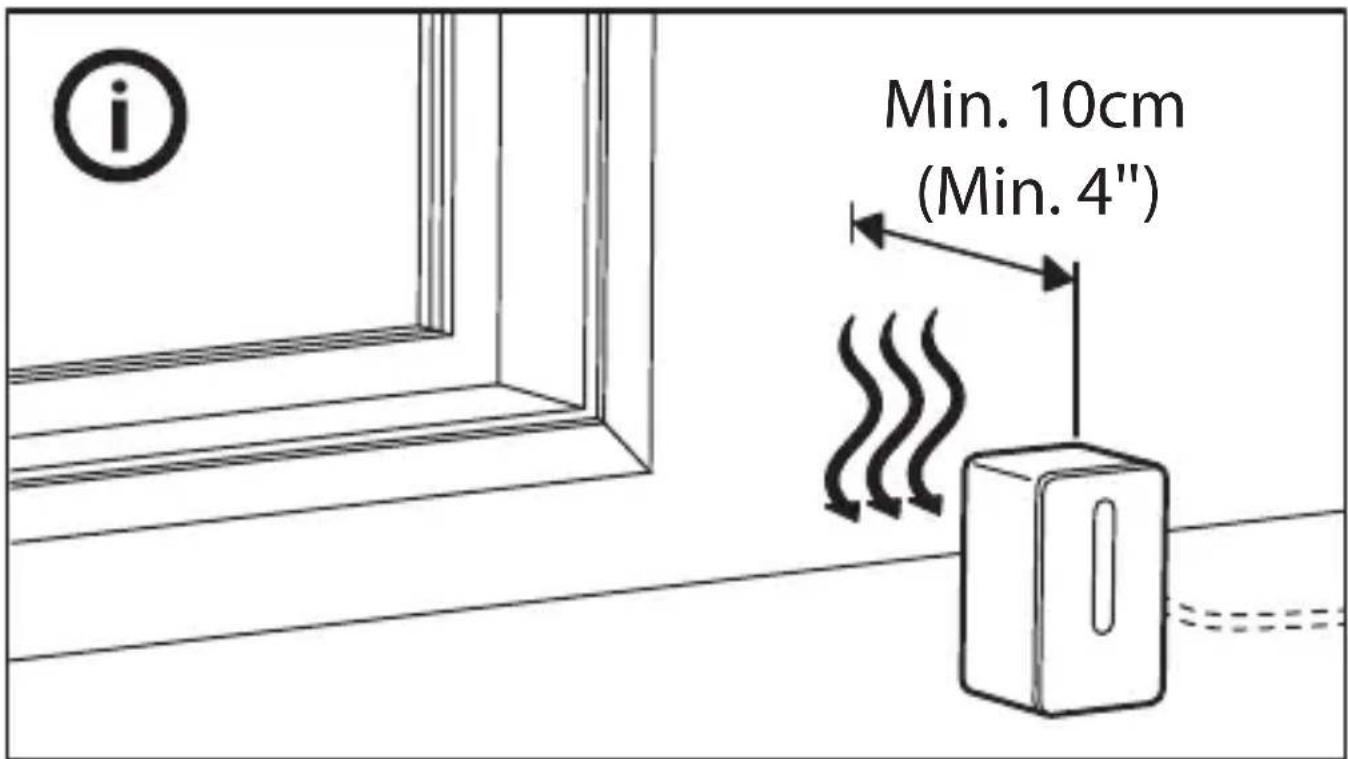

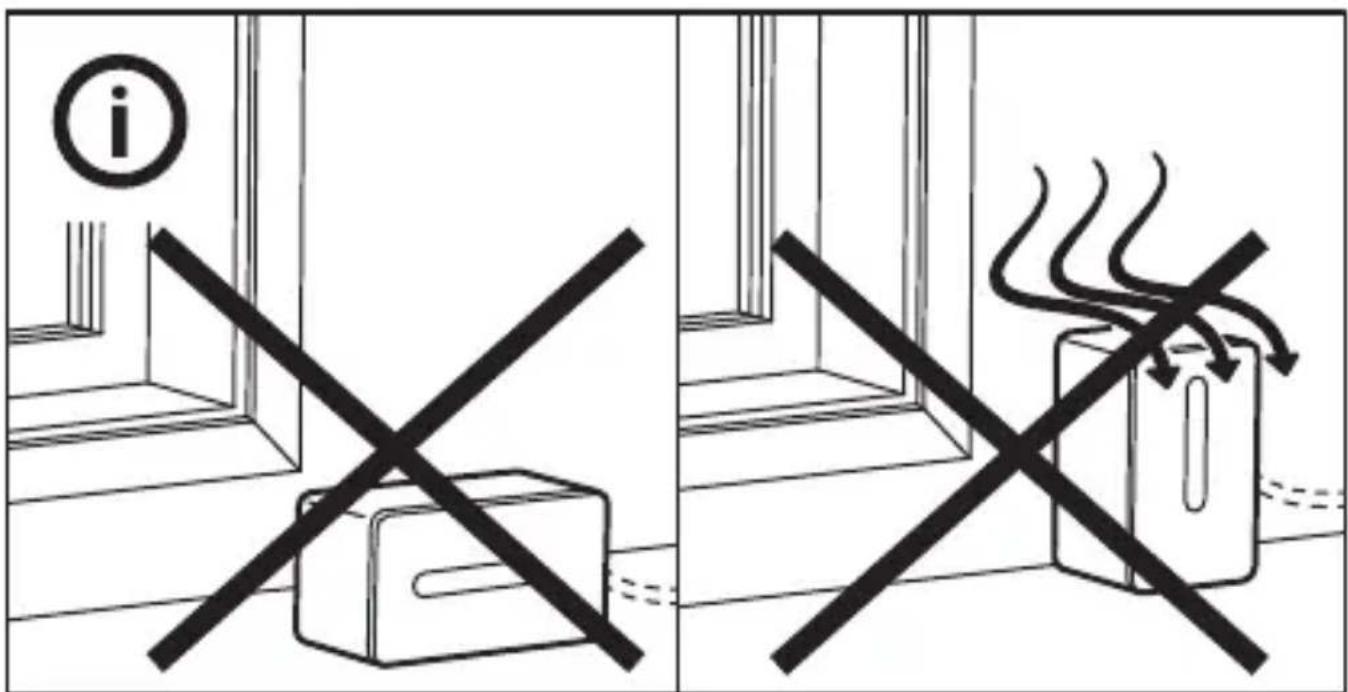

• Do not block the air intakes.
• Do not leave the device in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the unit to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• Be sure to not exceed the maximum USB cable length recommended for the device.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent.

Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2014 VINDRIKTNING

Input: 5.0V DC, 2.0A, 0.5 W, USB-C

Particle detection range: 0\~1000 g/m ^3

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
