Product Type	Smart Wi-Fi Switch
Model	TSL-SWI-WIFI2 (also compatible with TSL-SWI-WIFI1)
Dimensions	86 x 86 x 37.5 mm
Weight	Approx. 100 g
Input Power	200–240 V AC, 50/60 Hz
Standby Power	≤ 0.5 W
Resistive Load	Incandescent: 3–300 W, LED: 5–300 W
Communication	Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
Working Temperature	-10°C to 45°C
Working Humidity	< 90%
Life Cycle	50,000 times
Indicator LED	Green/White for status (on/off/configuration)
App Compatibility	Tesla Smart app (iOS and Android)
Voice Control	Compatible with Amazon Alexa and Google Assistant (via app)
Installation Type	Wall-mounted, requires neutral wire
Material	Plastic (white finish)
Package Contents	Switch, screws, quick start guide
Safety	Risk of electric shock; installation by qualified electrician recommended
Reset Function	Press and hold button for 5 seconds until LED flashes
Smart Automation	Supports scheduling, scenes, and multi-device control

Frequently Asked Questions - TSL-SWI-WIFI2 TESLA

Why is my Tesla Smart Switch not powering on?

The smart switch requires a neutral wire to operate. If your switch box does not have a neutral wire, the switch will not work. Please check your wiring or consult a qualified electrician.

How do I connect the switch to the Tesla Smart app?

Ensure your smartphone is connected to a 2.4 GHz Wi-Fi network. Open the Tesla Smart app, tap '+' to add a device, select 'Switches' then 'Tesla Smart Switch', and follow the in-app instructions. The switch must be in pairing mode (LED flashing) – if not, press and hold the button for 5 seconds to reset.

Can I control the switch without Wi-Fi?

Yes, the physical button on the switch works locally even if the Wi-Fi network is offline. However, app control, voice commands, and smart automations will be unavailable until the network is restored.

What is the maximum Wi-Fi range for the switch?

The switch should be within 25 meters of the Wi-Fi router or gateway for reliable communication. Thick walls or metal objects can reduce the range; consider repositioning the router or adding a Wi-Fi extender.

How do I reset the switch to factory settings?

Press and hold the switch button for 5 seconds until the LED starts flashing. This resets the switch and puts it into quick configure (pairing) mode.

Can I use this switch with a 3-way or multi-way setup?

The manual indicates models for 1-gang, 2-gang, and 3-gang installations. For multi-way control, you need compatible add-on switches. The TSL-SWI-WIFI2 is a single-pole switch; consult the wiring diagram for your specific setup.

What types of lights are compatible?

The switch supports incandescent loads up to 300W and LED loads up to 300W per channel. It is not recommended for use with other load types like fluorescent or motor loads.

Does the switch require a neutral wire?

Yes, a neutral wire is required for the switch to operate. Check your electrical box; if no neutral is present, consider hiring an electrician to install one or choose a no-neutral switch.

How can I share control of the switch with family members?

After adding the switch to your Tesla Smart account, use the 'Share' feature in the app to invite other users. They will need to create their own account and accept the invitation.

Is the switch compatible with 5 GHz Wi-Fi?

No, the switch only supports 2.4 GHz Wi-Fi networks. Ensure your router broadcasts a 2.4 GHz band and that your smartphone is connected to that band during setup.

USER MANUAL TSL-SWI-WIFI2 TESLA

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

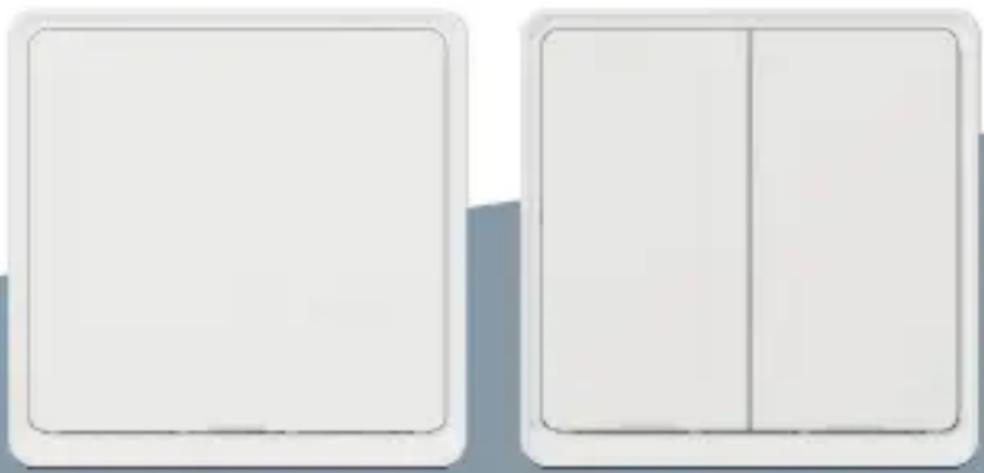

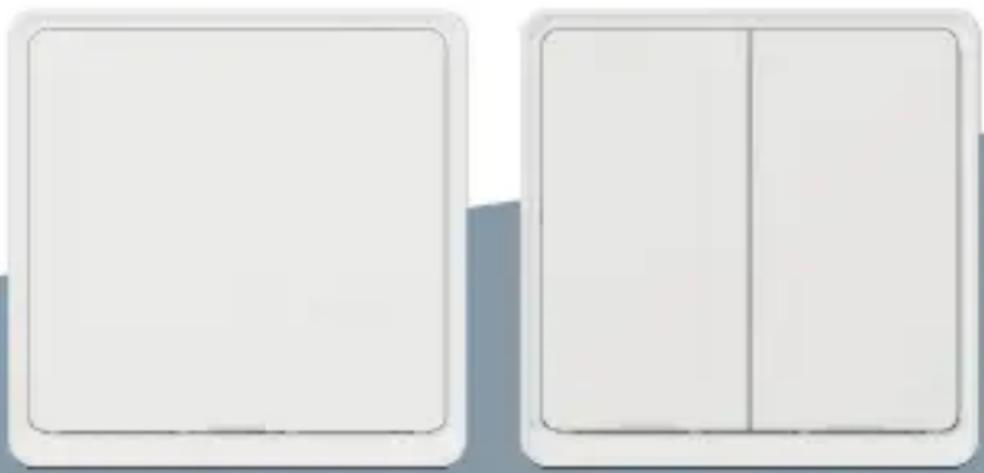

Two white rectangular panels with rounded corners, one side blank and one side split vertically (no text or symbols)

TESLA SMART SWITCH/DUAL

(With Neutral Required)

QUICK START GUIDE

- Voice/APP Control

- Smart Home Automation with Multi devices

- Silent switch with LED Indication

Product Indtoruction

Smart switch products are suitable for electrical equipment such as lightning, fans, curtains, etc., through the network, voice and APP remote control functions, with various sensors to easily achieve home automation.

Specification

Input Power: 200~240V AC 50/60Hz
Resistive load: INC 3•300W, LED 5•300W
Communication: WiFi 2.4G
Standby Power: ≤0.5W
Working Temperature: -10°C ~ 45°C
Working Humidity: <90%
Life Cycle: 50k times
Dimension: 86x86x37.5mm

Product outline

On/Off button

Three identical rectangular panels with vertical lines and small base blocks, connected by a horizontal line (no text or symbols)

Indicator LED

Indicator Light Status

Light Color Green Light Status Switch Status:
White OFF The switch	turn off
	ON The switch	turn on
	Flicker The switch is in quickconfigure mode
Green ON The switch	turn off
	OFF The switch	turn on

Contents Supplied

Blank white square tablet with rounded corners and a small screen at the bottom (no text or symbols)

Switch

Screws

Tools You'll Need

Screwdriver

Flat-head Screwdriver

Voltage tester

Line drawing of a pair of needle pliers (no text or symbols)

Pliers

Approximately 30 minutes of your time to install and setup the Switch

Installation

WARNING: RISK OF ELECTRIC SHOCK

This product installation requires handling 100-240 volt wiring. Follow each step carefully. If any concerns handling wiring, hire a qualified electrician. Ensure all work meets applicable local and national codes.

1 Turn Off The Breaker

Turn off the circuit break and use the electrical tester to test the power.

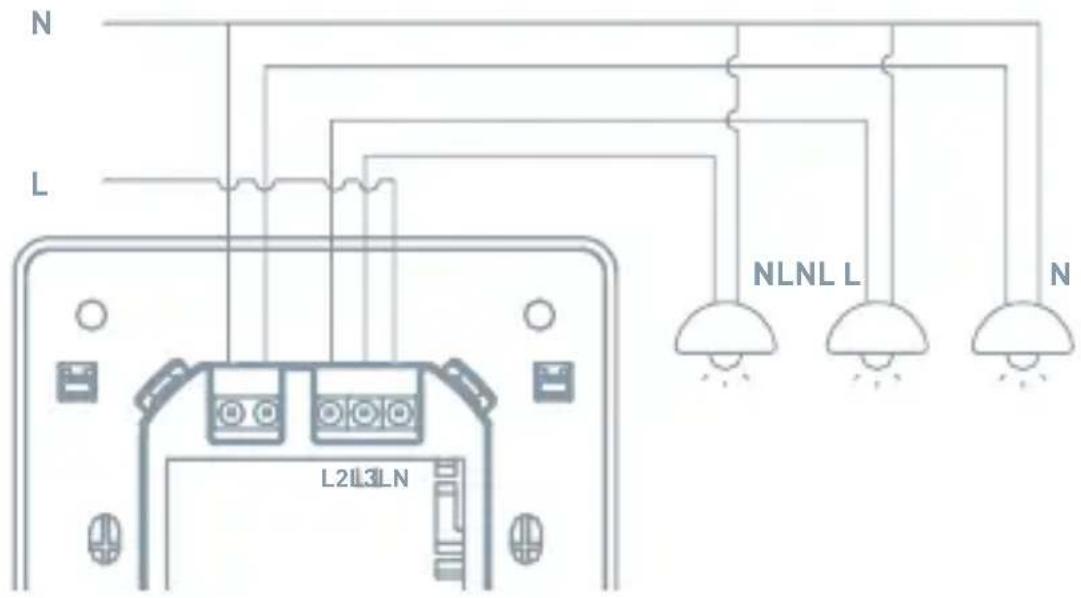

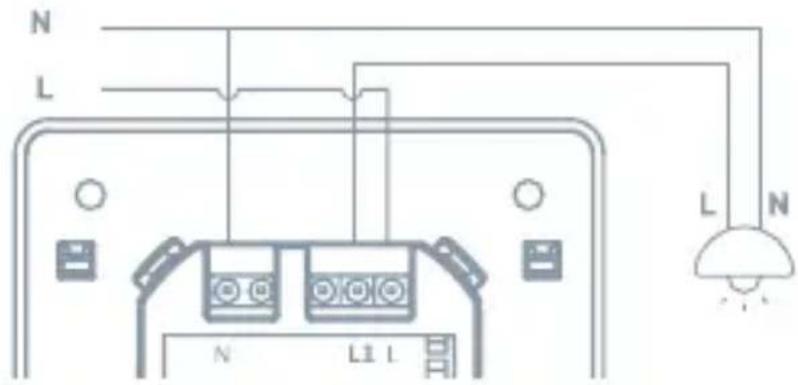

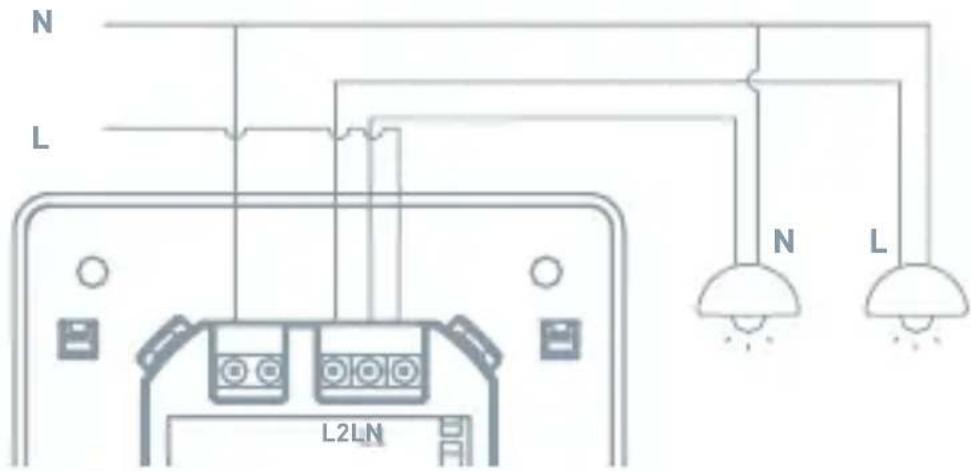

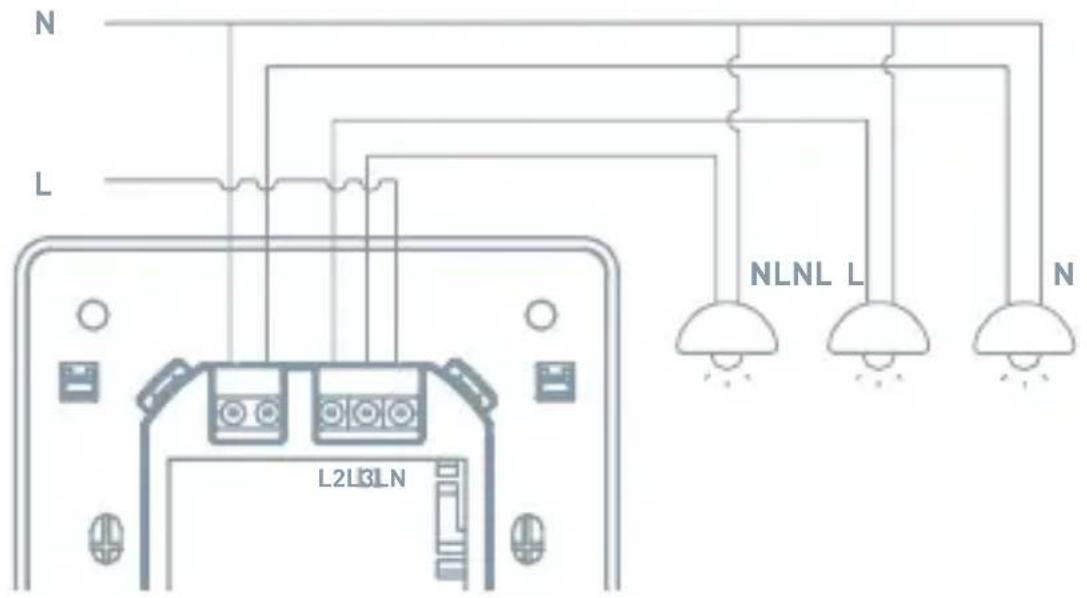

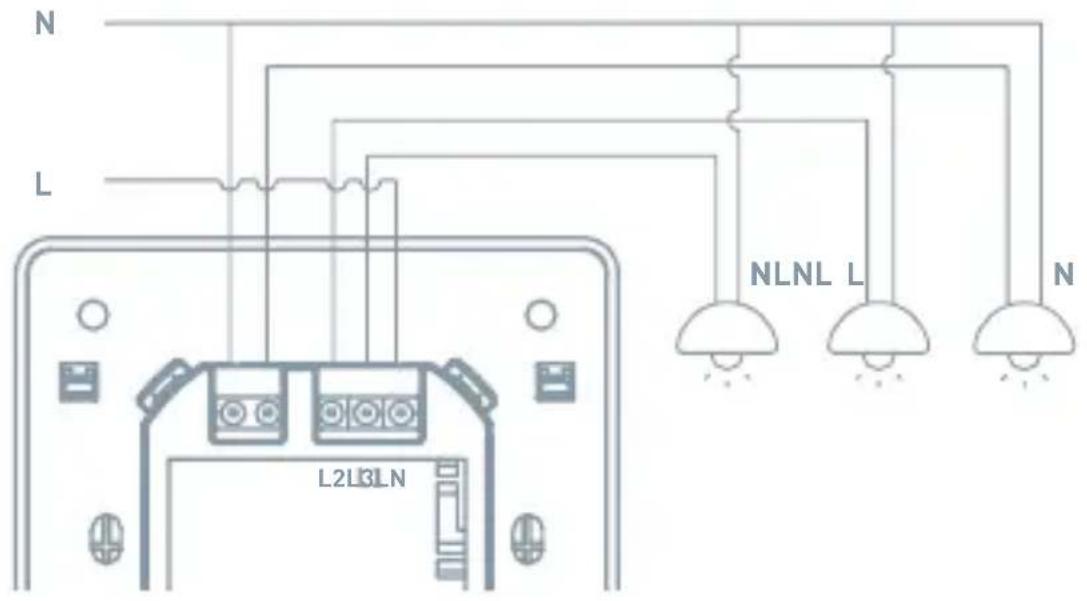

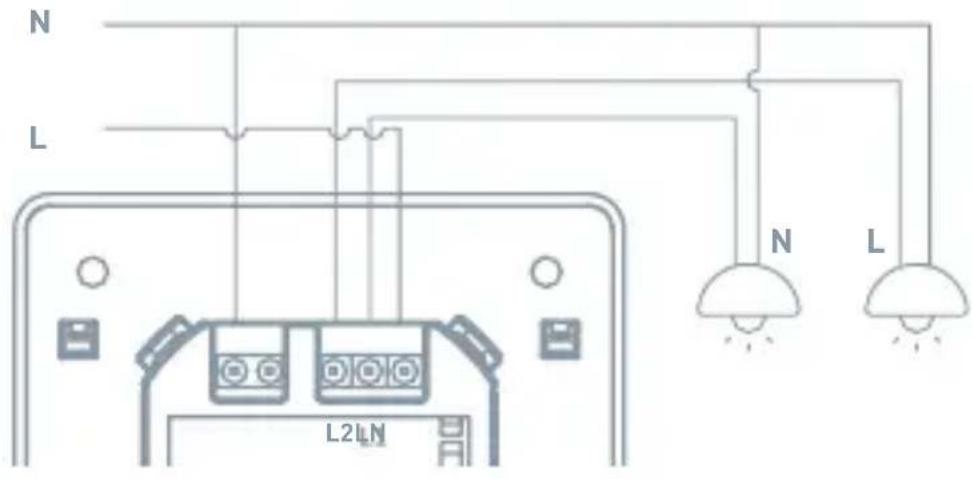

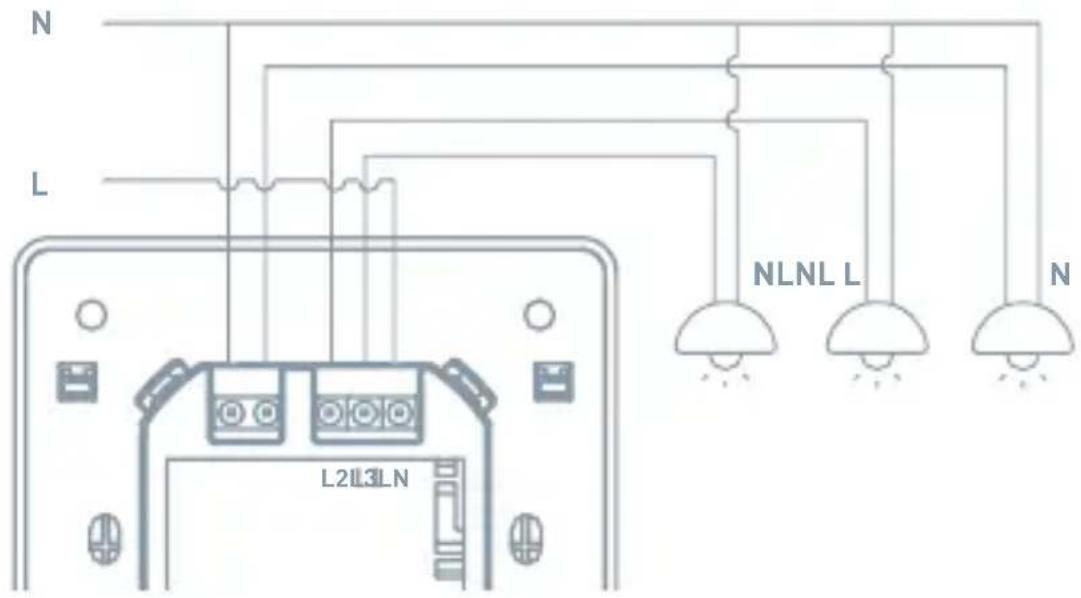

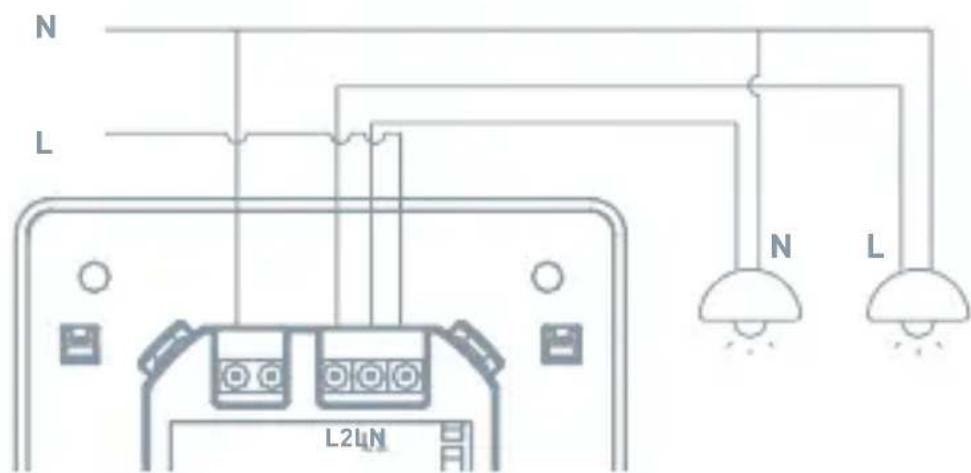

2 Connection Diagram

1 GANG

2 GANG

3 GANG

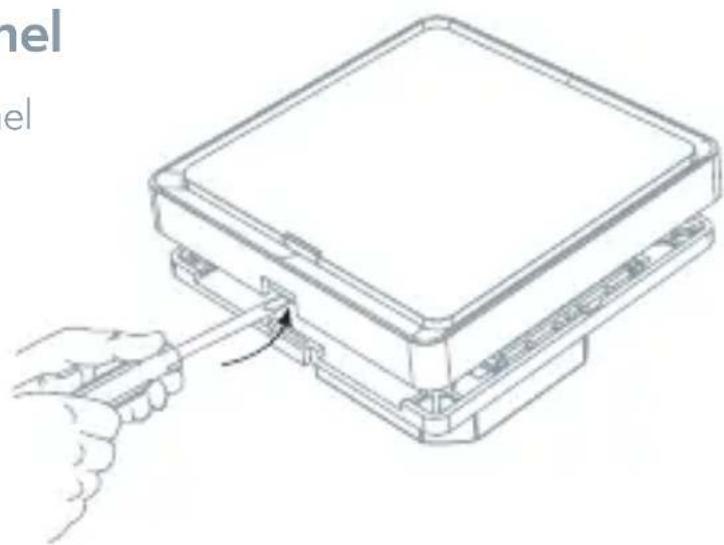

3 Remove The Panel

Remove the switch panel cover of the switch.

Line drawing of a mechanical assembly with a hand pulling a tool, no text or symbols present

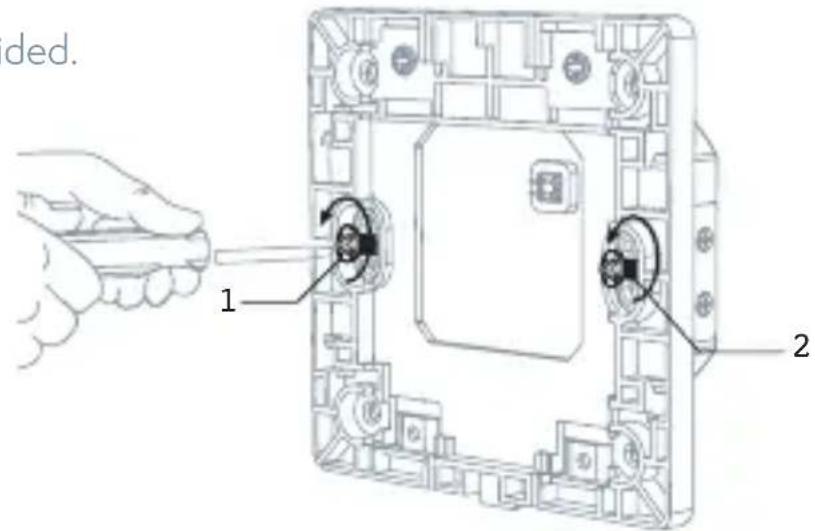

4 Mount The Switch

Use the screws provided.

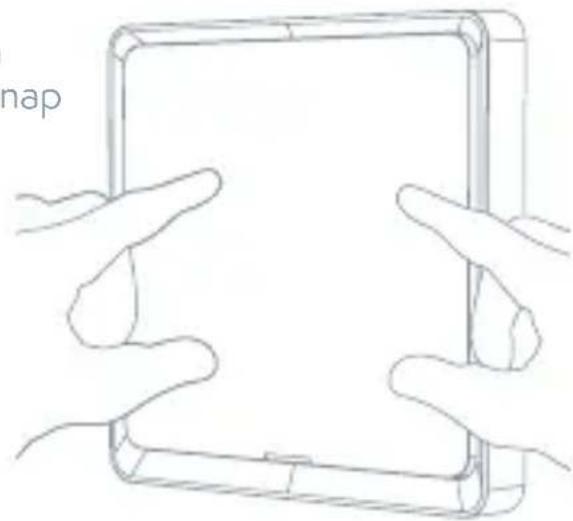

5 Attach The Wallplate

Attach the adapter to the switch using the screws provided and snap on the wallplate.

Line drawing of two hands holding a tablet device (no text or symbols)

Turn On The power

Turn the power back on at the circuit breaker

APP Operation

1 Preparation for use

- Tesla Smart is available for both iOS and Android OS. Search the name 'Tesla Smart' in App Store or Android Market, or scan the QR-Code to download the App and register or login your account.

• Make sure that the smartphone is connected to the 2.4Ghz network.

2 Connect the device

• Open Tesla Smart app and click "+" sign to Add new device
• Select Switches - Tesla Smart Switch
• Please follow the instructions to add the Tesla Smart Switch step by step

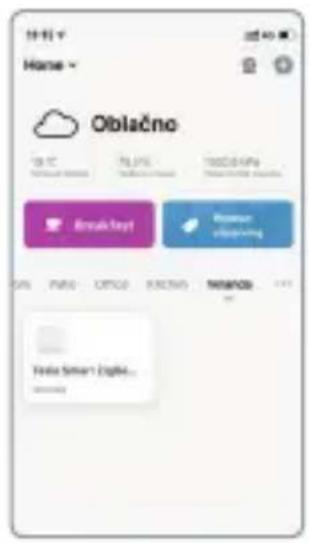

3 Control Switch

• Control switch with APP

Troubleshooting

1. Switch has not power on? The smart switch products need to be powered by the neutral line. If there is no neutral line in the inch-Manor location, the smart switch can not work
2. Can not connect to APP? Make sure the mobile phone and devices (gateways) in a same Wi-Fi network, and the device power an get into pair mode, make sure the device has good signal to support communication.
3. How far can be controlled? Please make sure that the distance between the product and the Wi-Fi router or gateway does no- exceed 25 meters, If the partition wall is used but the material and thickness of the wall will have a greater impact communication, based on the actual situation, users can consider adjusting the location of the Wi-Fi router or gateway or increasing Wi-Fi routers or gateways to ensure normal product communication.
4. Can the Switch still work if the network is disconnected? In the event of a network disconnection, the status indicator will flash. At this time, all APP control, smart linkage and other network functions will be invalid but the local control will not be affected.

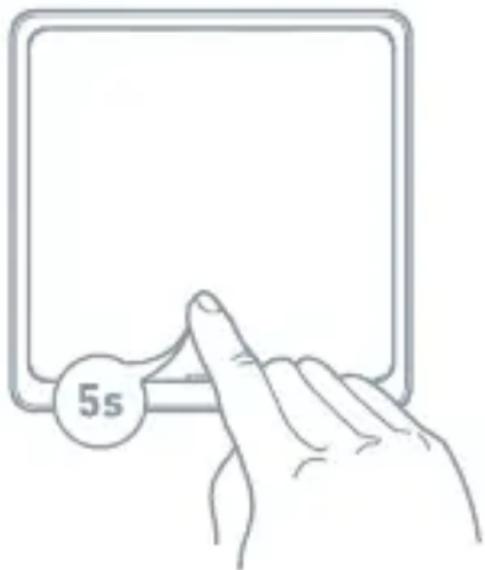

Reset

Press and hold switch button for 5s until LED flash to reset the switch and get into quick configure mode.

Remark:

1. Smart phone and device must connect to same Wi-Fi during setup mode
2. The device must be added to the account before it can be controlled remotely
3. After the device is successfully accessed, other users can obtain control of the product through the sharing function.

Line drawing of a hand holding a tablet device with a 5-second label (no other text or symbols)

INFORMATION ABOUT DISPOSAL AND RECYCLING

This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

EU DECLARATION OF CONFORMITY

Hereby, Tesla Global Limited declares that the radio equipment type ESW-1WAA-EU, ESW-2WAA-EU is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: tsl.sh/doc

Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n

Frequency band: 2.412 - 2.4835 MHz

Max. radio-frequency power (EIRP): < 20 dBm

Manufacturer

Tesla Global Limited Far East Consortium Building, 121 Des Voeux Road Central Hong Kong www.teslasmart.com
