Product Type	Robot Vacuum
Brand	Niceboy
Model	ION Charles i3 Plus
Dimensions (Diameter x Height)	32 cm x 7.6 cm
Weight	3.2 kg
Battery Type	Lithium-ion
Battery Capacity	2600 mAh
Charging Time	Approx. 4 hours
Run Time	Up to 100 minutes
Suction Power	2000 Pa
Dust Bin Capacity	0.3 L
Cleaning Modes	Auto, Edge, Spot, Scheduled
Navigation Sensors	Anti-fall, Anti-collision, Cliff sensors
Return to Base	Automatic on low battery
Wi-Fi Connectivity	Yes, via Niceboy Smart app
Voice Control	Compatible with Alexa and Google Assistant
HEPA Filter	Yes
Maintenance	Clean dust bin after each use, replace filter every 2-3 months
Spare Parts Available	Filters, side brushes, main brush, battery
Safety Certifications	CE, RoHS

Frequently Asked Questions - ION Charles i3 Plus Niceboy

How do I start the ION Charles i3 Plus for the first time?

Charge the robot fully (approx. 4 hours), then place it on the base. Press the power button on the robot or use the remote control. The robot will automatically begin cleaning.

What should I do if the robot doesn't return to the charging dock?

Ensure the dock is placed against a wall with enough space on both sides. Check that the charging contacts on both the robot and dock are clean. The robot may need to be repositioned manually near the dock.

How often should I clean the sensors?

Clean the cliff, wall, and infrared sensors with a soft dry cloth at least once a week to ensure proper navigation.

Can I schedule cleaning times?

Yes, you can set daily cleaning schedules using the Niceboy Smart app or the remote control. Refer to the app settings for scheduling options.

What does the flashing red light on the robot mean?

A flashing red light typically indicates an error, such as a stuck brush, low battery, or an obstruction. Check the user manual for specific error codes and troubleshooting steps.

How do I reset the robot to factory settings?

Press and hold the power button for 10 seconds until the robot beeps. To reset Wi-Fi settings, press and hold the Wi-Fi button for 5 seconds.

What type of filter does the ION Charles i3 Plus use?

It uses a HEPA filter that traps fine dust and allergens. Replace it every 2-3 months for optimal performance.

Is the robot safe to use on hardwood floors?

Yes, the robot is designed with soft rubber wheels and anti-collision sensors to protect delicate surfaces. You can also set it to a lower suction mode for gentle cleaning.

How long does the battery last on a full charge?

The lithium-ion battery provides up to 100 minutes of cleaning time on standard mode. Actual runtime may vary based on floor type and cleaning mode.

Where can I purchase spare parts?

Spare parts such as filters, brushes, and the battery can be purchased from authorized Niceboy retailers or online stores. Check the official Niceboy website for compatible accessories.

USER MANUAL ION Charles i3 Plus Niceboy

User Manual / Robotic Vacuum

Návod k použití

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), showing internal components and alignment indicators (no text or symbols)

5.3. Mopovací hadr

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Mopování

Close-up of a hand holding a knife over a white surface, no visible text or symbols

Top-down view of a dark, curved mechanical component with no visible text or symbols

Top-down view of a car's seat cover with blue mesh material (no text or symbols visible)

Top-down view of a blue textured object with circular holes, possibly a vehicle or mechanical component (no visible text or symbols)

7. Obsah balení

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern with no visible text or symbols

4

Simple line drawing of a handheld device with a coiled cable and handle (no text or symbols)

5

6

7

Line drawing of a mechanical component with a triangular top and rectangular base (no text or symbols)

8

9

8. Parametry

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

2.1.4. Nabíjanie zariadenia

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), showing internal components and alignment indicators (no text or symbols)

5.3. Mopovacia handra

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Mopovanie

6.1. Najprv pripevnite vytieraciu handru

Close-up of a hand holding a knife over a white surface, with no visible text or symbols

Top-down view of a black dome-shaped object with internal components and mounting holes (no visible text or symbols)

Close-up of a blue textured surface inside a mechanical component (no text or symbols visible)

Priložte mop na suchý zips. Mop pred nalepením nenamáčajte, handra sa namokrí sám v priebehu vytierania.

Top-down view of a blue textured object with four circular holes, placed on a dark surface (no text or symbols visible)

6.2. Naplňte vodnú nádobu

7. Obsah balenia

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern (no text or symbols visible)

4

Simple line drawing of a handheld device with a cable and connector (no text or symbols)

5

6

7

Line drawing of a mechanical component or housing with an open lid (no text or symbols)

8

9

8. Parametre

Cross-sectional diagram of a circular mechanical component with internal hatched area and central slot (no text or symbols)

Technical diagram of a circular mechanical component with internal components and mounting holes (no text or labels)

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

4.2. Standby Modus

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), showing internal components and alignment indicators (no text or symbols)

5.3. Wischtuch

Technical line drawing of a mechanical component with no visible text or symbols

6. Moppen

Close-up of a hand holding a knife over a white surface, with no visible text or symbols

Top-down view of a black dome-shaped object with internal components and mounting holes (no visible text or symbols)

Close-up of a light blue textured surface inside a dark mechanical component (no text or symbols visible)

Close-up of a blue textured mechanical component with circular holes, mounted on a black base (no visible text or symbols)

7. Packungsinhalt

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern (no text or symbols visible)

4

Simple line drawing of a handheld device with a cable and connector (no text or symbols)

5

6

7

Line drawing of a rectangular container with an open lid (no text or symbols)

8

9

8. Parameter

1. ...... Product diagram
2. ...... Operating instructions

2.1.....First start-up
2.2.....Dual water and dust container
3. ....App connection
4. ...... Device status
5. ...... Maintenance
6. ...... Mopping
7. ...... Package contents
8. ..... Parameters

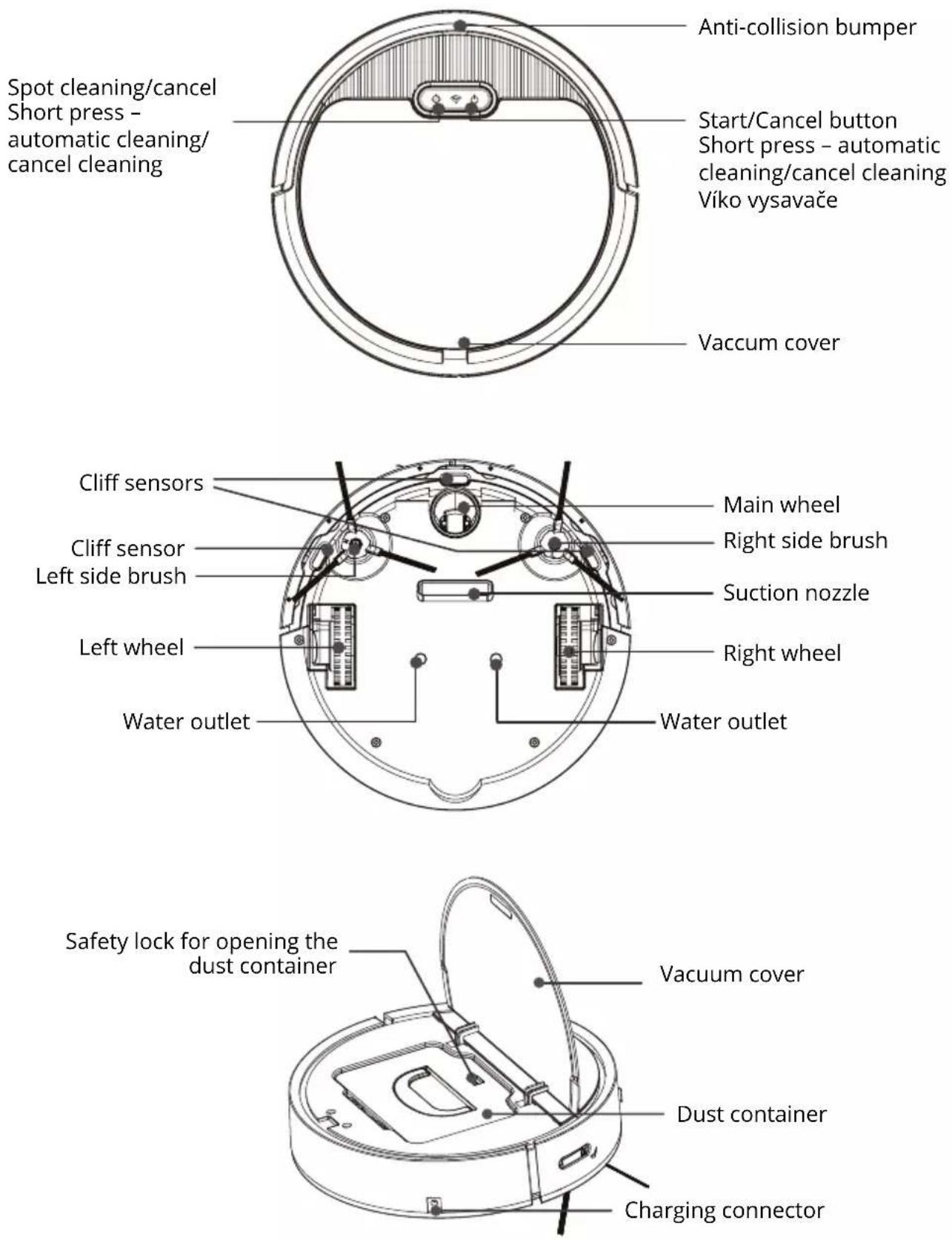

1. Product diagram

Spot cleaning/cancel Short press - automatic cleaning/ cancel cleaning
Anti-collision bumper
Start/Cancel button Short press – automatic cleaning/cancel cleaning Víko vysavače
Vaccum cover

2. Operating instructions

2.1 First start-up

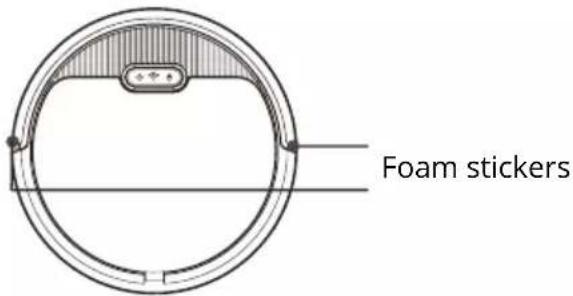

2.1.1. Removing stickers

Remove the stickers located on the sides of the front bumper.

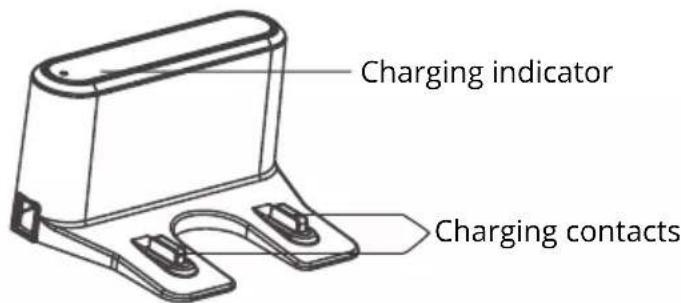

2.1.2. Connect the adapter to the charging base

Place the charging stand flat against the wall. Do not place objects on the left and right sides within 1m and in front of the front side within 2m. The base should not be located near objects with a strong reflective surface (mirrors).

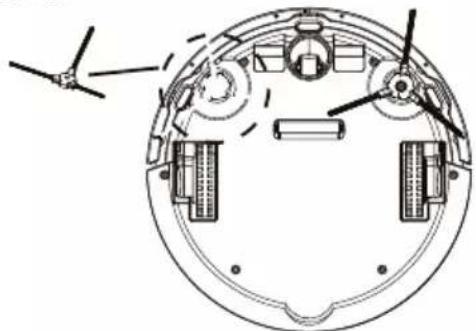

2.1.3. Attach the side brushes

Technical line drawing of a circular mechanical component with internal components and no visible text or symbols

2.1.4. Charging the device

Place Charles in the charging base. Turn on Charles using the power button on the top of the device. The blue „house“ light flashes to indicate that the battery needs to be charged. A steady blue light indicates charging. When charging is complete, the light goes off. When using the device for the first time, charge the device for more than 6 hours.

1. Download the app by scanning the QR code with your mobile phone or search for „Niceboy ION“ in the Google Play/Apple App Store and download the app.
2. Open the „Niceboy ION“ app and register a new account or use your existing account.
3. Once you have logged into the app to add a product, click on the „+“ in the top right corner and then „Add Device“.
4. Then go to the „Robotic Vacuums“ tab and select „Charles i3 Plus“.
5. Insert the vacuum cleaner into the charging base and switch it on with the power button.
6. Press the „spot cleaning“ button for approximately 6 seconds to connect to the app. A beep will then sound and the WIFI icon will flash rapidly. In the app, select the Charles i3 Plus vacuum cleaner, select your WIFI and enter your password. Continue to the next page using the „Next” button. Now wait until the vacuum cleaner connects to the app. If Charles does not connect, try the process again. Make sure your WIFI is transmitting on the 2.4 GHz frequency. If it doesn't on the second try, try connecting the vacuum to a different WIFI module. For example, you can use a mobile phone with a hotspot function for this test. If you are still unable to connect the vacuum cleaner in this way, please contact our technical support.
7. Once the device is successfully connected, you can edit the device name and add it to the room of your choice. Click on „Done“ to access the vacuum cleaner interface..

To connect to the app, your WIFI network must be transmitting at 2.4 GHz.

4. Device status

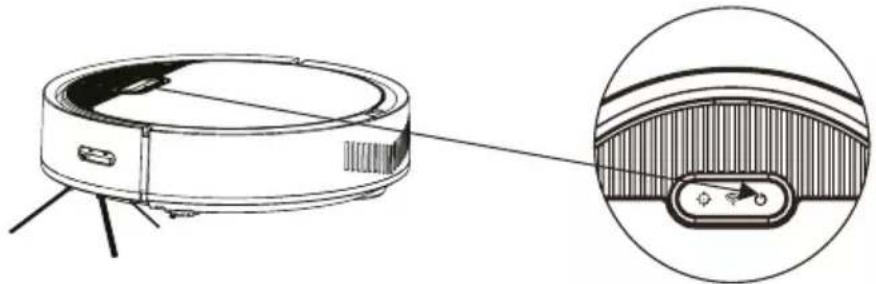

4.1. On/Off

When Charles is switched off, press and hold the power button, see picture above. The LED light will stop flashing and Charles will enter standby mode.

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

4.2. Standby mode

When Charles is in standby mode, both LEDs are lit simultaneously.

Charles enters standby mode based on various factors.

• A. If the device is already connected to the WIFI/application, it will automatically turn off after 5 minutes.
• B. If the device has not been connected to the WFI/application, it will automatically shut down after 30 minutes

There are several ways to exit standby mode:

• Press the power button once briefly, followed by an audible signal and the device will begin cleaning automatically.
• Press the „spot cleaning“ button once briefly, then an audible signal sounds and Charles starts vacuuming in spot cleaning mode.
• Press and hold the power button for 3 seconds, then the audible signal sounds and Charles switches off.

4.3. Automatic cleaning

To start the automatic cleaning, press the power button briefly, followed by an audible signal and the automatic cleaning begins. Automatic mode is suitable for complex room cleaning.

4.4. Spot cleaning

To start spot cleaning, press the power button briefly, followed by an audible signal and the automatic cleaning begins. The spot cleaning mode is suitable for cleaning smaller dirty areas. Place the Charles on the dirty spot and start spot cleaning. Charles will then start to circle the area and after 2-3 minutes of cleaning will return to the charging station.

4.5. Wall cleaning

To start wall cleaning, you must first connect the vacuum cleaner to the Niceboy ION app. Then select wall cleaning in the app. Charles will start vacuuming the area along the wall, then returns to the docking station when the cleaning is complete.

5. Maintenance

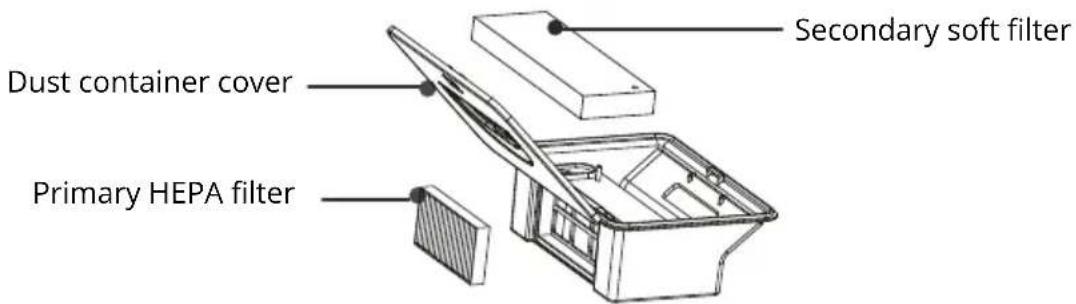

5.1. Dual container

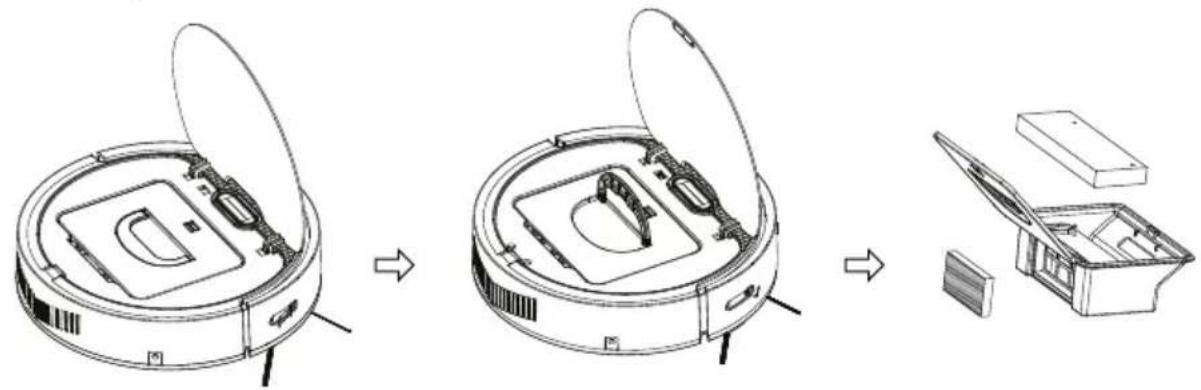

Open the top cover of the device and remove the dual container.

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

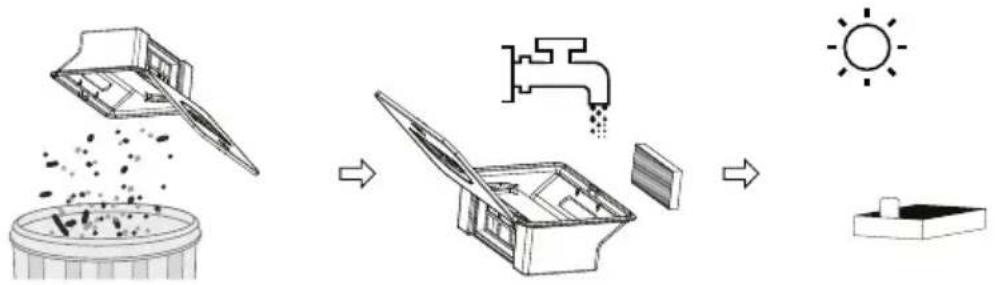

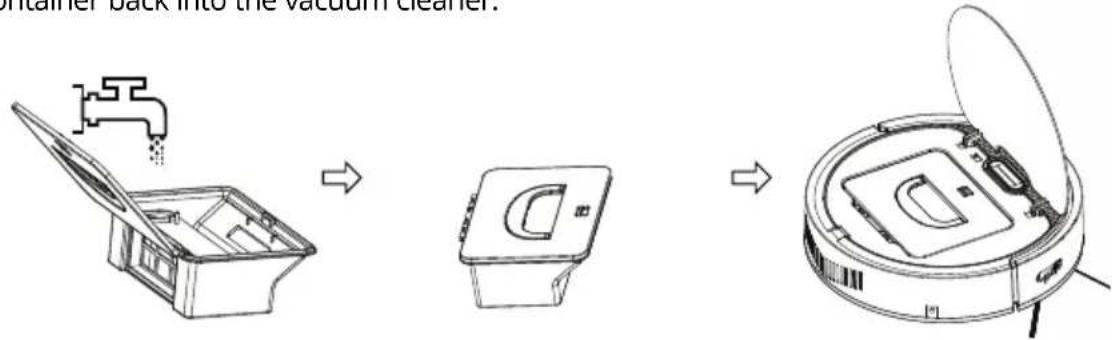

Empty the dirt and return the dual container into the vacuum cleaner.

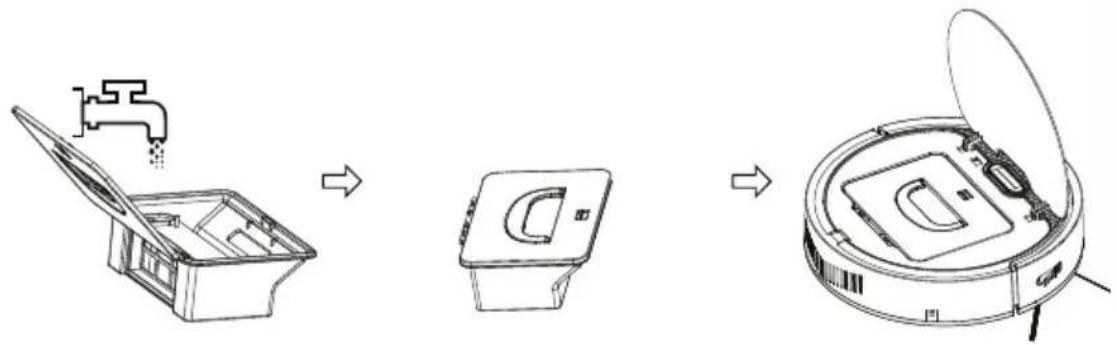

The dual container contains two washable filters that should be washed with clean running water approximately every 15-30 days.


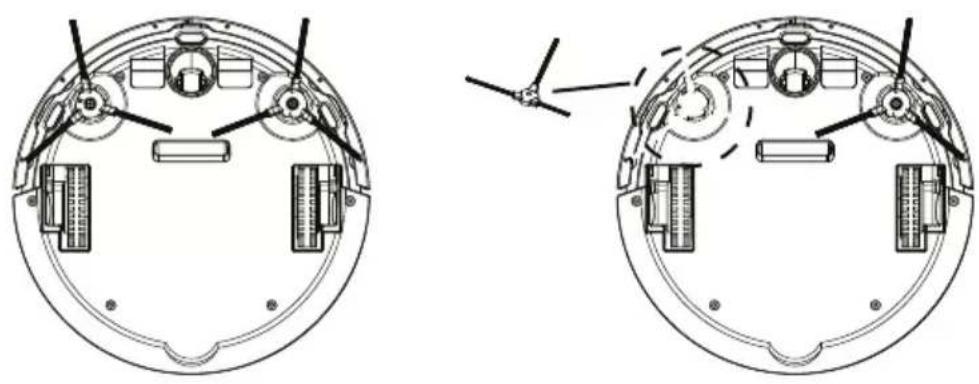

5.2. Side brushes

Turn Charles upside down (with the wheels up), remove the side brushes and clean them. If the side brushes are damaged, replace them with different ones.

Technical line drawing of a mechanical component with two views (front and side), showing internal components and alignment indicators (no text or symbols)

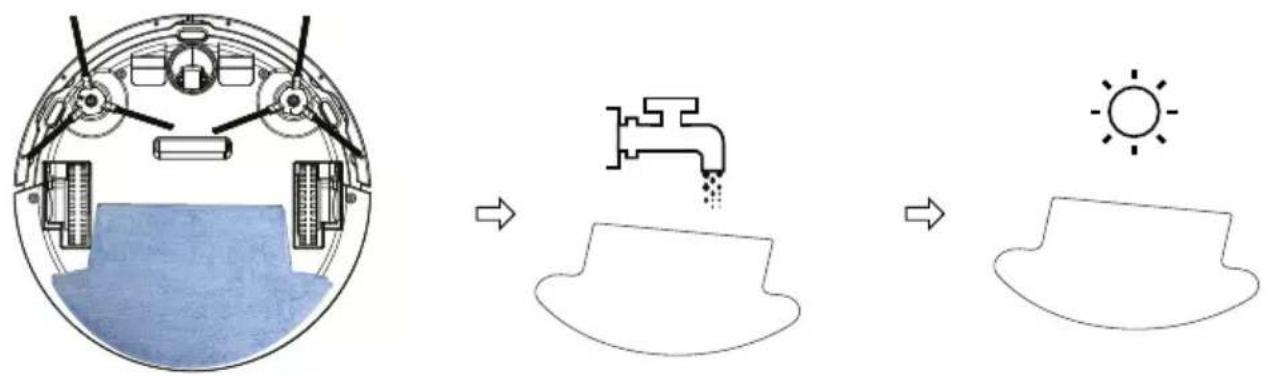

5.3. Mopping cloth

Turn Charles over, take off the mopping cloth and wash it. After drying, you can return it.

5.4. Cliff sensors

Wipe the cliff sensors and charging pins at the bottom of the vacuum cleaner with a soft cloth.

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Mopping

6.1. First, attach the wiping cloth

Close-up of a hand holding a knife over a white surface, with no visible text or symbols.

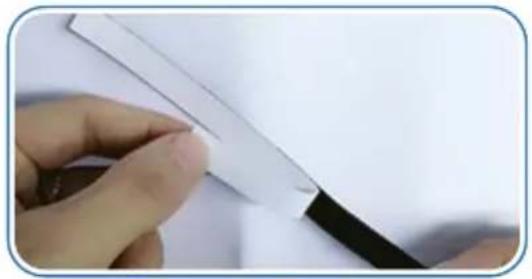

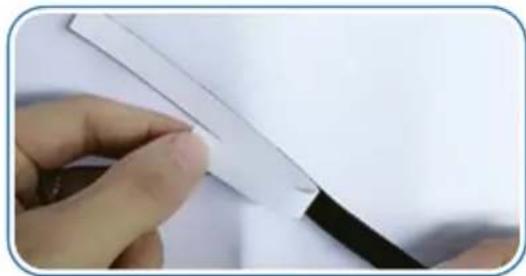

Remove the white tape on the back of the velcro.

Close-up of a dark, curved mechanical component with mounting holes and a central cavity (no visible text or symbols)

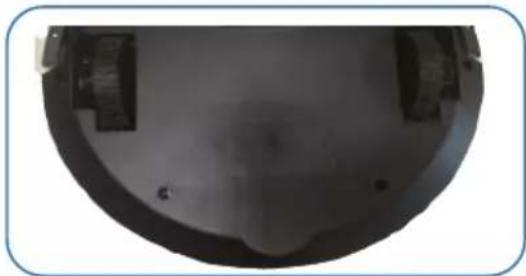

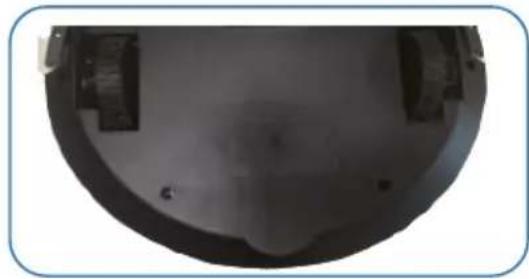

Make sure there is no dust or water droplets on the bottom of the vacuum cleaner. Then stick velcro to the designated areas at the bottom of the vacuum cleaner.

Close-up of a light blue textured surface inside a dark container (no text or symbols visible)

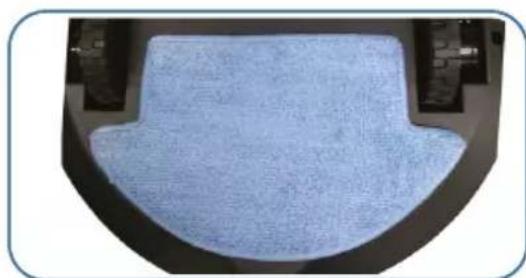

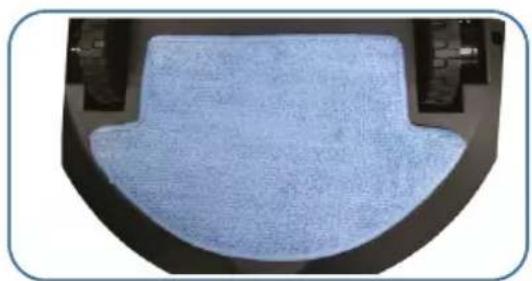

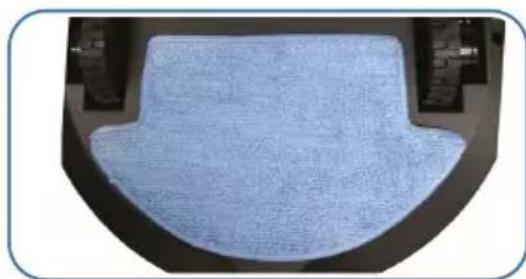

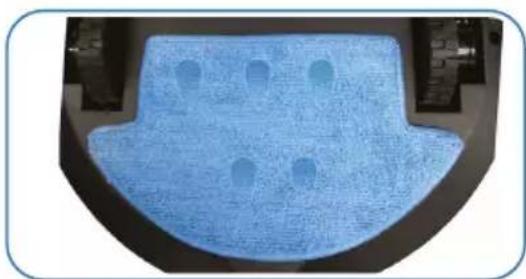

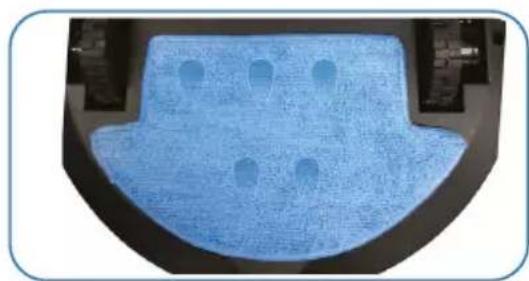

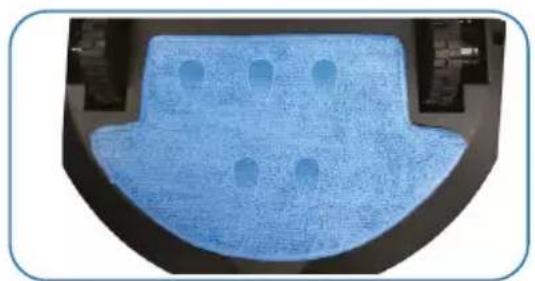

Attach the mop to the velcro. Do not soak the mop before attaching, the cloth will soak itself during mopping.

Close-up of a blue textured mechanical component with circular holes, mounted on a black base (no text or symbols visible)

6.2. Fill the water container

Remove the dual container from the vacuum cleaner, take off the secondary soft filter and fill the water container with water. Close the container, return the secondary filter to its position and put the container back into the vacuum cleaner.

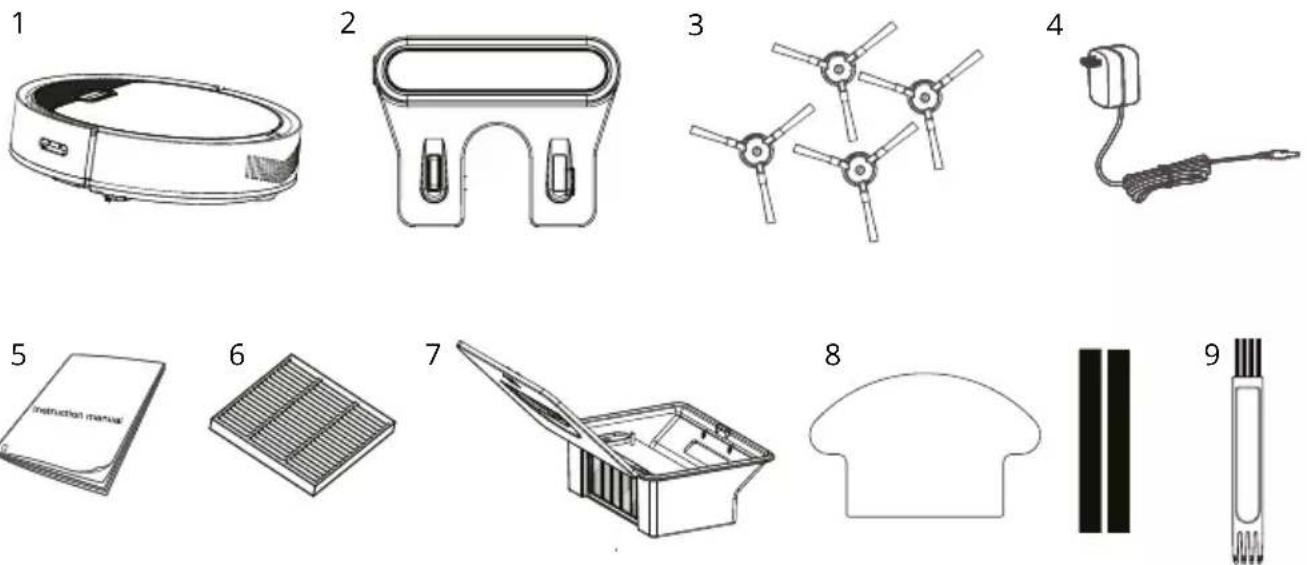

7. Package contents

1. Robotic vacuum cleaner
2. Charging base
3. Side bristles 4x
4. Power adapter
5. Instruction manual
6. HEPA filter
7. Dual container
8. Mopping cloth and velcro
9. Cleaning brush

8. Parameters

Product model: Charles i3 Plus

Measurements: L310 * W310 * H 81 mm

Voltage: DC 7,4 V

Suction power: 2 500 Pa

Battery capacity: DC 7,4 V Li-ion 2 600 mAh

Volume of the dual container - dust: 400 ml

Volume of the dual container - water: 200 ml

Cleaning time: Up to 110 min

Charging time: 300 min

Nominal docking station voltage range: 220–240 V

Rated frequency: 50–60 Hz

Nominal docking station input voltage: 12 V / 1 A

Docking station output voltage: 12 V / 1 A

Használati útmutató

Cross-sectional diagram of a circular mechanical component with internal hatched area and two horizontal lines (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), showing internal components and alignment indicators (no text or symbols)

5.3. Felmosókendő

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Felmosás

Close-up of a hand holding a knife over a white surface, with no visible text or symbols

Top-down view of a black dome-shaped object with internal components and mounting holes (no visible text or symbols)

Top-down view of a light blue textured object inside a dark container (no text or symbols visible)

Top-down view of a blue textured object with circular holes, possibly a vehicle or mechanical component (no visible text or symbols)

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern (no text or symbols visible)

4

Simple line drawing of a handheld device with a coiled cable and connector (no text or symbols)

5

6

7

Line drawing of a rectangular container with an open lid (no text or symbols)

8

9

Cross-sectional diagram of a circular mechanical component with internal hatched area and central fastener (no text or symbols)

Pjenaste naljepnice

2.1.2. Povežite prilagodnik s bazom za punjenje

Postavite stalak za punjenje ravno uza zid. Ne postavljajte predmete s lijeve i desne strane unutar 1 m i ispred prednje strane unutar 2 m. Baza se ne smije nalaziti u blizini predmeta s jakom reflektirajućom površinom (ogledala).

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

4.2. Stanje čekanja

Kada je Charles u stanju čekanja, istovremeno svijetle obje LED lampice.

Charles ulazi u stanje čekanja na temelju raznih čimbenika.

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Ispraznite prljavštinu i vratite dvostruki spremnik u usisavač.

Technical line drawing of a mechanical component with two views (front and side), showing internal components and alignment indicators (no text or symbols)

5.3. Krpa za brisanje

Okrenite Charles, skinite krpu za brisanje i operite je. Nakon sušenja možete je vratiti.

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Brisanje

6.1. Najprije prikvačite krpu za brisanje

Close-up of a hand holding a knife over a white surface, with no visible text or symbols

Top-down view of a black dome-shaped object with internal components and mounting holes (no visible text or symbols)

Pazite da na dnu usisavača nema prašine ili kapljica vode. Zatim zalijepite čičak-traku na označena mjesta na dnu usisavača.

Top-down view of a car's seat cover with blue textured material (no text or symbols visible)

Top-down view of a blue textured mechanical component with four circular holes (no text or symbols visible)

6.2. Napunite spremnik za vodu

Uklonite dvostruki spremnik iz usisavača, skinite sekundarni mekani filtar i napunite spremnik za vodu vodom. Zatvorite spremnik, vratite sekundarni filtar na mjesto i vratite spremnik u usisavač.

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a row, each with a central hub and two arms (no text or symbols visible)

4

Simple line drawing of a handheld device with a cable and connector (no text or symbols)

5

6

7

Line drawing of a mechanical component or housing with an open lid (no text or symbols)

8

9

8. Parametri

Model proizvoda: Charles i3 Plus

Dimenzije: D 310 x Š 310 x V 81 mm

Napon: DC 7,4 V

Usisna snaga: 2 500 Pa

Kapacitet baterije: DC 7,4 V litij-ionska 2 600 mAh

Zapremina dvostrukog spremnika - za prašinu: 400 ml

Zapremina dvostrukog spremnika - za vodu: 200 ml

Technical diagram of a circular mechanical component with internal components and mounting holes (no text or labels)

Line drawing of a robotic vacuum cleaner with an inset close-up showing its internal structure (no text or symbols)

4.2. Tryb czuwania

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Technical line drawing of a mechanical component with two views (front and side), showing internal components and alignment indicators (no text or symbols)

5.3. Tkanina mopa

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Mop

Close-up of a hand holding a knife over a white surface, with no visible text or symbols.

Close-up of a dark, curved mechanical component with no visible text or symbols

Close-up of a blue textured surface inside a mechanical component (no text or symbols visible)

Top-down view of a blue textured object with circular holes, possibly a vehicle or mechanical component (no visible text or symbols)

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a row, each with a central hub and two arms (no text or symbols visible)

4

Simple line drawing of a handheld device with a coiled cable and connector (no text or symbols)

5

6

7

Line drawing of a rectangular container with an open lid (no text or symbols)

8

9

8. Parametry

Model produktu: Charles i3 Plus

Wymiary: L310 * W310 * H81 mm

Napięcie: DC 7,4 V

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

Line drawing of a robotic vacuum cleaner with an inset close-up showing its internal structure (no text or symbols)

4.2. Stanje pripravljenosti

Line drawings of a robotic vacuum cleaner's internal components, showing open lid, internal casing, and final assembled part (no text or symbols)

Izpraznite umazanijo in znova vstavite dvojno posodo v sesalnik.

Technical line drawing of a mechanical component with two views (top and side), showing internal components and alignment indicators (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Mokro čiščenje

Close-up of a hand holding a knife over a white surface, with no visible text or symbols.

Odstranite bel trak na zadnji strani sprimnega traku.

Close-up of a dark, curved mechanical component with mounting holes and a central cavity (no visible text or symbols)

Prepričajte se, da na dnu sesalnika ni prahu ali vodnih kapljic. Nato pritrdite sprimni trak na označena mesta na dnu sesalnika.

Close-up of a blue textured surface inside a black container (no text or symbols visible)

Top-down view of a blue textured mechanical component with circular holes, mounted on a black frame (no text or symbols visible)

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern with no visible text or symbols

4

Simple line drawing of a handheld electrical plug with a cable (no text or symbols)

5

6

7

Line drawing of a rectangular container with an open lid (no text or symbols)

8

9

8. Lastnosti

Model naprave: Charles i3 Plus

Mere: D310 * Š310 * V81 mm

Napetost: DC 7,4 V

Sesalna moč: 2 500 Pa

Zmogljivost baterije: DC 7,4 V Li-ion 2 600 mAh

Prostornina dvojne posode - prah: 400 ml

Prostornina dvojne posode - voda: 200 ml

Technical line drawing of a circular mechanical component with internal hatched shading (no text or symbols)

Technical line drawing of a circular mechanical component with a shaded top section and two horizontal lines (no text or symbols)

Spumă autocolante

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

Technical line drawing of a mechanical component with two views (front and side), showing internal components and alignment indicators (no text or symbols)

5.3. Pânză de mop

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Curățare cu mop

Close-up of a hand holding a knife over a white surface, no visible text or symbols

Close-up of a dark, curved mechanical component with mounting holes and a central cavity (no visible text or symbols)

Top-down view of a light blue textured surface inside a dark container (no text or symbols visible)

Close-up of a blue textured mechanical component with circular holes, mounted on a black surface (no text or symbols visible)

Line drawing of a circular device with a lid and mounting bracket (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern with no visible text or symbols

4

Simple line drawing of a handheld device with a coiled cable and handle (no text or symbols)

5

6

7

Line drawing of a mechanical component with a triangular top and rectangular base (no text or symbols)

8

9

8. Parametri

Model de produs: Charles i3 Plus

Dimensiuni: L310 * W310 * H 81 mm

Technical diagram of a mechanical assembly with labeled components (no text or symbols)

2.1.4. Ladda enheten

Technical line drawing of a robotic vacuum cleaner with an inset close-up showing its internal structure (no text or symbols)

4.2. Vänteläge

Exploded view diagram of a robotic vacuum cleaner showing internal components and assembly steps (no text or labels)

Technical line drawing of a mechanical component with two views (front and side), showing internal components and alignment indicators (no text or symbols)

5.3. Moppduk

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

6. Moppning

Close-up of a hand holding a knife over a white surface, with no visible text or symbols.

Close-up of a dark, curved mechanical component with mounting holes and a central cavity (no visible text or symbols)

Top-down view of a blue textured surface inside a dark container (no text or symbols visible)

Close-up of a blue textured surface with circular indentations, possibly a mechanical component or panel (no visible text or symbols)

Line drawing of a circular mechanical component with a flat top and side slots (no text or symbols)

2

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

3

Four identical mechanical components arranged in a triangular pattern (no text or symbols visible)

4

Simple line drawing of a handheld device with a coiled cable and connector (no text or symbols)

5

6

7

Line drawing of a mechanical component with a triangular opening and internal structure (no text or symbols)

8

9

8. Parametrar

Modell: Charles i3 Plus

Mått: L 310 * B 310 * H 81 mm

Spänning: Likström 7,4 V

Sugkraft: 2 500 Pa

Batterikapacitet: 7,4 V Litiumjon 2 600 mAh

Praha 4, Czech Republic, ID: 294 16 876.

Made in China.
