Product Type	Cylinder Vacuum Cleaner
Brand	Hyundai
Model	VC 938
Colour	Red / Black
Power Consumption	2000 W
Power Supply	220-240 V ~ 50/60 Hz
Dust Container Capacity	1.5 L
Filtration System	HEPA filter + washable foam filter
Cord Length	6 m
Weight	4.5 kg
Dimensions (W x H x D)	400 x 250 x 300 mm
Noise Level	78 dB(A)
Bagless	Yes
Floor Nozzle	Combination floor nozzle (carpet/hard floor)
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Maintenance	Empty dust cup after each use, wash filters monthly
Safety Features	Thermal cut-off, automatic cord rewind
Spare Parts Available	Filter set, brush roll, nozzles
Reparability Index	6.5/10 (estimated)

Frequently Asked Questions - VC 938 HYUNDAI

How do I empty the dust container?

Press the release button on top of the dust cup and lift it off. Hold over a trash bin, press the bottom release to open the flap and empty. Close the flap before reattaching.

How often should I clean the filters?

Wash the foam filter once a month and the HEPA filter every 6 months, or when suction drops. Allow them to dry completely before reuse.

What accessories are included with the VC 938?

The package includes a combination floor nozzle, a crevice tool, a dusting brush, and an upholstery nozzle.

Why is the vacuum losing suction?

Check if the dust container is full or the filters are clogged. Also inspect hose and nozzles for blockages. Clean or replace filters as needed.

How do I replace the HEPA filter?

Turn off and unplug the vacuum. Open the filter compartment (usually at the back or side), remove the old HEPA filter, and insert a new one. Close the cover securely.

Can I use this vacuum on hardwood floors?

Yes, the combination floor nozzle has a setting for hard floors. Select the appropriate position to avoid scratching.

The power cord does not rewind fully, what should I do?

Make sure the cord is not twisted or caught. Gently pull out a bit and let it rewind again. If problem persists, contact service.

What is the maximum power rating?

The vacuum has a maximum power consumption of 2000 W, suitable for standard household outlets.

Is the vacuum suitable for pet hair?

Yes, the VC 938 handles pet hair well on carpets and upholstery. Clean the brush roll regularly to maintain performance.

Where can I purchase spare parts?

Spare parts such as filters, brush rolls, and nozzles can be ordered from Hyundai's official website or authorized retailers.

USER MANUAL VC 938 HYUNDAI

White and gray cleaning brush with two brushes, no visible text or symbols

Abstract geometric shape composed of interconnected lines forming a symmetrical X-like pattern (no text or symbols)

GENUINE PRODUCT OF

HYUNDAI CORPORATION

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ / BEDIENUNGSANLEITUNG

	DC
	E
	F

EN The pictures are only illustrative, the supplied accessory and cleaner may differ.

HEPA filter (obr. 8, 10)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

GENERAL PROVISIONS:

• Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.
• This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• If a vacuum cleaner can be equipped with a hand-held accessory with rotating parts a warning has to be given concerning entrapment.
• Never use the appliance if its adaptor or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.
• Never immerse the charger, the battery and the motor part of the vacuum cleaner into water (even partially) and protect them against humidity!
• Never leave the product unattended when in operation!
• Do not charge the battery if electrolyte is leaking from it.
• The appliance must be disconnected from the power adapter when removing the battery.
• Do not through the battery into fire. There is a risk of explosion!
• In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.
• Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.
• The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with. Failure to replace or maintain all filters regularly according to the instructions in Chapter V. and also using non-original filters, the properties of which resulted in failure or damage of the vacuum cleaner, is also understood to be improper use of the appliance.

USE OF THE APPLIANCE:

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

• Avoid contact with the rotating brush when handling the vacuum cleaner (e.g. with loose clothes, hair, fingers, jewellery, bracelets etc.).
• Do not leave the floor nozzle with the rotation brush on in one place for too long! It could cause damage to the surface vacuumed!
• The floor nozzle with the rotation brush is not intended for vacuuming impurities from carpets with high pile.
• Before vacuuming highly polished floors, such as wood linoleum, vinyl, parquet flooring, floating floor and similar) first check that the underside of the floor tool and its brushes are free from foreign objects that could cause marking.
• Never use the vacuum cleaner nor touch the adaptor with wet hands or feet!
• Always switch off the vacuum cleaner when charging the battery and after the vacuum cleaner was used.
• Do not vacuum wet or moist floor coverings, do not use the vacuum cleaner for outdoor areas! When moisture gets into the aggregate, there is a risk of its damage and disabling it. This defect is not covered by the warranty.
• Do not vacuum water, liquid or aggressive liquid!
• Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents). Vacuuming these objects may lead to damage of the dust filters or the vacuum cleaner.
• Pores of the micro filters may be clogged when vacuuming very fine dust. Thus, air permeability will be reduced and the suction performance will drop. In this case, micro-filters have to be cleaned before the container is full. Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc. If this dirt / loose construction materials / loose construction materials into the aggregate, it poses a danger of damage. The warranty repair does not cover this.

ACCESSORIES AND ASSEMBLY OF THE APPLIANCE:

- Install the vacuum cleaner and the appliance within sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. oven, stove, etc.) and wet surfaces (e.g. sinks, wash-basins etc.).

ADAPTER:

• If the adaptor of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• WARNING: To charge the battery, use only the network adapter supplied with this appliance.
• To power the appliance, only apply safe small voltage in accordance with the type plate.
• The adaptor supplied with this appliance is intended for this appliance only, do not use it for other purposes.
  – Use the charger in a room only.
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

II. EQUIPMENT AND ACCESSORIES (Fig. 1)

A - vacuum cleaner

A1 – dust container

A2 – hinged bottom

A3 – hinged bottom locking button

A4 – HEPA filter

A5 – separator

A6 – handle

B - battery

B1 - ON/OFF button

B2 – button Adjustment of suction power (MIN / ECO / MAX)

B3 – operation signal lights and charging lights

B4 – battery locking button

B5 – charging connector

C – suction tube

C1 – locking buttons

D - floor nozzle with rotation brush

D1 – floor nozzle lock button

D2 – LEDs illuminating the space in front of the vacuum cleaner

D3 – removable brush

D4 – brush lock

E - brush

E1 – locking buttons

F – long crevice nozzle

F1 – locking buttons

G - adapter

H – plastic wall bracket

I - screws

J-wall plugs

K - Cleaning tool

III. VACUUM CLEANER PREPARATION

Remove all packing material, take out the vacuum cleaner and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance.

VACUUM CLEANER ASSEMBLY

When assembling the vacuum cleaner, follow the procedure indicated in Fig. 2. Choose appropriate accessories as required (C, D, E, F), (Fig. 13).

CHARGING THE ACCUMULATOR

Turn the vacuum cleaner off prior to charging! Connect the adaptor G to the charging connector B5 and plug it to the mains (Fig. 3). The accumulator has to be charged at least for 5 hours prior to the first use. After that, the standard charging time is approx. 4.5 hours.

The status and progress of charging is indicated by indicator B3.

Operation signal lights and charging lights (B3)
Flashing blue (the last segment B3)	Battery discharged (the device will switch off)
LEDs D2 go off	Rotation brush electronic protection (rotation brush locked – rotation stopped, the drive continues running)
Increasing number of blue flashing segments B3	Accumulator is charging
Blue light segments B3 on continuously	Accumulator is charged / indication of operation (individual segments turn off during operation, as the battery discharges)

Warning

- Let the vacuum cleaner recharge as soon as its suction performance is weaker.

• When using the vacuum cleaner for an extended period of time or in a hot environment, the accumulator might be too hot for charging. Let the accumulator cool down prior to charging.
• For ensuring longer life of the battery we recommend full discharge and then full recharge of the battery four times a year.

MOUNTING THE PLASTIC BRACKET TO THE WALL

Mount the plastic bracket H to the wall using the fastener included I, J or a similar fastener provided by you.

Caution

• Make sure that the el. socket is close to the mounted plastic bracket.
• Make sure that no electricity, telephone or water lines etc. are routed under the plaster near the area where the plastic bracket is mounted to the wall.

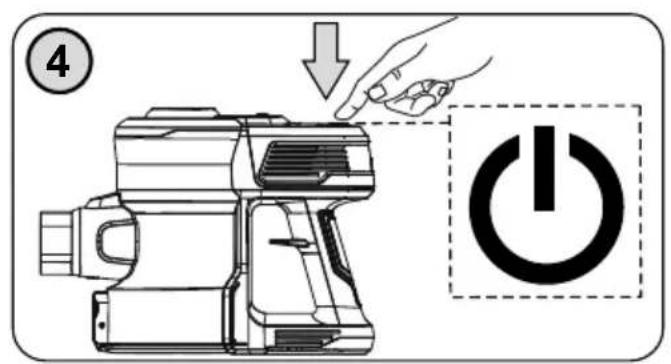

IV. USE OF VACUUM CLEANER (Fig. 4, 5)

CONTROL

B1 button - vacuum cleaner ON / OFF switch

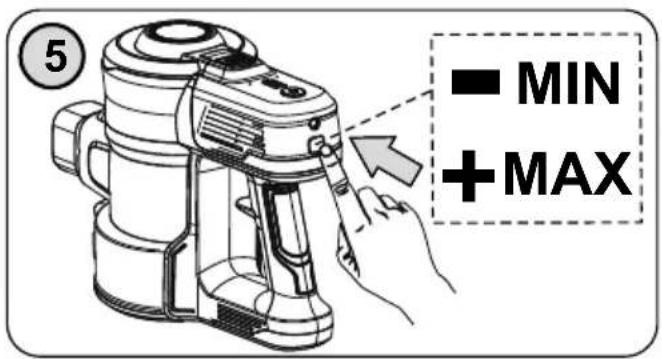

Button B2 - suction power adjustment

• press short the button to increase/reduce the suction power.
• MIN = low mode,
• MAX = high mode.

OPERATING TIMES

Set power Running Time *
MIN	Approx. 30 minutes
MAX	Approx. 15 minutes
* Note: The stated operating times are based on ETA's internal testing and only apply to a new and fully charged battery. Depending on the age and wear of the battery, the operating time decreases.

Caution

Floor nozzle D have electronic protection against rotation brush blocking. If the rotation brush has been blocked during operation, observe the following instructions.

- If the floor nozzle rotation brushD has been blocked, LEDs D2 go off and the brush stops rotating. Switch off the device and remove the cause, then the device can be switched on again.

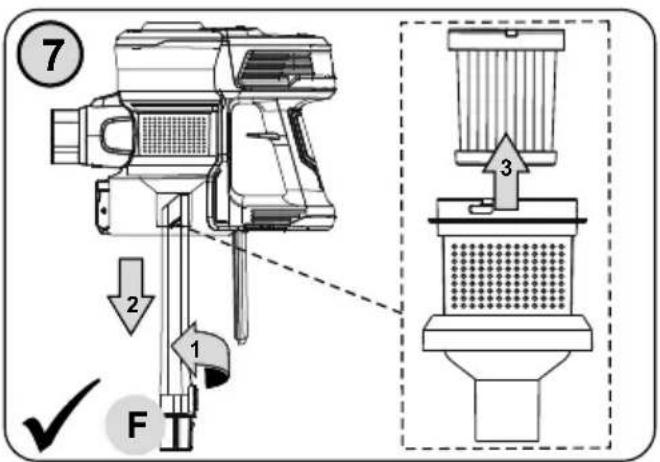

V. CLEANING AND MAINTENANCE (Fig. 6, 7, 8, 9, 10)

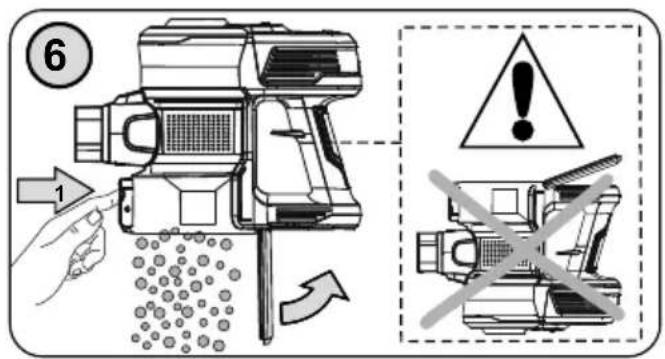

DUST CONTAINER (A1)

If you find out that the suction performance of the vacuum cleaner A is reduced, make sure that the dust container is not full and if necessary, empty it (follow the procedure indicated in Fig. 6). Put the container above a dust bit and press button A3; thus you will lift off bottom and throw the dust in common municipal waste. Snap the bottom shut to secure it in the opposite direction. Clean the dust container with a wet cloth. Allow all the parts to dry out properly before re-use.

Caution

• When removing the filter system (i.e. separator A5, HEPA filter A4) and subsequent cleaning of the container A1, it is necessary to keep the vacuum cleaner upright and never turn the vacuum cleaner upside down.
• Never rinse the container A1 under running water and never immerse it in water.
• For hygienic purposes we recommend that you empty the container and clean the filter after each use.
• The maximum suction effect can only be achieved with a clean HEPA filter and an empty dust container.
• We recommend cleaning the HEPA filter each time when the dust container is emptied.
• When vacuuming very fine dust, the HEPA filter pores may become clogged, which reduces air permeability and the suction performance. In this case, it is required to clean the HEPA filter even when the tank is not full.

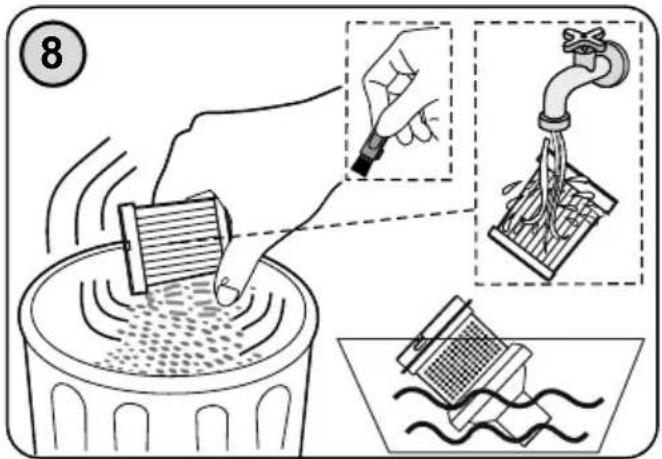

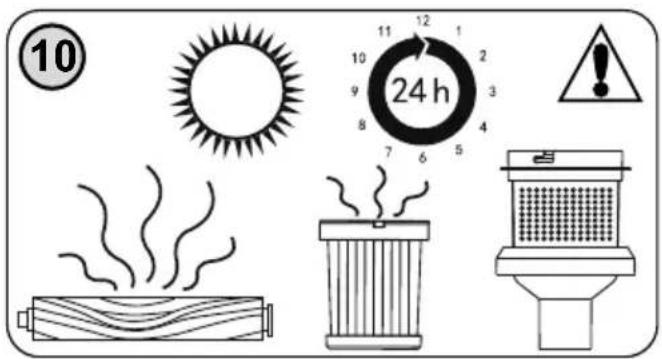

HEPA filter (Fig. 8, 10)

Shake out the input HEPA filter A4 gently, or blow it out. Alternatively, use cleaning tool K to clean it. If the HEPA filter is very dirty, you can rinse it under running lukewarm water. Hold the filter in such a way that the pleated side points upwards and the water flows parallel to the pleats. Hold the filter at an angle so that the water washes away the dirt inside the pleats. Turn the filter 180° and let the water flow along the pleats in the opposite direction. Continue this process until the filter is clean. After drying, insert the HEPA filter back to the container in the opposite way.

Caution

• If you clean the HEPA filter with water, its filtration properties will deteriorate. The filter cannot be washed more than three times. After that, a new filter needs to be purchased.
• We recommend that you replace the HEPA filter twice a year. After that, a new filter needs to be purchased HYUHF938.
  – The HEPA filter is not suitable for washing in the dishwasher.
• Failure to clean or replace the HEPA filter as required may cause a defect of the vacuum cleaner!

Separator (Fig. 8, 10)

Rinse the separator A5 under running water. Allow the parts to dry out properly before their re-use.

Treat surface of the appliance A with a soft and damp cloth, do not use coarse and aggressive detergents!

Accessories E, F

After any vacuuming, it is recommended to check visually the brushes or collectors for possible impurities. If there are some impurities, remove them.

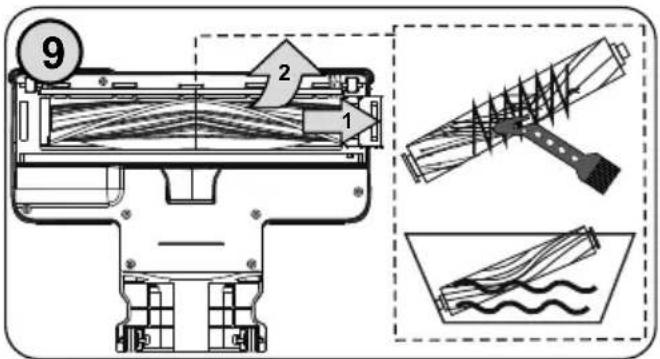

Floor nozzle with rotary brush D

Remove any dirt (especially hair, animal hairs, etc.) stuck to the brush with the cleaning tool K (or other suitable). To make cleaning easier, the brush can be removed (Fig. 9). Now you may easily clean the brush (rinse it in running water). After wash the roller brush, please dry the shaft at end of brush (milky plastic location) with damp cloth to avoid rusting.

After the maintenance, apply a reverse procedure to install the brush in the nozzle and secure it.

Caution

Do not water the floor nozzle D in running water directly, it will damage motor and PCB.

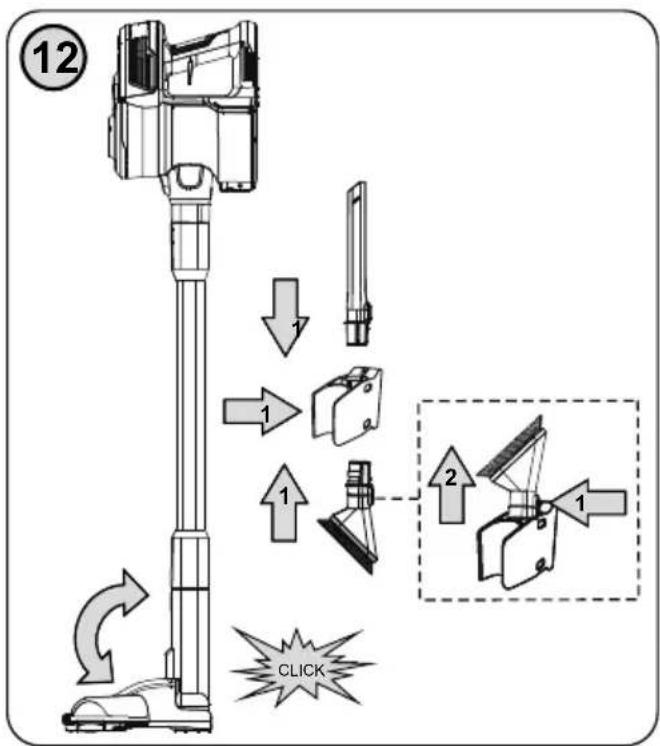

Storage (Fig. 12)

Store the appliance thoroughly clean on a dry, dustless place out of reach of children and persons sui juris. Do not put the assembled rod vacuum cleaner on an uneven surface! The cleaner must be placed on a flat surface where there is no danger of knocking over. Insert one of the accessories (small brush E, long crevice nozzle F) into wall bracket H.

VI. TECHNICAL DATA

Voltage (V) / Input (W) specified on the type label of the appliance

Protection class of the appliance III.

Accumulator 21.6 V Li-Ion

Weight (kg) approx. 1.2

Size of the product (mm) (hand vacuum cleaner) 285 x 117 x 215

Size of the product (mm) (stick vacuum cleaner) 250 x 220 x 1140

Input in off mode is 0.00 W

Acoustic noise level of 78 dB(A) re 1pW

Charging adapter
Manufacturer's name or trademark,business registration number and address	Hyundai
Model identifier RKGSDC2650500
Input voltage	100-240 V (AE)
Input frequency 50/60 Hz
Output voltage	26.5 V (DC)
Output current 0.5 A
Output power 15.5 W
Average efficiency in active mode 86.72 %
Low load efficiency (10%) 74.14 %
Power consumption without load < 0.30 W
Appliance protection class	II.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

The capacity of the product battery decreases over time. Decreasing of battery capacity occurs during normal use of the appliance and is considered usual wear and tear of the appliance. Decreasing battery capacity is not a defect of the appliance.

VII. LEGISLATIVE & ECOLOGY

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION.

THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED

SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The

recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

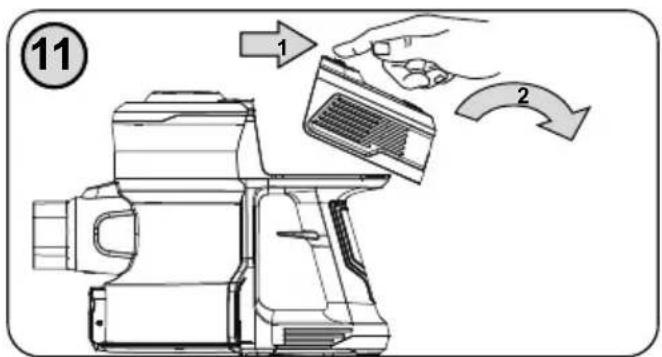

Removing the accumulator

To remove the battery, follow the instructions indicated in Fig. 11. After that, a new accumulator needs to be purchased HYUBP938.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING. - Please read the instructions manual

- Removable power supply unit
