PR 200B - Radio HYUNDAI - Free user manual and instructions

Product Type	Radio
Brand	Hyundai
Model	PR 200B
Dimensions (W x H x D)	Approx. 180 x 120 x 50 mm
Weight	Approx. 0.5 kg
Power Supply	AC 220-240V ~ 50Hz or 4 x AA batteries (not included)
Power Consumption	10 W (max)
Radio Bands	AM / FM
Frequency Range FM	87.5 - 108 MHz
Frequency Range AM	530 - 1600 kHz
Speaker Output	2 W RMS
Tuning Method	Analog dial
Control Type	Rotary knobs for volume, tuning, and band selection
Antenna	Built-in ferrite bar for AM, telescopic rod for FM
Additional Features	Headphone jack (3.5mm), LED power indicator
Cabinet Material	Plastic with simulated wood grain
Cleaning Instructions	Wipe with a soft dry cloth. Do not use chemical solvents.
Safety Precautions	Do not expose to rain or moisture. Keep away from heat sources.
Spare Parts Availability	Contact Hyundai service center for accessories or replacement parts.
Reparability	Repairs should be carried out by qualified personnel only.

Frequently Asked Questions - PR 200B HYUNDAI

How do I switch between AM and FM bands?

Turn the band selector knob to the desired band: AM or FM. A click indicates the band change.

Why is there no sound from the radio?

Check if the power cord is plugged in or batteries are inserted correctly. Also ensure the volume knob is turned up and the headphone jack is empty.

How do I improve FM reception?

Extend the telescopic antenna fully and adjust its angle. Avoid placing the radio near large metal objects.

How do I improve AM reception?

Rotate the entire radio to change the orientation of the built-in ferrite bar antenna. Keep away from electronic devices.

Can I use rechargeable batteries?

Yes, you can use four AA rechargeable batteries. However, note that the radio does not have a built-in charger.

What type of headphones can I use?

Use headphones with a 3.5mm stereo jack. Inserting headphones disables the built-in speaker.

How do I clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Why does the radio hum or produce noise?

Interference from nearby electronics (computers, fluorescent lights) can cause noise. Move the radio away from such devices or change the antenna orientation.

Is the radio safe to use in the bathroom?

No, this radio is not waterproof. Keep it away from water and high humidity to avoid electric shock.

Where can I find spare parts or get repairs?

Contact Hyundai customer support or an authorized service center. Do not attempt to open the radio yourself.

USER MANUAL PR 200B HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

PŘENOSNÉ RÁDIO S BUDÍKEM PRENOSNÉ RÁDIO S BUDÍKOM PRZENOŚNE RADIO Z BUDZIKIEM PORTABLE RADIO WITH ALARM CLOCK HORDOZHATÓ ÉBRESZTŐS RÁDIÓ

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• The appliance is designed exclusively for private use and for the envisaged purpose.
  • This appliance is not fit for commercial use.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis.

Do not use the appliance if it is damaged.

- Do not try to repair the appliance on your own. Always contact an authorized technician.

To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

- Pay careful attention to the following "Special Safety Instructions for this unit".

1. SAFETY

• No naked flame sources such as lighted candles, should be placed on the apparatus.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device will remain readily operable.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Ensure minimum distances around the apparatus for sufficient ventilation.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• Attention should be drawn to the environmental aspects of battery disposal.
• The use of apparatus in moderate climates.
• Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not place the product in closed bookcases or racks without proper ventilation.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the way of use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

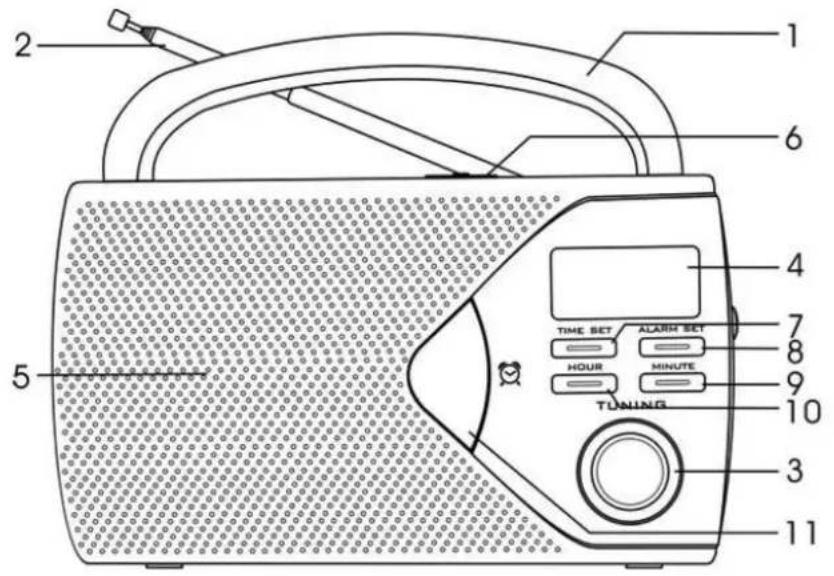

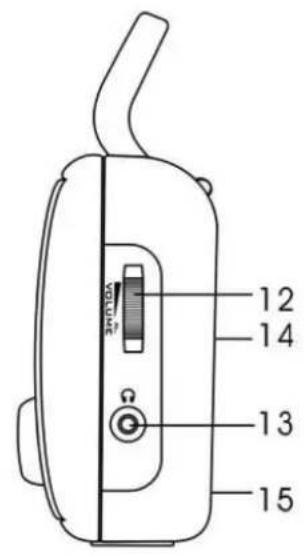

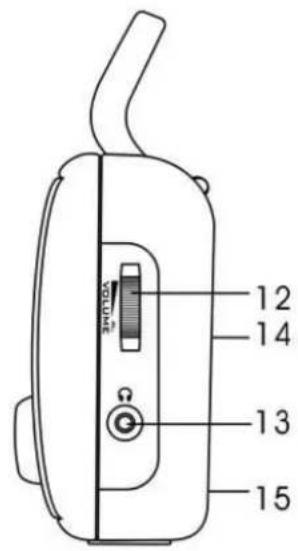

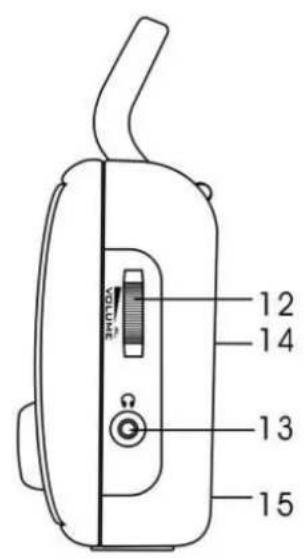

2. PARTS

1) Handle
2) FM antenna (telescopic)
3) Tuning control knob
4) LCD
5) Speaker
6) Waveband selector
7) Time set button

8) Alarm set button
9) Minute set button
10) Hour set button
11) Alarm on/off button
12) Volume control - buzzer knob
13) Headphone jack 🙏

14) AC socket
15) Battery compartment
16) Power cable (not shown)

3.1 To use the appliance with batteries ensure that the AC power cord is NOT inserted into the back of the appliance and install the batteries into the battery compartment (15).
3.2 Lift off the battery compartment cover and insert 4 x Size "C" /UM-2/ LR14 (or equipvalent) 1.5 V heavy duty alkaline batteries in accordance with the diagram in the battery compartment. Take care to observe the correct polarity (+/-).
3.3 Refit the battery compartment cover.

Note

• Dispose of batteries responsibly at local authority household waste recycling facility.
• DO NOT dispose of batteries in a fire as the batteries may explode.
• Only use 'C' 1.5 V batteries in this appliance.
• Be sure to insert correctly taking care to observe the correct polarity (+ and -).
• Use only batteries of the same or equivalent type as recommended.
• Do not recharge non-rechargeable batteries.
• Never mix old and new batteries (replace all batteries at the same time).
• Never try to dismantle batteries.
• Do not short circuit the supply terminals.
  • Always remove exhausted or dead batteries from the product, do not dispose of in fire.
• Remove batteries from the product before extended storage.

4. MAINS OPERATION

Fit the AC power cord into the AC socket (14) at the back of the appliance and plug into the household socket.

5. REAL TIME SETTING

Press the time set button (7) and hour set button (10), or minute set button (9), together, until the correct clock time is displayed.

6. ALARM FUNCTION

6.1 Press the alarm set button (8) and simultaneously press the hour set button (10) or minute set button (9) as appropriate until the required alarm time is reached.
6.2 To double check the alarm time, simply press the alarm set button (8) then the display will show the pre-set alarm time.
6.3 Press the alarm on/off button (11) to activate the alarm (the alarm icon will display).
6.4 Turn the volume control – buzzer knob (12) fully downward until hear a “click” sound to select the BUZZ function.
6.5 The alarm tone will switch on automatically at the pre-set alarm time.
6.6 To switch off the alarm simply press the alarm on/off button (11) once.
6.7 To activate the alarm again, press the alarm on/off button (11) until the alarm icon is displayed.

7. USING THE RADIO

7.1 Turn the volume control - buzzer knob (12) upward to switch the radio on.
7.2 Set the waveband selector (6) to the required waveband.
7.3 Turn the tuning control knob (3) to select the frequency.
The current radio frequency will display.
7.4 Adjust the volume to the desired level by rotating the volume control - buzzer knob (12).
7.5 To turn off the radio, turn the volume control – buzzer knob (12) downward until a “click” sound is heard.

Note

- The built-in AM and the external FM antennas are directional. If tuning into a FM station extend or move the antenna (2) for a better reception. If tuning into an AM station rotate the whole unit after tuning to obtain the best reception.

8. USING HEADPHONES (NOT INCLUDED)

A headphone jack has been provided so that the set can be used without disturbing others. Plug in the 3.5 mm headphones at the point marked 📊 Turn the listening volume to the lowest setting before adjusting the volume up to your chosen level. Excessive sound pressure from earphones and headphones can cause hearing loss. The speakers will not operate when headphones are fitted.

9. CARE AND MAINTENANCE

Wipe external surfaces with a soft cloth. If the casing is very dirty, unplug from the mains supply and use a damp cloth soaked in a weak solution of washing up liquid and water. Allow to dry thoroughly before reusing.

10. TECHNICAL SPECIFICATION

Rated voltage 230 V \~ 50 Hz

Batteries 4 x 1.5 V Battery size "C"/UM-2/LR14 (not included)

Radio frequency AM 522 – 1620 kHz

FM 87,5 - 108 MHz

Standby Power Consumption < 1 W

Weight (NET) 580 g

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A

QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will

help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type PR200 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.hyundai-electronics.cz/declaration_of_conformity
