RAZE ORIGIN 5 - Speaker Niceboy - Free user manual and instructions

Product Type	Wireless Speaker
Brand	Niceboy
Model	RAZE ORIGIN 5
Bluetooth Version	5.3
Frequency Band	2.4 GHz
Radiofrequency Power	≤ 2.5 mW
Transmission Range	10 meters
Supported Codecs	SBC
Supported Profiles	A2DP, AVRCP, HFP
Power Output	20 W
Impedance	4 Ω
Sensitivity	>85 dB
Frequency Range	55 Hz - 20 kHz
Battery	2x Li-Ion 1200 mAh (total 2400 mAh)
Battery Life	20 hours (at 50% volume)
Charging Time	Approximately 3 hours
Waterproof Rating	IPX7
Supported Storage	USB flash drive, micro SD card (max 32 GB)
Supported Audio Formats	MP3, WAV, WMA
Inputs	USB-C (charging), AUX 3.5mm, micro SD, USB-A (for flash drive)
Playback Controls	On/Off/Light mode button, Volume +/- , Playback/Pause/Call button, Mode/TWS button
Lighting Modes	Multiple color modes switchable via button (1)
True Wireless Stereo (TWS)	Pair two speakers for stereo sound
Auto-Off	After 10 minutes of inactivity
Microphone	Built-in for hands-free calls
Package Contents	Speaker, USB-C charging cable, audio cable, instruction manual
Charging Input	5V, at least 1A
Safety Features	Overcharge protection, auto-off, IPX7 waterproof

Frequently Asked Questions - RAZE ORIGIN 5 Niceboy

How do I turn on the Niceboy RAZE Origin 5 speaker?

Press and hold the On/Off button (1) for 3 seconds. The speaker will turn on and enter pairing mode.

How do I connect the speaker to my phone via Bluetooth?

Turn on the speaker (press and hold button 1). It will automatically enter pairing mode (blue LED flashes). On your phone, enable Bluetooth and select "Niceboy RAZE Origin 5" from the list. A tone confirms successful pairing.

How do I charge the speaker and how long does it take?

Use the supplied USB-C cable to connect the speaker to a USB charger (5V, at least 1A) or a computer. Charging takes approximately 3 hours. The LED turns off when fully charged.

Can I connect two RAZE Origin 5 speakers together?

Yes, use TWS (True Wireless Stereo) mode. Turn on both speakers and ensure they are not connected to any device. Double-press the M button (7) on one speaker. When the orange LED flashes, the speakers pair. Then connect your phone to one speaker via Bluetooth.

How do I play music from a micro SD card or USB flash drive?

Insert the card or drive into the corresponding slot (micro SD slot or USB-A port). The speaker will automatically switch to that mode. Use the play/pause button (4) and volume buttons to control playback. Supported formats: MP3, WAV, WMA. Maximum capacity: 32 GB.

What is the battery life and is the speaker waterproof?

At 50% volume, the battery lasts up to 20 hours. Charge via USB-C. The speaker has IPX7 waterproof rating, meaning it can withstand immersion in water up to 1 meter for 30 minutes.

How do I answer or reject calls using the speaker?

Press the multi-function button (4) once to answer a call. Press again to end it. To reject an incoming call, long-press the same button. Double-press to redial the last number.

How do I change the lighting mode?

Press the On/Off/Light mode button (1) to cycle through different color modes. Note that active lighting increases power consumption.

How do I reset the speaker to factory settings?

With the speaker on, press and hold the On/Off button (1) for 8 seconds. The speaker will turn off and then on again, indicating a reset.

What should I do if the speaker doesn't connect or has issues?

First, try a factory reset (see above). Ensure Bluetooth is enabled on your device and the speaker is not connected to another device. For playback issues, check that the audio source is working and the volume is up. If problems persist, refer to the manual or contact support.

USER MANUAL RAZE ORIGIN 5 Niceboy

User Manual / Wireless Speaker

CZ

OBSAH BALENÍ

ZAPNUTÍ/VYPNUTÍ

ZAPNUTIE/VYPNUTIE

USB-C charging cable

Audio cable

Instruction manual

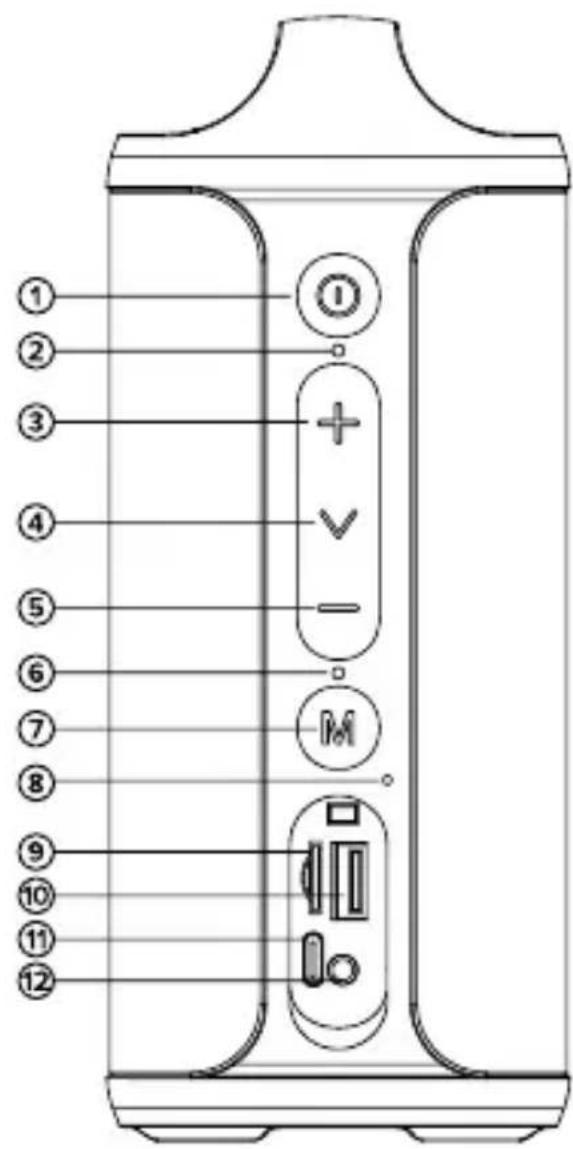

PRODUCT DESCRIPTION

1. On / off / light mode button
2. Operating LED indicator
3. Volume increase button
4. Playback / Pause / Accept / End / reject a call / the last number called
5. Volume decrease button
6. LED charging indicator
7. Change mode / TWS mode
8. Microphone
9. Input for micro SD card
10. Charging USB - output, input for USB flash drive
11. Charging USB-C input
12. AUX input for 3.5 mm jack

CHARGING

We recommend that you fully charge the speaker before using it for the first time to maximize battery life. A full charging takes approximately 3 hours. Low battery is indicated by an audio signal. To charge the speaker's battery, plug the supplied USB-C cable into the charging port (11) and connect it to any charging adapter (5 V voltage and at least 1 A output current) or to a USB port in a PC. Charging is indicated by a red charging LED (6); the LED turns off once the battery is fully charged.

POWER ON / OFF

To turn the speaker on or off, press and hold button (1) for 3 seconds.

*If the speaker is left inactive, it will turn off automatically after 10 minutes to save power.

CONNECTING TO A DEVICE

1. Press and hold the on/off button (1) for 3 seconds to turn the speaker on. The speaker is now in pairing mode for wireless connectivity. Pairing mode is indicated by the flashing of the blue operating LED (2).

2. Activate Bluetooth on your device. Select "Niceboy RAZE Origin 5" in the list of available devices.

3. The device will connect to the speaker. A successful pairing is indicated by a tone and the blue operating LED (2) lighting up.

*When switched on again, the speaker automatically connects to the last paired device.

*End pairing by long-pressing button "M" (7).

PLAYBACK

To start or pause a track, short-press button (4). Control the volume by short-pressing button (3) or (5). Long-pressing button (3) or (5) skips to the next or previous track.

AUX MODE

1. Plug the enclosed 3.5 mm jack cable into the audio port (12); the speaker will automatically switch to the corresponding mode.

2. Control what music the speaker plays using the device the speaker is connected to. Control the speaker's volume by short-pressing button (3) or (5). Long-pressing button (3) or (5) skips to the next or previous track.

USB FLASH DRIVE AND MICRO SD CARD

Insert a data storage device into the corresponding port (9), (10).

The speaker automatically switches to playback mode, indicated by a tone.

To start or pause a track, short-press button (4). Control the volume by short-pressing button (3) or (5). Long-pressing button (3) or (5) skips to the next or previous track.

*The device supports data storage devices with a maximum capacity of 32 GB and MP3, WAV, WMA audio format.

PHONE CALLS

To answer and afterwards end a phone call, press button (4). Long-press the same button to reject an incoming call. Press the button twice to redial the last number called.

LIGHTING MODES

Pressing button (1) switches between individual colour modes. Note: Power consumption increases when a lighting mode is active.

TRUE WIRELESS (TWS) CONNECTION

Using True Wireless (TWS) technology, you can connect two Niceboy RAZE Origin 5 speakers and play music simultaneously in stereo.

1. Turn on both speakers and make sure they are not connected to any Bluetooth device (cell phone, laptop, etc.).
2. Double-press the M button (7) on one of the speakers to start speaker pairing. This is indicated by the orange flashing operation LED (2). An acoustic signal announces the successful completion of the speaker connection.
3. Now you can open the Bluetooth settings of your device. Then select „Niceboy RAZE Origin 5“ in the list of available devices. Successful pairing will be announced by an acoustic signal.

You can exit TWS mode by double-pressing the M button again.

FACTORY SETTINGS

In case of technical problems, reset the speaker to factory settings. The speaker must be turned on. Press and hold button (1) for 8 seconds. The speaker will turn off then back on again. The reset is now complete.

PARAMETERS

BT version: 5.3
Frequency band: 2.4 GHz
Radiofrequency power: ≤ 2.5 mW
Transmission range: 10 meters
Supported codecs: SBC
Supported profiles: A2DP, AVRCP, HFP
Power output: 20 W
Impedance: 4 Ω
Sensitivity: >85 dB

Frequency range: 55 Hz - 20 kHz

Supported data storage devices: USB flash drive, micro SD card, max. 32 GB

Supported audio formats: MP3, WAV, WMA

Battery: 2x Li-Ion 1200 mAh

Battery life: 20 hours (at 50% volume)

Waterproofness: IPX7

SAFETY INFORMATION

Listening to music at very high volume can damage your hearing. Do not expose the device to fluids or humidity. Do not expose the device to extreme temperatures or try to disassemble it. Protect the device from sharp objects and falls from height. Batteries – improper handling (prolonged charging, short circuit, breakage by other objects, etc.) may result in fire, overheating or battery leakage.

The battery or accumulator that may be included with the product has a service life of six months, as it is a consumable. The manual is available for download in electronic form at www.niceboy.eu in the support section. NICEBOY s.r.o. hereby declares that radio device type Niceboy RAZE Origin 5 complies with Directives 2014/53/EU, 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full EU Declaration of Conformity is available at the following website: https://niceboy.eu/en/declaration/raze-origin-5

INFORMATION FOR USERS ON DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT (HOUSEHOLDS)

The above symbol on the product or accompanying documentation means that used up electrical or electronic products must not be disposed of as communal waste. To dispose of the product correctly, bring it to designated waste collection points, where it will be disposed of free of charge. Proper disposal of the product helps preserve valuable natural resources and prevent potential negative impact on the environment and human health caused by improper waste disposal. For more information, contact local authorities or the nearest waste collection point. Improper disposal of this type of waste may result in a fine pursuant to national legislation.

Information for Users on Disposal of Electrical and Electronic Equipment (Corporate Use) To properly dispose of electrical and electronic equipment for corporate use, contact the manufacturer or importer of the product. They will provide you information on disposal methods for the product and will inform you on who is obligated to fund the disposal of the electrical device based on the date the product was put on the market. Information on Disposal in Countries outside the European Union. The above symbol only applies in EU countries. To properly dispose of electrical and electronic equipment, request more information from your local authority or the seller of the product.

DE

LIEFERUMFANG

Drahtloser Lautsprecher Niceboy RAZE Origin 5

USB-C-Ladekabel

Audiokabel

Bedienungsanleitung

PRODUKTBESCHREIBUNG

TÖLTÉS

https://niceboy.eu/hu/declaration/raze-origin-5

FELHASZNÁLÓI TÁJÉKOZTATÓ ELEKTROMOS ÉS ELEKTRONIKUS BERENDEZÉSEK ÁRTALMATLANÍTÁSÁRÓL (HÁZTARTÁSOK)

UKLJUČIVANJE/ISKLJUČIVANJE

Za uključivanje ili isključivanje zvučnika pritisnite i držite gumb (1) u trajanju od 3 sekunde. *Ako zvučnik ostane neaktivan, automatski će se isključiti nakon 10 minuta radi uštede energije.

POVEZIVANJE S UREĐAJEM

1. Za uključivanje zvučnika pritisnite i držite gumb (1) u trajanju od 3 sekunde. Zvučnik je sada u načinu uparivanja za bežično povezivanje. Način uparivanja označen je treperenjem LED diode.(2).

2. Uključite Bluetooth na uređaju. Odaberite „Niceboy RAZE Origin 5” na popisu dostupnih uređaja.

3. Uređaj će se spojiti sa zvučnikom. Uspješno uparivanje označeno je zvučnim tonom i uključivanjem radne LED diode plave boje (2).

*Kada se ponovno uključi, zvučnik se automatski povezuje sa zadnjim uparenim uređajem.

*Završite uparivanje dugim pritiskom na tipku „M“ (7)

REPRODUKCIJA ZVUKA

Pjesmu možete započeti ili pauzirati kratkim pritiskom na tipku (4). Glasnoćom upravljate kratkim pritiskom tipki (3) i (5). Pritisnite i držite tipke (3) i (5) za prebacivanje na sljedeću ili prethodnu pjesmu.

NAČIN RADA AUX

1. Umetnite priloženi 3,5 mm jack kabel u audio ulaz (12) i zvučnik će se automatski prebaciti na odgovarajući način rada.

2. Koristite uređaj na koji šte spojili zvučnik za upravljanje glazbom koja se reproducira.

Glasnoćom zvučnika možete upravljati kratkim pritiskom tipki (3) i (5). Pritisnite i držite tipke (3) i (5) za prebacivanje na sljedeću ili prethodnu pjesmu.

USB IZBRISIVI MEMORIJSKI POGON I MICRO SD KARTICA

Umetnite memorijski uređaj u odgovarajući priključak (9), (10).

Zvučnik će se automatski prebaciti u način rada za reprodukciju, što će biti najavljeno zvučnim signalom. Pjesmu možete započeti ili pauzirati kratkim pritiskom na tipku (4). Glasnoćom zvučnika možete upravljati kratkim pritiskom tipki (3) i (5). Pritisnite i držite tipke (3) i (5) za prebacivanje na sljedeću ili prethodnu pjesmu.

*Uređaj podržava nosače podataka s maksimalnim kapacitetom od 32GB i audio format MP3, WAV, WMA.

TELEFONSKI POZIVI

Da biste odgovorili i nakon toga završili telefonski poziv, pritisnite gumb (4). Dugim pritiskom pritisnite isti gumb za odbijanje dolaznog poziva. Dva puta pritisnite gumb za ponovno biranje posljednjeg pozvanog broja.

NAČINI OSVJETLJENJA

Pritiskom gumba (1) prelazi između pojedinačnih načina boja.

ŁADOWANIE

VKLOP/IZKLOP

PRAVA BREZŽIČNA POVEZAVA (TWS)

ÎNCĂRCAREA

Codecuri acceptate: SBC

Profiluri acceptate: A2DP, AVRCP, HFP

Putere de ieşire: 20 W

Impedanță: 4 Ω

Sensibilitate: >85 dB

Formate audio acceptate: MP3, WAV, WMA

Baterie: 2x Li-Ion 1200 mAh

Durata de viață a bateriei: 20 ore (la volum 50%)

LADDNINGENS

Praha 4, Czech Republic, ID: 294 16 876.

Made in China.
