USER MANUAL UNI-T UT377A Clas Ohlson

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

This product is intended for indoor use only.

• Never use the product if you suspect any type of electrical fault or short-circuit in the test area. Electric shocks can damage the product, cause personal injury and damage property.
• The product must not be used in environments where explosive gases are used, stored or handled.
• Do not expose the product to rain, impacts or vibrations during use or transport.
• Do not leave the product in direct sunlight for long periods.
• Remove the batteries if the product is not to be used for a long time. If left in the product, the batteries could leak and cause damage.
• The electrode pins on the product are very sharp. Never let children use the product.
• The protective cap should always be fitted whenever the product is not in use.
• Using the product close to strong magnetic fields can lead to false readings.
• Inspect the electrode pins for any damage before every measurement.

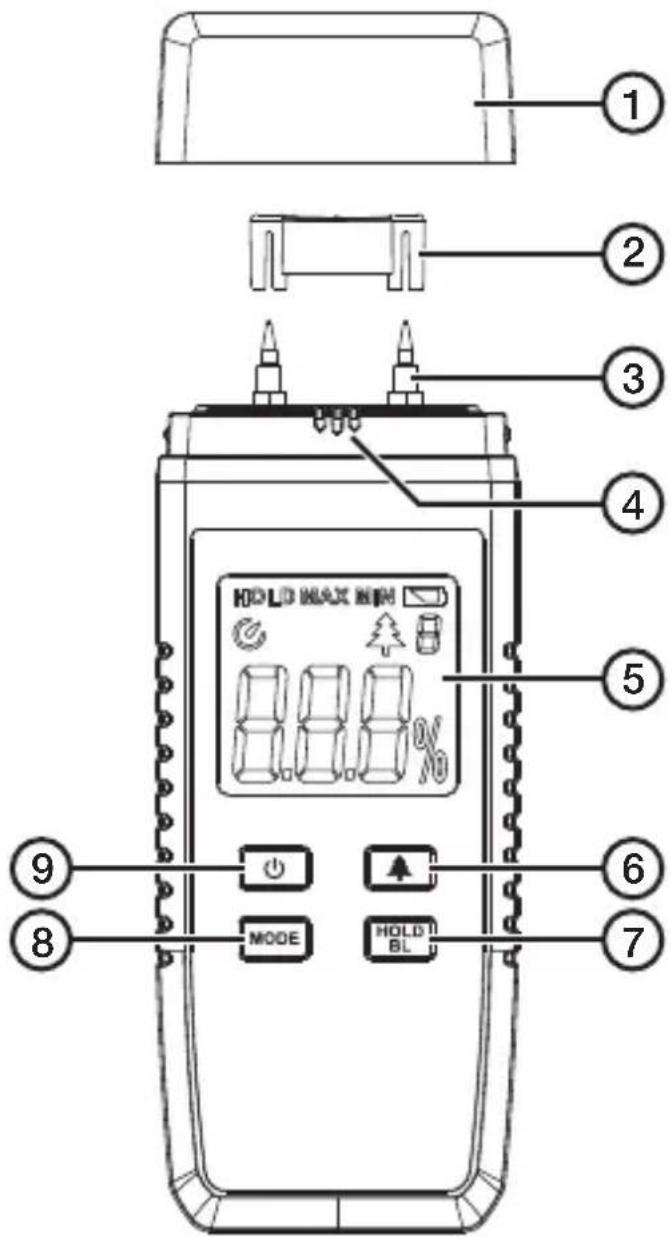

Buttons and functions

English

1. Protective cap
2. Electrode pin guard
3. Electrode pins
4. Temperature sensor
5. Display
6. [ ] Wood selector
7. [HOLD/BL] Press to hold a reading, hold in to turn on the backlight
8. [MODE] Press to switch measuring function, hold in to switch the automatic shut-off function on/off
9. [On/off

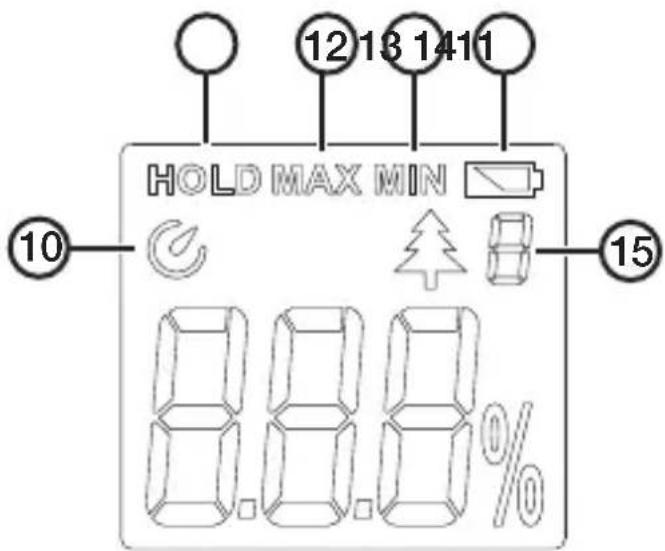

Display

1. Automatic shut-off indicator
2. Held reading indicator
3. Max measurement method
4. Min measurement method
5. Low battery warning
6. Material type (refer to the table)

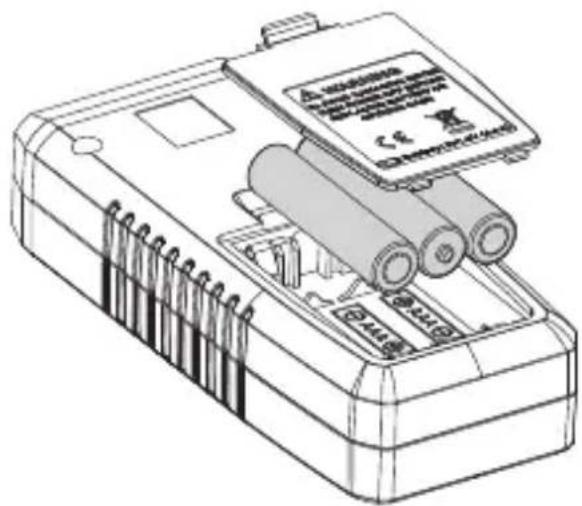

Instructions for use Inserting batteries

Technical line drawing of an electronic device with cylindrical components and a label (no readable text or symbols)

1. Remove the battery cover.
2. Insert 3 × AAA/LR03 batteries. Observe the markings in the battery compartment to ensure correct polarity.
3. Refit the battery cover.

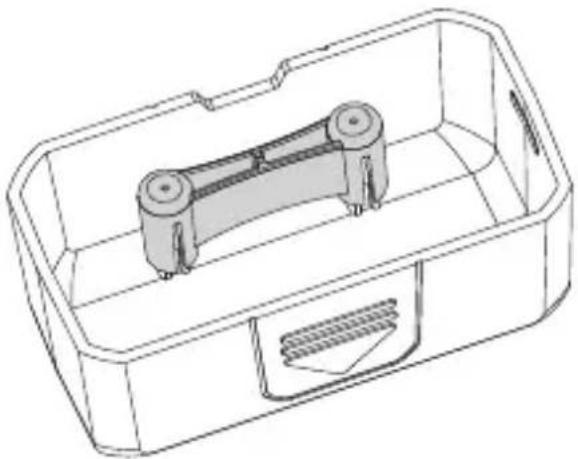

Removing the protective cap and electrode guard

Technical line drawing of a mechanical component inside a rectangular housing (no text or symbols)

English

1. Take of the protective cap.
2. Remove the electrode pin guard (2).
   Place the electrode guard into the protective cap so it does not become misplaced.

Switching on/off

Hold in [⏻] to switch the meter on/off.

Choosing the material

Press [▲] the required number of times to select the type of wood to be measured.

Wood
Afromosia 1
Brazilian walnut 1
Rhodesian teak 1
Walnut 2
Teak 2
Spruce 3
Oak 3
Birch 4
Larch 4
Pine 4

Selecting the measuring method

MAX - displays the highest measured value

1. Press [MODE] repeatedly until "MAX" appears on the display.
2. Press the electrodes into the material to be tested.

MIN - displays the lowest measured value

1. Press the electrodes into the material to be tested.
2. Press [MODE] repeatedly until "MIN" appears on the display.

Standard method – continuously displays the current reading

1. Press [MODE] repeatedly until neither "MAX" nor "MIN" appears on the display.
2. Press the electrodes into the material to be tested.

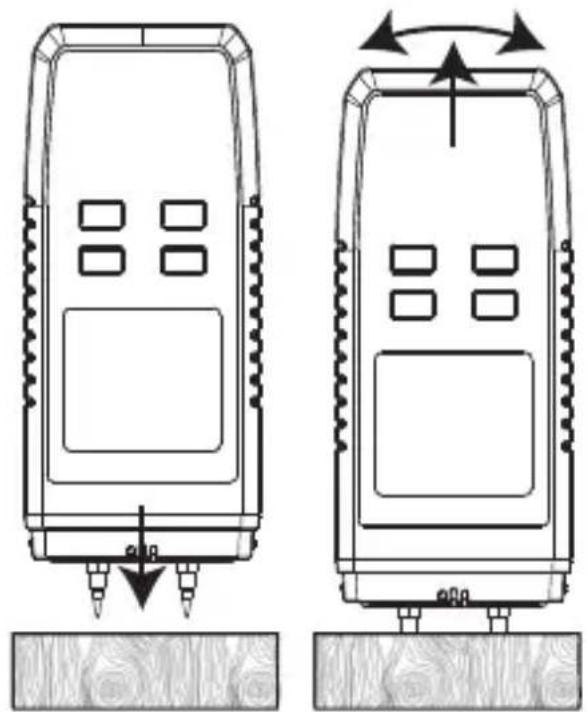

Note:

• Regardless which method you use, multiple readings should be taken from several points on the test object to get a representative picture of the moisture content.
• Make sure that the electrode pins are not bent. Press the electrodes straight into the test material and wiggle the meter carefully when extracting the electrodes after the measurement has been taken.

Technical line drawing of two electronic devices with mounting holes and a wooden base, showing internal components and directional arrows (no text or symbols)

Care and maintenance

Clean the product by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Measuring range 2–40 %

Accuracy ± 2.0 %

Operating temperature 0–40 °C

Batteries 3 × AAA/LR03 batteries (sold separately)

Dimensions 135 × 51 × 30 mm

Weight 130 g (including batteries)

Fuktkvotsmätare

Art.nr 36-7744 Modell UT377A

Svenska

Technical line drawing of an electronic device with cylindrical components and a label (no readable text or symbols)

Technical line drawing of a mechanical component inside a rectangular housing (no text or symbols)

Technical line drawing of two electronic devices with mounting holes and directional arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Svenska

Specifikationer

Mätområde 2–40 %

Noggrannhet ± 2.0 %

Norsk

Technical line drawing of an electronic device with cylindrical components and a label (no readable text or symbols)

Technical line drawing of a mechanical component inside a rectangular housing (no text or symbols)

1. Ta av lokket på måleren.
2. Ta av beskyttelsen over stiftene (2). Plasser beskyttelsen i lokket så du ikke mister det.

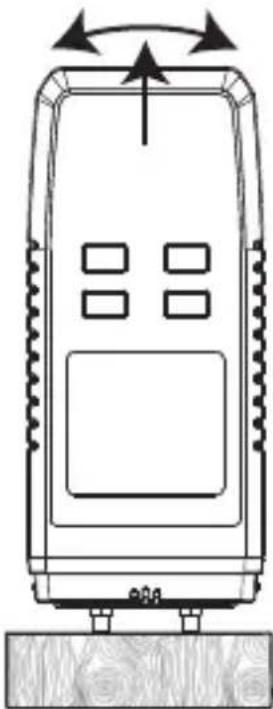

På/av

Technical line drawing of a device with four ports and a base panel, no text or symbols present

Line drawing of a device with four ports and directional arrows indicating motion (no text or symbols)

Vedlikehold

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Måleområde 2–40 %

Nøyaktighet ± 2.0 %

Brukstemperatur 0–40 °C

Batterier 3 × AAA/LR03-batterier (selges separat)

Mål 135 × 51 × 30 mm

Vekt 130 g (inkl. batterier)

Kosteusmittari

Tuotenro 36-7744 Malli UT377A

sumi

Technical line drawing of a mechanical device with cylindrical components and a label (no readable text or symbols)

Technical line drawing of a mechanical component inside a rectangular housing (no text or symbols)

Technical line drawing of two electronic devices with mounting holes and a wooden base (no text or symbols)

Huelto ja ylläpito

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Tekniset tiedot

Mittausalue 2–40 %

Tarkkuus ± 2.0 %

Deutsch

Technical line drawing of a mechanical device with rollers and a label (no readable text or symbols)

Technical line drawing of a mechanical component inside a rectangular housing (no text or symbols)

Technical line drawing of two identical electronic devices with mounting base and side-mounted ports, no text or symbols present.

Pflege und Wartung

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten

Messbereich 2–40 %

Genauigkeit ± 2.0 %
