| Product Type | 2.0CH TV Soundbar |
| Brand | GoGen |
| Model | TAS 930 |
| Dimensions (L x D x H) | 99 x 6.1 x 6.0 cm |
| Cabinet Material | ABS Plastic (Crack Resistant) |
| Power Input | AC 100-240V |
| Power Output (Adapter) | DC 18V, 1.3A |
| Power Rating | 40W |
| Channels | 2.0 |
| Speakers | 4 x 2.0" Full Range (90 - 16000 Hz) |
| Bluetooth Version | V 5.0 |
| Bluetooth Operation Frequency | 2402 - 2480 MHz |
| Max. Bluetooth Output Power | -3.67 dBm |
| Inputs | LINE IN, USB, OPTICAL, HDMI ARC (CEC), Bluetooth |
| Other Functions | FM Radio (87.5 - 108.0 MHz), Display (4-digit red) |
| Remote Control Range | Approx. 8 meters, 30° angle |
| Package Includes | Soundbar, Adapter, Remote with AAA Batteries, Line-in Cable, RCA Cable, Manual |
| Safety | Do not use near water; unplug during thunderstorms; replace batteries with same type |
| Cleaning | Unplug adapter, clean with dry cloth only |
| Disposal | Recycle according to local regulations; not household waste |
Frequently Asked Questions - TAS 930 GoGen
User questions about TAS 930 GoGen
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Soundbar Accessories in PDF format for free! Find your manual TAS 930 - GoGen and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TAS 930 by GoGen.
USER MANUAL TAS 930 GoGen
TAS 930
FM ANT - kabel antény FM
HDMI ARC (CEC) - HDMI vstup
DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY
Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.
PACKAGE INCLUDE
2.0CH TV Soundbar, Adapter, Remote control With AAA Batteries, Line in Cable, RCA Cable, Manual
IMPORTANT SAFETY INSTRUCTIONS
This product was designed and manufactured to meet strict quality and safety standards. However, there are some operation precautions that you should be aware of.
- Heed all warnings and follow all instructions.
- Do not use this soundbar near water.
- Clean the unit only with dry cloth. Unplug the AC adaptor before cleaning.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Use only attachments / accessories specified by the manufacturer.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit the soundbar.
- Remote the AC adaptor from the power source when the unit is to be not for a long period of time or during thunderstorms.
- Refer all servicing to qualified service personnel. Servicing is required when the soundbar has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the soundbar, it has been exposed to rain or moisture, it does not operate normally, or it has been dropped.
WARNINGS AND PRECAUTIONS
- To reduce the risk of electric shock, do not remove cover (or back). There are no user-serviceable parts inside.
- Do not expose the soundbar to dripping or splashing liquids. Do not place objects filled with liquids (such as vases) on the soundbar.
- The mains plug is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To completely disconnect the soundbar from supply mains, the main plug of the product shall be disconnected from the mains socket outlet completely.
- Using the soundbar near fluorescent lighting may cause interference with the remote. If the soundbar is behaving erratically, move away from any fluorescent lighting.
WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
The lightning flash is intended to alert the user to the presence of dangerous voltage within the product's enclosure, and touching the internal components may result in a risk of electric shock to persons.
The exclamatory mark is intended to alert the user to the presence of important operating instructions.
ON DEVICE CONTROLS / INPUTS

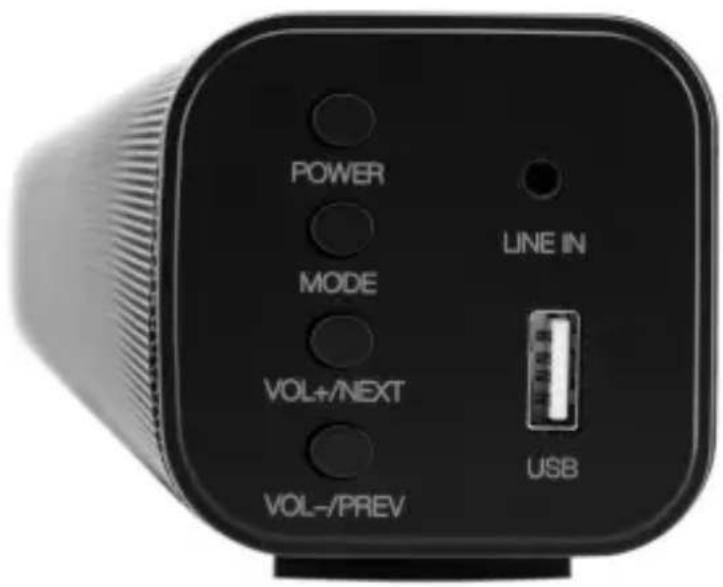

SIDE CONTROL PANEL
POWER - Press to switch on/off the unit.
MODE - Press repeatedly to switch among FM TUNER, HDMI ARC, LINE IN, USB, BLUETOOTH, OPTICAL mode.
VOL+/NEXT - Short press to skip to the next track. Long press to turn up the volume.
VOL-/PREV - Short press to skip to the previous track. Long press to turn down the volume.
LINE IN input
USB input

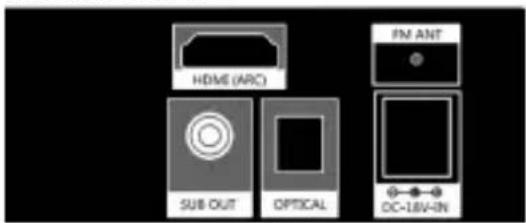

REAR PANEL
FM ANT - antenna cable
HDMI ARC (CEC) - HDMI input
OPTICAL - Digital audio input
SUB OUT - Subwoofer output
DC IN - Connect DC adapter to power on the device

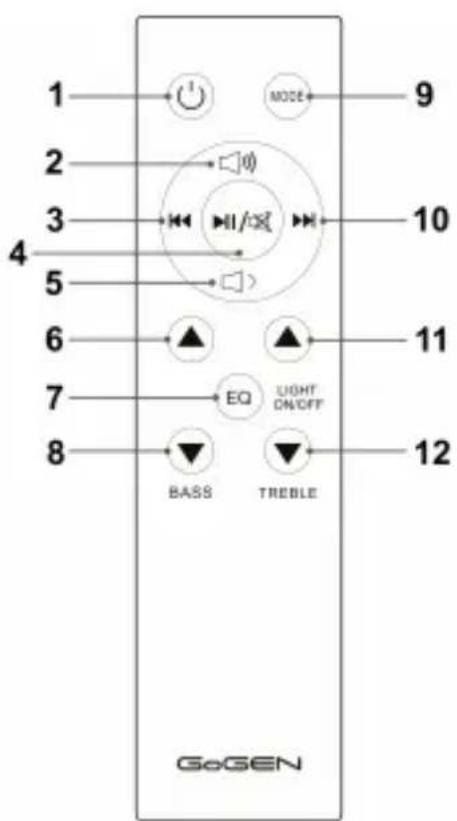

REMOTE CONTROL
- Power on/off
- Volume up
- Previous song
- Play/Pause or Mute
- Volume down
- Increase bass
- Short press to enter EQ mode Long press to power on/off LED display
- Decrease bass
- Mode
- Next song
- Increase treble
- Decrease treble
Install the batteries into the remote control.
- Open the battery compartment by sliding the cover back.
- Insert the new battery as pictured making you have observed the correct polarity.
- Close the battery compartment.
Point the remote control at the remote control sensor on the front panel.
The remote control works with in a distance of about 8 meters from the sensor and within an angle of about 30 degrees from the left and right side.
NOTE:
Remote the batteries when you don't intend to use the remote control for a long time.
Do not mix new and used batteries, or different types of batteries.
Weak batteries can leak and severely damage the remote control.
Be environmentally friendly and dispose of batteries according to your government regulations.
USAGE CONNECTION
OPTICAL digital audio input > OPL
Connect the Digital Optical Audio cable (not included) to the optical output on the audio source and to the Optical Input on the soundbar.
Press the MODE button on the remote control to switch to Optical mode or press the MODE button on the main unit repeatedly to select the Optical mode.
Using the remote control on your connected device, make sure the audio settings are set to PCM or optical Audio and are turned On. Audio from the connected audio source will now be played through the speakers.
• HDMI ARC (CEC) > ArC
Connect the ARC Audio cable (not included) to the ARC output on the audio source and to the ARC Input on the soundbar.
Press the MODE button on the remote control to switch to ARC mode or press the MODE button on the main unit repeatedly to select the ARC mode.
Using the remote control on your connected device, make sure the audio settings are set to ARC or HDMI Audio and are turned on. Audio from the connected audio source will now be played through the speakers.
HDMI CEC - This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.
NOTE: If the TV is connected to the soundbar system with an HDMI or optical cable, the sound may be delayed due to the audio processing delays in the soundbar.
Bluetooth connection > BLUE
Press the MODE button on the remote control to switch to BLUETOOTH mode or press the MODE button on the main unit repeatedly to select the BLUETOOTH mode, the BT symbol on main unit will flash quickly. Activate Bluetooth of mobile device and search for soundbar name "GoGEN TAS 930" then connect it. The BT symbol stops twinkling and atone sounds after successful pairing.
NOTE: Do not connect the TV to the soundbar via Bluetooth due to sound delays.
USB Mode
Insert the USB stick with the MP3 music tracks into the socket marked „USB“ on the side of the soundbar. Press the MODE button until the soundbar switches to the USB mode. Then you can enjoy your favorite music in the soundbar.
FM Radio
Press the MODE button until the speaker enters FM mode to tune into your favorite radio stations both indoors and out. Short press the Play/Pause button to auto scan up to 10 preset stations. To scroll a specific preset station, use the arrow keys ◀ and ▶ in FM mode.
LINE IN > LINE
After turning on the soundbar and Press the MODE button until soundbar switches to the Line in mode. Use the provided Line in cable (3,5mm) or RCA cable (3,5mm) to direct connect smart phone, tablets, and other music devices. Now enjoy your music tour.
SPECIFICATIONS
| Power input AC 100-240V | |
| Power output DC 18V | |
| Power rating 40 W | |
| Channel 2.0 CH | |
| Bluetooth version V 5.0 | |
| BT Operation Frequency 2402 – 2480 MHz | |
| Max. BT output power -3,67 dBm | |
| Speaker 4 x 2.0" Full range speaker, 90 - 16000 Hz | |
| Audio Input LINE IN / USB / OPTICAL / HDMI ARC (CEC) / Bluetooth | |
| Other include FM Radio, FM range | 87,5 – 108,0 MHz |
| Display 4-digit in red | |
| Soundbar dimension L 99 x D 6,1 x H 6,0 cm | |
| Cabinet material ABS Plastic (Crack resistant) | |
WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.
TROUBLE SHOOTING
| Problems Possible causes / measures Solution | ||
| No power | ·The unit is not connected to the power supply or the power cable is not properly connected to the outlet. | ·Make sure the unit is connected to the power supply. Try connecting the cable to a different outlet |
| No sound or distorted sound | ·The audio cables aren't properly connected.·The volume is set to the minimum level·The sound is switched off | ·Confirm that the audio cables are connected properly in the correct inputs.·Turn up the Volume.·Press MUTE on the remote control to switch on the sound.·Press Play/Pause. |
| The buttons on the unit are not working. | ·The unit is being interfered with static electricity etc. | ·Switch off and unplug the unit. Then connect the plug to the power supply and switch on again. |
| The IR remote control is not functioning properly. | ·Check to make sure that there are batteries inside and that they installed properly.·The batteries installed are depleted and in need of replacement.·The remote sensor is obstructed or the remote control is not pointed to the remote sensor.·The remote control is out of its operating range.·The unit is powered off. | ·Install 2 AAA/1.5V batteries in it.·Replace the batteries with new ones.·Remove any obstructions and make sure that the remote control is pointed at the remote control sensor.·Make sure the remote control is within the operating range.·Switch off the unit and disconnect it from the AC outlet. Then power the unit on again |
WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.
TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
Disposal of old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Hereby, ETA a.s. declares that the radio equipment type TAS930 s in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity
FM ANT - antennakábel
HDMI ARC (CEC) - HDMI bemenet
| EN - English | ||
| Charging adapter | ||
| A | Manufacturer's name or trademark, business registration number and address | SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY., LTD.Commercial registration#: 91440300053998927W2 floor, 41 TianSheng Road, TianLiao village, GongMing Street, Guangming, Shenzhen, Guangdong, P.R. China |
| B | Model identifier GKYZD0130180EU | |
| C | Input voltage 100 - 240V (AC) | |
| D | Input frequency 50/60 Hz | |
| E | Output voltage 18 V (DC) | |
| F | Output current 1,3 A | |
| G | Output power 23,4 W | |
| H | Average efficiency in active mode 86,68 % | |
| I | Low load efficiency (10%) 76,23 % | |
| J | Power consumption without load 0,08 W | |
