HB 200 - Blender HYUNDAI - Free user manual and instructions

Product Type	Stick Blender (Immersion Blender)
Brand	Hyundai
Model	HB 200
Input Power	Refer to type label (variable)
Voltage	Refer to type label (e.g., 220-240 V)
Protection Class	II
Noise Level	85 dB(A) re 1 pW
Max Continuous Operation	60 seconds
Cool-Down Time Between Cycles	10 minutes
Maximum Food Temperature	Approximately 60 °C
Maximum Capacity (Recommended)	100 – 600 ml
Blender Shaft Material	Plastic (food-grade)
Safety Button	Push-to-run operation
Power Cord Attachment	Fixed, non-detachable
Input in Off Mode	≤ 0.5 W
Cleaning Motor Unit	Wipe with damp cloth; do not immerse
Cleaning Blender Shaft	Wash in hot soapy water; rinse and dry
Dishwasher Safe	No
Intended Use	Household only; not commercial
Suitable For	Soups, sauces, baby food, shakes, dough, vegetables
Warranty	Refer to manufacturer's warranty card
Country of Origin (Licensed by)	Hyundai Corporation Holdings, Korea

Frequently Asked Questions - HB 200 HYUNDAI

How do I use the Hyundai HB 200 stick blender?

Insert the blender shaft into the measuring bowl or other vessel. Press and hold the safety button (P2) to start blending. Move the blender around for even processing. Release the button to stop. Do not operate for more than 60 seconds continuously; then let it cool for 10 minutes.

Can I blend hot liquids with this blender?

Yes, but only at temperatures up to 60 °C (approx.). Be careful to avoid sudden boiling and splashing. Do not immerse the motor unit in hot liquid.

What is the maximum blending time?

The maximum continuous operation time is 60 seconds. After that, you must wait at least 10 minutes for the motor to cool down before using it again.

Is the blender dishwasher safe?

No. The motor unit must never be immersed in water or placed in the dishwasher. Only the plastic blender shaft can be washed in hot soapy water and rinsed thoroughly. Wipe the motor unit with a damp cloth.

What safety precautions should I follow?

Always unplug the appliance before cleaning. Keep the motor unit away from water. Do not touch the sharp blades. Ensure hair, clothing, and utensils are away from rotating parts. Do not process hard food for more than 10 seconds at a time.

What can I blend with the HB 200?

It is suitable for blending soups, sauces, baby food, shakes, cocktails, vegetables, and dough. Recommended quantities are between 100 ml and 600 ml.

How do I clean the stick blender?

Unplug the appliance. Wipe the motor unit with a damp cloth. Wash the plastic blender shaft in hot water with a little detergent, rinse, and dry. Do not use abrasive cleaners or scouring pads.

What should I do if the blender stops working?

If the appliance stops during use, it may have overheated. Unplug it and let it cool down for at least 10 minutes. If it still does not work, contact a qualified service center. Do not attempt to repair it yourself.

Can I use the blender for ice or frozen ingredients?

The manual advises against operating on frozen ingredients or very hard food for more than 10 seconds, as it may cause the knife to get stuck or damage the blender. It is not recommended for crushing ice.

Where can I find the model number and technical specifications?

The model number and electrical specifications (voltage, input power) are shown on the type label of the appliance. Refer to the label on the motor unit for accurate information.

USER MANUAL HB 200 HYUNDAI

White Hyundai brand brush tool with black handle and control knob (no text or symbols on body)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

Ponorný mixér / Ponorný mixér Mikser zanurzeniowy / Stick blender / Botmixer

NÁVOD K OBSLUZE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according.

- This appliance must not be used by children. Keep the device and its supply cord out of reach of children. The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must not play with the appliance.

- If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Be careful when handling the immersion blender, the knife is very sharp!

- In case you are going to process hot liquid (mixing a hot soup with vegetables etc.), be careful because it may spurt out of the container because of sudden boil.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

• Always unplug the appliance from power supply if you leave it unattended and before cleaning.

- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

• This appliance is not intended for outdoor use.

- Do not insert or take out the plug to or from a socket with wet hands and do not pull the power cord!

- Never immerse the drive unit into water or wash it in running water!

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, grill, etc.), and wet surfaces (e.g. sinks, wash basins, etc.)

- The maximum time of processing is 1 minute. Then wait for 10 minutes, which is necessary for the drive unit to cool down. Don't operate hard food for no longer than 10 seconds. Before you remove the appliance or the drive unit from the container, let the rotating parts stop completely.

• Make sure that your hair, clothes and accessories do not get into dangerous vicinity to the rotating parts!
• Make sure the knife do not hit the walls of the utensils during operation or do not get stuck in the thick matter or frozen ingredients.!
• Make sure that the power supply cable does not get between the rotating parts of the accessories.
• Do not process food at temperature exceeding about 60 °C.
• Never insert e.g. fingers, fork, knife, spatula, spoon into rotating parts of the appliance.
• If the processed food starts to stick to the appliance (e.g. on knives), switch off the appliance and clean the accessories carefully (e.g. using a spatula).
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges. Never put it on hot surfaces or do not let it hang over the edge of a table or work tables. Hitting, stumbling or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• Do not wind the power cord around the appliance; this will extend its life.
• If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Never use the appliance for any other purpose than for that described in these instructions for use!
• The producer does not undertake any responsibility for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury by knife edge, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

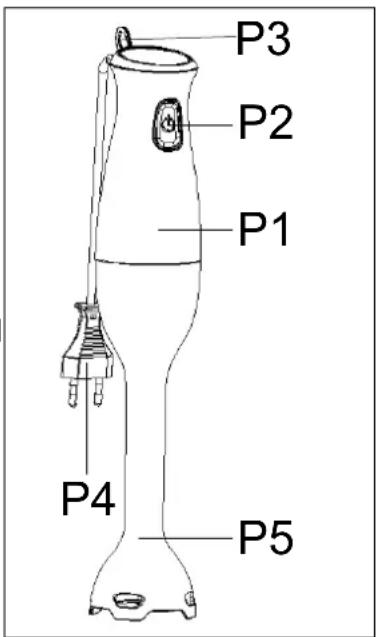

DESCRIPTION OF THE CONTROLS

P1 Motor unit

P2 Button O/I

P3 Hanging loop

P4 Power cord

P5 Plastic stick blender

INSTRUCTION FOR USE

Remove all the packing material and take out the drive unit and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, wash the parts that will be in contact with food in hot water with a detergent, rinse them thoroughly with clean water and wipe till dry, or let them dry.

Safety button (P2)

By pushing and holding the button you will start the appliance and by releasing the button you will switch off the appliance.

HOW TO USE THE HAND BLENDER

1) Introduce the hand blender in the measuring bowl. Then press the control switch level I. When working, move the mixer in the container to process the food thoroughly. After finishing work, switch off the drive unit, remove the mixer from the container and clean it. The maximum time of processing is 60 sec. Then wait for 10 minutes, which is necessary for the drive unit to cool down.
2) You can use the hand blender in the bowl and just as well in any other vessel. When blending directly in the saucepan while cooking take hand blender from overheating.

PROCESSING GUIDE

Food Maximum amount Approximate time [seconds]
Children's food, soups, sauces 100 – 600 ml 60
Shakes and cocktails 100 – 600 ml 60
Food and vegetables 100 – 500 ml 30
Dough 100 – 600 ml 60

CLEANING AND MAINTENANCE

Always unplug the appliance from the power supply before cleaning it. Do not clean with any abrasive scouring pad or steel wool, as this will be damage the finish. Do not immerse the motor unit in water or any other liquid. Do not place them in the dishwasher. Cleaning the motor unit only with a damp cloth only. The end piece with the shaft of the mixer must not be immersed during cleaning! Plastic stick blender (P5) right after use in hot water with a little detergent added, rinse it with clean water and wipe it till dry

TECHNICAL SPECIFICATIONS

Voltage (V) shown on the type label of the appliance

Input (W) shown on the type label of the appliance

Protection class of the appliance II.

Input in off mode is ≥ 0.5 W

Noise level: Acoustic noise level of 85 dB(A) re 1pW

The manufacturer reserves the right to change the technical specifications and accessories for the respective models. The picture is only illustrative.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/ accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.

material designed for contact with food

KEZELÉSI ÚTMUTATÓ

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Licensed by Hyundai Corporation Holdings, Korea.
